Frame
Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel
Fork
RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm Maxle Stealth, 160 mm travel
Max compatible fork travel
170mm (580mm axle-to-crown)
Hub front
Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Hub rear
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano 8/9/10 freehub, Boost148, 12 mm thru axle
Skewer rear
Bontrager Switch thru-axle, removable lever
Rim
Alex MD35, tubeless compatible, 32-hole, 35 mm width, Presta valve

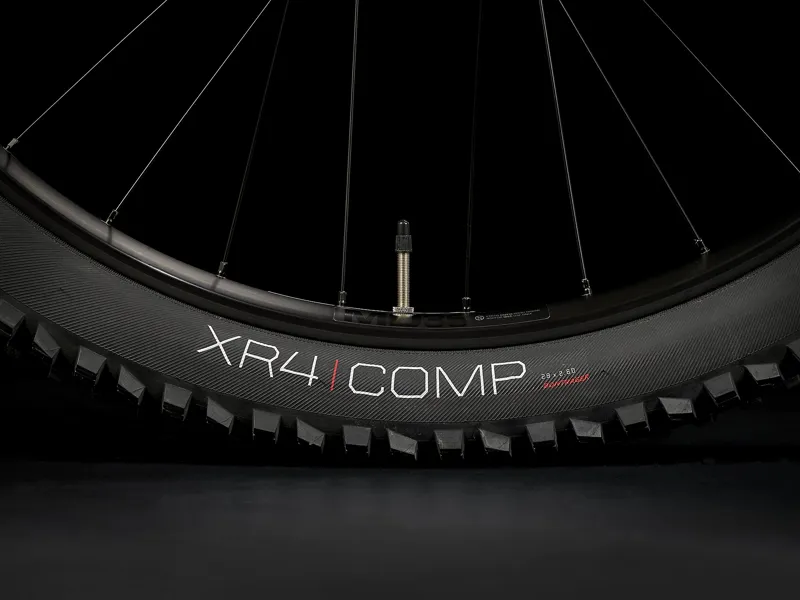

Tyre
Bontrager XR4 Comp, wire bead, 30 tpi, 29x2.60"
Max tyre size
Frame: 29x2.60" Fork: See manufacturer
Shifter
Shimano Deore M6100, 12-speed
Rear derailleur
Shimano Deore M6100, long cage
Crank arm
E*thirteen E*spec Plus, 165 mm length
Chainring
E*thirteen, 34T, steel
Cassette
SunRace CSMZ800 11-51, 12 speed
Chain
Shimano Deore M6100
Pedal
VP-536 nylon platform
Max. chainring size
34T
Saddle
Bontrager Arvada, steel rails, 138 mm width
Seatpost
Size:S
TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
Size:S
Bontrager Line Dropper, 100 mm travel, internal routing, 31.6 mm, 345 mm length
Size:M, L, XL
TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length
Size:M, L, XL
Bontrager Line Dropper, 125mm travel, internal routing, 31.6 mm, 395mm length
Handlebar
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips
Bontrager XR Trail Comp, nylon lock-on
Stem
Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length
Brake
Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper
Brake rotor
Shimano RT76, 6-bolt, 203 mm
Battery
Bosch PowerTube 625
Charger
Bosch compact 2A, 100–240V, smart system
Weight
M - 23.88 kg/52.65 lb
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
