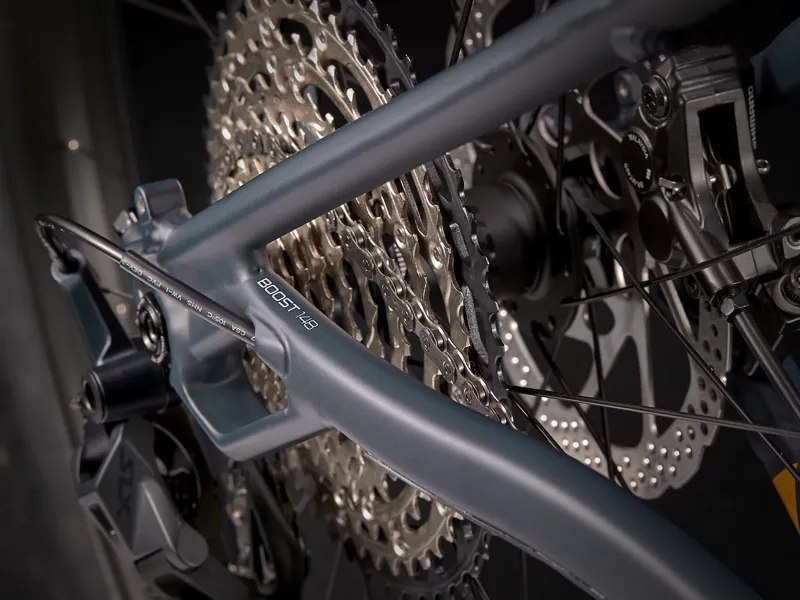

Frame
Alpha Platinum Aluminium, tapered head tube, internal derailleur & dropper post routing, proprietary rack mounts, horizontal sliding dropouts, Boost148, 12 mm thru-axle
Fork
1120 HCM Carbon, rack and mudguard mounts, Boost110, 15 mm thru axle
Front hub
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Rear hub
Bontrager alloy, Boost148, 6-bolt disc
Rim
SUNringle Duroc 50 SL, 28-hole
Spokes
14 g stainless steel
Tyre
Bontrager Chupacabra, Tubeless Ready, Inner Strength sidewalls, aramid bead, 60 tpi, 29x3.00"
Rim strip
Sun Ringle, 48mm
Shifter
Shimano SLX M7000, 11-speed

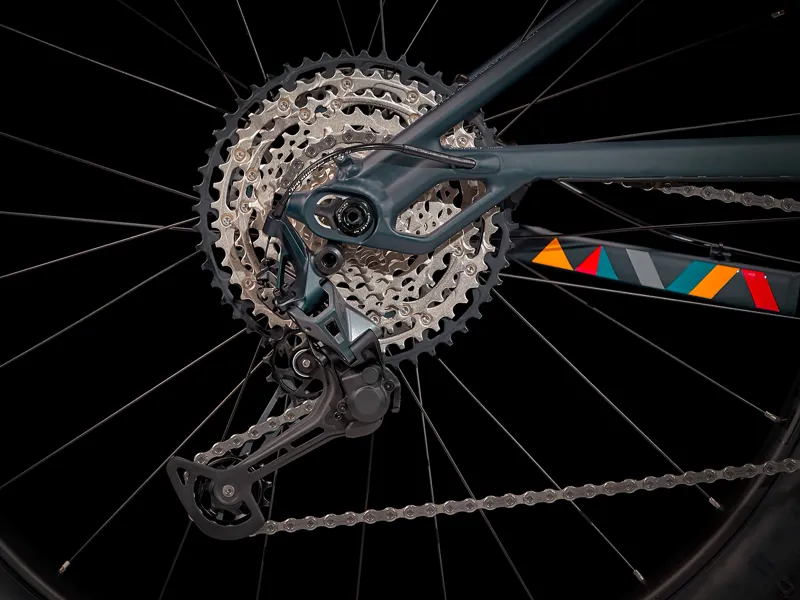

Rear derailleur
Shimano SLX M7000 GS, Shadow Plus
Crank
Race Face Aeffect, 30T Direct Mount Narrow Wide
Bottom bracket
Shimano MT500, 92 mm, PressFit
Cassette
Shimano SLX M7000, 11-46, 11-speed
Chain
Shimano 105 HG601, 11-speed
Saddle
Bontrager Montrose Comp, chromoly rails
Seatpost
Bontrager Line Dropper, 100 mm travel, internal routing, 31.6 mm, 345 mm length
Handlebar
Bontrager Crivitz, alloy, 31.8 mm, 0 mm rise, 690 mm width
Grips
Bontrager Race Lite, lock-on
Stem
Bontrager Elite Basic, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
Head set
FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom

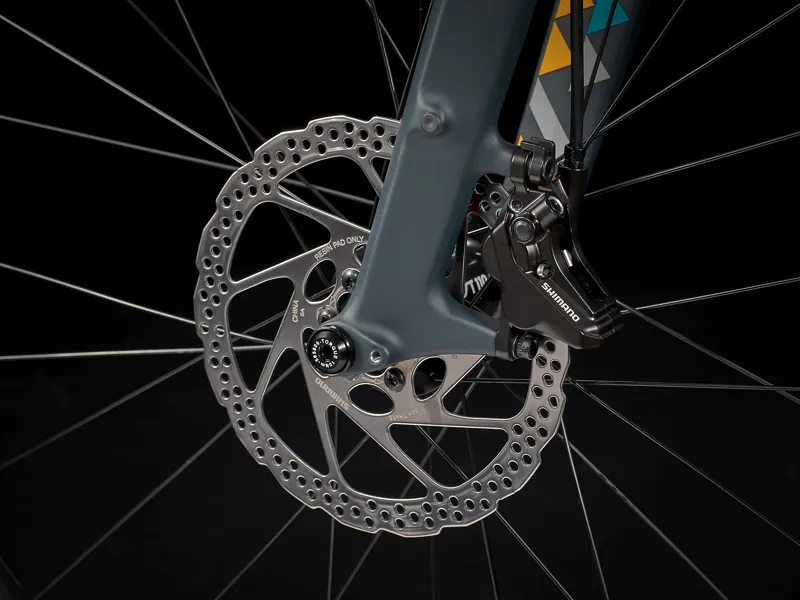

Brake
SRAM Level T hydraulic disc
Brake rotor
SRAM CenterLine, 6-bolt, round-edge, 180mm
Cargo rack
Size: 15.5 - 1120 Adventure
Size: 15.5 - 1120 Adventure rack system with dry-bag holders
Weight
17.5 - 14.11 kg / 31.1 lbs
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb)
