TREK Checkpoint SL 5 AXS Gen 3 Gravel Bike in Lava and Black Olive

Season:2025

Brand:Trek

Code:47071RED

The Trek Checkpoint SL 5 AXS Gen 3 is an ideal gravel bike designed for long-distance adventures, bikepacking, and tackling rough terrains. Built with comfort in mind, this bike is packed with features to ensure that you can ride further and explore new horizons with confidence.

Key Features:

  1. 500 Series OCLV Carbon Frame:

    • Lightweight and durable, the 500 Series OCLV Carbon frame is engineered to keep your ride smooth and efficient, reducing the fatigue that can come from riding on rough gravel roads.
  2. IsoSpeed Comfort Technology:

    • IsoSpeed decoupler technology is integrated into the frame to soak up road vibrations and bumps, allowing you to stay fresher for longer rides. This comfort feature is especially beneficial on rougher surfaces and long bike-packing journeys.
  3. Gravel Endurance Geometry:

    • The Gravel Endurance geometry offers a higher, more upright position with a shorter reach, making long rides more comfortable. This geometry is tailored for all-day adventures, light singletrack, and long gravel tours.

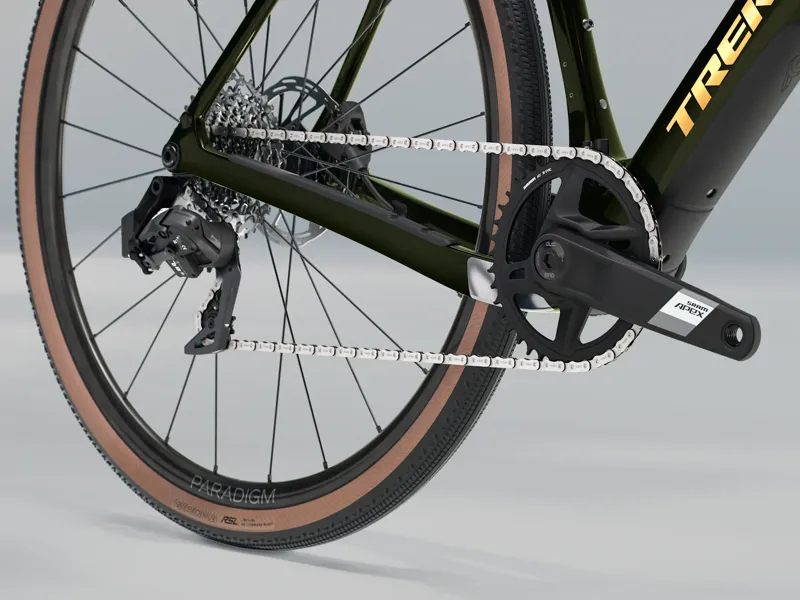

  4. SRAM Apex XPLR AXS 12-Speed Drivetrain:

    • The bike is equipped with a 12-speed 1x SRAM Apex XPLR AXS drivetrain, offering wireless electronic shifting that is precise and reliable on rough roads. This drivetrain is designed specifically for gravel riding, giving you plenty of gearing options for varied terrain.
  5. Wide Tyre Clearance:

    • The frame allows for 50 mm tyre clearance (as measured), giving you the flexibility to fit wider tires for extra traction and cushioning on rough roads.
  6. Bontrager Paradigm SL Wheels:

    • The Tubeless Ready Bontrager Paradigm SL wheels come with 42 mm tires that balance grip and speed, and they are ready to convert to tubeless for reduced risk of flats and better performance on rough terrain.
  7. Internal Downtube Storage:

    • The bike features internal downtube storage, allowing you to store tools or other essentials within the frame itself, keeping your gear secure and out of the way.

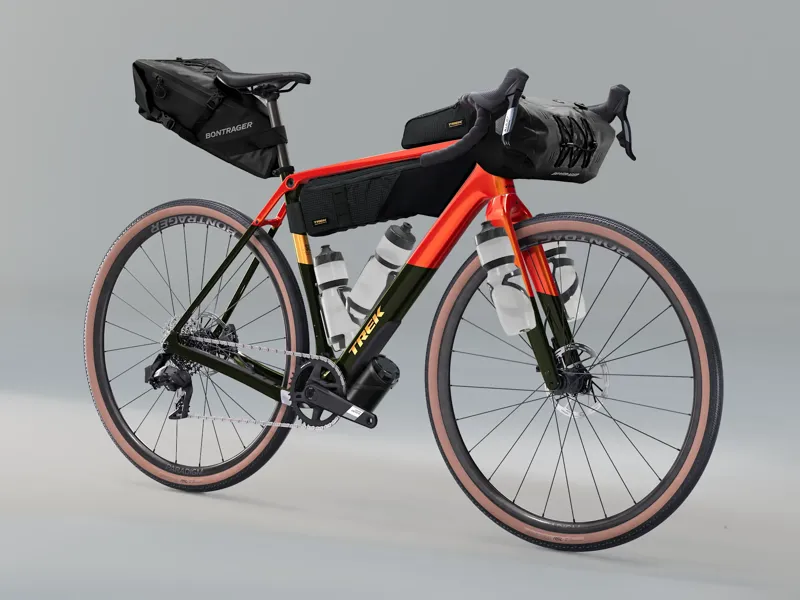

  8. Mounts for Gear:

    • With plenty of mounts on the frame and fork, you can carry all the gear you need for long adventures. These mounts accommodate hydration, front and rear racks, mudguards, and Adventure Bags designed to fit the Checkpoint perfectly.
  9. Dropper Post and Suspension Fork Compatibility:

    • The bike is also dropper post and suspension fork compatible (except for size XS), adding even more versatility for riders who want to handle more technical terrain.

The Trek Checkpoint SL 5 AXS Gen 3 is built for gravel enthusiasts who crave adventure and exploration. Its carbon frame, IsoSpeed technology, and endurance-focused geometry provide a comfortable and smooth ride, even on the roughest surfaces. With a reliable SRAM wireless drivetrain, wide tire clearance, and multiple gear-mounting options, this bike is ready for bikepacking, long gravel races, or simply exploring the road less traveled.

Technical Information

*Please note – spec applies to all sizes unless listed separately

Frameset
Frame500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden mudguard mounts, rack mounts, integrated frame bag mounts, invisible cable routing, T47, flat-mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12 mm chamfered thru axle

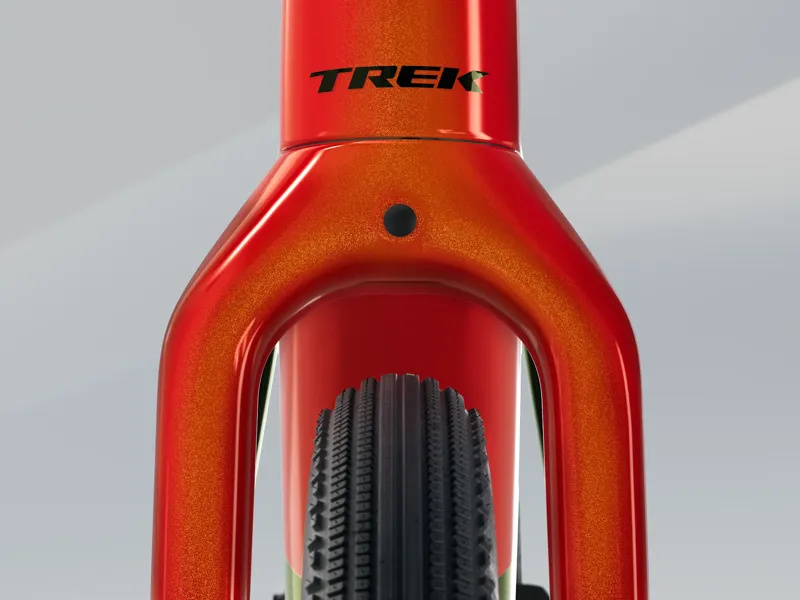

ForkCheckpoint full carbon, tapered carbon steerer, fender mounts, triple rack mounts, flat mount disc, 12x100mm chamfered thru axle
Max compatible fork travel40 mm (XS: compatible with rigid fork only)
Weight
WeightML - 9.50 kg / 20.95 lbs (with TLR sealant, no tubes)
Weight limitThis bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
E-system
BatterySRAM eTap battery pack (with charger)
Drivetrain
Rear derailleurSRAM Apex XPLR eTap AXS, 44T max cog
*CrankSize:XS, S
SRAM Apex 1, 40T, DUB Wide, 165 mm length
Size:M
SRAM Apex 1, 40T, DUB Wide, 170 mm length
Size:ML, L
SRAM Apex 1, 40T, DUB Wide, 172.5 mm length
Size:XL
SRAM Apex 1, 40T, DUB Wide, 175 mm length
Bottom bracketSRAM DUB, T47 threaded, internal bearing
CassetteSRAM XPLR PG-1231, 11-44, 12-speed
ChainSRAM Apex, 12-speed
Max. chainring size1x:44 2x: 46/30
Wheels
Wheel frontBontrager Paradigm SL, Tubeless Ready, 21 mm rim width, 100x12 mm thru axle
Wheel rearBontrager Paradigm SL, Tubeless Ready, 21 mm rim width, 142x12 mm thru axle
Hub frontBontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
Skewer frontBontrager Switch chamfered thru axle, removable lever
Hub rearBontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
Skewer rearBontrager Switch chamfered thru axle, removable lever
RimBontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Spokes14 g stainless steel, black
*TyreSize:XS, S, M, ML, L, XL
Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm
Size:XS, S, M, ML, L, XL
Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700x42 mm
Tyre partBontrager TLR sealant, 180 ml/6 oz
Rim stripBontrager TLR
Max tyre size50 mm without mudguards, 42 mm with mudguards
Components
*SaddleSize:XS, S
Verse Short Comp, steel rails, 155 mm width
Size:M, ML, L, XL
Verse Short Comp, steel rails, 145 mm width
SeatpostBontrager carbon, 27.2 mm, 8 mm offset, 330 mm length

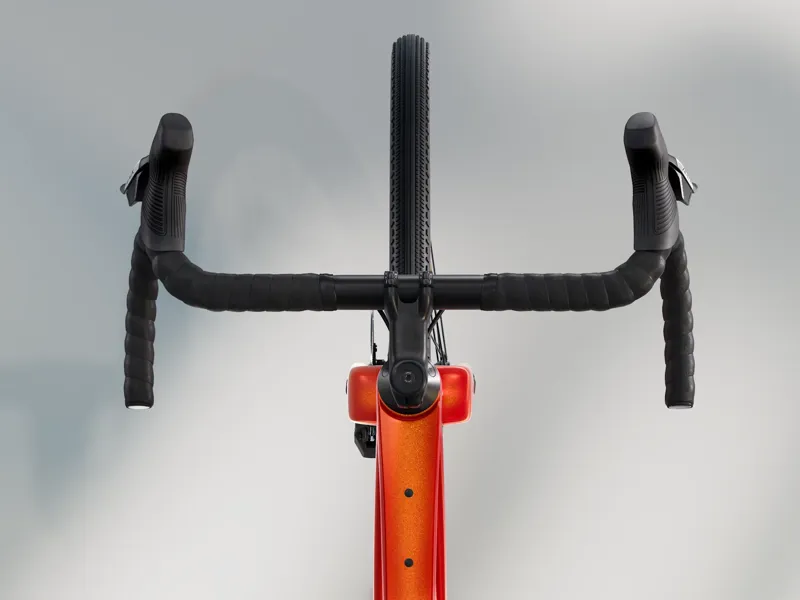

*HandlebarSize:XS
Bontrager Elite Gravel, alloy, 40 cm width
Size:S, M
Bontrager Elite Gravel, alloy, 42 cm width
Size:ML, L
Bontrager Elite Gravel, alloy, 44 cm width
Size:XL
Bontrager Elite Gravel, alloy, 46 cm width
Handlebar tapeBontrager Supertack Perf tape
*StemSize:XS
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
Size:S
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size:M, ML
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size:L
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Size:XL
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Brake rotorSRAM Paceline, rounded, CentreLock, 160 mm
Rotor sizeMax brake rotor sizes: 180mm front and rear
Sizing Information
size-table
SizeRider HeightInseam
XS

143 - 158 cm

4'8" - 5'2"

67 - 74 cm

26" - 29"

S

158 - 162 cm

5'2" - 5'4"

74 - 76 cm

29" - 30"

M

162 - 173 cm

5'4" - 5'8"

76 - 81 cm

30" - 32"

ML

173 - 179 cm

5'8" - 5'10"

81 - 84 cm

32" - 33"

L

179 - 188 cm

5'10" - 6'2"

84 - 88 cm

33" - 35"

XL

188 - 213 cm

6'2" - 7'0"

88 - 100 cm

35" - 39"
