Frame

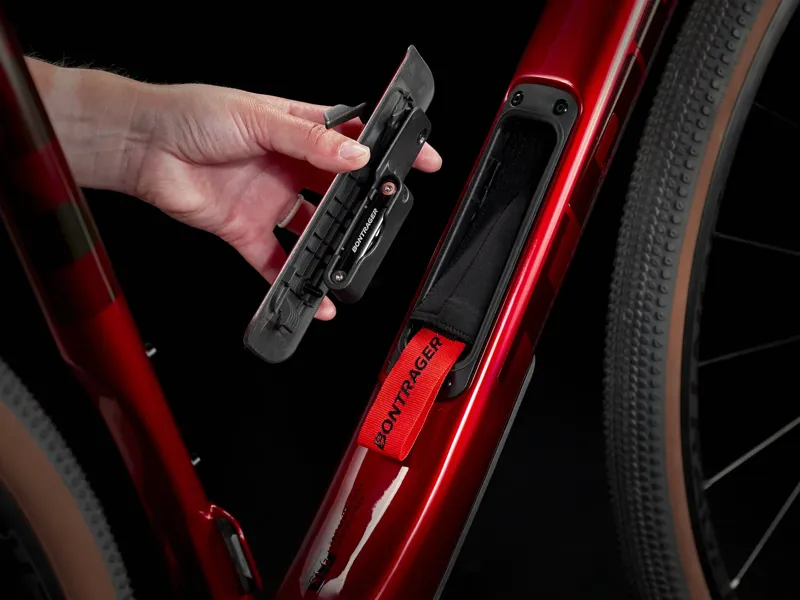

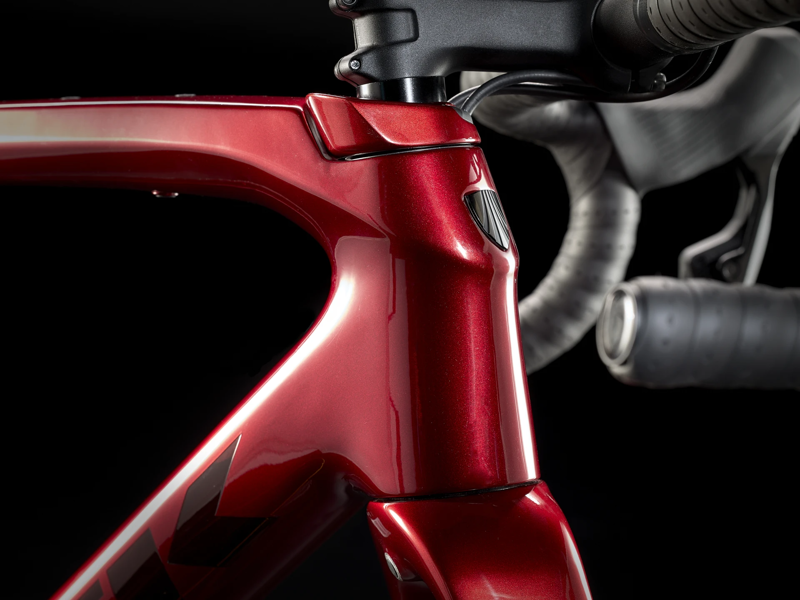

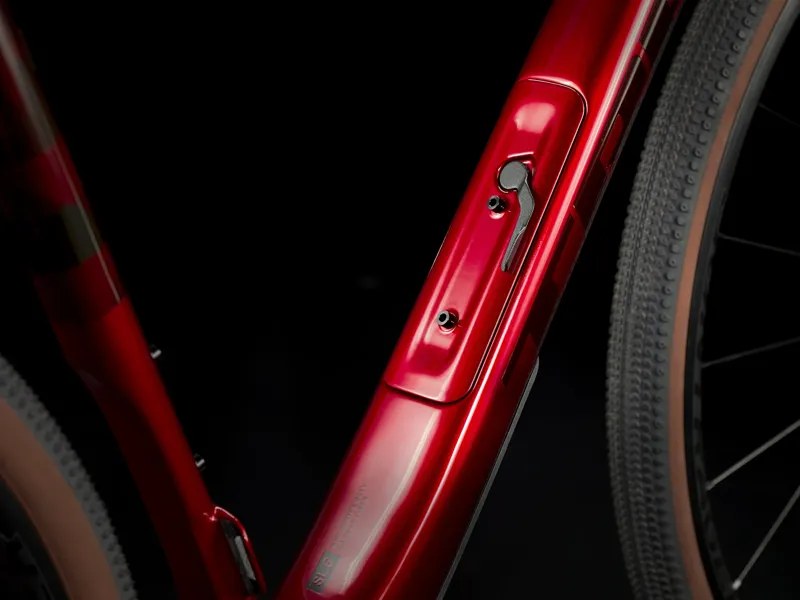

500 Series OCLV Carbon, IsoSpeed, internal cable routing, downtube storage door, 3S chain keeper, T47 BB, rack and mudguard mounts, integrated frame bag mounts, flat-mount disc, dropper post compatible, 142x12 mm thru axle
Frame fit
Gravel
Wheel front
Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle
Wheel rear
Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, SRAM XD-R 12-speed freehub, 142x12 thru axle
Hub front
Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle
Skewer front
Bontrager Switch thru axle, removable lever
Hub rear
Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, SRAM XD-R freehub, 142x12 thru axle
Skewer rear
Bontrager Switch thru-axle, removable lever
Rim
Bontrager Paradigm Comp 25, Tubeless-Ready, 25 mm rim width
Tyre
Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40 c
Rim strip
Bontrager TLR
Max tyre size
700x45c / 650x2.1" Bontrager tyres
Shifter
SRAM Rival eTap AXS, 12-speed

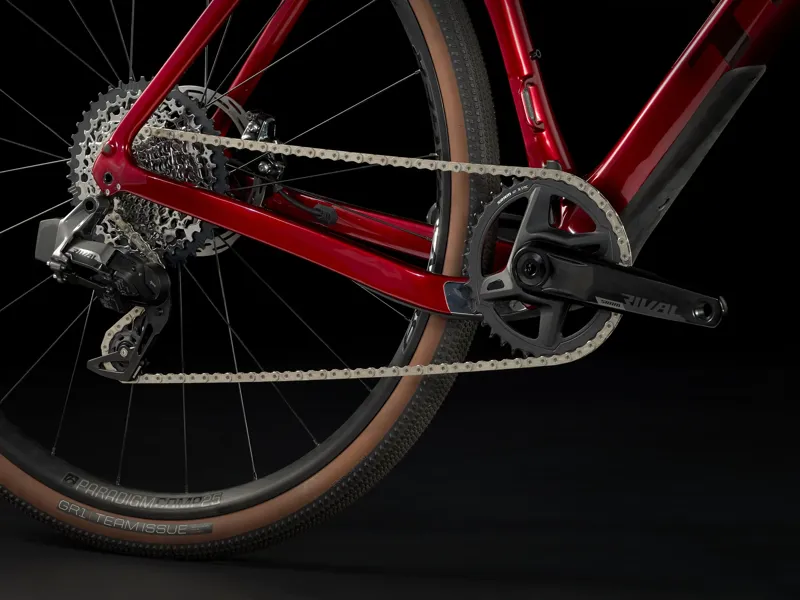

Rear derailleur
SRAM Rival XPLR eTap AXS, 44T max cog

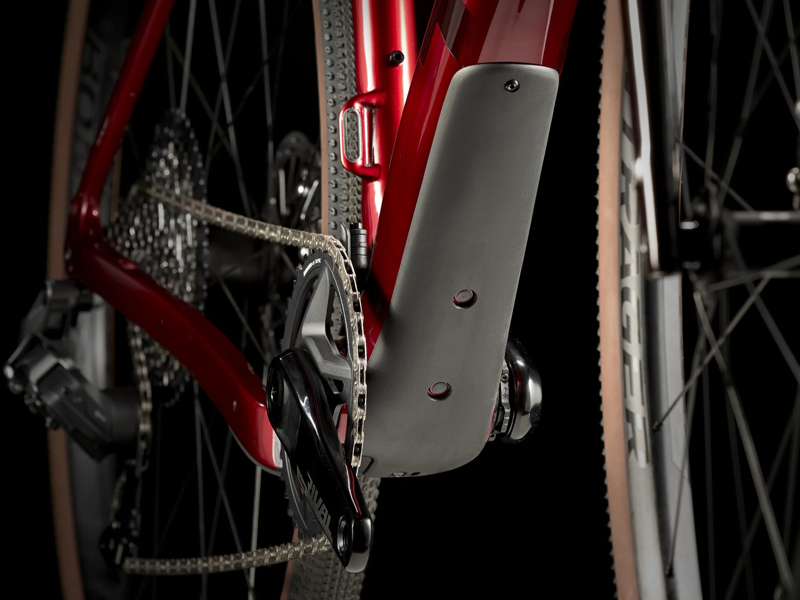

Crank
Size: 49
SRAM Rival, 40T, DUB Wide, 165 mm length
Size:52
SRAM Rival, 40T, DUB Wide, 170 mm length
Size:54, 56
SRAM Rival, 40T, DUB Wide, 172.5 mm length
Size:58, 61
SRAM Rival, 40T, DUB Wide, 175 mm length
Bottom bracket
SRAM DUB, T47 threaded, internal bearing
Cassette
SRAM XG-1251, 10-44, 12 speed
Max. chainring size
1x: 46T, 2x: 50/37 (Shimano: 36)
Saddle
Size: 49, 52
Bontrager Verse Comp, steel rails, 155 mm width
Size:54, 56, 58, 61
Bontrager Verse Comp, steel rails, 145 mm width
Seatpost
Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
Handlebar
Size: 49
Bontrager Elite Gravel, 38 cm width
Size:52
Bontrager Elite Gravel, 40 cm width
Size:54, 56
Bontrager Elite Gravel, 42 cm width
Size:58, 61
Bontrager Elite Gravel, 44 cm width
Stem
Size: 49
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size:52, 54
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size:56, 58
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Size:61
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Brake rotor
SRAM Paceline, rounded, CenterLock, 160 mm
Rotor size
Max brake rotor sizes: 160 mm front and rear

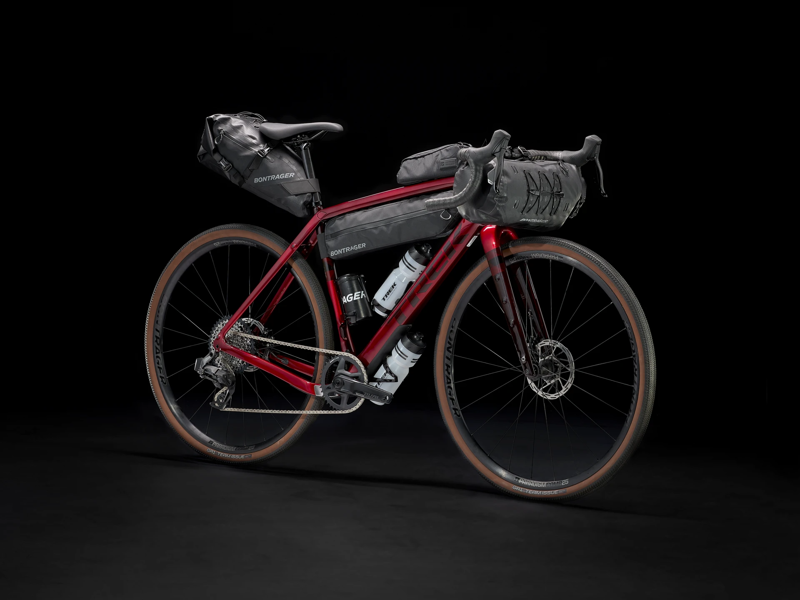

Bag
Bontrager BITS Internal Frame Storage Bag
Electronics
SRAM eTap battery pack (with charger)
Weight
9.05 kg/19.96 lb
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
