Frame

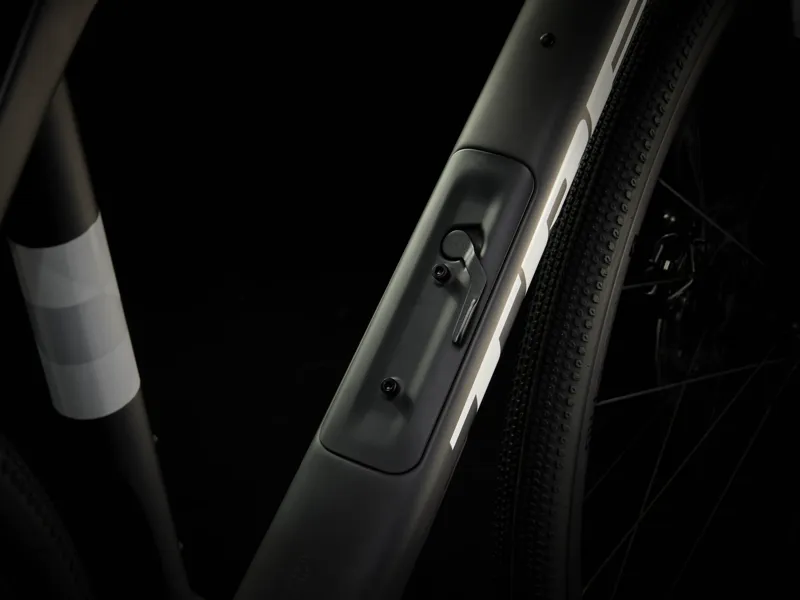

500 Series OCLV Carbon, IsoSpeed, internal cable routing, downtube storage door, 3S chain keeper, T47 BB, rack and mudguard mounts, integrated frame bag mounts, flat-mount disc, dropper post compatible, 142x12 mm thru axle
Fork

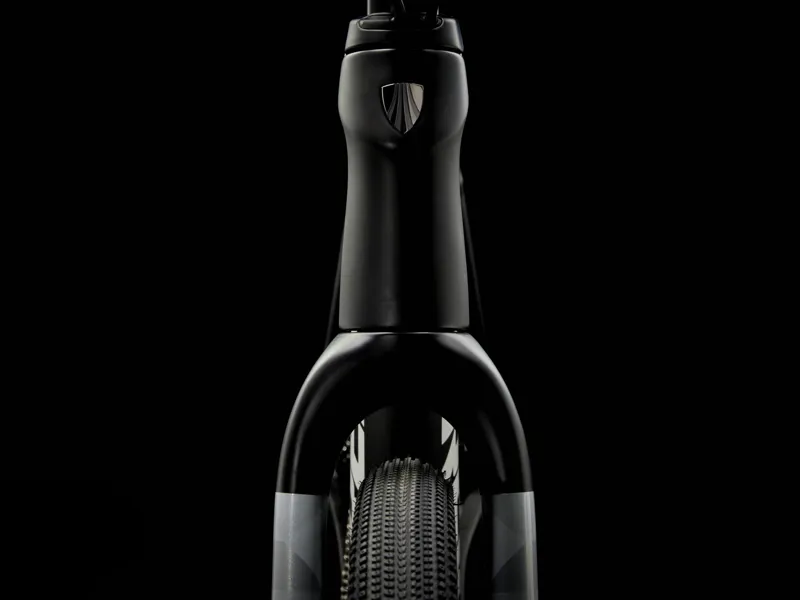

Trek Checkpoint, full carbon, tapered carbon steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle
Wheel front
Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle
Wheel rear
Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25 mm rim width, 142x12 mm thru axle
Skewer front
Bontrager Switch thru axle, removable lever
Skewer rear
Bontrager Switch thru-axle, removable lever
Tyre
Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700 x 40 c
Tyre part
Bontrager TLR sealant, 180 ml/6 oz
Rim strip
Bontrager TLR
Max tyre size
700x45mm / 650x2.10"
Shifter

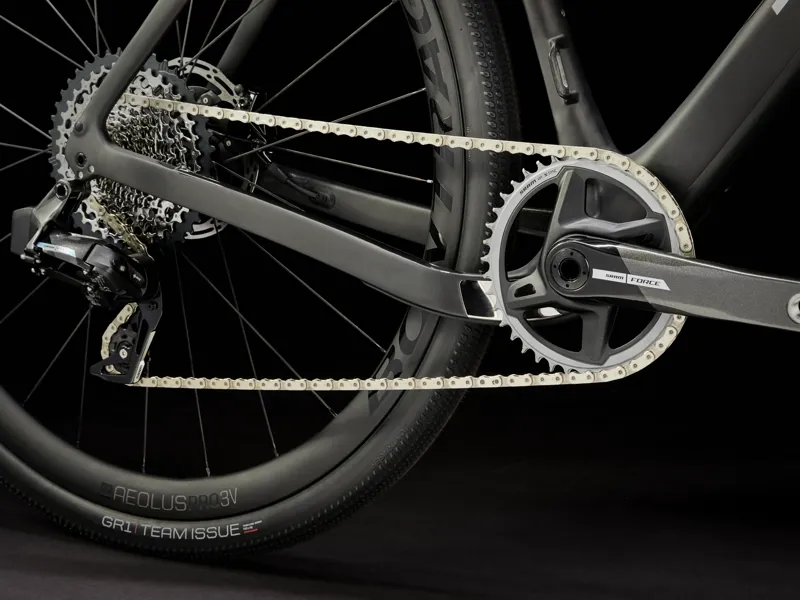

SRAM Force AXS D2, 12-speed
Rear derailleur
SRAM Force XPLR AXS D2, 44T max cog
Crank
Size: 49
SRAM Force 1 D2, 40T, DUB, 165 mm length
Size:52
SRAM Force 1 D2, 40T, DUB, 170 mm length
Size:54, 56
SRAM Force 1 D2, 40T, DUB, 172.5 mm length
Size:58, 61
SRAM Force 1 D2, 40T, DUB, 175 mm length
Bottom bracket
SRAM DUB, T47 threaded, internal bearing
Cassette
SRAM XG-1271, 10-44, 12-speed
Chain
SRAM Force, 12 speed
Max. chainring size
1x: 46T, 2x: 50/37
Saddle
Size: 49, 52
Bontrager Verse Comp, steel rails, 155 mm width
Size:54, 56, 58, 61
Bontrager Verse Comp, steel rails, 145 mm width
Seatpost
Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
Handlebar
Size: 49
Bontrager Elite Gravel, 38 cm width
Size:52
Bontrager Elite Gravel, 40 cm width
Size:54, 56
Bontrager Elite Gravel, 42 cm width
Size:58, 61
Bontrager Elite Gravel, 44 cm width
Handlebar tape
Bontrager Supertack Perf tape
Stem
Size: 49
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size:52, 54
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size:56, 58
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Size:61
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Brake rotor
SRAM CentreLine X, CentreLock, round edge, 160 mm
Rotor size
Max brake rotor sizes: 160mm front & rear
Battery
SRAM eTap battery pack (with charger)
Bag

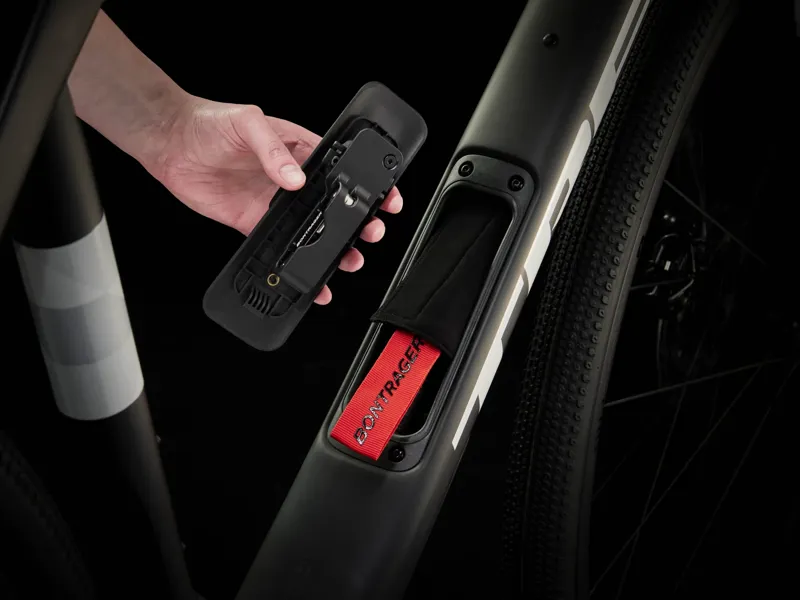

Bontrager BITS Internal Frame Storage Bag
Weight
56 - 9.05 kg / 19.96 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
