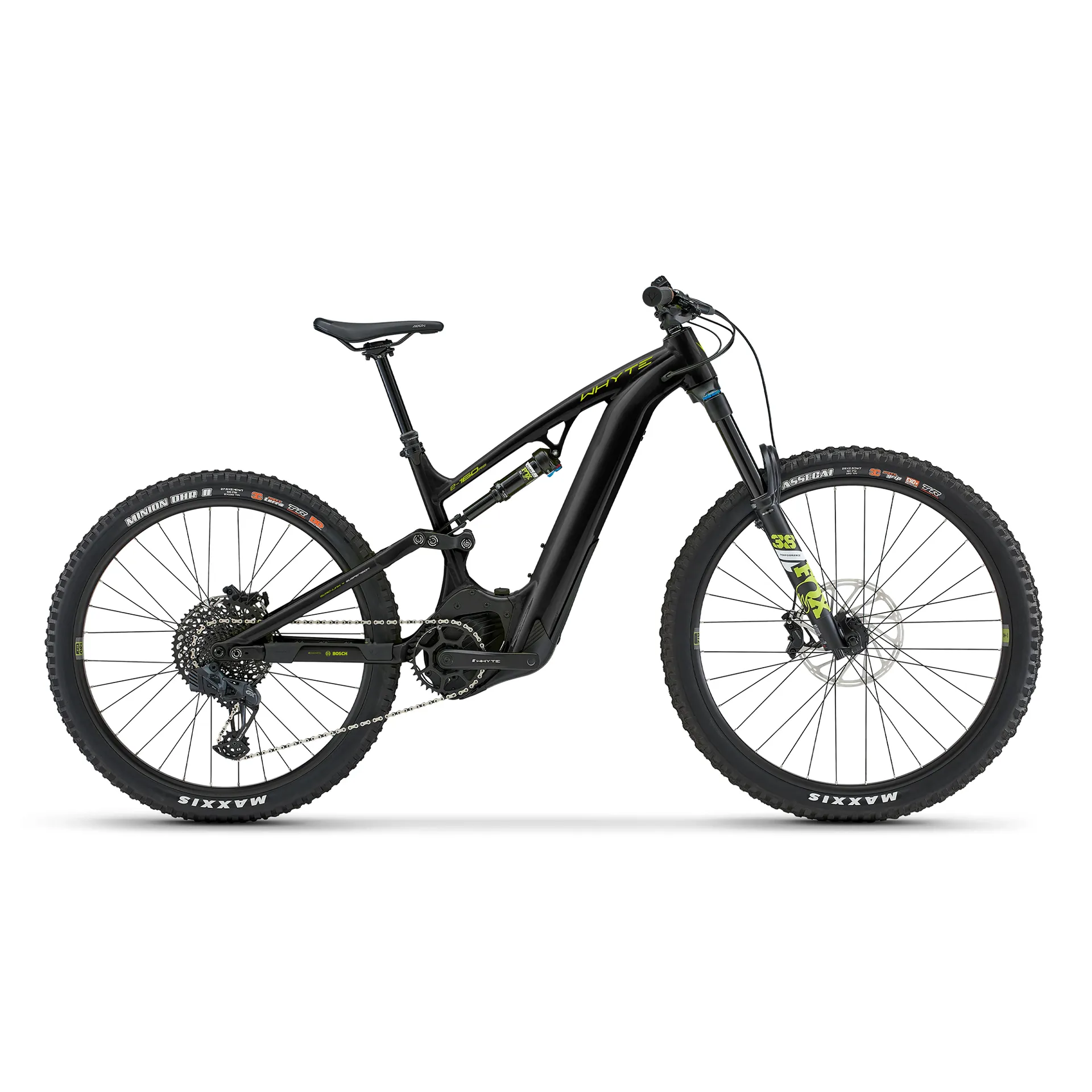

We’ve matched our brand-new frame with a rail mounted maximum capacity 750Wh Bosch battery Bosch Performance Line CX motor and smart system control suite with SRAM’s wireless GX AXS shifting. That means race dominating power with all day range, modular display options, the complete ride Bosch eBike Flow app and the fastest, slickest, cleanest gearing available.
Colour- Gloss Lime with Black & White
Frame- 6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Custom Drawn, Tapered Headtube, Internal Cable Routing, Shape.it Link and 12mm X 148mm Boost Dropouts
Fork- Fox Float 38, Performance 29", 160mm Travel, 44mm Offset with Grip Damper, 3pos Adjust, Tapered Steerer, 110mm x 15mm Boost, E-Thru Axle
Rear Shock- Fox Float Performance DPS, Evol LV, Custom Tuned for Whyte, 3Pos Adjustable Compression and Rebound Damping
Headset- FSA No. 55/35 Orbit 1.5 ZS, 1.8" Lower and 1 1/8" Upper Sealed Cartridge Bearings
Rear Hub- Alloy, E-Bike Specific, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Thru Axle, 32 Hole
Front Hub- Alloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Thru Axle, 32 Hole
Spokes- DT Swiss New Champion 2.0mm, Black Stainless, Brass Nipples
Rims- WTB HTZ i30 TCS 2.0 System, Asymmetric, Sleeved Joint, Super Tough Construction, Tubeless Ready, 32 Hole
Tyres- Maxxis Assegai WT, TR, 29" x 2.5" 120TPI, EXO+ Casing, 3C Maxx Grip, Dual Compound, Front, Maxxis Minion DHR II WT, TR, 27.5" x 2.4" 120TPI, Double Down, 3C Maxx Terra, Dual Compound, Folding Bead, Rear
Shift Levers- SRAM GX AXS Eagle, 2 Button MMX
Front Derailleur- N/A
Rear Derailleur- SRAM GX1 AXS Lunar with Battery Protector
Cassette- SRAM XG-1275 Eagle, 10-50, 12 Speed
Chain- SRAM GX Eagle, 12 Speed
Crankset- SRAM EX1, 165mm, ISIS with X-SYNC 2, Direct Mount 36T for Bosch Performance Line CX, Black
Bottom Bracket- N/A
Seatpost- Crank Bro High-Line 3, 30.9mm, M/L 150mm, XL 170mm Travel, High-Line Ball Socket Remote Lever
Seat- Fizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail
Handlebar -Whyte Custom 6061 Alloy, 30mm Rise, 35mm Bar Bore, 780mm Wide
Stem- Whyte Enduro Stem, 35mm Bar Bore, 35mm Extension
Grips- Whyte Lock-on Enduro Grip
Front Brakes- SRAM Code R, 4 Piston with Sintered Metal Pads, 220mm Disc
Rear Brakes- SRAM Code R, 4 Piston with Sintered Metal Pads, 200mm Disc
Brake Levers- SRAM Code R, MMX
e-Bike Information
Drive Unit- Bosch Performance Line CX (25km/h) 85Nm
Battery- Bosch Power Tube PT750 Horizontal
BatteryCharger - 4A (230V)
Display- Bosch LED Remote
