Key Spec
Bosch CX Smart System with 750WH battery and new LED remote controller
Exclusive Whyte custom-tuned RockShox Deluxe Select R and ZEB suspension
SRAM GX Eagle drivetrain
Guide RE Brakes
Colour - Gloss Turquoise with Black & White
Frame - 6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Custom Drawn, Tapered Headtube, Internal Cable Routing, Shape.it Link and 12mm X 148mm Boost Dropouts
Fork - RockShox ZEB 29”, 160mm Travel, 44mm Offset, DebonAir, Rush RC Damper, Fast Black Coating, Tapered Steerer, 110mm x 15mm Boost, Maxle Ultimate

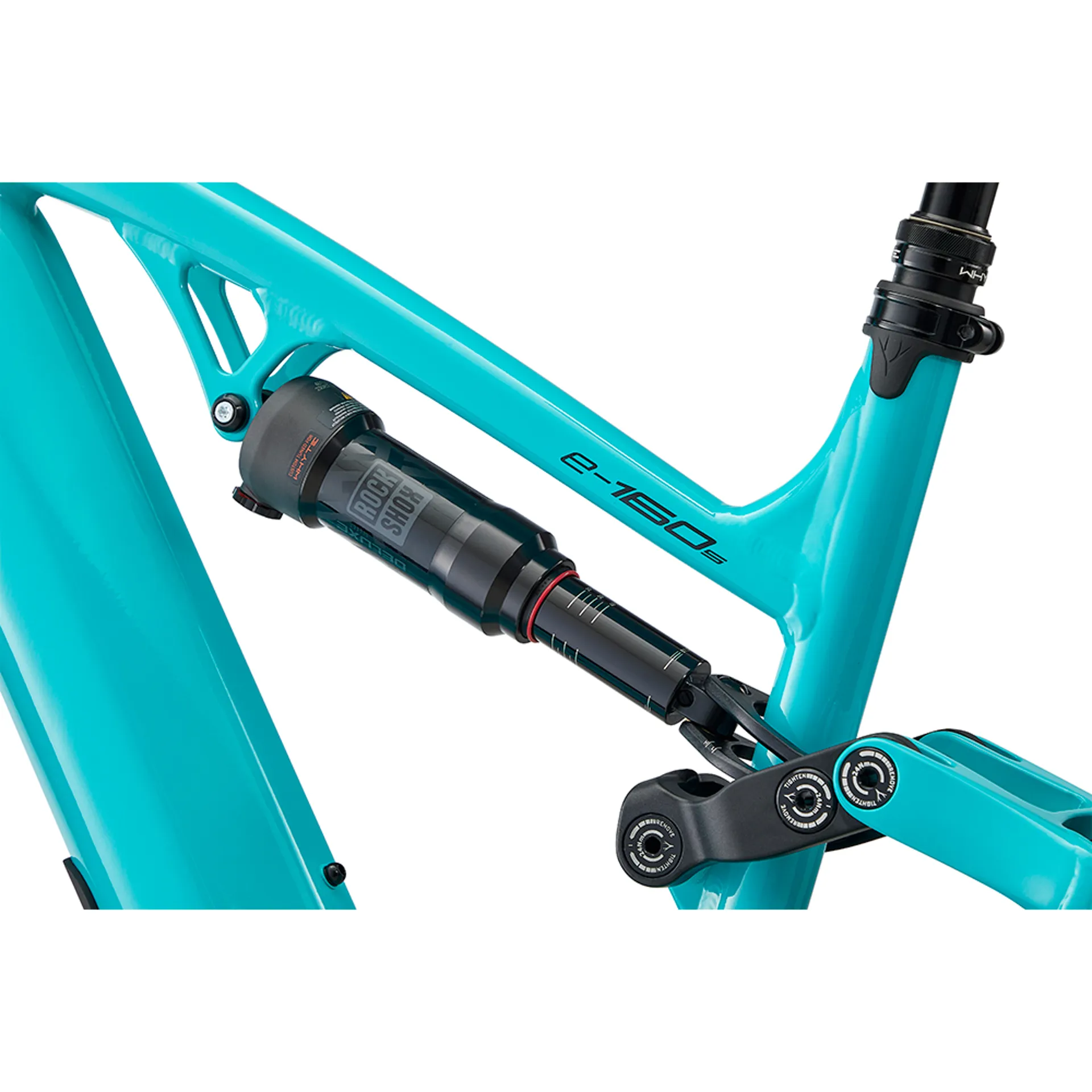

Rear Shock - RockShox Deluxe Select R, Fast Black Coating, Adjustable Rebound
Headset -FSA No. 55R/35 Orbit 1.5 ZS, 1.8” Lower and 1 1/8” Upper Sealed Cartridge Bearings
Rear Hub - Alloy, e-bike specific, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Thru Axle, 32 Hole#
Front Hub - Alloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Thru Axle, 31mm Torque Caps, 32 Hole
Spokes - DT Swiss New Champion 2.0mm, Black Stainless, Brass Nipples
Rims - WTB HTZ i30 TCS 2.0 System, Asymmetric, Sleeved Joint, Super Tough Construction, Tubeless Ready, 32 Hole
Tyres - Maxxis Assigai WT, TR, 29” x 2.5” 120TPI, EXO+ Casing, 3C Maxx Grip, Dual Compound, Front, Maxxis Minion DHR II WT, TR, 29” x 2.4” 120TPI, Double Down, 3C Maxx Terra, Dual Compound, Folding Bead, Rear
Shift Levers - SRAM GX Eagle Lunar, Single Click, MMX, 12 Speed
Front Derailleur - N/A

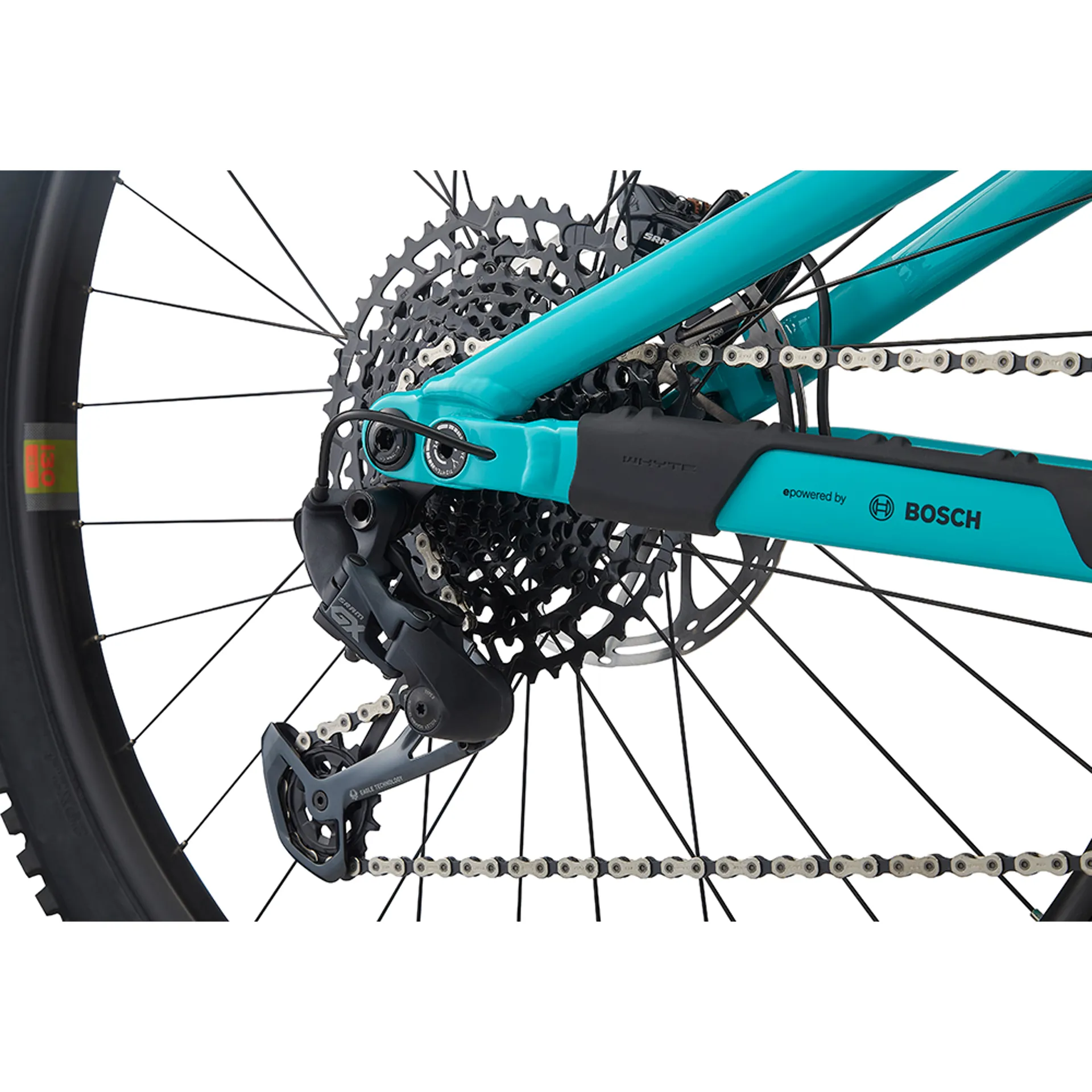

Rear Derailleur - SRAM GX Eagle Lunar, 12 Speed
Cassette - SRAM PG1210, 11-50, 12 Speed
Chain - SRAM GX Eagle, 12 Speed

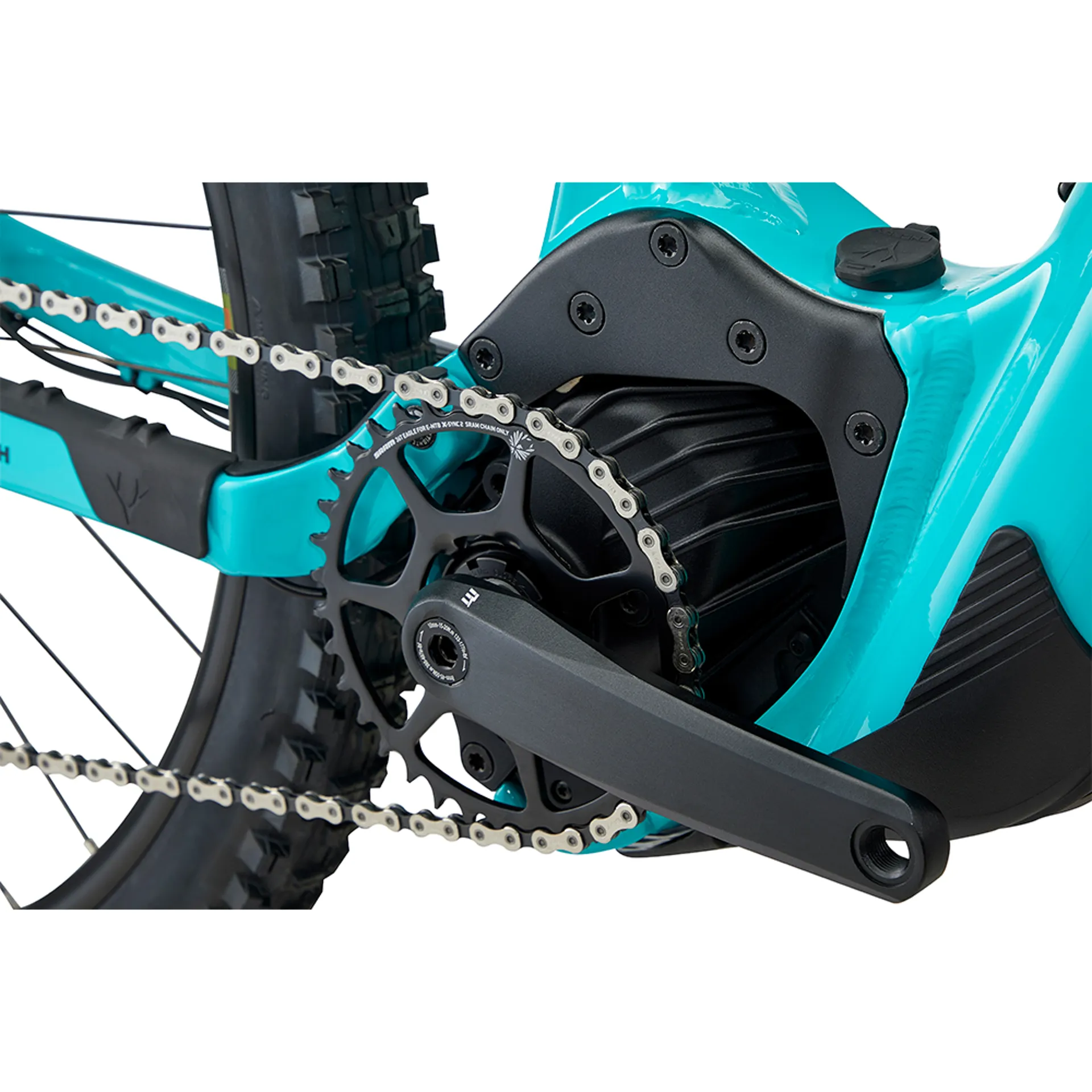

Crankset - SRAM EX1, 165mm, ISIS with X-SYNC 2, Direct Mount 36T for Bosch Performance Line CX, Black
Bottom Bracket - N/A

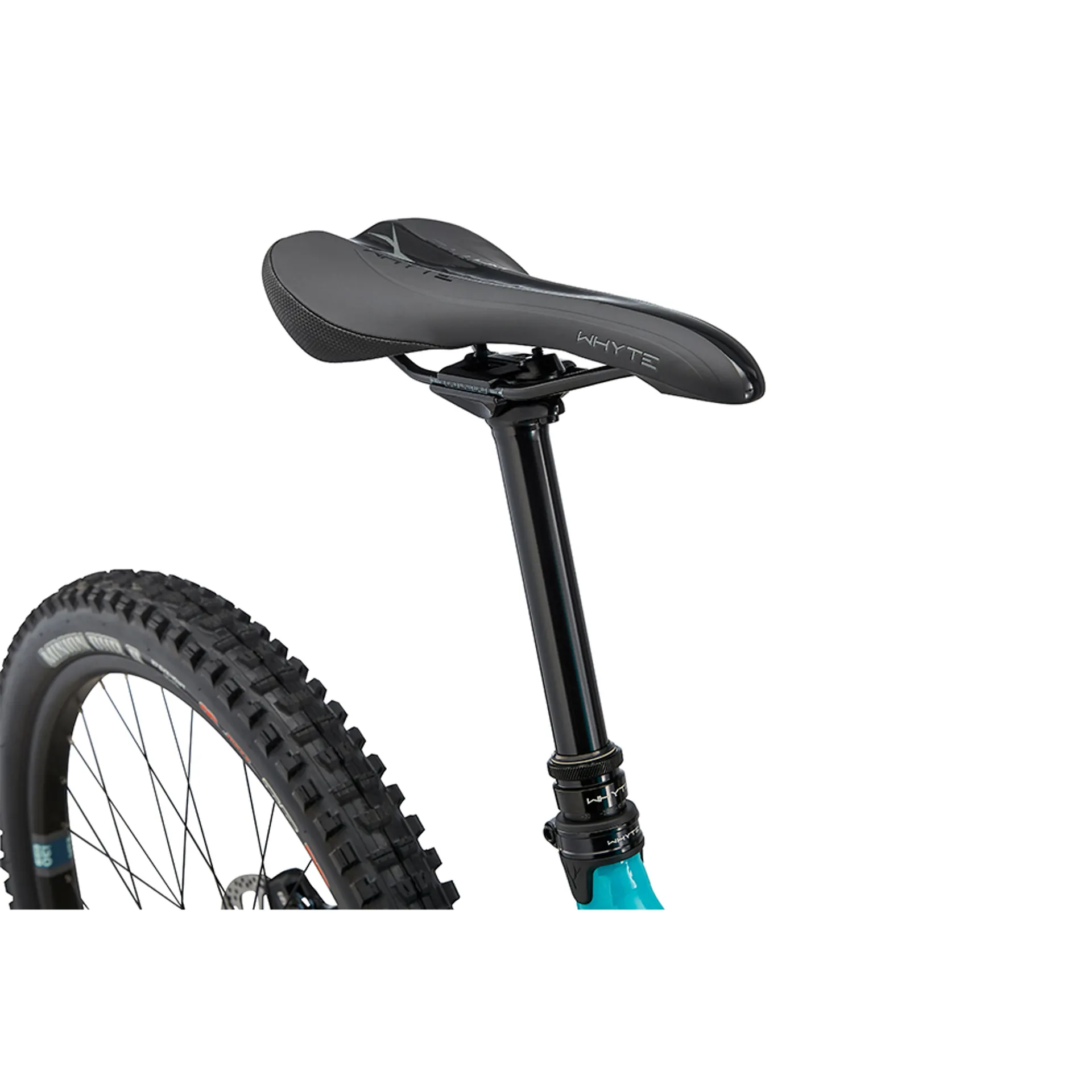

Seatpost - Whyte drop.it Adjust, 30.9mm, M/L 140-170mm Travel, XL 170-200mm Travel, MMX Paddle Remote Lever
Seat - Whyte Custom, Dual Density, Triple Panel Design
Handlebar - Whyte Custom 6061 Alloy, 30mm Rise, 35mm Bar Bore, 780mm Wide
Stem - Whyte Enduro Stem, 35mm Bar Bore, 35mm Extension
Grips - Whyte Lock-on Enduro Grip
Front Brakes - SRAM Guide RE, 4 Piston with Sintered Metal Pads, 220mm Disc
Rear Brakes- SRAM Guide RE, 4 Piston with Sintered Metal Pads, 200mm Disc
Brake Levers - SRAM Guide RE, MMXPedalsNone
e-Bike Information
Drive Unit - Bosch Performance Line CX (25km/h) 85Nm
Battery - Bosch Power Tube PT750 Horizontal
Battery Charger - 4A (230V)

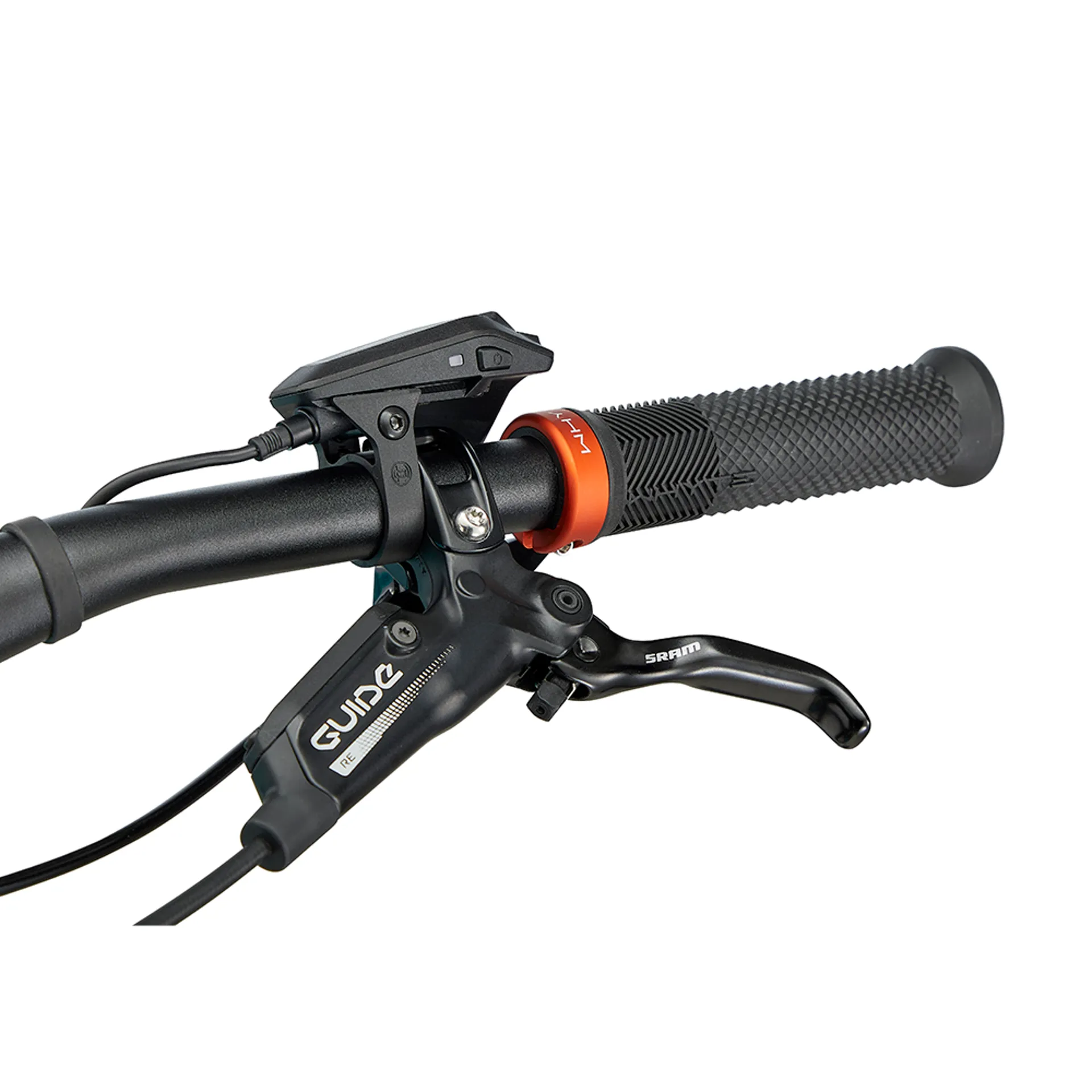

Display - Bosch LED Remote
