Cube Kathmandu Hybrid 45 Trapeze 750Wh Electric Hybrid Bike in Grey Reflex and Black

Season:2025

Brand:Cube

Code:731401GRY

The Cube Kathmandu Hybrid 45 Trapeze 750Wh Electric Hybrid Bike is a high-performance speed pedelec engineered to elevate your urban mobility experience. Designed for riders who demand both power and versatility, this e-bike offers a combination of advanced technology, comfort, and practicality, making it ideal for daily commutes or long-distance adventures.

Key Features:

Power and Performance:

  • Bosch Performance Line Speed Motor: The fourth-generation Bosch Performance Line Speed motor delivers 85Nm of torque, allowing the bike to reach speeds of up to 45 km/h (28 mph). This powerful motor ensures swift and efficient travel, even on longer routes.
  • 750Wh Bosch Battery: Integrated into the down tube, the high-capacity 750Wh Bosch battery provides an extended range, making it possible to cover more ground with fewer recharges.

Transmission and Drivetrain:

  • Shimano 10-Speed Linkglide Transmission: The Shimano Linkglide transmission offers smooth and durable shifting, designed to withstand the rigors of high-speed e-biking. The 48T chainring enhances power transfer, making it easy to maintain speed.

Suspension and Braking:

  • Suntour Mobie45 Air Suspension Fork: The Suntour Mobie45 air suspension fork with 45mm of travel ensures a smooth and comfortable ride, even on rough city streets.
  • Magura Hydraulic Disc Brakes: Equipped with powerful Magura hydraulic disc brakes, the bike ensures reliable and responsive stopping power in all weather conditions.

Comfort and Safety:

  • Schwalbe Marathon E-Plus Tyres: The 55mm wide Marathon E-Plus tyres provide excellent grip and comfort, ensuring stability and control during your rides.
  • Integrated Lighting System: The bike comes with a full lighting system, enhancing visibility and safety during nighttime or low-light conditions.
  • Full-Length Mudguards and Kickstand: These practical features keep you and your bike clean and stable, adding convenience to your daily rides.

Frame Description:

  • Trapeze Frame Design: The Kathmandu Hybrid 45 features a Trapeze frame, which offers easy mounting and dismounting, making it more accessible to a wider range of riders.
  • Efficient Comfort Geometry: This design ensures that you can ride in comfort for extended periods, reducing fatigue and enhancing the overall riding experience.
  • Integrated Carrier 3.0: The sturdy Integrated Carrier 3.0 is seamlessly integrated with the rear mudguard, offering a strong and stable platform for carrying luggage or accessories, while maintaining a sleek and stylish appearance.

The Cube Kathmandu Hybrid 45 Trapeze 750Wh Electric Hybrid Bike is a versatile and powerful e-bike designed for urban commuters and long-distance cyclists who prioritize performance, comfort, and practicality.

Technical Information
General
Model code731400401
Colourgrey/black
Weight28.1
Frame
Frame descriptionAluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Fully Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube

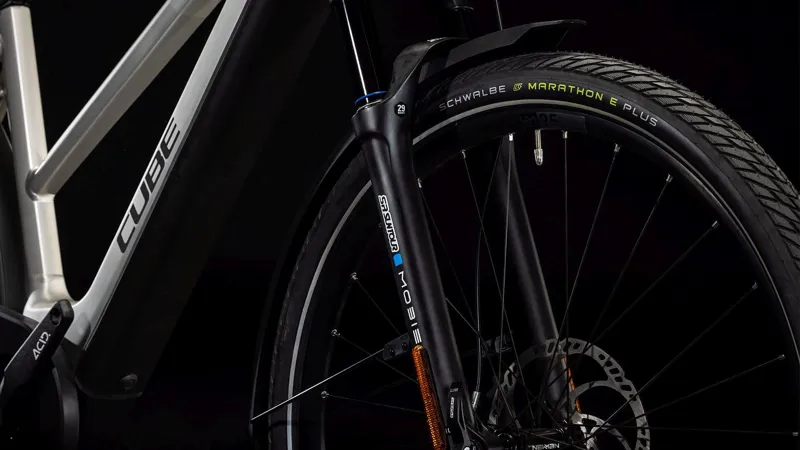

ForkSR SUNTOUR Mobie 35 LO-R Air, 100mm
E-bike System
EngineBosch Drive Unit Performance Line (85Nm) Speed (250Watt), Smart System
BatteryBosch PowerTube 750
DisplayBosch Kiox 300
Drivertrain and brakes
Front brakeMagura MT5e Hydr. Disc Brake (203/203), Bremslicht
Rear brakeMagura MT5e Hydr. Disc Brake (203/203), Bremslicht
Rear derailleurShimano Deore, LinkGlide Technology, 10-Speed
ShiftersShimano Deore SL-M5130-R10, LinkGlide
CranksetAcid E-Crank, 48T, 175mm
CassetteShimano CS-LG-400, 11-43
ChainShimano CN-LG500
Cockpit
HeadsetAcros M/Z AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
HandlebarCube Comfort Trail Bar, 700mm
StemCube Comfort Stem Pro, 31.8mm, Adjustable
Handlebar tape/GripsAcid Travel Comfort
Wheels
WheelsNewmen Performance 25, 28/28 Spokes, 15x110mm / 12x148mm, Tubeless Ready
Other parts
SaddleNatural Fit Sequence
SeatpostCube Performance Post, 30.9mm
Seatpost clampCube Screwlock Semi Integrated w/ Hidden Tool, 36mm (EE: Screwlock Semi Integrated, 36mm)
PedalsAcid PP Trekking

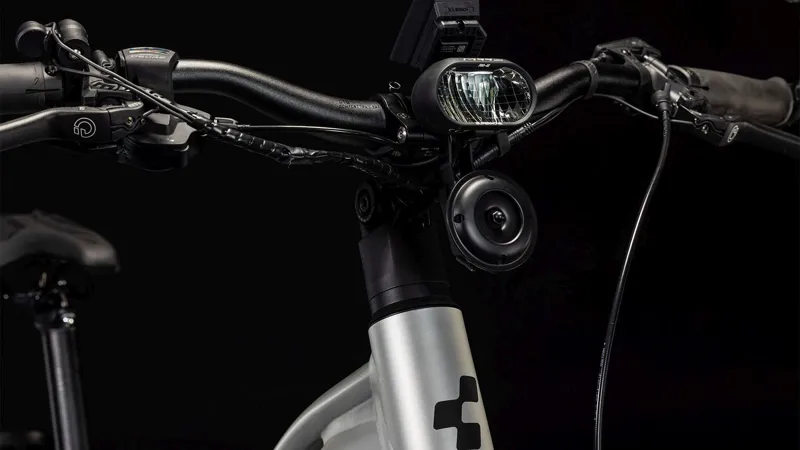

Front lightSupernova M99 Mini Pro, 250 Lux, 12V, DC
Rear lightSupernova M99 Tail Light, 12V DC
StandardAcid FM Pure Kickstand

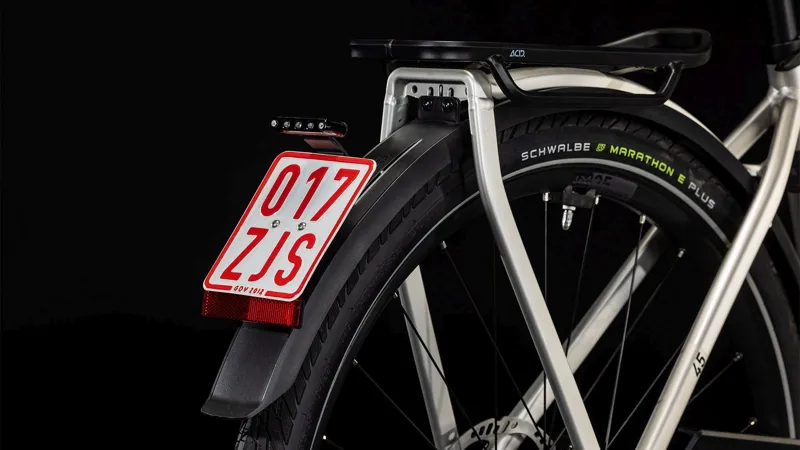

MudguardsAcid 65 Integrated Carrier 3.0
BellSupernova Horn
CarrierAcid Integrated Carrier 3.0, Adapter Compatible
