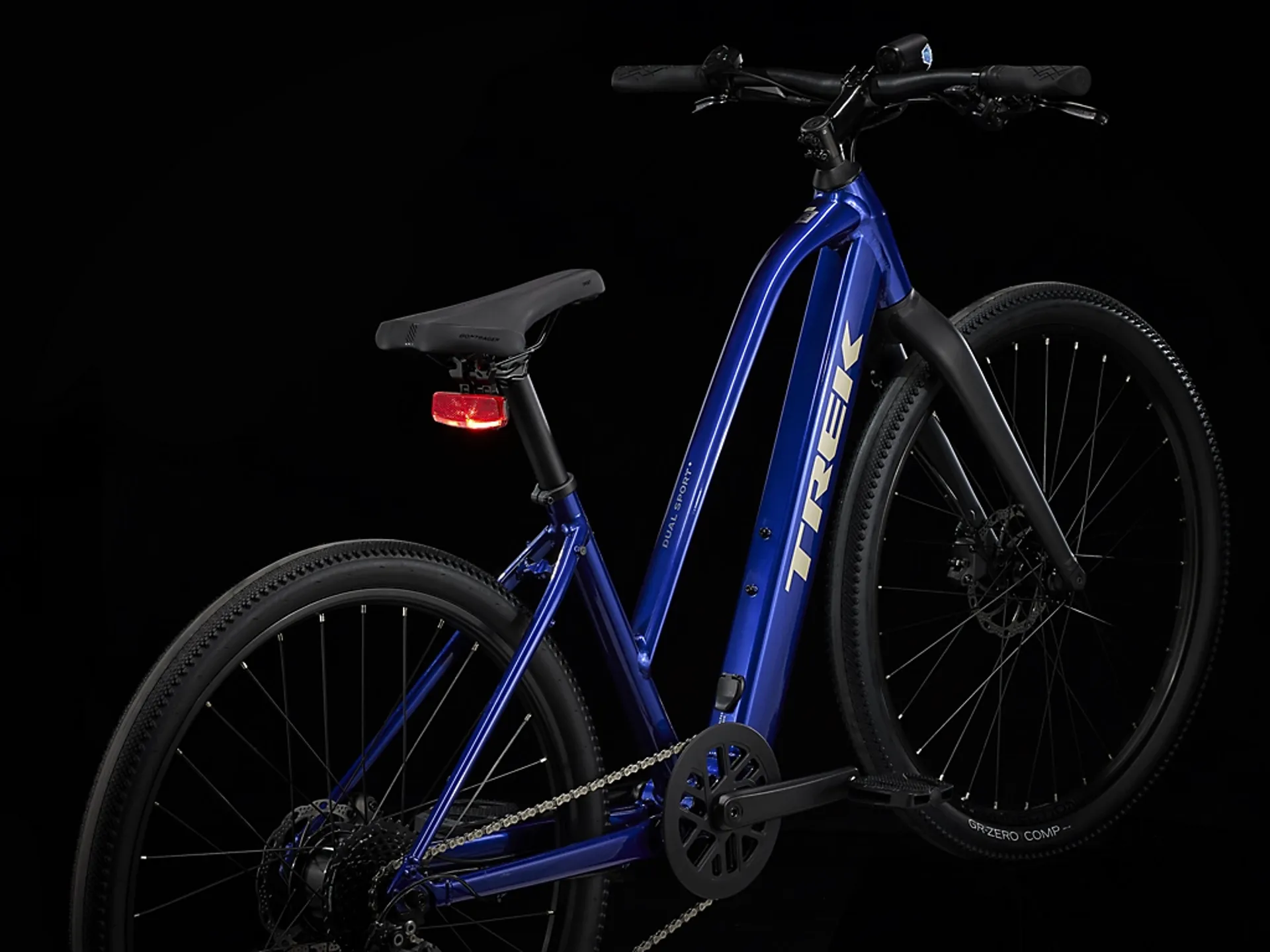

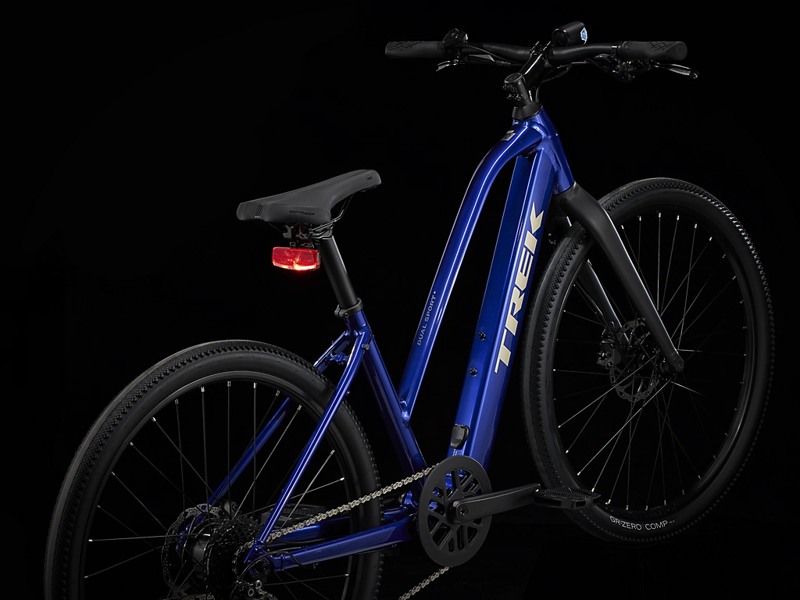

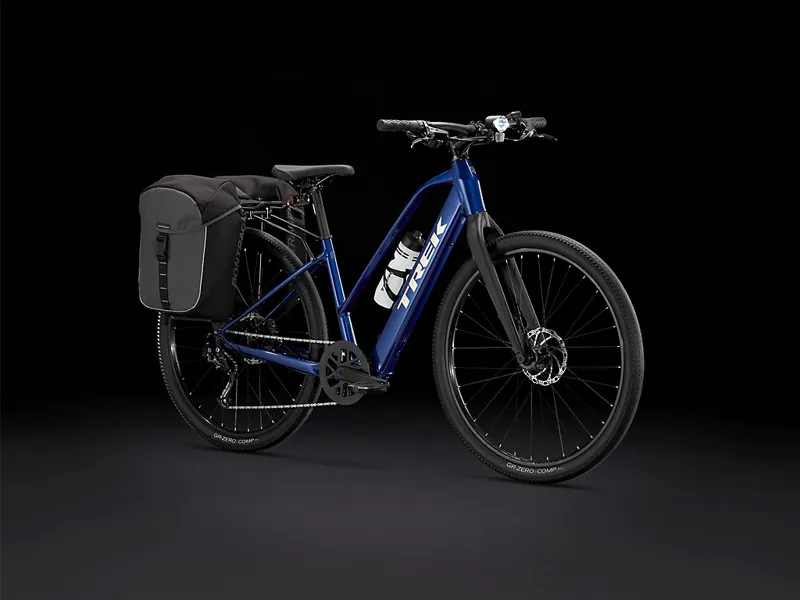

Frame

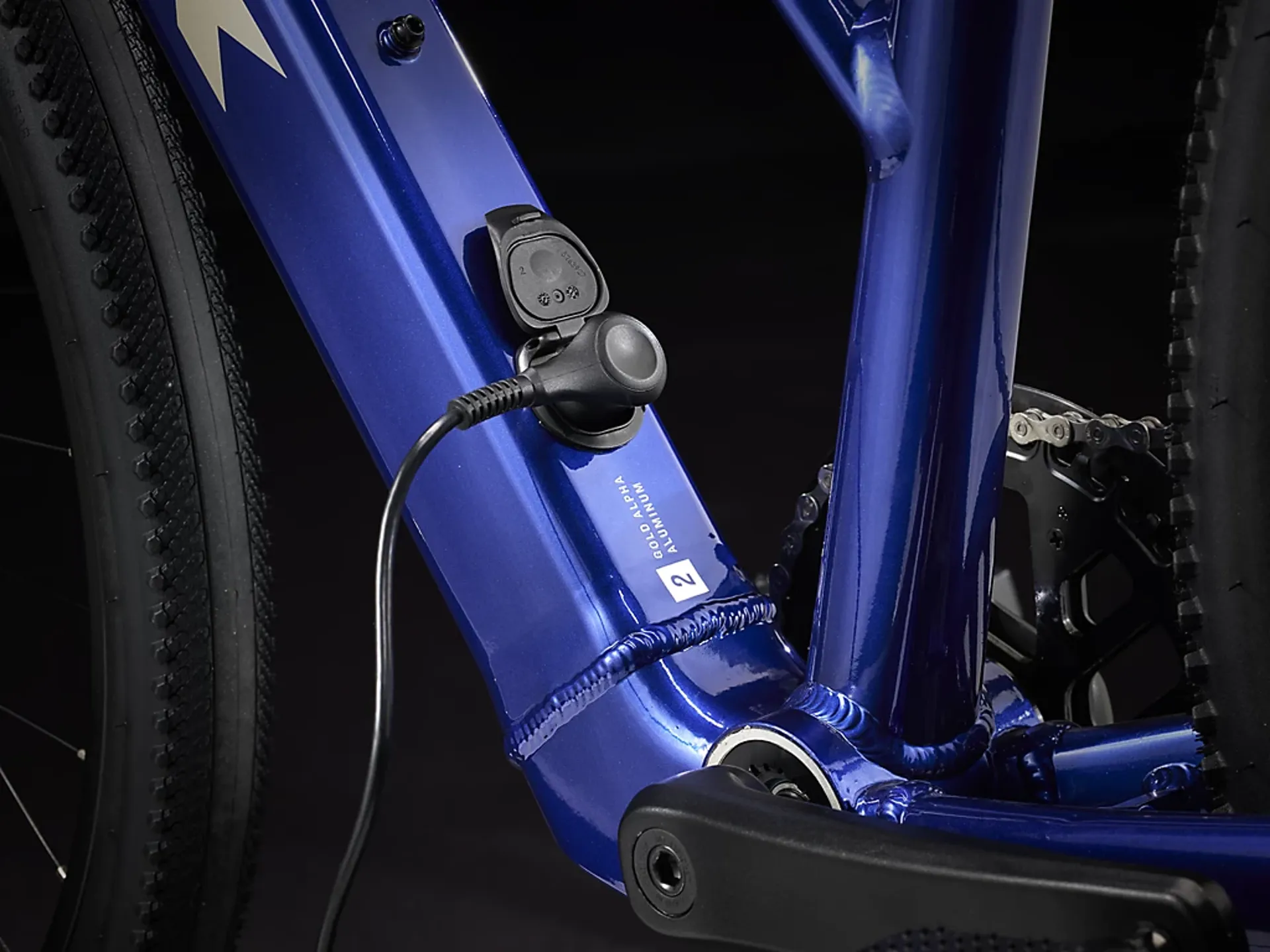

Alpha Gold Aluminium, internal cable routing, internal battery, rack and mudguard mounts, flat-mount disc, kickstand mount, 144.5 mm OLD hub motor spacing

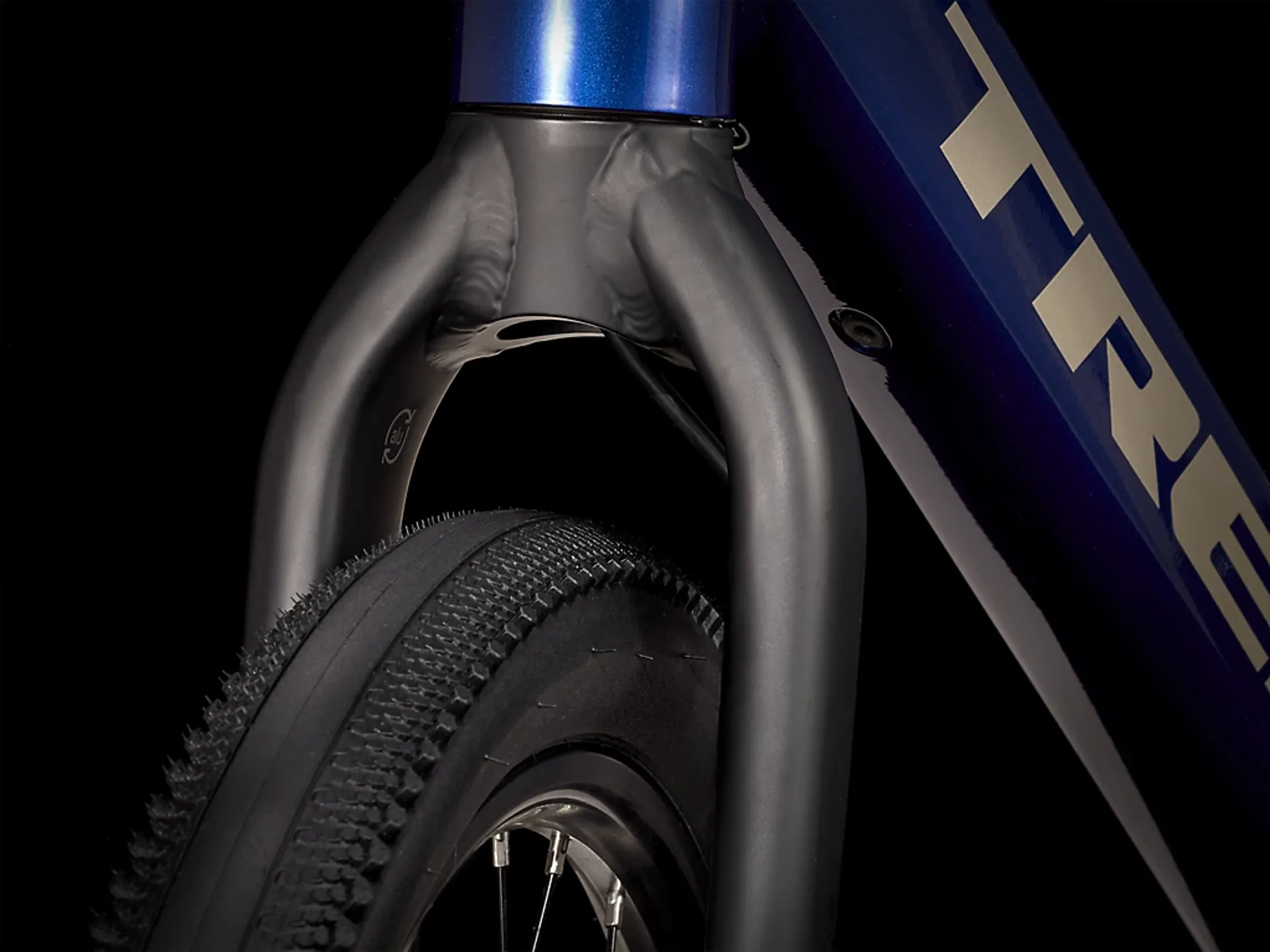

Fork
DS+ alloy, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm bolt-on skewer
Hub front
Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Skewer front
135x5 mm bolt-on

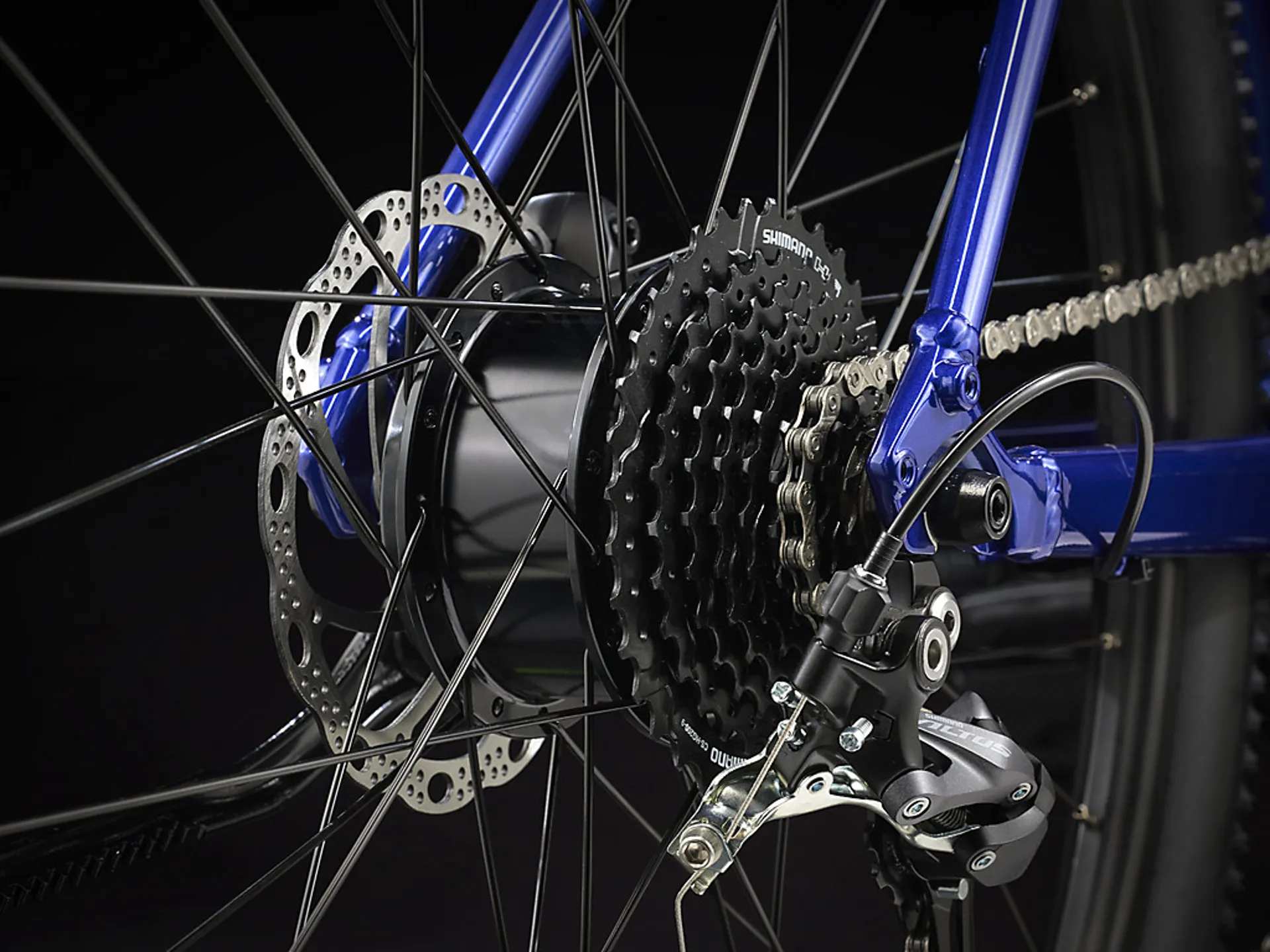

Hub rear
HyDrive hub drive motor, 40 Nm, 250 W
Rim
Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve
Max tyre size
27.5x2.0" with or without mudguards
Shifter
Shimano Altus M2010, 9-speed
Rear derailleur
Shimano Altus M2000, long cage
Crank
Size: M
ProWheel Pro alloy, 42T narrow-wide steel ring, 170mm length
Size:L, XL
ProWheel Pro alloy, 42T narrow-wide steel ring, 175mm length
Bottom bracket
Torque sensor, threaded, 122.5 mm spindle
Cassette
Shimano HG200, 11-36, 9 speed
Chain
KMC E9S, 9-speed
Max. chainring size
42T
Saddle
Bontrager Sport Women's
Seatpost
Size:M
Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
Size:L, XL
Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length

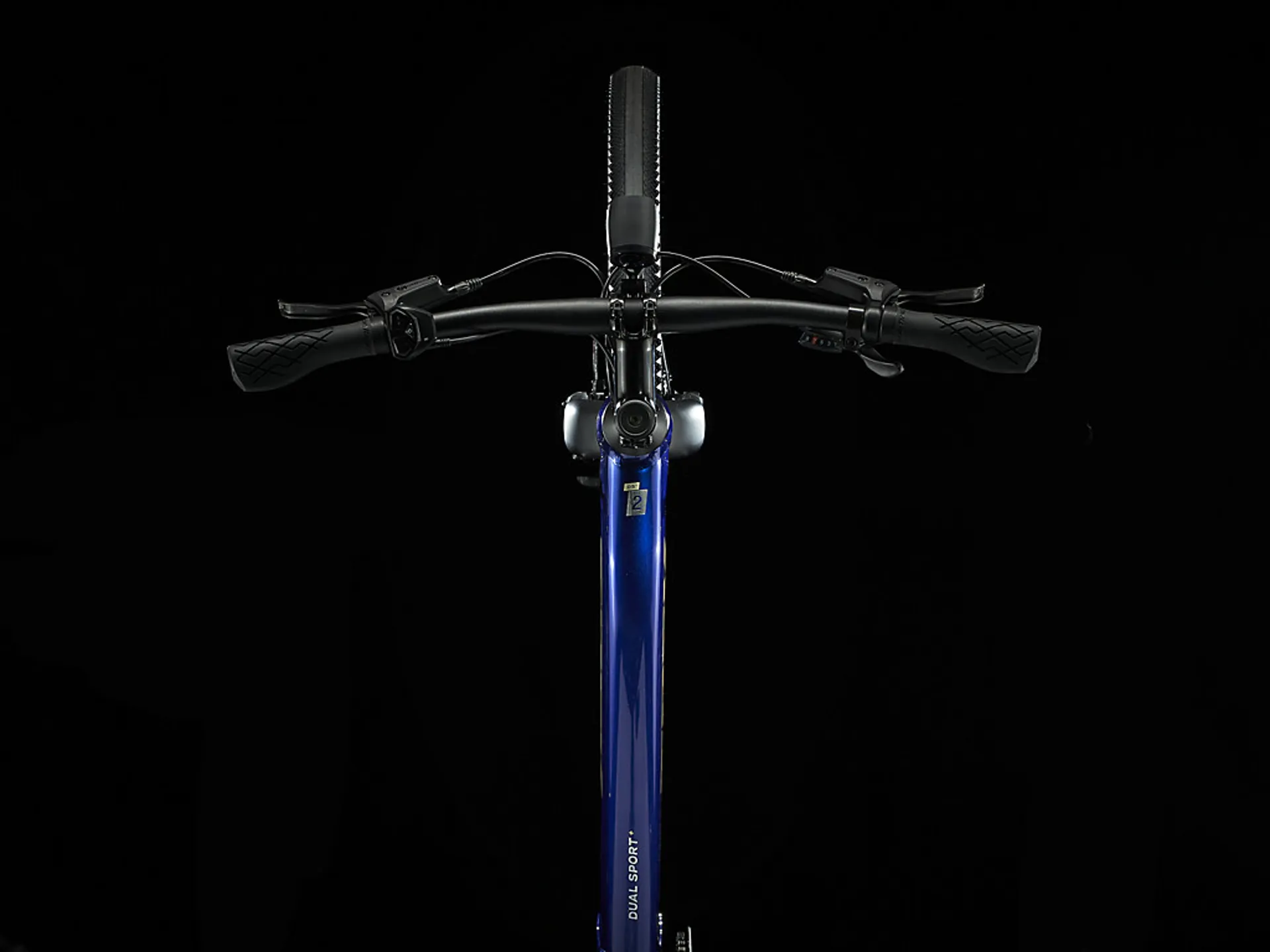

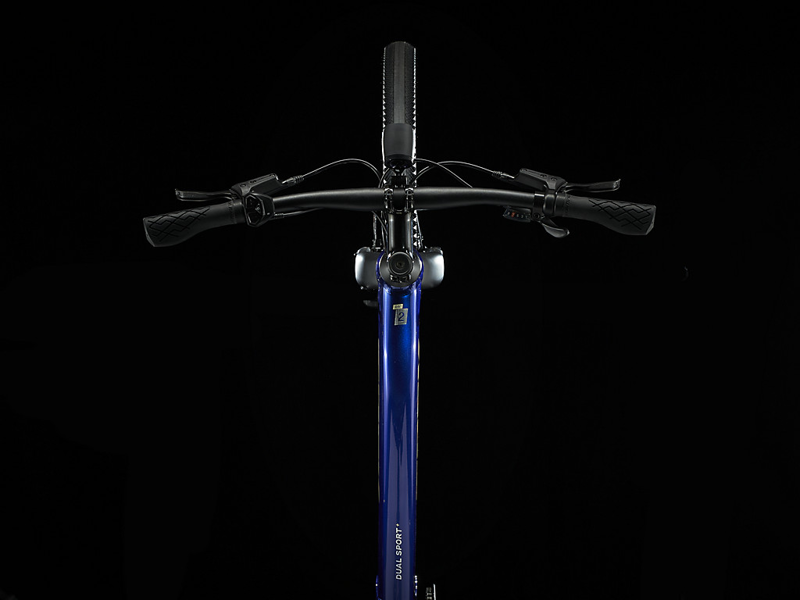

Handlebar
Size: M
Bontrager alloy, 31.8 mm, 15 mm rise, 660 mm width
Size:L, XL
Bontrager alloy, 31.8 mm, 15 mm rise, 690 mm width
Grips
Bontrager XR Endurance Comp, lock-on
Stem
Size: M
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length
Size:L, XL
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 100 mm length
Brake rotor
Shimano RT26, 6-bolt,160 mm
Brake Set
Promax DSK-927 hydraulic disc, flat mount, 160mm rotor

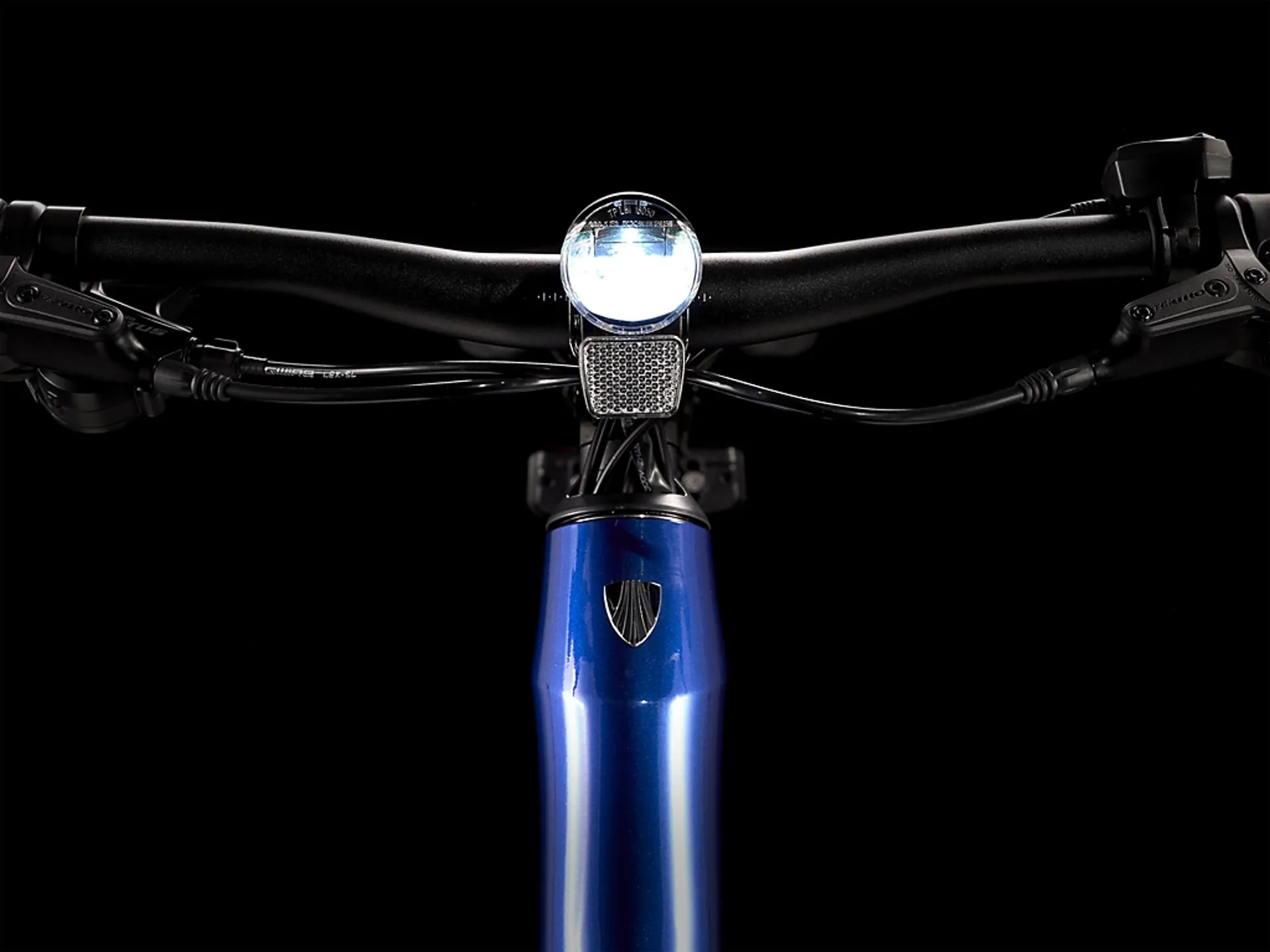

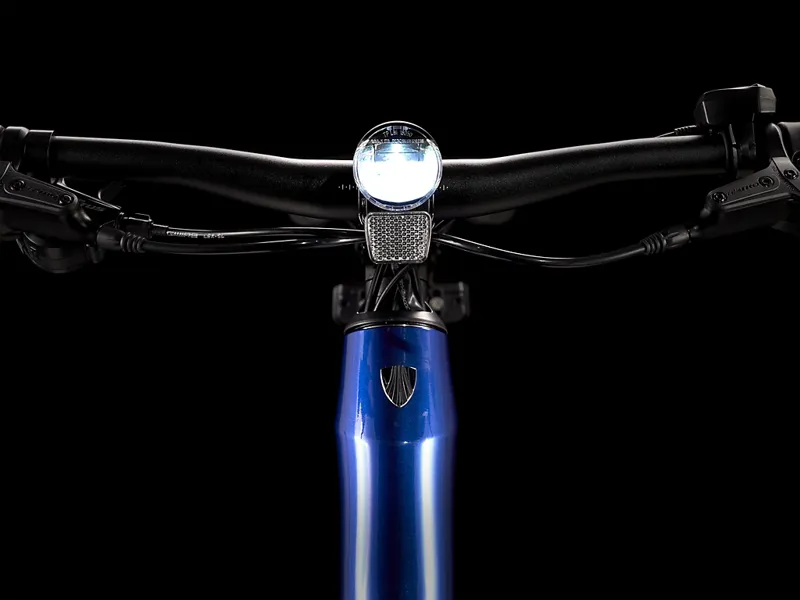

Light
Size: M, L, XL
Herrmans MR4, 120-lumen LED
Size:M, L, XL

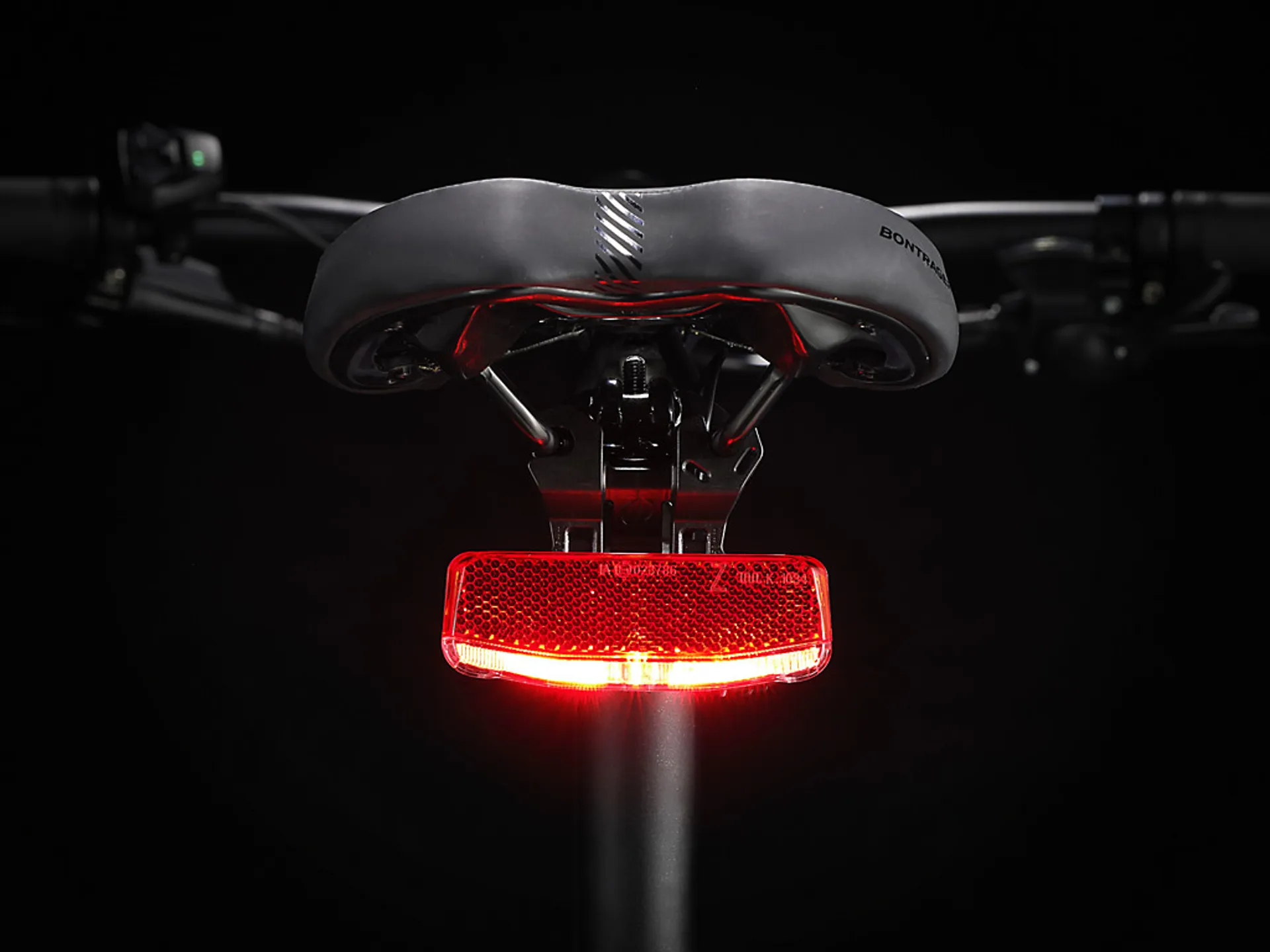

Spanninga Solo
Kickstand
Pletscher Comp 18
Weight
M - 17.28 kg / 38.1 lbs
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
