Frame

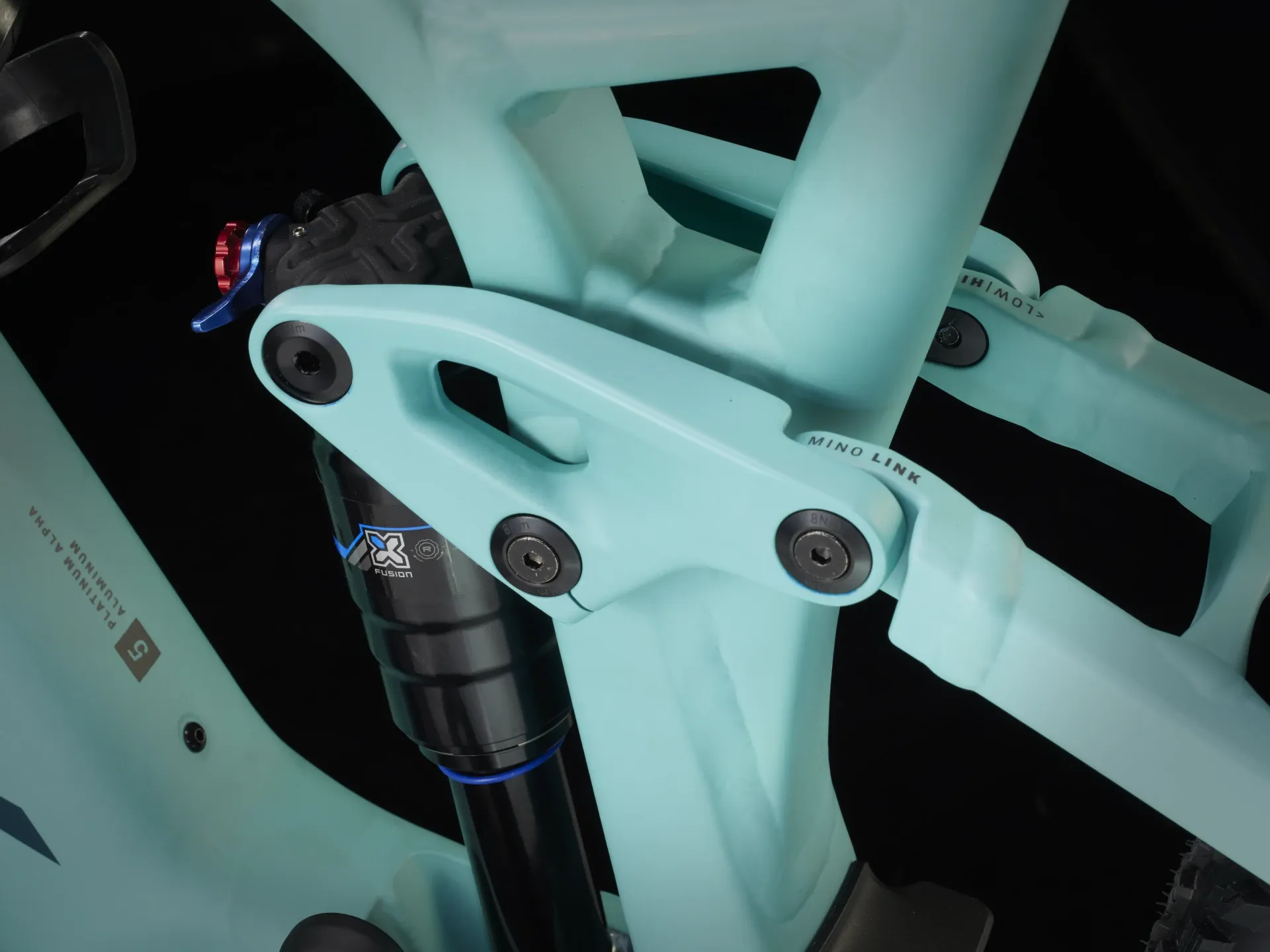

Alpha Platinum Aluminium, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55 mm chain line, Mino Link, ABP, Boost148, UDH, 140 mm travel
Fork
RockShox Recon Silver, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, Maxle Stealth, 150 mm travel

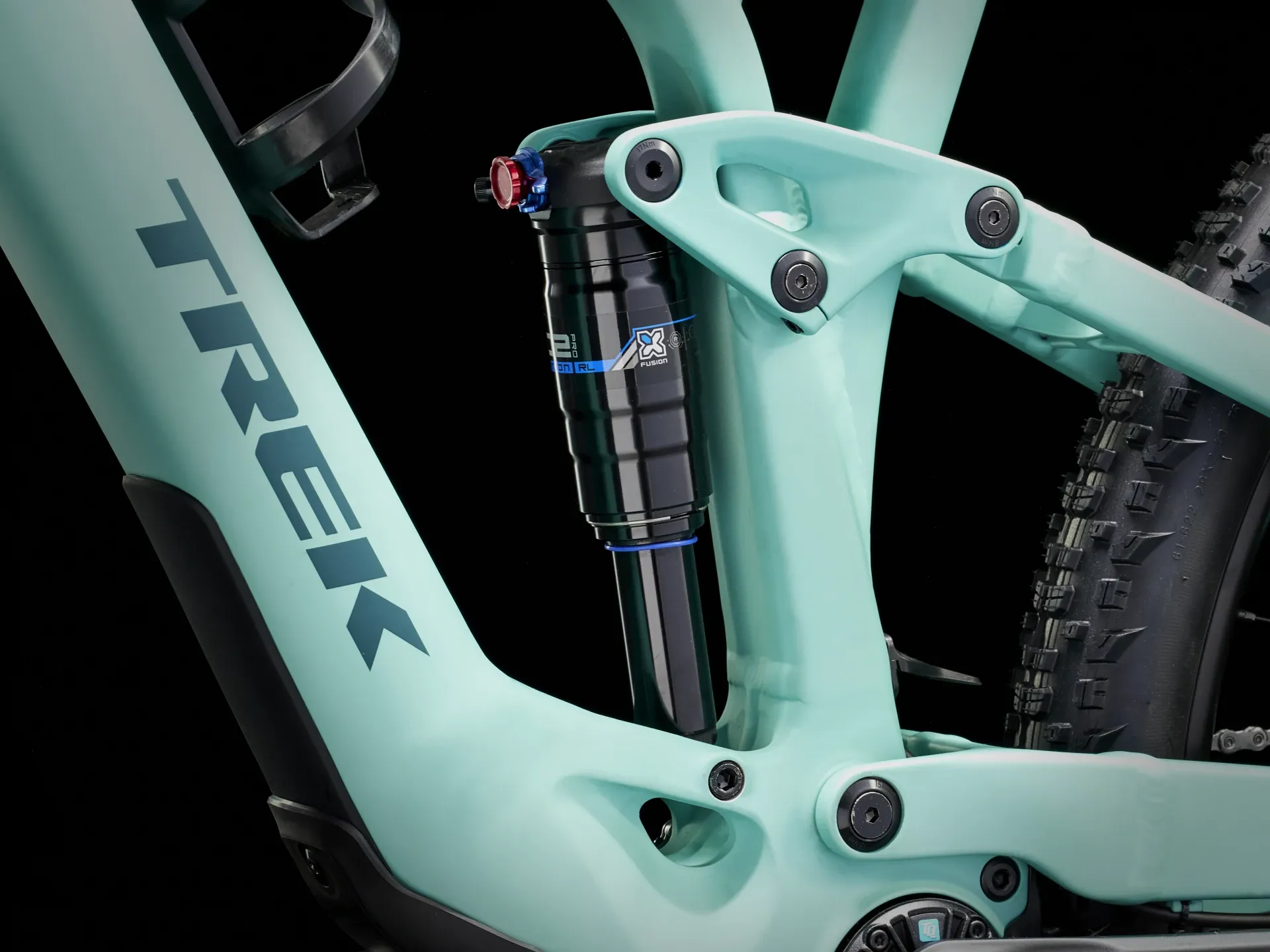

Shock
X-Fusion Pro 2, 2-position damper, 205 mm x60 mm
Max compatible fork travel
160mm (575mm axle-to-crown)
Hub front
Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Hub rear
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
Skewer rear
Bontrager Switch thru-axle, removable lever
Rim
Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve
Tyre
Bontrager XT3 Elite, wire bead, 60 tpi, 29 x 2.40″
Tyre part
Bontrager TLR sealant, 180 ml/6 oz
Rim strip
Bontrager TLR
Max tyre size
Frame: 29×2.50″, Fork: See manufacturer
Shifter
Shimano Deore M6100, 12-speed
Rear derailleur
Shimano Deore M6100, long cage
Crank
E*thirteen E*spec Plus, 165 mm length
Chainring
E*thirteen E*spec, 32T alloy ring, 55 mm chainline
Cassette
Shimano Deore M6100, 10-51, 12-speed
Chain
Shimano Deore M6100, 12-speed
Max. chainring size
1x: 34T, min 30T
Saddle
Bontrager Arvada, steel rails, 138 mm width
Seatpost
Size:S
TranzX JD-YSI-22PLQ, 100 mm travel, internal routing, 34.9 mm, 346 mm length
Size:M
TranzX JD-YSI-22PLQ, 150 mm travel, internal routing, 34.9 mm, 454 mm length
Size:L, XL
TranzX JD-YSI-22PLQ, 170 mm travel, internal routing, 34.9 mm, 497 mm length

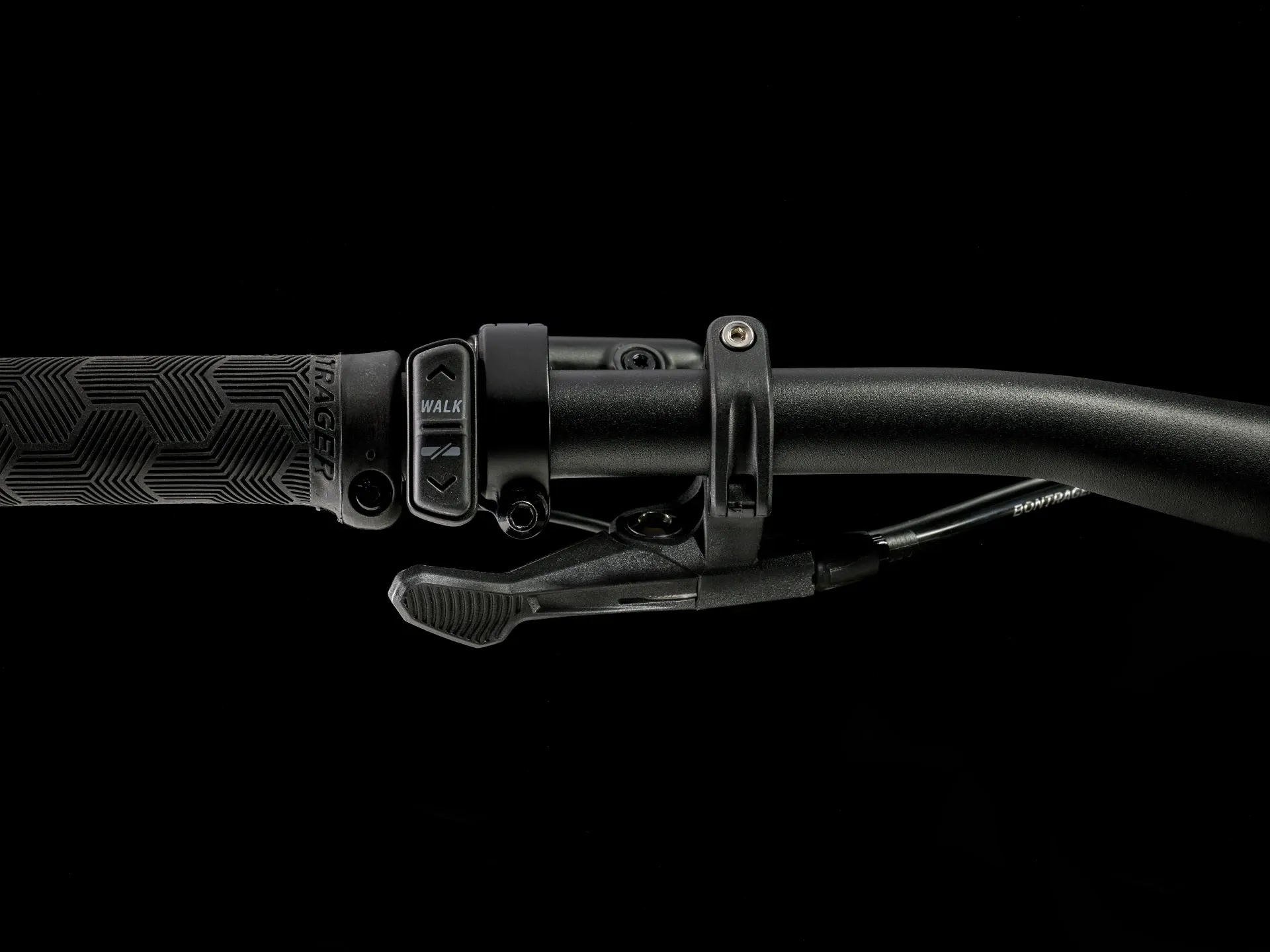

Handlebar
Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750mm width
Grips
Bontrager XR Trail Comp, nylon lock-on
Stem
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length

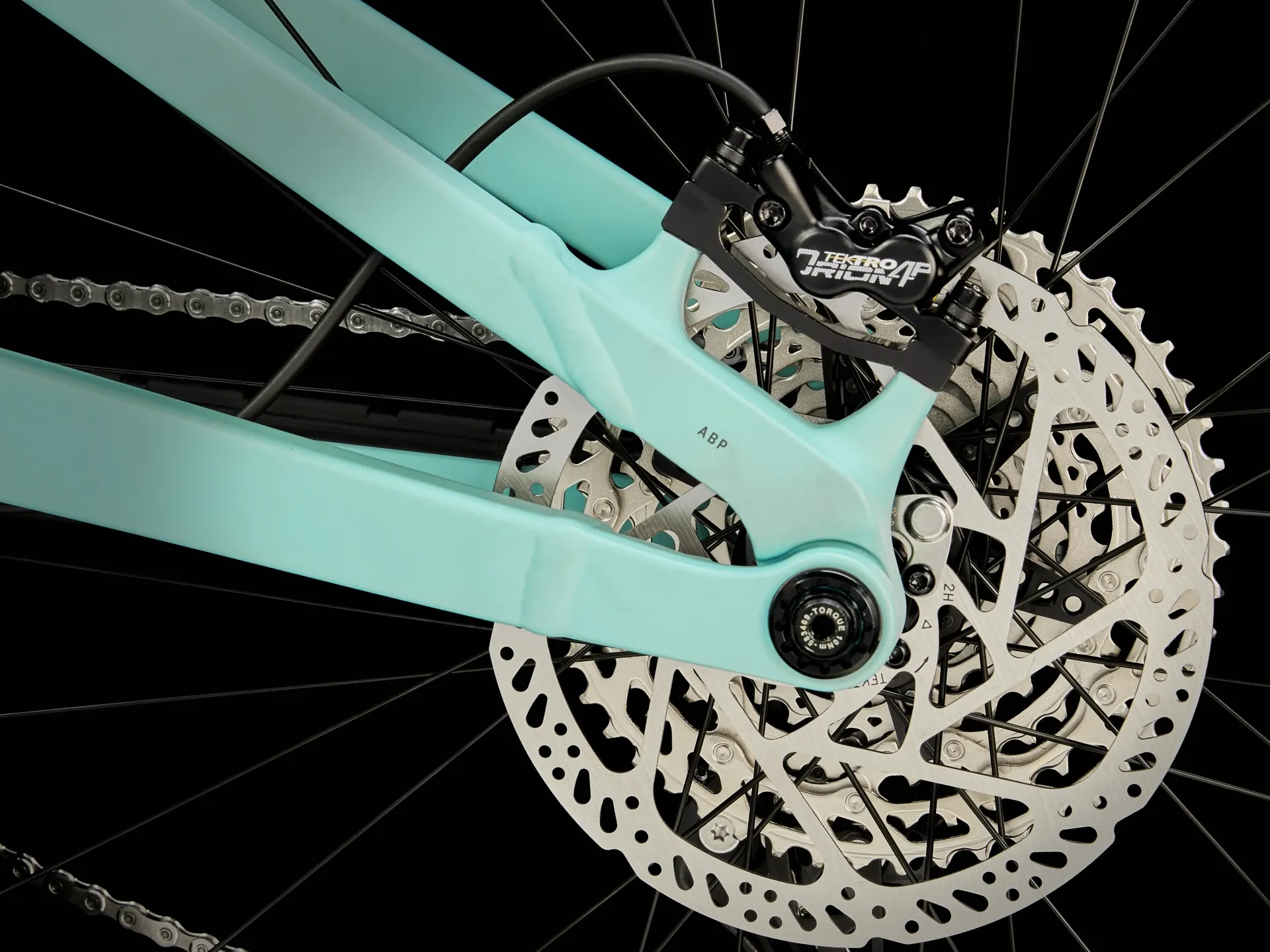

Brake
Tektro HD-M745 4-piston hydraulic disc
Brake rotor
Tektro, 6-bolt, 203 mm
Rotor size
Max brake rotor sizes – Frame: 203mm, Fork: see fork manufacturer

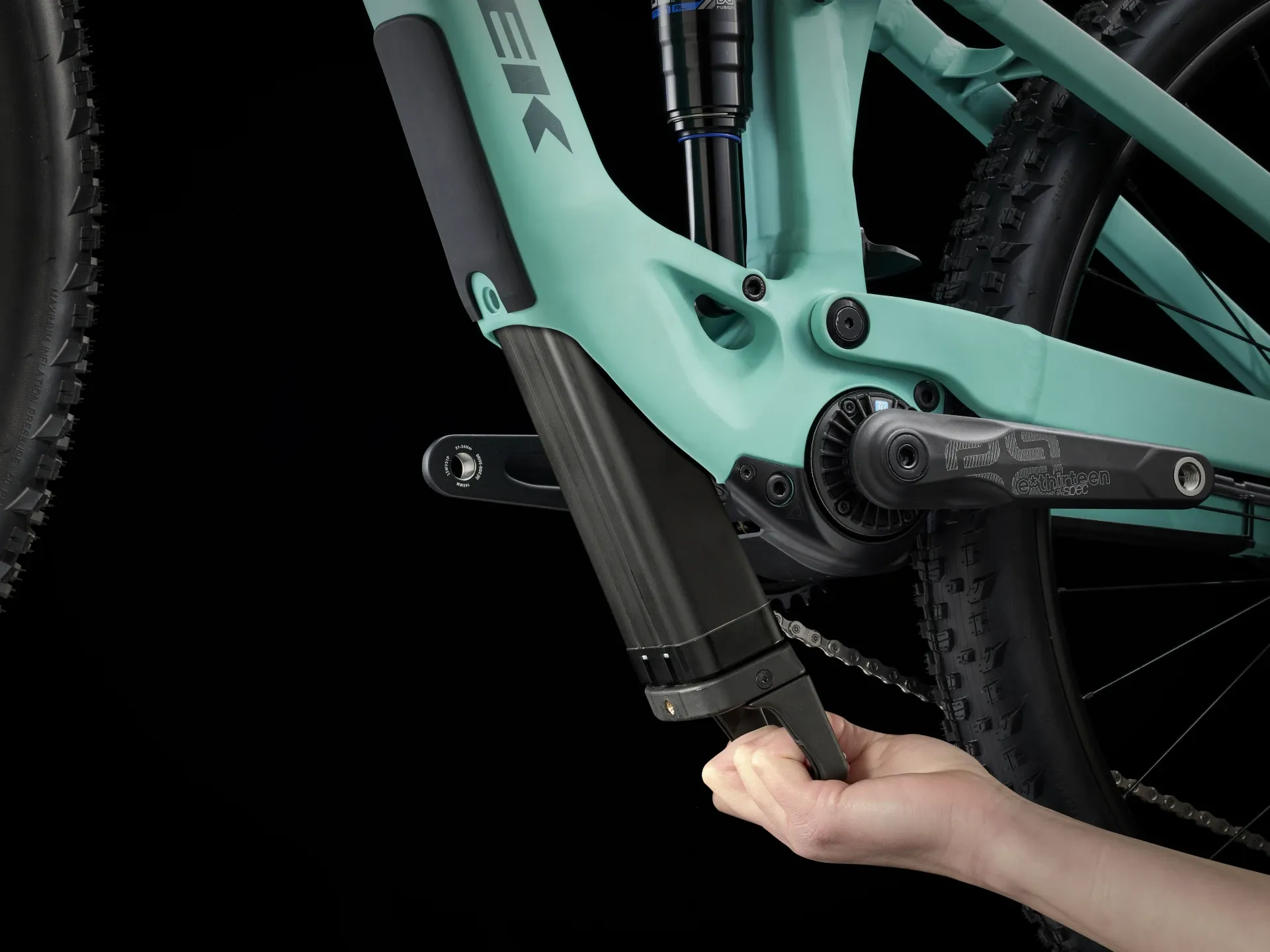

Battery
TQ 360Wh

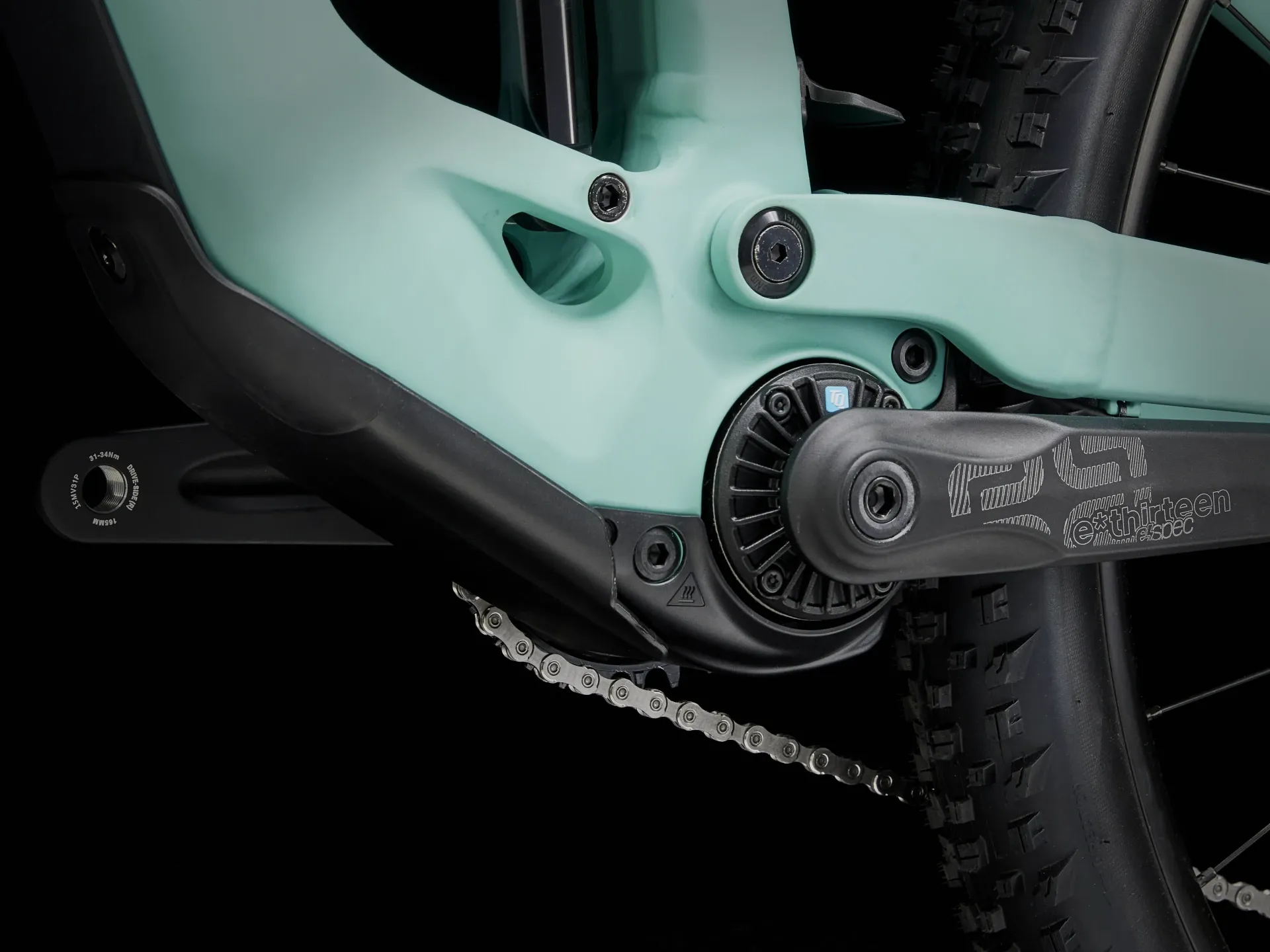

Motor
TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power

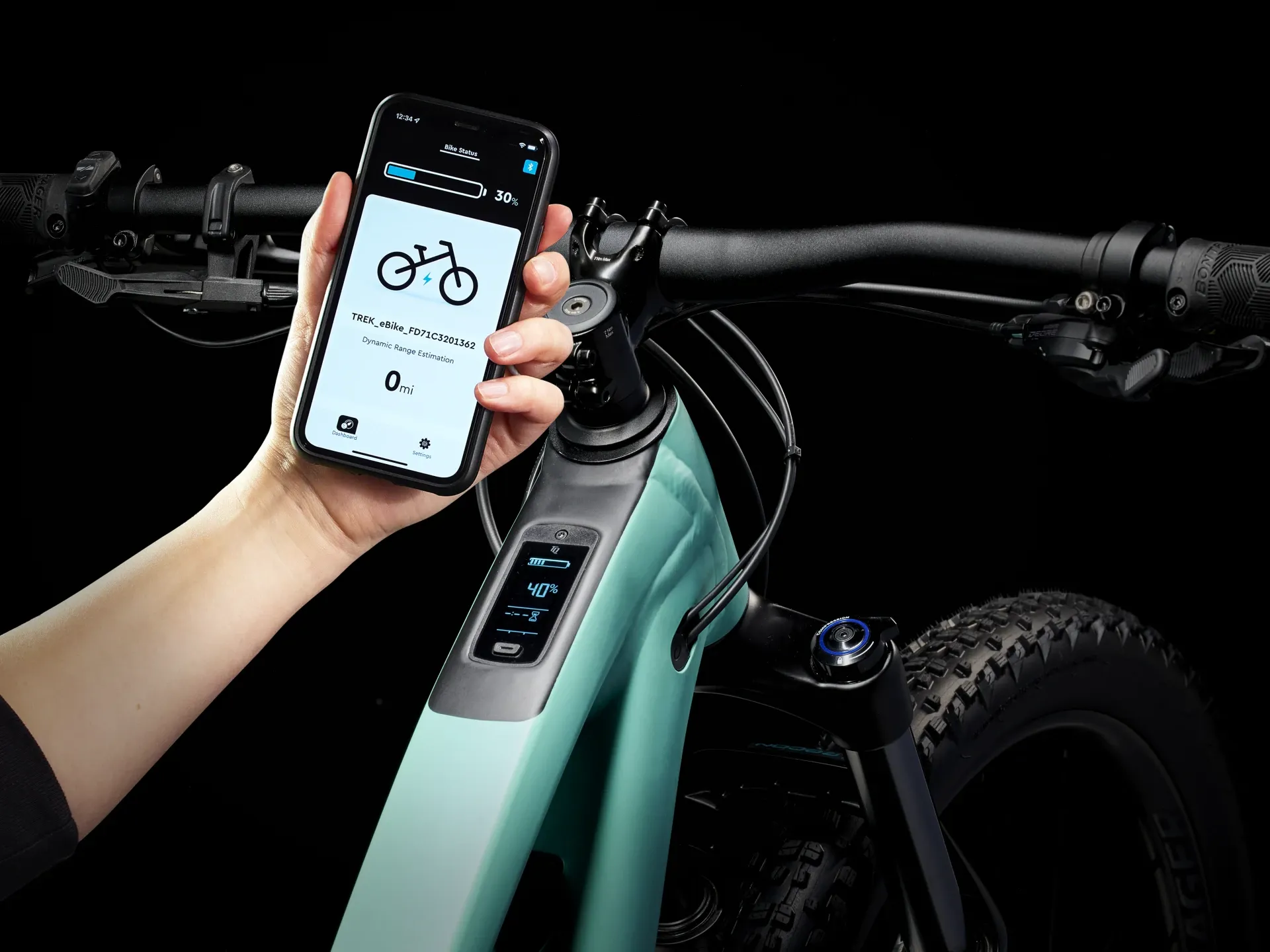

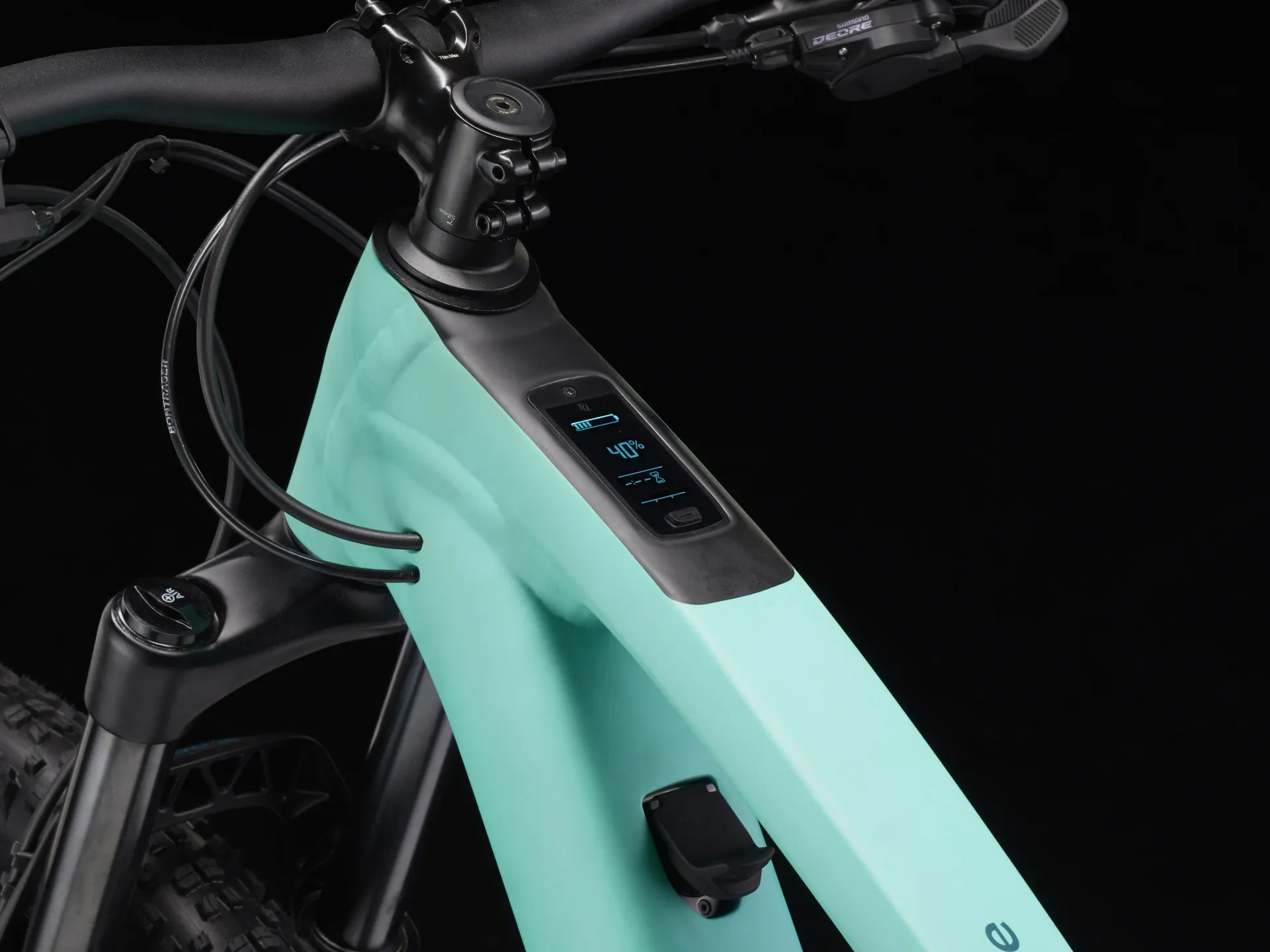

Computer
TQ LED display with Bluetooth & ANT+ connectivity
Electronics
TQ 4A charger
Weight
M – 20.80 kg / 45.86 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
