Frame
Alpha Gold Aluminium, internal cable routing, internal battery, rack and mudguard mounts, flat-mount disc, kickstand mount, 144.5 mm OLD hub motor spacing
Fork
FX+ alloy, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm bolt-on skewer
Hub front
Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Skewer front
132x5mm QR
Hub rear
HyDrive hub drive motor, 40 Nm, 250 W
Rim
Bontrager Connection, double-wall, 36-hole, 20 mm width, Presta valve
Spokes
14 g stainless steel
Tyre
Bontrager H2 Comp, reflective strip, wire bead, 30tpi, 700x40c
Max tyre size
50c without mudguards, 45c with mudguards
Shifter
Shimano Altus M2010, 9-speed
Rear derailleur
Shimano Altus M2000, long cage

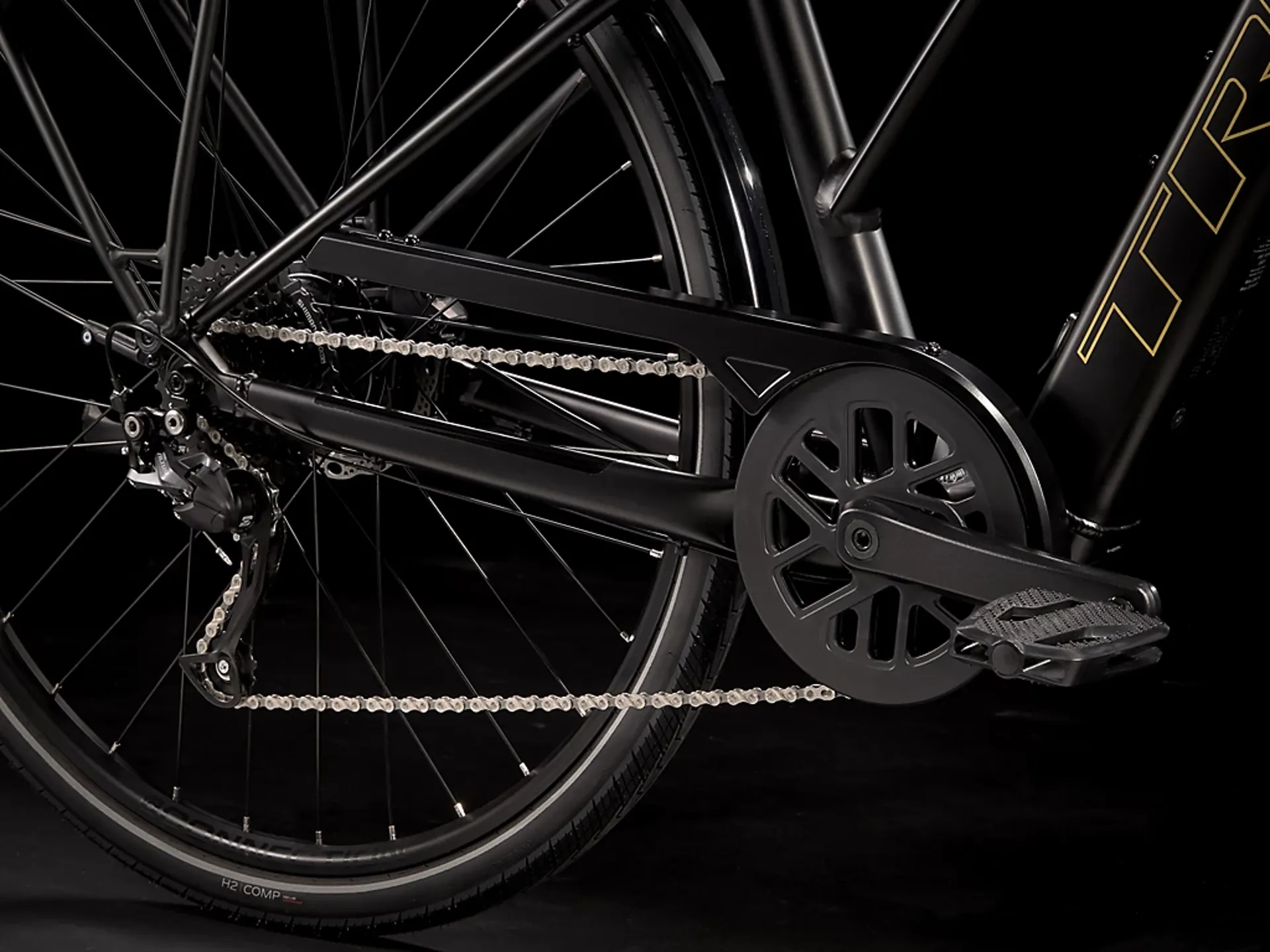

Crank
Size: S, M
ProWheel Pro alloy, 42T narrow-wide steel ring, 170mm length
Size:L, XL
ProWheel Pro alloy, 42T narrow-wide steel ring, 175mm length
Bottom bracket
Torque sensor, threaded, 122.5 mm spindle

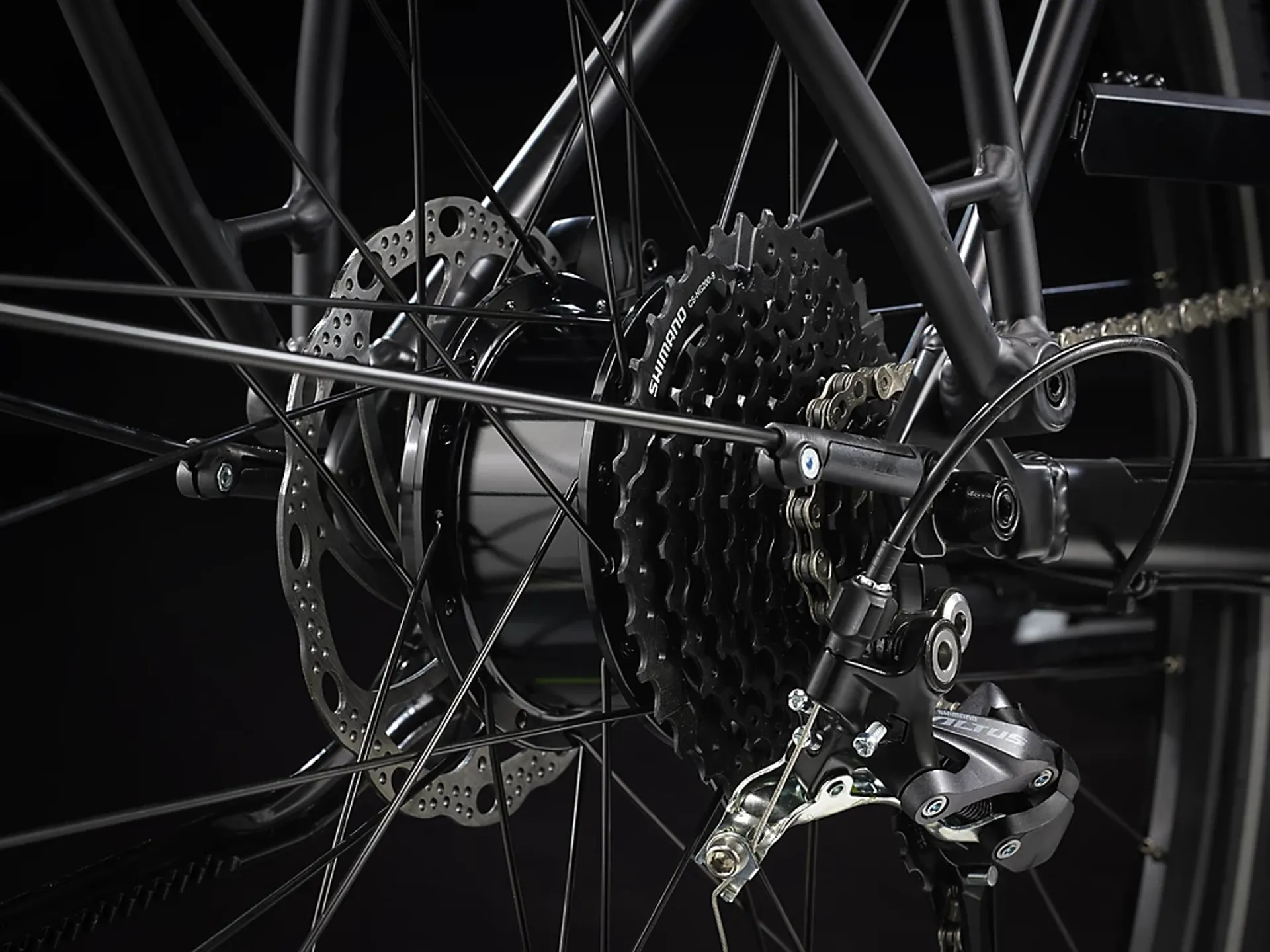

Cassette
Shimano HG200, 11-36, 9 speed
Chain
KMC E9S, 9-speed
Pedal
VPE-857
Max. chainring size
42T
Saddle
Bontrager Sport Women's
Seatpost
Size:S, M
Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
Size:L, XL
Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length

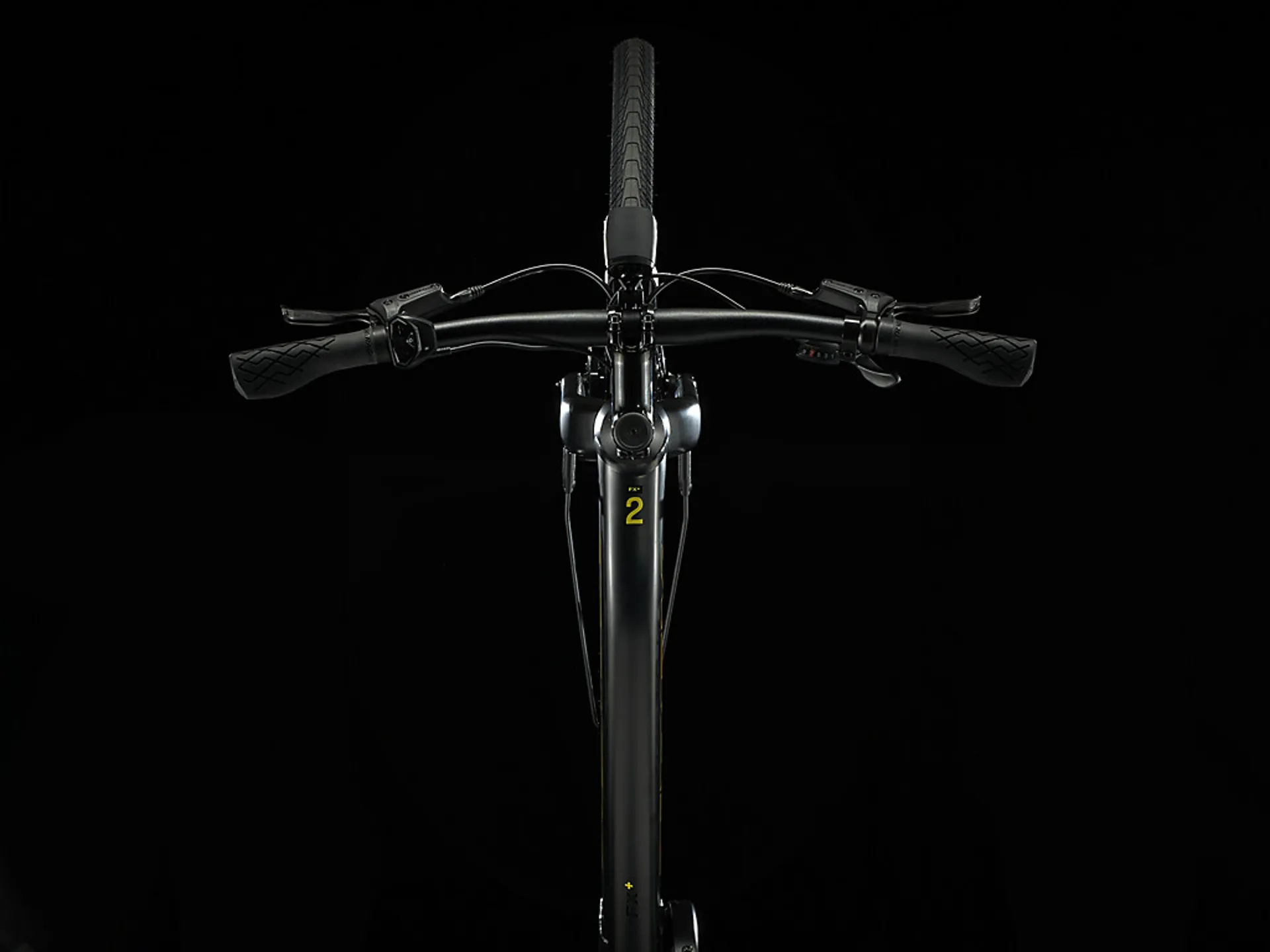

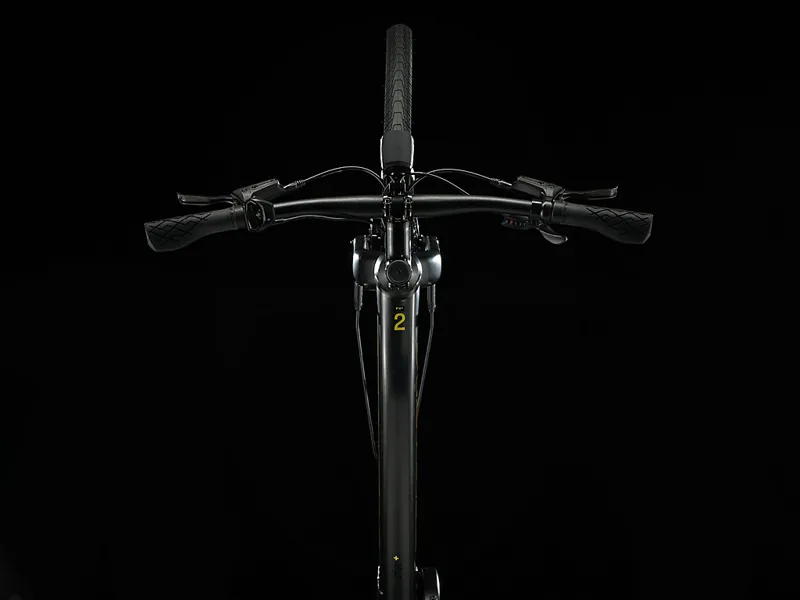

Handlebar
Size: S, M, L
Bontrager alloy, 31.8 mm, 15 mm rise, 600 mm width
Size:XL
Bontrager alloy, 31.8 mm, 15 mm rise, 660 mm width
Grips
Bontrager XR Endurance Comp, lock-on
Stem
Size: S, M, L
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length
Size:XL
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 100 mm length

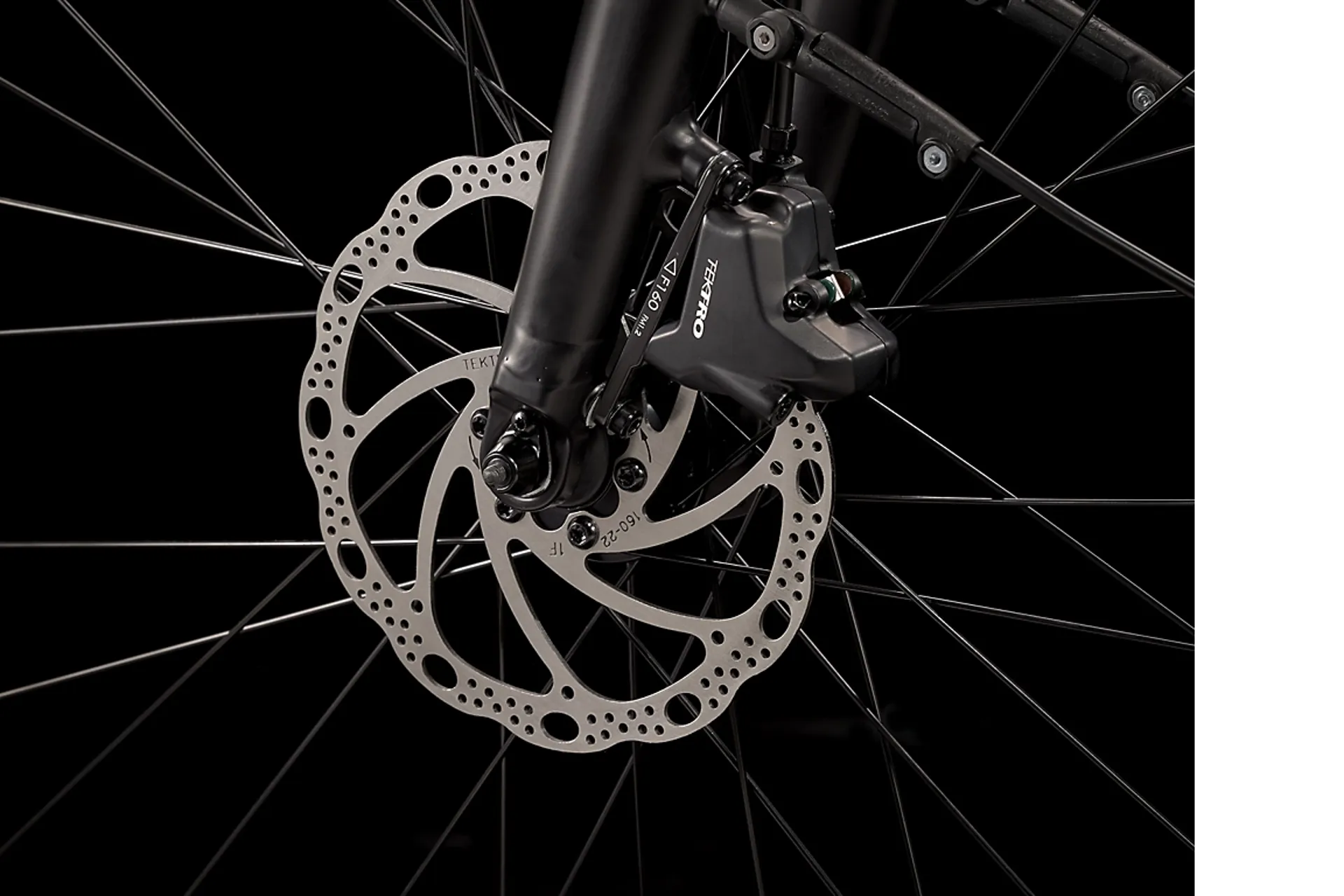

Brake rotor
Shimano RT26, 6-bolt,160 mm
Brake Set
Promax DSK-927 hydraulic disc, flat mount, 160mm rotor
Rotorsize
Max brake rotor size: 160 mm

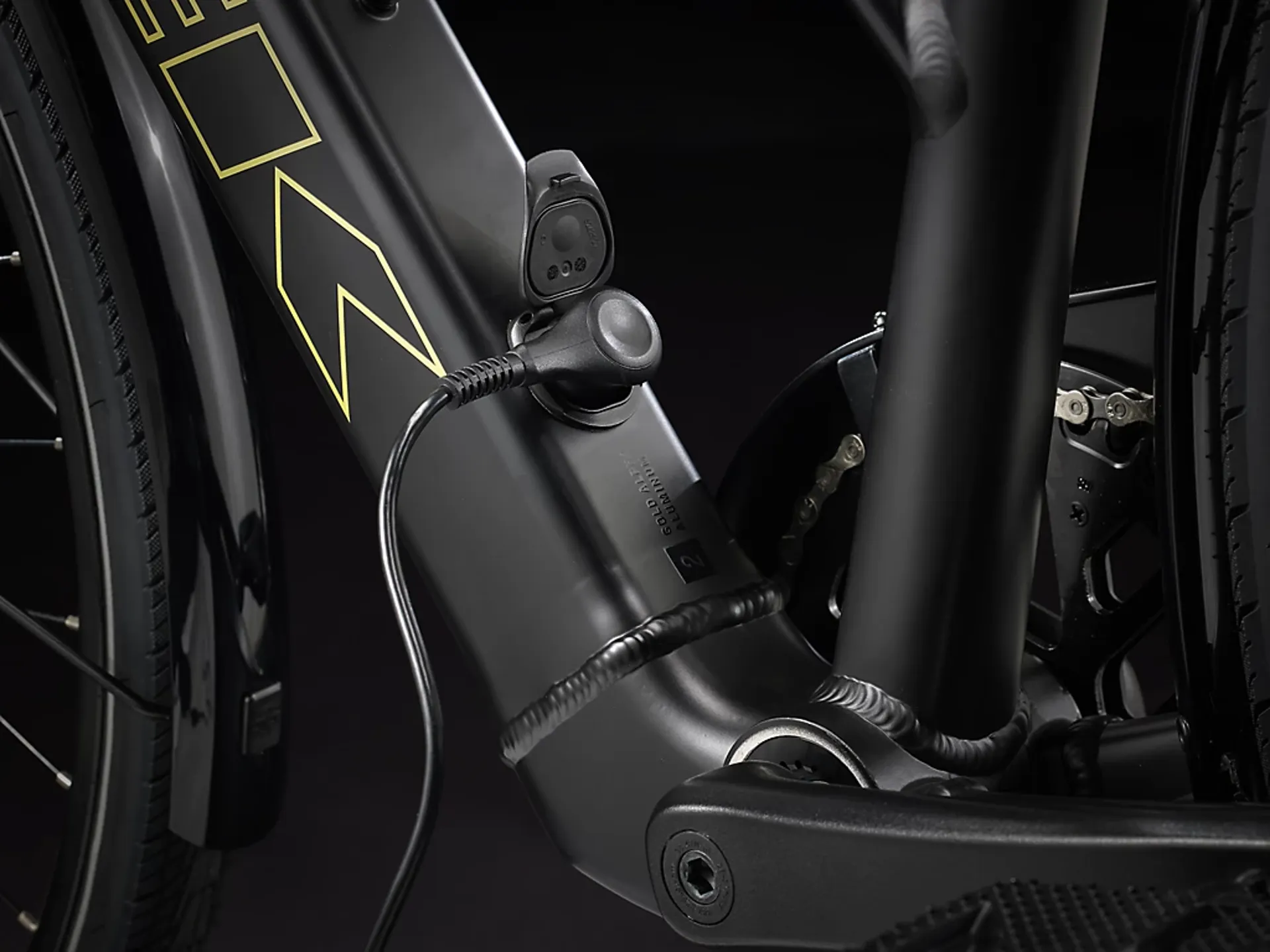

Battery
250Wh
Charger
2A, 42V output, 100V–240V AC input

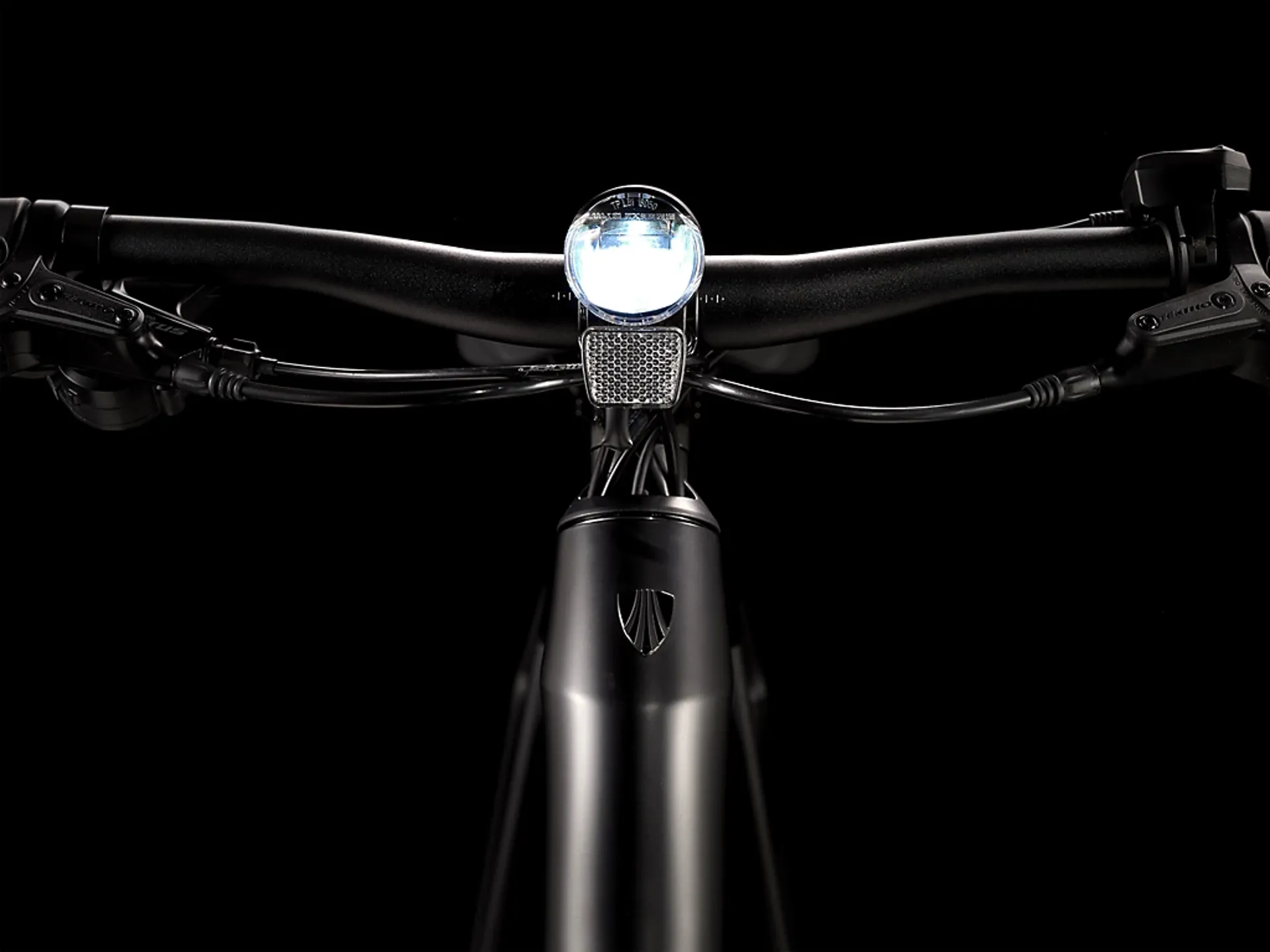

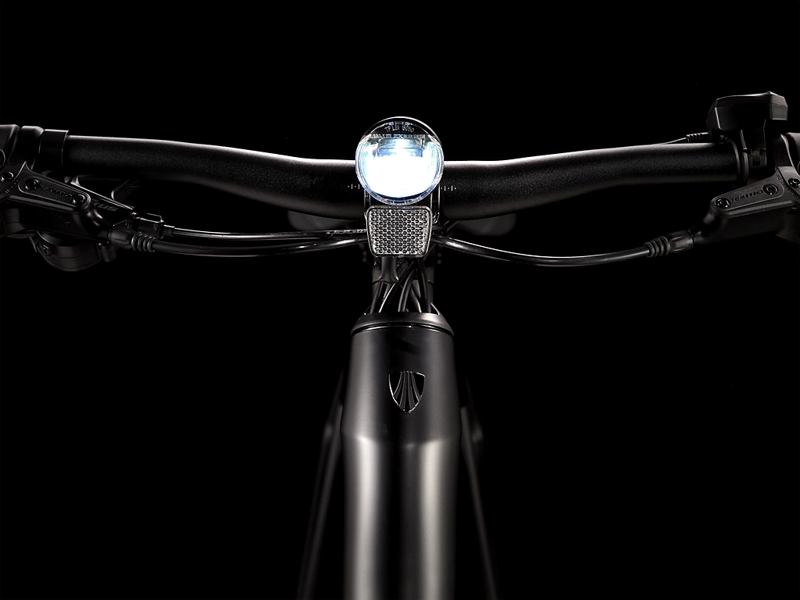

Light
Size: S, M, L, XL
Herrmans MR4, 120-lumen LED
Size:S, M, L, XL
Spanninga Solo

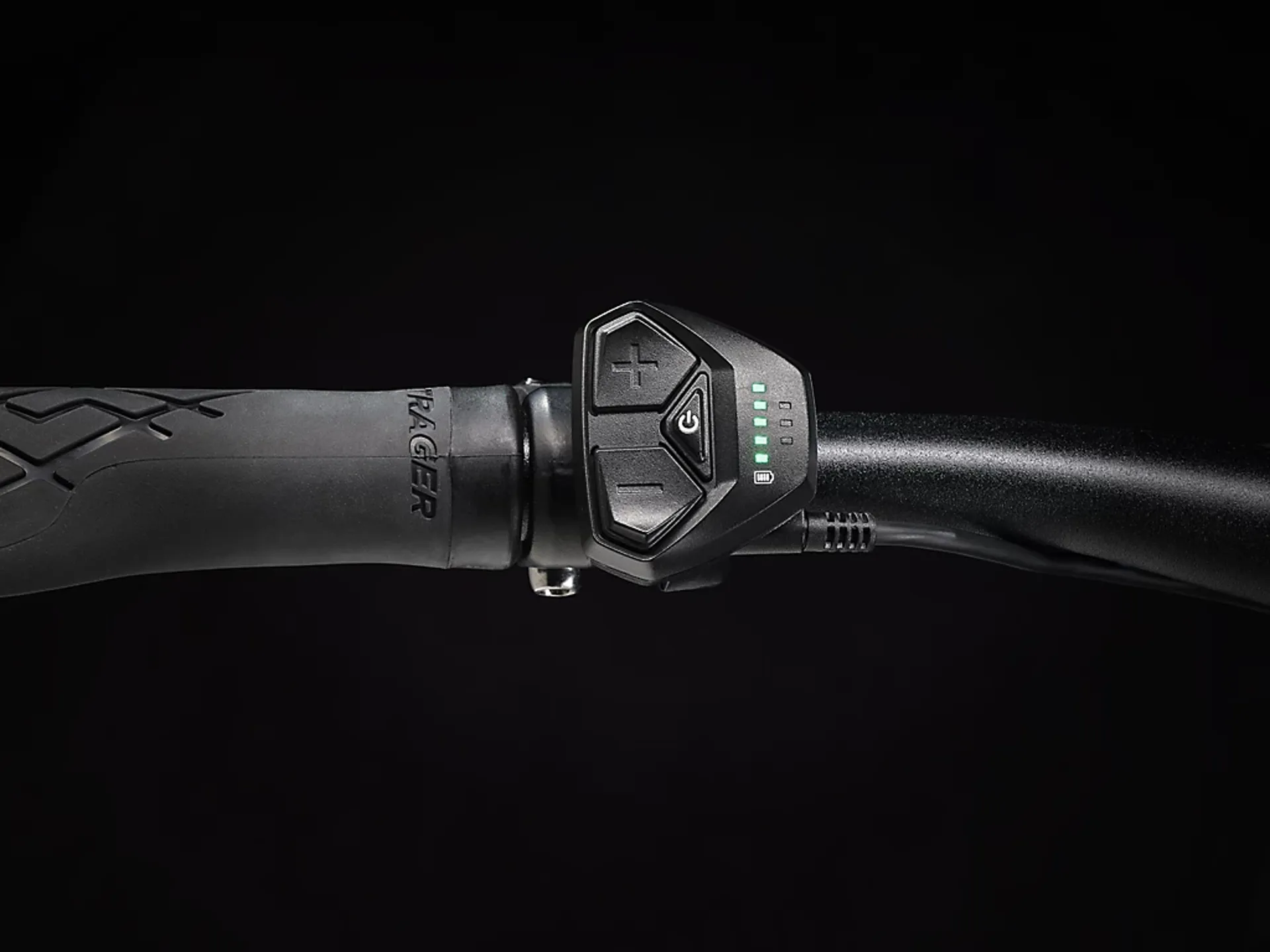

Computer
Bluetooth display
Kickstand
Pletscher Comp 18

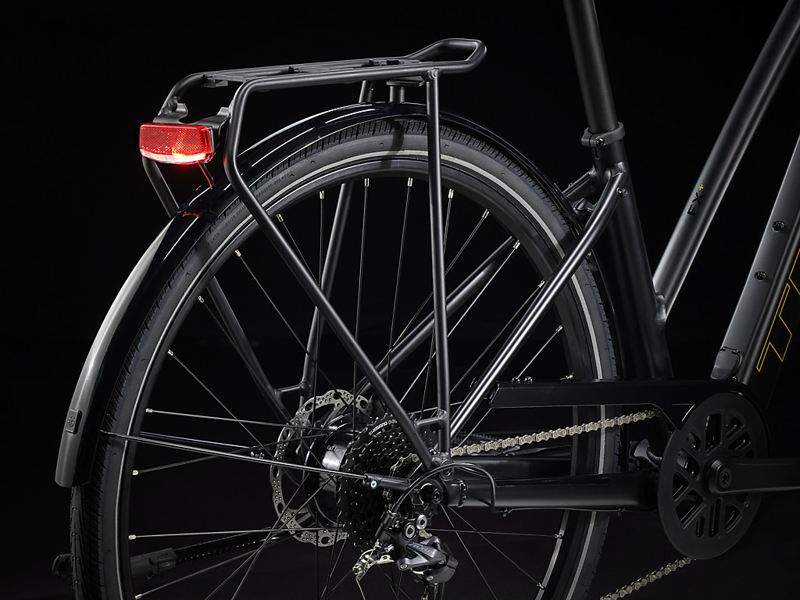

Cargo rack
MIK Compatible alloy rear rack
Mudguard
SKS plastic
Weight
M - 17.82 kg / 39.29 lbs
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
