Frame
Size: XS

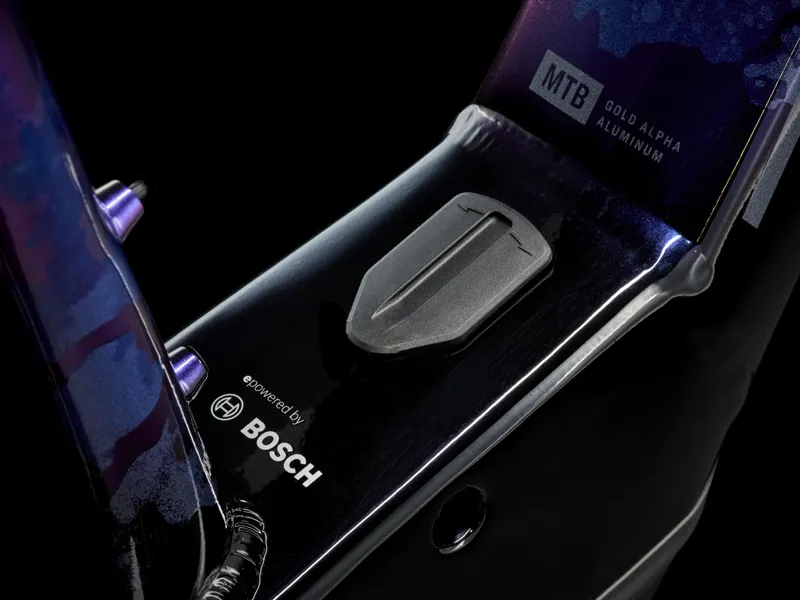

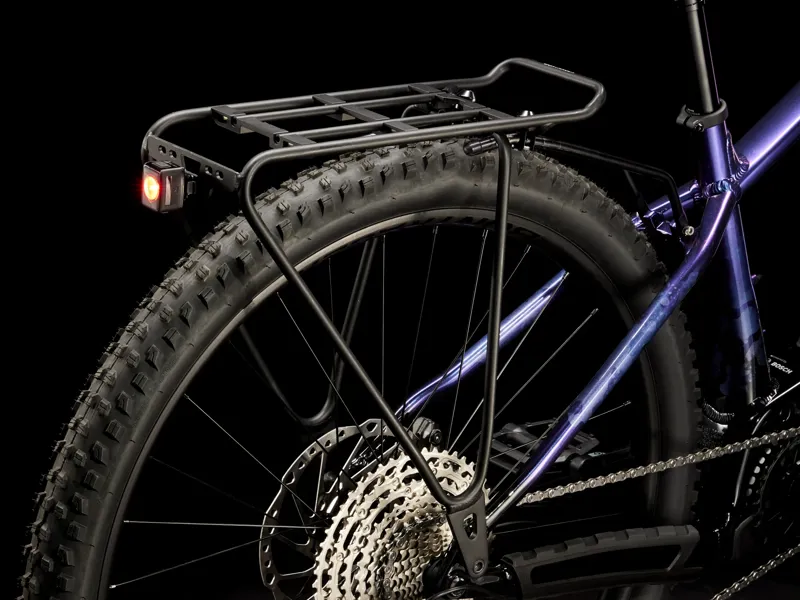

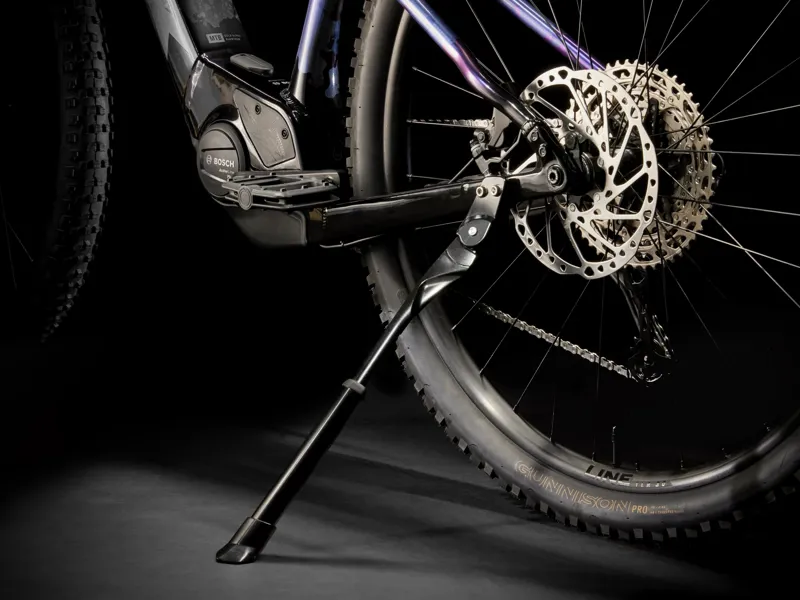

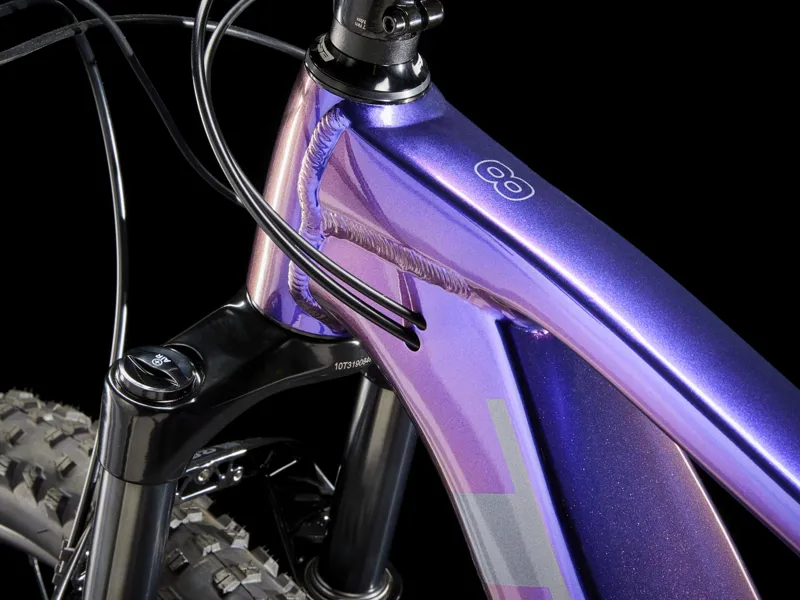

Alpha Platinum Aluminium, curved top tube, tapered head tube, internal routing, rack, mudguard and kickstand mount, UDH, Boost148, 12 mm thru axle
Size:S , M , L , XL
Alpha Platinum Aluminium, tapered head tube, internal routing, rack, mudguard and kickstand mount, UDH, Boost148, 12 mm thru axle
Fork
Size: XS
SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm thru axle, 100 mm travel
Size:S , M , L , XL
RockShox Recon Silver RL, Solo Air spring, Motion Control damper, lockout, tapered steerer, 46 mm offset, Boost110, Maxle Stealth, 120 mm travel
Hub front
Bontrager alloy, sealed bearing, alloy axle, CenterLock, Boost110, 15 mm thru axle
Skewer rear
Bontrager Switch thru-axle, removable lever
Rim
Size: XS , S , M , L , XL
Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve
Size:XS , S , M , L , XL
Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve
Tyre
Size: XS , S
Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.60"
Size:M , L , XL
Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.60"
Rim strip
Bontrager TLR
Shifter
Shimano Deore M6100, 12-speed

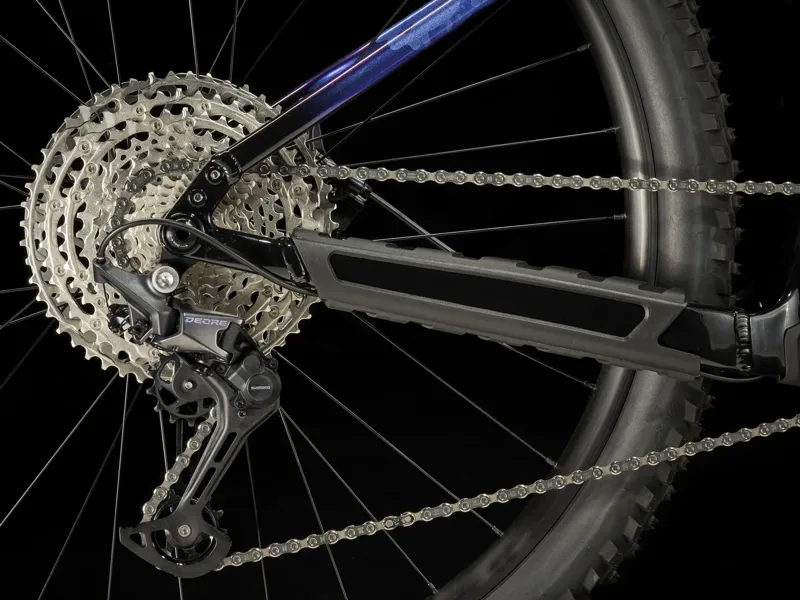

Rear derailleur
Shimano Deore M6100, long cage
Crank
FSA CK-220, 165 mm length
Chainring
FSA, 32T, steel
Cassette
Shimano Deore M6100, 10-51, 12-speed
Chain
Shimano Deore M6100, 12-speed
Pedal
VP-536 nylon platform

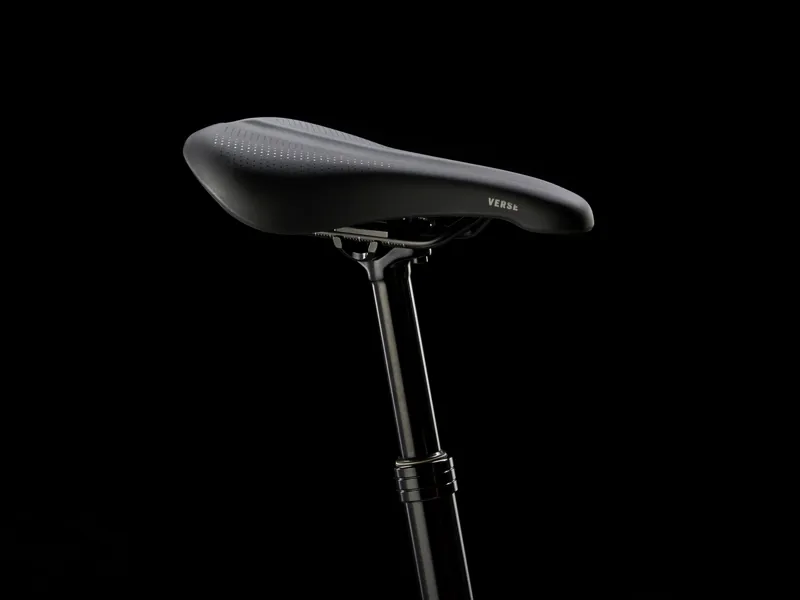

Saddle
Bontrager Arvada, steel rails, 138 mm width
Seatpost
Size: XS , S
TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
Size:M , L , XL
TranzX JD-YSP18, 150 mm travel, internal routing, 31.6 mm, 470 mm length
Handlebar
Size: XS , S
Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
Size:M , L , XL
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips
Bontrager XR Trail Comp, nylon lock-on
Stem
Size: XS , S
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 35 mm length
Size:M , L
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length
Size:XL
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
Head set
Semi-integrated, sealed cartridge bearing, alloy cups, 1-1/8" top, 1.5" bottom
Brake
Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper
Brake rotor
Size: XS , S , M , L , XL
Shimano RT64, CentreLock, 203 mm
Size:XS , S , M , L , XL
Shimano RT64, CentreLock, 203mm

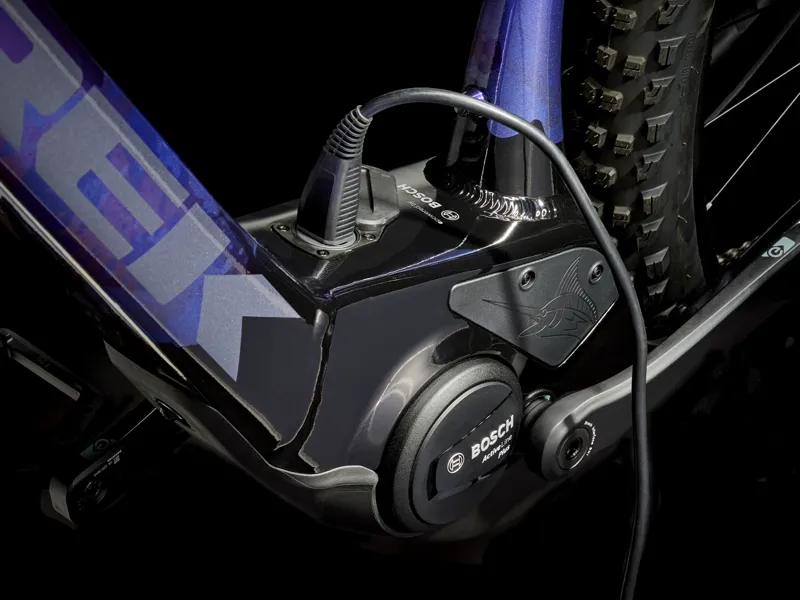

Battery
Bosch CompactTube 400 Wh
Charger
Bosch standard 2A, 230V, smart system

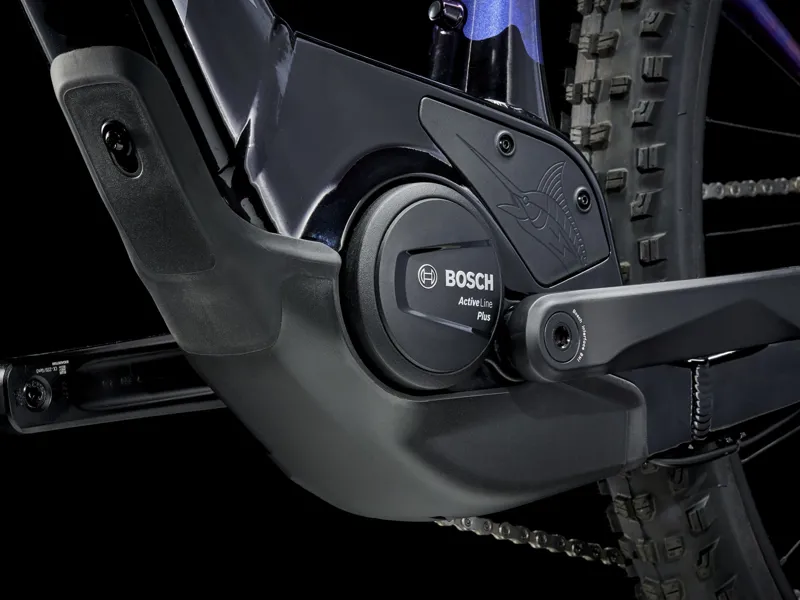

Motor
Bosch Active Line Plus

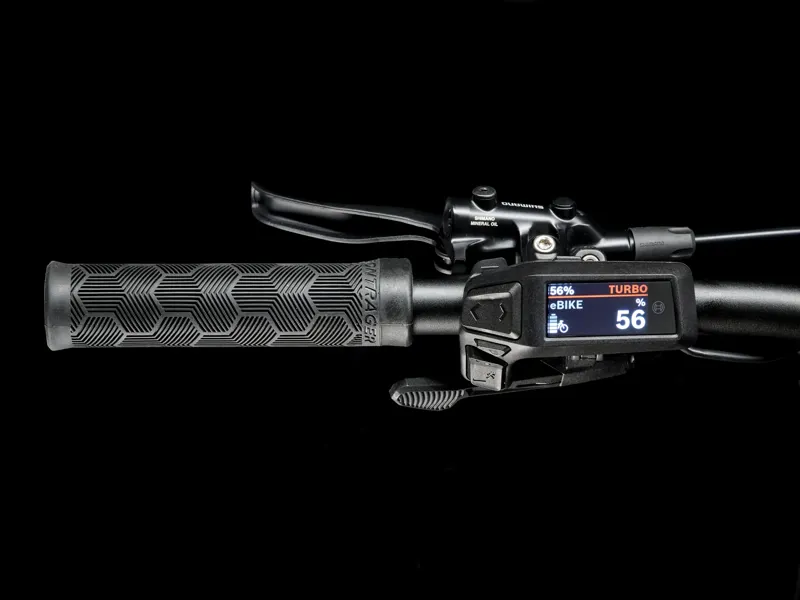

Computer
Bosch Purion 200
Weight
M - 21.30 kg / 46.96 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
