Frame
Size: XS , S
Alpha Platinum Aluminium, curved top tube, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, Motor Armour, Boost148, 12 mm thru axle
Size:M , L , XL
Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, Motor Armour, Boost148, 12 mm thru axle

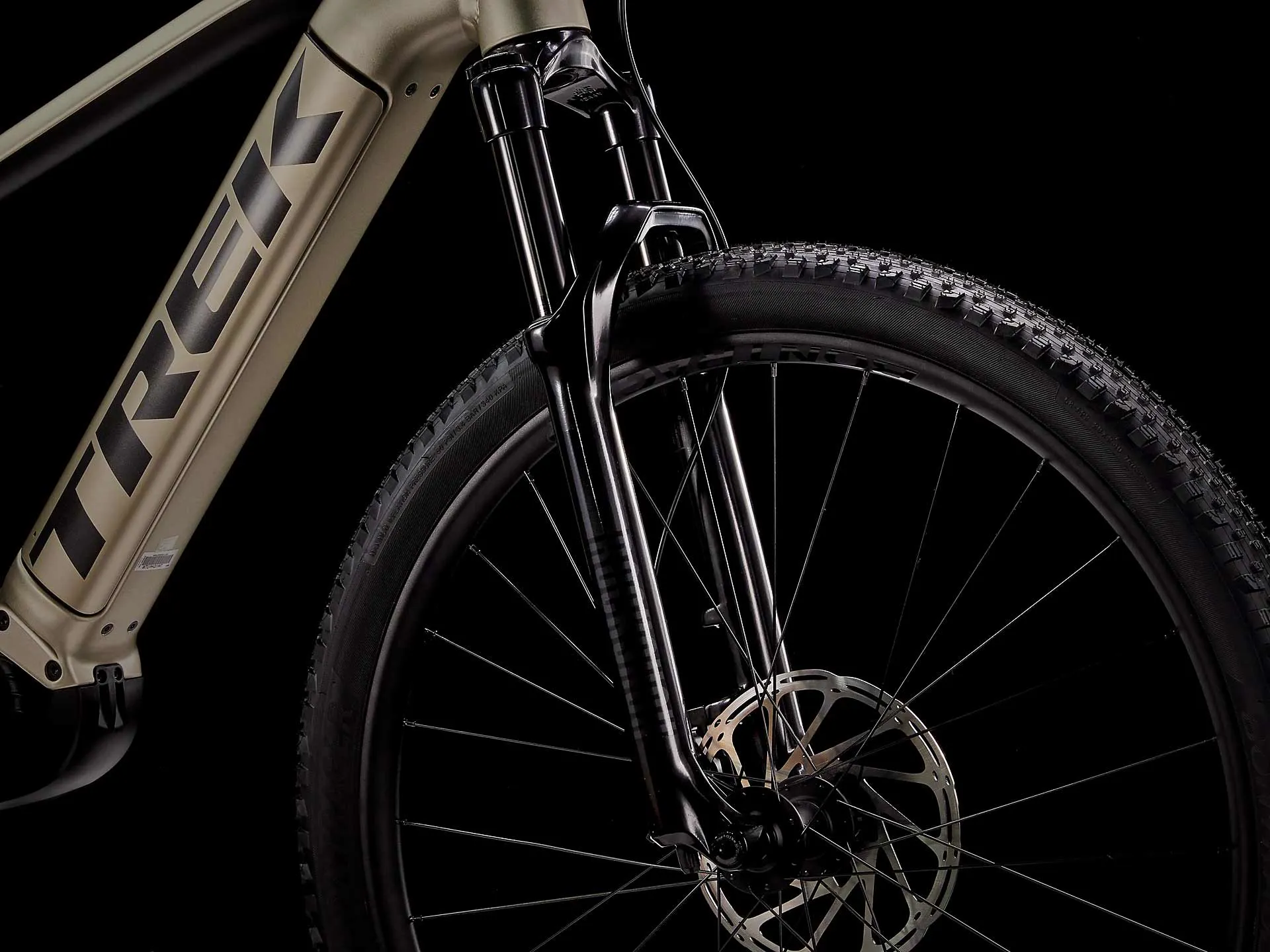

Fork
Size: XS
RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm Maxle Stealth, 80 mm travel
Size:S , M , L , XL
RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm Maxle Stealth, 120 mm travel
Max compatible fork travel
120 mm (526 mm axle-to-crown), XS and S: 100 mm (492 mm axle-o-crown)
Hub front
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Hub rear
Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano MicroSpline freehub, Boost148, 12mm thru axle
Skewer rear
Bontrager Switch thru-axle, removable lever
Rim
Bontrager Line Comp 30, Tubeless Ready, 28-hole, Presta valve

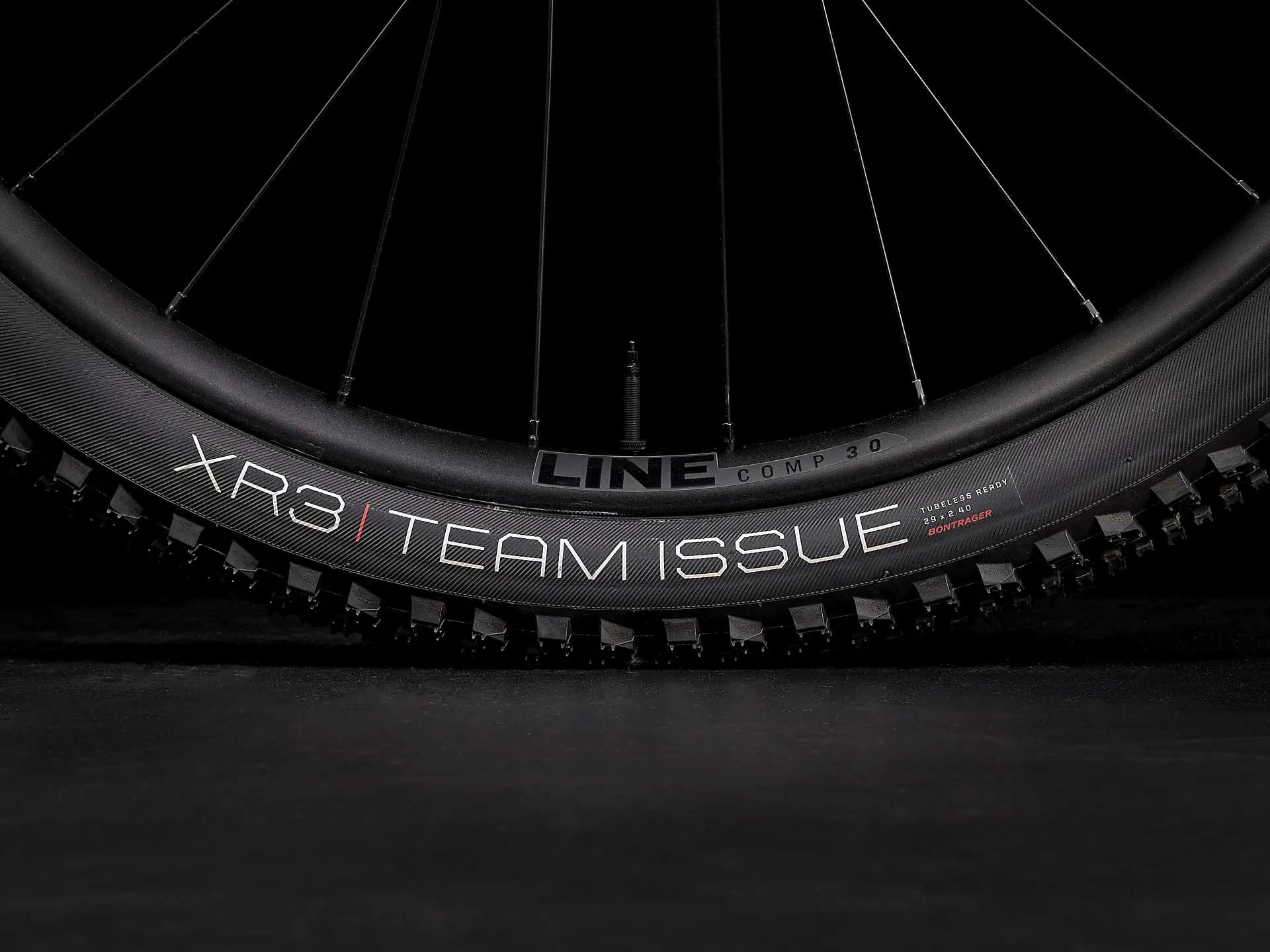

Tyre
Size: XS , S
Bontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 27.5x2.35
Size:M , L , XL
Bontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.40"
Rim strip
Bontrager TLR
Max tyre size
Frame: 29x2.60" or 27.5x2.8" (XS and S: 27.5x2.60") Fork: See manufacturer
Shifter
Shimano SLX M7100, 12-speed

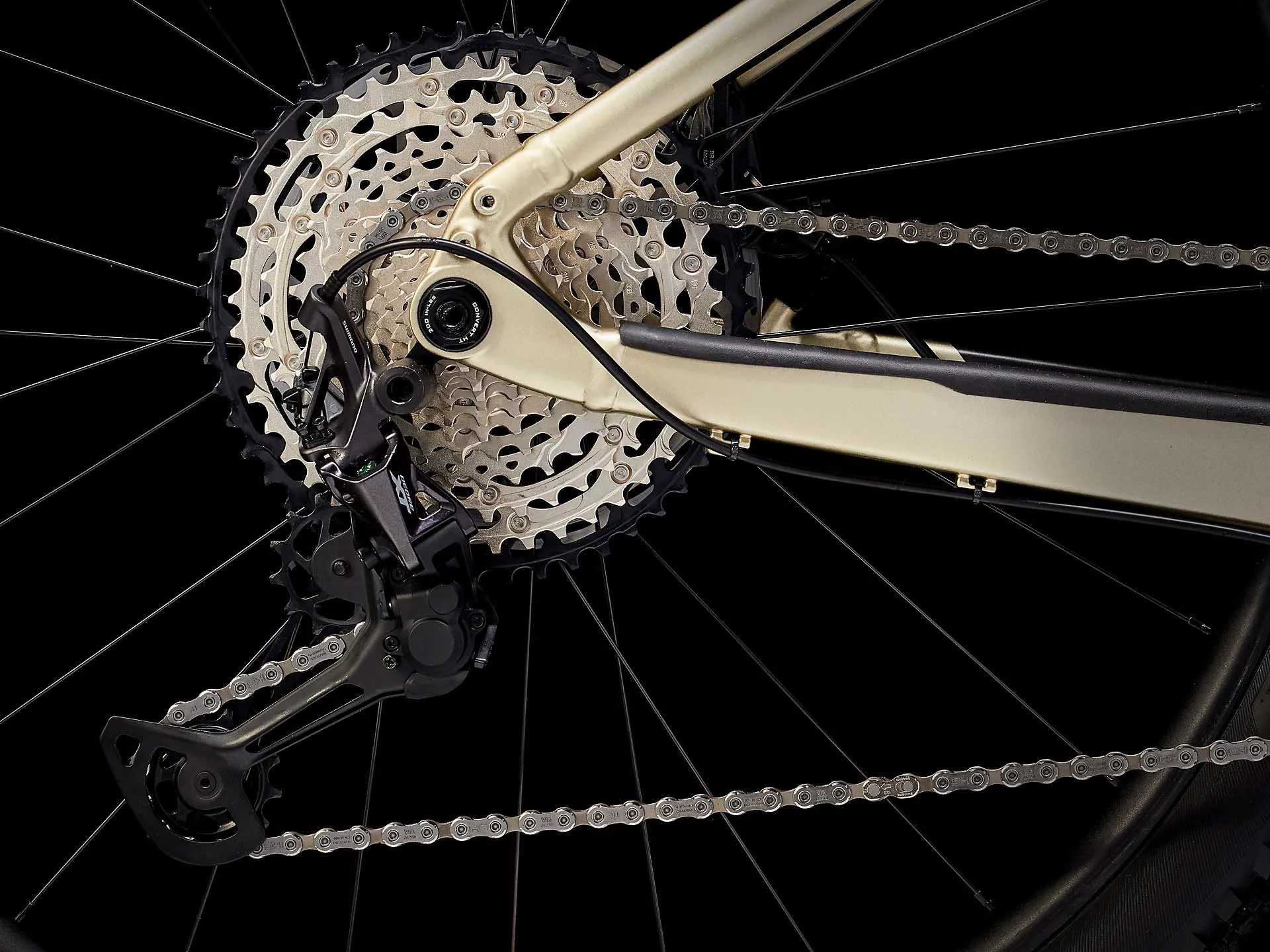

Rear derailleur
Shimano XT M8100, long cage
Crank arm
E*thirteen E*spec Plus, 34T, 165 mm length
Chainring
E*thirteen, 36T, steel
Cassette
Shimano SLX M7100, 10-51, 12-speed
Chain
Shimano SLX M7100, 12-speed
Pedal
Wellgo VPE-536
Max. chainring size
38T
Saddle
Bontrager Commuter Comp
Seatpost
Size:XS , S
TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
Size:M , L , XL
TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length
Handlebar
Size: XS , S
Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
Size:M , L , XL
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips
Bontrager XR Endurance Elite
Stem
Size: XS
Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length
Size:S , M
Bontrager Rhythm Comp, 31.8mm, Knock Block, 0-degree, 60 mm length
Size:L , XL
Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 70 mm length
Head set
FSA IS-2, 1-1/8" top, 1.5" bottom
Brake
Size: XS , S , M , L , XL
SRAM DB 8 4-piston hydraulic disc
Size:XS , S , M , L , XL
Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper
Brake rotor
Size: XS , S
SRAM CenterLine, 6-bolt, round edge, 180 mm
Size:XS , S , M , L , XL
SRAM CenterLine, 6-bolt, round edge, 200 mm
Size:XS , S
Shimano RT66, 6-bolt, 180 mm
Size:XS , S , M , L , XL
Shimano RT66, 6-bolt, 203 mm
Rotor size
Max brake rotor sizes: Front see fork manufacturer, rear 203 mm

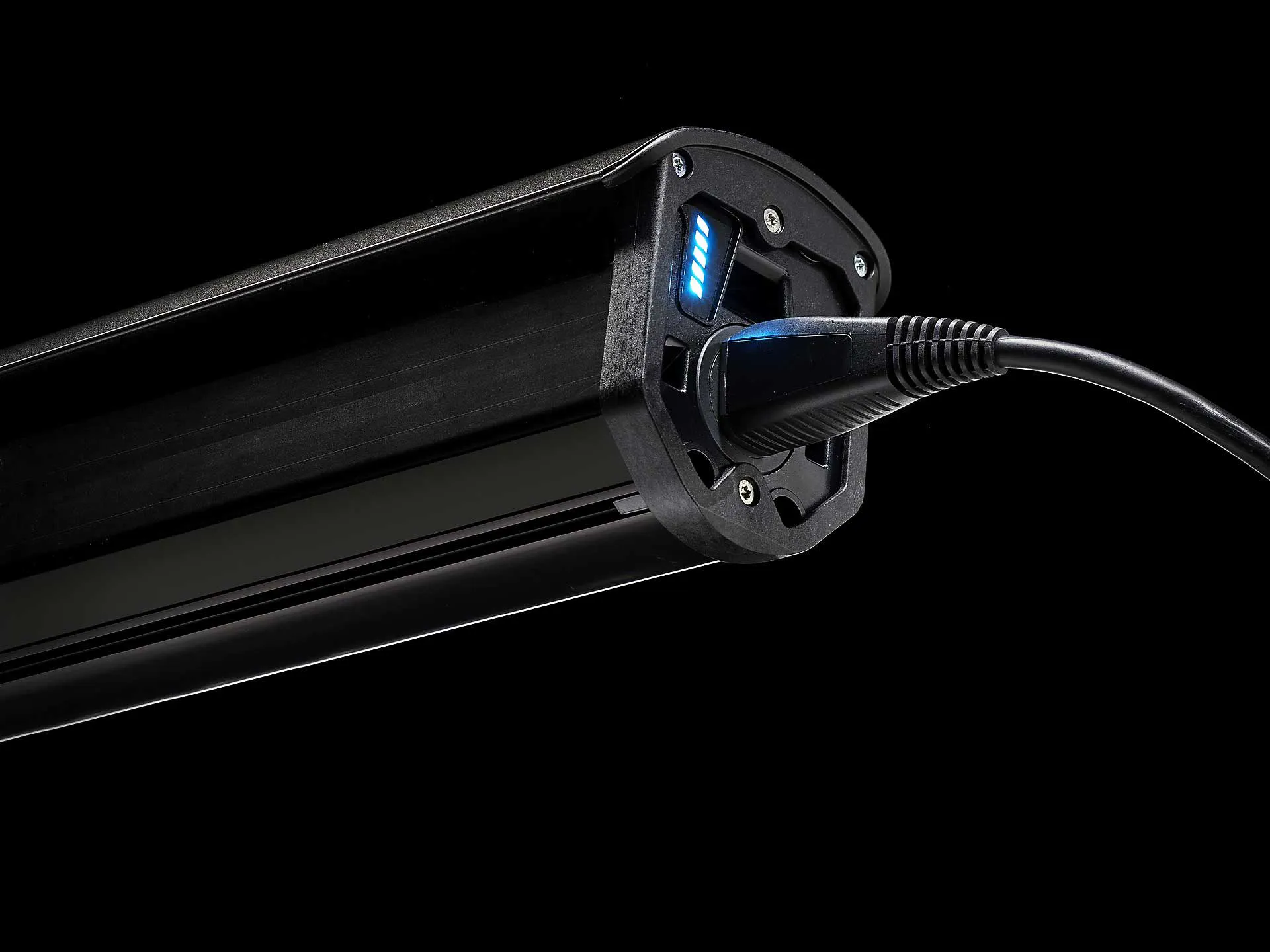

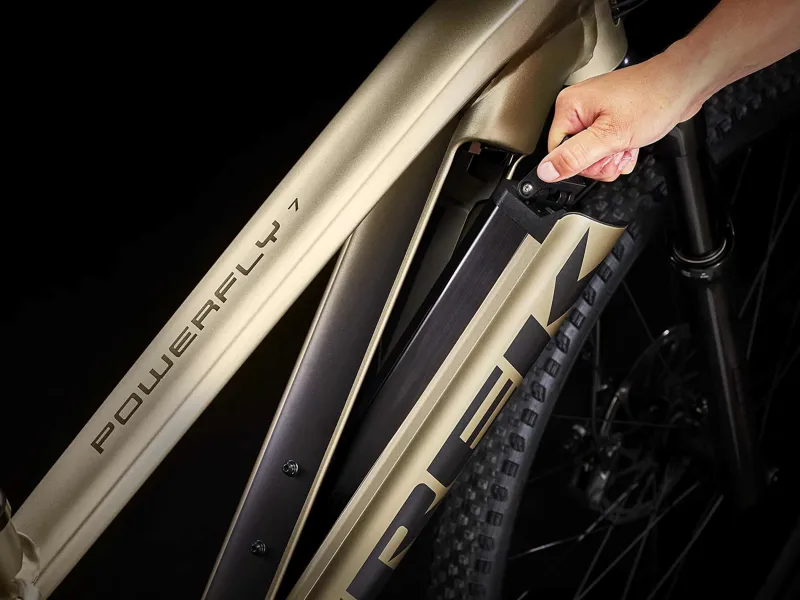

Battery
Bosch PowerTube 625Wh, smart system
Charger
Bosch standard 4A, 230V, smart system

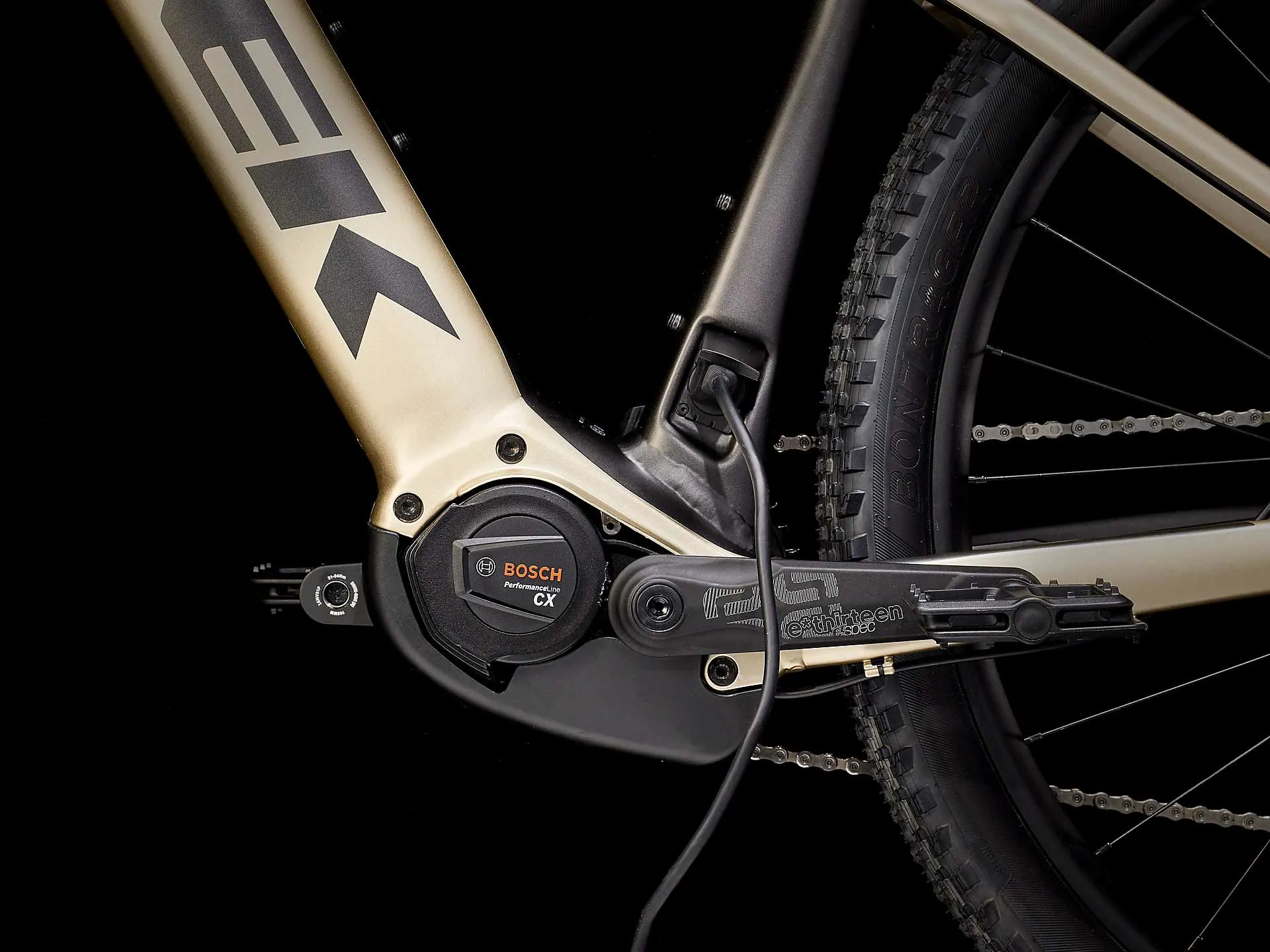

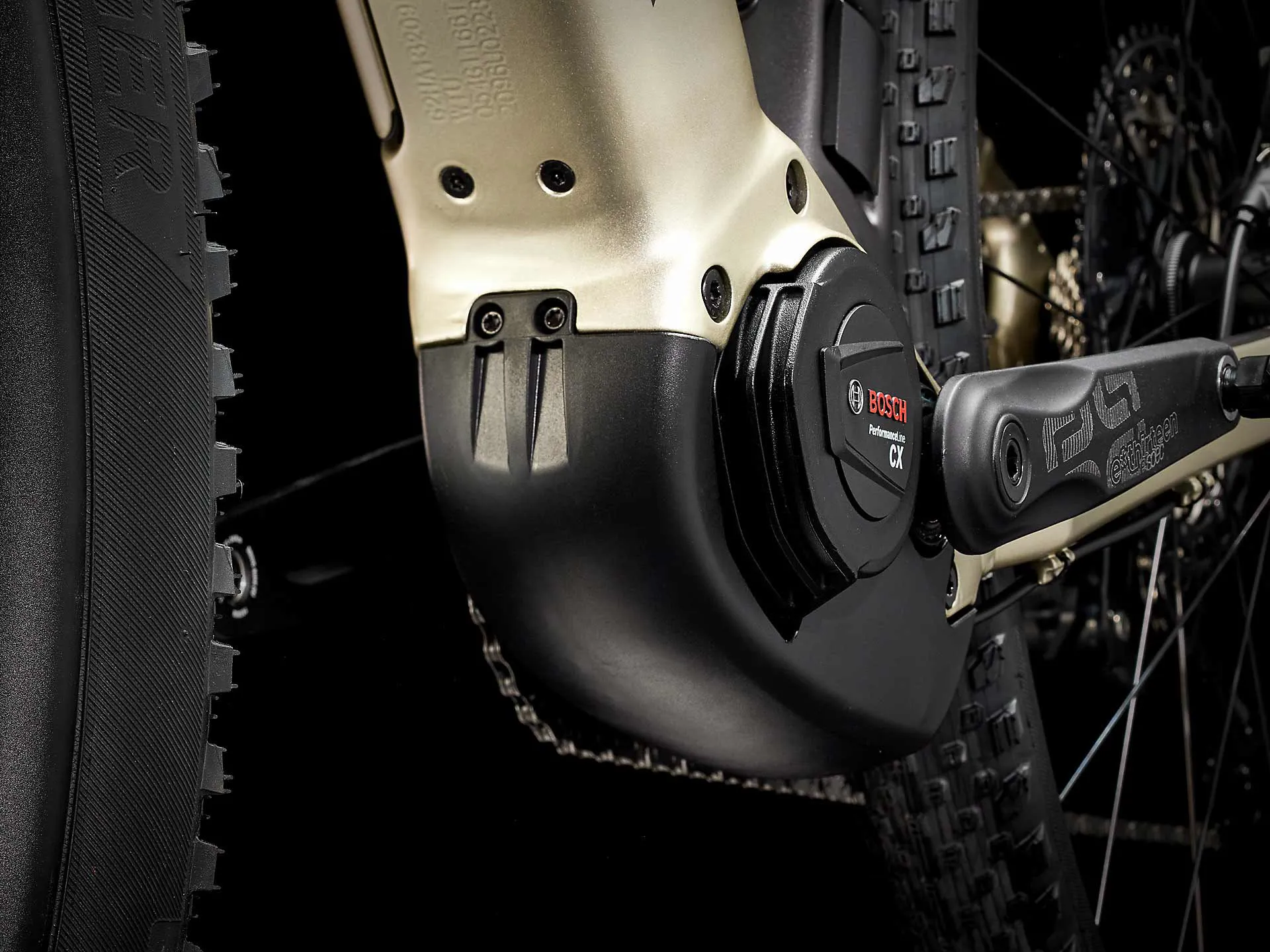

Motor
Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm, 20 mph or 32 km/h max assist (25 km/h max assist in EU and APAC)
Light
Size: XS , S , M , L , XL
Supernova E3 Mini-2 rear light, LED
Size:XS , S , M , L , XL
Supernova Mini 2, 5-21V LED headlight

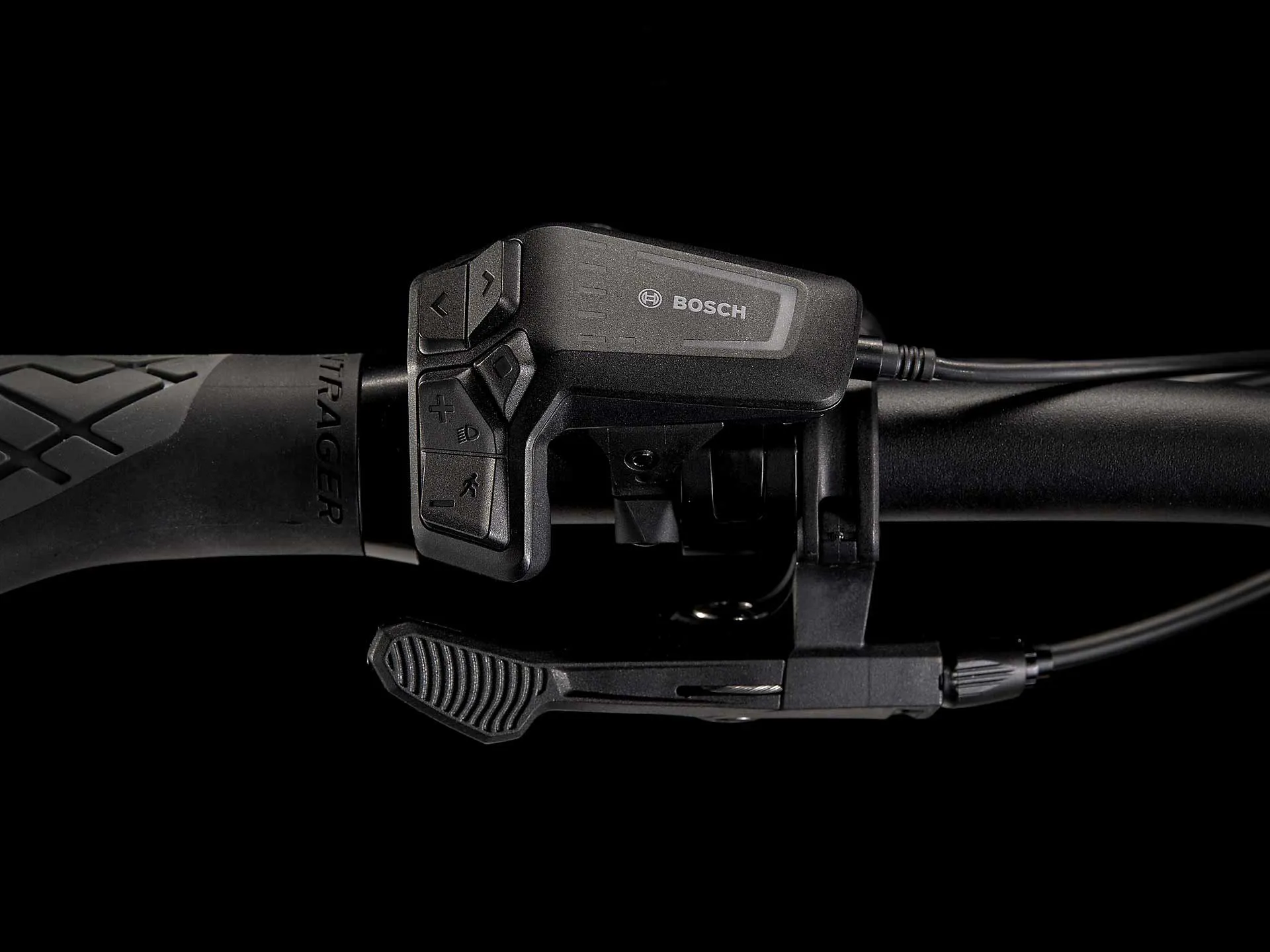

Computer
Size: XS , S , M , L , XL
Bosch LED remote, smart system
Size:XS , S , M , L , XL
Bosch Kiox 300, smart system
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
