Frame
Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, internal routing, Motor Armour, magnesium rocker link, rack and mudguard mount, ABP, Boost148, 100 mm travel
Fork
Size: XS , S
SR Suntour XCR 34, air spring, LO R damper, hydraulic lockout, tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm bolt-on thru axle, 100 mm travel
Size:M , L , XL
SR Suntour XCR 34, air spring, LO R damper, hydraulic lockout, tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm bolt-on thru axle, 120 mm travel

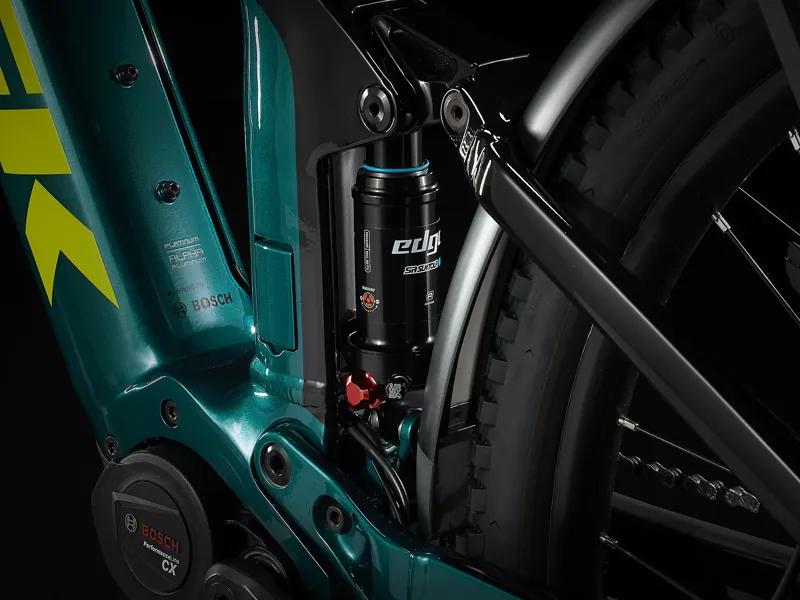

Shock
SR Suntour Edge R, 190 mm x 45 mm
Max compatible fork travel
120mm (XS & S: 520mm axle-to-crown, M & up: 545mm axle-to-crown)
Hub front
Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Hub rear
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano 8/9/10 freehub, Boost148, 12 mm thru axle
Skewer rear
Bontrager Switch thru-axle, removable lever

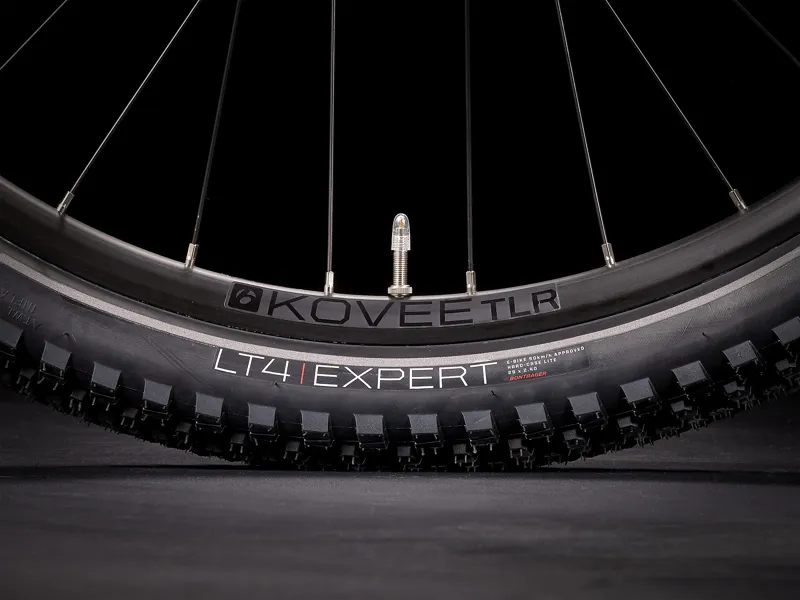

Rim
Size: XS , S
Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve
Size:M , L , XL
Bontrager Kovee, double-wall, Tubeless-Ready, 32-hole, 23 mm width, Presta valve
Tyre
Size: XS , S
Bontrager LT4 Expert, reflective strip, wire bead, 60 tpi, 27.5x2.40"
Size:XS , S
Bontrager XR3 Comp, wire bead, 30 tpi, 27.5x2.35"
Size:M , L , XL
Bontrager LT4 Expert, reflective strip, wire bead, 60 tpi, 29x2.40"
Max tyre size
Frame: 29x2.40" (XS & S: 27.5x2.60") Fork: See manufacturer
Shifter
Shimano Deore M4100, 10 speed

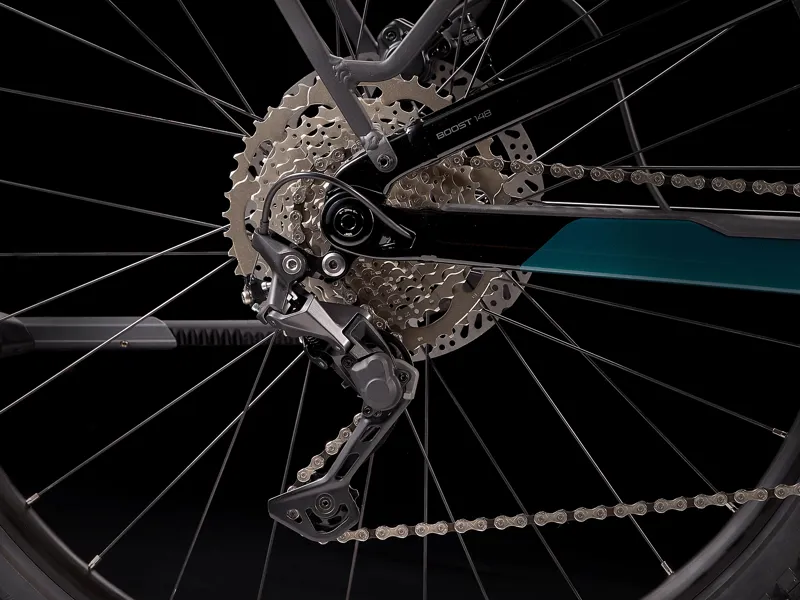

Rear derailleur
Shimano Deore M5120, long cage
Crank
FSA Bosch CK-220, 36T ring, 165 mm length
Chainring
FSA, 36T, steel
Cassette
Shimano Deore M4100, 11-46, 10-speed
Chain
KMC X10, 10-speed
Pedal
VP-536 nylon platform
Max. chainring size
Max: 46T, Min 34T
Saddle
Bontrager Commuter Comp
Seatpost
Size: XS , S , M
TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
Size:L , XL
TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length
Handlebar
Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
Grips
Size: XS , S , M , L , XL
Bontrager XR Endurance Comp
Size:XS , S , M , L , XL
Bontrager XR Endurance Comp, lock-on
Stem
Size: XS , S
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
Size:M , L , XL
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length
Head set
FSA IS-2

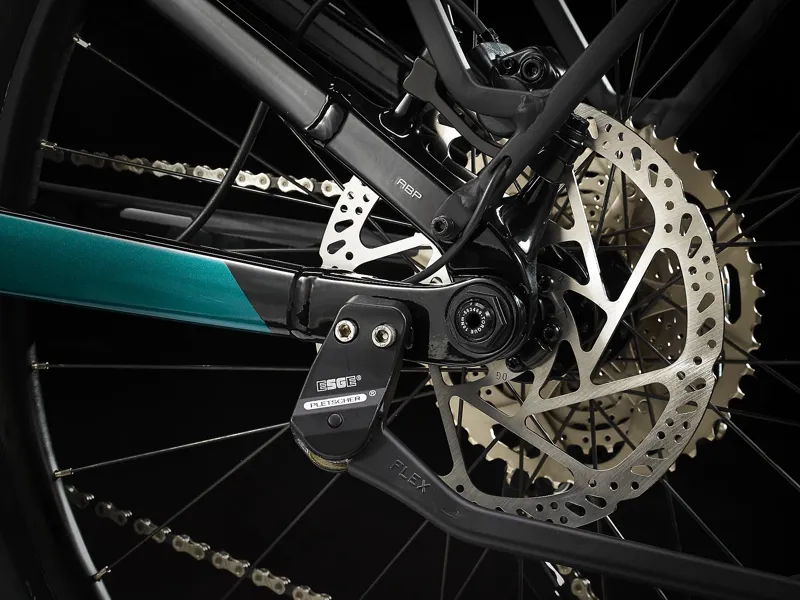

Brake rotor
Tektro, 6-bolt, 203 mm
Brake Set
Tektro HD-M275 hydraulic disc

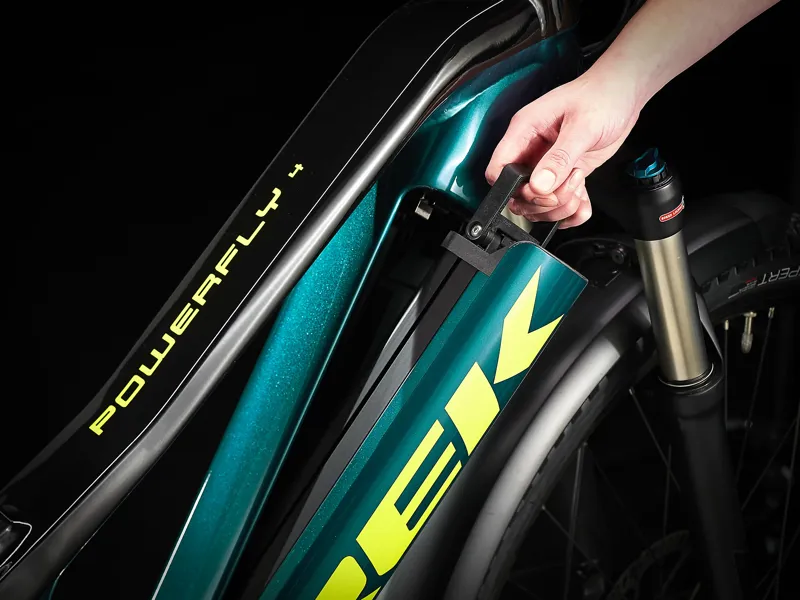

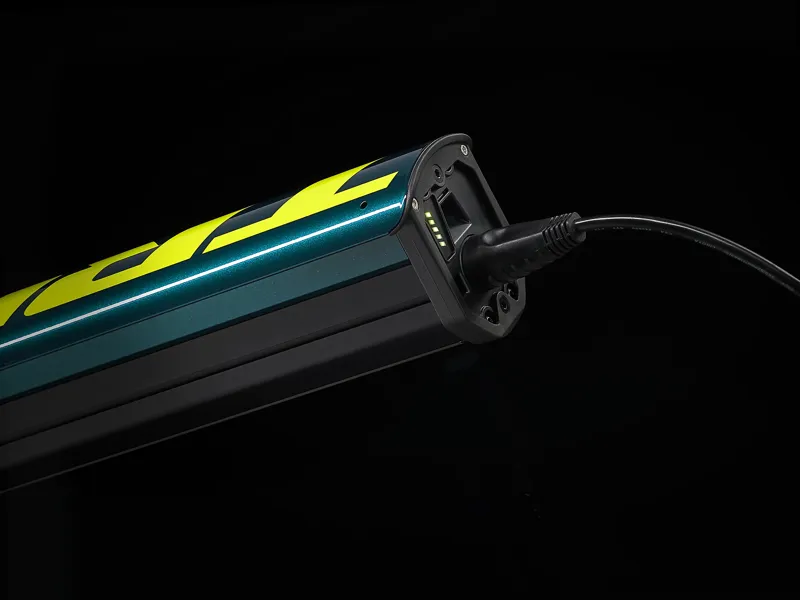

Battery
Bosch PowerTube 625
Charger
Bosch compact 2A, 100–240V, smart system

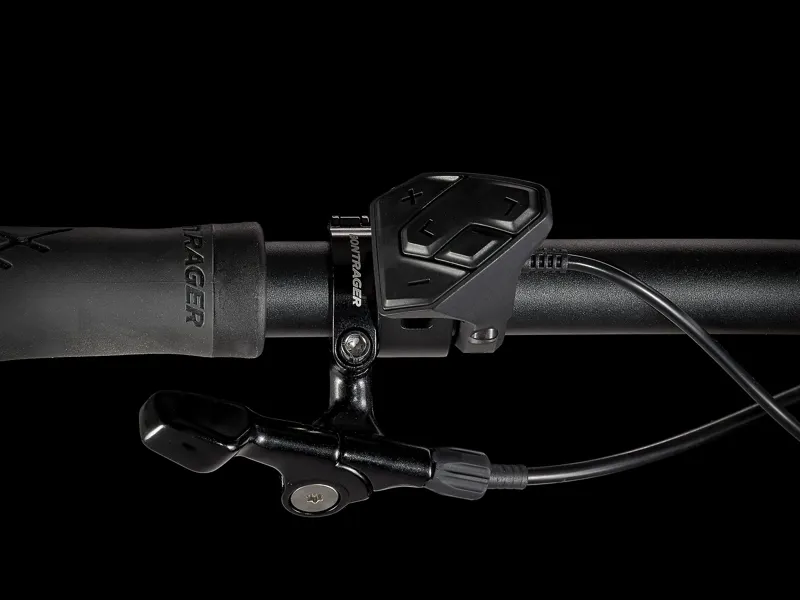

Controller
Bosch Kiox with Anti-theft solution

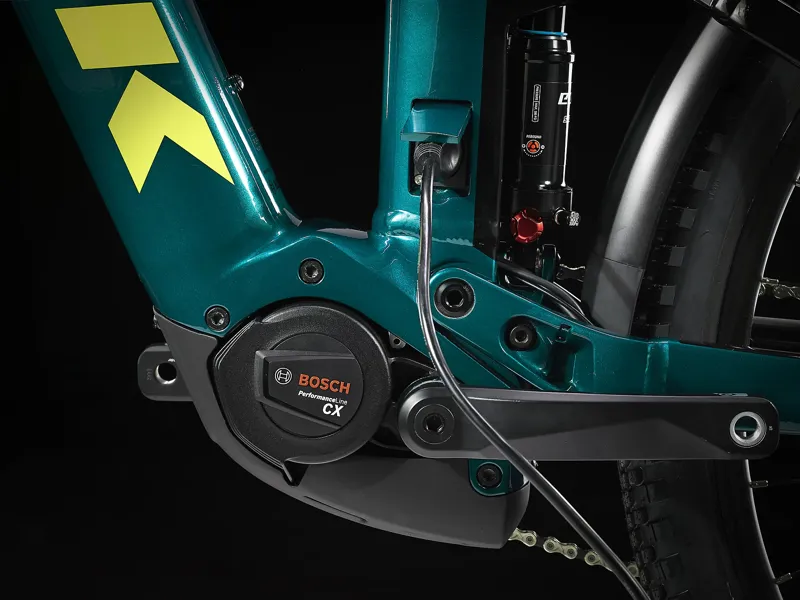

Motor
Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 25 km/h (15.5 mph) max assist, 32 km/h for New Zealand
Light
Size: XS , S , M , L , XL
Supernova E3 Mini-2 rear light, LED
Size:XS , S , M , L , XL

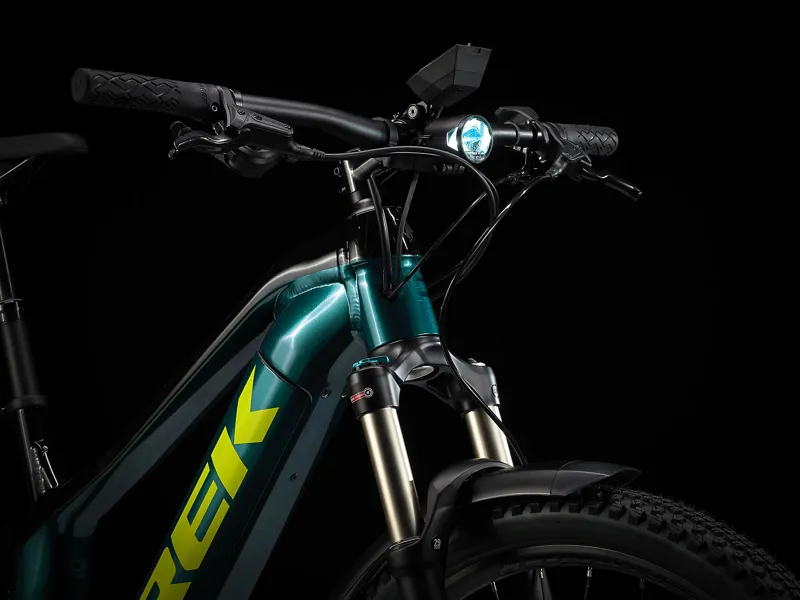

Herrmans MR8e front light, 180 lumen, 60 lux
Computer
Bosch Kiox with Anti-theft solution
Kickstand
Pletscher Comp Flex 18
Cargo rack
MIK Compatible alloy rear rack
Mudguard
Size: XS , S , M , L , XL
Trek Powerfly FS custom mudguard
Size:XS , S
Trek Powerfly 27.5" custom fender
Size:M , L , XL
Trek Powerfly 29" custom fender
Weight
M - 27.38 kg/60.37 lb
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
