Frame
Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, internal routing, Motor Armour, rocker link, rack and mudguard mount, ABP, Boost148, 100 mm travel
Fork
Size:XS , S
RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm Maxle Stealth, 100 mm travel
Size:M , L , XL
RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm Maxle Stealth, 120 mm travel

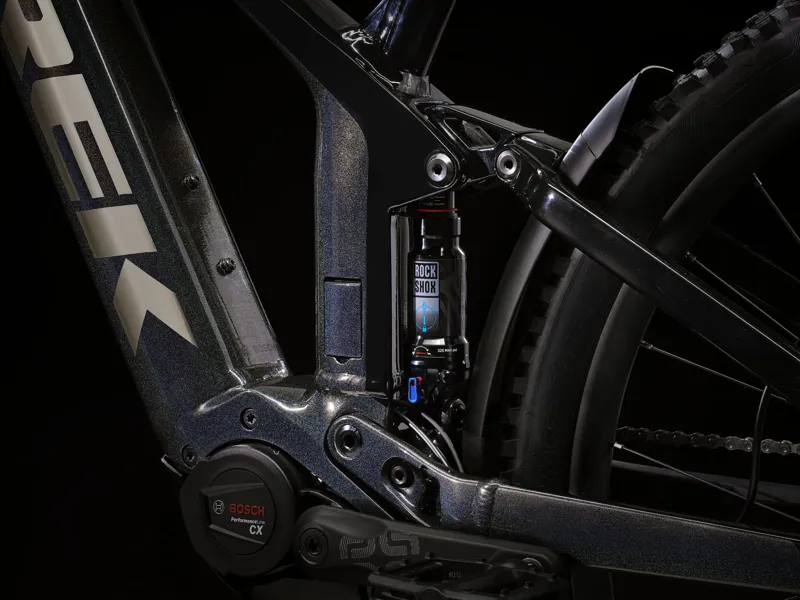

Shock
RockShox SID Lux Select+, 190 x 45mm
Max compatible fork travel
120mm (XS and S: 520mm axle-to-crown, M and up: 545mm axle-to-crown)
Hub front
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Hub rear
Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano MicroSpline freehub, Boost148, 12mm thru axle
Skewer rear
Bontrager Switch thru-axle, removable lever
Rim
Bontrager Line Comp 30, Tubeless-Ready, 28-hole, Presta valve

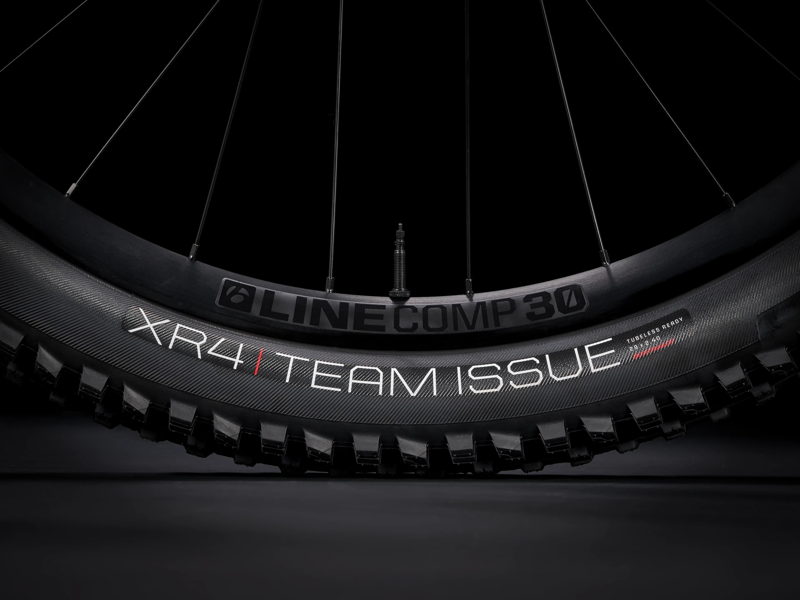

Tyre
Size:XS , S
Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5 x 2.40''
Size:M , L , XL
Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29 x 2.40''
Size:M , L , XL
Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29x2.40"
Max tyre size
Frame: 29x2.40" (XS & S: 27.5x2.60"), Fork: See manufacturer
Shifter
Shimano SLX M7100, 12-speed
Rear derailleur
Shimano XT M8100, long cage
Crank
E*thirteen E*spec Plus, 165 mm length
Chainring
E*thirteen, 36T, steel
Cassette
Shimano Deore M6100, 10-51, 12-speed
Chain
Shimano SLX M7100, 12-speed
Pedal
VP-536 nylon platform
Max. chainring size
1x: 46T, min 34T

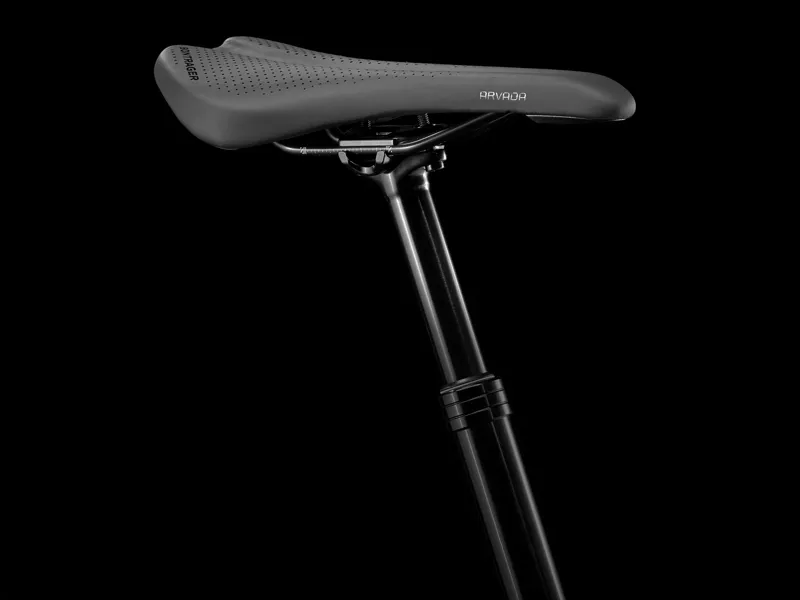

Saddle
Bontrager Arvada, steel rails, 138 mm width
Seatpost
Size:XS , S , M
TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
Size:L , XL
TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length
Handlebar
Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750mm width
Grips
Bontrager XR Trail Comp, nylon lock-on
Stem
Size:XS , S
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
Size:M , L , XL
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Head set
FSA IS-2
Brake
SRAM DB 8 4-piston hydraulic disc
Brake rotor
SRAM CentreLine, 6-bolt, round edge, 200 mm
Rotor size
Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer

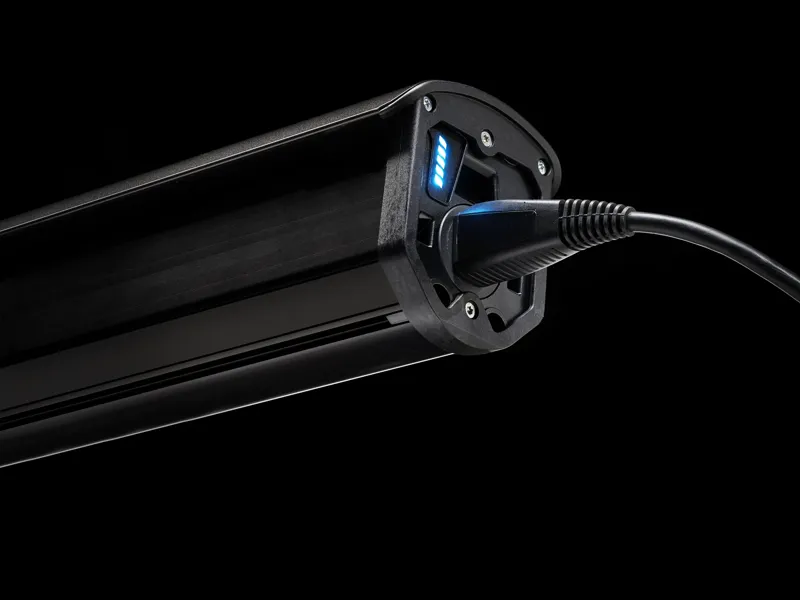

Battery
Bosch PowerTube 625Wh, smart system
Charger
Bosch standard 4A, 230V, smart system

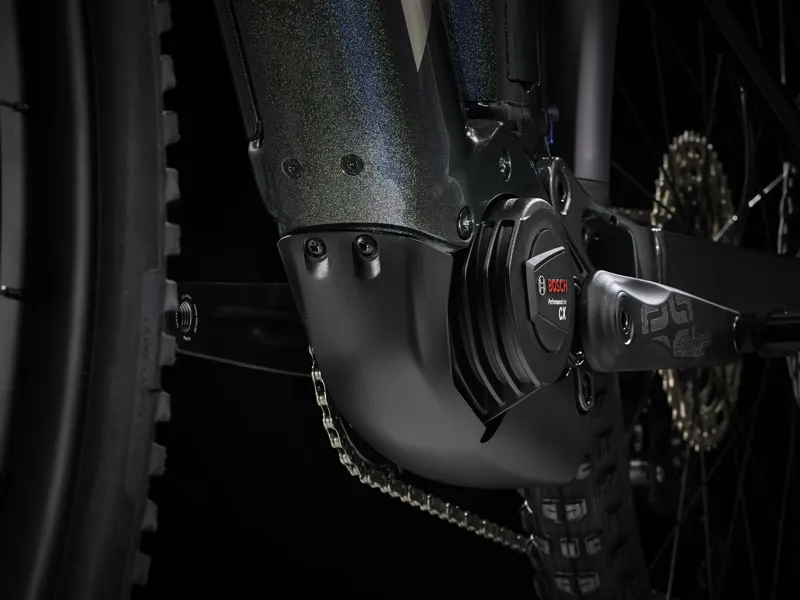

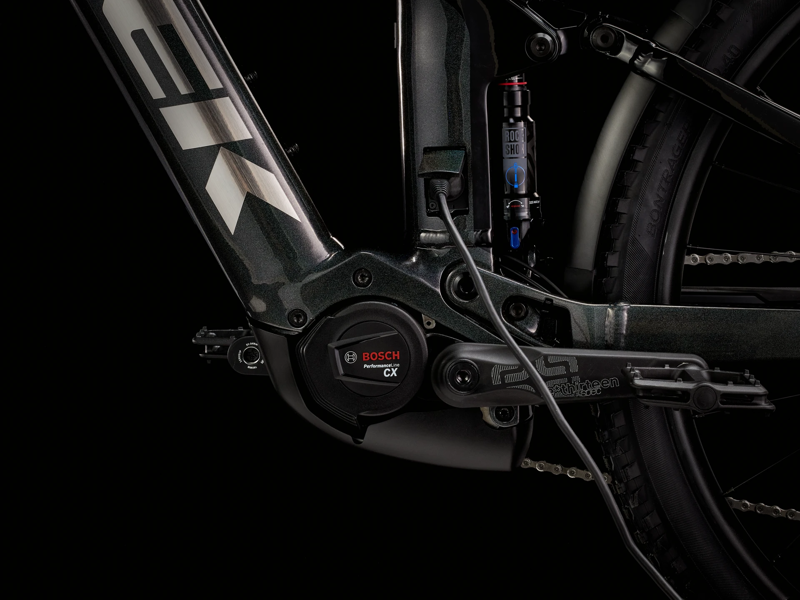

Motor
Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm
Computer
Size:XS , S , M , L , XL
Bosch LED remote, smart system
Size:XS , S , M , L , XL
Bosch Kiox 300, smart system
Mudguard
Trek Powerfly 29" custom fender
Weight
M – 24.70 kg/54.46 lb
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
