Frame
Size: XS , S

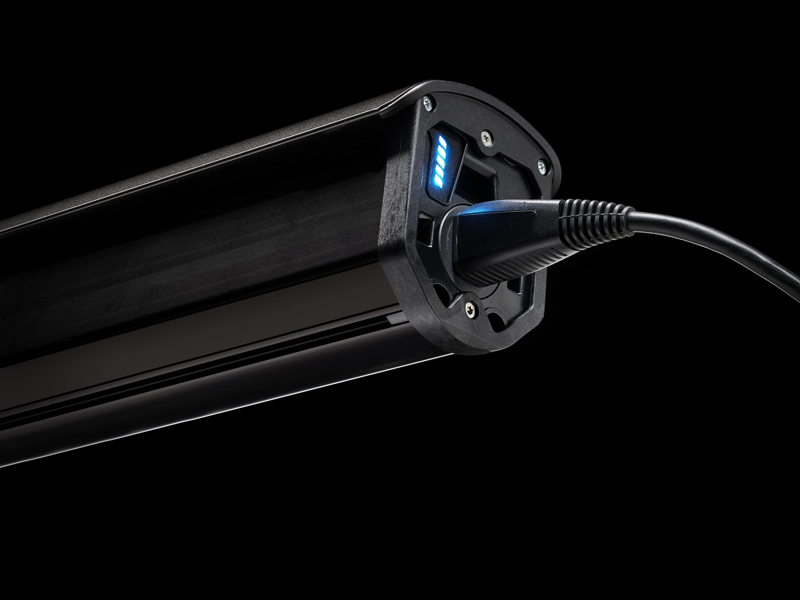

Alpha Platinum Aluminium, curved top tube, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, Motor Armour, Boost148, 12 mm thru axle
Size:M , L , XL
Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, Motor Armour, Boost148, 12 mm thru axle
Fork
SR Suntour Zeron 35, air spring, LO R damper, hydraulic lockout, tapered steerer, 44 mm offset, Boost110, 15 mm bolt-on thru axle, 120 mm travel
Max compatible fork travel
120mm (526mm axle-to-crown), XS and S: 100mm (492mm axle-to-crown)
Hub front
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Hub rear
Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
Skewer rear
Bontrager Switch thru-axle, removable lever

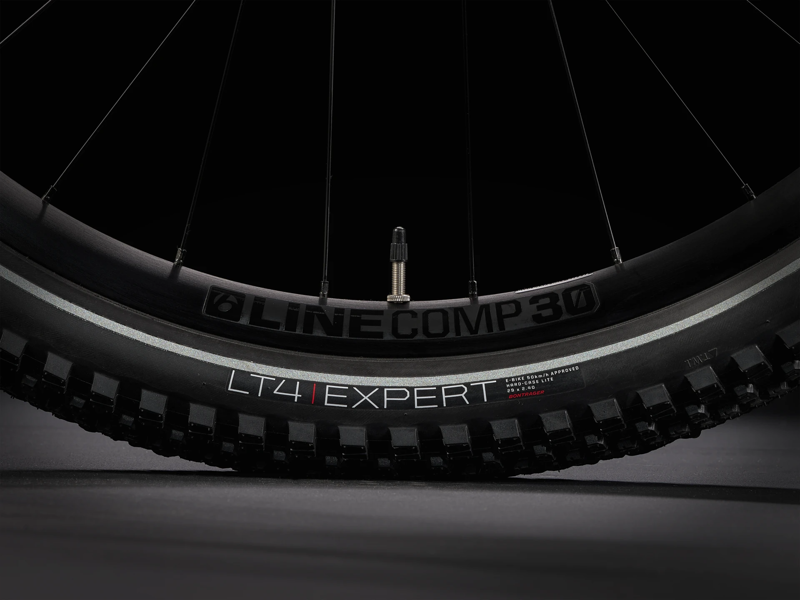

Rim
Bontrager Line Comp 30, Tubeless-Ready, 28-hole, Presta valve
Tyre
Size: XS , S
Bontrager LT4 Expert, reflective strip, wire bead, 60 tpi, 27.5x2.40"
Size:M , L , XL
Bontrager LT4 Expert, reflective strip, wire bead, 60 tpi, 29x2.40"
Max tyre size
Frame: 29x2.60" or 27.5x2.80" (XS & S: 27.5x2.60"), Fork: See manufacturer
Shifter
Shimano SLX M7100, 12-speed
Rear derailleur
Shimano XT M8100, long cage
Crank
E*thirteen E*spec Plus, 165 mm length
Chainring
E*thirteen, 36T, steel
Cassette
Shimano SLX M7100, 10-51T, 12-speed
Chain
Shimano SLX M7100, 12-speed
Pedal
VP-536 nylon platform
Max. chainring size
1x: 38T
Saddle
Bontrager Commuter Comp
Seatpost
Size: XS , S
TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
Size:M , L , XL
TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length
Handlebar
Size: XS , S
Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
Size:M , L , XL
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips
Bontrager XR Endurance Elite
Stem
Size: XS , S
Bontrager Elite, 31.8 mm, Blendr light mount, 7-degree rise, 60 mm length
Size:M , L , XL
Bontrager Elite, 31.8 mm, Blendr light mount, 7-degree rise, 70 mm length
Head set
FSA IS-2, 1-1/8" top, 1.5" bottom
Brake
SRAM DB 8 4-piston hydraulic disc
Brake rotor
Size:XS , S
SRAM CentreLine, 6-bolt, round edge, 180 mm
Size:XS , S , M , L , XL
SRAM CentreLine, 6-bolt, round edge, 200 mm
Rotor size
Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer
Motor
Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm
Light
Size:XS , S , M , L , XL
Supernova Mini 2, 5-21V LED headlight
Size:XS , S , M , L , XL
AXA Blueline taillight
Computer
Size:XS , S , M , L , XL

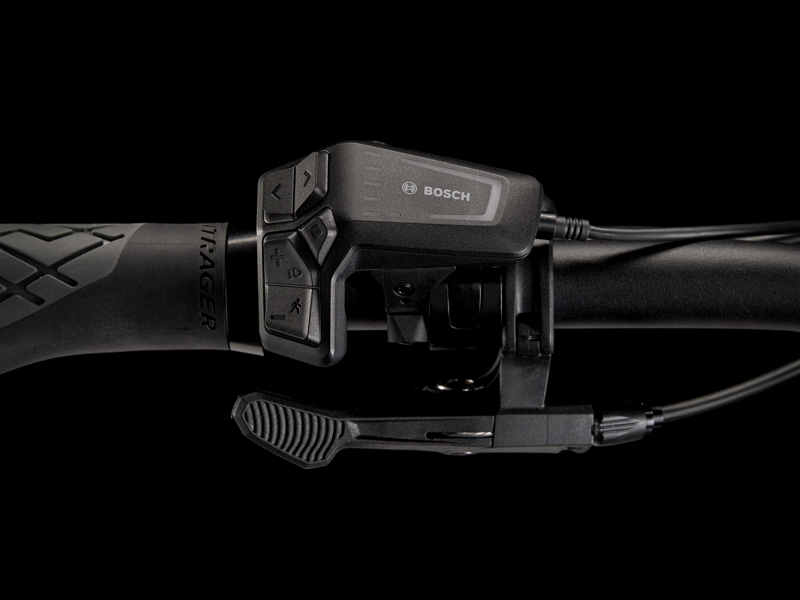

Bosch LED remote, smart system
Size:XS , S , M , L , XL
Bosch Kiox 300, smart system
Kickstand
Pletscher Comp Flex 18
Cargo rack
MIK-compatible alloy rear rack
Mudguard
Size:XS , S
Trek Powerfly 27.5" custom fender
Size:XS , S , M , L , XL
Trek Powerfly custom mudguard
Size:M , L , XL
Trek Powerfly 29" custom fender
Weight
M- 25.12 kg / 55.39 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
