Trek Rail+ 9.9 X0 AXS Gen 5 800Wh Full Suspension Electric Mountain Bike is the ultimate carbon enduro e-MTB designed for massive adventures.
Trek Rail+ 9.9 X0 AXS Gen 5 800Wh Full Suspension Electric Mountain Bike is the ultimate carbon enduro e-MTB designed for massive adventures.
Trek

TREK Rail+ 9.9 XO AXS Gen 5 800Wh Full Suspension Electric Mountain Bike in Pennyflake

£11,000.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Online Returns Policy

If you are not happy with any items purchased via our website, under Consumer Contracts Regulations you have the right to return any unused products for a refund or exchange within 30 days.

When the customer sends an item back to the company (or, when the company arranges for collecting from the customer), the company will process the returned item then notify the customer via email of the refund. The refund will be issued within 3 - 5 working days of the product being received by us, it may then take an additional 3 - 5 working days for the refund to be paid into the customers account.

Return Address:

Team Cycles LTD
Studio 11B
Second Avenue
Team Valley Trading Estate
Gateshead
NE11 0NF

For items returned within the cooling off period...

  • By law, customers have the right to withdraw from the purchase of an item within 14 working days of the date on which the item is delivered.
  • Where you are withdrawing from your purchase within the cooling-off period, and there has been no error on our part, we will refund the cost of the item.
  • The company will not refund the cost of delivery or other services provided to the customer in connection with the purchase.
  • The cost of delivery back to the company is the responsibility of the customer.
  • Where we collect an item from you, we reserve the right to recover the costs of collection from you.
TERMS AND CONDITIONS
  • Returned goods should be unused, in a saleable condition and in their original packaging with all labels still attached. Team Cycles is entitled to refuse the return or deduct from a refund as a result of the product not being in the above condition.
  • We are only able to exchange like for like products. If you require a different item, you will need to opt for a refund and place a new order. All returns must have a completed returns form.
  • We will refund you to your original payment method.
  • We make no charge for returns, there is no restocking fee.
  • Customised items cannot be returned. *
  • Please do not send your purchase back to the manufacturer unless you have been advised to.
  • Team Cycles customers have 30 days from date of delivery to return their orders.
  • Once we have received the returned goods we will refund you, by the method you used to pay for your order. This may take 5-7 working days to appear as cleared funds.

*Faulty customised goods (or goods that have been altered in any way) will need to be returned for inspection as customisation may void your warranty and therefore faults may not be covered.

WARRANTY

All products ordered from Team Cycles come with a full warranty which covers manufacturing faults and defects in workmanship. If you feel that your purchase has developed a fault, please contact our store for an assessment. To do this you will need proof of purchase.

If taking your product in store is not an option then please email our team on [email protected]. Please include photographs of your product (please keep below 20mb), your web order number (or copy of receipt) so we can immediately start to assess the issue.

PLEASE NOTE:

In some cases, the manufacturer/supplier may require to see the item(s) before repair or replacement can take place. If this is the case, we will inform you and arrange how to do this. All used items being returned to us must be cleaned for hygiene purposes.

On receipt of your goods we will carry out a full inspection and contact you within three working days of receipt.

Finance

Team Cycles (North East) Limited acts as a broker and not the lender and offers finance from Secure Trust Bank PLC T/A V12 Retail Finance. Team Cycles (North East) Limited is authorised and regulated by the Financial Conduct Authority, Registration Number 623982. Not all products offered by Secure Trust Bank T/A V12 Retail Finance are regulated by the FCA. Subject to age, status and affordability, minimum spend applies.

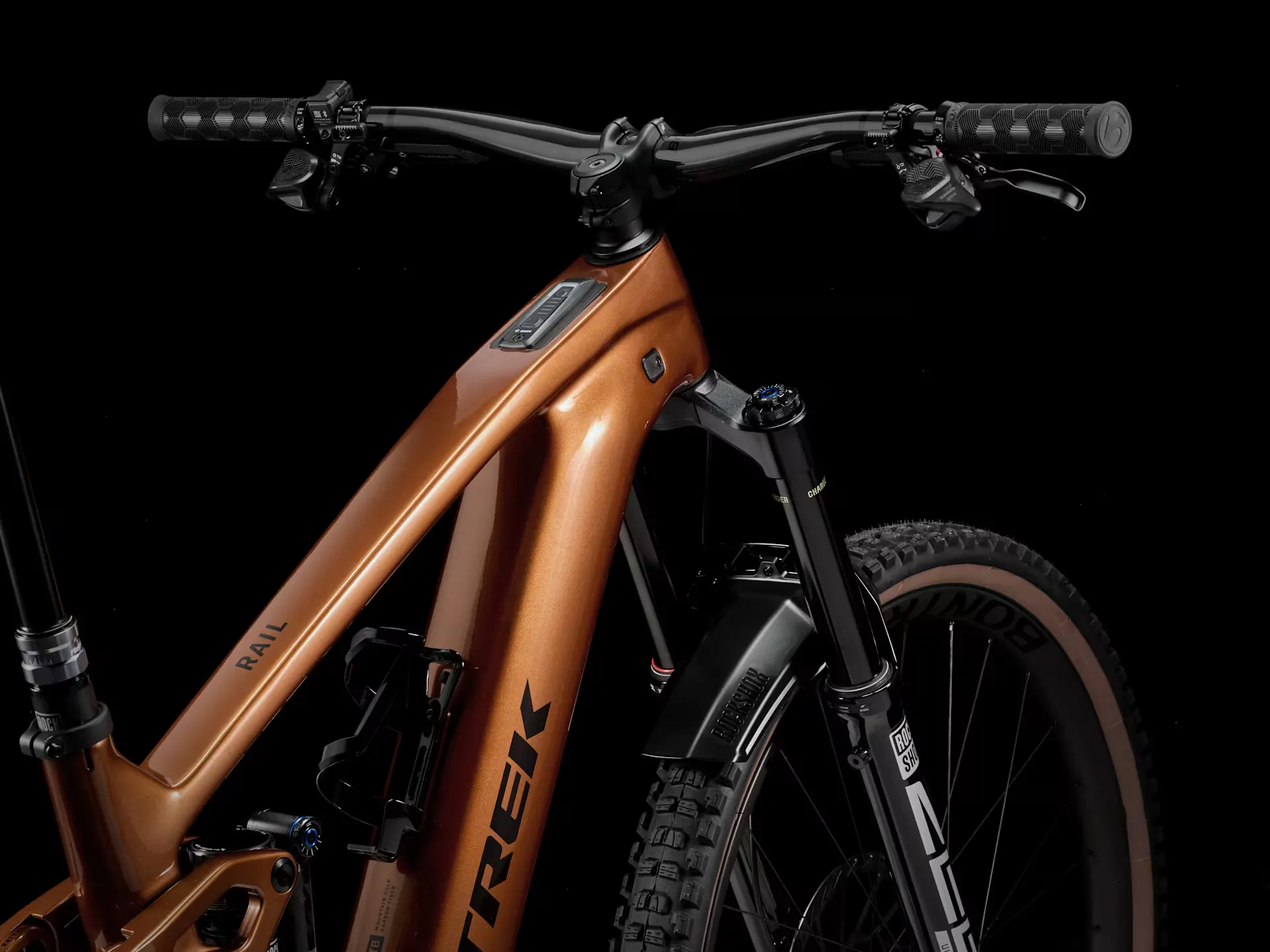

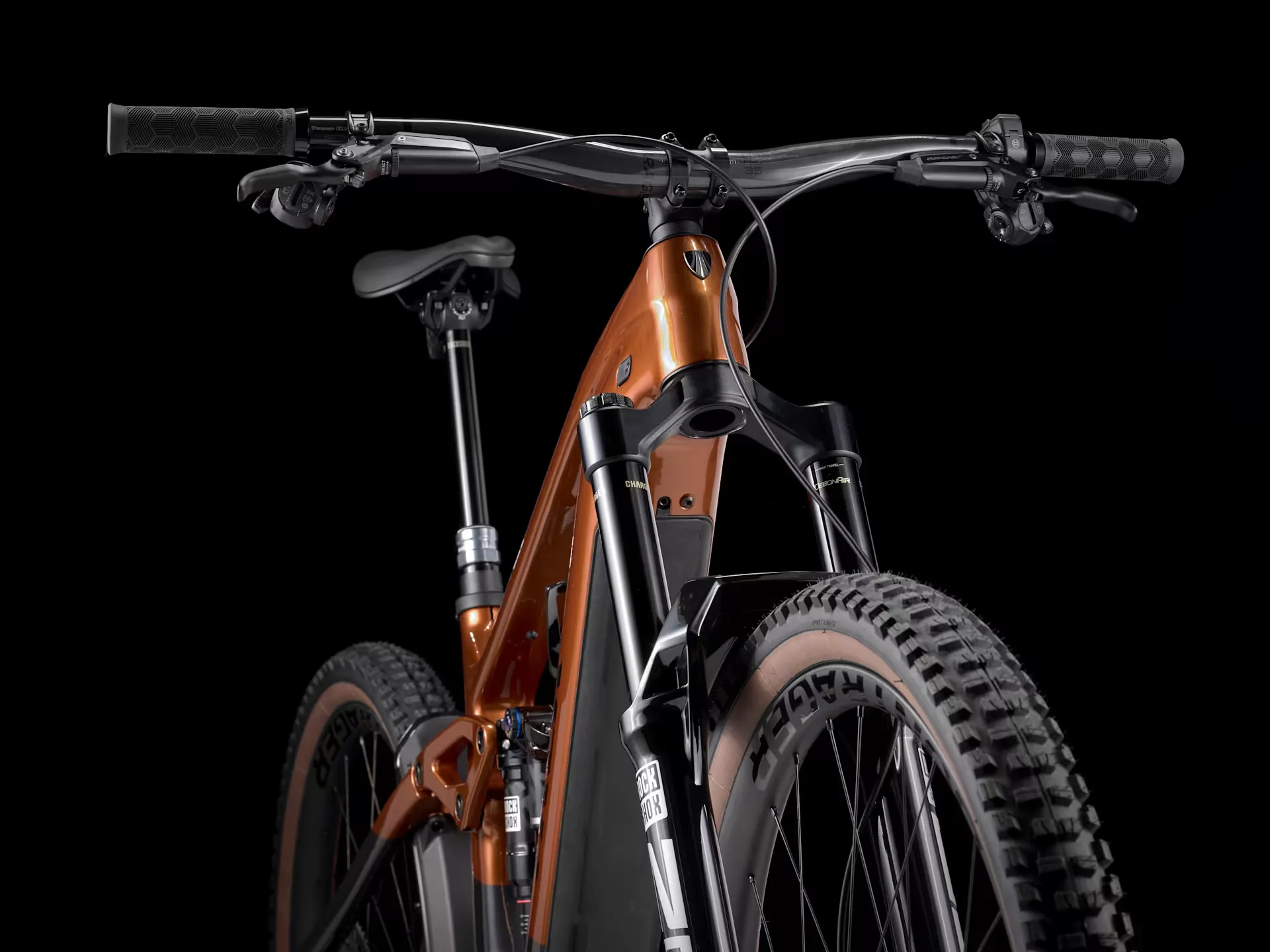

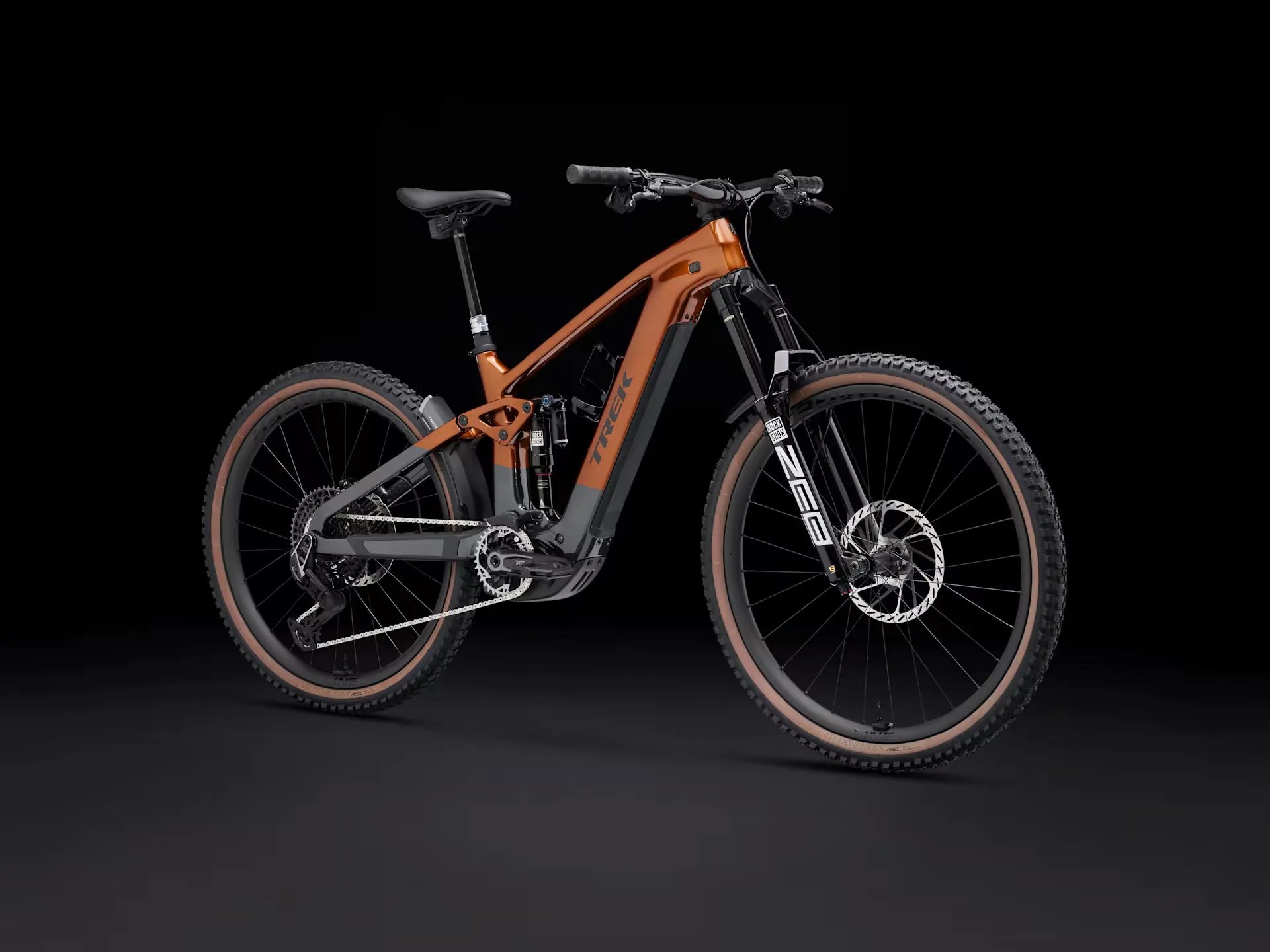

TREK Rail+ 9.9 XO AXS Gen 5 800Wh Full Suspension Electric Mountain Bike in Pennyflake

Season:2025

Brand:Trek

Code:48472ORG

Trek Rail+ 9.9 X0 AXS Gen 5 800Wh Full Suspension Electric Mountain Bike is the ultimate carbon enduro e-MTB designed for massive adventures. It features 160 mm of front and rear RockShox suspension, a powerful Bosch Performance CX motor, and an 800 Wh RIB 2.0 removable integrated battery to take on long, rugged rides. Equipped with top-of-the-line components like carbon wheels, a wireless SRAM X0 AXS drivetrain, and adjustable geometry, this e-bike is built to perform on the toughest terrain.

Key Features:

  • OCLV Mountain Carbon Frame: Lightweight and strong, designed to withstand rough terrain while providing responsive handling.
  • Bosch Performance CX Motor: 85 Nm torque, 250 W power, giving you full assistance on steep climbs and technical trails.
  • 800 Wh Removable Integrated Battery (RIB 2.0): High-capacity battery designed for long-distance rides and easily removable for storage or travel.
  • 160 mm RockShox ZEB Ultimate Fork: DebonAir spring and Charger 3 RC2 damper for superior control and smooth suspension performance.
  • RockShox Super Deluxe Rear Shock: Delivers a plush ride and helps you maintain control on technical descents.
  • Tubeless Ready Bontrager Line Pro 30 Carbon Wheels: Lightweight, durable wheels that increase traction and reduce the risk of flats.
  • SRAM X0 AXS Wireless Transmission: Offers smooth, precise, and reliable shifting even under heavy load.
  • SRAM Maven Hydraulic Disc Brakes: Provide strong, reliable stopping power on steep and fast descents.
  • RockShox Reverb AXS Dropper Post: Fully wireless, giving you fast and efficient saddle height adjustment on the go.
  • Adjustable Geometry: Customise your ride with adjustable angles to fit your style and terrain.

The Rail+ 9.9 X0 AXS is the pinnacle of Trek's e-MTB lineup, offering cutting-edge technology and high-end components to tackle epic adventures. Whether you're hitting massive climbs, rough trails, or long rides, this bike delivers the power, control, and durability you need.

What are the benefits of e-mountain bikes?E-mountain bikes offer pedal assistance, making steep climbs easier and long rides more enjoyable while still delivering the agility and control of a traditional MTB. At Team Cycles, we stock high-performance mountain e-bikes designed for technical trails, endurance rides, and all-terrain adventures. How do I choose the right mountain bike electric model?When selecting an electric mountain bike, consider the motor power, battery range, suspension type, and frame material. Whether you need a full-suspension e-MTB for technical trails or a hardtail for mixed terrain, Team Cycles has the right option for your riding style. Are e-MTBs good for trail riding?Yes, e-MTBs are designed for off-road performance, offering powerful motors and durable frames to handle rugged trails. With pedal assistance, you can tackle steep climbs and technical descents with greater ease, making e mountain bikes perfect for all levels of riders.
Technical Information

*Please note – spec applies to all sizes unless listed separately

Frameset
FrameOCLV Mountain Carbon, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Control Freak internal routing, Motor Armour, Boost148, 12 mm thru axle, 160 mm travel
ForkRockshox ZEB Ultimate, DebonAir spring, Charger 3.1 RC2 damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 160 mm travel
ShockRockShox Super Deluxe Ultimate RC2T, 205x65 mm
Max compatible fork travel180 mm
Wheels
*Wheel frontSize:S
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 27.5"
Size:M, L, XL
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29"
Wheel rearBontrager Line Pro 30, OCLV Mountain Carbon, Tubeless-Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle, 27.5"
Skewer rearBontrager Switch thru-axle, removable lever
*TyreSize:S, M, L, XL
Bontrager Brevard RSL SE, Tubeless Ready, triple compound, aramid bead, 60 tpi, 27.5x2.50"
Size:M, L, XL
Bontrager Brevard RSL SE, Tubeless Ready, triple compound, aramid bead, 60 tpi, 29x2.50"
Tyre partBontrager TLR sealant, 180 ml/6 oz
Rim stripBontrager TLR
Max tyre sizeFrame: 27.5x2.60", Fork: See manufacturer
E-system
BatteryBosch PowerTube 800 Wh, smart system
ChargerBosch standard 4A, 230V, smart system
ControllerBosch System Controller BRC3100, smart system
MotorBosch Performance Line CX, 20 mph (25 km/h in Europe)

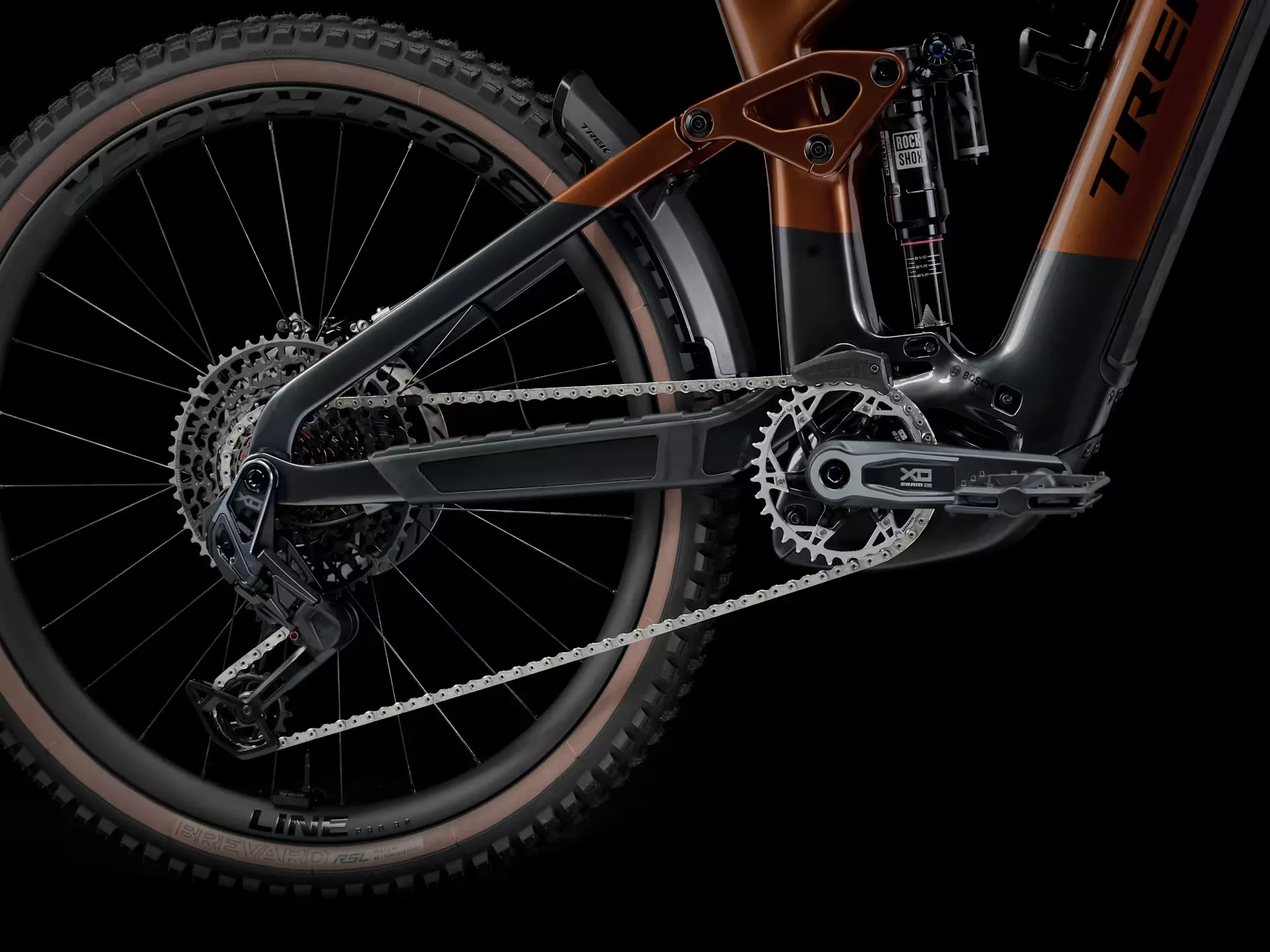

Drivetrain
Rear derailleurSRAM X0 Eagle AXS, T-Type
CrankSRAM X0 Eagle, 160 mm length
CassetteSRAM Eagle XS-1295, T-Type, 10-52, 12-speed
ChainSRAM X0 Eagle, T-Type, 12-speed
PedalVP-536 nylon platform
Max. chainring size1x: 36T
Components
SaddleVerse Short Comp, steel rails, 145 mm width
*SeatpostSize:S
RockShox Reverb AXS, 100 mm travel, wireless, 34.9 mm, 340 mm length
Size:M, L, XL
RockShox Reverb AXS, 170 mm travel, wireless, 34.9 mm, 480 mm length
HandlebarBontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width
GripsBontrager XR Trail Elite, nylon lock-on
StemBontrager Line Pro, 35 mm, Blendr-compatible, 0-degree, 45 mm length
Head setIntegrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible
BrakeSRAM Code Silver 4-piston hydraulic disc
*Brake rotorSize:S, M, L, XL
SRAM 6-bolt, 200 mm
Size:S, M, L, XL
SRAM HS2, 6-bolt, 220mm
Rotor sizeMax brake rotor sizes – Frame: 220 mm, Fork: see fork manufacturer
Weight
Weight limitThis bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
Sizing Information
size-table
SizeRider HeightInseam
S

155 - 165 cm

5'1" - 5'5"

74 - 78 cm

29" - 31"

M

165 - 176 cm

5'5" - 5'9"

79 - 83 cm

31" - 33"

L

177 - 188 cm

5'10" - 6'2"

84 - 89 cm

33" - 35"

XL

188 - 195 cm

6'2" - 6'5"

89 - 91 cm

35" - 36"
