COLOUR | Matte Black | CASSETTE | SRAM XS-1275 Eagle, 10-52T, 12 speed |
---|
FRAME | 6061 alloy, hydroformed T6 aluminium, multi-butted, custom drawn, tapered headtube, internal cable routing, Shape.it Link and 12mm x 148mm Boost dropouts | CHAIN | SRAM GX T-Type Eagle, 12 speed |
---|

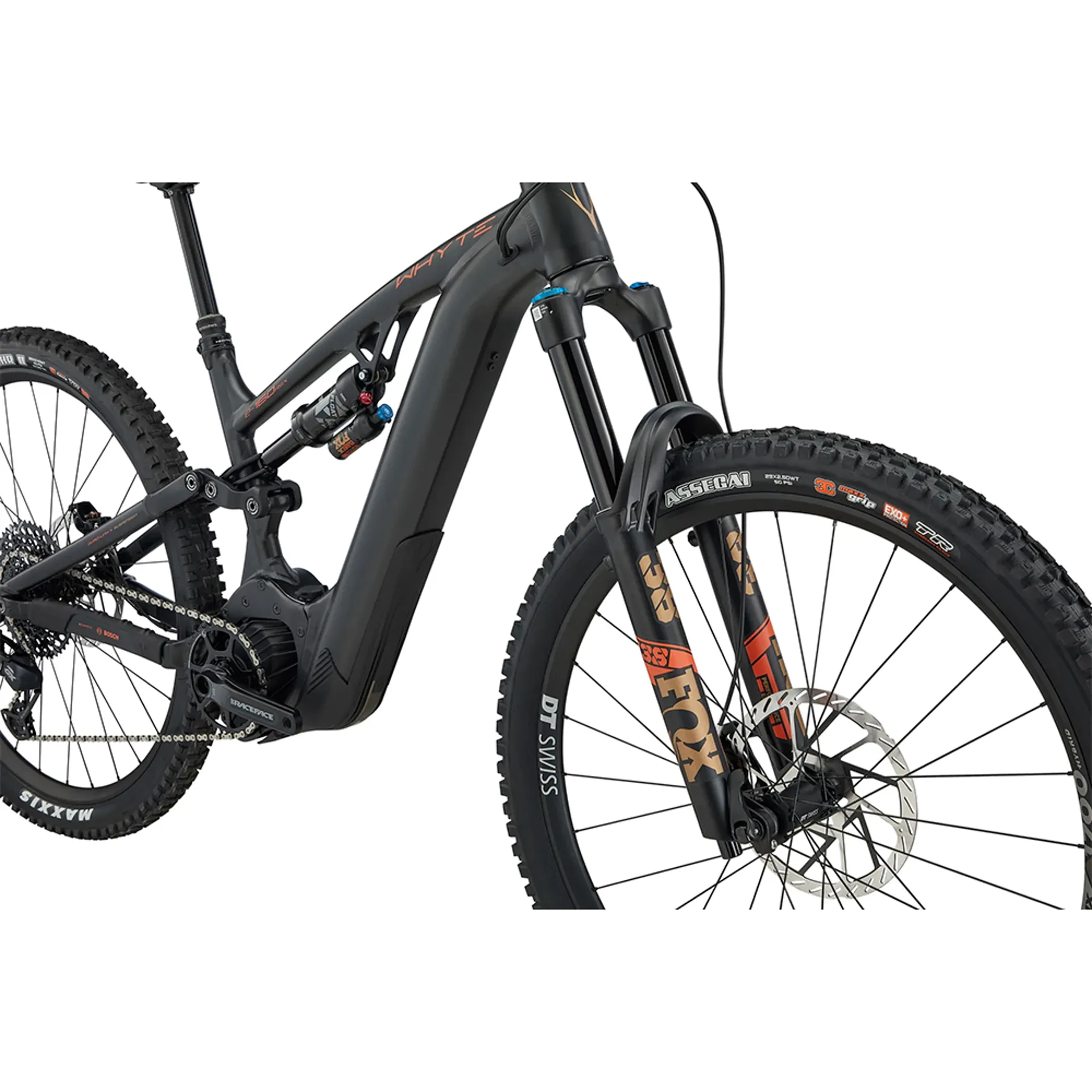

FORK | Fox Float 38 Performance Elite 29in, 160mm travel, 44mm offset with Grip 2 damper, tapered steerer, 110mm x 15mm Boost, E-thru-axle | CRANKSET | Race Face A-Effect, 165mm, ISIS with X-SYNC 2, Direct Mount 36T chainring for Bosch Performance Line CX, black |
---|
REAR SHOCK | Fox Float X Performance Elite DPS, EVOL LV, custom tuned for Whyte | BOTTOM BRACKET | N/A |
---|

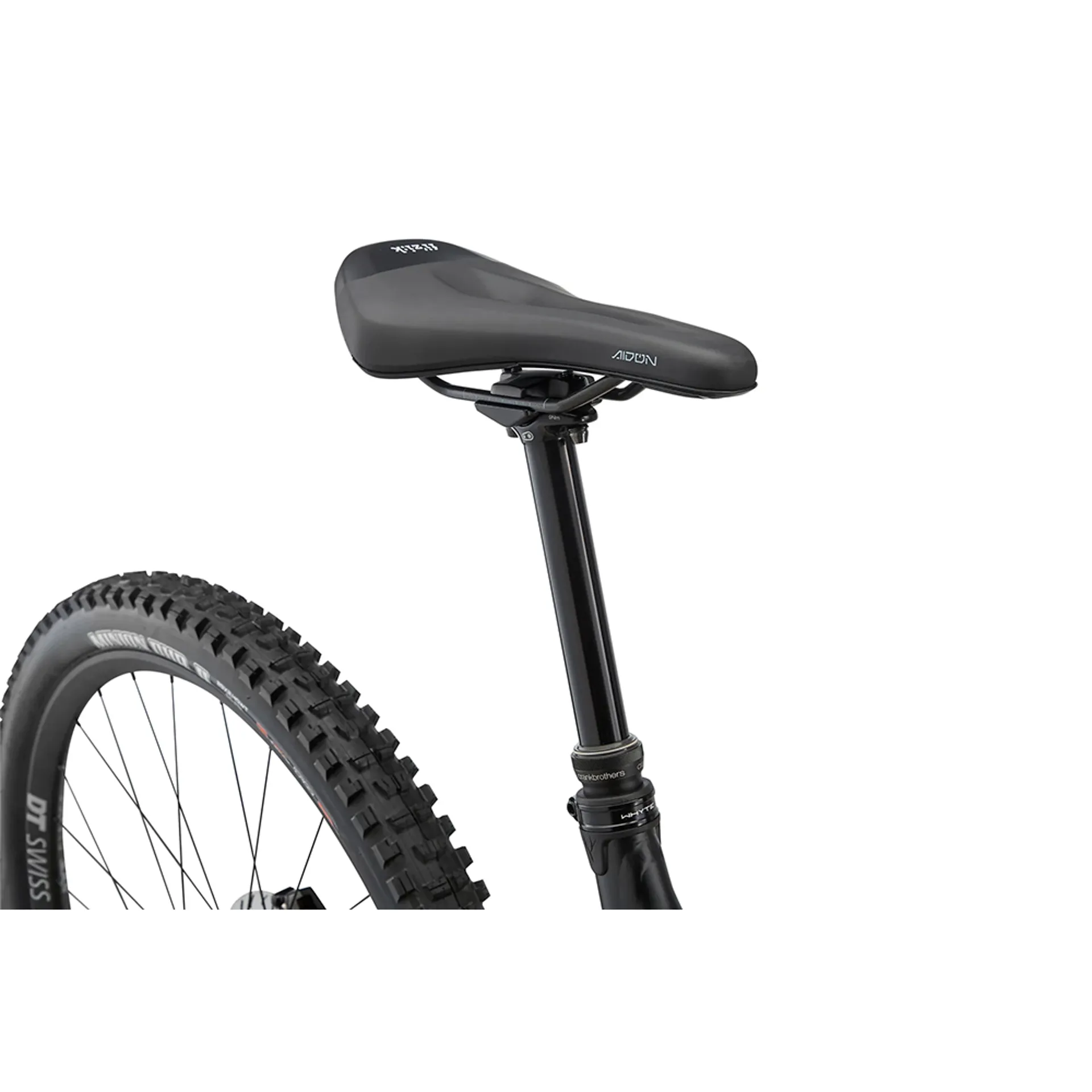

HEADSET | FSA No. 55/35 Orbit 1.5 ZS, 1.8in lower and 1 1/8in upper sealed cartridge bearings | SEATPOST | Crank Brothers HighLine 3, 30.9mm (sizes M/L 150mm travel; size XL 170mm travel), Highline ball socket remote lever |
---|
REAR HUB | DT Swiss 350, 24T hardened steel ratchet, six bolt, 12mm x 148mm Boost spacing | SADDLE | Fizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail |
---|
FRONT HUB | DT Swiss 350, 15mm x 110mm Boost spacing, six bolt | HANDLEBAR | Whyte Custom 6061 alloy, 30mm rise, 35mm bar bore, 800mm wide |
---|
SPOKES | DT Swiss Hybrid straight pull | STEM | Whyte Enduro, 35mm extension, 35mm bar bore |
---|
RIMS | DT HX 1700 alloy, hooked 30mm internal width | GRIPS | Whyte Enduro lock-on |
---|
TYRE | Maxxis Assigai WT, TR, 29in x 2.5in 120TPI, EXO+ casing, 3C Maxx Grip, Dual Compound, front; Maxxis Minion DHR II WT, TR, 29in x 2.4in 120TPI, Double Down, 3C Maxx Terra, Dual Compound, folding bead, rear | BRAKES FRONT | SRAM Code RSC, four piston hydraulic with sintered metal pads, 220mm diameter disc rotor |
---|
SHIFT LEVERS | SRAM AXS Pod, two button MMX, 12 speed | BRAKES REAR | SRAM Code RSC, four piston hydraulic with sintered metal pads, 200mm diameter disc rotor |
---|

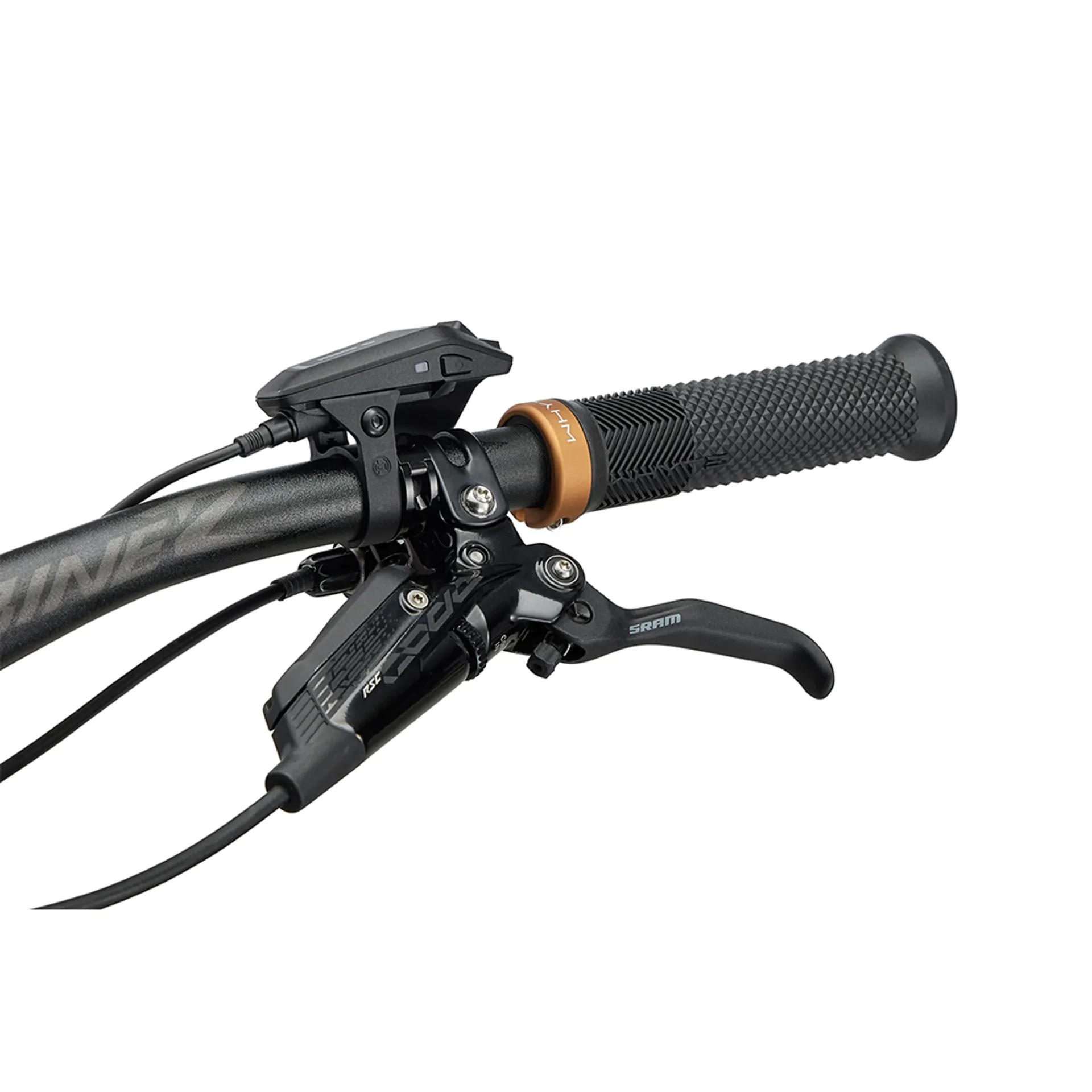

FRONT MECH | N/A | BRAKE LEVERS | SRAM Code RSC, MMX |
---|

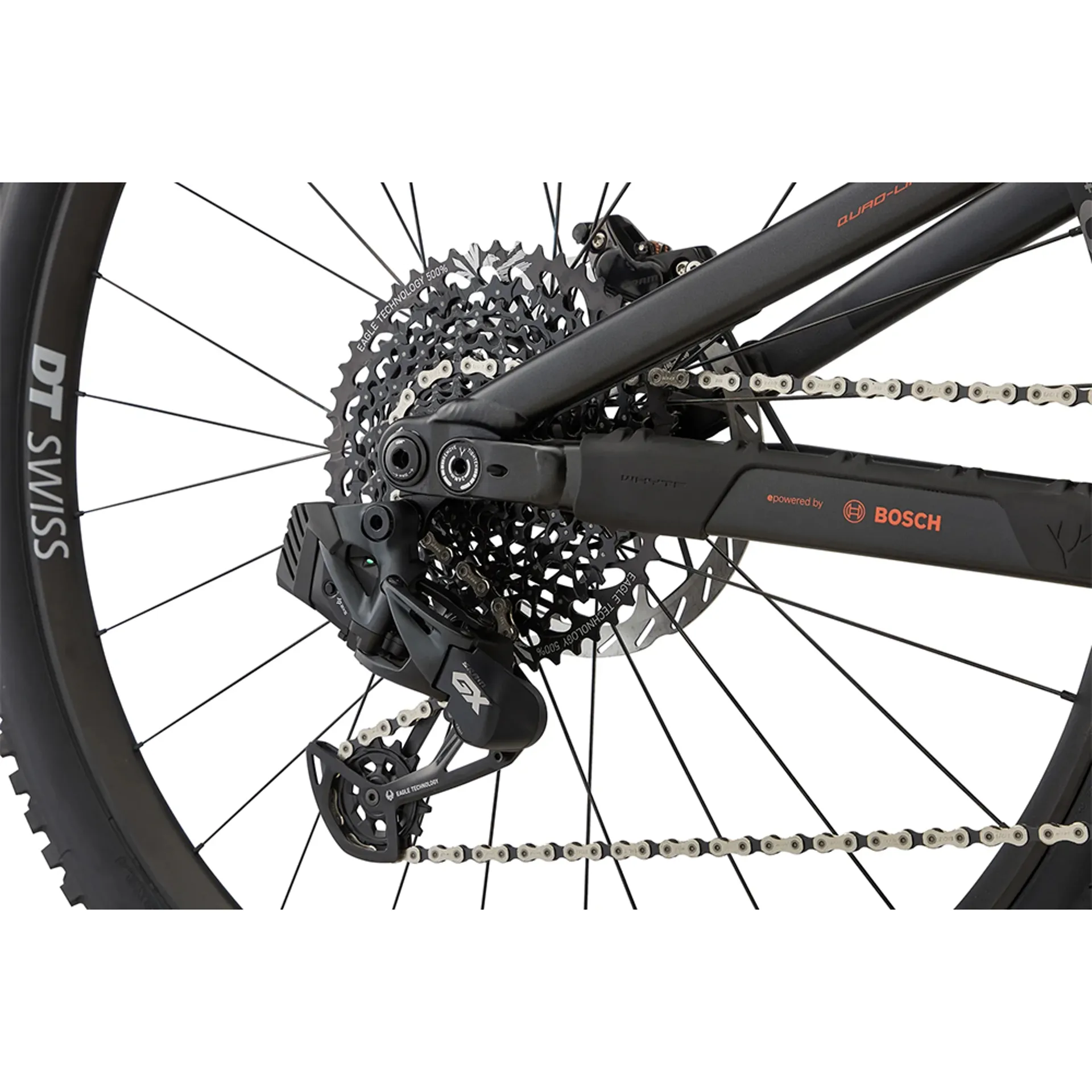

REAR MECH | SRAM GX AXS, 12 speed | PEDALS | None |
---|
WEIGHT | 26.3kg (size M) | | |
---|
