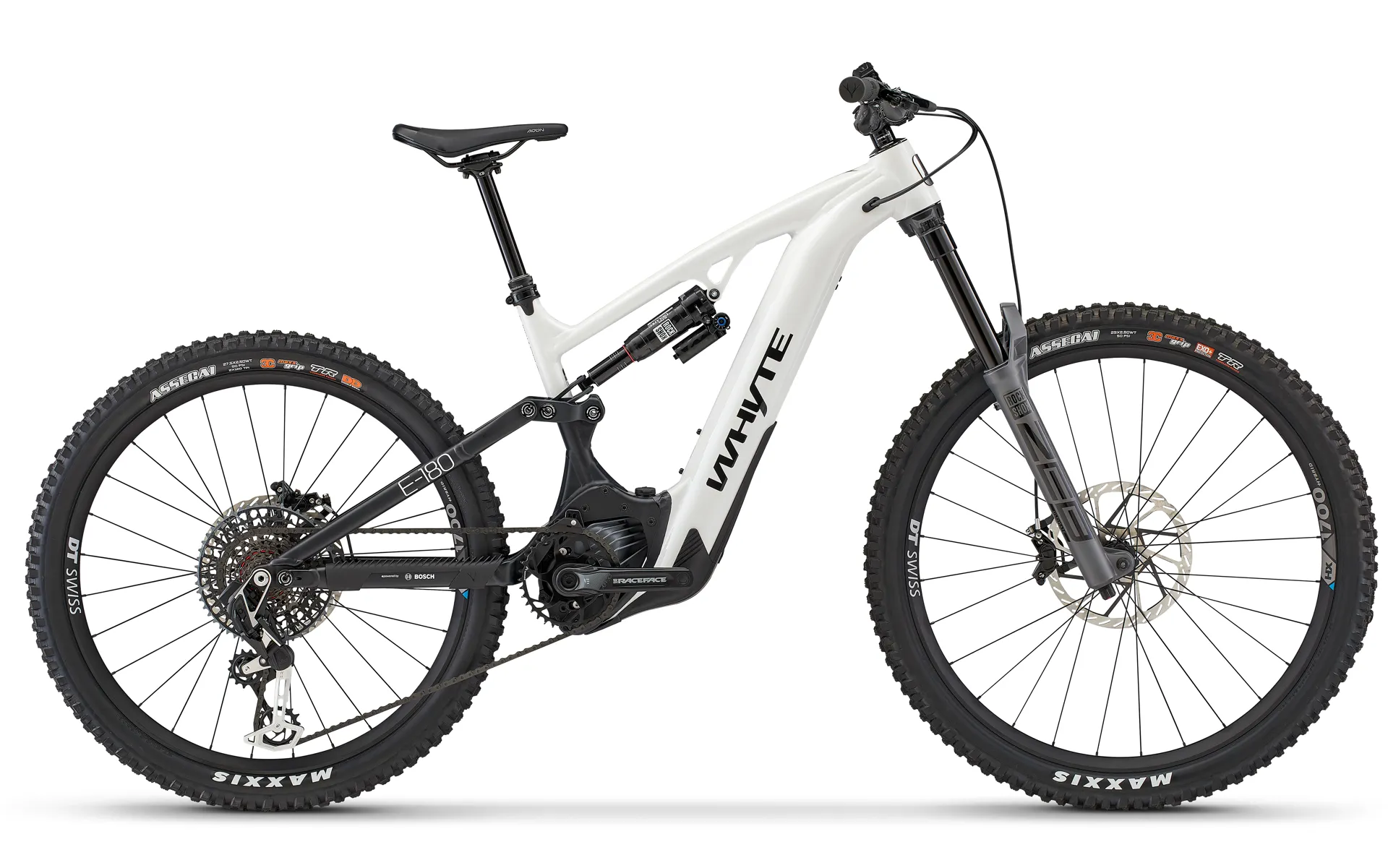

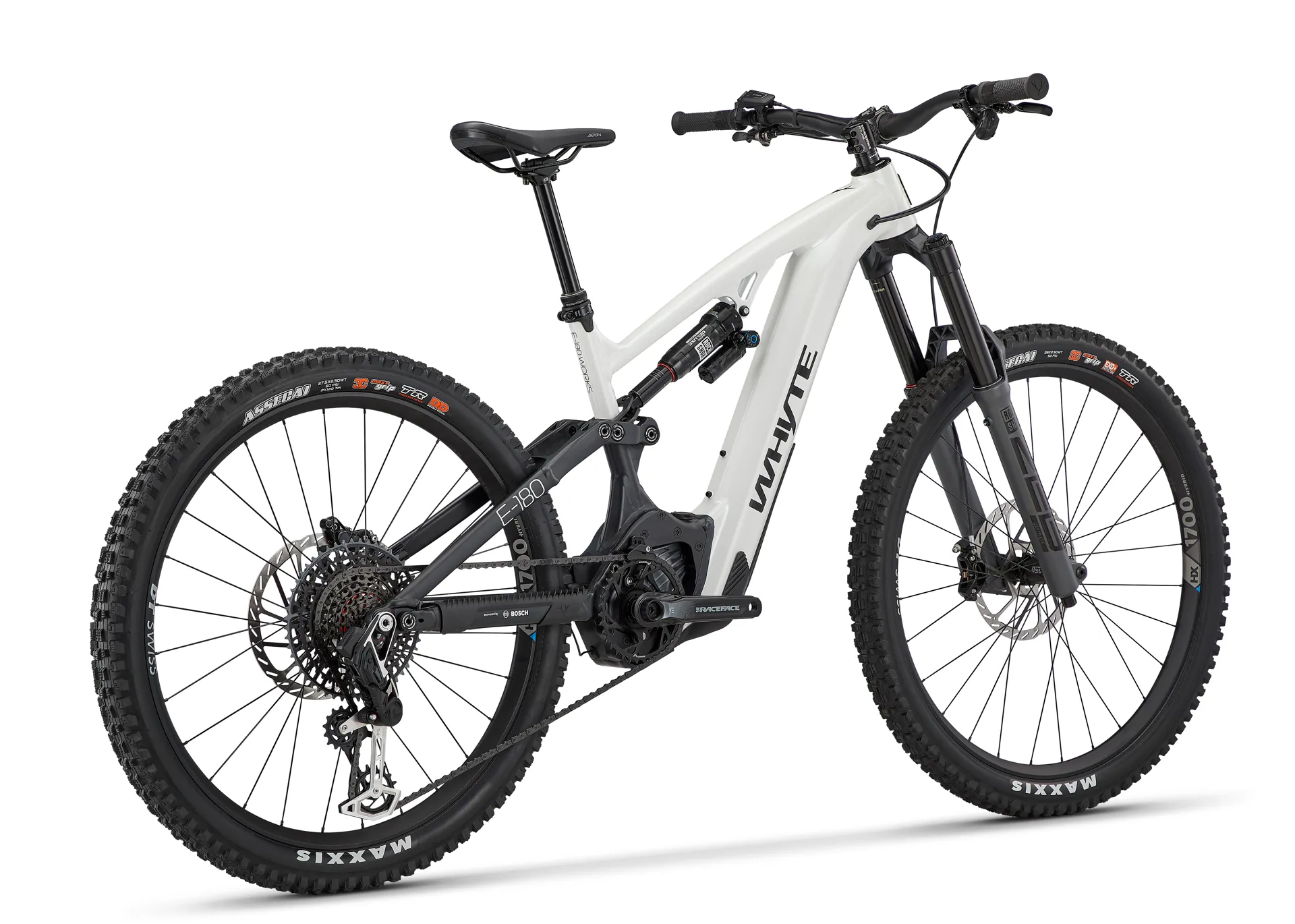

COLOUR | Gloss pearlized white with matt black | CASSETTE | SRAM XS-1295 Eagle T-Type, 10-52T, 12 speed |
---|
FRAME | 6061 alloy, hydroformed T6 aluminium, multi-butted, custom drawn, tapered headtube, internal cable routing, Shape.it Link and 12mm x 148mm Boost dropouts | CHAIN | SRAM X0 T-Type Eagle, 12 speed |
---|

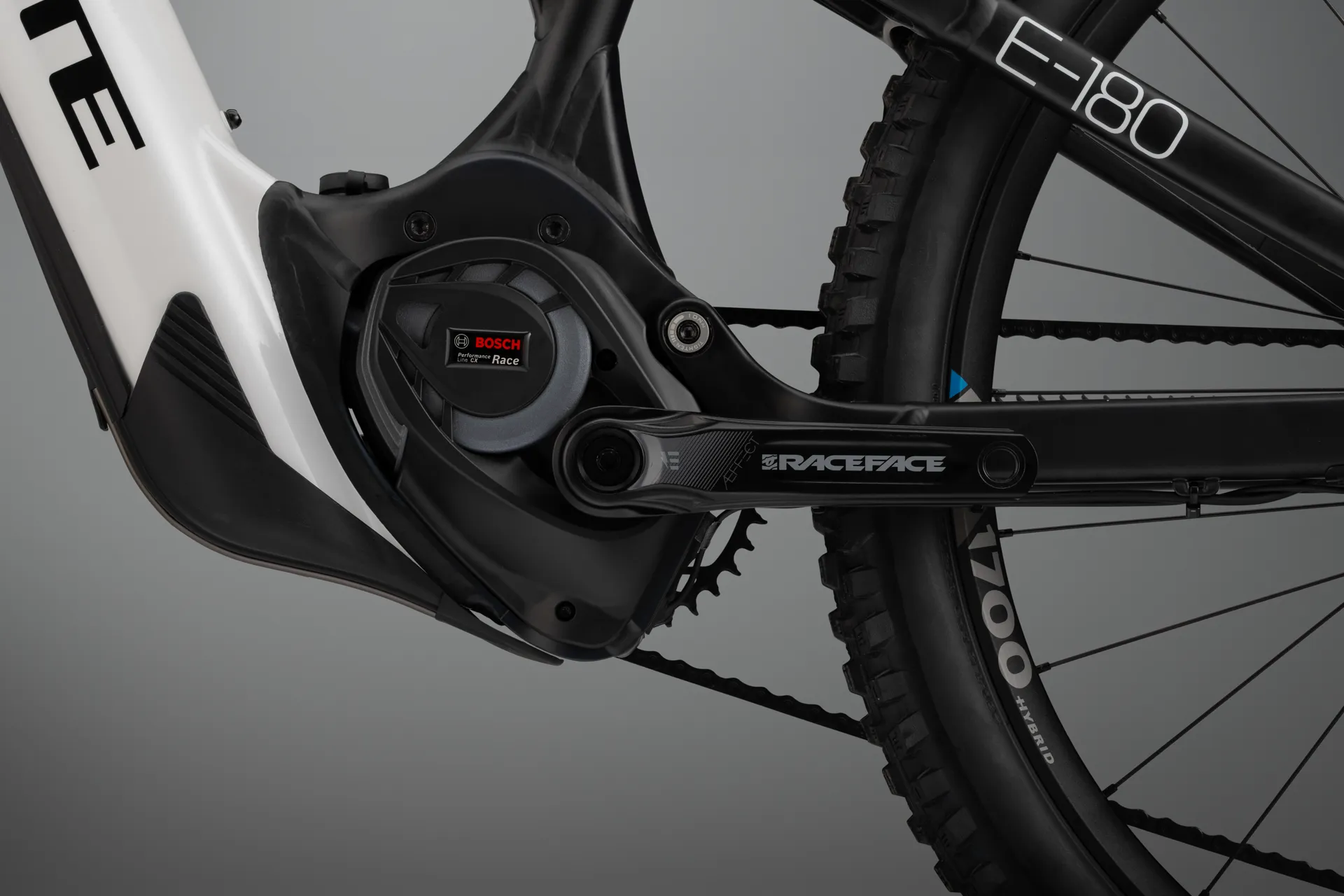

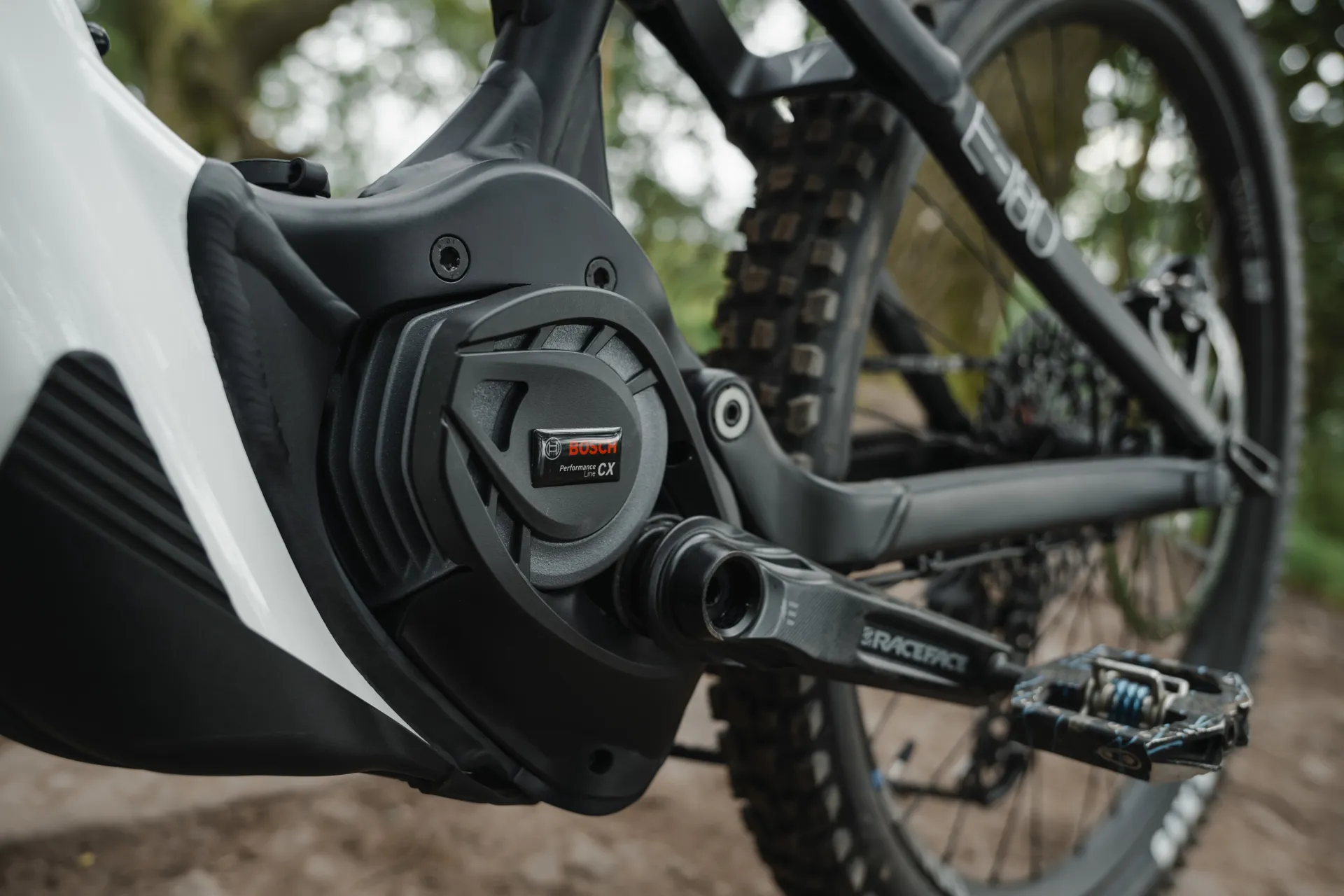

FORK | RockShox ZEB Ultimate 29in, 180mm travel, 44mm offset, DebonAir, Charger 2.1 RC2 damper, Fast Black coating, tapered steerer, 110mm x 15mm Boost, Maxle Stealth | CRANKSET | Race Face Affect E-Bike, 165mm, ISIS with X-SYNC Direct Mount 36T chainring for Bosch Performance Line CX, black |
---|

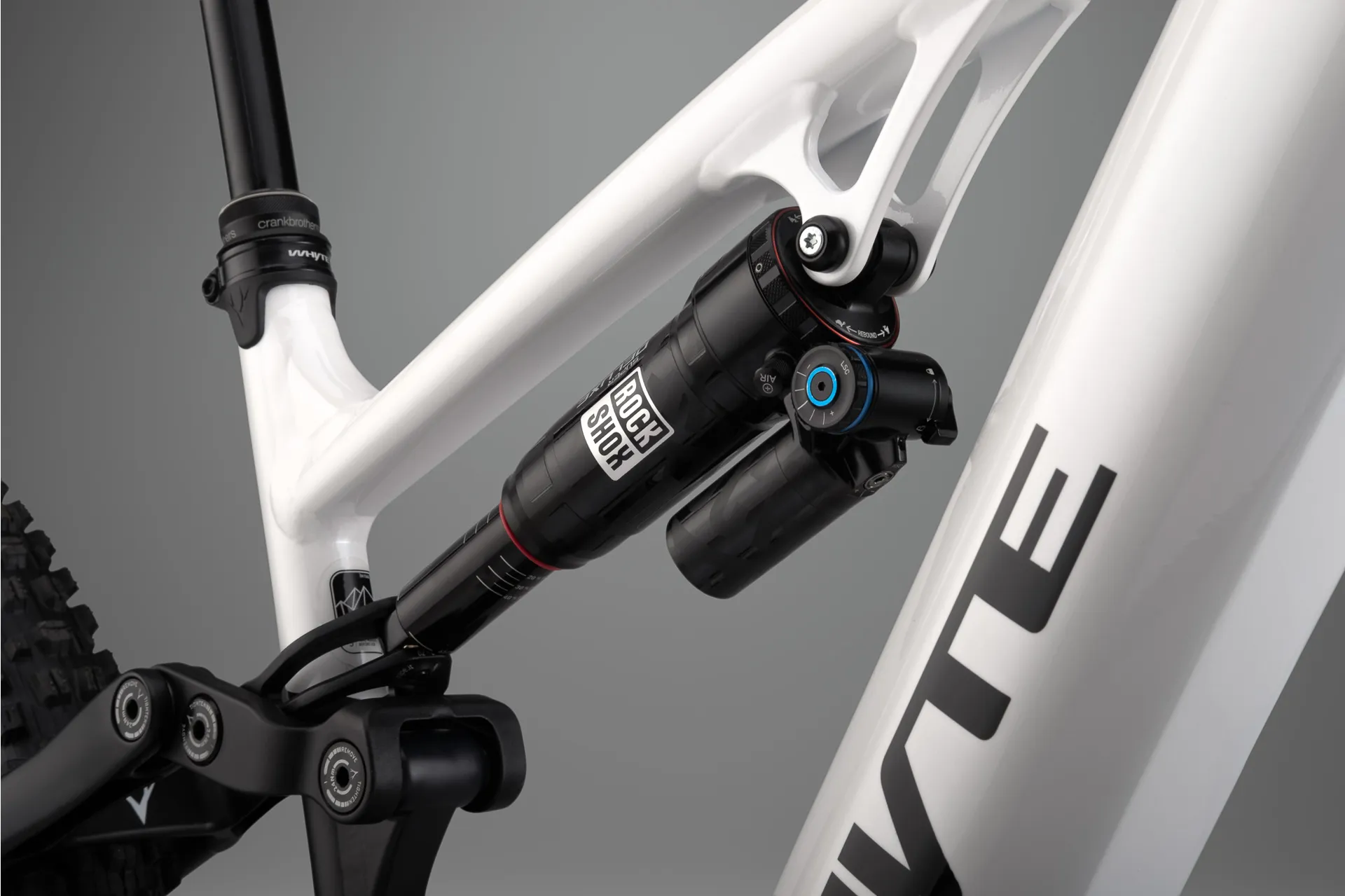

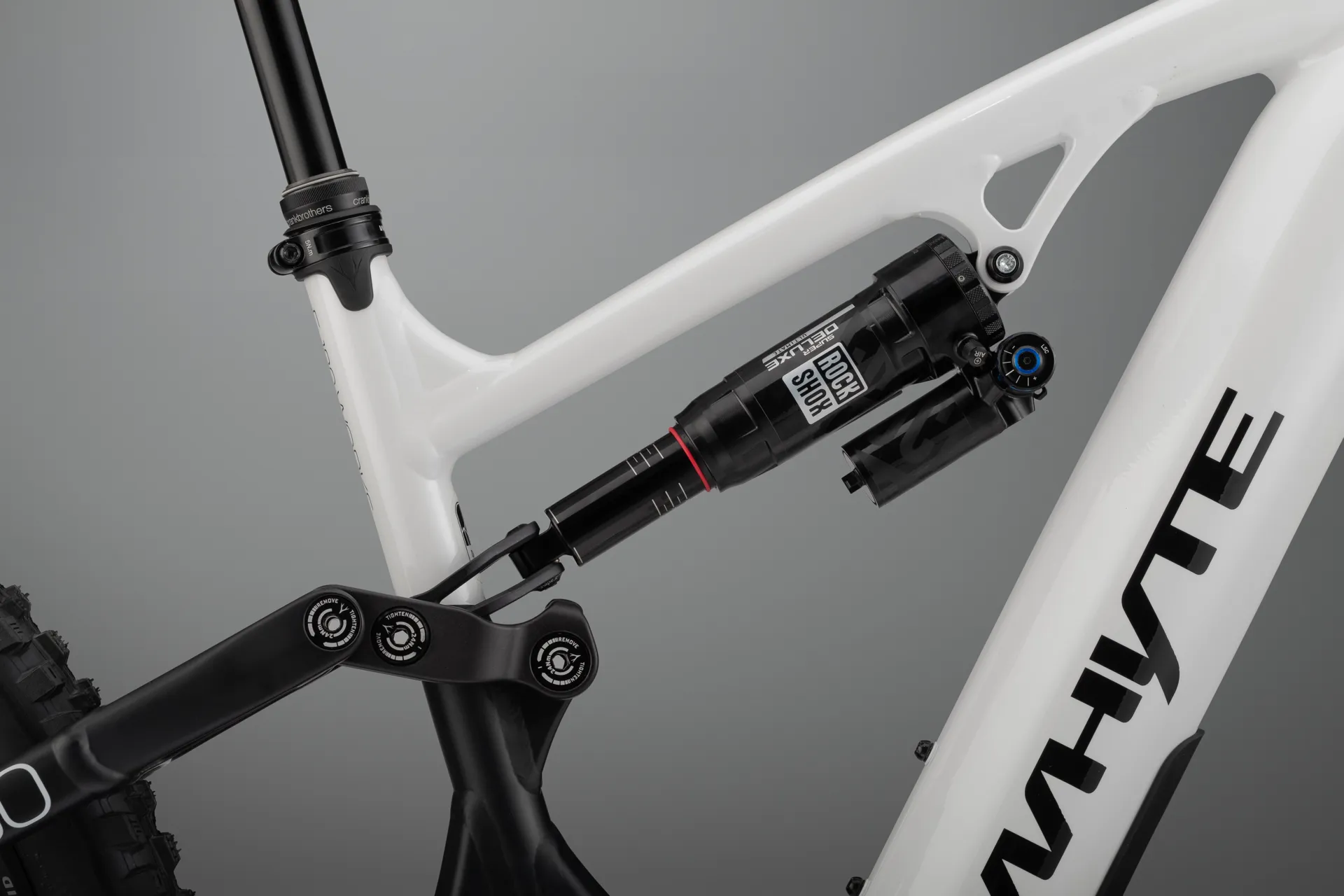

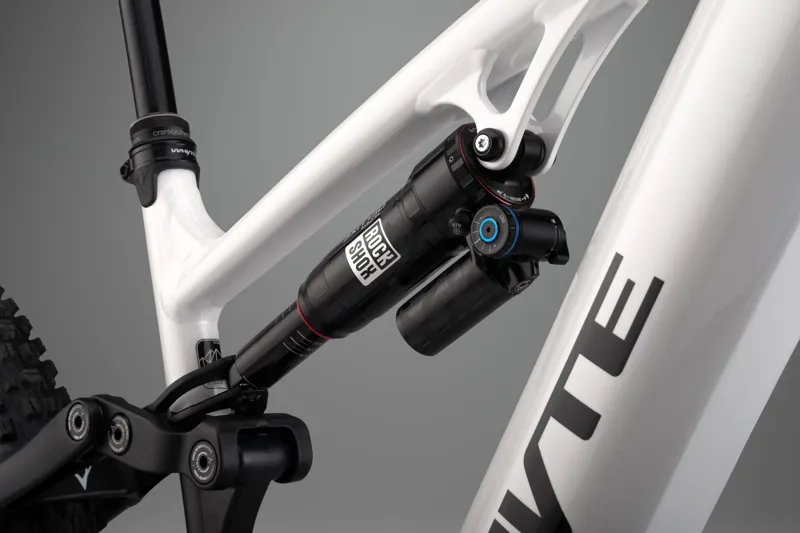

REAR SHOCK | RockShox Super Deluxe Ultimate RCT, air, Fast Black coating, adjustable rebound, low speed compression adjustment and tuneable DebonAir | BOTTOM BRACKET | N/A |
---|

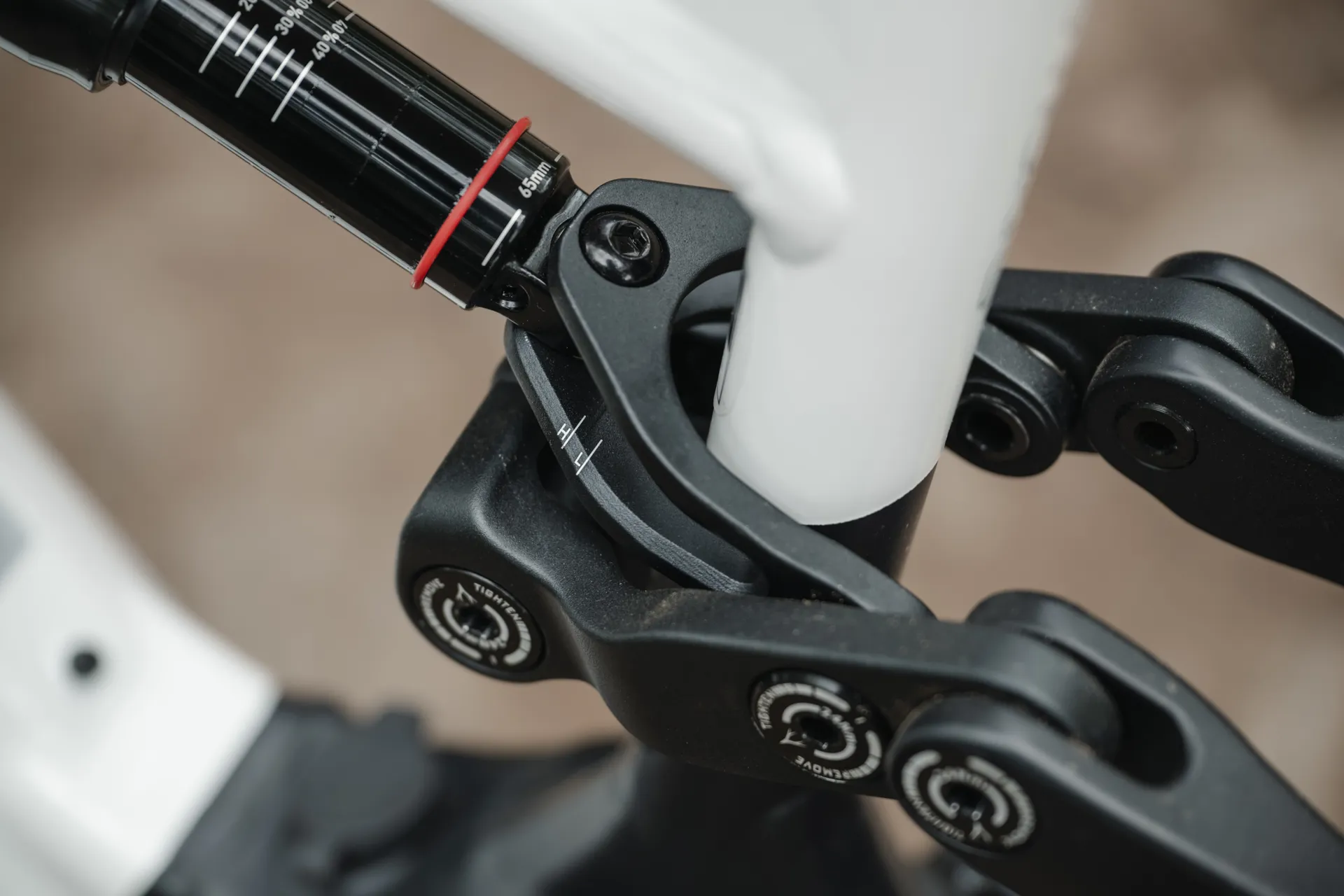

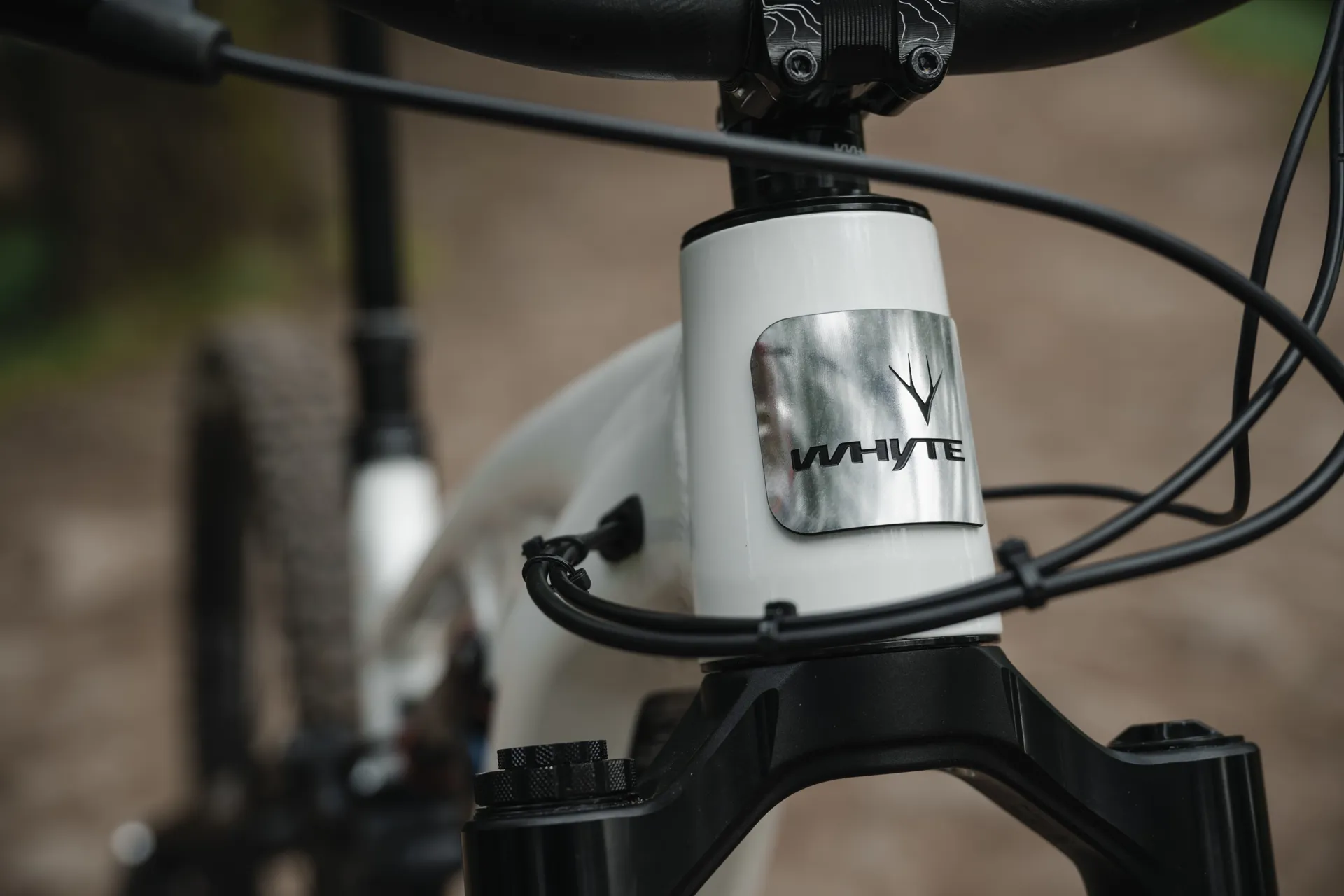

HEADSET | FSA No. 55R/35 Orbit 1.5 ZS, 1.8in lower and 1 1/8in upper sealed cartridge bearings | SEATPOST | Crank Brothers Highline 3, 30.9mm (sizes M/L 150mm travel; size XL 170mm travel), Highline ball socket remote lever |
---|
REAR HUB | DT Swiss Hybrid HX1700, 12mm x 148mm Boost spacing, SRAM XD steel driver | SADDLE | Fizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail |
---|

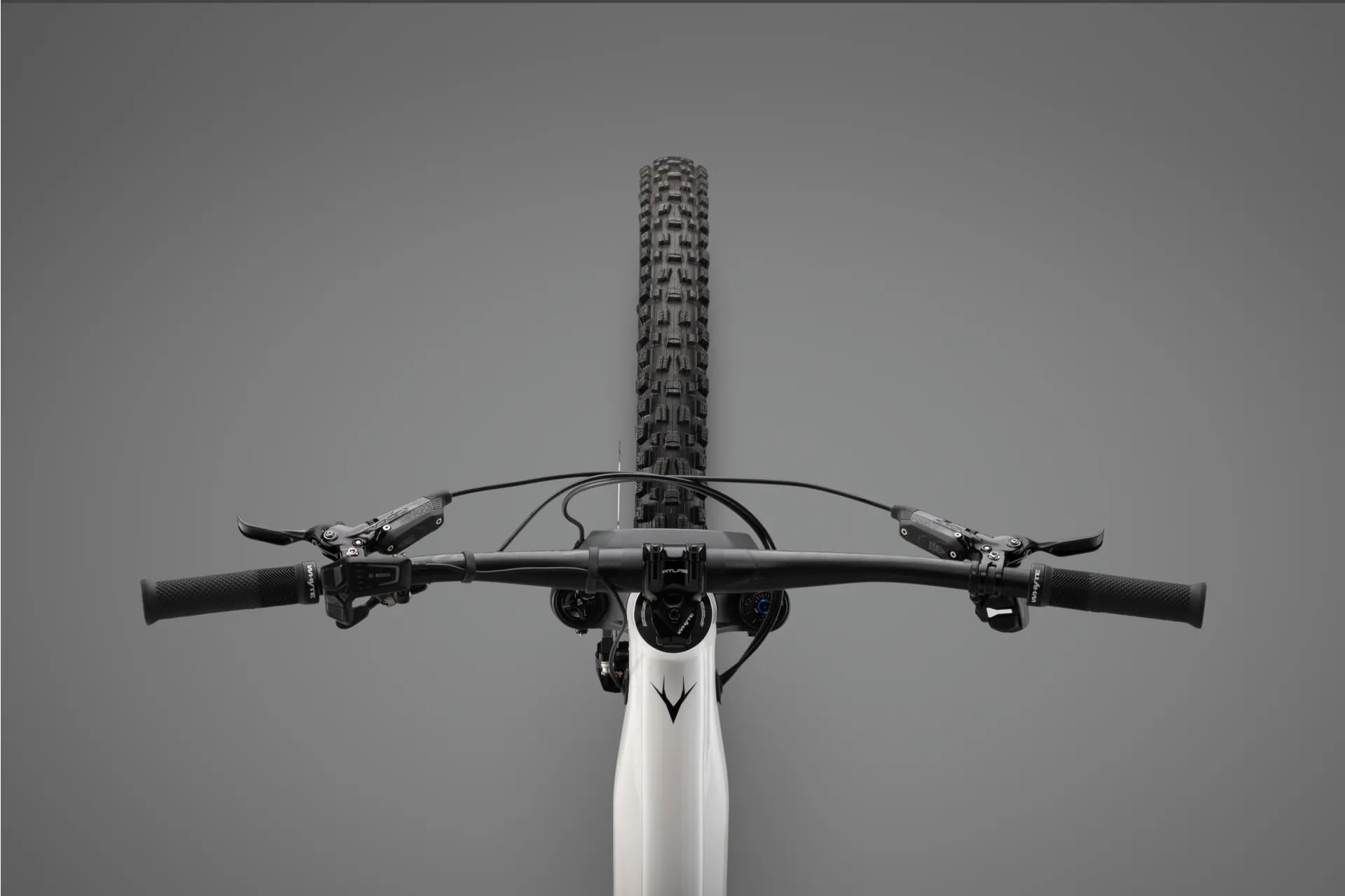

FRONT HUB | DT Swis Hybrid HX1700, 30mm, 15mm x 110mm Boost spacing | HANDLEBAR | Race Face Turbine R, 35mm rise, 35mm bar bore, 800mm wide |
---|
SPOKES | DT Swiss | STEM | Race Face Atlas, 35mm extension, 35mm bar bore |
---|

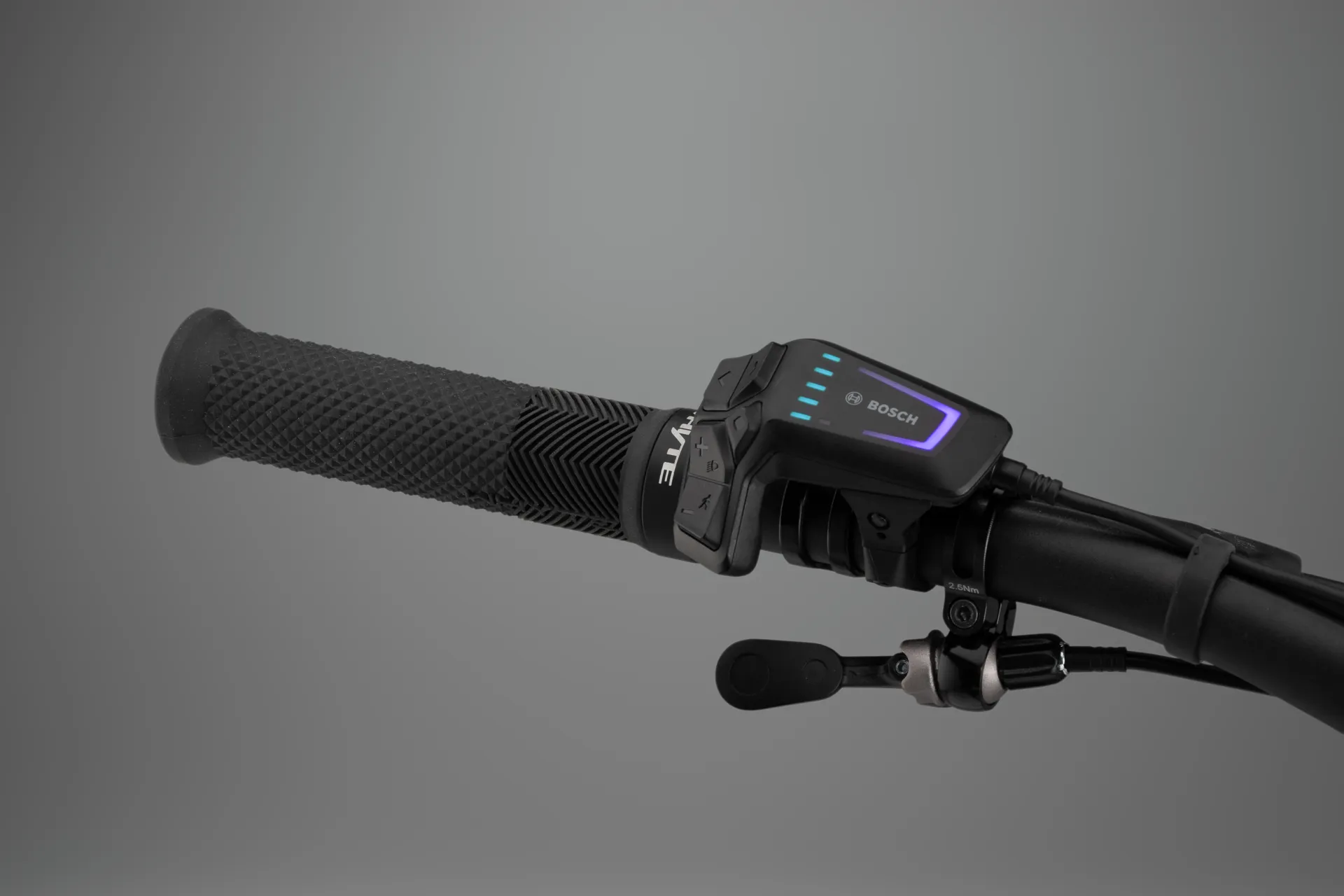

RIMS | DT Swiss Hybrid HX1700, 30mm wide | GRIPS | Whyte Enduro lock-on |
---|
TYRE | Maxxis Assigai WT, TR, 29in x 2.5in 120TPI, EXO + sidewall protection, 3C MaxxGrip, Dual Compound, folding bead, front; Maxxis Assigai WT, TR, 27.5in x 2.5in 120TPI, Double Down casing, 3C Maxx Grip, Dual Compound, rear | BRAKES FRONT | SRAM Code RSC, four piston hydraulic with sintered metal pads, 220mm diameter disc rotor |
---|
SHIFT LEVERS | SRAM AXS Pod, two button MMX, 12 speed | BRAKES REAR | SRAM Code RSC, four piston hydraulic with sintered metal pads, 220mm diameter disc rotor |
---|
FRONT MECH | N/A | BRAKE LEVERS | SRAM Code RSC, MMX |
---|

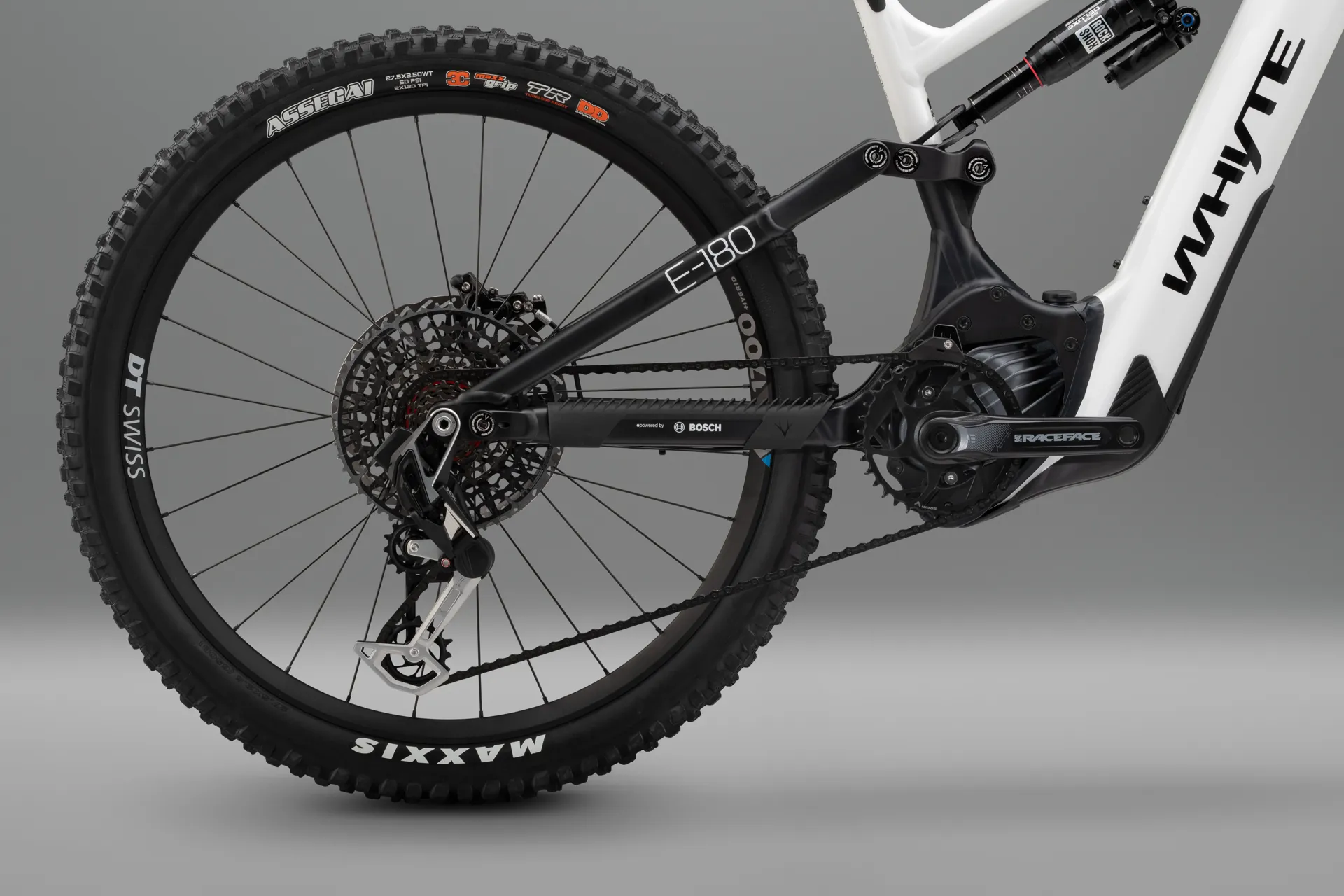

REAR MECH | SRAM XX Eagle AXS T-Type, 12 speed | PEDALS | None |
---|
WEIGHT | 26.1kg (size M) | | |
---|
