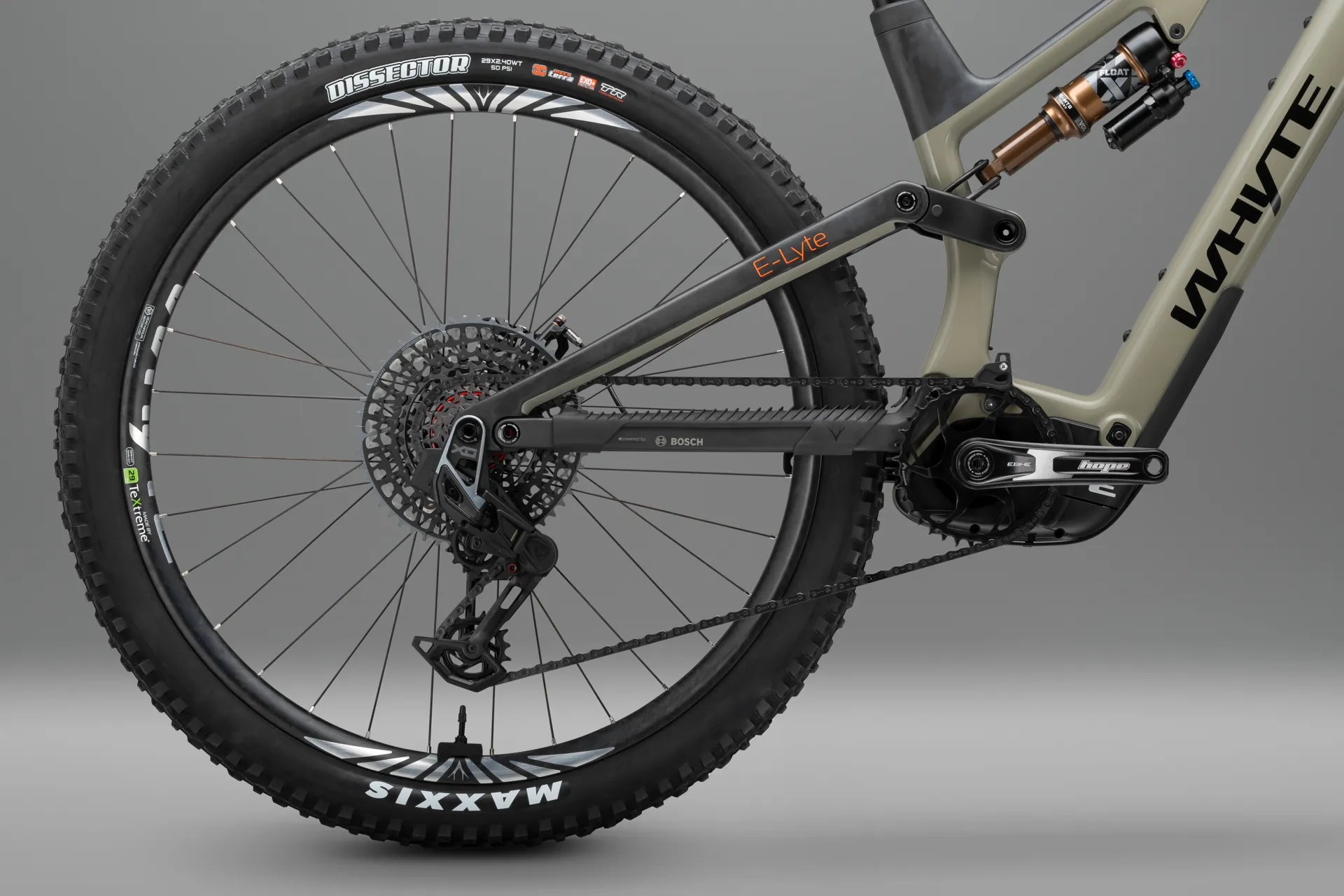

COLOUR | Gloss olive with matt uni-directional (UD) carbon | CASSETTE | SRAM XS 1295, T-Type, 10-52T, 12 speed |
---|

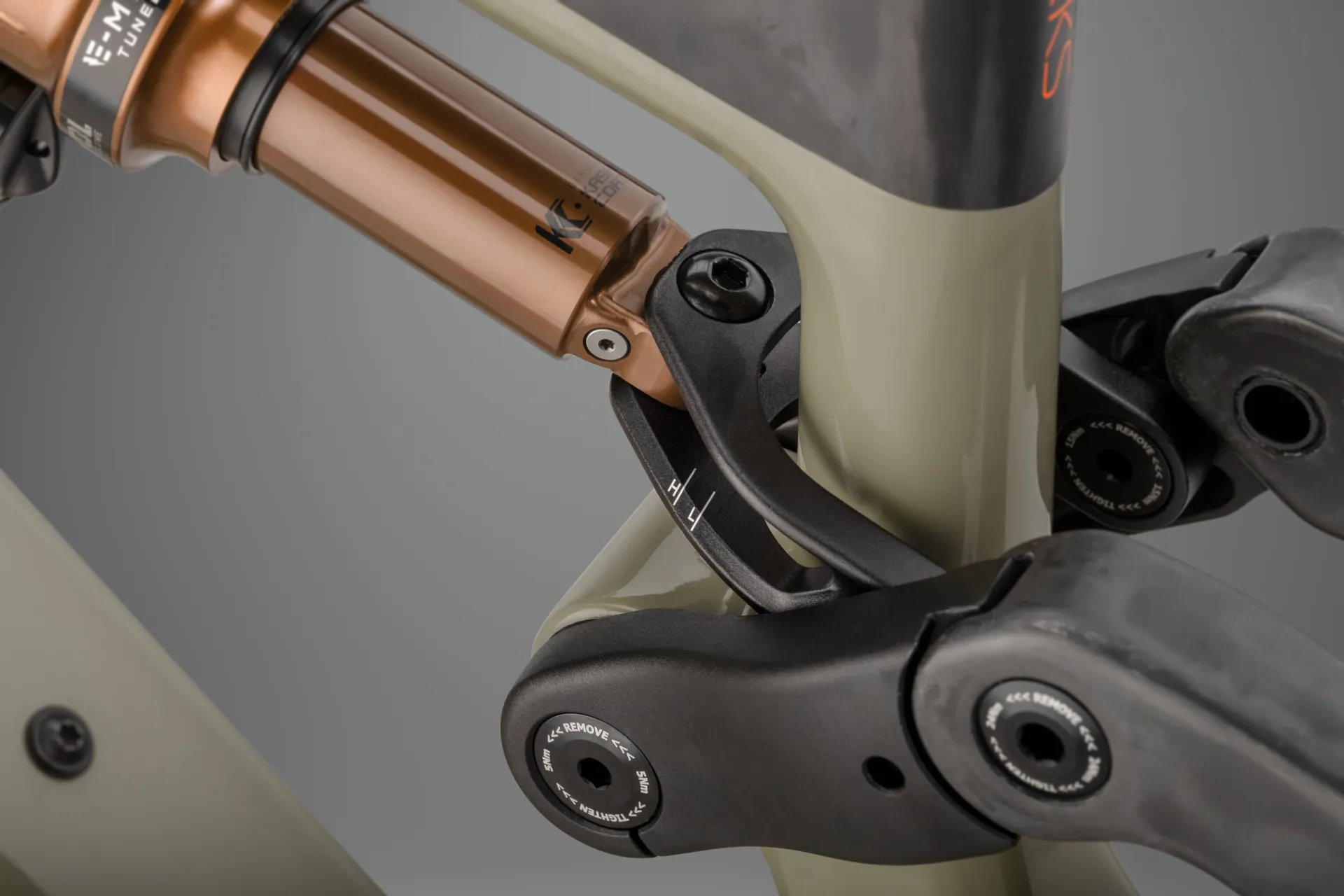

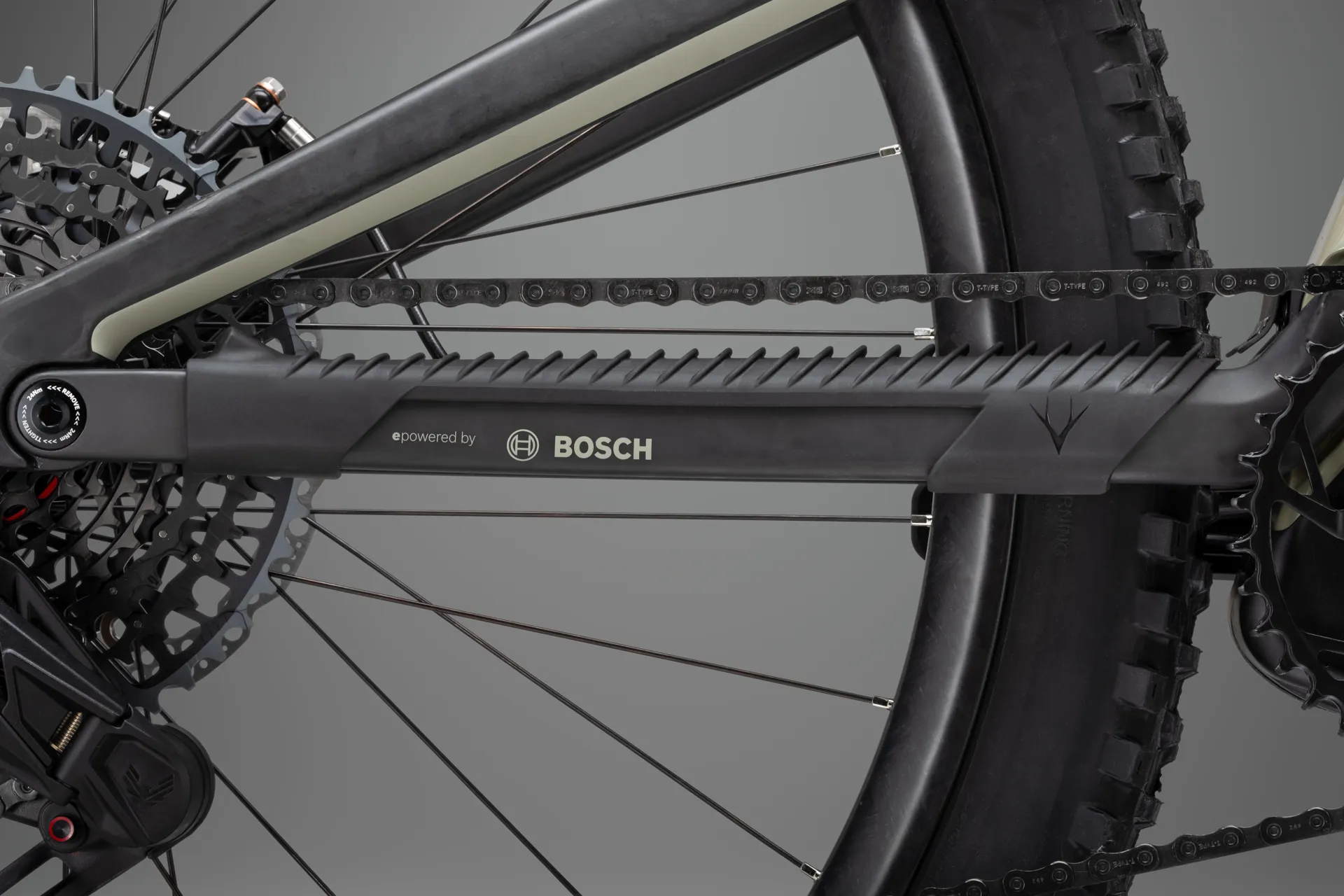

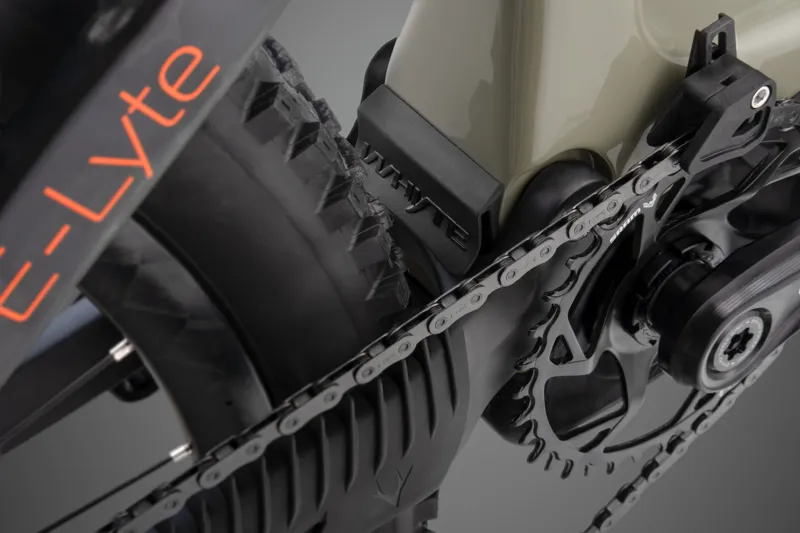

FRAME | Uni-directional carbon mainframe and seatstays, tapered head tube, ISCG 2 guide mounts, internal cable routing, Shape.it Link V2 and 12mm x 148mm Boost dropouts | CHAIN | SRAM XO T-Type, 12 speed |
---|

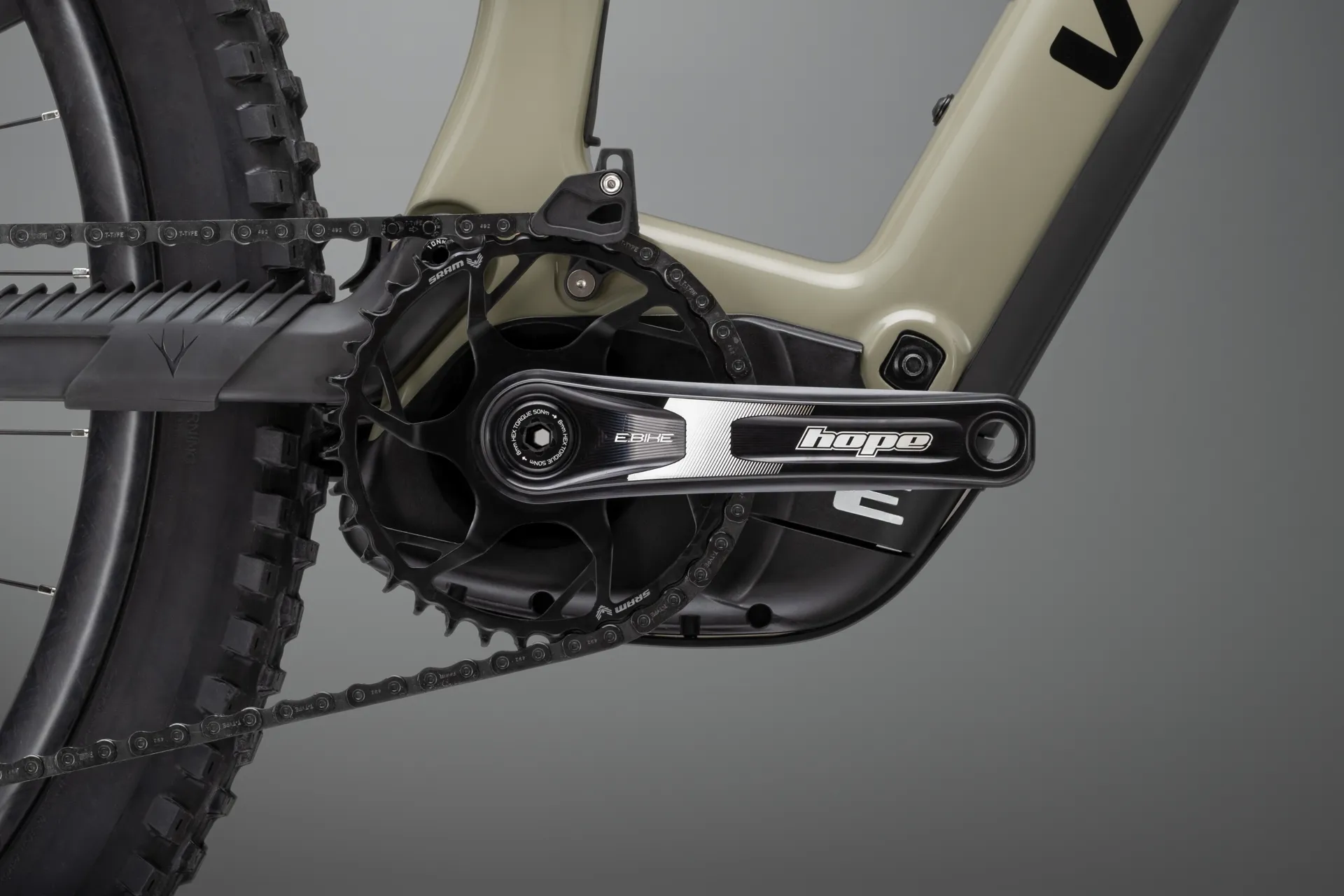

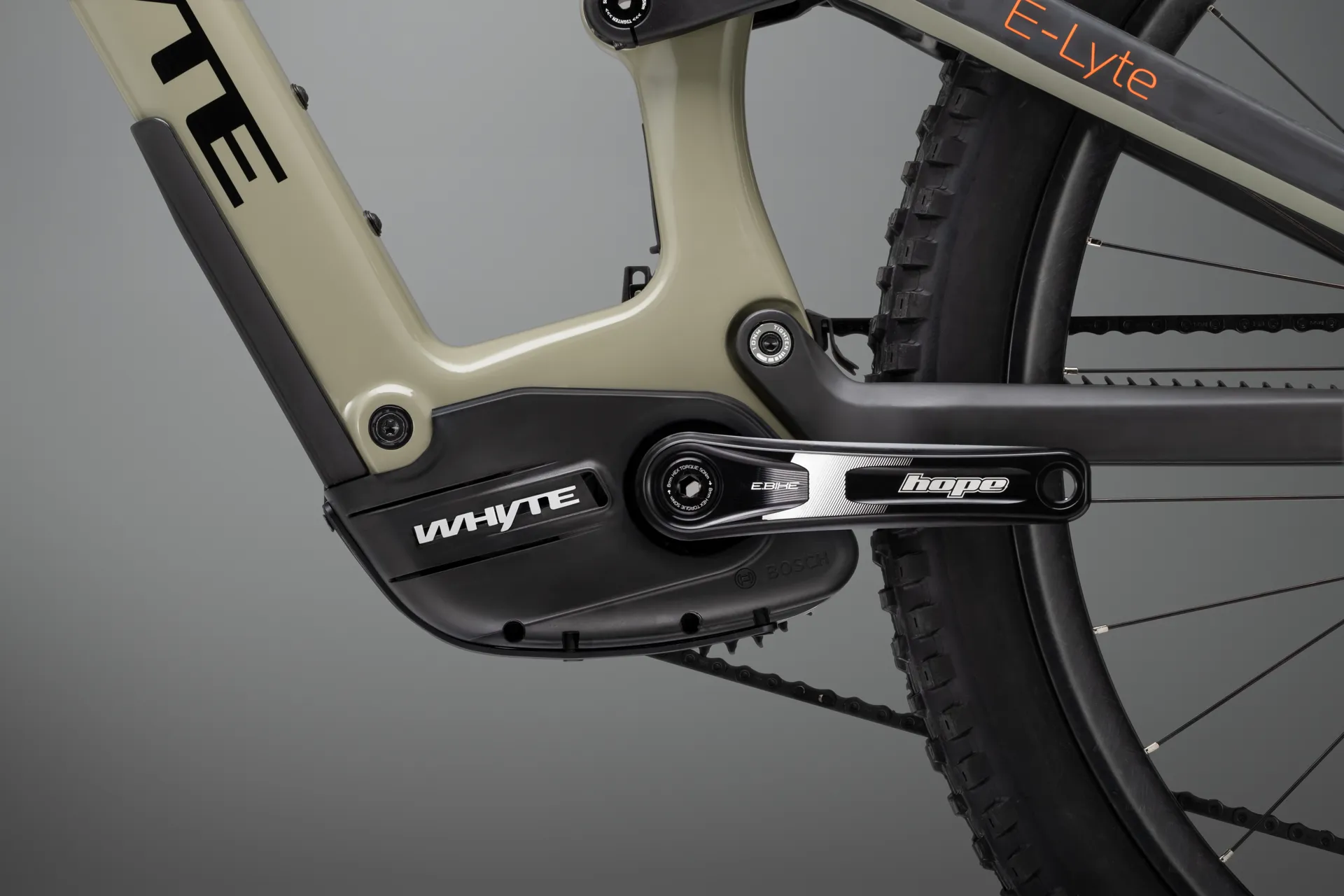

FORK | Fox Float 36 Factory 29in, 150mm travel, 44mm offset, Grip2 damper, tapered steerer, 110m x 15mm Kabolt axle | CRANKSET | Hope E-Bike Cranks, 155mm length, Bosch mounting, 36T chainring T-type |
---|

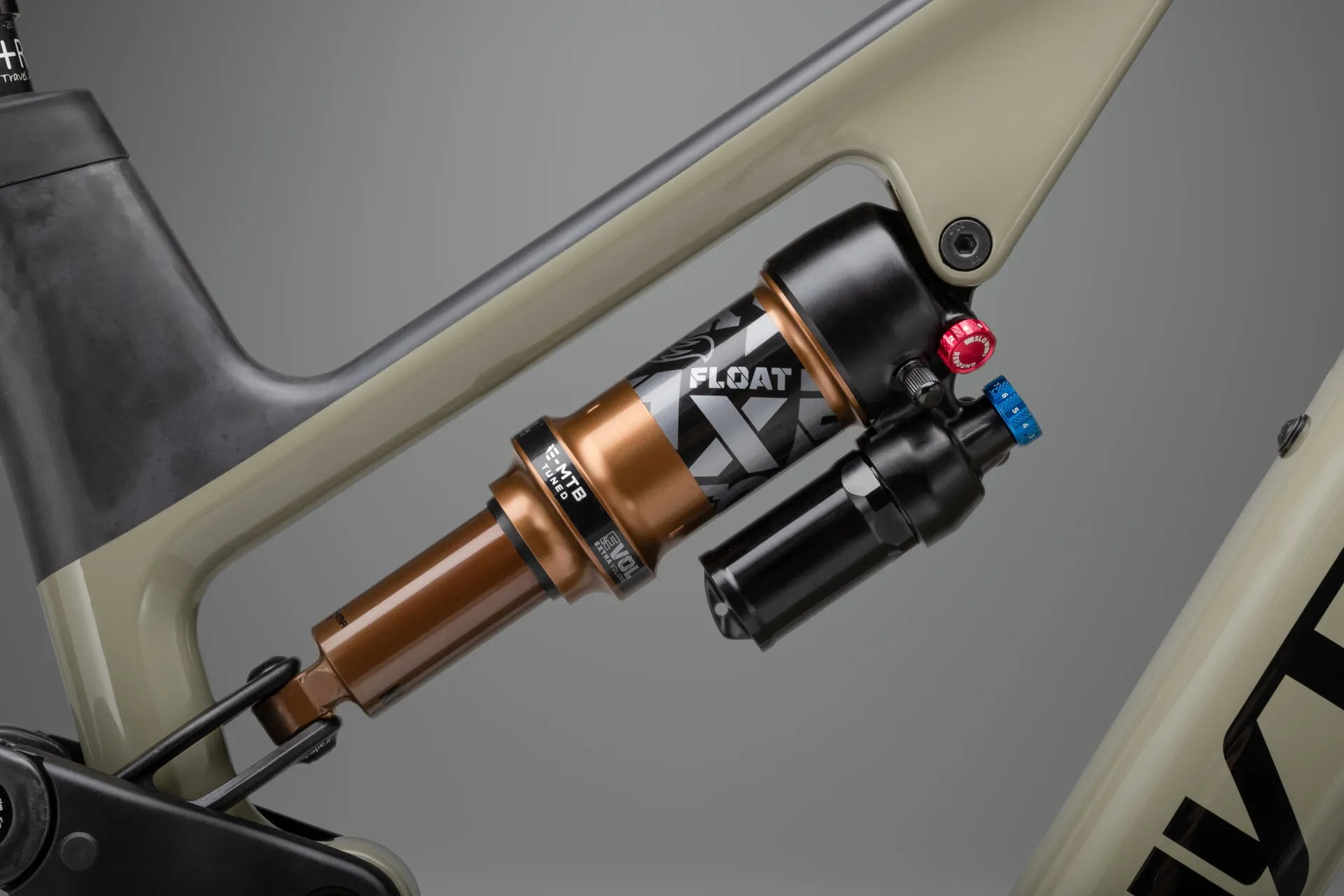

REAR SHOCK | Fox Float X Factory Series, EVOL, lock out, 210mm x 50mm | BOTTOM BRACKET | N/A |
---|
HEADSET | FSA No. 69/56/SRS, 1-1/8in upper and 1.5in lower with sealed angular contact bearing (ACB) catridge bearings, with side entry internal routing | SEATPOST | Whyte drop.it II Adjust, 30.9mm (sizes S/M 140-170mm travel; sizes L/XL 170-200mm travel), MMX Paddle remote lever |
---|
REAR HUB | Hope Pro 5, six bolt, 12mm x 148mm Boost spacing, XD driver, 32 hole | SADDLE | Fizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail |
---|

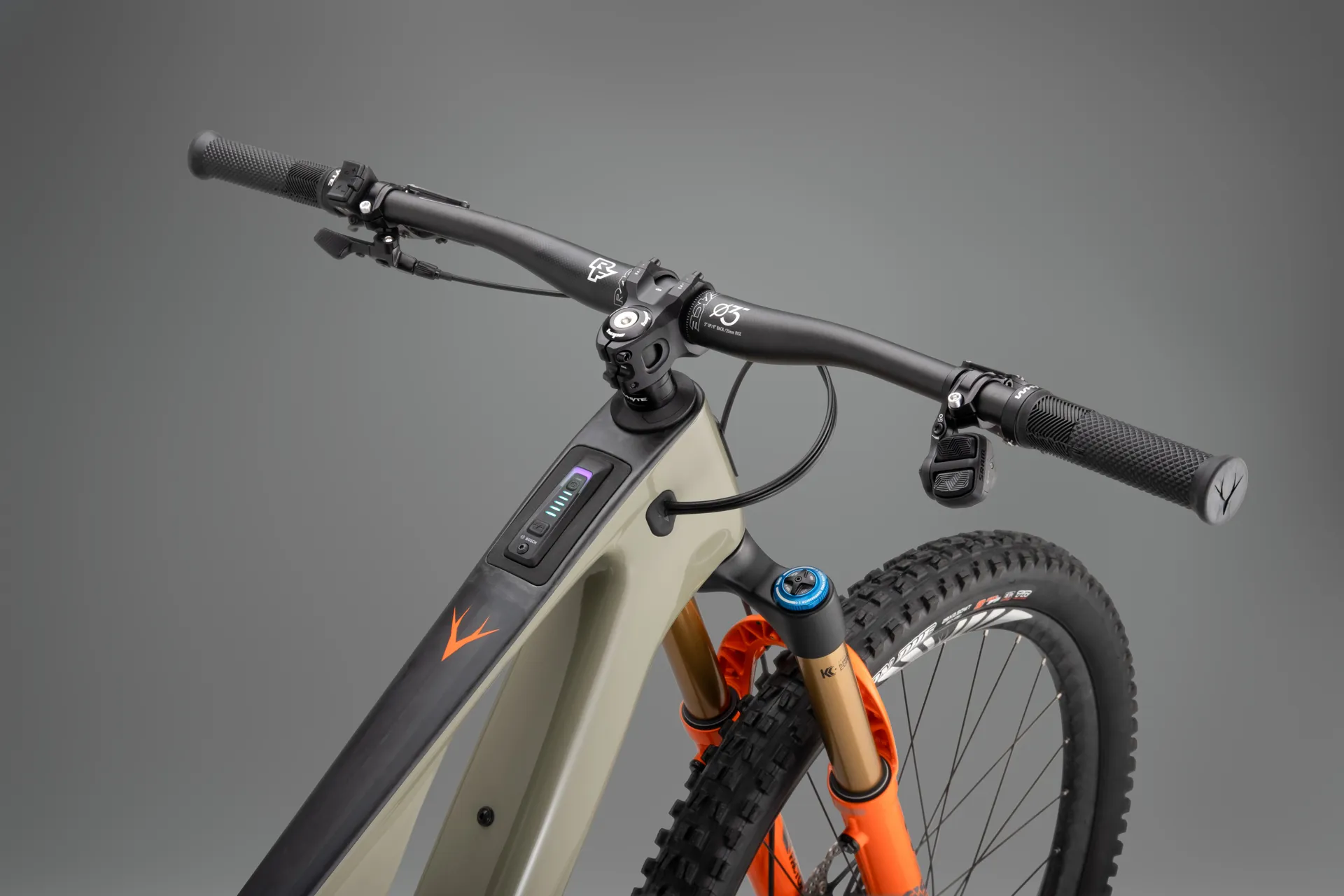

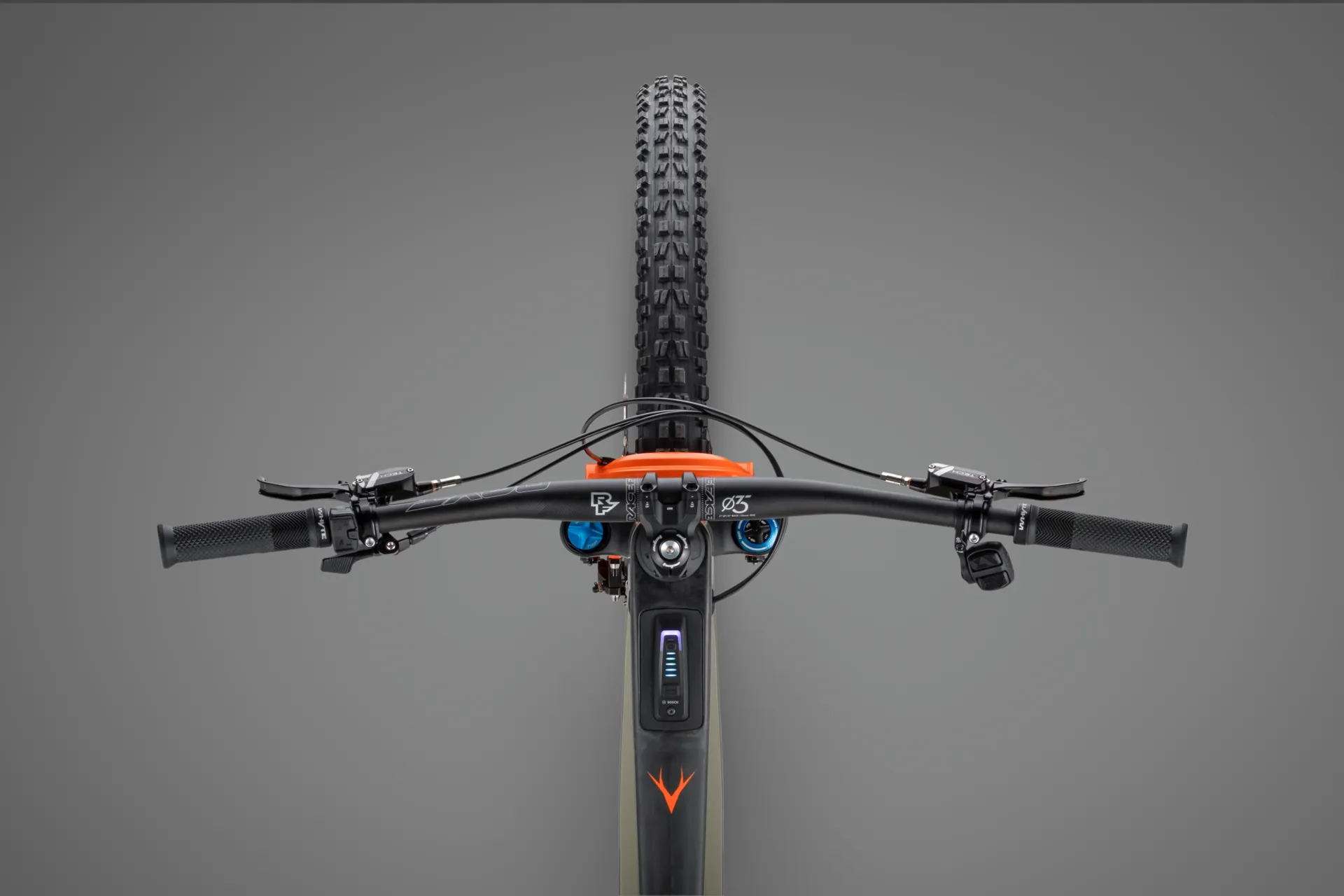

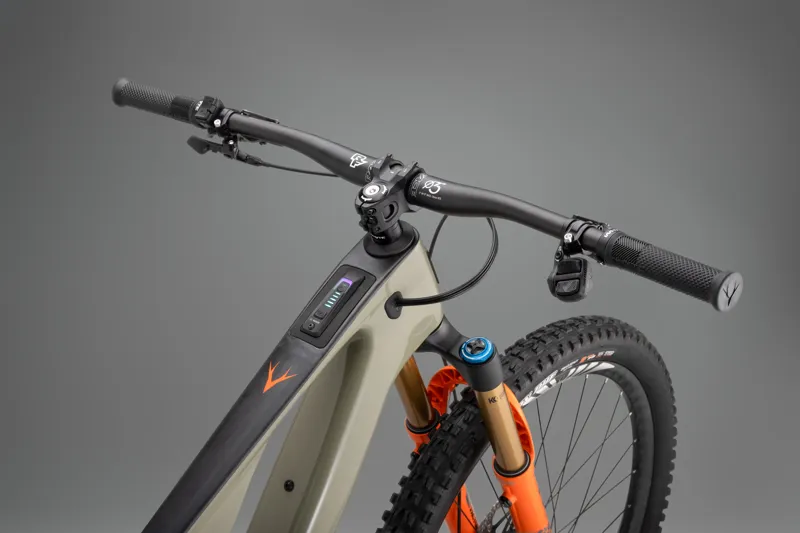

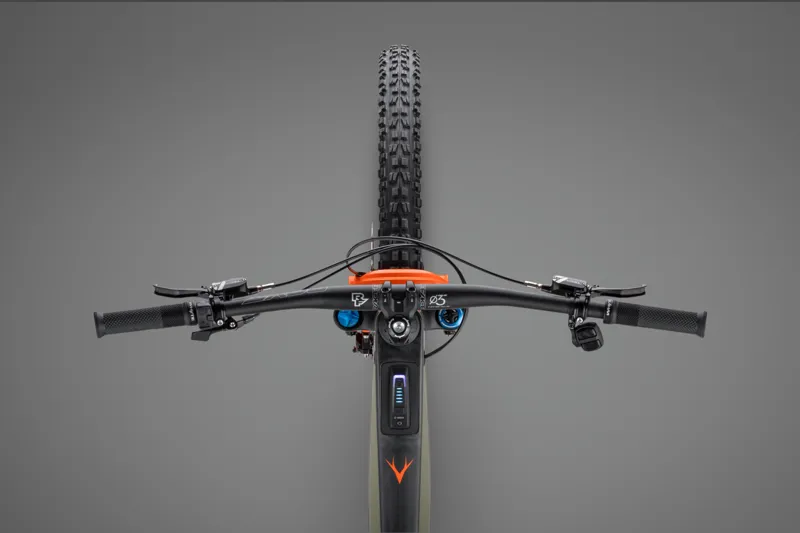

FRONT HUB | Hope Pro 5, six bolt, 15mm x 110mm Boost spacing, 28 hole | HANDLEBAR | Race Face Next R Carbon, 20mm rise, 35mm bar bore, 800mm width |
---|
SPOKES | DT Swiss New Champion 2.0mm, black stainless, brass nipples | STEM | Whyte Trail full CNC, 32mm extension, 35mm bar bore |
---|
RIMS | Whyte TeXtreme Innegra infused, carbon Trail rims, 28 hole front, 32 hole rear (CushCore Trail rim protection fitted to rear wheel) | GRIPS | Whyte Enduro lock-on |
---|
TYRE | Maxxis Minion DHF, EXO TR MaxxGripp 29in x 2.5in front; Maxxis Dissector, EXO+ TR MaxxTerra 29in x 2.4in, rear | BRAKES FRONT | Hope Tech4 V4, four piston hydraulic, 200mm diameter floating disc rotor |
---|
SHIFT LEVERS | SRAM AXS Pod, right, MMX, 12 speed | BRAKES REAR | Hope Tech4 V4, four piston hydraulic, 200mm diameter floating disc rotor |
---|
FRONT MECH | N/A | BRAKE LEVERS | Hope Tech 4 |
---|

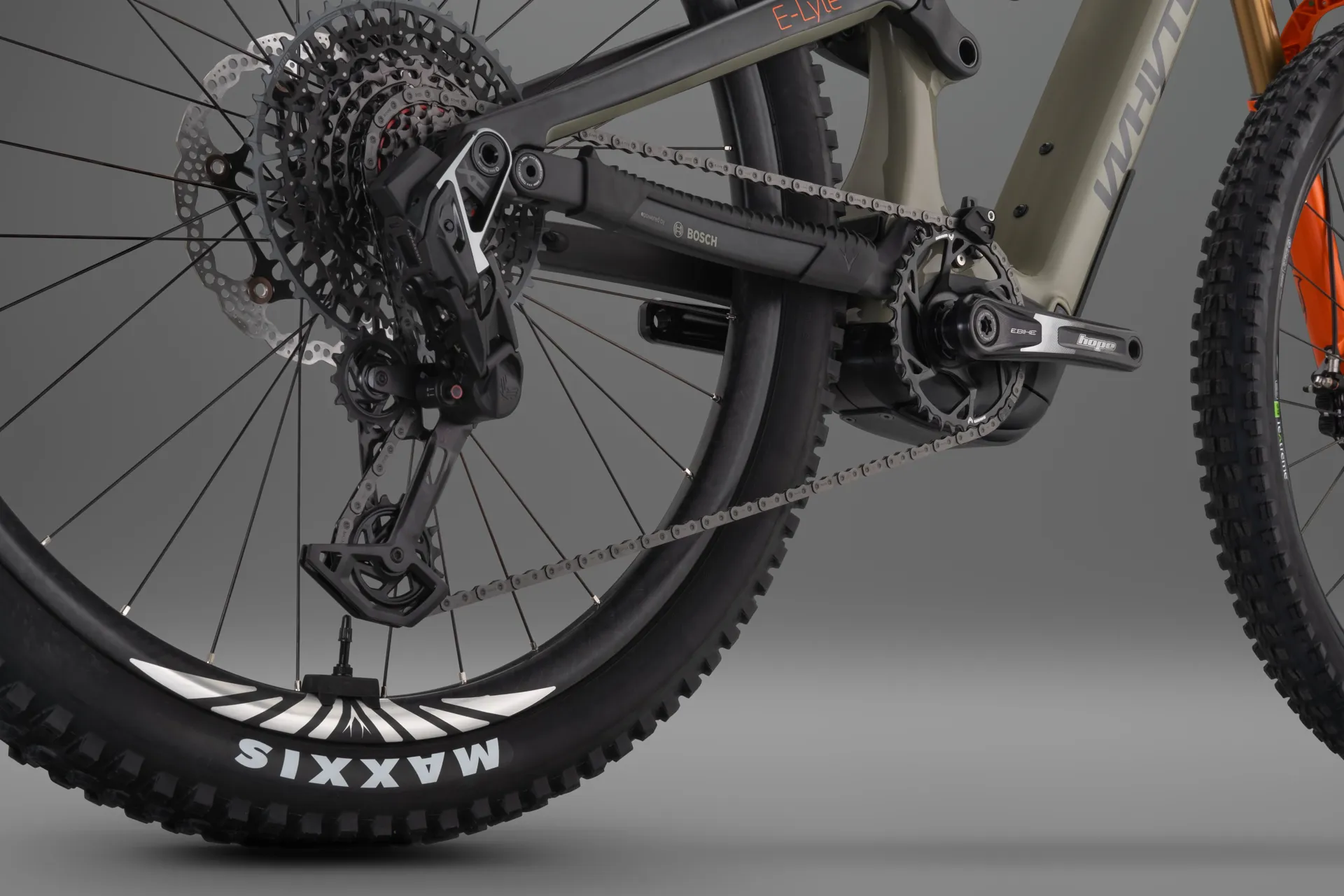

REAR MECH | SRAM XO T-Type AXS, 12 speed | PEDALS | Fibre reinforced composite platform |
---|
WEIGHT | 19.2kg (size M - weight does not include additional PowerMore range extender) | | |
---|
