Frame
Alpha Gold Aluminium, internal cable routing, rack & mudguard mounts, post mount disc, kickstand mount. 135x5mm QR

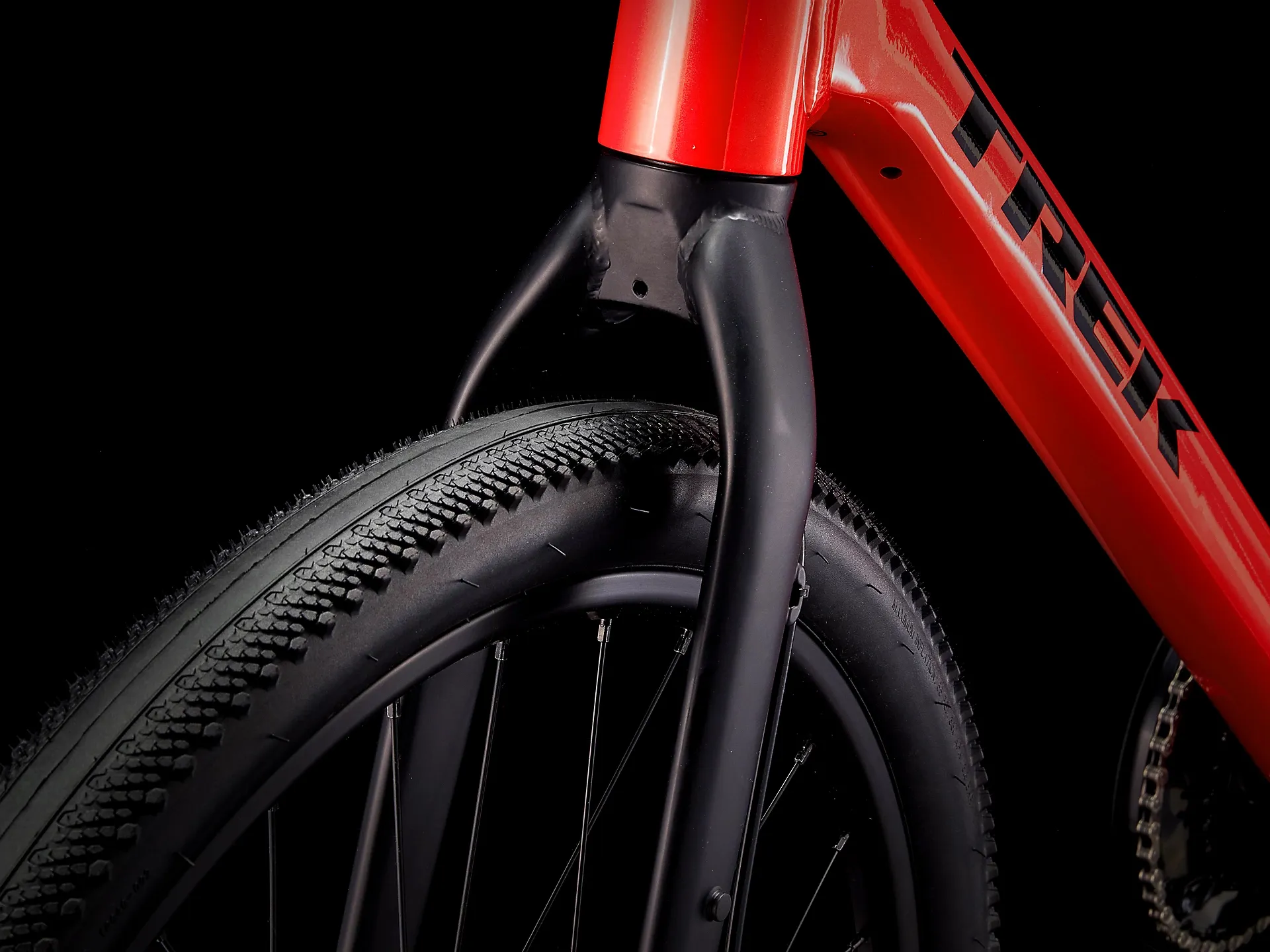

Fork
Dual Sport steel, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm QR
Hub front
Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Skewer front
139x5 mm bolt-on
Hub rear
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Skewer rear
152x5 mm QR
Rim
Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
Tyre
Bontrager GR0 Comp, wire bead, 60 tpi, 650x50 c
Max tyre size
27.5x2.0"
Shifter
Shimano EF500, 8-speed
Front derailleur
Shimano Tourney TY710, 34.9 mm clamp, top swing, dual pull
Rear derailleur
Shimano Altus M310

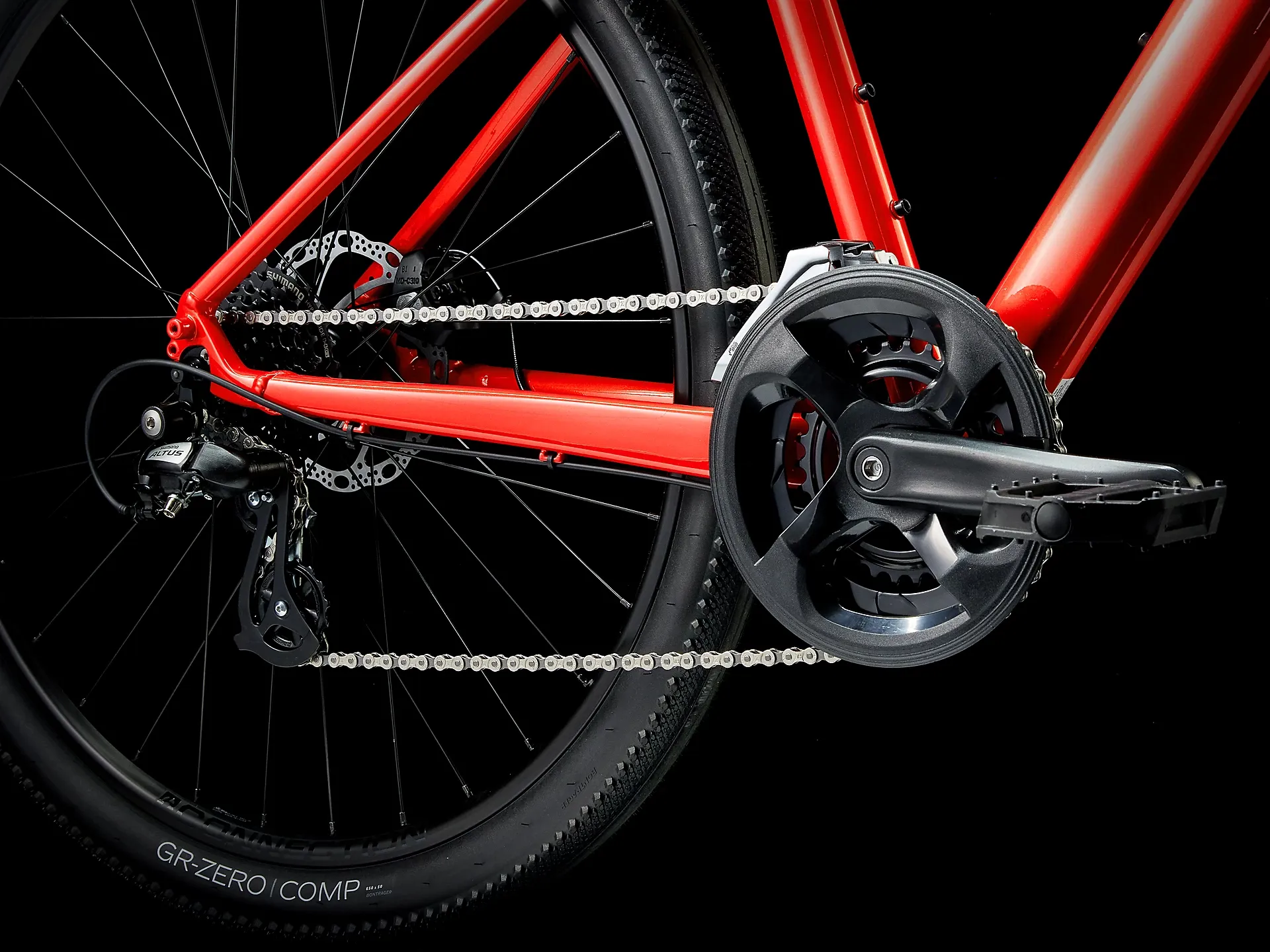

Crank
Forged alloy, 46/30, chainguard, 170 mm length
Bottom bracket
Sealed cartridge, 68 mm
Cassette
Shimano HG31, 11-32, 8 speed
Chain
KMC Z8.3
Pedal
Wellgo nylon platform
Max. chainring size
1x: 42T, 2x/3x: 48T

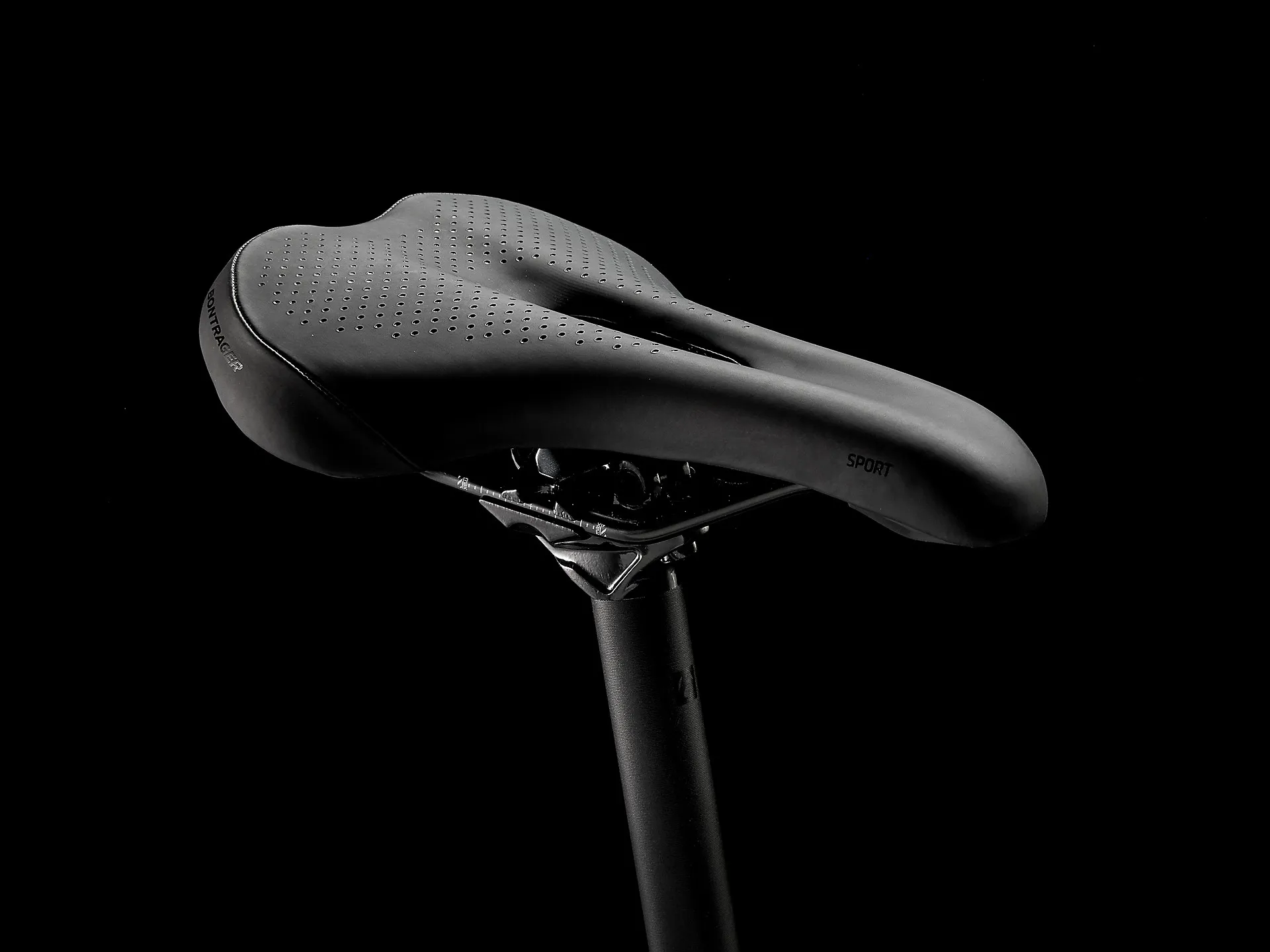

Saddle
Bontrager Sport
Seatpost
Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length

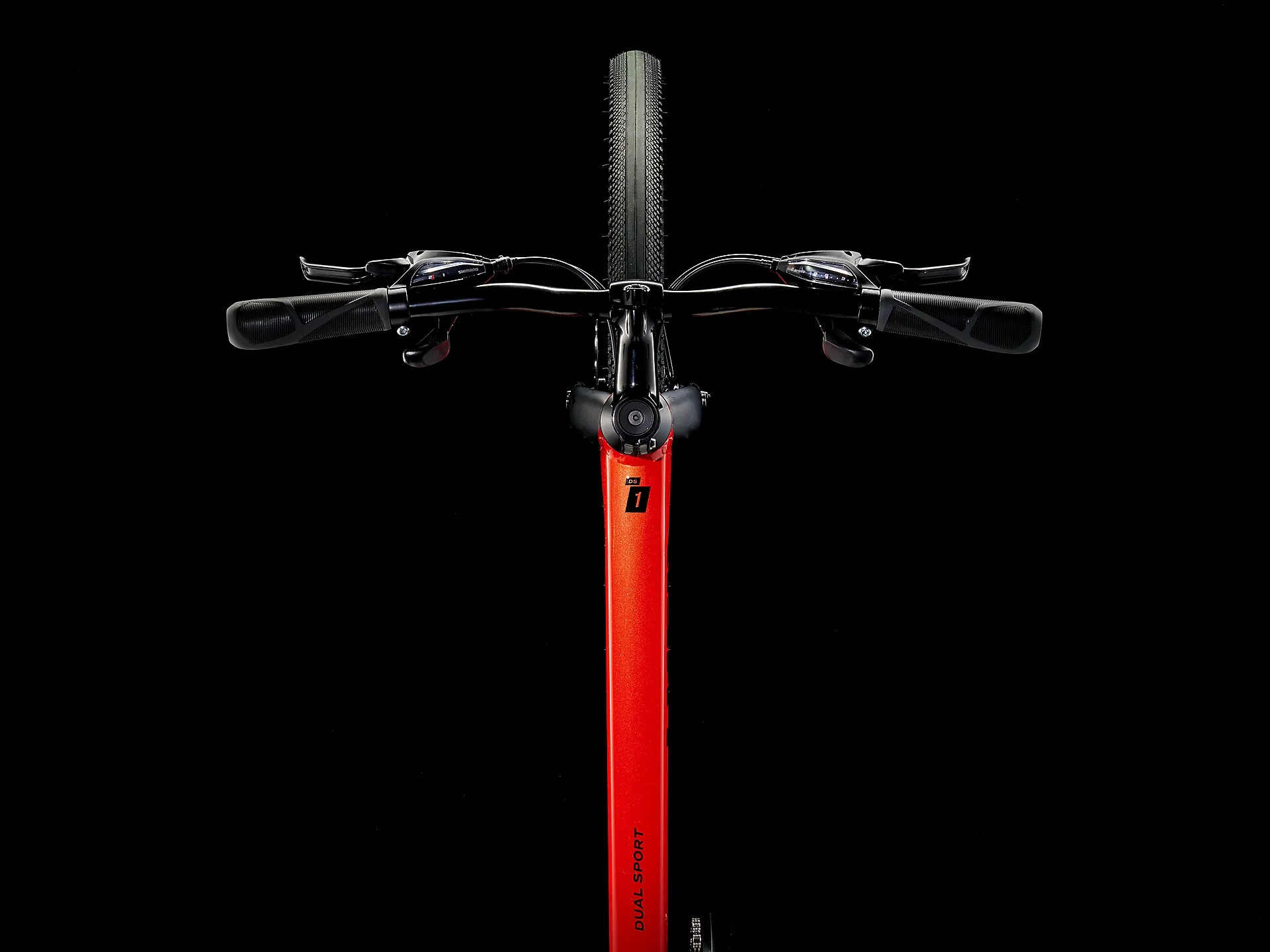

Handlebar
Size: S, M
Bontrager Riser, steel, 25.4 mm, 30 mm rise, 600 mm width
Size:L, XL
Bontrager Riser, steel, 25.4 mm, 30 mm rise, 620 mm width

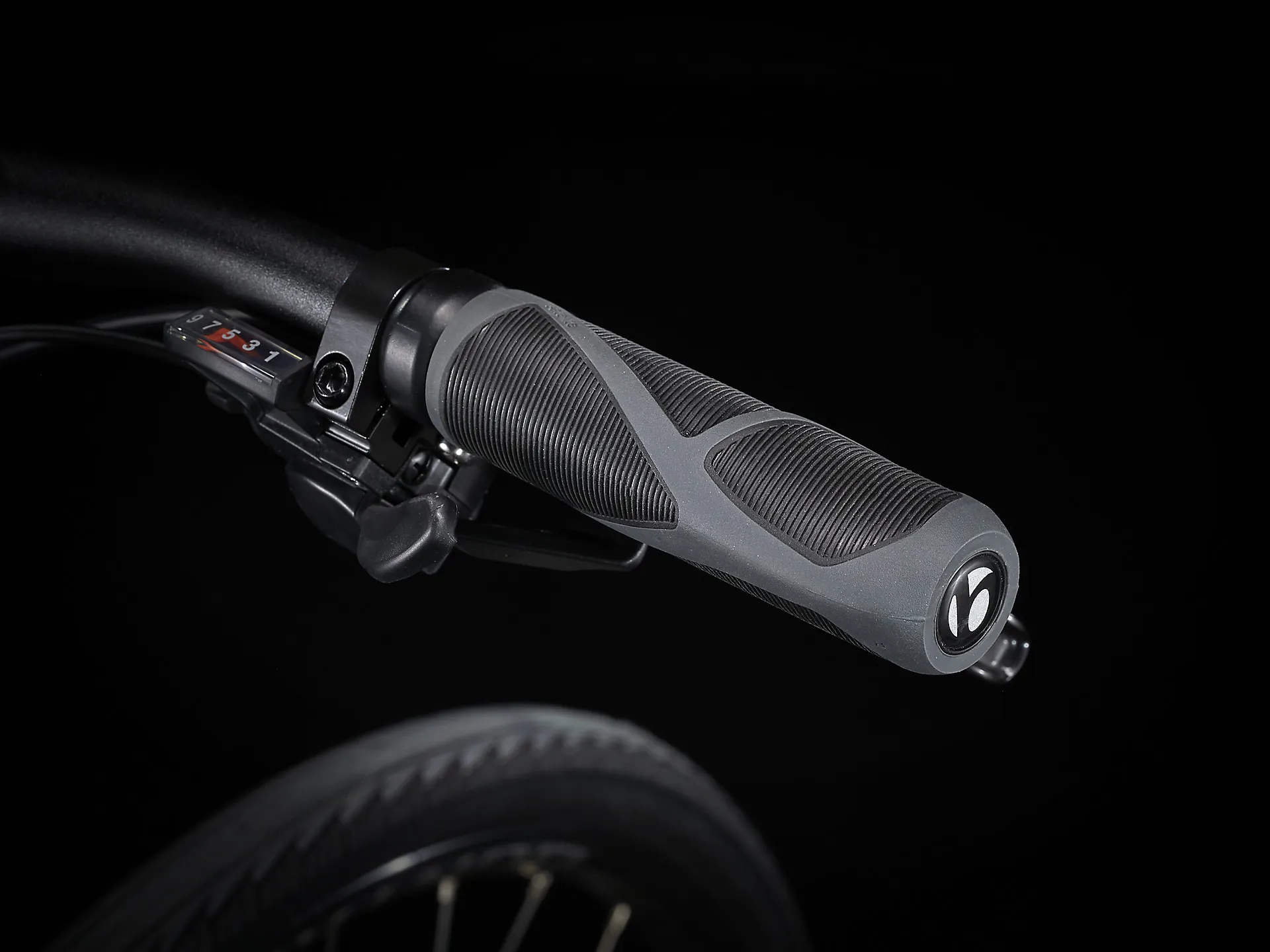

Grips
Bontrager Satellite

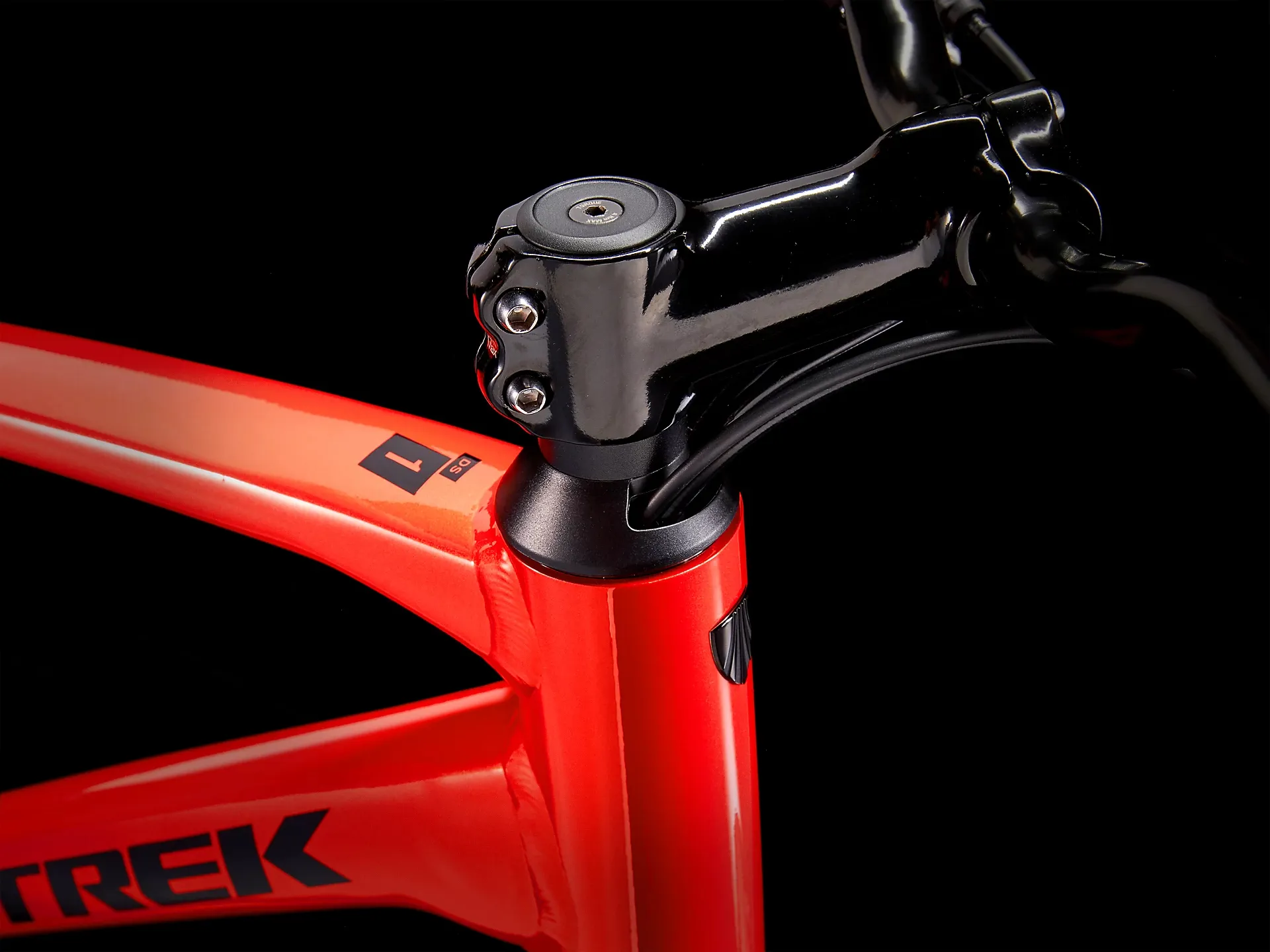

Stem
Size: S, M
Bontrager alloy, 25.4 mm clamp, 10-degree, 90 mm length
Size:L, XL
Bontrager alloy, 25.4 mm clamp, 10-degree, 110 mm length

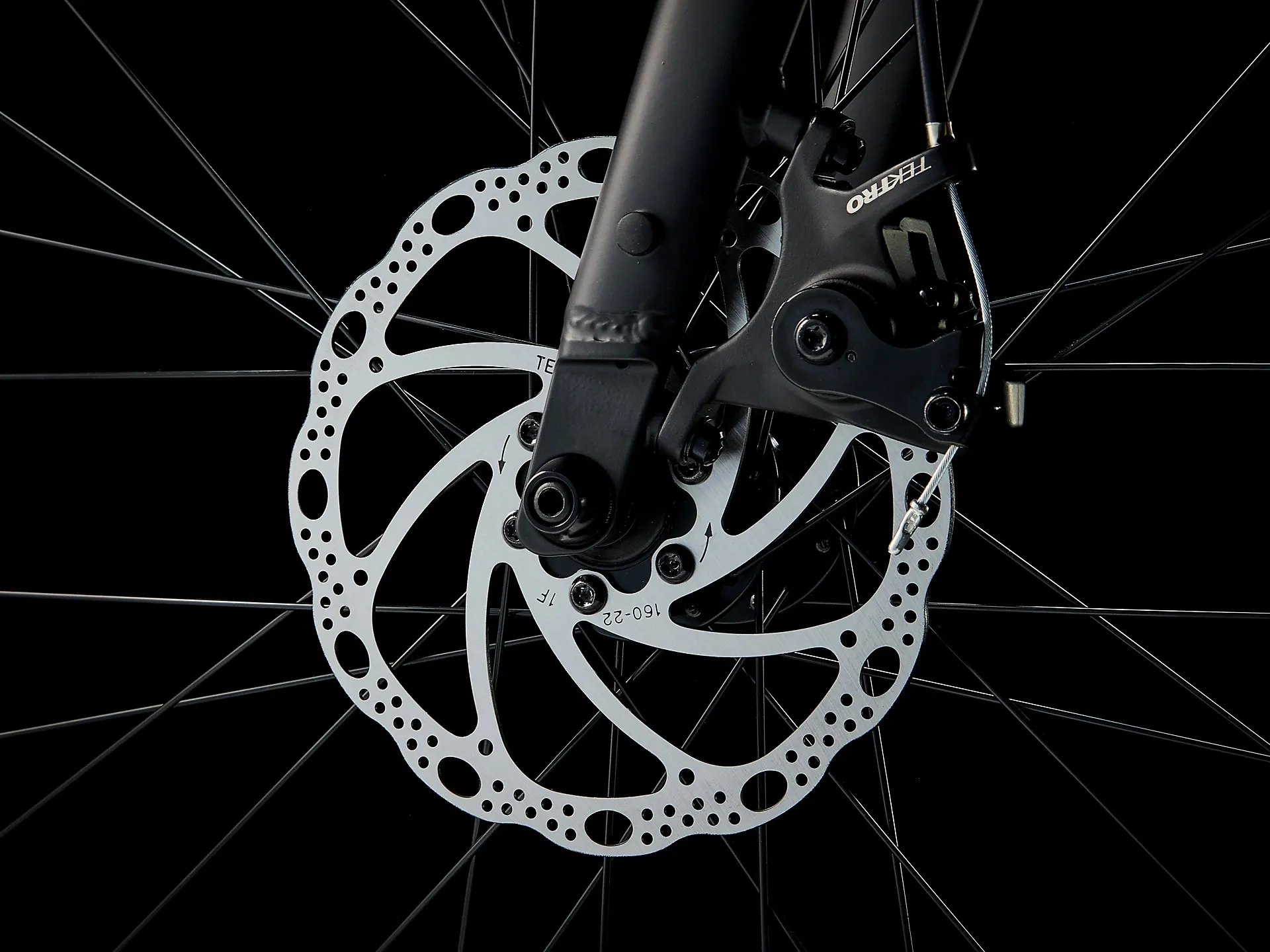

Brake
Tektro MD-U310 mechanical disc, flat-mount, 160 mm rotor
Rotor size
Max brake rotor size: 160 mm
Weight
M - 13.88 kg / 30.61 lbs
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
