Frame
Alpha Gold Aluminium, internal cable routing, rack & mudguard mounts, post mount disc, kickstand mount. 135x5mm QR

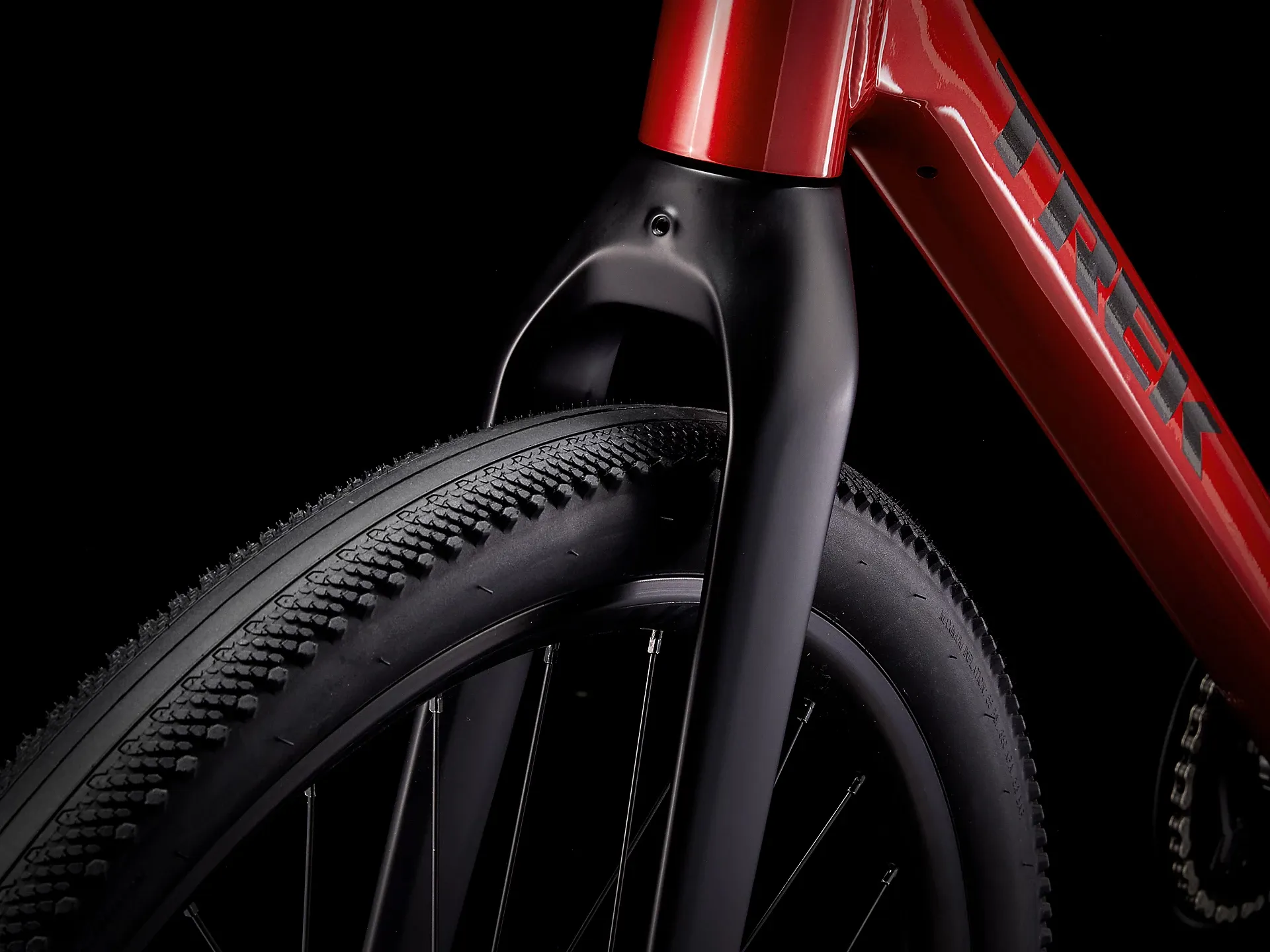

Fork
Dual Sport carbon, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm QR
Hub front
Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Skewer front
139x5 mm bolt-on
Hub rear
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Skewer rear
152x5 mm QR
Rim
Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve
Tyre
Bontrager GR0 Expert, wire bead, puncture protection, 60 tpi, 650x50c
Max tyre size
27.5x2.0"
Shifter
Shimano Deore M4100, 10 speed
Rear derailleur
Shimano Deore M5120, long cage
Crank
Size: S, M
Prowheel alloy, 40T narrow-wide ring, 170 mm length
Size:L, XL
Prowheel alloy, 40T narrow-wide ring, 175 mm length

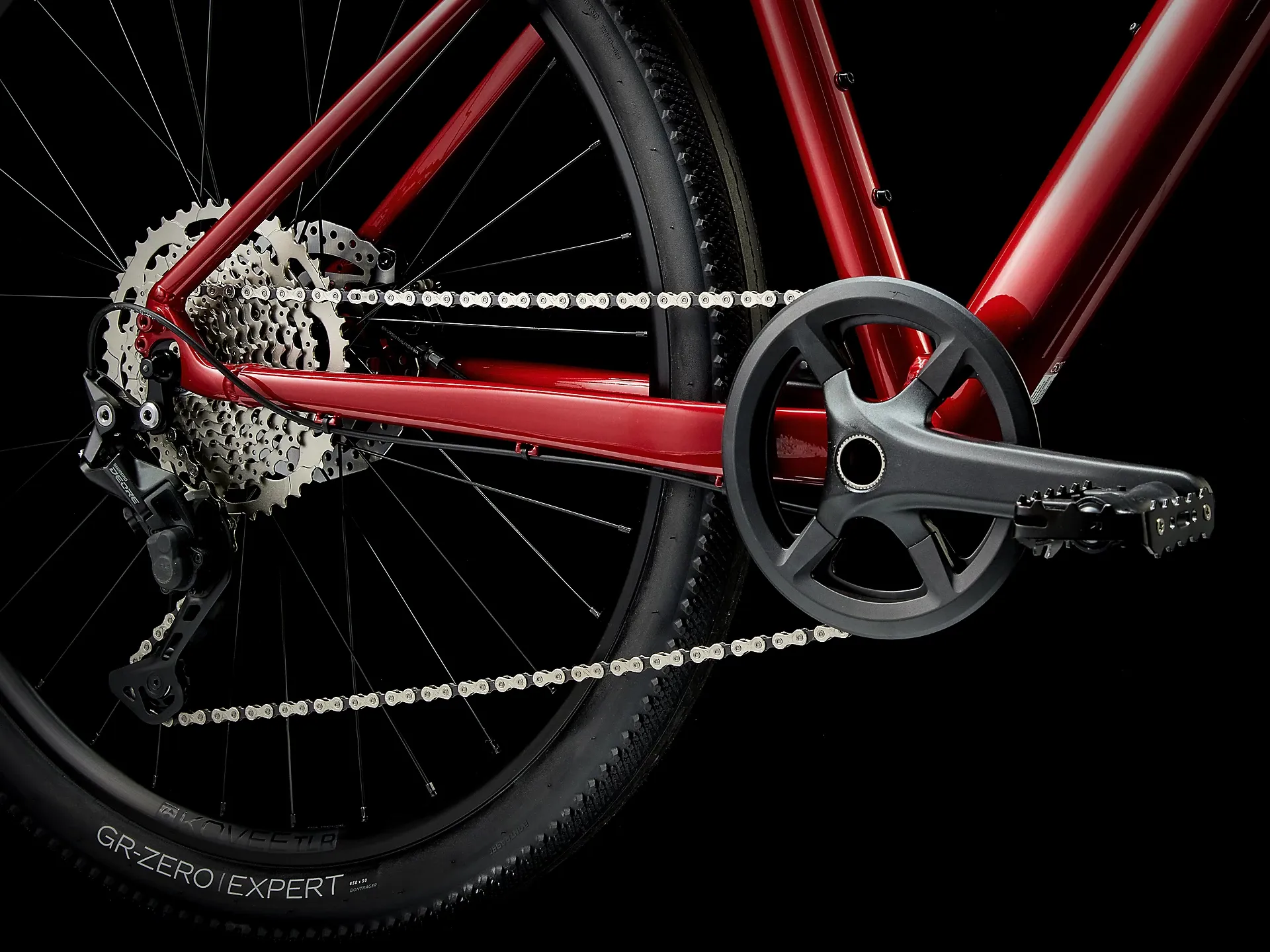

Cassette
Shimano Deore M4100, 11-46, 10-speed
Chain
KMC X10, 10-speed
Pedal
Wellgo nylon body, alloy cage
Max. chainring size
1x: 42T, 2x/3x: 48T

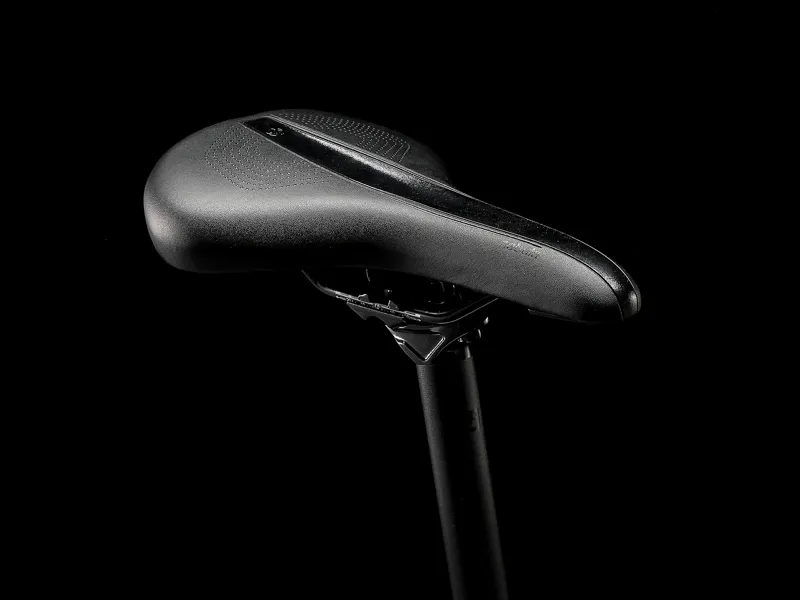

Saddle
Bontrager H1
Seatpost
Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length

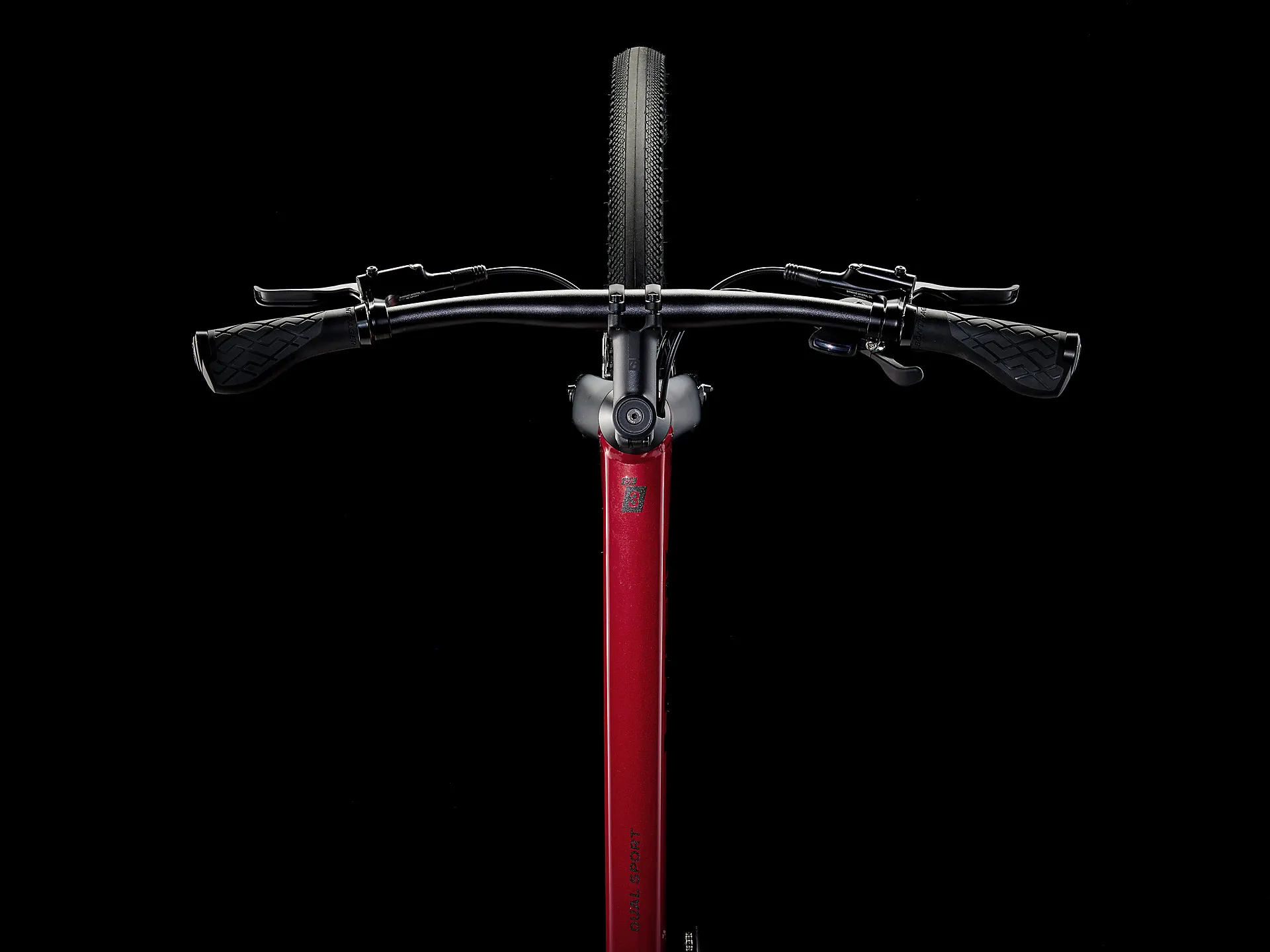

Handlebar
Size: S
Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise, 600 mm width
Size:M, L
Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise, 660 mm width
Size:XL
Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise, 690 mm width

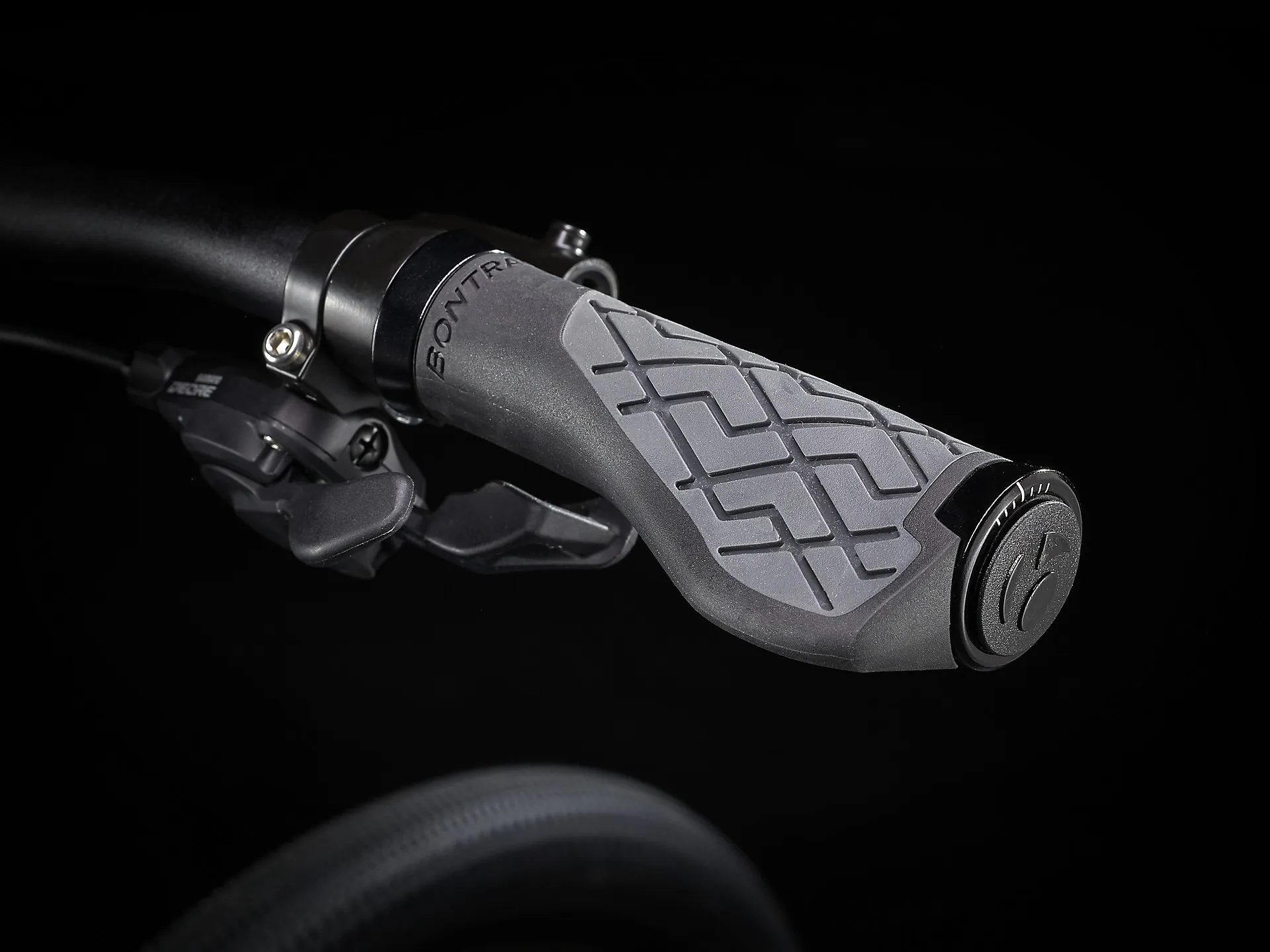

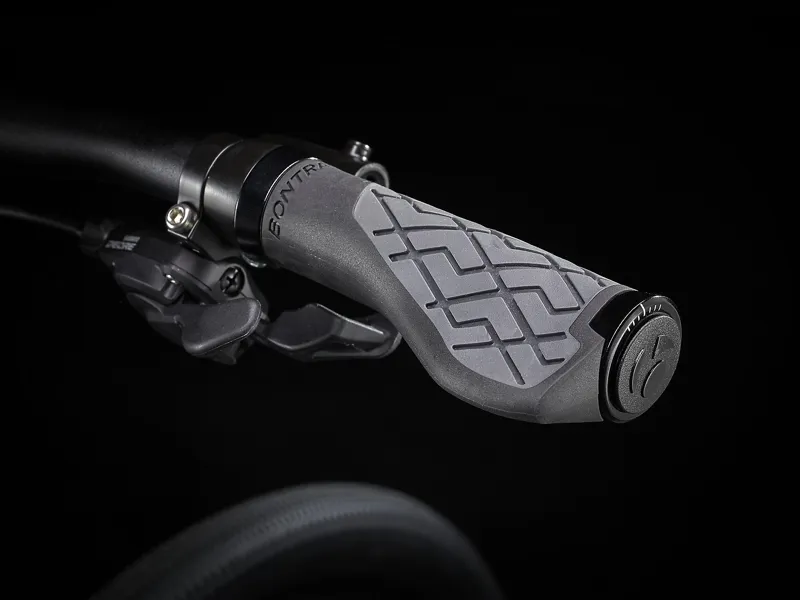

Grips
Bontrager XR Endurance Elite

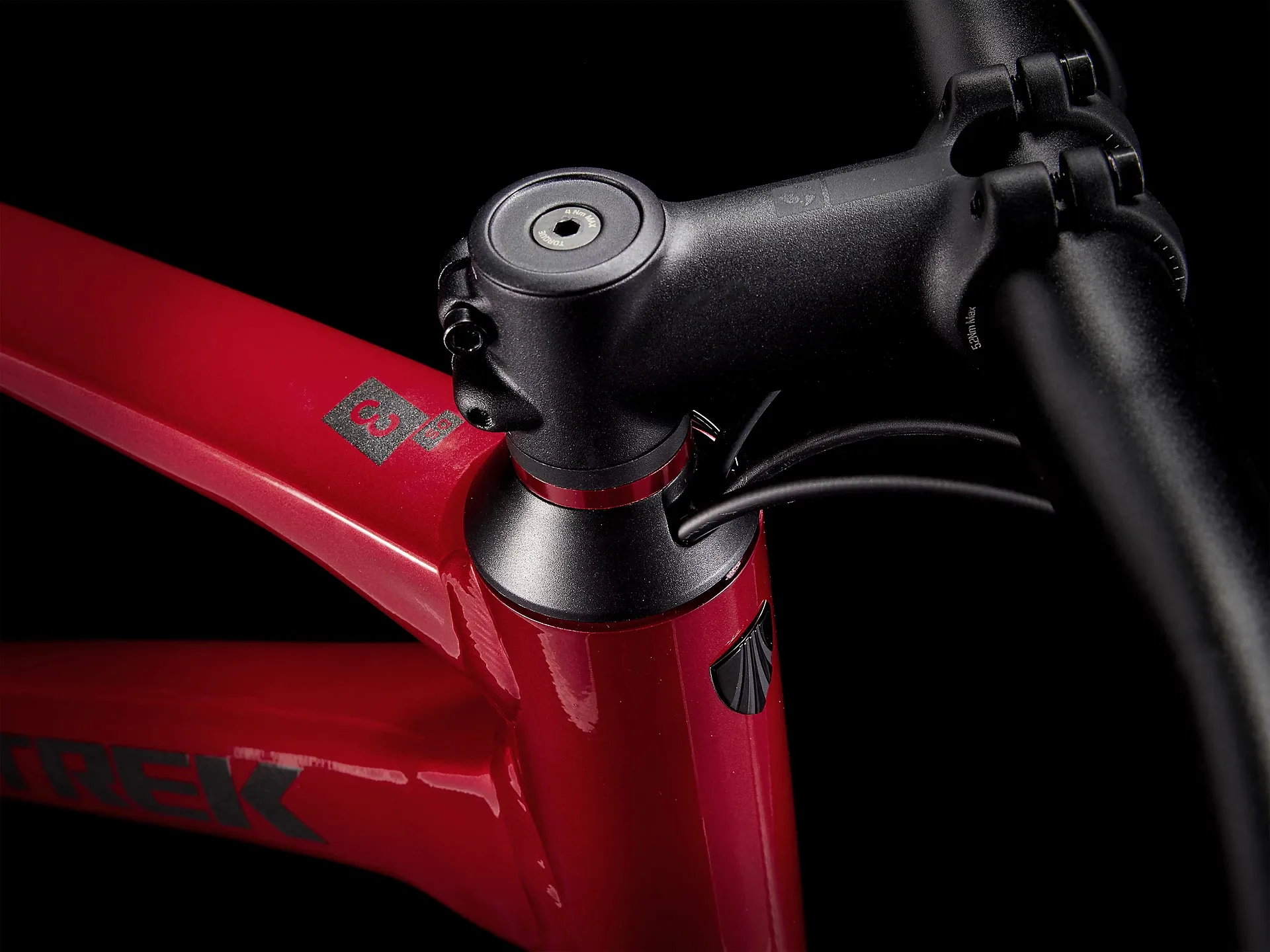

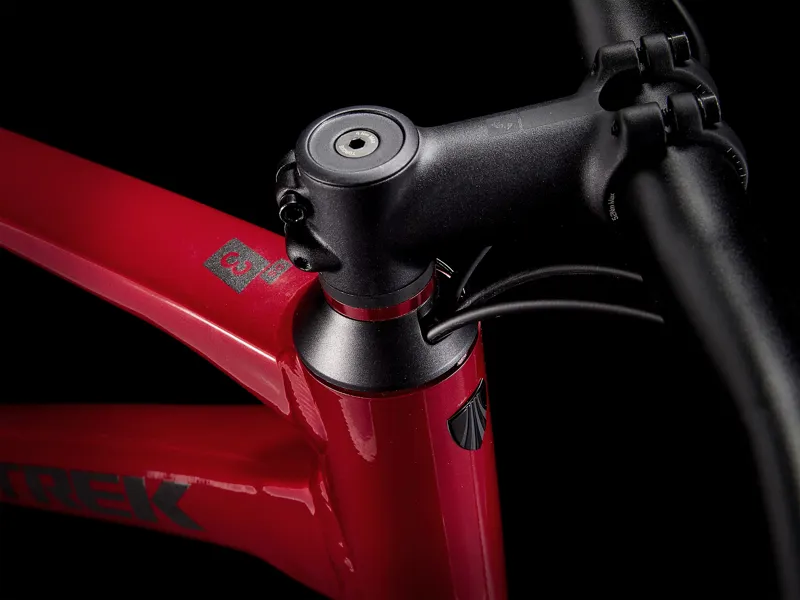

Stem
Size: S
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size:M, L
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size:XL
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Brake
Shimano hydraulic disc, MT201 lever, UR300 calliper

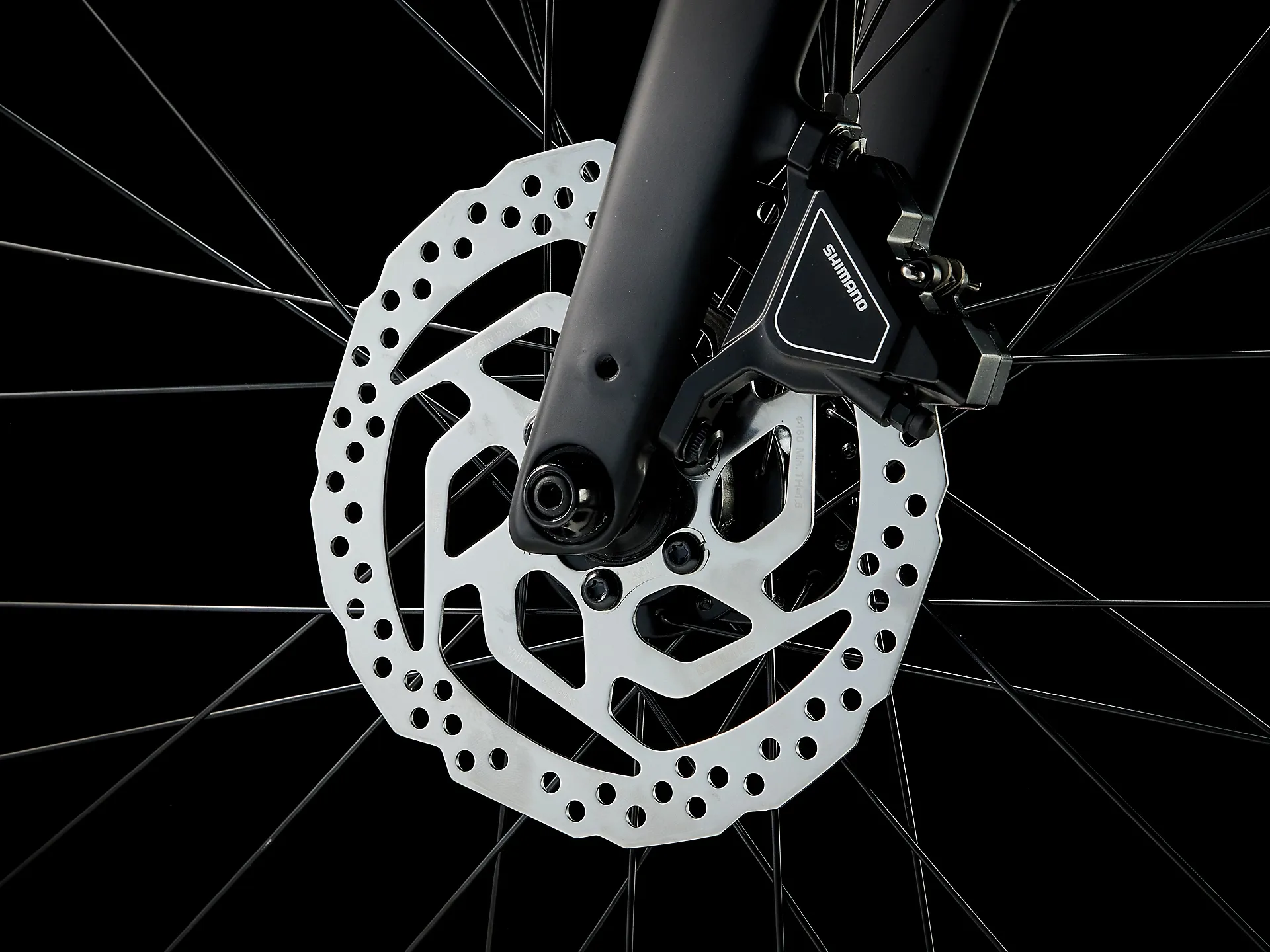

Brake rotor
Shimano RT26, 6-bolt,160 mm
Rotor size
Max brake rotor size: 160 mm
Weight
M - 11.88 kg / 26.2 lbs
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
