Frame

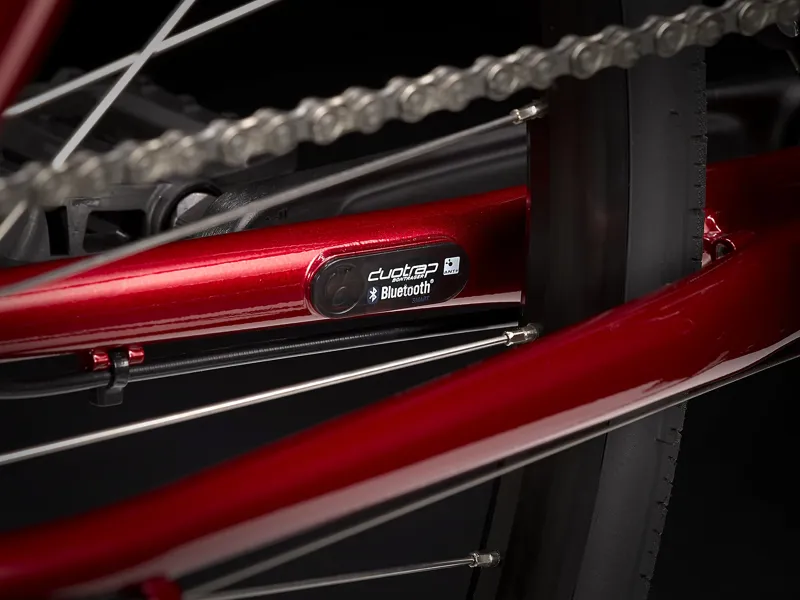

Alpha Gold Aluminium, DuoTrap S-compatible, internal cable routing, flat-mount disc, rack and mudguard mounts, 135x5 mm QR
Fork
FX Steel, flat-mount disc, rack mounts, 405 mm axle-to-crown, ThruSkew 5 mm QR
Hub front
Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Skewer front
130x5 mm QR, ThruSkew
Hub rear
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Skewer rear
152x5 mm QR
Rim
Bontrager Connection, alloy, double-wall, 32-hole, Schrader valve
Tyre
Bontrager H2 Comp, wire bead, 30 tpi, 700x35c
Max tyre size
38c without mudguards, 35c with mudguards
Shifter
Shimano EF500, 8-speed
Front derailleur
Shimano Tourney TY710, 34.9 mm clamp, top swing, dual pull
Rear derailleur
Shimano Altus M310
Crank
Forged alloy, 46/30, chainguard, 170 mm length
Bottom bracket
Sealed cartridge, 68 mm
Cassette
Shimano HG31, CS-HG31, 11-32, 8 speed
Chain
KMC Z8.3
Pedal
Wellgo nylon platform
Max. chainring size
1x: 42T, 2x/3x: 48T
Saddle
Bontrager Sport
Seatpost
Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
Handlebar
Size: XS, S, M, L
Bontrager Riser, steel, 25.4 mm, 30 mm rise, 600 mm width
Size:XL, XXL
Bontrager Riser, steel, 25.4 mm, 30 mm rise, 620 mm width
Grips
Bontrager Satellite
Stem
Size: XS, S, M
Bontrager alloy, 25.4 mm clamp, 10-degree, 90 mm length
Size:L, XL, XXL
Bontrager alloy, 25.4 mm clamp, 10-degree, 110 mm length
Head set
1 1/8" steel threadless
Brake
Tektro MD-U310 mechanical disc, flat-mount, 160 mm rotor
Rotor size
Max brake rotor size: 160 mm
Weight
M - 12.68 kg / 27.96 lbs
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
