Frame

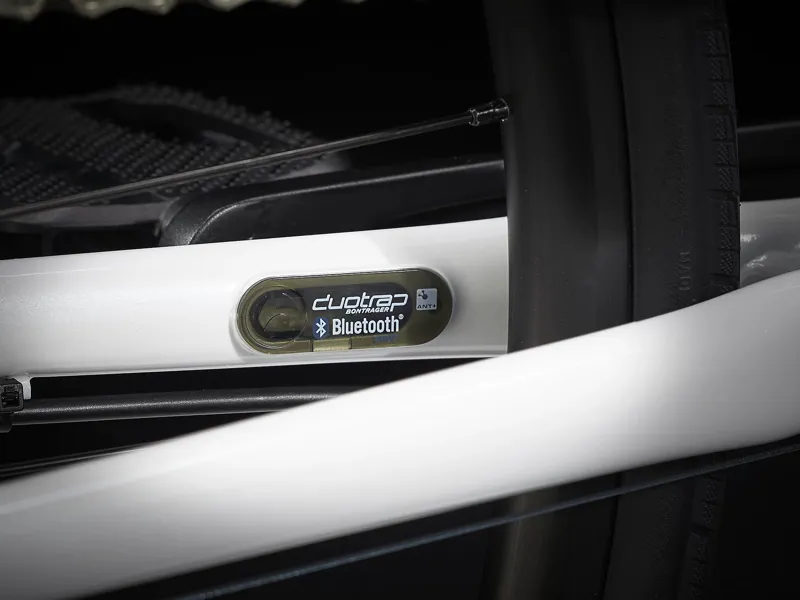

Alpha Gold Aluminium, DuoTrap S-compatible, internal cable routing, flat-mount disc, rack and mudguard mounts, 135x5 mm QR
Fork
FX Carbon, rack and mudguard mounts, flat-mount disc, 405 mm axle-to-crown. ThruSkew 5 mm QR
Hub front
Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Skewer front
130x5mm QR, ThruSkew
Hub rear
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Skewer rear
152x5mm QR
Rim
Bontrager Tubeless Ready Disc, 32-hole, Presta valve
Tyre
Bontrager H2 Comp, wire bead, 30 tpi, 700x32c
Max tyre size
38c without mudguards, 35c with mudguards
Shifter
Shimano Deore M4100, 10 speed
Rear derailleur
Shimano Deore M5120, long cage
Crank
Size: XS, S, M
Prowheel alloy, 40T narrow-wide ring, 170 mm length
Size:L, XL, XXL
Prowheel alloy, 40T narrow-wide ring, 175 mm length
Cassette
Shimano Deore M4100, 11-46, 10-speed
Chain
KMC X10, 10-speed
Pedal
Bontrager City pedals
Max. chainring size
1x: 42T, 2x/3x: 48T
Saddle
Bontrager H1
Seatpost
Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
Handlebar
Size: XS, S, M
Bontrager Satellite Plus IsoZone, alloy, 31.8 mm, 15 mm rise, 600 mm width
Size:L, XL, XXL
Bontrager Satellite Plus IsoZone, alloy, 31.8 mm, 15 mm rise, 660 mm width

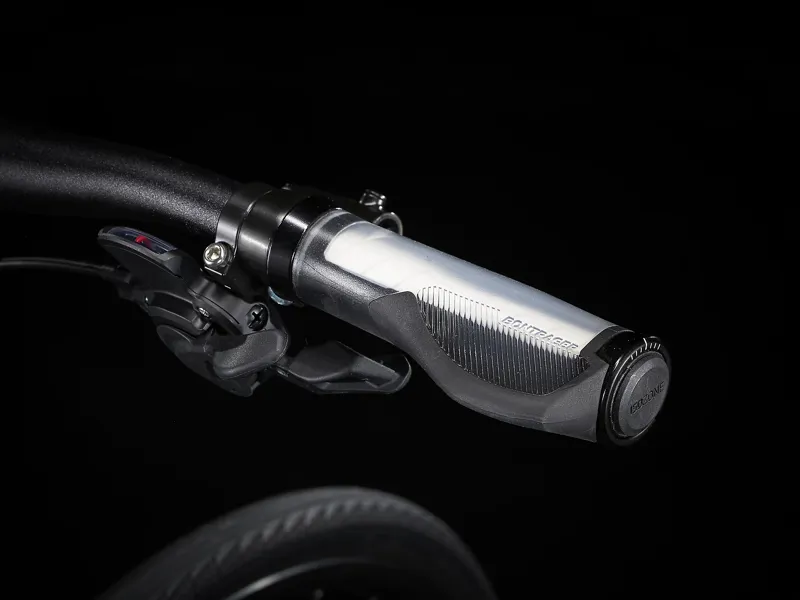

Grips
Bontrager Satellite IsoZone Plus, lock-on, ergonomic
Stem
Size: XS, S
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length
Size:M, L, XL, XXL
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 100 mm length
Head set
1 1/8" steel threadless

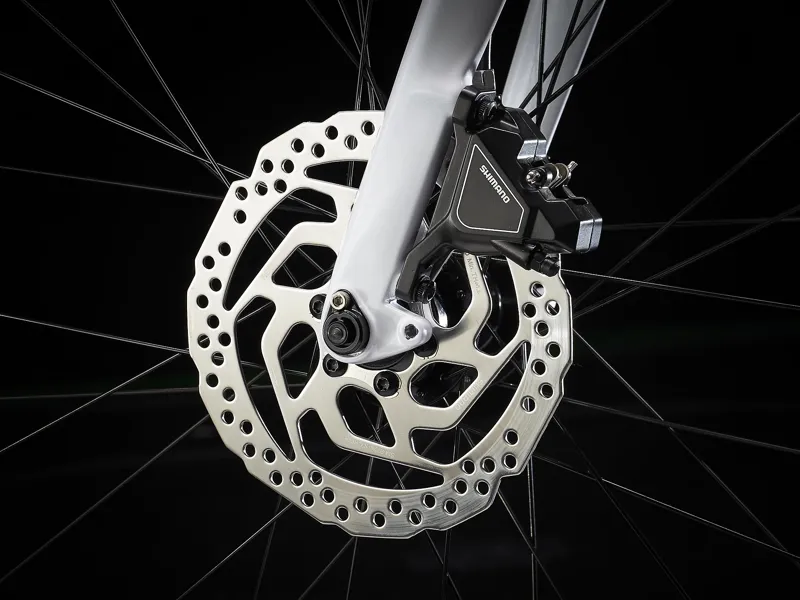

Brake
Size: XS, S, M, L, XL, XXL
Shimano hydraulic disc, MT201 lever, UR300 calliper
Size:XS, S, M, L, XL, XXL
Shimano MT201 hydraulic disc, flat-mount, 160 mm rotor
Brake rotor
Shimano RT26, 6-bolt,160 mm
Rotor size
Max brake rotor size: 160 mm
Weight
M - 11.38 kg / 25.09 lbs
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
