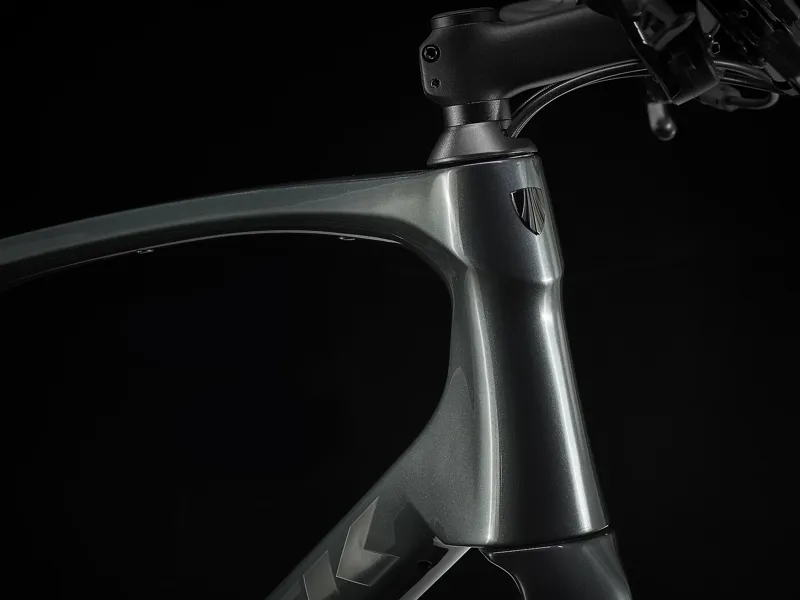

Frame

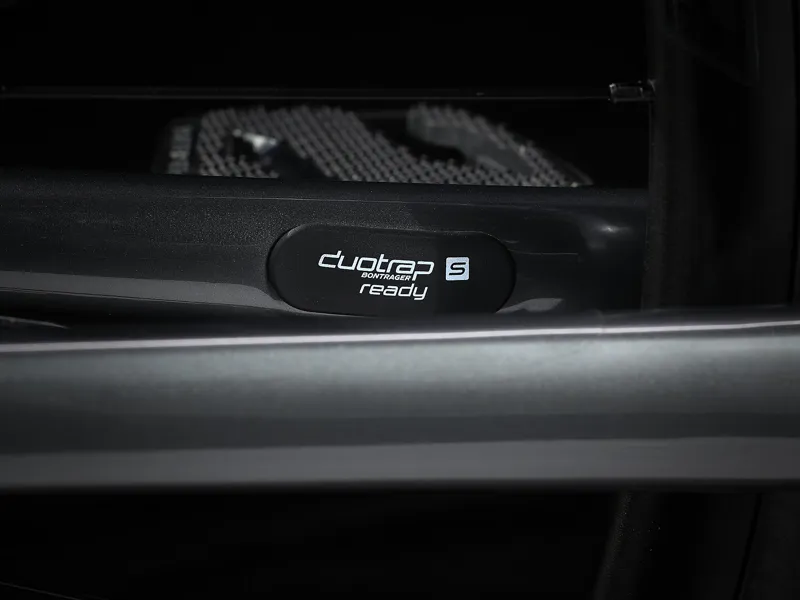

400 series OCLV Carbon, internal routing, 3s chain keeper, DuoTrap S compatible, mudguard mounts, flat mount disc, 135x5 mm ThruSkew
Fork
Carbon, hidden mudguard mounts, flat mount disc, 5x100 mm thru-skew
Hub front
Formula CL-51 alloy, 100x5 mm QR
Skewer front
135x5 mm bolt-on
Hub rear
Formula CL-52 alloy, 135x5 mm QR
Skewer rear
169x5mm bolt-on

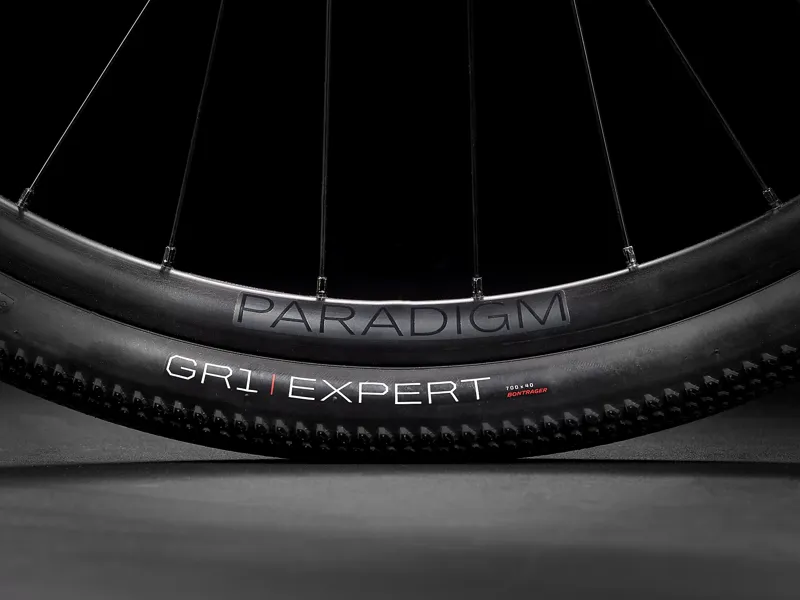

Rim
Bontrager Paradigm, Tubeless Ready, 32-hole, 21 mm width, Presta valve
Tyre
Bontrager GR1 Expert, Hard-Case Lite, wire bead, 60 tpi, 700x40 c
Max tyre size
42c without mudguards, 40c with mudguards
Shifter
Shimano Deore M5100, 11-speed
Rear derailleur
Shimano Deore M5100, long cage, Shadow Plus
Crank
Prowheel alloy, 42T narrow-wide ring, 175 mm length
Cassette
Shimano Deore M5100, 11-51, 11-speed
Chain
KMC X11, 11-speed
Pedal
Bontrager City pedals
Max. chainring size
44T

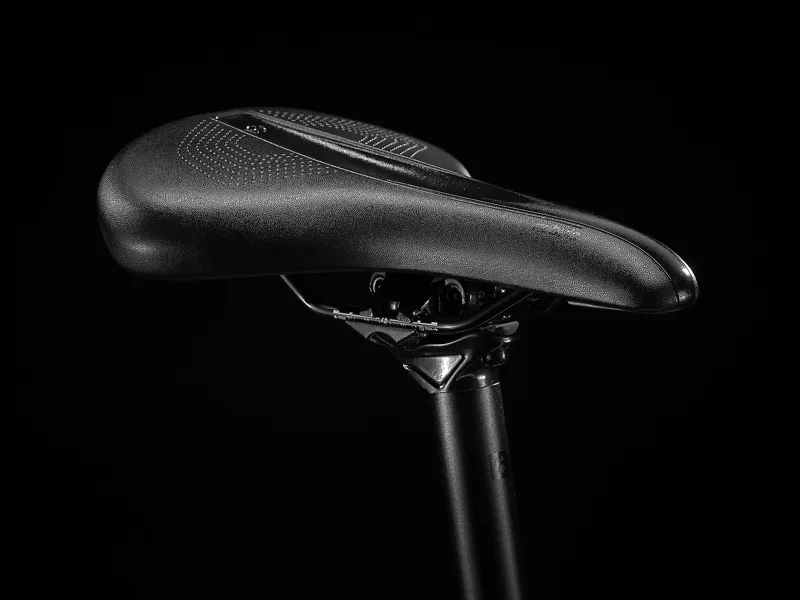

Saddle
Bontrager H1
Seatpost
Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length

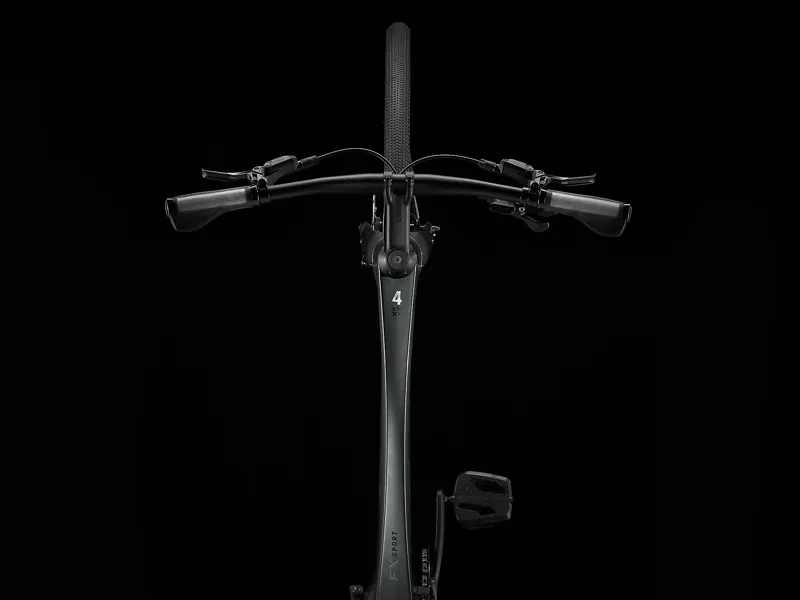

Handlebar
Size: XS, S
Bontrager Satellite Plus IsoZone, alloy, 31.8 mm, 15 mm rise, 600 mm width
Size:M, L, XL
Bontrager Satellite Plus IsoZone, alloy, 31.8 mm, 15 mm rise, 660 mm width

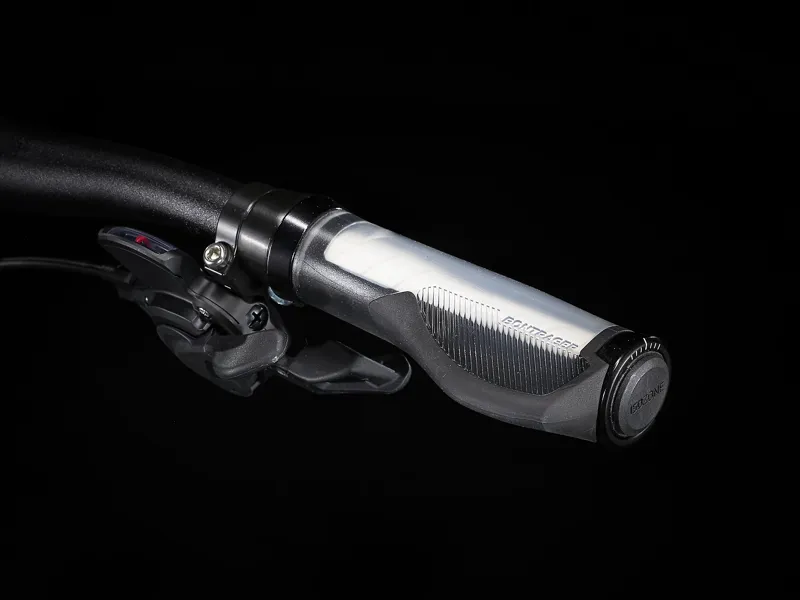

Grips
Bontrager Satellite IsoZone Plus, lock-on, ergonomic
Stem
Size: XS
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Size:S, M
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Size:L, XL
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length
Brake
Shimano hydraulic disc, MT201 lever, UR300 calliper

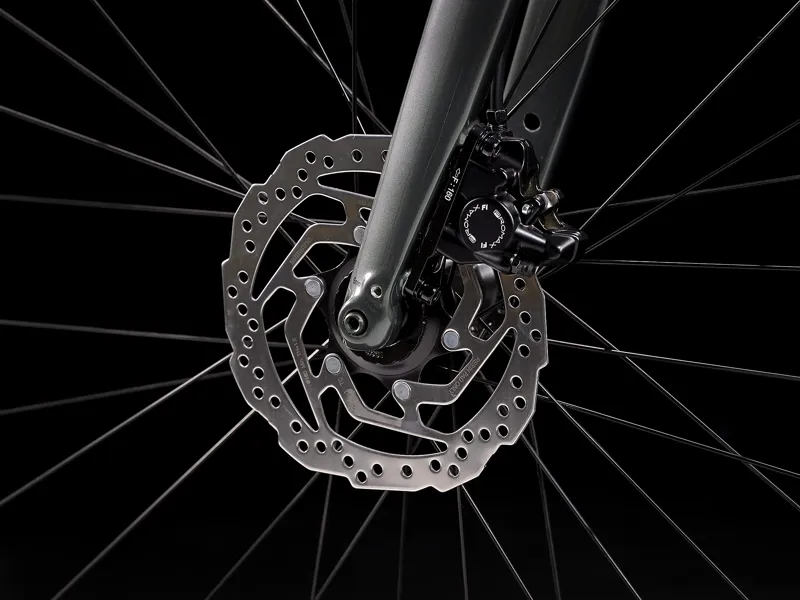

Brake rotor
Shimano RT10, CenterLock, 160 mm
Rotor size
Max brake rotor size: 160 mm
Weight
M - 10.74 kg / 23.68 lbs
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
