Frame
Alpha Gold Aluminium, tapered head tube, internal derailleur & dropper post routing, ISCG 05, threaded BB, Boost148, 12mm thru axle
Fork
Size: XS
RockShox Recon Silver RL, SoloAir spring, Motion Control damper, lockout, tapered steerer, 37 mm offset, Boost110, Maxle Stealth, 140 mm travel
Size:S, M, M/L, L, XL
RockShox Recon Silver RL, SoloAir spring, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, Maxle Stealth, 140 mm travel
Max compatible fork travel
150mm
Hub front
Shimano MT400, CenterLock, Boost110, 15 mm thru-axle
Hub rear
Shimano MT510, CenterLock, Boost148, 12 mm thru-axle
Skewer rear
Bontrager Switch thru-axle, removable lever
Rim
Size: XS, S, M, M/L, L, XL
Bontrager Line Comp 30, Tubeless Ready, 28-hole, Presta valve
Size:S, M, M/L, L, XL
eThirteen LG1 Enduro tubeless-compatible rim
Tyre
Size: XS
Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5x2.60"
Size:S, M, M/L, L, XL
Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29x2.60"
Tyre part
Bontrager TLR sealant, 180 ml/6 oz
Rim strip
Bontrager TLR
Max tyre size
Frame: 29x2.60" (XS - 27.5x2.60") Fork: see manufacturer
Shifter
Shimano Deore M6100, 12 speed

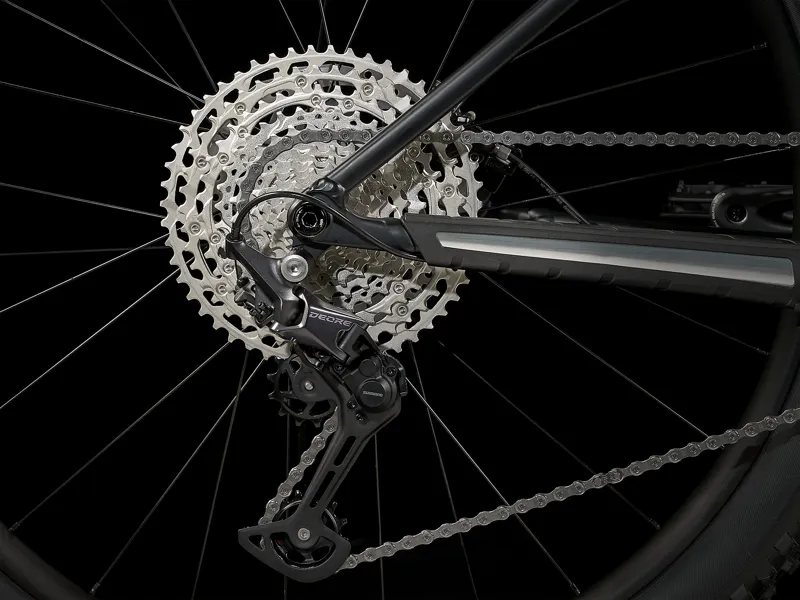

Rear derailleur
Shimano Deore M6100, long cage

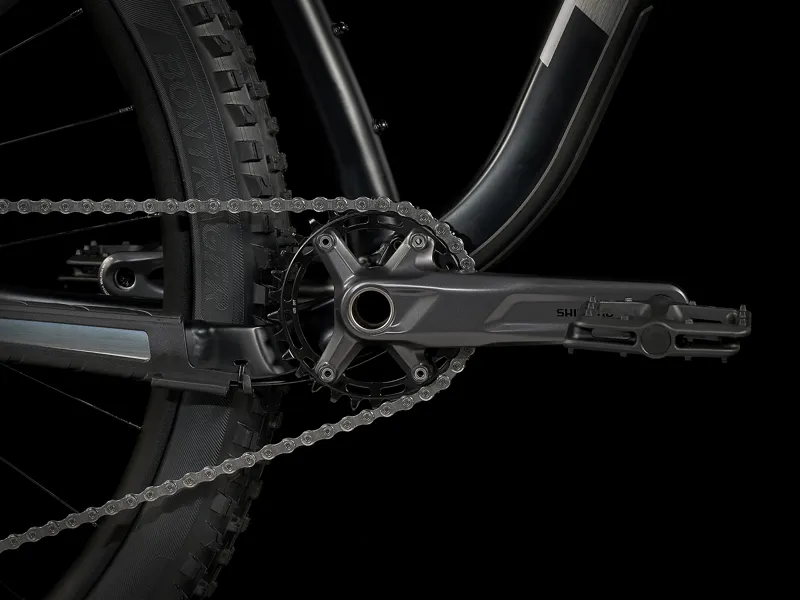

Crank
Size: XS, S, M, M/L, L
Shimano MT511, 30T steel ring, 52mm chainline, 170mm length
Size:XL
Shimano MT511, 30T steel ring, 52mm chainline, 175mm length
Bottom bracket
Shimano SM-BB52, 73 mm, threaded external bearing
Cassette
Shimano Deore M6100, 10-51, 12-speed
Chain
Shimano Deore M6100, 12 speed
Pedal
VP-536 nylon platform
Max. chainring size
52mm chainline: 32T, 55mm chainline: 34T
Saddle
Bontrager Arvada, steel rails, 138 mm width
Seatpost
Size: XS, S
TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
Size:M
TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length
Size:M/L, L, XL
TranzX JD-YSP18, 150 mm travel, internal routing, 31.6 mm, 470 mm length
Handlebar
Size: XS, S
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Size:M, M/L, L, XL
Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 780mm width
Grips
Bontrager XR Trail Comp, nylon lock-on
Stem
Size: XS, S
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 35 mm length
Size:M, M/L, L, XL
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
Head set
FSA IS-2, 1-1/8" top, 1.5" bottom
Brake
Shimano MT200 hydraulic disc

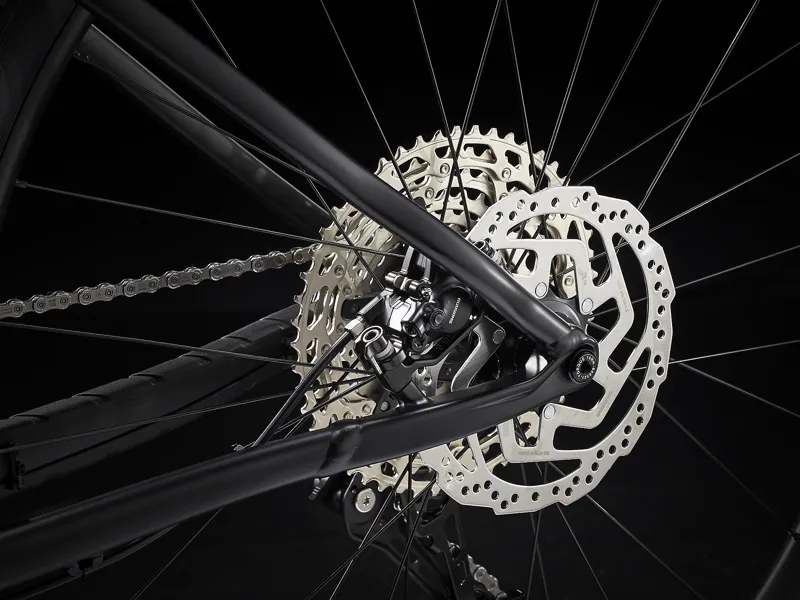

Brake rotor
Shimano RT10, CenterLock, 180 mm
Weight
M - 14.30 kg / 31.53 lbs
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
