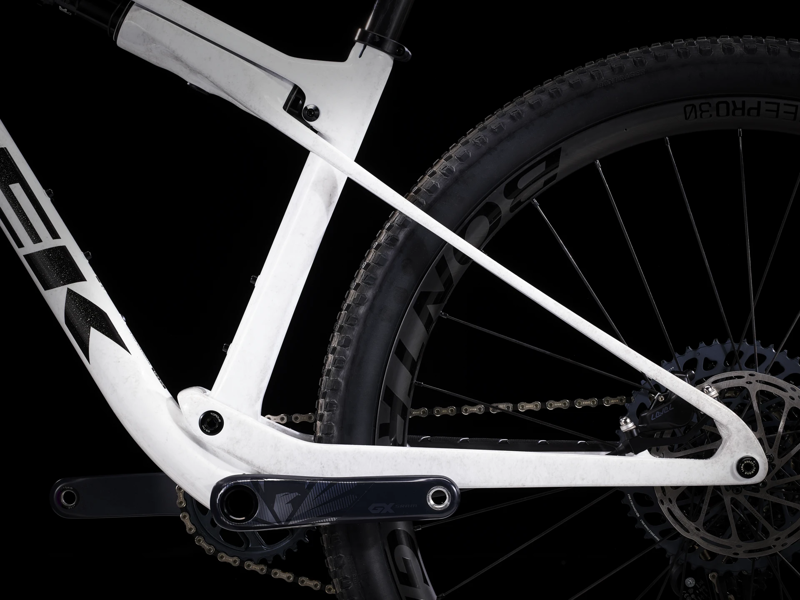

Frame
OCLV Mountain Carbon main frame and stays, IsoStrut, tapered head tube, Knock Block, Control Freak internal routing, Boost148, 60 mm travel
Fork
RockShox SID SL, DebonAir spring, Rush RL damper, 44 mm offset, Boost110, 15 mm Maxle Stealth, 100 mm travel

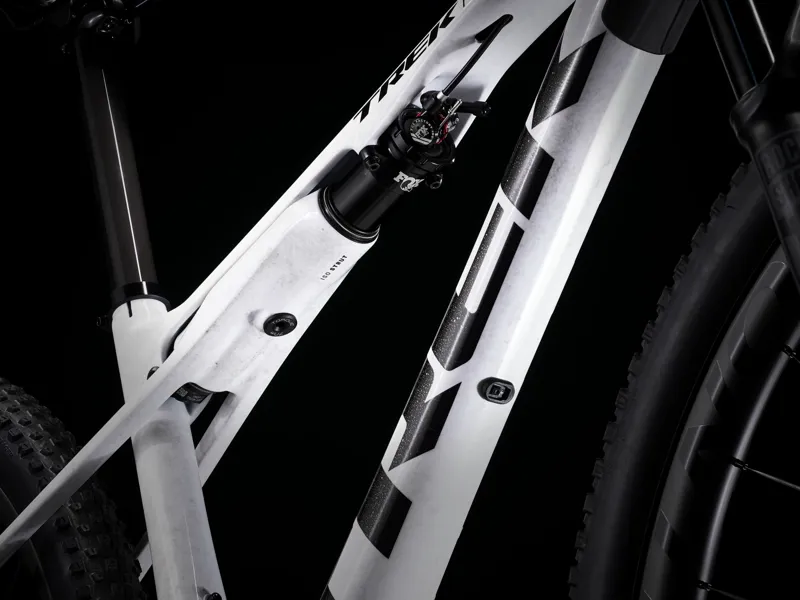

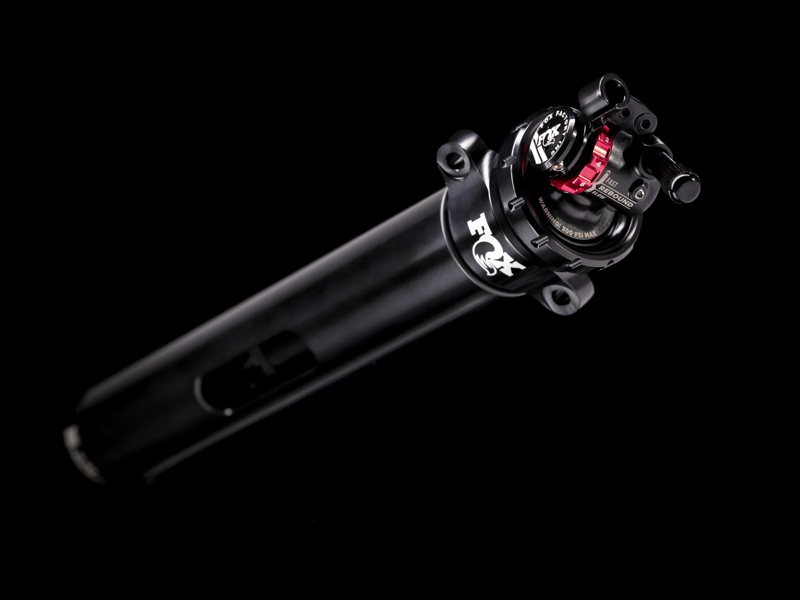

Shock
Trek IsoStrut, Fox Performance shock, air spring, DPS 2-position remote damper, 235 mm x 32.5 mm

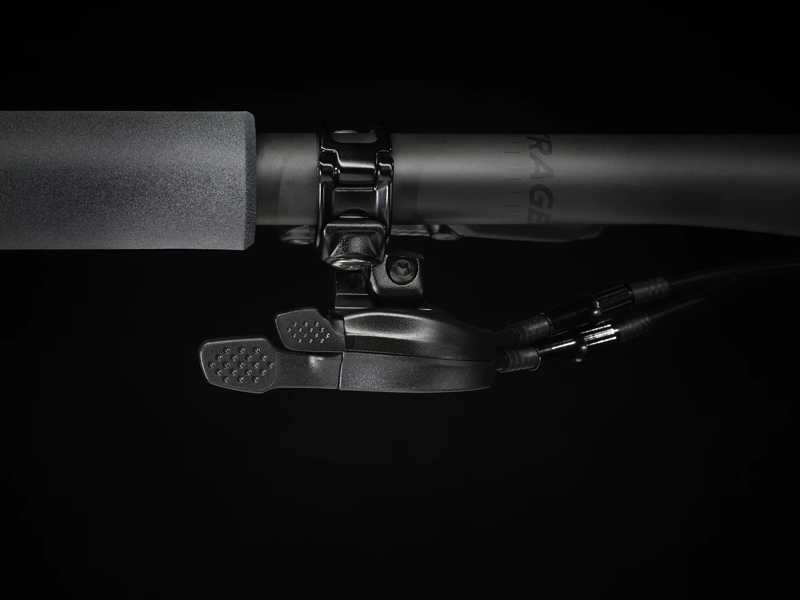

Suspension lever
Fox 2-position dual lockout lever
Max compatible fork travel
120mm (531mm axle-to-crown)
Wheel front
Bontrager Kovee Pro 30 Carbon, Tubeless-Ready, 6-bolt, Boost110, 15 mm thru axle
Wheel rear
Bontrager Kovee Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, XD Driver, 6-bolt, Boost148, 12 mm thru axle
Skewer rear
Bontrager Switch thru-axle, removable lever
Rim
Bontrager Kovee Pro 30, OCLV Mountain Carbon, Tubeless-Ready

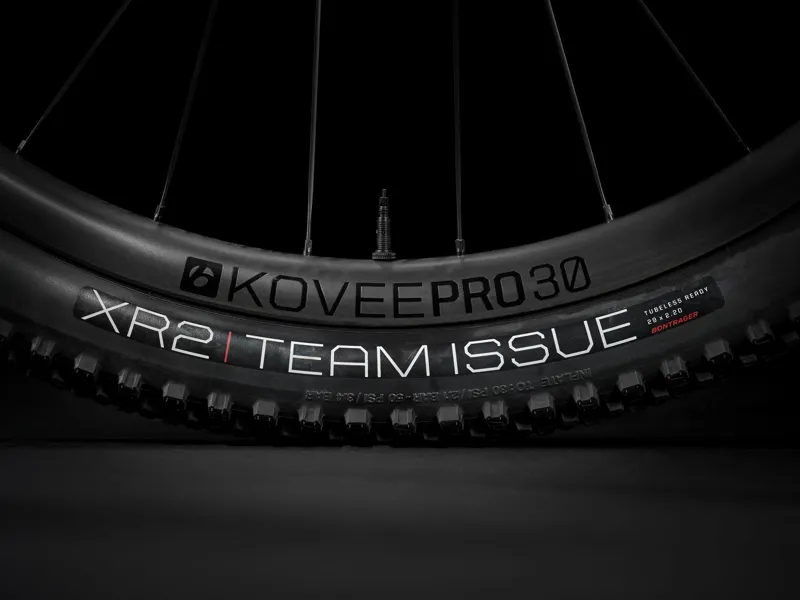

Tyre
Bontrager XR2 Team Issue, Tubeless-Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29 x 2.20"
Tyre part
Bontrager TLR sealant, 180 ml/6 oz
Rim strip
Bontrager TLR
Max tyre size
Frame: 29x2.20", Fork: See manufacturer
Shifter
SRAM GX Eagle AXS, 12 speed

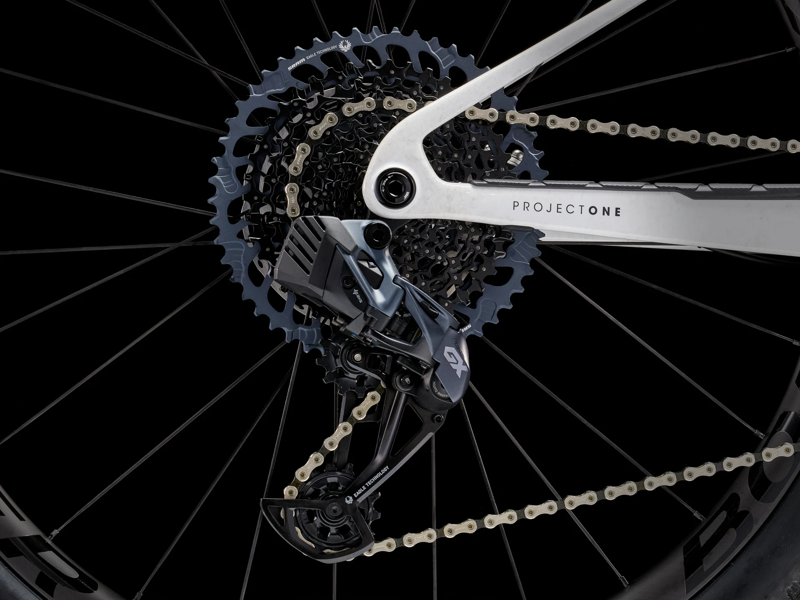

Rear derailleur
SRAM GX Eagle AXS

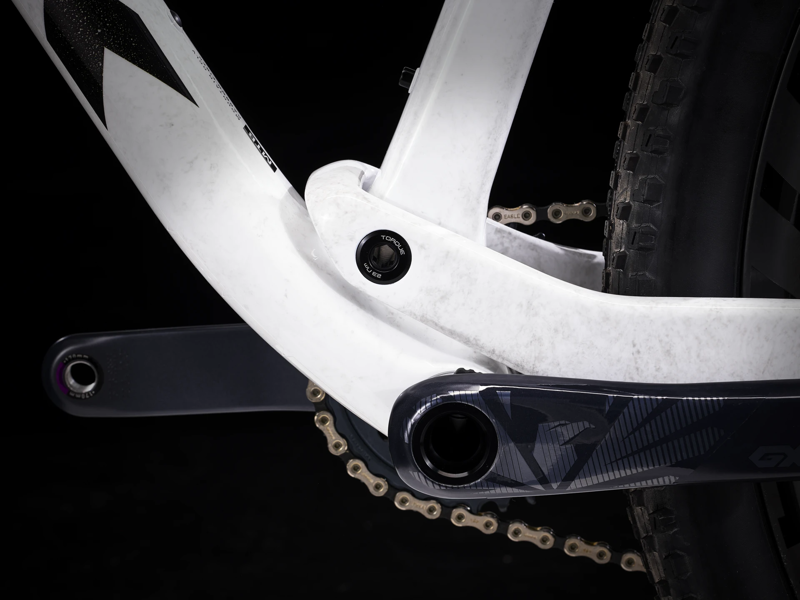

Crank
Size:S, M
SRAM GX Eagle Carbon, DUB, 32T alloy ring, 52mm chainline, 170mm length
Size:M/L, L, XL
SRAM GX Eagle Carbon, DUB, 32T alloy ring, 52mm chainline, 175mm length
Bottom bracket
SRAM DUB, 92 mm, PressFit
Cassette
SRAM Eagle XG-1275, 10-52, 12-speed
Chain
SRAM GX Eagle, 12-speed
Max. chainring size
1x: 36T
Saddle
Bontrager Verse Elite, austenite rails, 145 mm width
Seatpost
Size:S
Bontrager Pro, OCLV Carbon, 31.6 mm, 0 mm offset, 330 mm length
Size:M, M/L, L, XL
Bontrager Pro, OCLV Carbon, 31.6 mm, 0 mm offset, 400 mm length
Handlebar/stem (integrated)
Size:S, M
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 70 mm length
Size:M/L, L
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 80mm length
Size:XL
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 90mm length
Grip
ESI Chunky

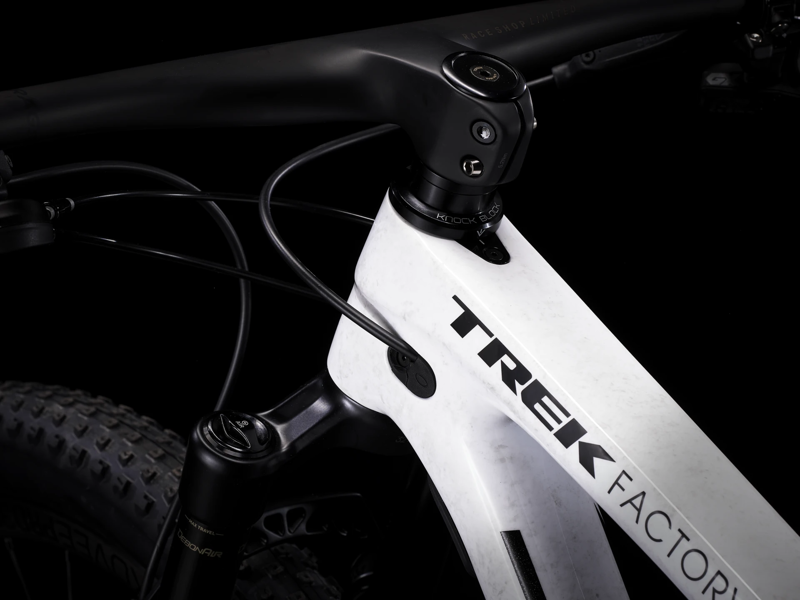

Head set
Knock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
Brake
SRAM Level TLM hydraulic disc
Brake rotor
Size:S, M, M/L, L, XL
SRAM CenterLine, 6-bolt, round-edge, 160 mm
Size:S, M, M/L, L, XL
SRAM CentreLine, 6-bolt, round edge, 180 mm
Rotor size
Max brake rotor sizes - Frame: 160mm, Fork: see fork manufacturer
Battery
SRAM eTap battery pack (with charger)
Weight
M - 10.65 kg / 23.48 lbs
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
