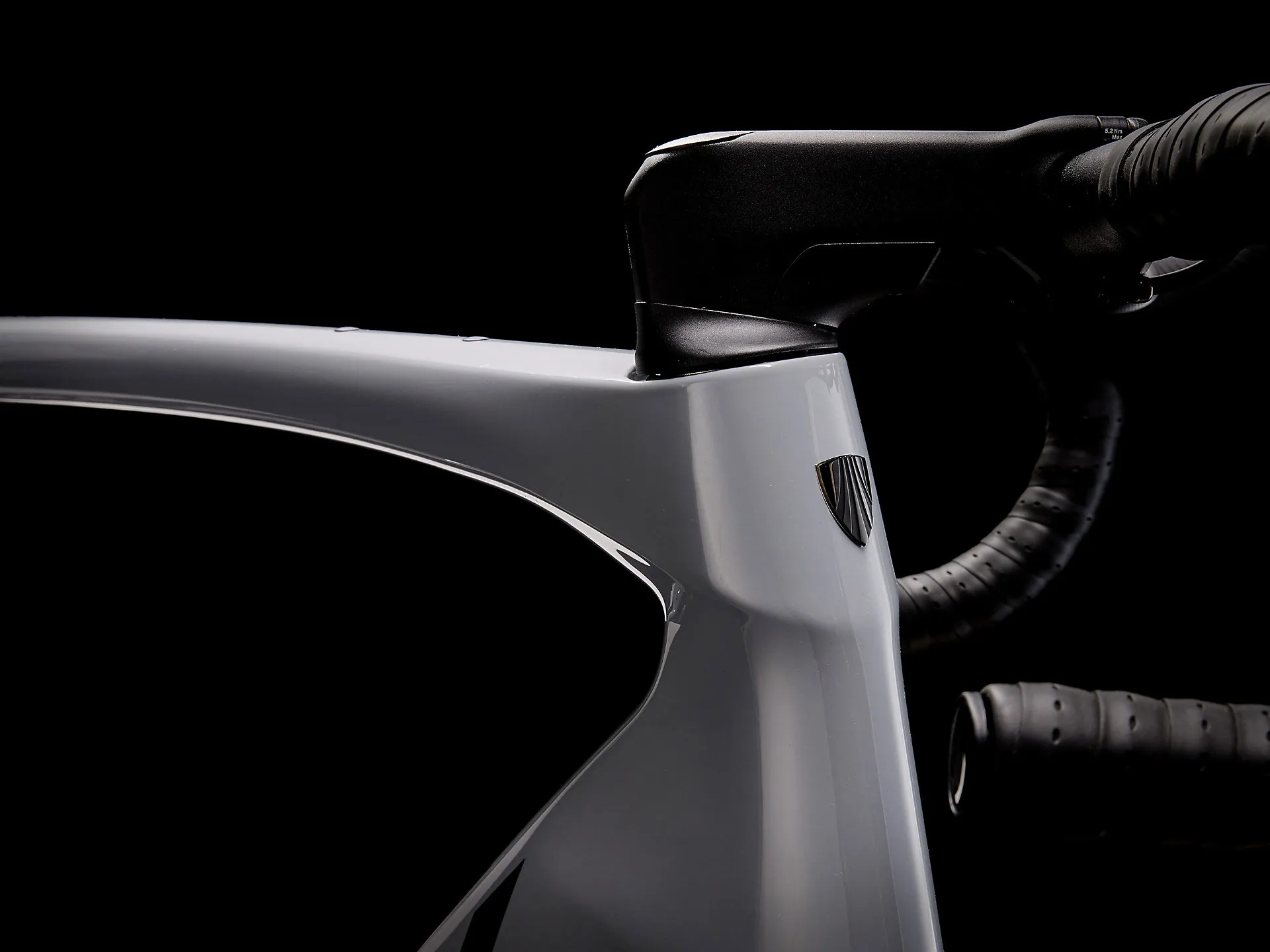

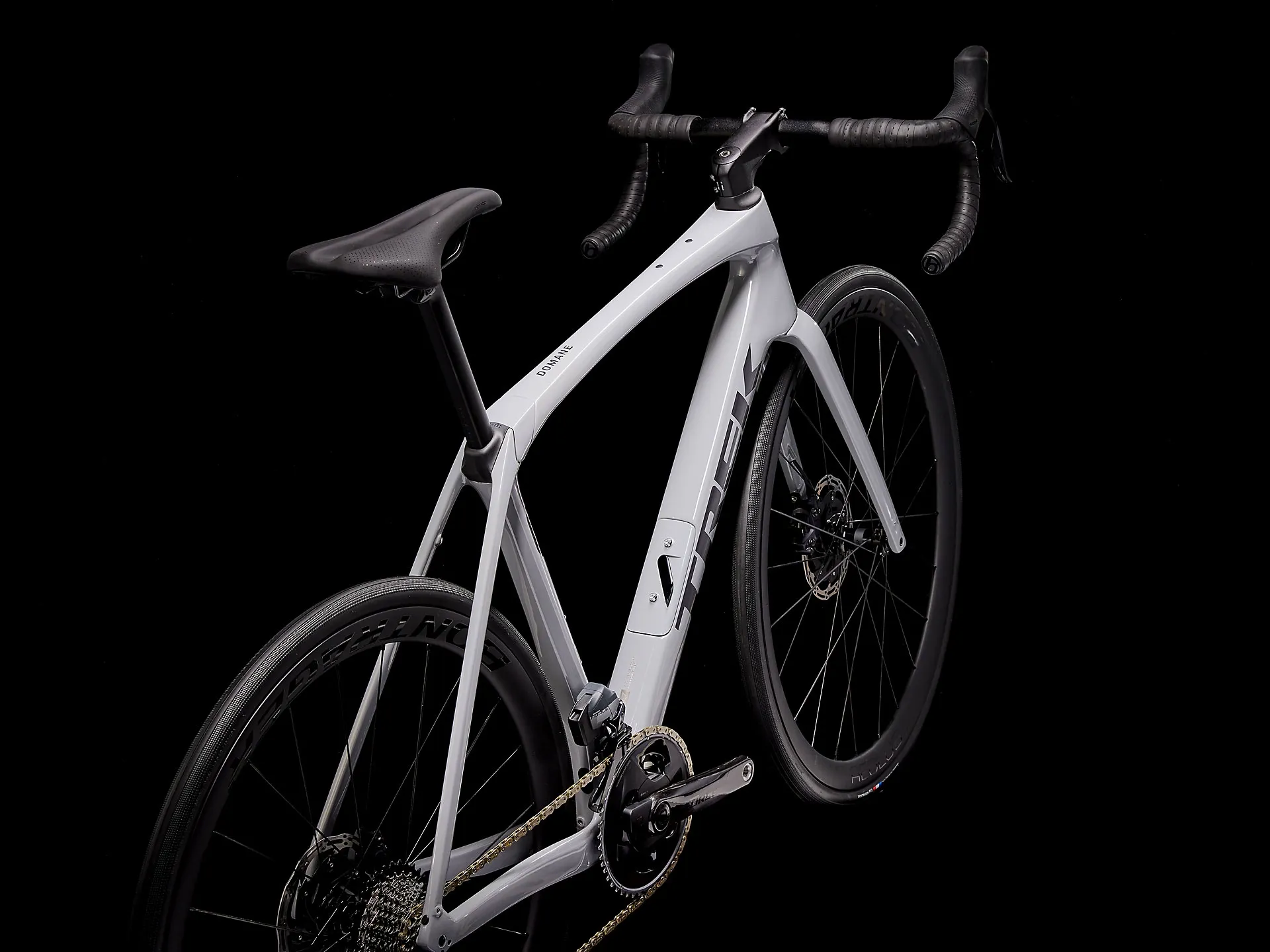

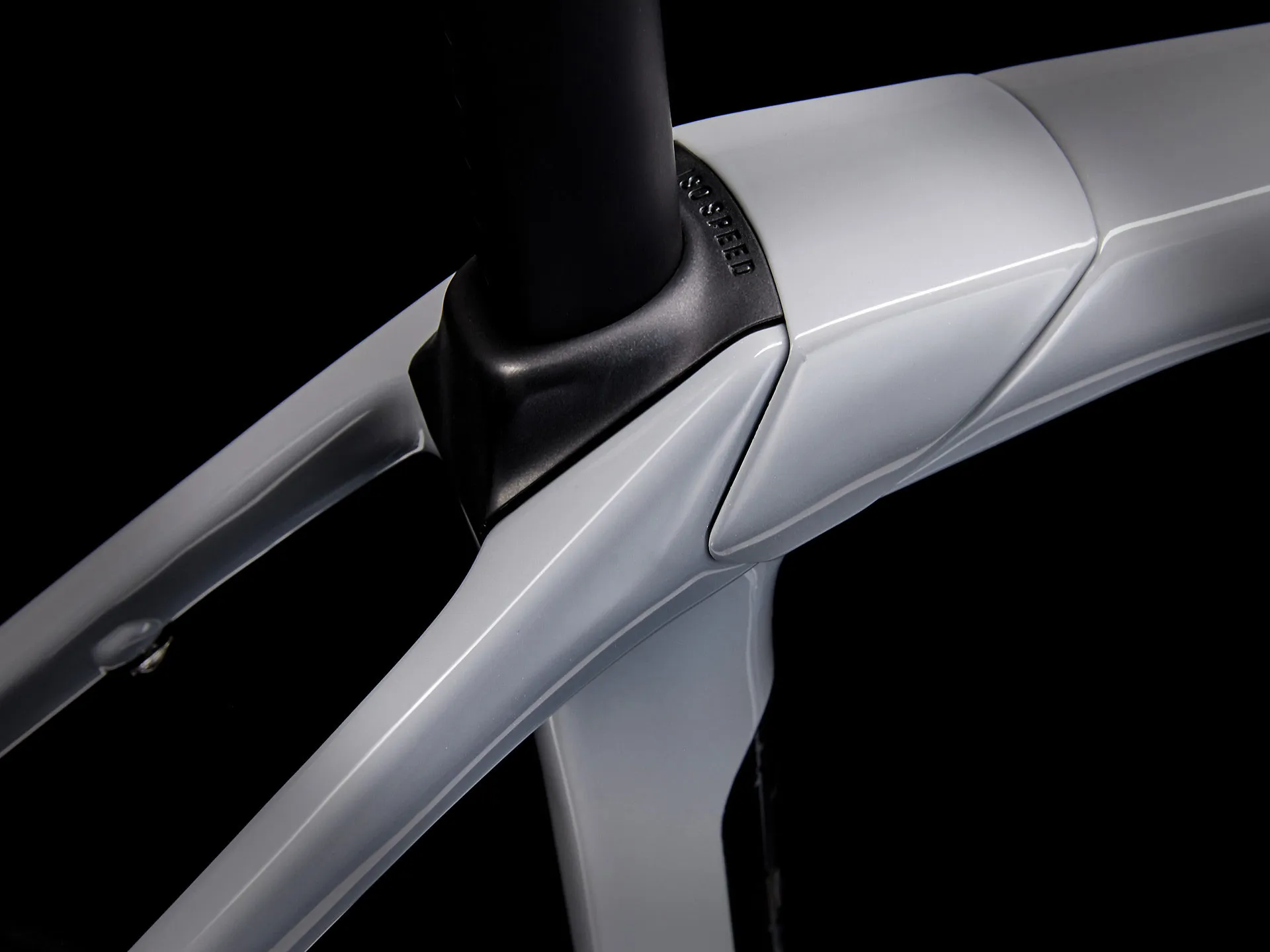

Frame

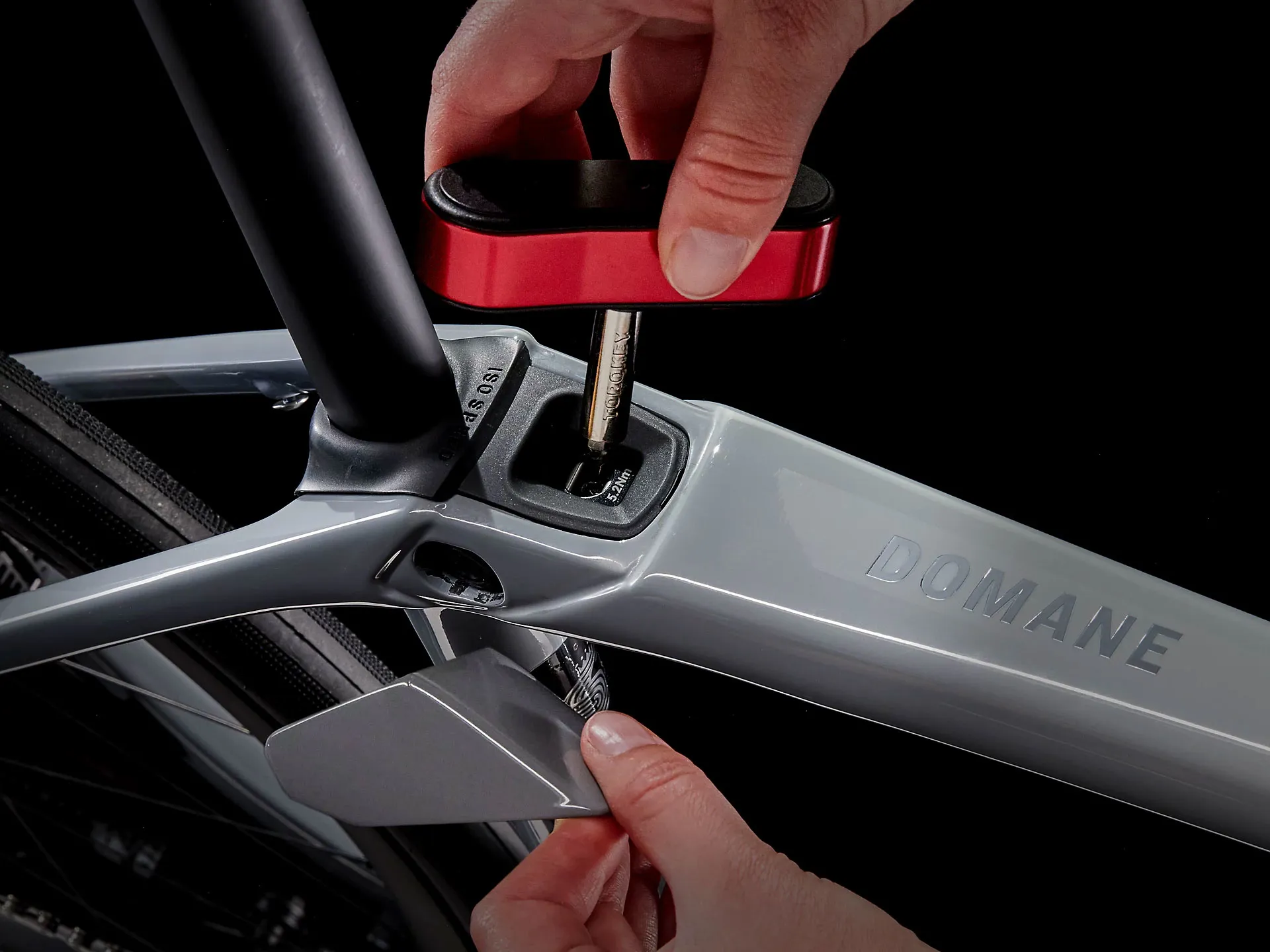

500 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, mudguard mounts, flat mount disc, 142x12mm thru axle
Fork
Domane SL carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat-mount disc, 12x100 mm thru axle
Frame fit
Endurance
Wheel front
Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37 mm rim depth, 100x12 mm thru axle
Skewer rear
Bontrager Switch thru-axle, removable lever
Max tyre size
38c without mudguards, 35c with mudguards

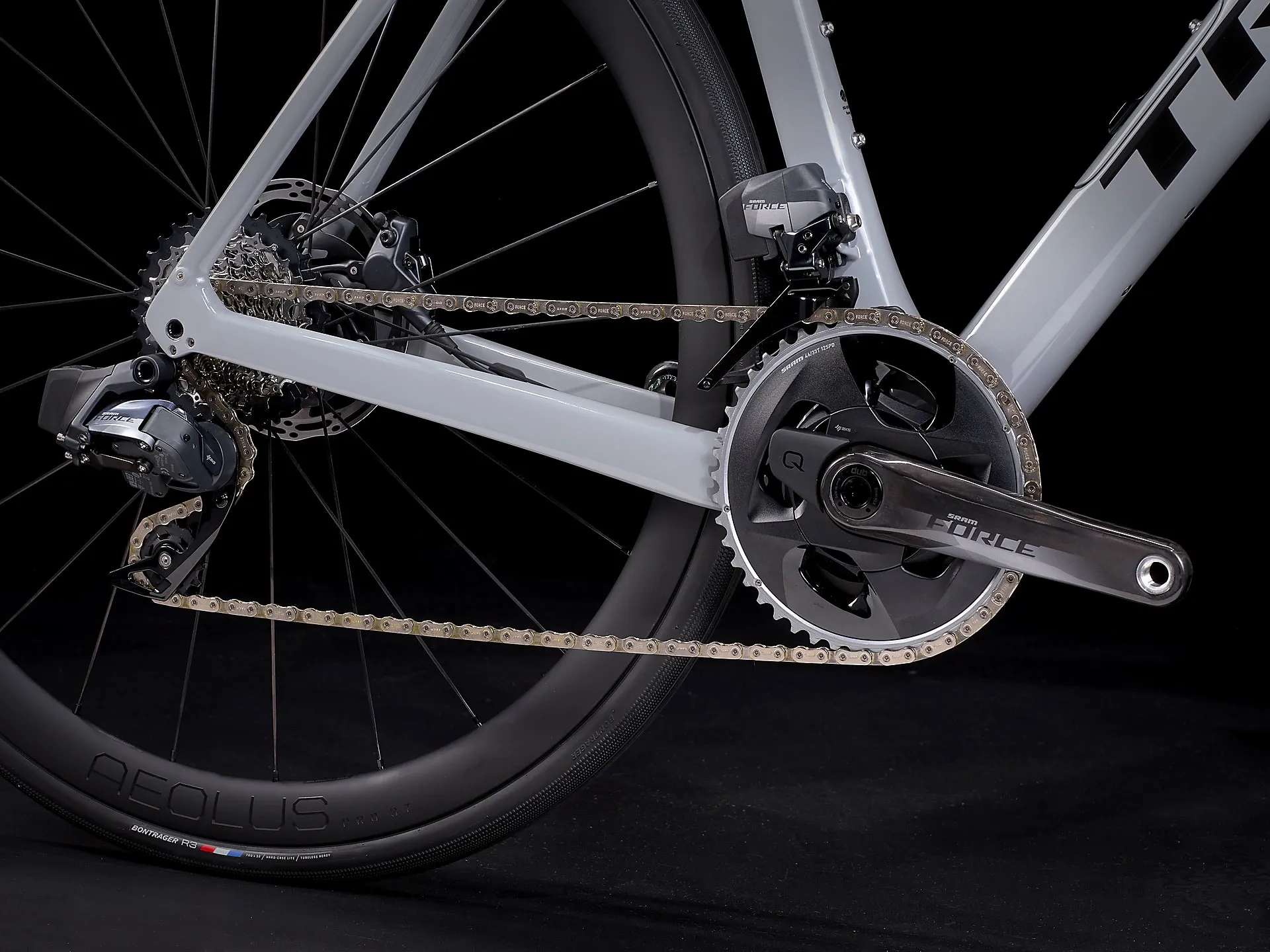

Shifter
SRAM Force eTap AXS, 12-speed
Front derailleur
SRAM Force eTap AXS, braze-on
Rear derailleur
SRAM Force eTap AXS, 36T max cog
CrankSize: 47
SRAM Force AXS Power Meter, 46/33, DUB, 165mm length
Size:50, 52
SRAM Force AXS Power Meter, 46/33, DUB, 170mm length
Size:54, 56
SRAM Force AXS Power Meter, 46/33, DUB, 172.5mm length
Size:58, 60, 62
SRAM Force AXS Power Meter, 46/33, DUB, 175mm length
Bottom bracket
SRAM DUB, T47 threaded, internal bearing
Cassette
SRAM XG-1270, 10-36, 12-speed
Chain
SRAM Force, 12 speed
Max. chainring size
2x: 52/36
Saddle
Size: 47, 50, 52
Bontrager Verse Comp, steel rails, 155 mm width
Size:54, 56, 58, 60, 62
Bontrager Verse Comp, steel rails, 145 mm width
Seatpost
Size: 47, 50, 52, 54, 56
Domane carbon seat post, KVF shaping, 20 mm offset, 280 mm length
Size:58, 60, 62
Domane carbon seat post, KVF shaping, 20 mm offset, 320 mm length

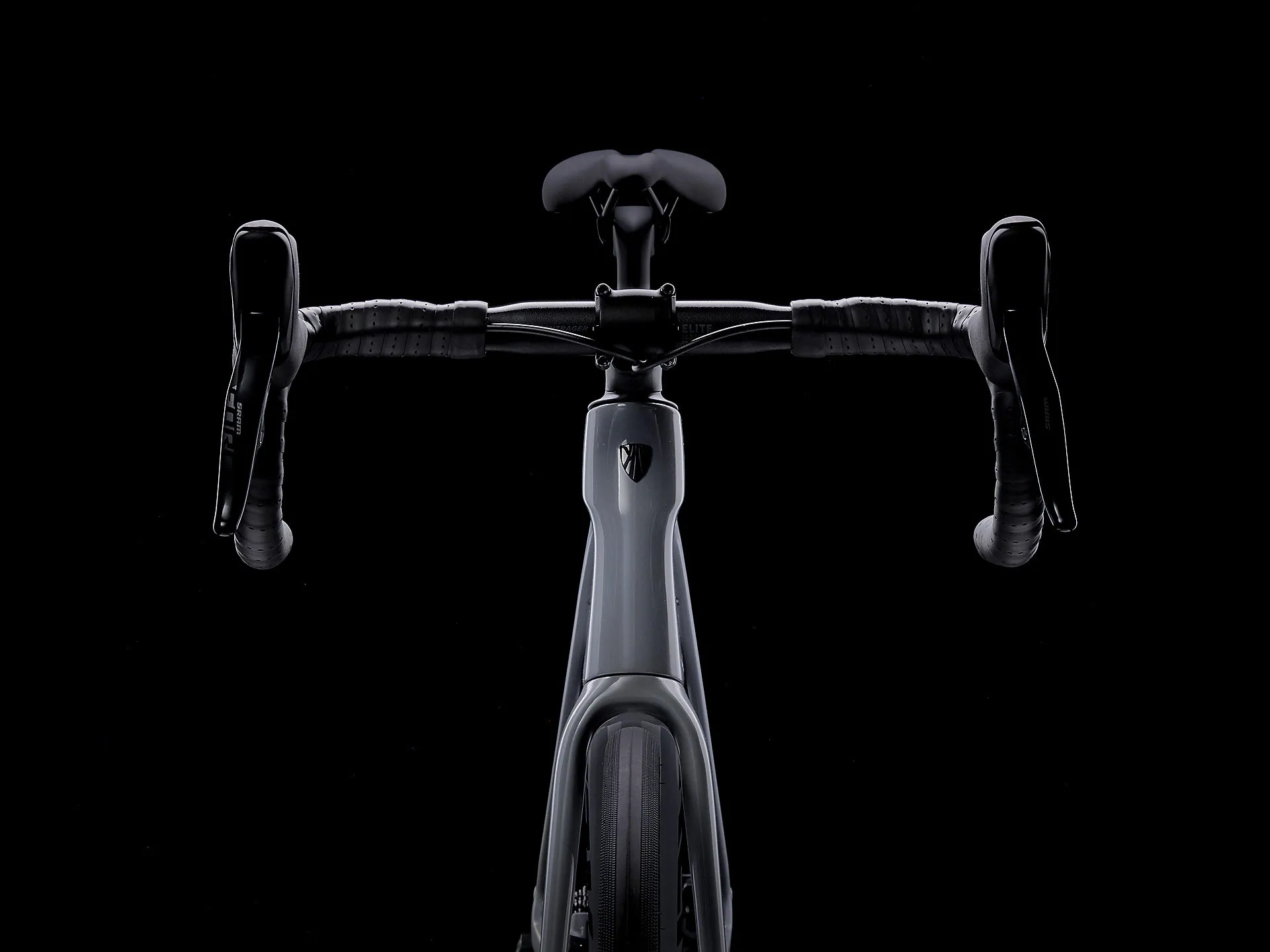

Handlebar
Size: 47
Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 36 cm width
Size:50
Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 38 cm width
Size:52
Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 40 cm width
Size:54, 56
Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 42 cm width
Size:58, 60, 62
Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 44 cm width
Handlebar tape
Bontrager Supertack Perf tape
Stem
Size: 47
Bontrager RCS Pro, -7-degree, 70mm length
Size:50
Bontrager RCS Pro, -7-degree, 80mm length
Size:52, 54
Bontrager RCS Pro, -7-degree, 90mm length
Size:56, 58
Bontrager RCS Pro, -7-degree, 100mm length
Size:60, 62
Bontrager RCS Pro, -7-degree, 110mm length

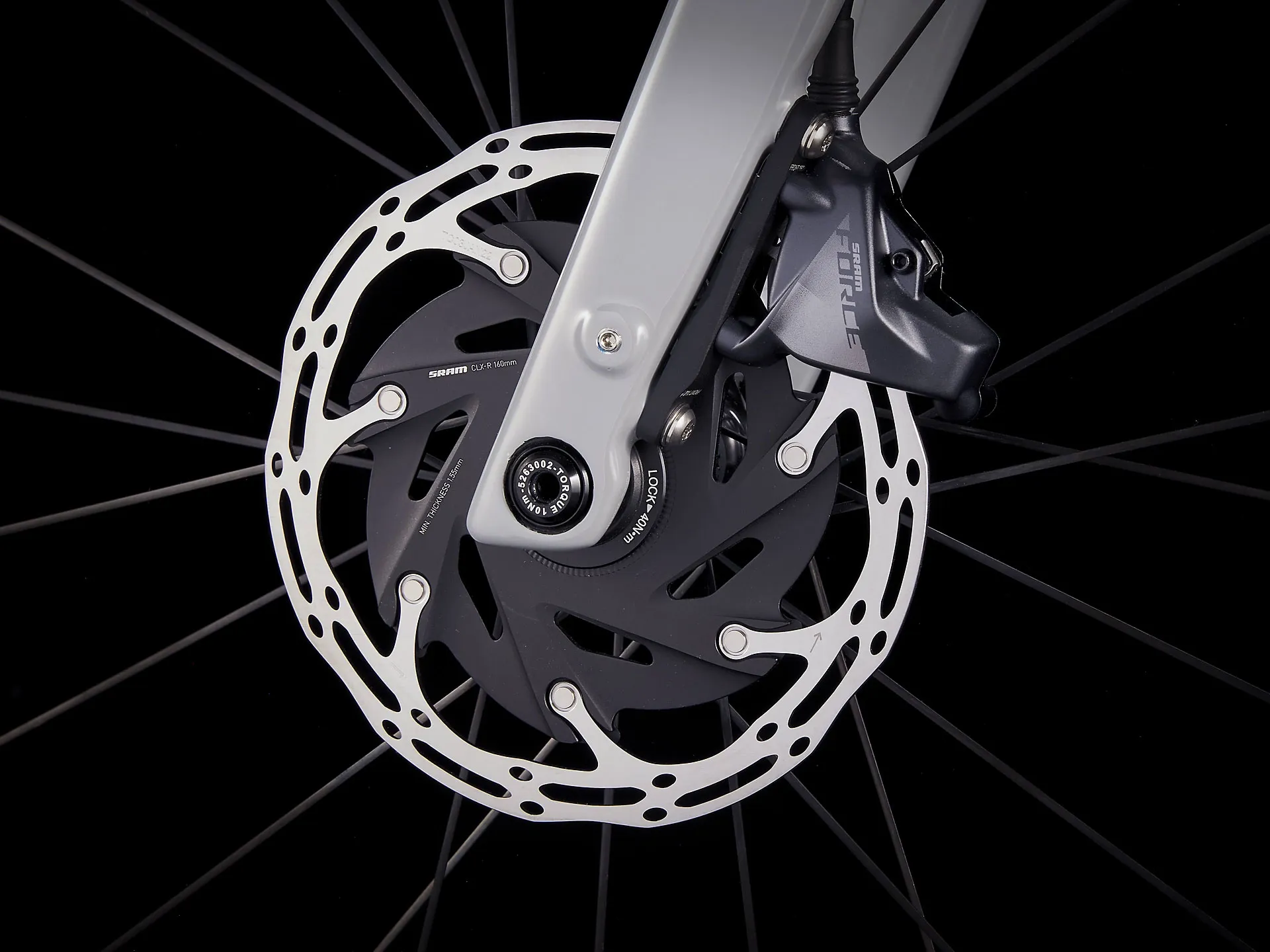

Brake rotor
SRAM CenterLine X, CenterLock, round edge, 160 mm
Rotor size
Max brake rotor sizes: 160 mm front and rear
Battery
SRAM eTap battery pack (with charger)

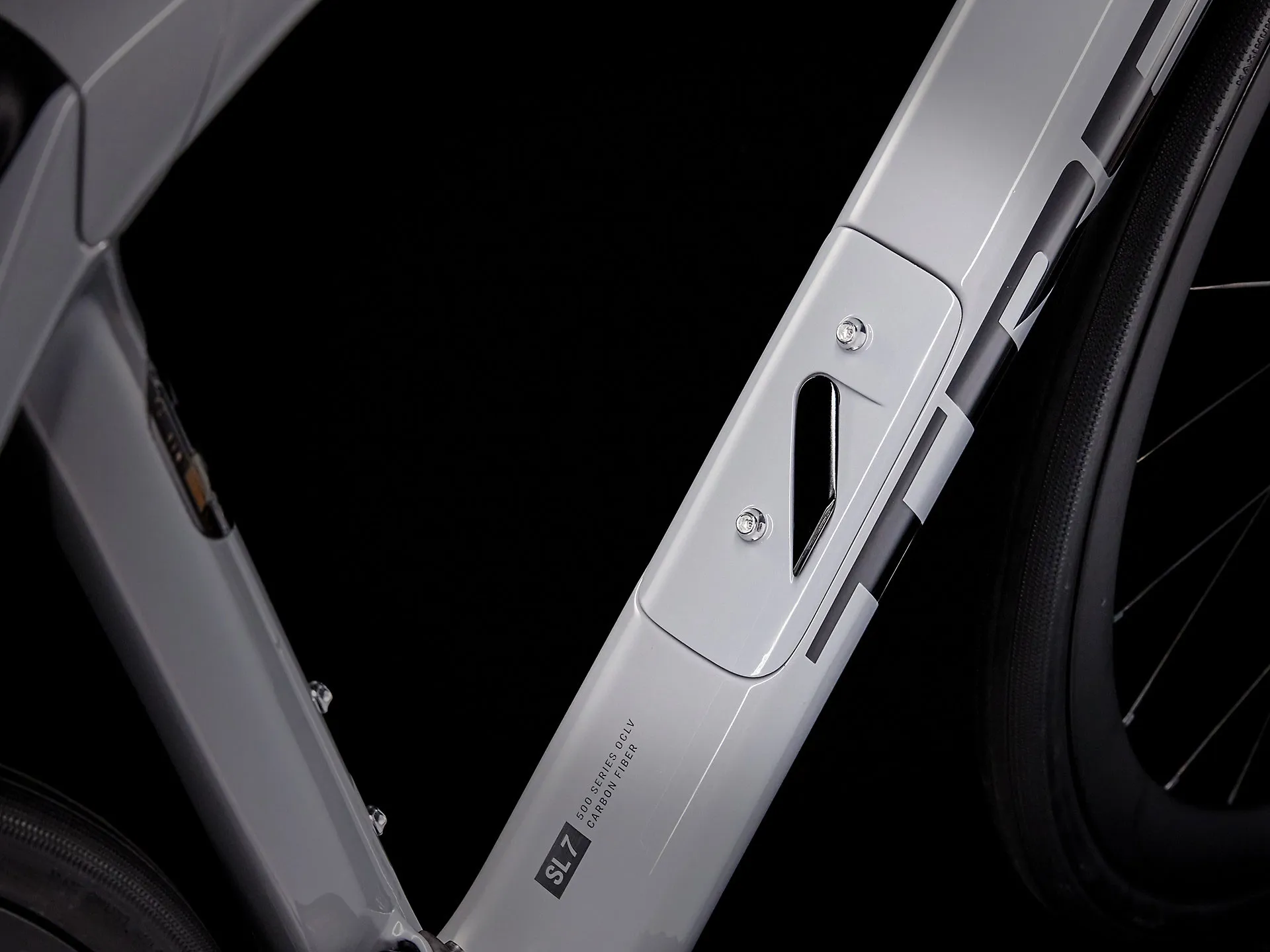

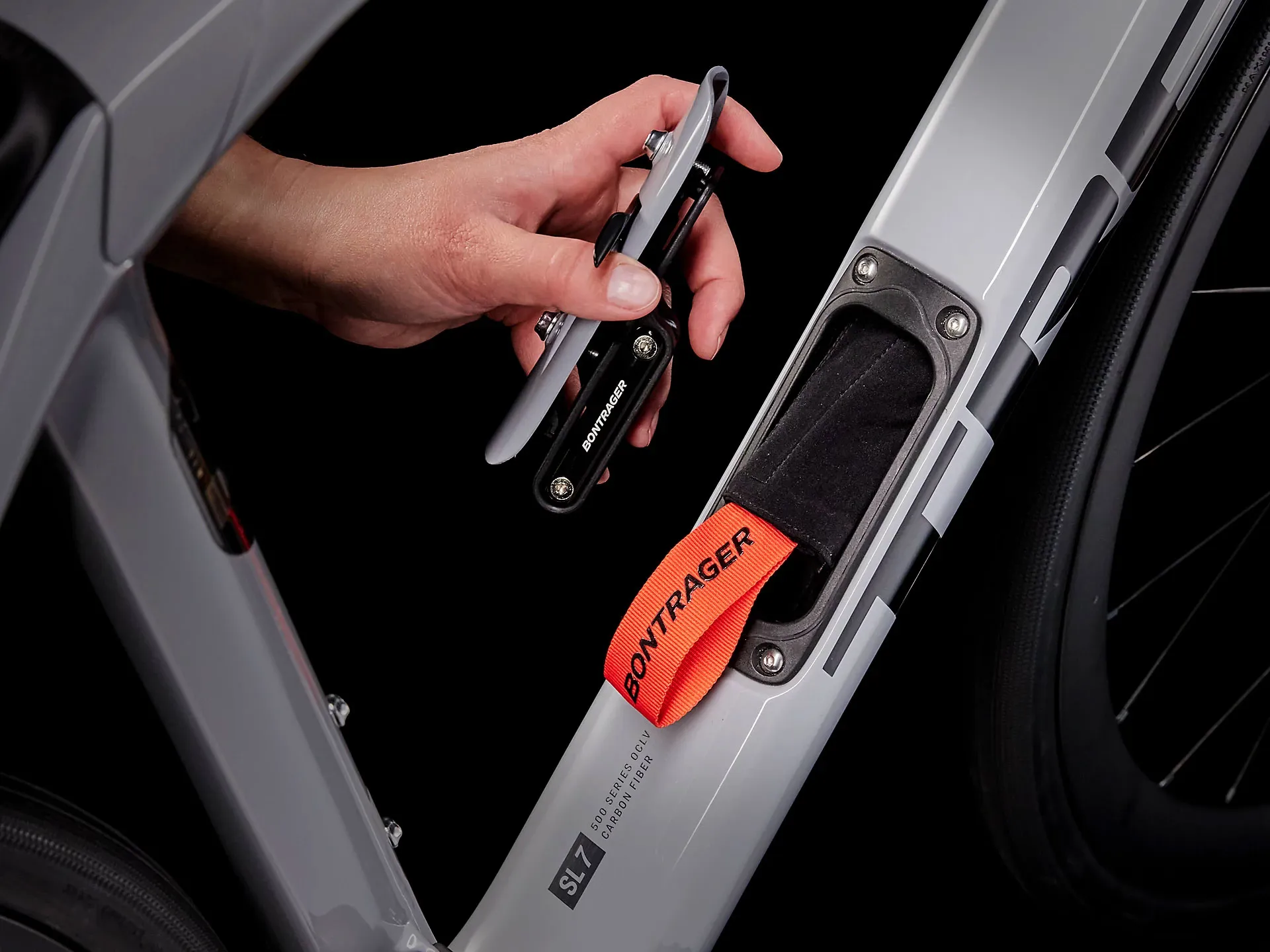

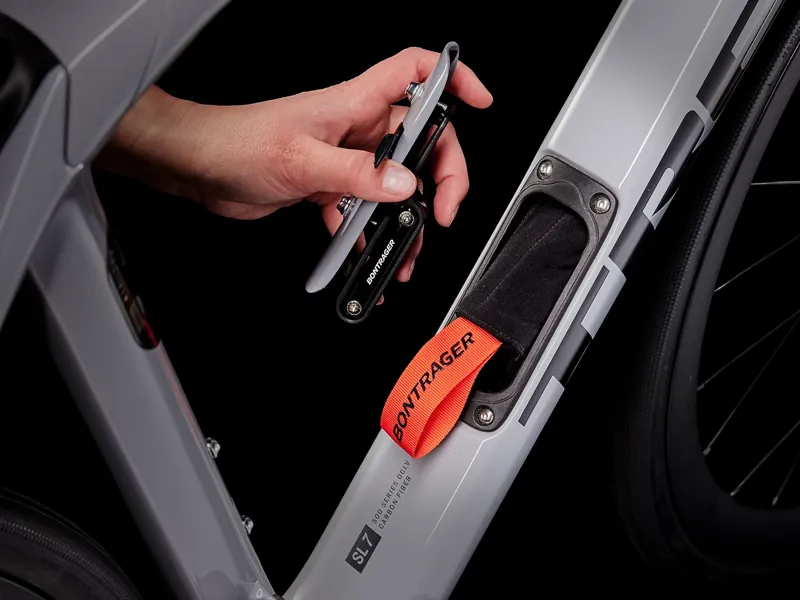

Bag
Bontrager BITS Internal Frame Storage Bag
Weight
56 - 8.48 kg / 18.7 lbs
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
