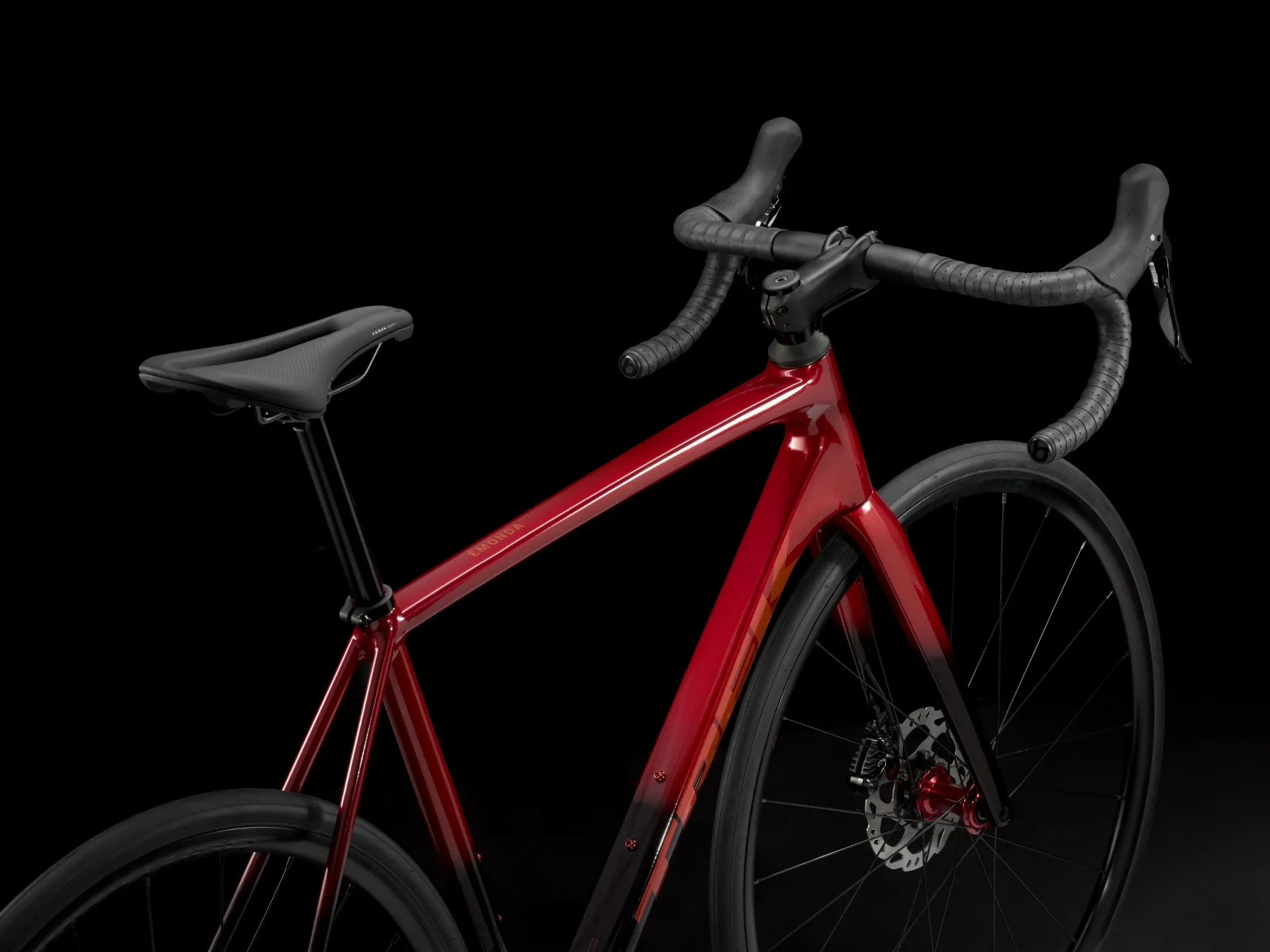

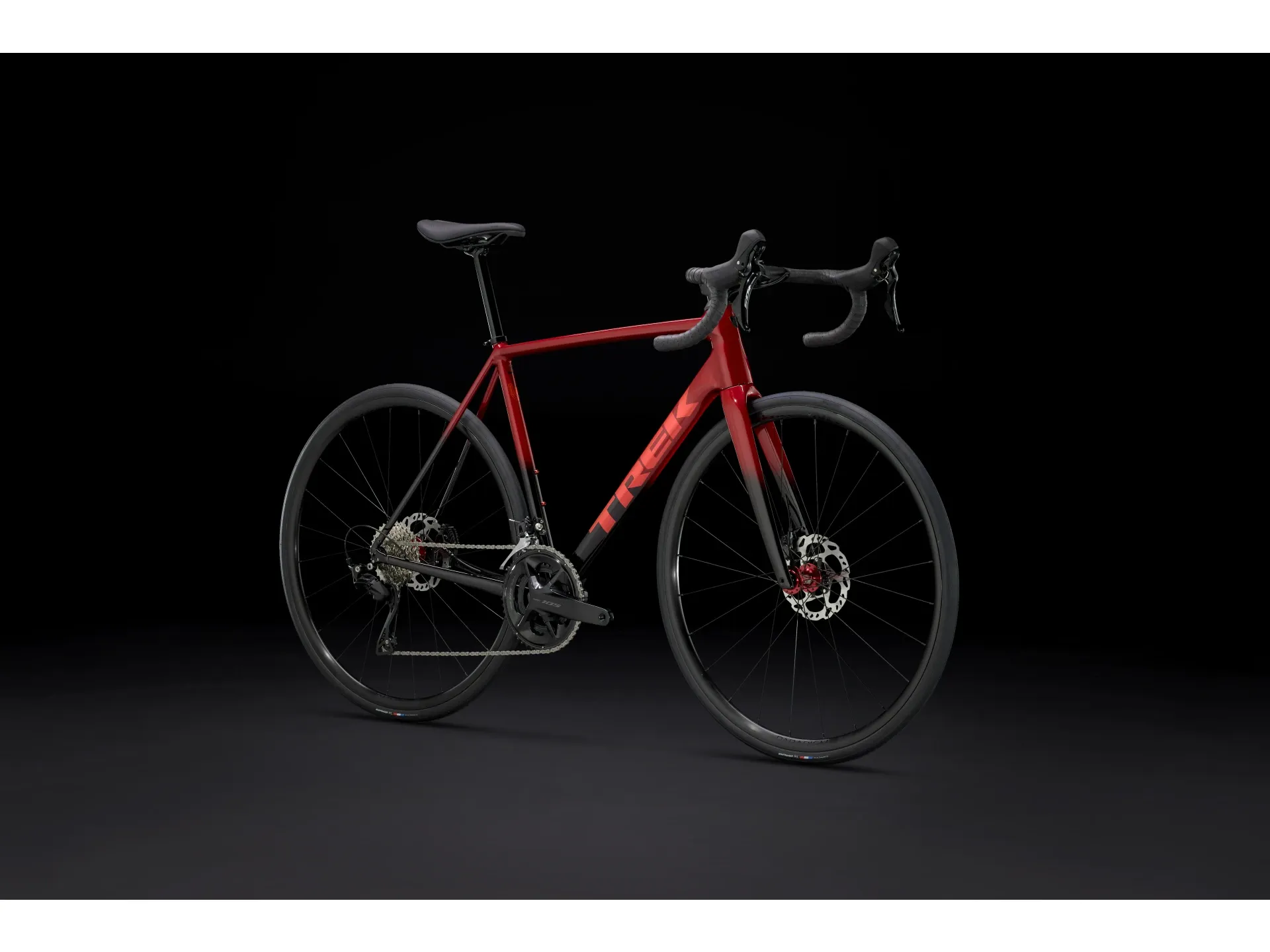

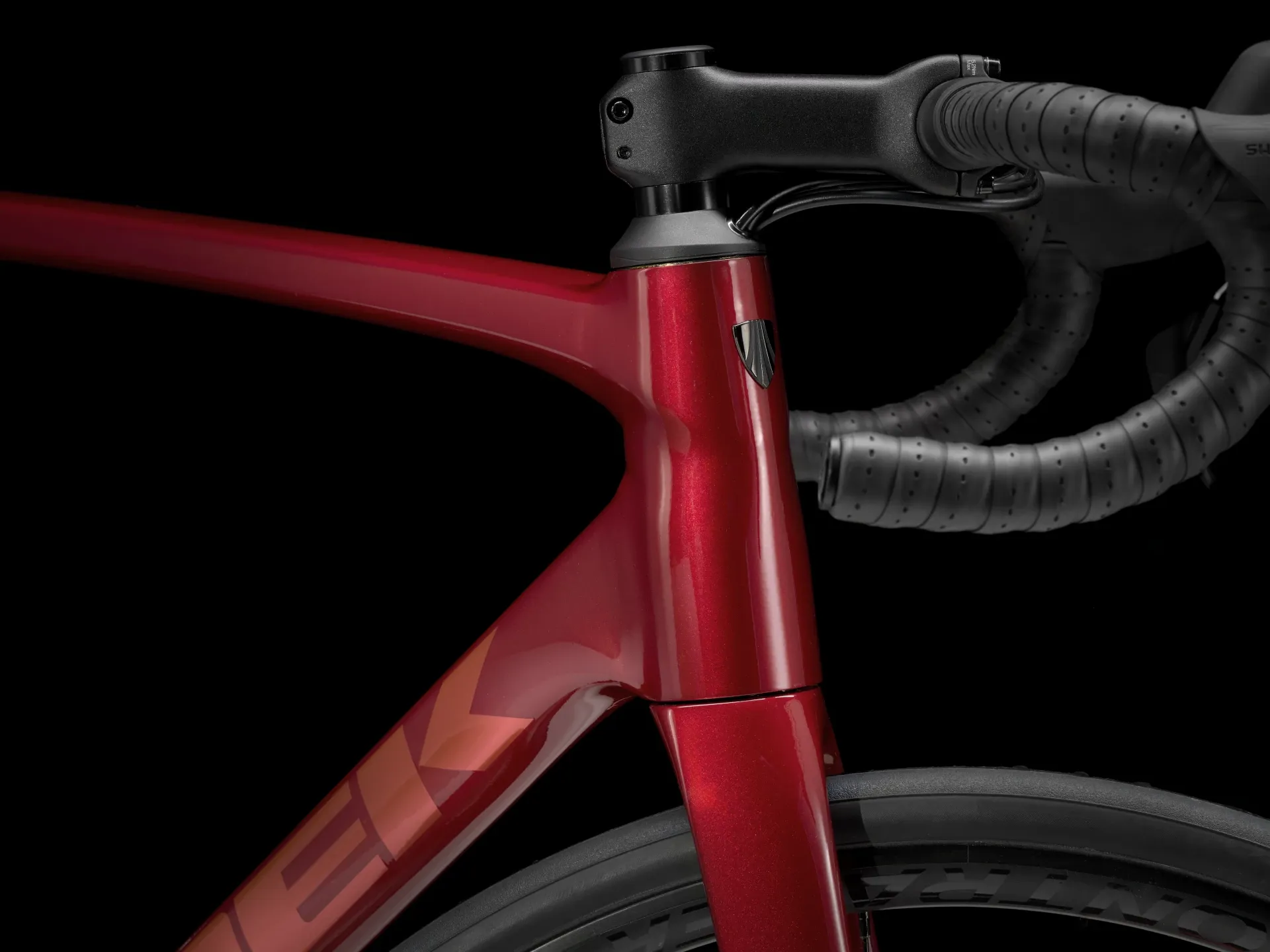

Frame

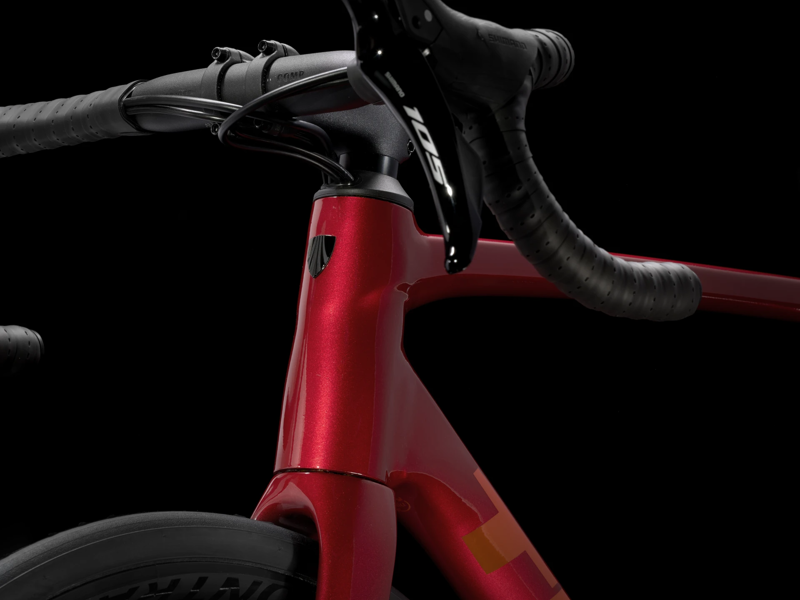

Ultralight 300 Series Alpha Aluminum, Invisible Weld technology, tapered head tube, internal cable routing, flat mount disc, 142x12mm thru axle
Fork
Ultralight 300 Series Alpha Aluminum, Invisible Weld technology, tapered head tube, internal cable routing, flat mount disc, 142x12mm thru axle
Wheel front
Bontrager Paradigm SL, Tubeless Ready, 21 mm rim width, 100x12mm thru axle
Wheel rear
Bontrager Paradigm SL, Tubeless Ready, 21 mm rim width, 142x12 thru axle
Hub front
Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
Skewer front
Bontrager Switch thru-axle, removable lever
Hub rear
Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
Skewer rear
Bontrager Switch thru-axle, removable lever
Rim
Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Tyre
Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x28 mm
Max tyre size
28mm
Shifter
Shimano 105 R7120, 12-speed
Front derailleur
Shimano 105 R7100, braze-on, down swing

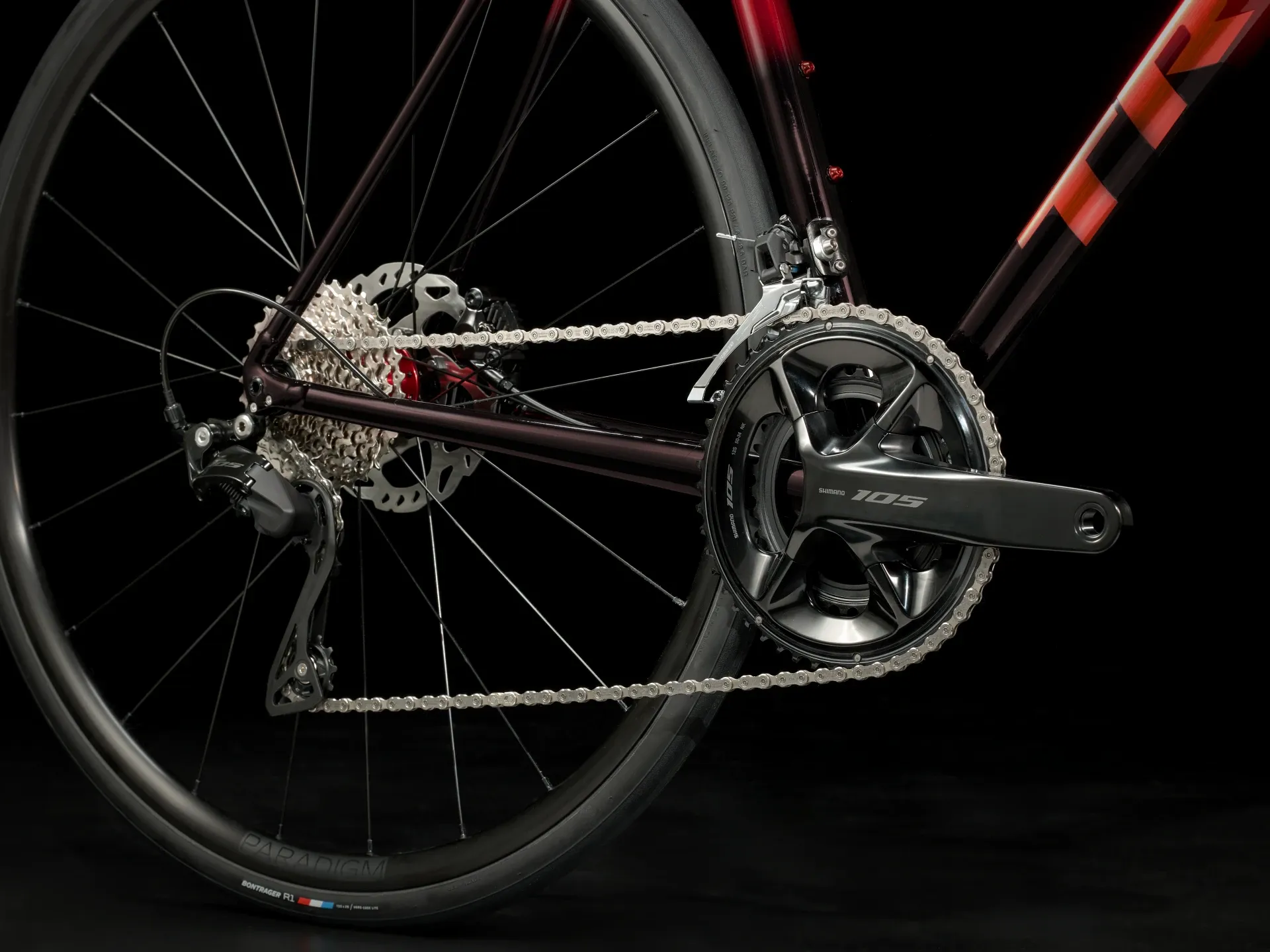

Rear derailleur
Shimano 105 R7100, 36T max cog
Crank
Size: 47
Shimano 105 R7100, 50/34, 165mm length
Size:50, 52
Shimano 105 R7100, 50/34, 170mm length
Size:54, 56, 58
Shimano 105 R7100, 50/34, 172.5mm length
Size:60, 62
Shimano 105 R7100, 50/34, 175mm length
Bottom bracket
Praxis, T47 threaded, internal bearing
Cassette
Shimano 105 7101, 11-34, 12-speed
Chain
Shimano SLX M7100, 12-speed
Max. chainring size
1x: 48T, 2x: 53/39
Saddle
Size: 47, 50, 52
Verse Short Comp, steel rails, 155 mm width
Size:54, 56, 58, 60, 62
Verse Short Comp, steel rails, 145 mm width
Seatpost
Size: 47
Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250 mm length
Size:50, 52, 54, 56, 58, 60, 62
Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length

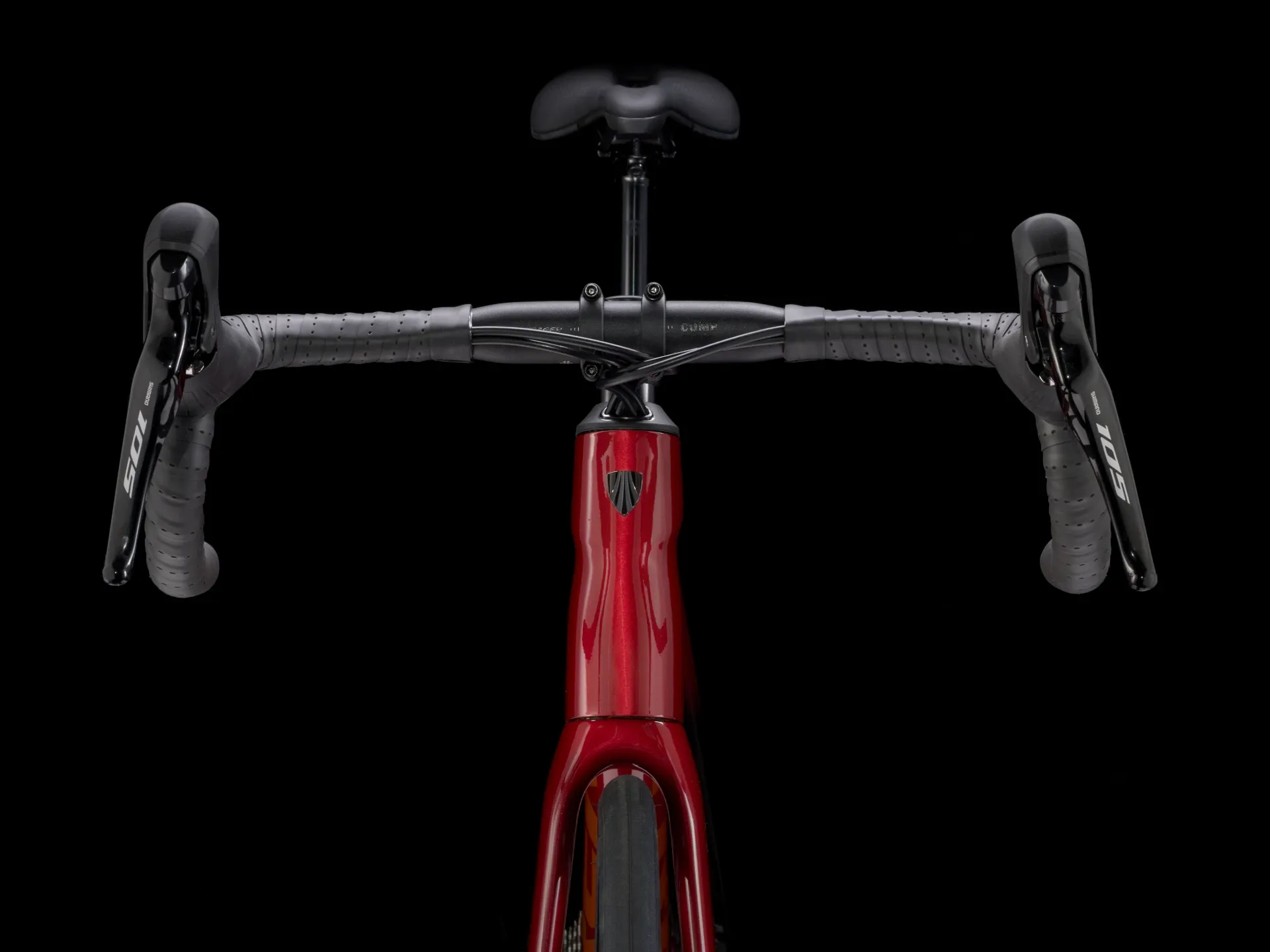

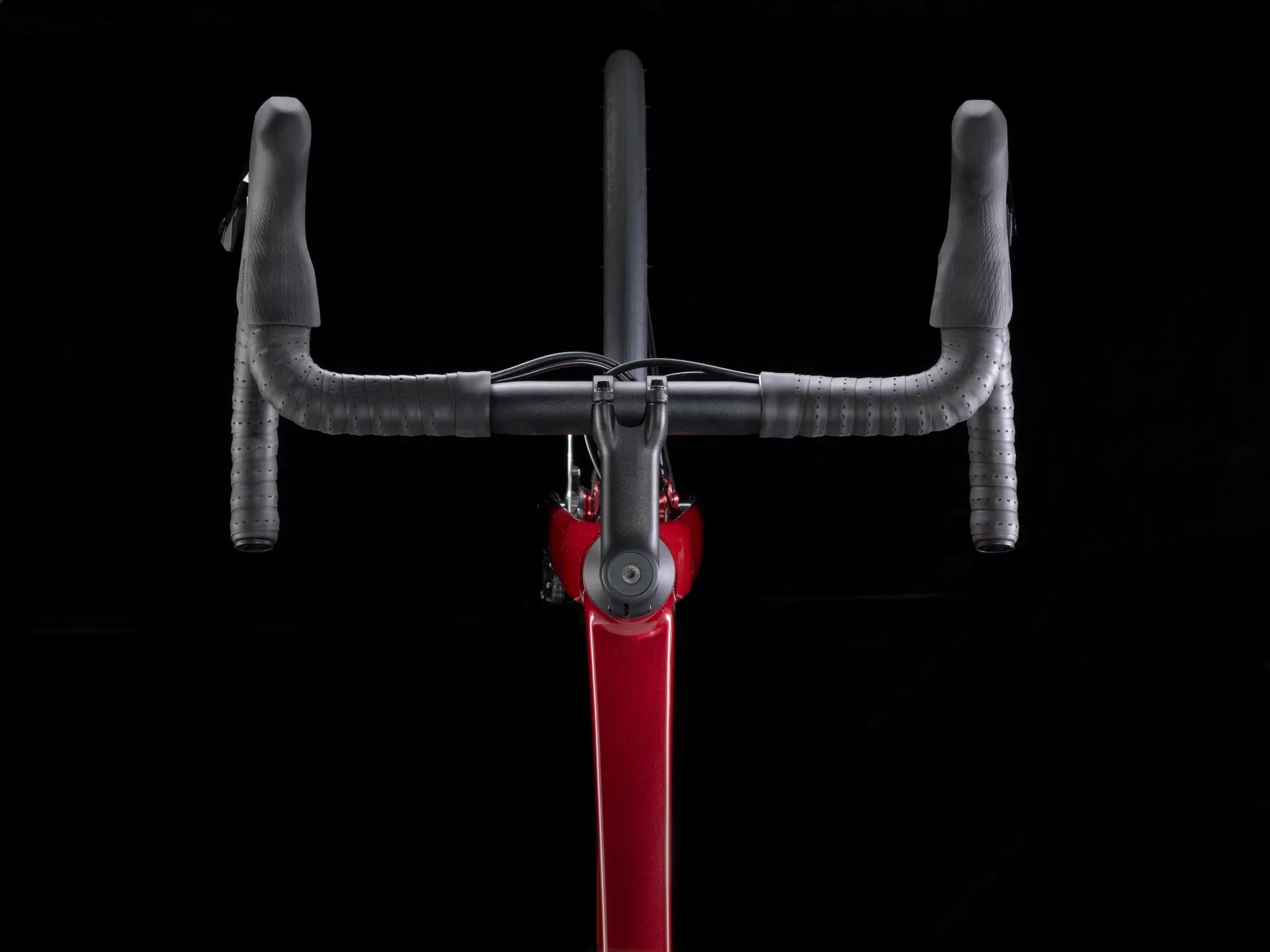

Handlebar
Size: 47, 50
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drops width
Size:52
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drops width
Size:54, 56, 58
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drops width
Size:60, 62
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 44 cm control width, 48 cm drops width
Handlebar tape,
Bontrager Supertack Perf tape

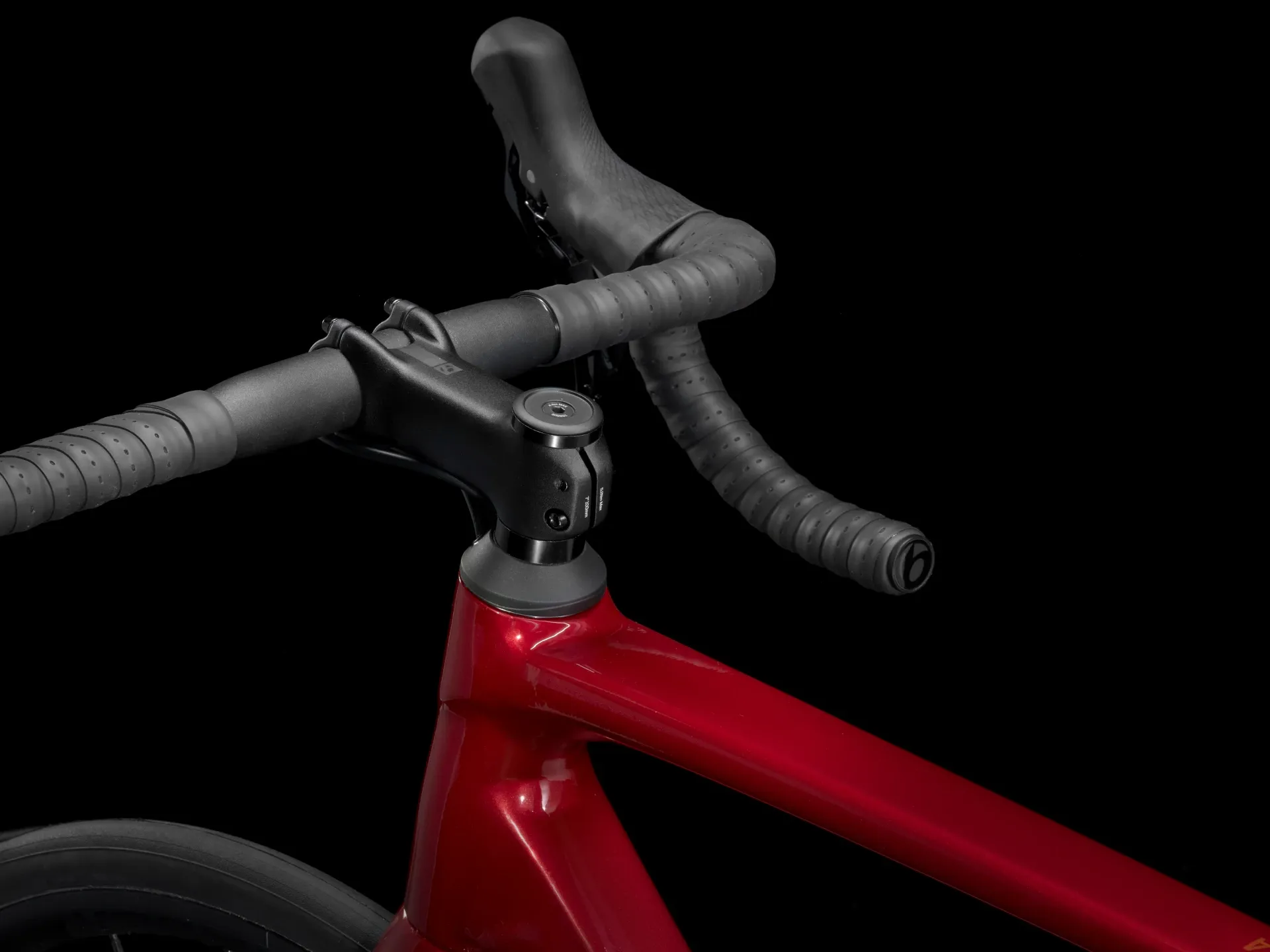

Stem
Size: 47

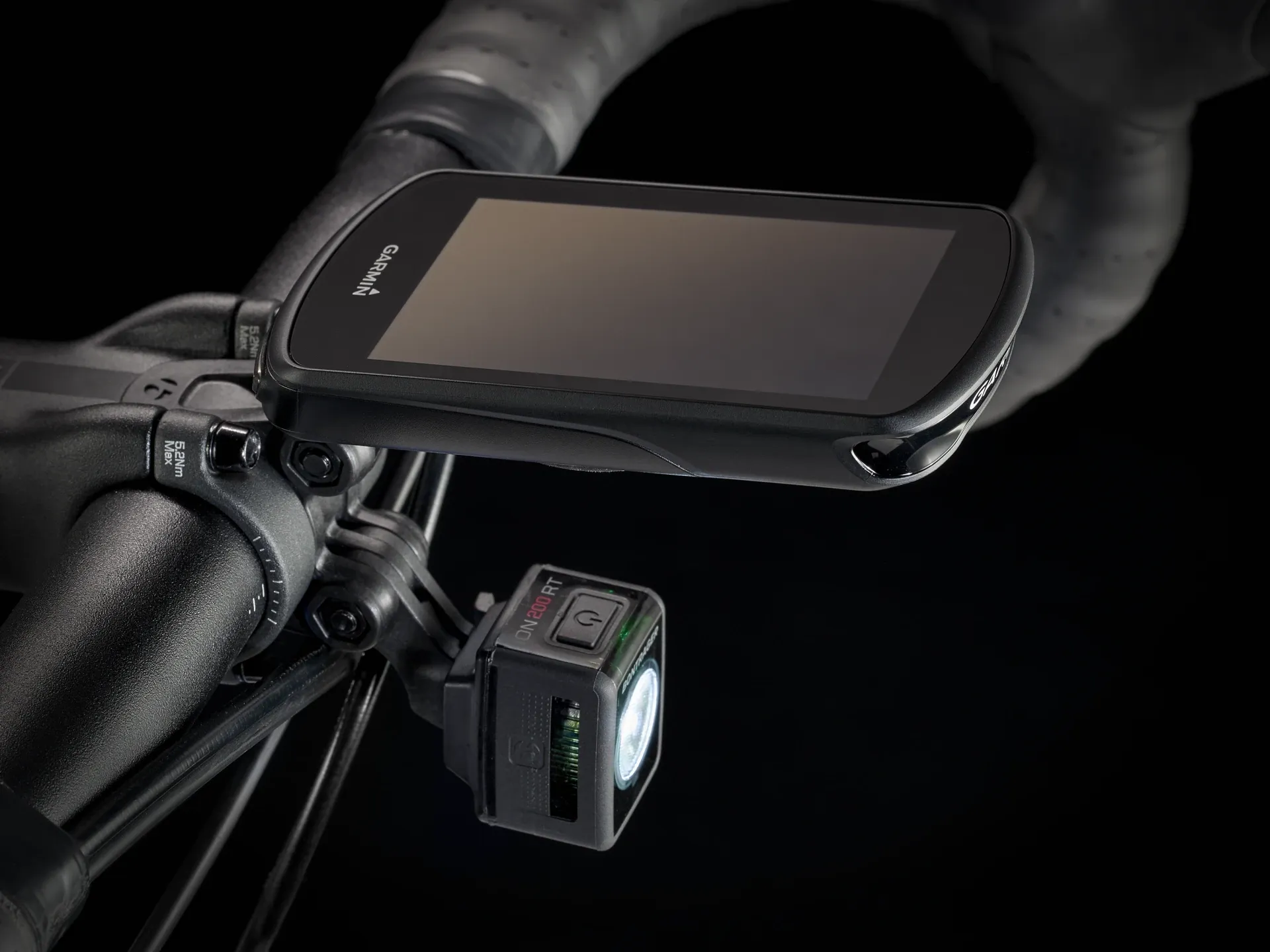

Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size:50
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size:52, 54
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Size:56, 58
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Size:60, 62
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length
Brake
Shimano 105 hydraulic disc

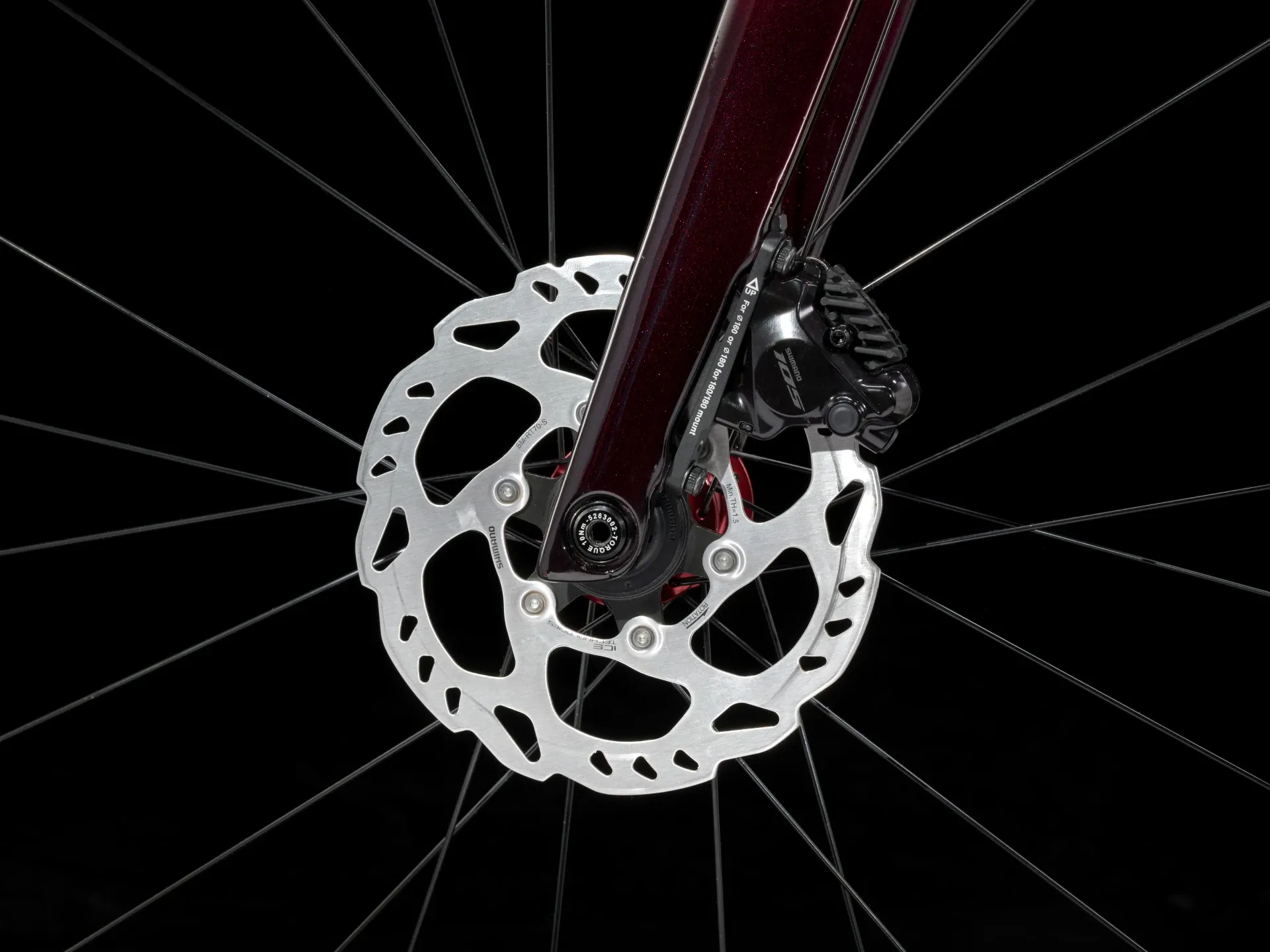

Brake rotor
Shimano RT70, CentreLock, 160 mm
Rotor size
Max brake rotor sizes: 160mm front & rear
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
