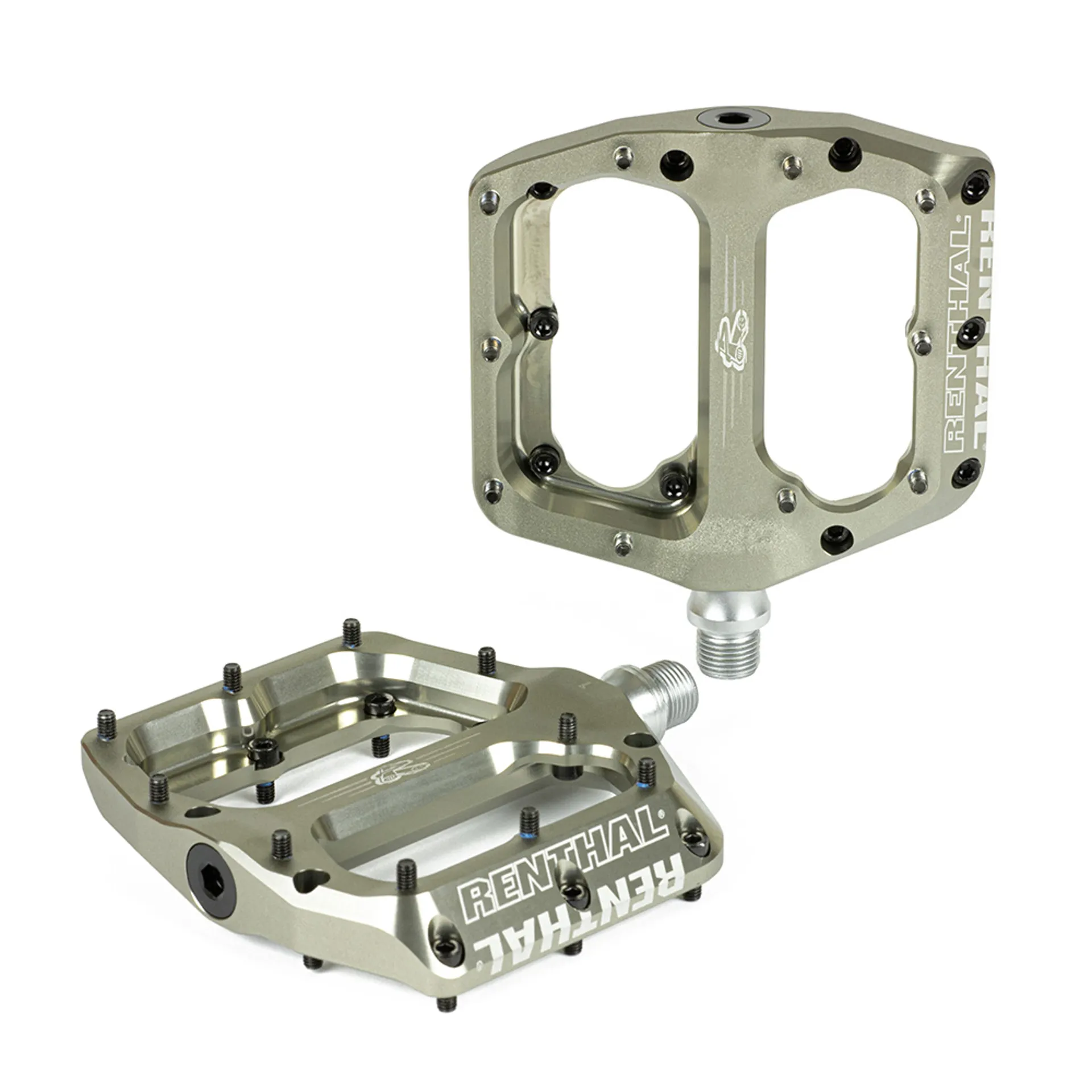

The Renthal Revo-F Pedals are designed with advanced features to deliver superior on-trail performance, tuneable grip levels, easy maintenance, and durability. Here are the key features of the Renthal Revo-F Pedals:
RIDE-TUNED:
- Fully concave platform in two axes for the highest level of support and control.
- Deep concave profile with a thin outer depth of just 18mm.
- Asymmetric pin positioning and increased width axle make the full platform and all ten pins usable for all shoe sizes.
TUNEABLE GRIP:
- Factory-fitted with ten 5.5mm height pins per side.
- Supplied with an additional forty pins and forty washers for customization.
- Pin height can be adjusted from 5.5mm to 4.5mm, 3.5mm, or 2.5mm, offering tuneable grip levels.
- All pins are screw-through type for easy removal if damaged through impact.
UNIQUE AXLE SYSTEM:
- Patent-pending axle system allows full home servicing using standard tools.
- Requires a 6mm and 8mm hex-key, a standard 8mm socket, a torque wrench, and a mallet.
- The unique system uses the axle to both remove and reinstall the bushing.
- Bearings are pressed into place using the pedal internals.
DURABLE INTERNALS:
- Spins on an extra-wide Igus bush inboard, sealed with a full-contact wiper seal.
- Three outboard cartridge bearings: two smaller bearings and a larger bearing in the outermost location.
- Bearings are supported by the full-length axle to improve durability and protect from rock strikes.
FORGED AND CNC:
- Main body made from forged 6061 aluminium.
- Fully CNC machined to remove excess material.
- Smooth front face without cut-outs improves rock strike performance by allowing the pedal to slide over rocks.
SPECIFICATIONS:
- Concave platform: L-100mm x W-104mm.
- Ten pins per side.
- Adjustable pin length: 2.5mm to 5.5mm in 1mm increments.
- Three outboard cartridge bearings.
- Extra-wide inboard IGUS bush.
- Fully sealed with inboard full contact lip-seal and outer O-ring seal.
- Home serviceable with Renthal's patent-pending axle system.
- Forged and CNC machined 6061 aluminium pedal body.
- High-grade chromoly axle.
- Weight: 488g.
