Frame
Alpha Platinum Aluminium, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55 mm chain line, Mino Link, ABP, Boost148, UDH, 140 mm travel
Fork
Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 150 mm travel

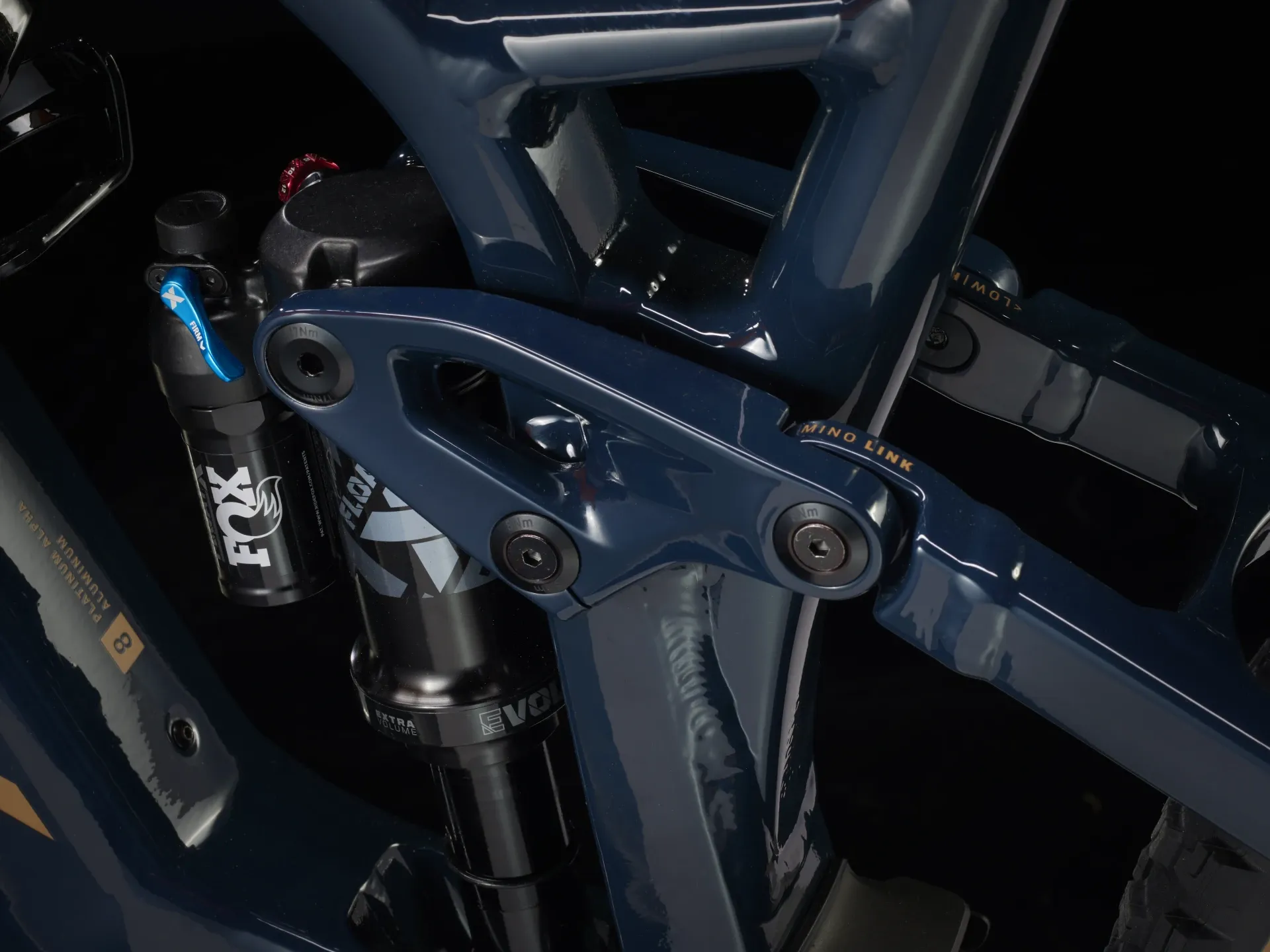

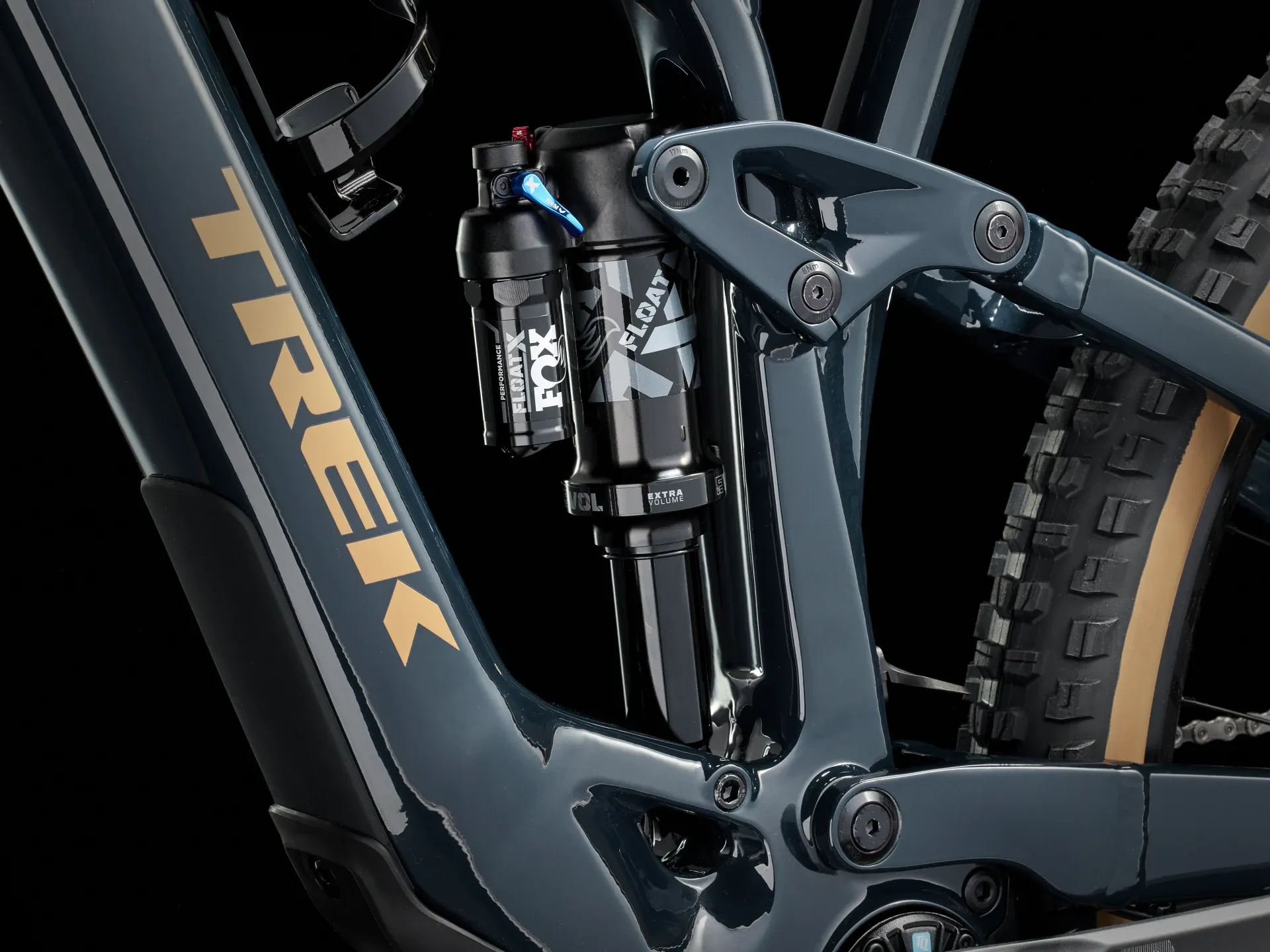

Shock
Fox Performance Float X, 2-position damper, 205 mm x 60 mm
Max compatible fork travel
160mm (575mm axle-to-crown)
Hub front
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Hub rear
Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano MicroSpline freehub, Boost148, 12mm thru axle
Skewer rear
Bontrager Switch thru-axle, removable lever
Rim
Bontrager Line Comp 30, Tubeless-Ready, 28-hole, Presta valve
Tyre
Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29×2.50″
Tyre part
Bontrager TLR sealant, 180 ml/6 oz
Rim strip
Bontrager TLR
Max tyre size
Frame: 29×2.50″, Fork: See manufacturer
Shifter
Shimano XT M8100, 12-speed
Rear derailleur
Shimano XT M8100, long cage
Crank
E*thirteen E*spec Plus, 165 mm length
Chainring
E*thirteen E*spec, 32T alloy ring, 55 mm chainline
Cassette
Shimano XT M8100, 10-51, 12-speed
Chain
Shimano SLX M7100, 12-speed
Max. chainring size
1x: 34T, min 30T
Saddle
Bontrager Arvada, hollow chromoly rails, 138 mm width
Seatpost
Size:S
TranzX JD-YSP39, 100 mm travel, internal routing, 34.9 mm
Size:M
TranzX JD-YSP39, 150 mm travel, internal routing, 34.9 mm
Size:L, XL
TranzX JD-YSP39, 170 mm travel, internal routing, 34.9 mm
Handlebar
Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width
Grips
Bontrager XR Trail Elite, nylon lock-on
Stem
Bontrager Elite, 35 mm, 0-degree, 45 mm length

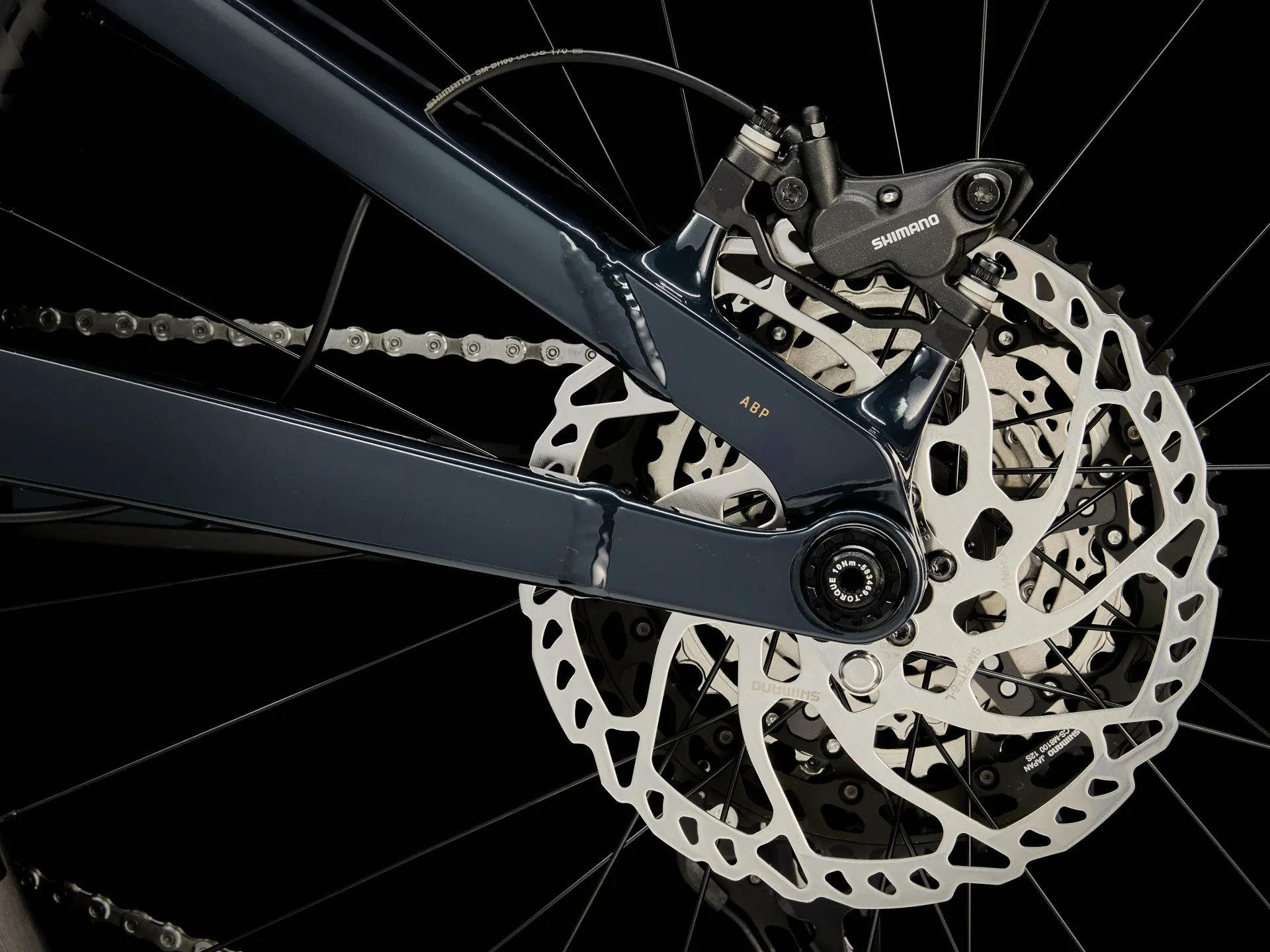

Brake
Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper
Brake rotor
Shimano RT66, 6-bolt, 203 mm
Rotor size
Max brake rotor sizes – Frame: 203mm, Fork: see fork manufacturer

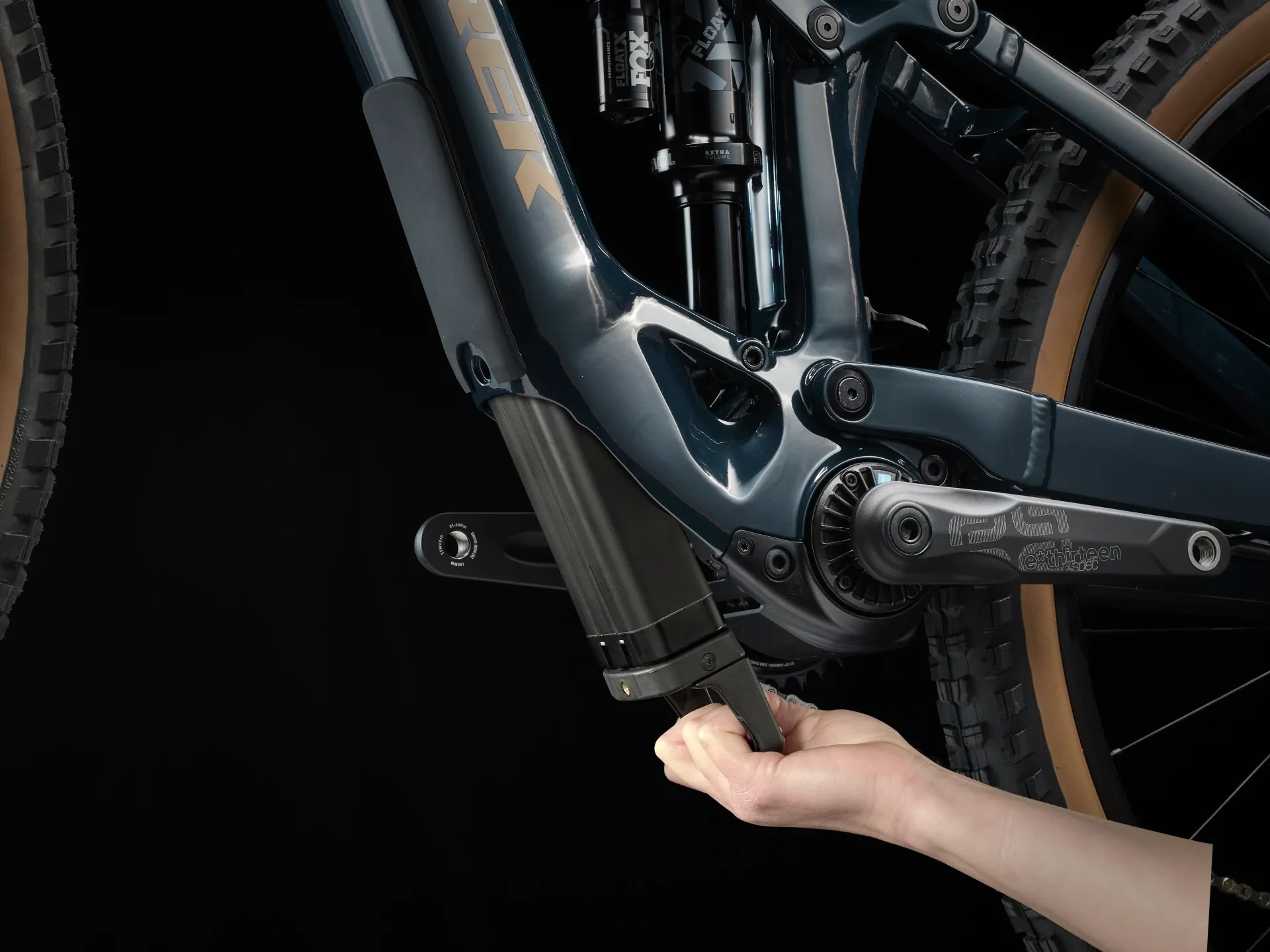

Battery
TQ 360Wh
Motor
TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power

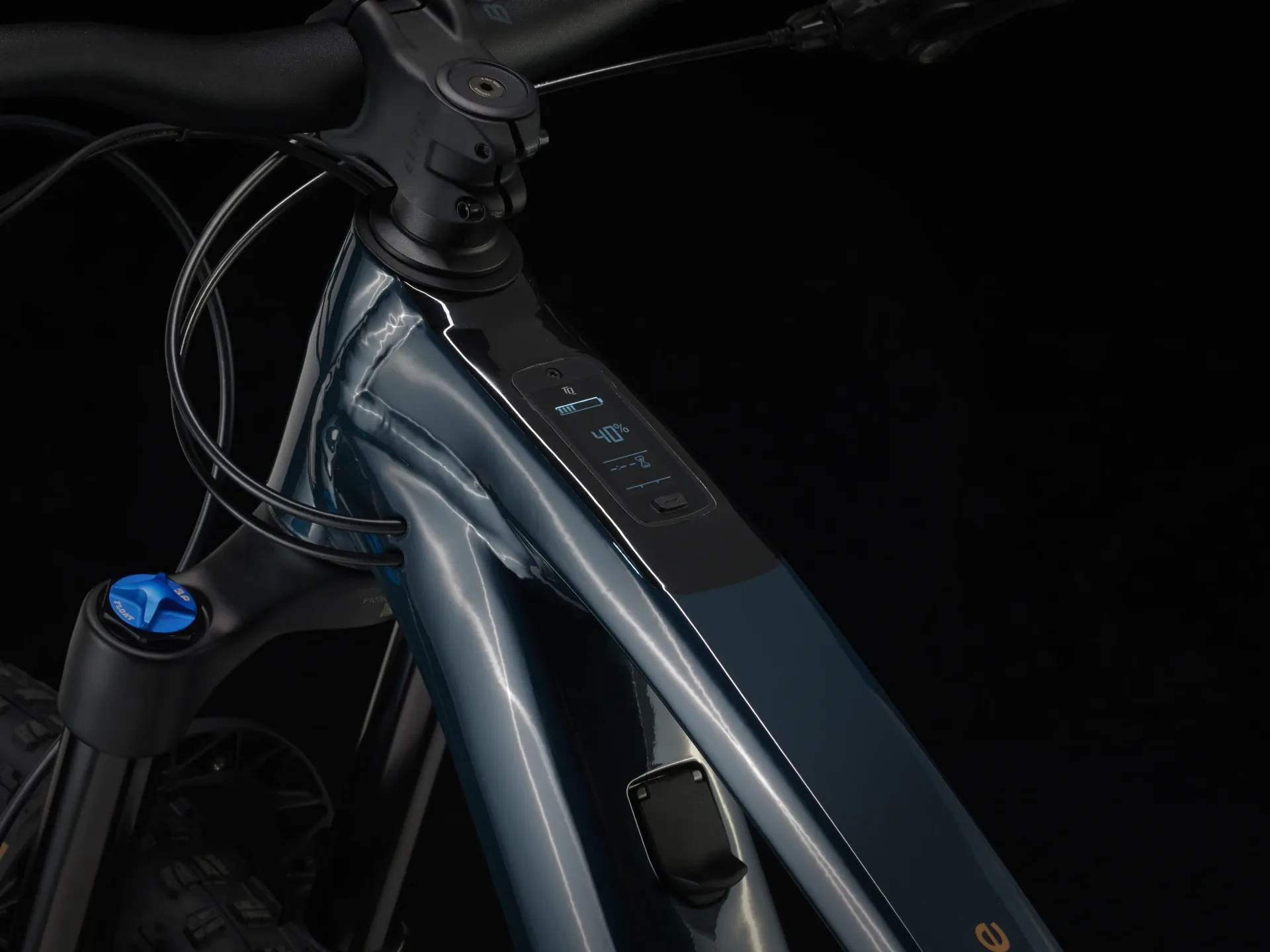

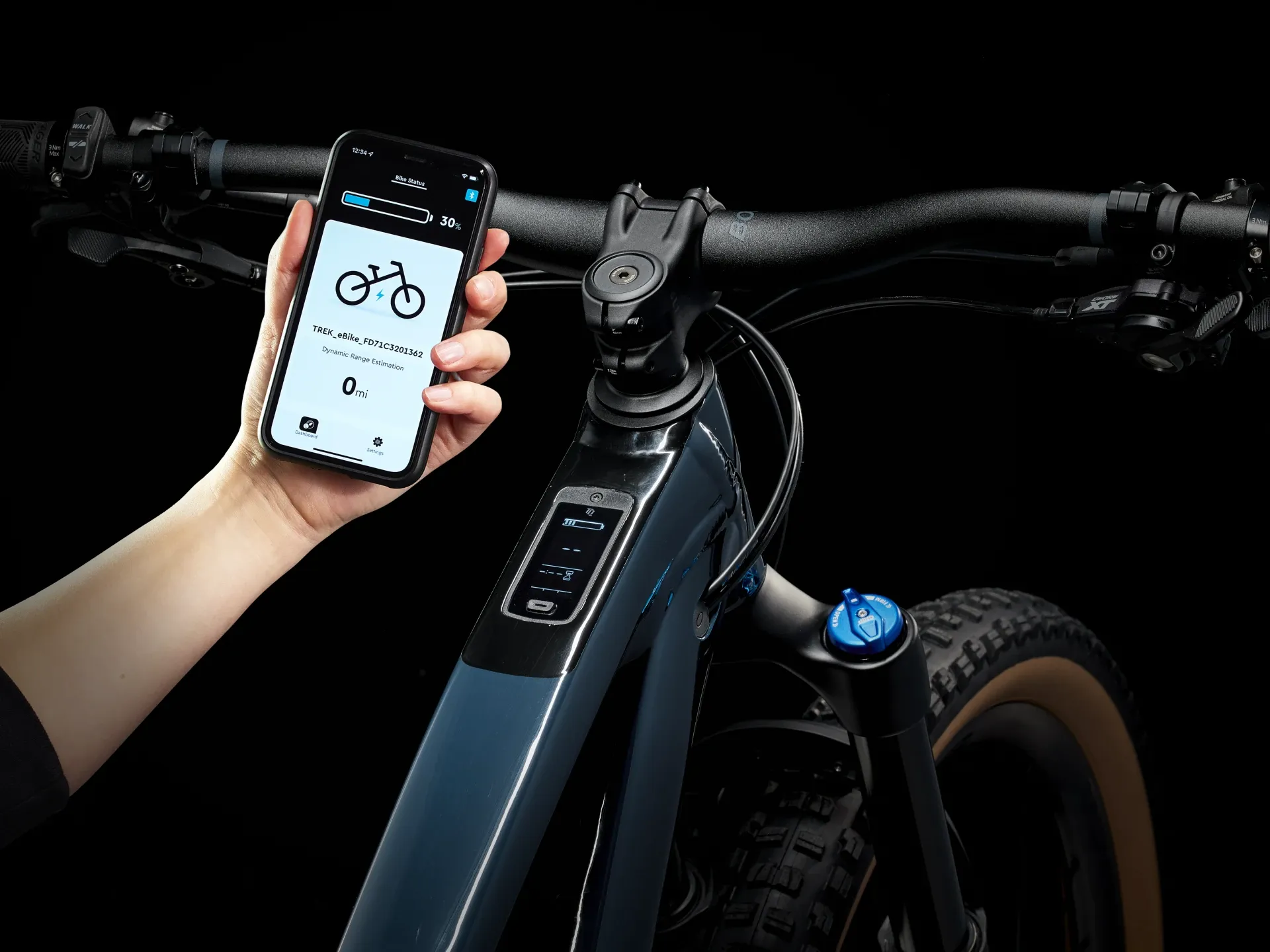

Computer
TQ LED display with Bluetooth & ANT+ connectivity
Electronics
TQ 4A charger
Weight
M – 20.10 kg / 44.32 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb)
