Frame
Size: XS , S

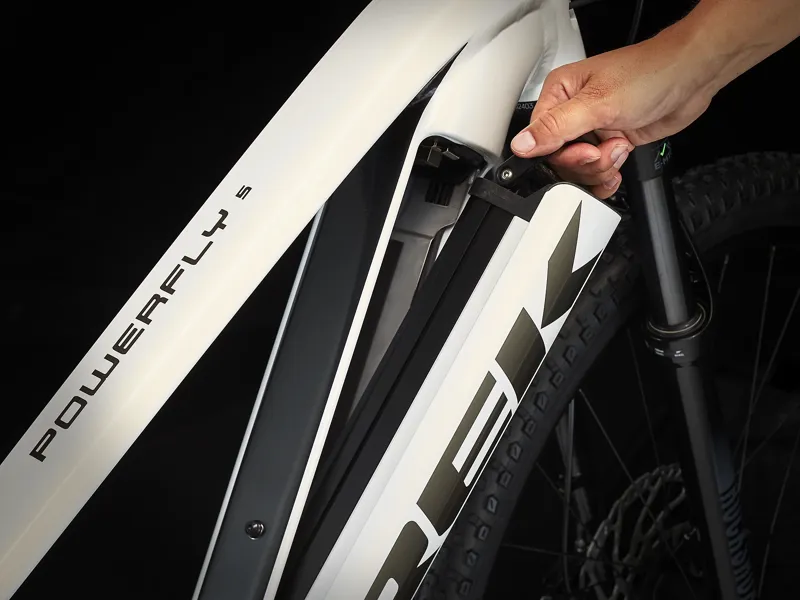

Alpha Platinum Aluminium, curved top tube, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, Motor Armour, Boost148, 12 mm thru axle
Size:M , L , XL
Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, Motor Armor, Boost148

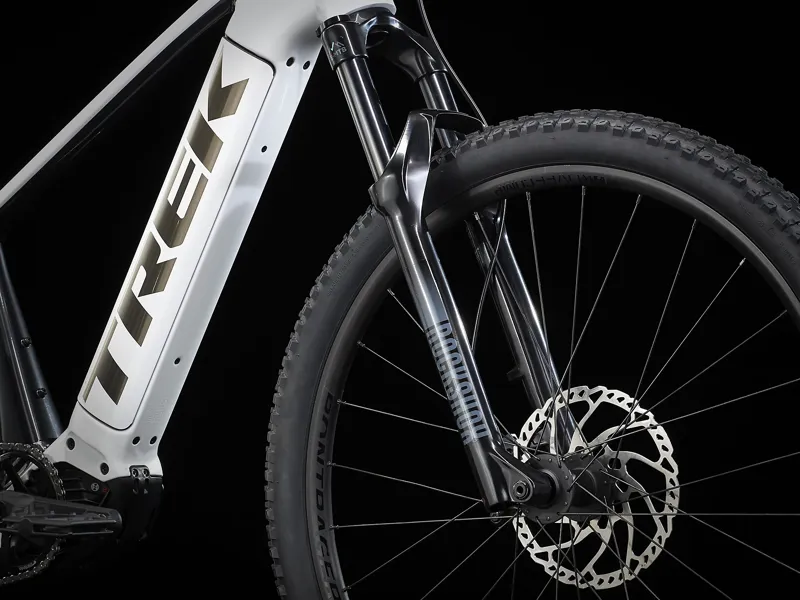

Fork
Size: XS
RockShox Recon Silver RL, Solo Air spring, Motion Control damper, lockout, tapered steerer, 46 mm offset, Boost110, Maxle Stealth, 80 mm travel
Size:S
RockShox Recon Silver RL, Solo Air spring, Motion Control damper, lockout, tapered steerer, 46 mm offset, Boost110, Maxle Stealth, 120 mm travel
Size:S , M , L , XL
RockShox Recon Silver RL, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, Maxle Stealth, 120 mm travel
Max compatible fork travel
120mm (XS & S: 100mm)
Hub front
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Skewer rear
Bontrager Switch thru-axle, removable lever

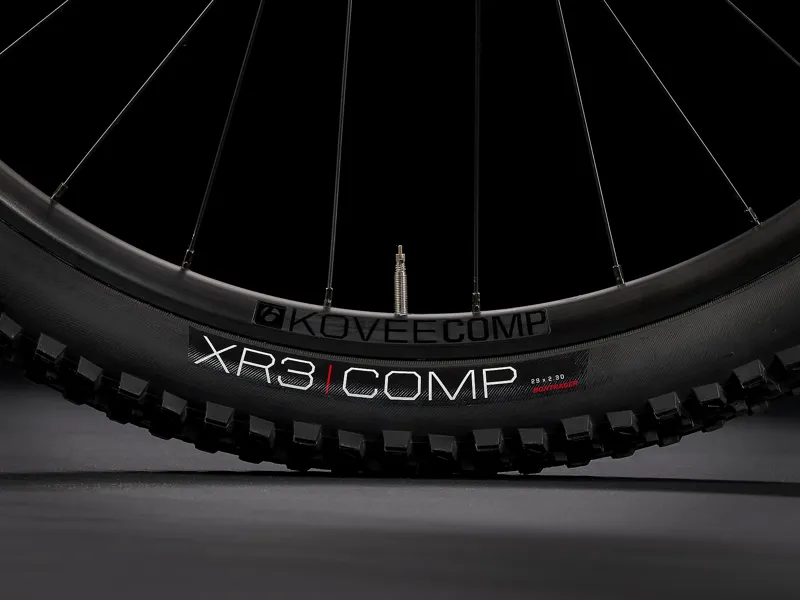

Rim
Bontrager Kovee Comp, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve
Tyre
Bontrager XR3 Comp, wire bead, 30 tpi, 29x2.30"
Max tyre size
Frame: 29x2.60" or 27.5x2.8" (XS & S: 27.5x2.60") Fork: See manufacturer
Shifter
Shimano Deore M6100, 12-speed

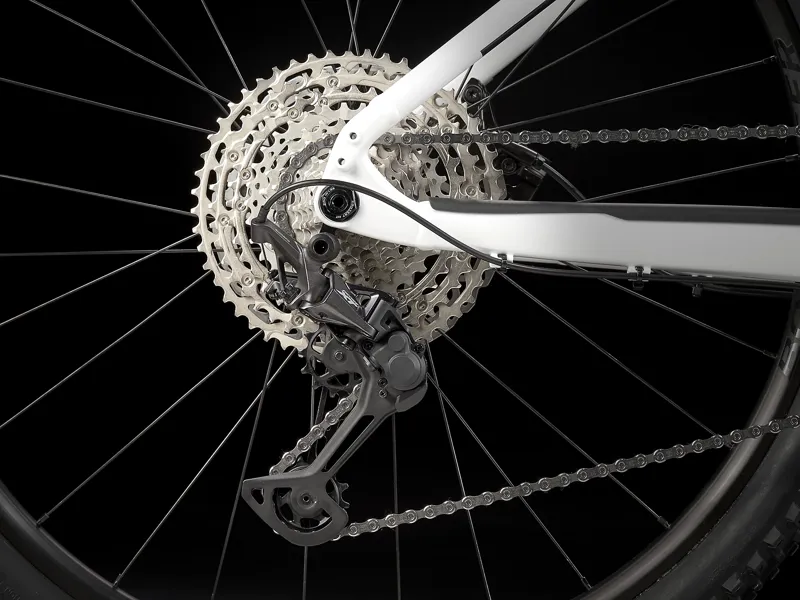

Rear derailleur
Shimano XT M8100, long cage
Crank arm
E*thirteen E*spec Plus, 165 mm length
Chainring
E*thirteen, 36T, steel
Cassette
Shimano Deore M6100, 10-51, 12-speed
Chain
Shimano Deore M6100
Pedal
VP-536 nylon platform
Max. chainring size
38T
Saddle
Bontrager Commuter Comp
Seatpost
Size: XS , S
Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
Size:M
Bontrager alloy, 31.6 mm, 12 mm offset, 360 mm length
Size:L , XL
Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
Handlebar
Size: XS , S
Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
Size:M , L , XL
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips
Bontrager XR Endurance Comp, lock-on
Stem
Size: XS
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length
Size:S , M
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
Size:L , XL
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length
Head set
FSA IS-2, 1-1/8" top, 1.5" bottom
Brake
Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper
Brake rotor
Size: XS , S
Shimano RT66, 6-bolt, 180 mm
Size:XS , S , M , L , XL
Shimano RT66, 6-bolt, 203 mm

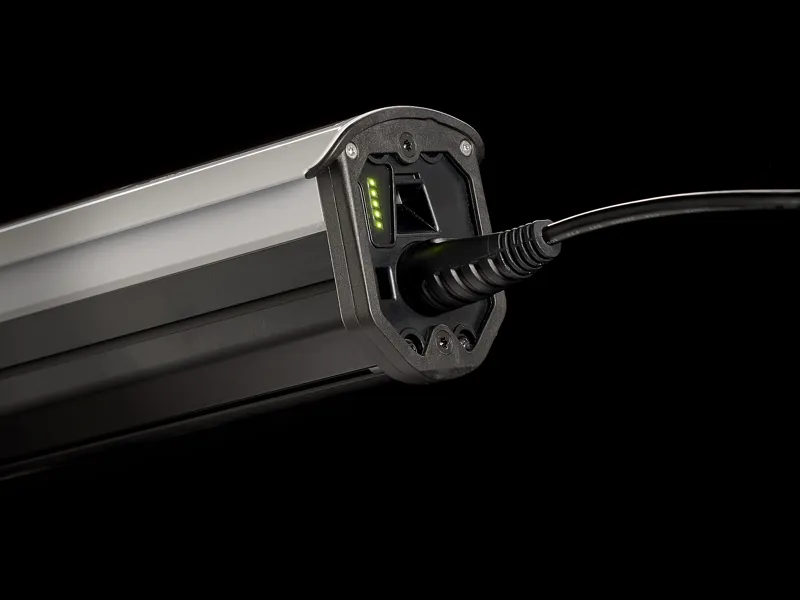

Battery
Bosch PowerTube 625
Charger
Bosch compact 2A, 100–240V, smart system

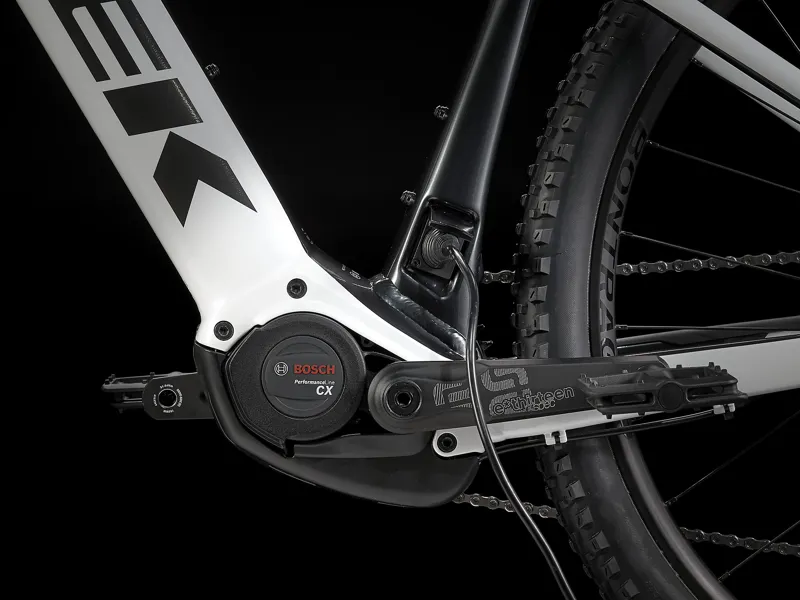

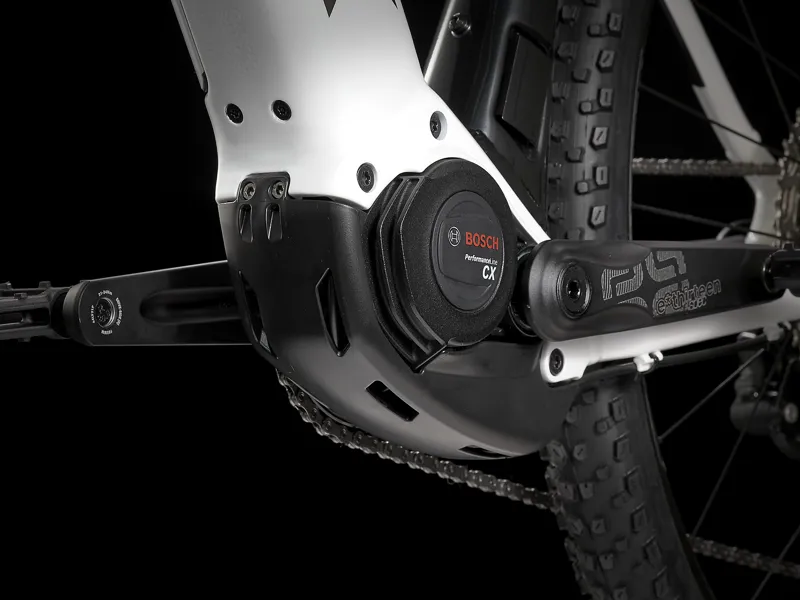

Motor
Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 25 km/h (15.5 mph) max assist, 32 km/h for New Zealand

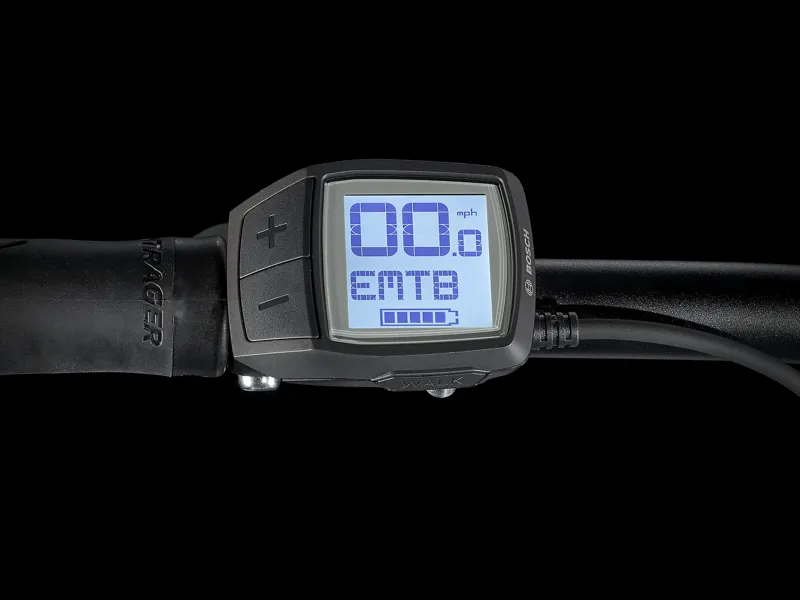

Computer
Bosch Purion
Weight
M - 22.94 kg/50.58 lb
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
