Frame

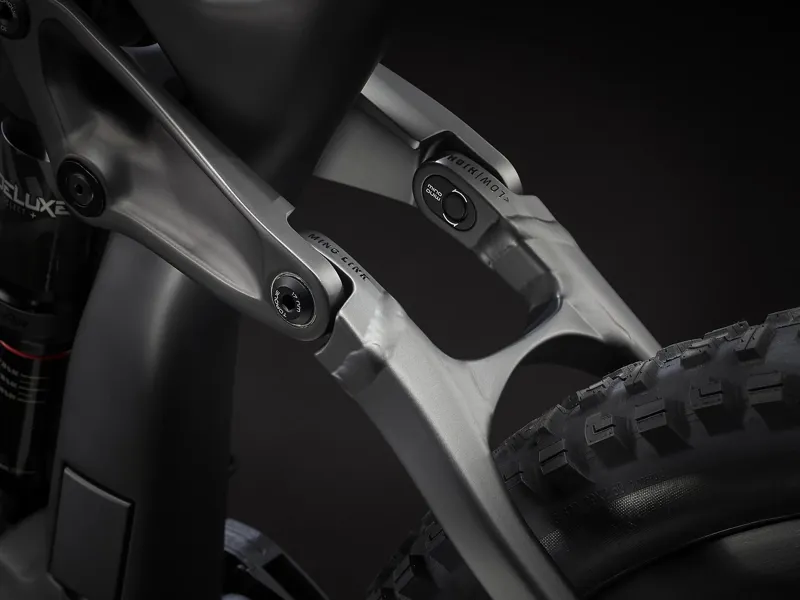

OCLV Mountain Carbon main frame, Removable Integrated Battery (RIB), tapered head tube, Knock Block, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travelFork
RockShox Domain RC, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm Maxle Stealth, 160 mm travel

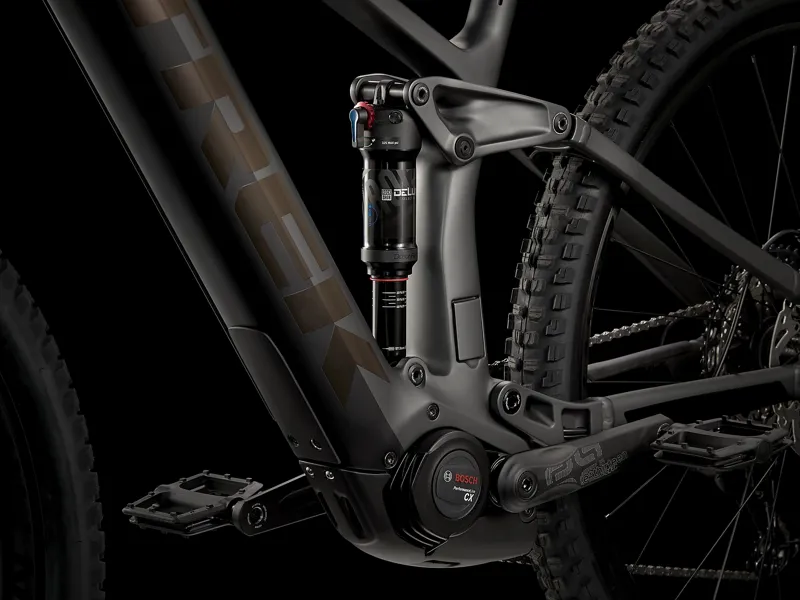

Shock
RockShox Deluxe Select+, 230 mm x 57.5 mm
Max compatible fork travel
170mm (580mm axle-to-crown)
Hub front
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Hub rear
Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano MicroSpline freehub, Boost148, 12mm thru axle
Skewer rear
Bontrager Switch thru-axle, removable lever
Rim

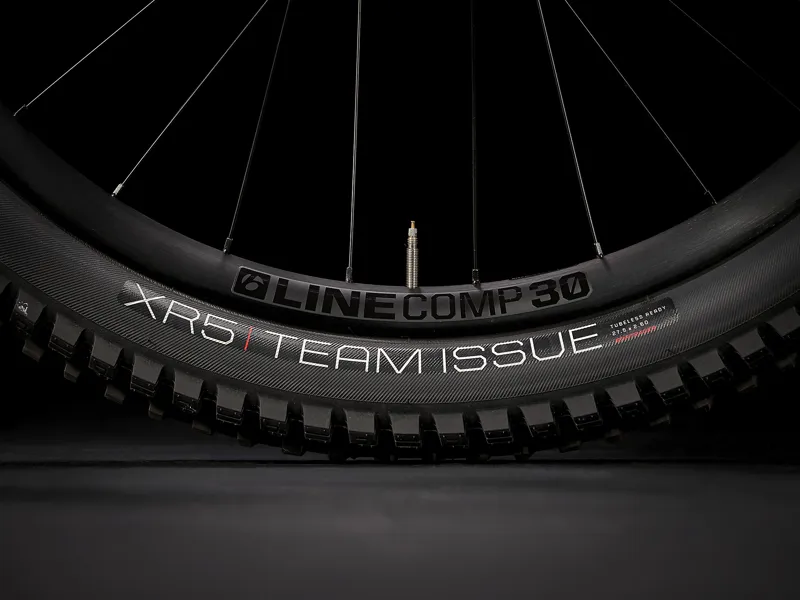

Bontrager Line Comp 30, Tubeless Ready, 28-hole, Presta valve
Tyre
Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 29x2.50"
Rim strip
Bontrager TLR
Max tyre size
Frame: 29x2.60" Fork: See manufacturer
Shifter
Shimano SLX M7100, 12-speed

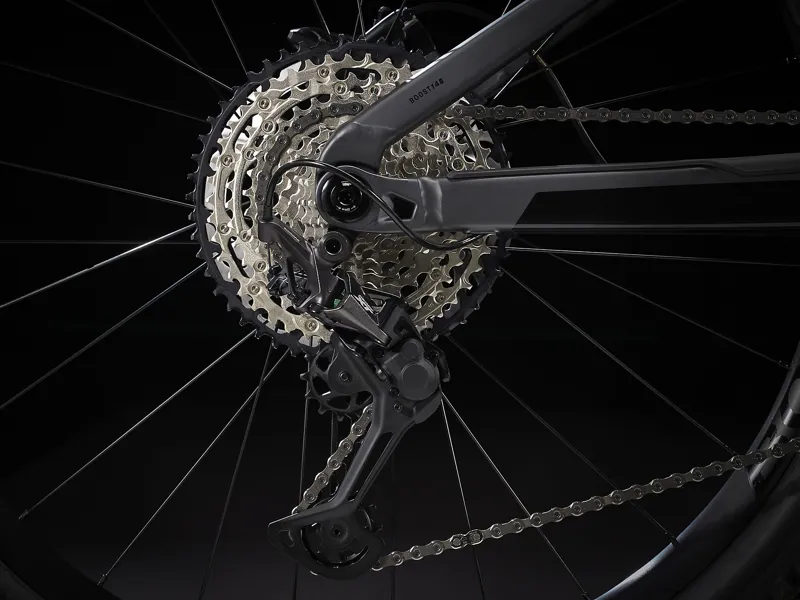

Rear derailleur
Shimano XT M8100, long cage
Crank
E*thirteen E*spec Plus, 34T, 165 mm length
Cassette
Shimano SLX M7100, 10-51, 12-speed
Chain
Shimano SLX M7100, 12-speed
Pedal
VP-536 nylon platform
Max. chainring size
34T
Saddle
Bontrager Arvada, steel rails, 138 mm width
Seatpost
Size:S
Bontrager Line Dropper, 100 mm travel, internal routing, 31.6 mm, 345 mm length
Size:M, L, XL
Bontrager Line Dropper, 150mm travel, internal routing, 31.6 mm, 440mm length
Handlebar
Bontrager Comp, alloy, 31.8 mm, 15 mm rise, 780 mm width
Grips
Bontrager XR Trail Comp, nylon lock-on
Stem
Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length
Brake
Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper
Brake rotor
Shimano RT76, 6-bolt, 203 mm

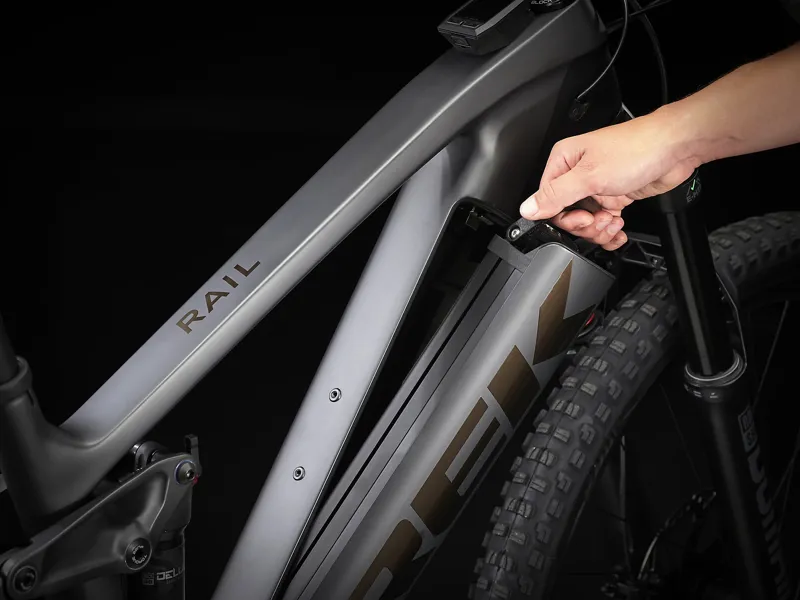

Battery
Bosch PowerTube 625
Charger
Bosch standard 4A, 220–240V
Controller

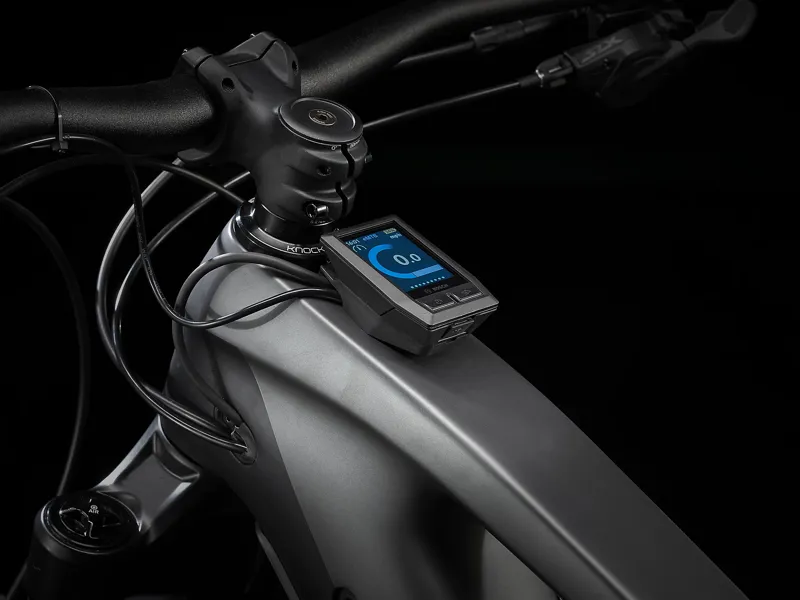

Bosch Kiox with Anti-theft solution

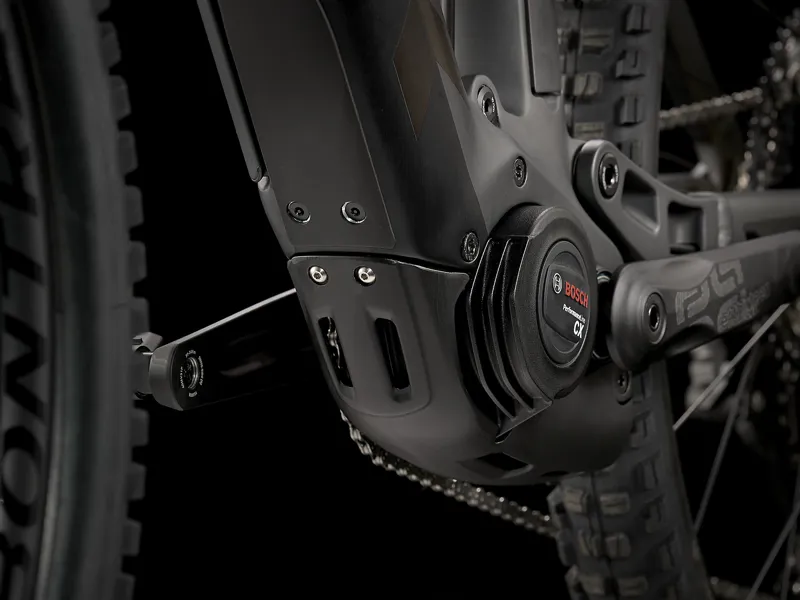

Motor
Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 25 km/h (15.5 mph) max assist, 32 km/h for New Zealand
Weight
M - 22.96 kg/50.62 lb
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
