Frame
Size: XS , S
Alpha Platinum Aluminium, curved top tube, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, Motor Armour, Boost148, 12 mm thru axle
Size:M , L , XL
Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, Motor Armour, Boost148, 12 mm thru axle
Fork
Size: XS
SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm thru axle, 80 mm travel
Size:S , M , L , XL
SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm thru axle, 120 mm travel
Max compatible fork travel
120mm (526mm axle-to-crown), XS and S: 100mm (492mm axle-to-crown)
Hub front
Formula DC-511, 6-bolt, Boost110, 15 mm thru axle
Hub rear
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano 8/9/10 freehub, Boost148, 12 mm thru axle
Skewer rear
Bontrager Switch thru-axle, removable lever
Rim
Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve

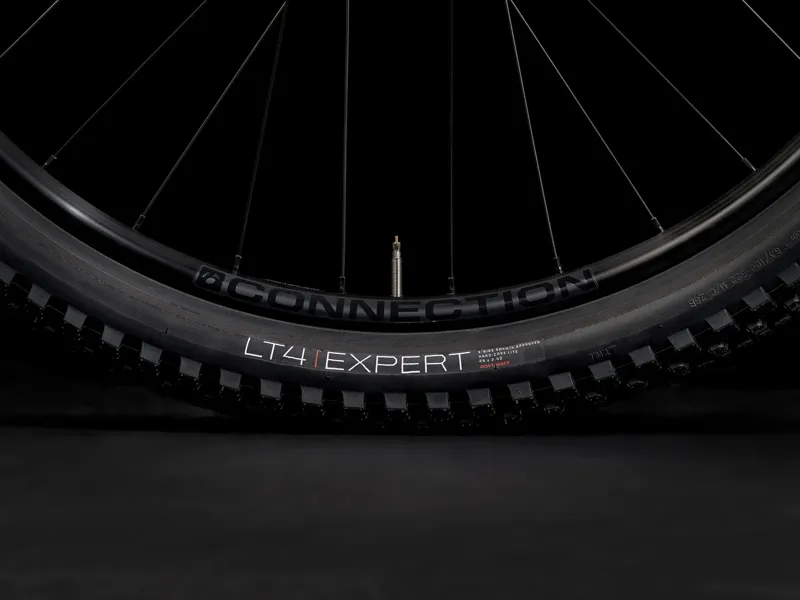

Tyre
Size: XS , S
Bontrager LT4 Expert, reflective strip, wire bead, 60 tpi, 27.5x2.40"
Size:M , L , XL
Bontrager LT4 Expert, reflective strip, wire bead, 60 tpi, 29x2.40"
Max tyre size
Frame: 29x2.60" or 27.5x2.80" (XS & S: 27.5x2.60"), Fork: See manufacturer
Shifter
Shimano Deore M4100, 10 speed

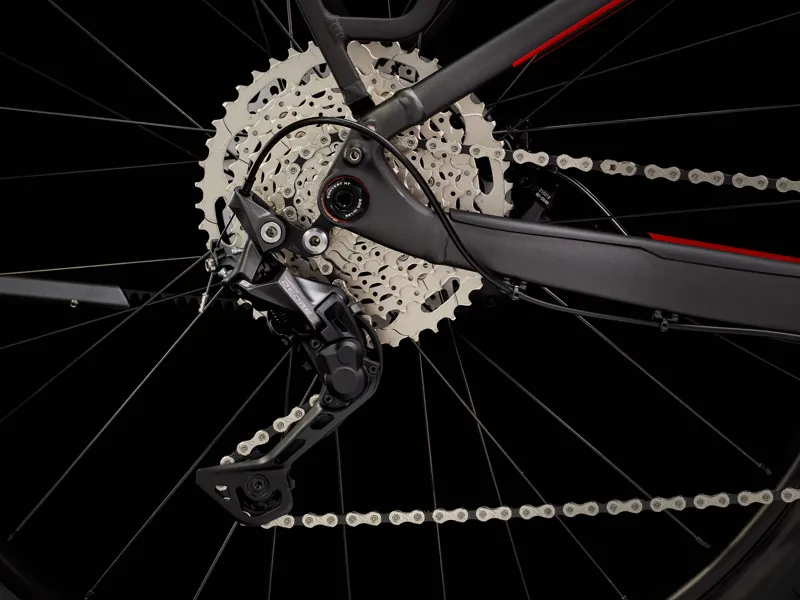

Rear derailleur
Shimano Deore M5120, long cage
Crank
FSA Bosch CK-220, 36T ring, 165 mm length
Chainring
FSA, 36T, steel
Cassette
Shimano Deore M4100, 11-46, 10-speed
Chain
KMC X10, 10-speed
Pedal
VP-536 nylon platform
Max. chainring size
1x: 38T
Saddle
Bontrager Commuter Comp
Seatpost
Size: XS , S
Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
Size:M
Bontrager alloy, 31.6 mm, 12 mm offset, 360 mm length
Size:L , XL
Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
Handlebar
Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
Grips
Bontrager XR Endurance Comp, lock-on
Stem
Size: XS
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length
Size:S , M
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
Size:L
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length
Size:XL
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 80 mm length
Head set
FSA IS-2, 1-1/8" top, 1.5" bottom
Brake
Tektro HD-M275 hydraulic disc

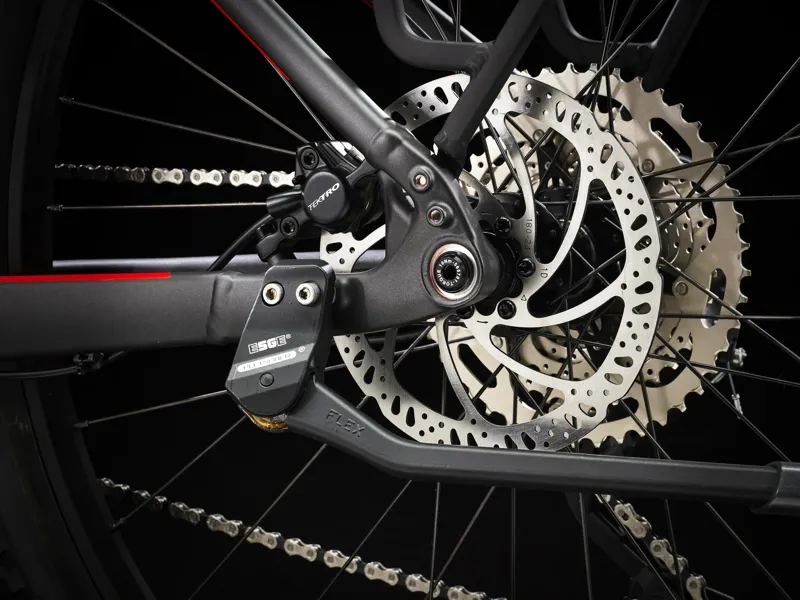

Brake rotor
Size: XS , S , M , L , XL
Tektro, 180 mm, 6-bolt
Size:XS , S , M , L , XL
Tektro, 6-bolt, 203 mm
Brake Set
Tektro HD-M275 hydraulic disc
Rotor size
Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer

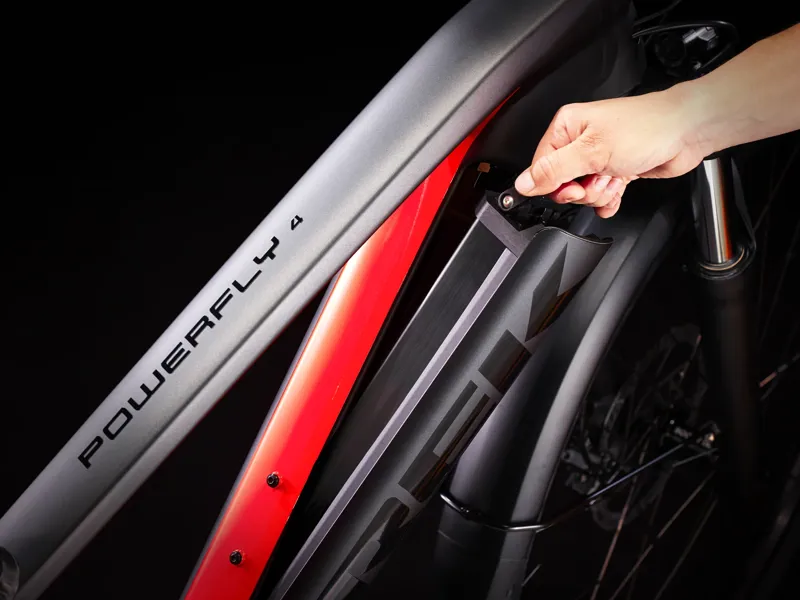

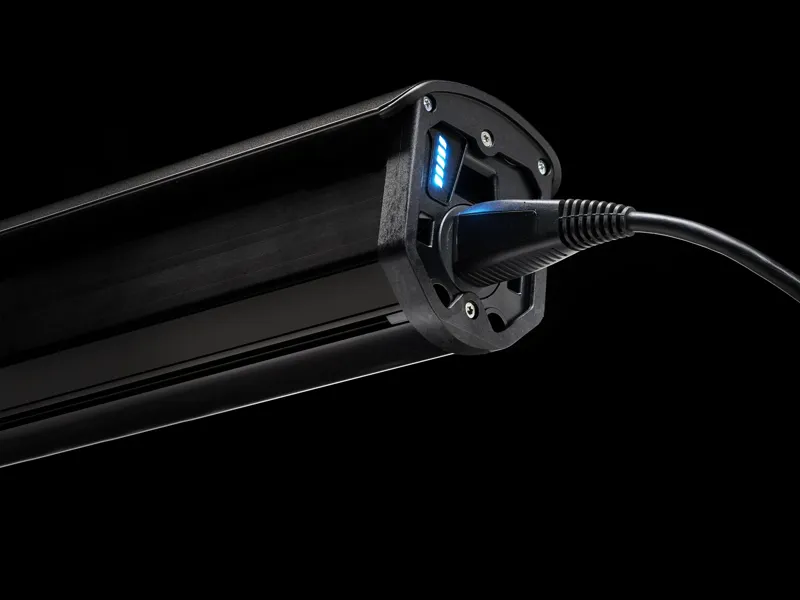

Battery
Bosch PowerTube 500Wh, smart system
Charge
Bosch standard 2A, 230V, smart system
Controller
Bosch Intuvia 100, smart system

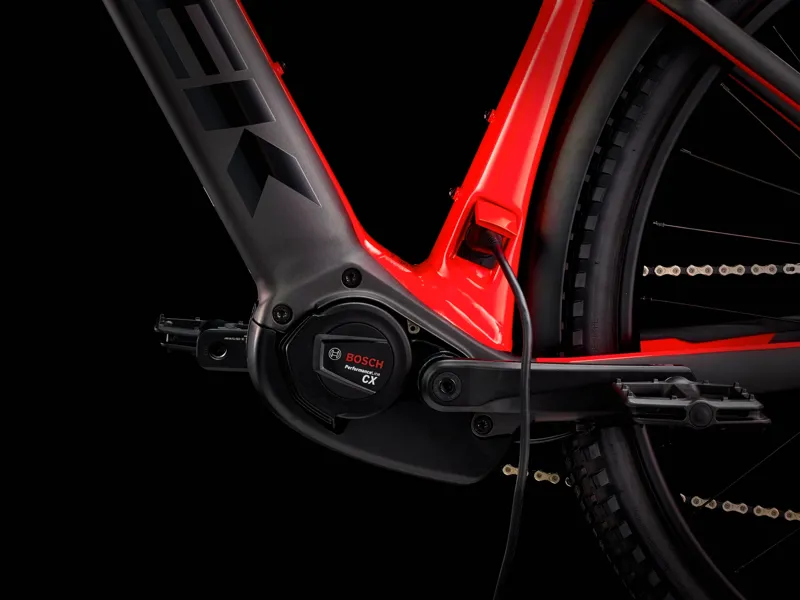

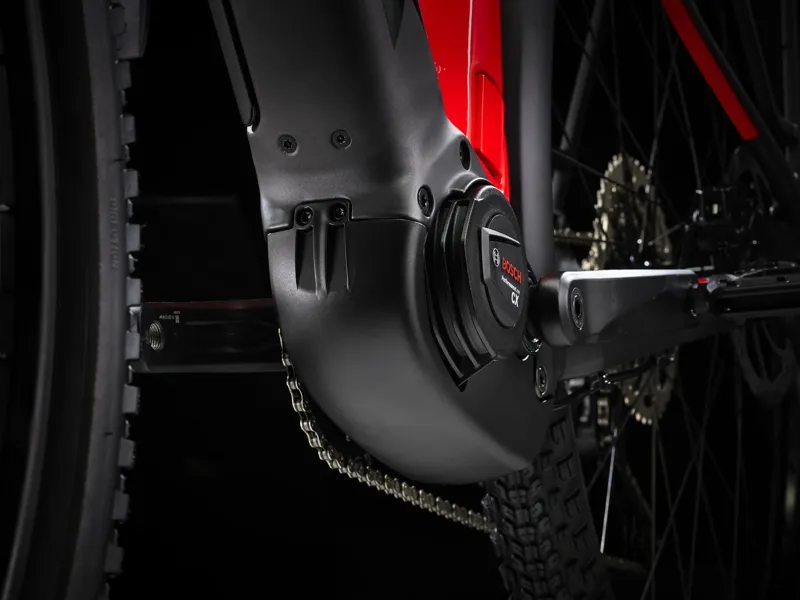

Motor
Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm
Light
Size:XS , S , M , L , XL
AXA Blueline taillight
Size:XS , S , M , L , XL
AXA Compact Line 35, headlight

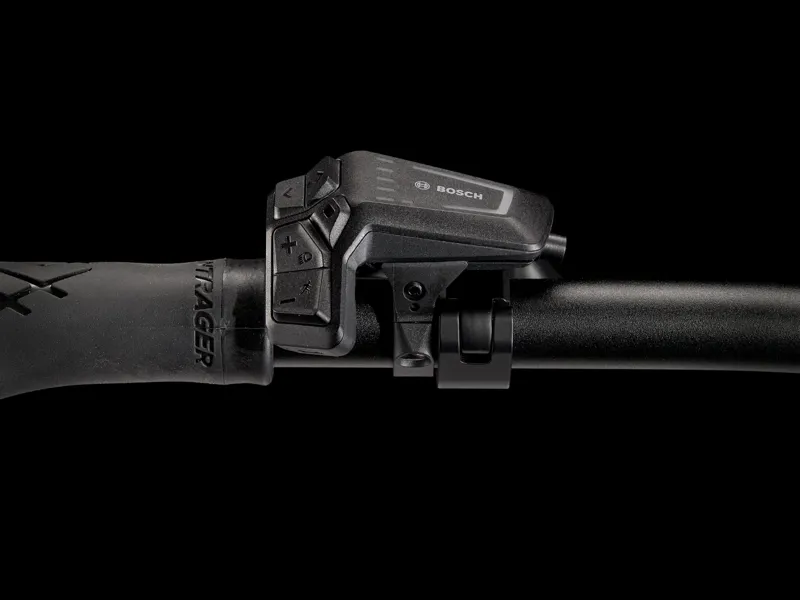

Computer
Bosch LED remote, smart system
Kickstand
Pletscher Comp Flex 18

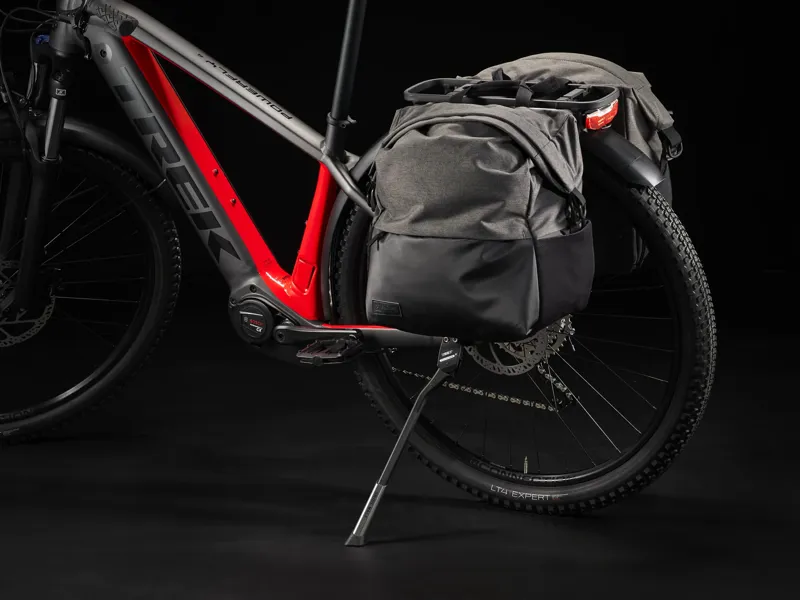

Cargo rack
MIK-compatible alloy rear rack
Mudguard
Size:XS , S
Trek Powerfly 27.5" custom fender
Size:XS , S , M , L , XL
Trek Powerfly custom mudguard
Size:M , L , XL
Trek Powerfly 29" custom fender
Weight
M - 26.60 kg / 58.65 lbs
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
