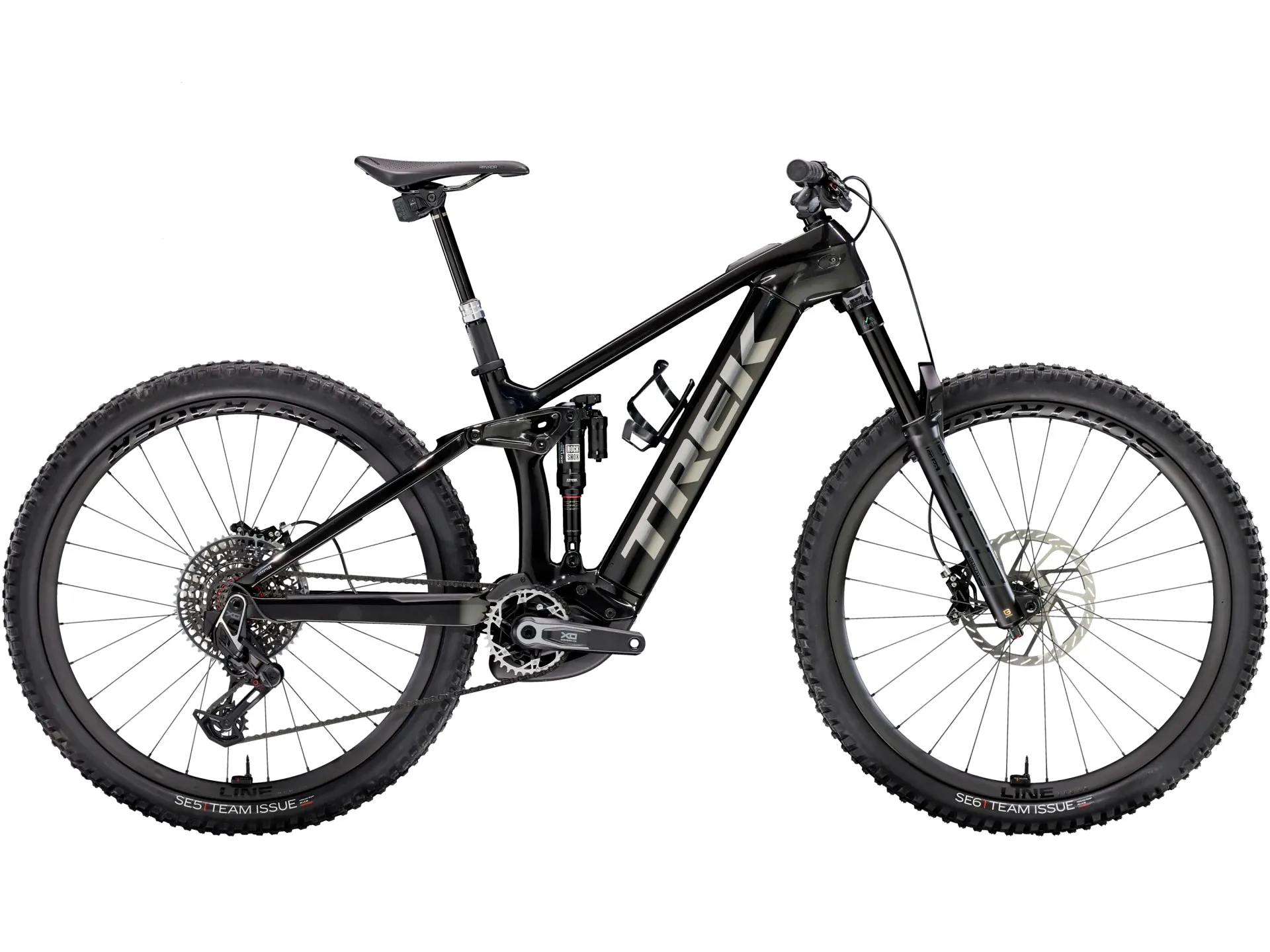

Frame

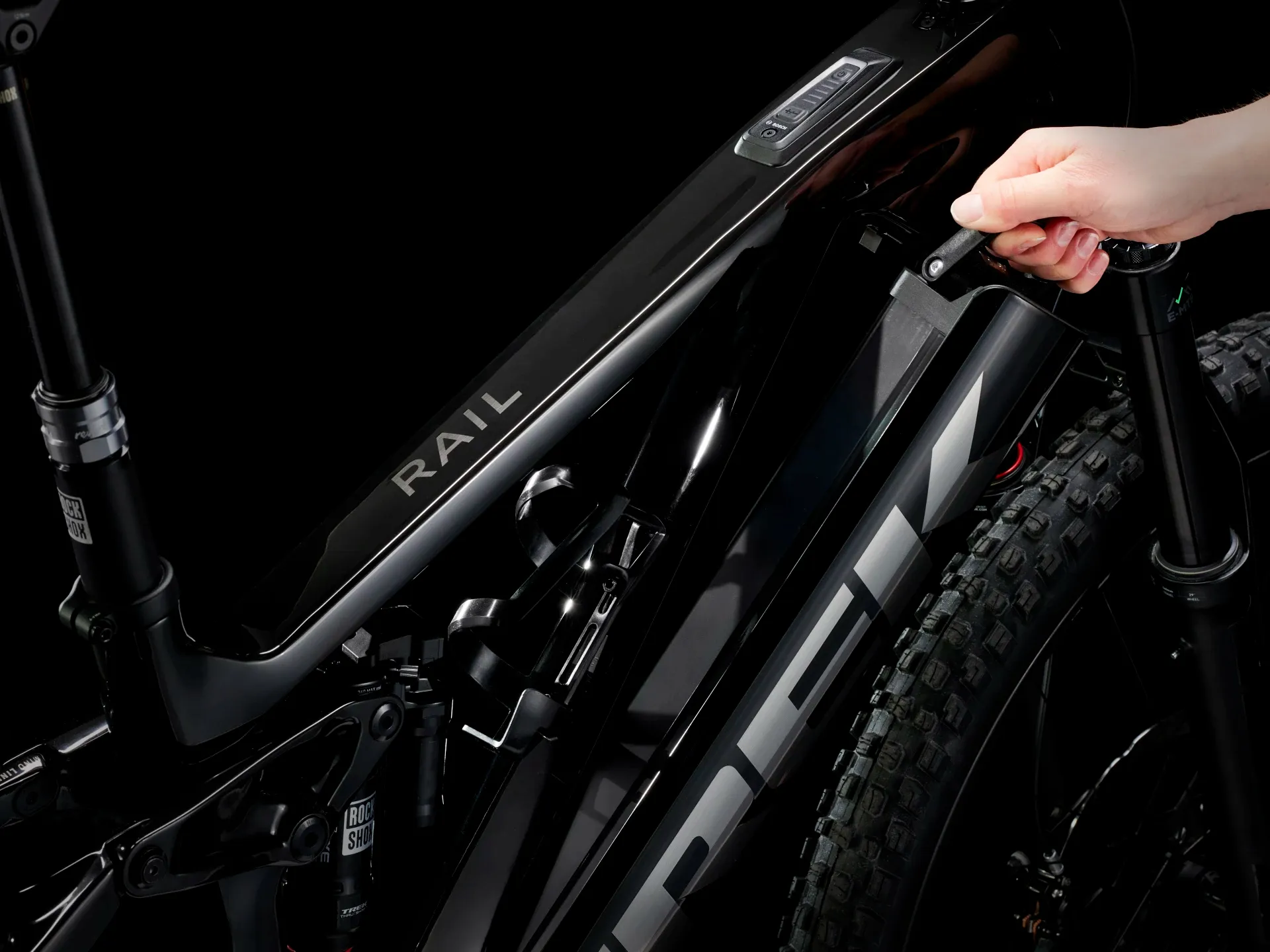

OCLV Mountain Carbon main frame, 1.8'' lower head tube, Bosch System Controller-compatible, Removable Integrated Battery (RIB), Knock Block 2.0, guided internal routing, 34.9 mm seat tube, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru-axle, 150 mm travel
Fork
RockShox ZEB Ultimate, AirWiz, DebonAir spring, Charger 3 RC2 damper, 1.8" oversized tapered steerer, eMTB optimised crown, 44 mm offset, Boost110, 15 mm Maxle Stealth, 160 mm travel
Shock

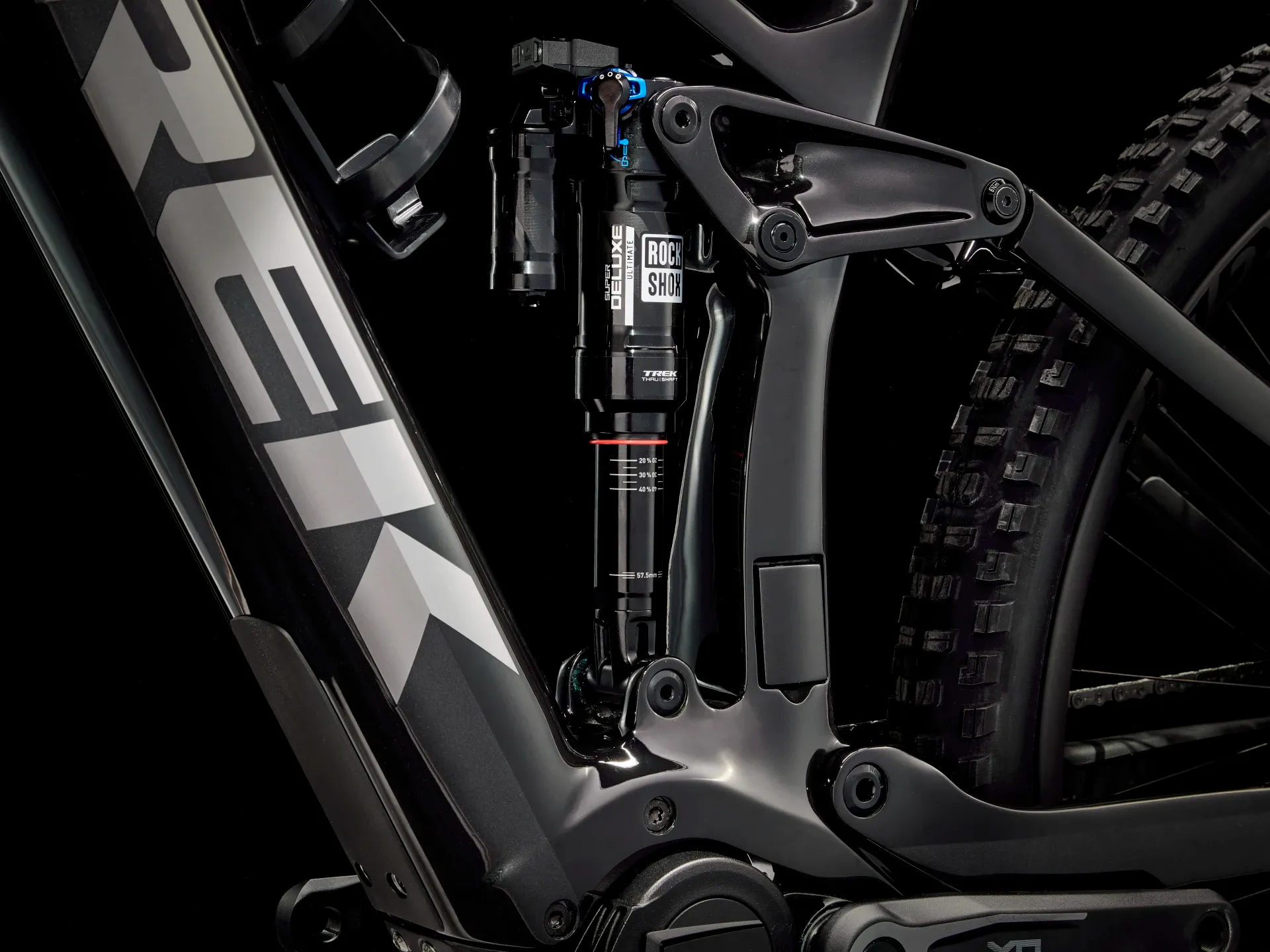

RockShox Super Deluxe Thru Shaft, AirWiz, 230 mm x 57.5 mm
Max compatible fork travel
170mm (580mm axle-to-crown)
Wheel front
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless-Ready, 6-bolt, Boost110, 15 mm thru-axle
Wheel rear
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12 mm thru-axle
Skewer rear
Bontrager Switch thru-axle, removable lever
Tyre
Size: S, M, L, XL

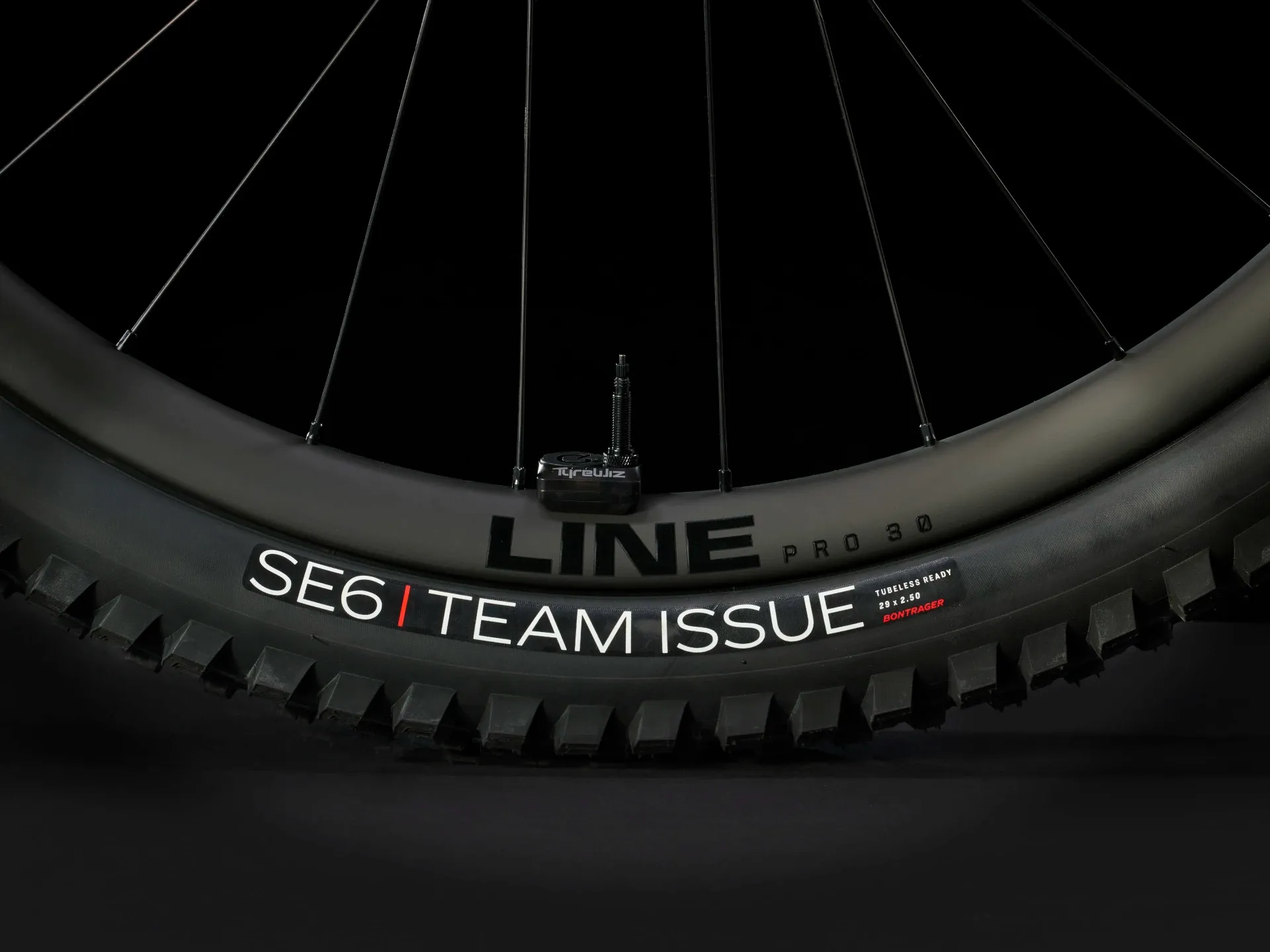

Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"
Size:S, M, L, XL
Bontrager SE6 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"
Tyre part
Size: S, M, L, XL
Bontrager TLR sealant, 180 ml/6 oz
Size:S, M, L, XL
Quarq TyreWiz tyre pressure monitors
Max tyre size
Frame: 29x2.60", Fork: See manufacturer
Shifter
SRAM AXS POD Ultimate
Rear derailleur

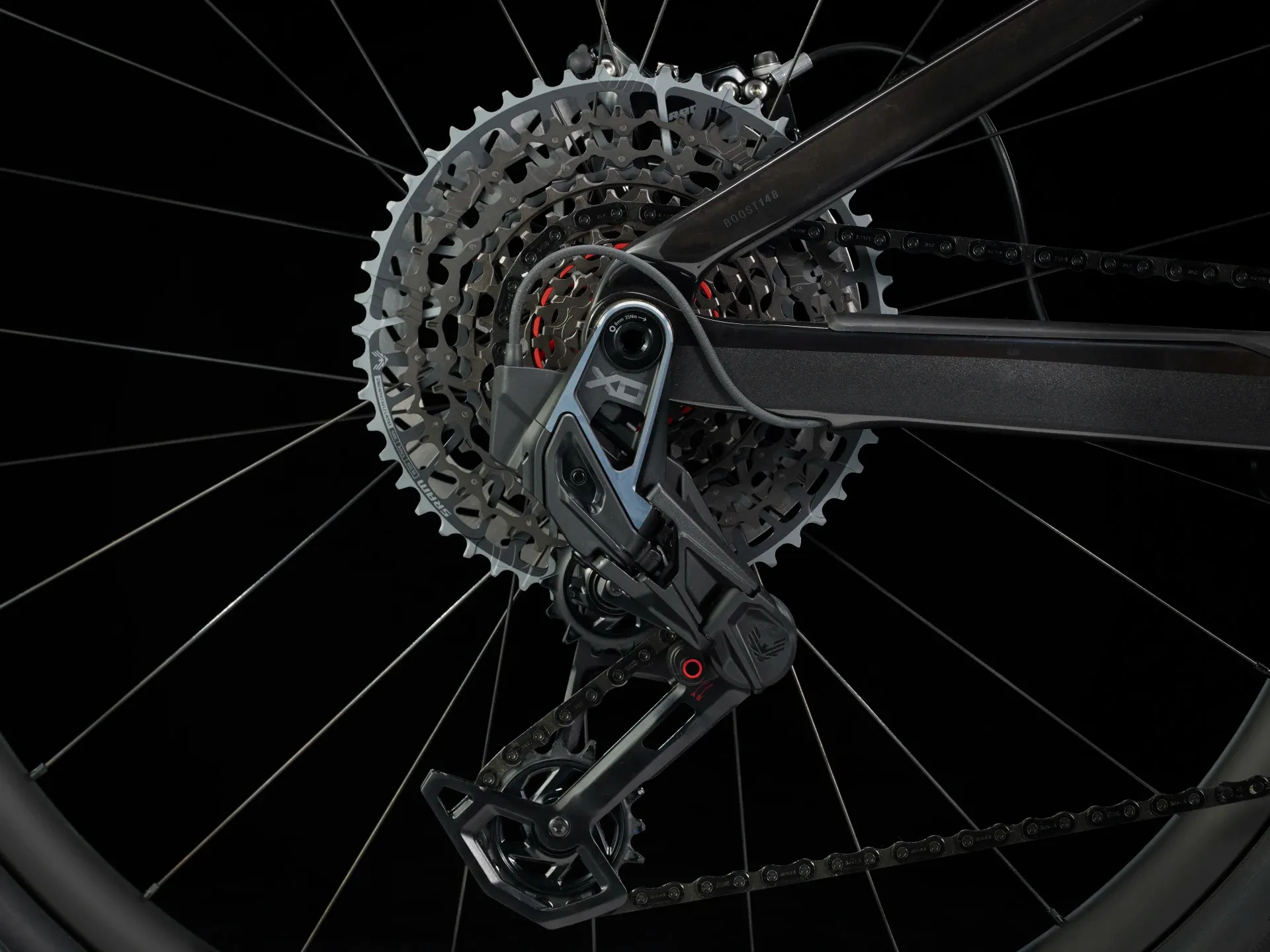

SRAM X0 Eagle AXS, T-Type
Crank
SRAM X0 Eagle, 34T, T-Type,160 mm length
Cassette
SRAM Eagle XS-1295, T-Type, 10-52, 12-speed
Chain
SRAM X0 Eagle, T-Type, 12-speed
Pedal
VP-536 nylon platform
Max. chainring size
1x: 34T
Saddle
Bontrager Arvada, austenite rails, 138 mm width
Seatpost
Size:S
RockShox Reverb AXS, 100 mm travel, wireless, 34.9 mm, 340 mm length
Size:M
RockShox Reverb AXS, 150 mm travel, wireless, 34.9 mm, 440 mm length
Size:L, XL
RockShox Reverb AXS, 170 mm travel, wireless, 34.9 mm, 480 mm length
Handlebar/stem (integrated)
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 45mm stem length
Grips
Bontrager XR Trail Elite, nylon lock-on
Brake
SRAM Code Silver 4-piston hydraulic disc
Brake rotor
SRAM 6-bolt, 200 mm
Battery
Size: S
Bosch PowerTube 625Wh, smart system
Size:M, L, XL
Bosch PowerTube 750Wh, smart system
Charger
Bosch standard 4A, 230V, smart system
Controller
Size: S, M, L, XL

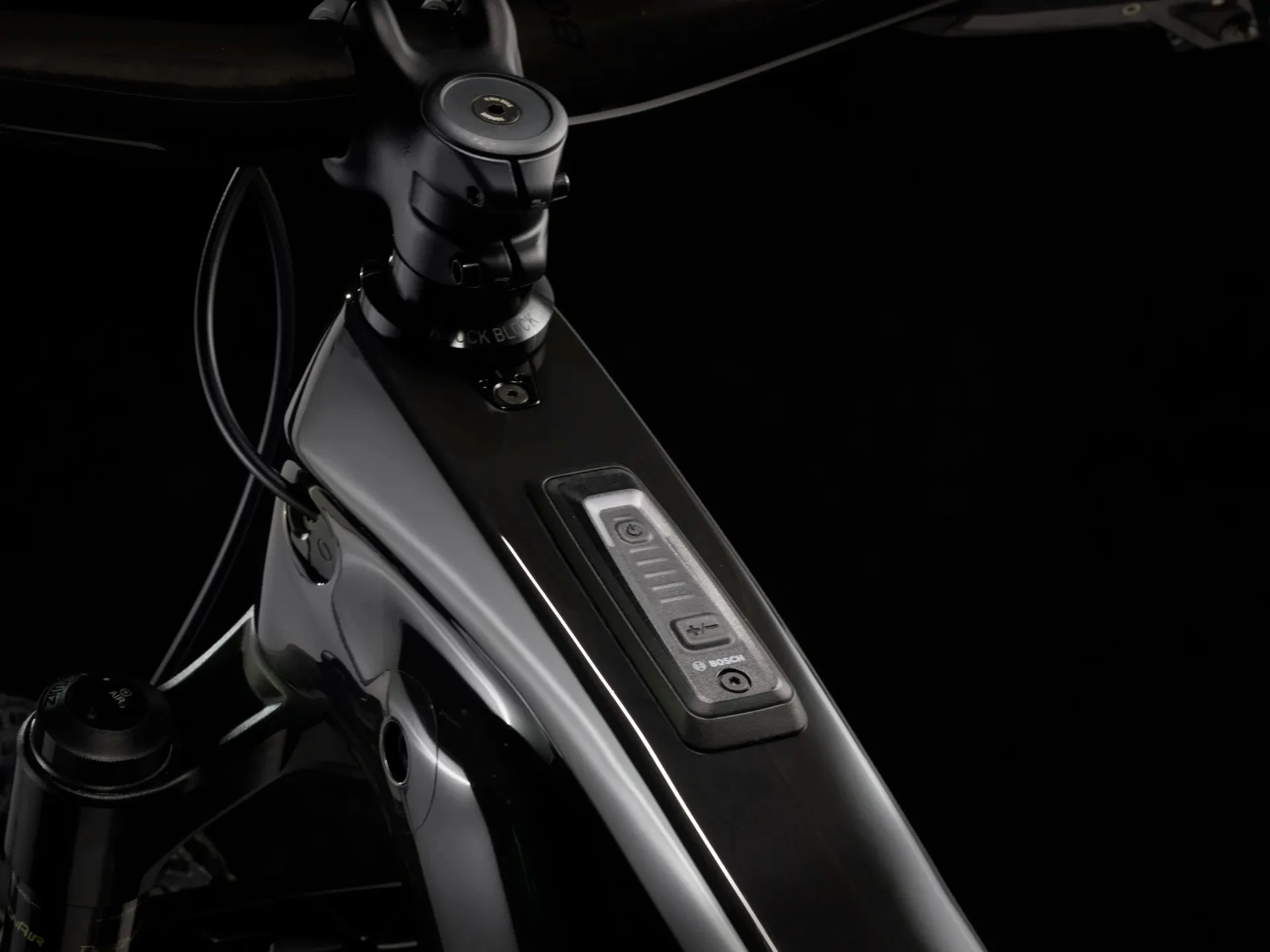

Bosch System Controller BRC3100, smart system
Size:S, M, L, XL

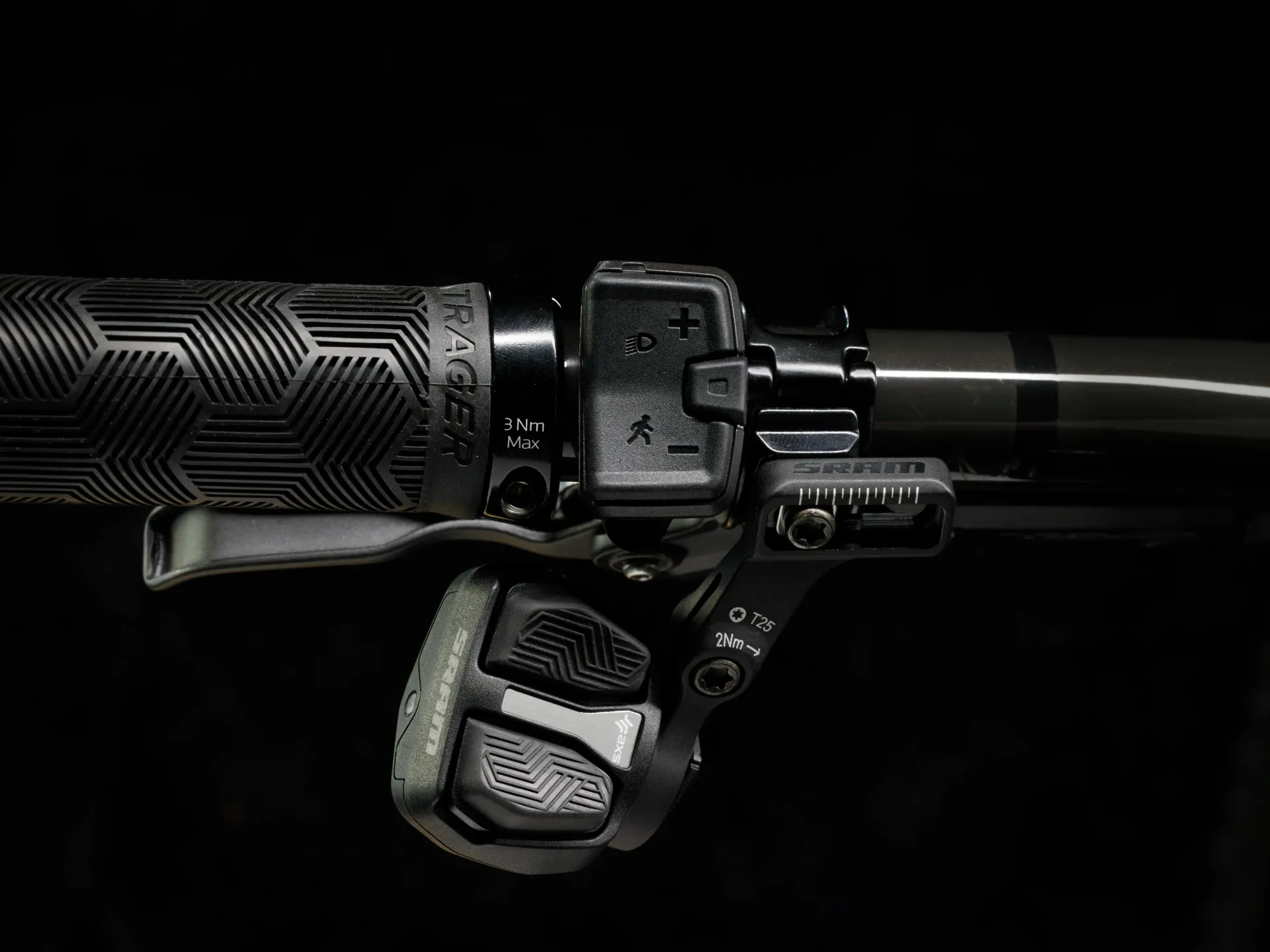

Bosch Mini Remote BRC3300, smart system, 22.2 mm

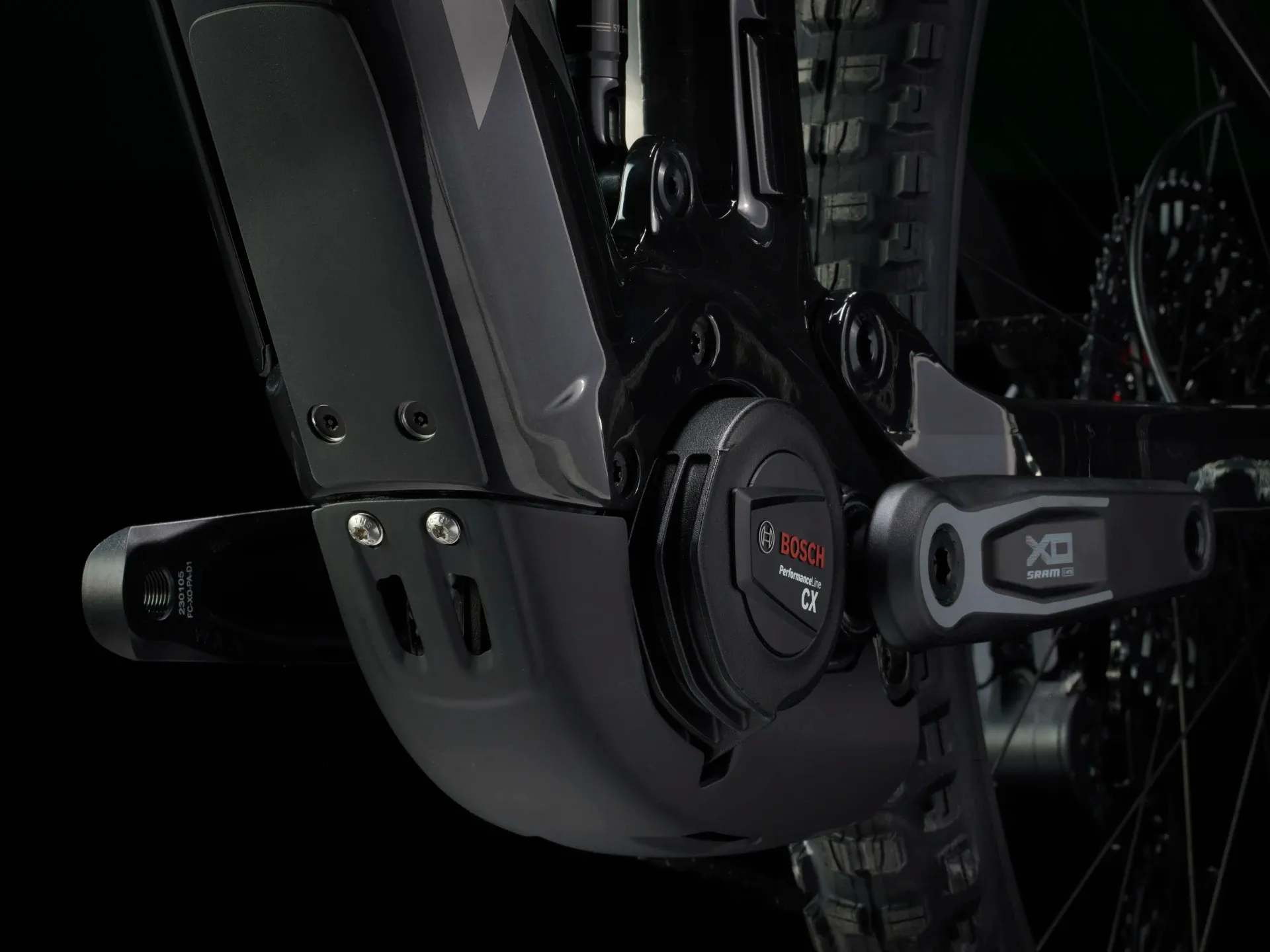

Motor

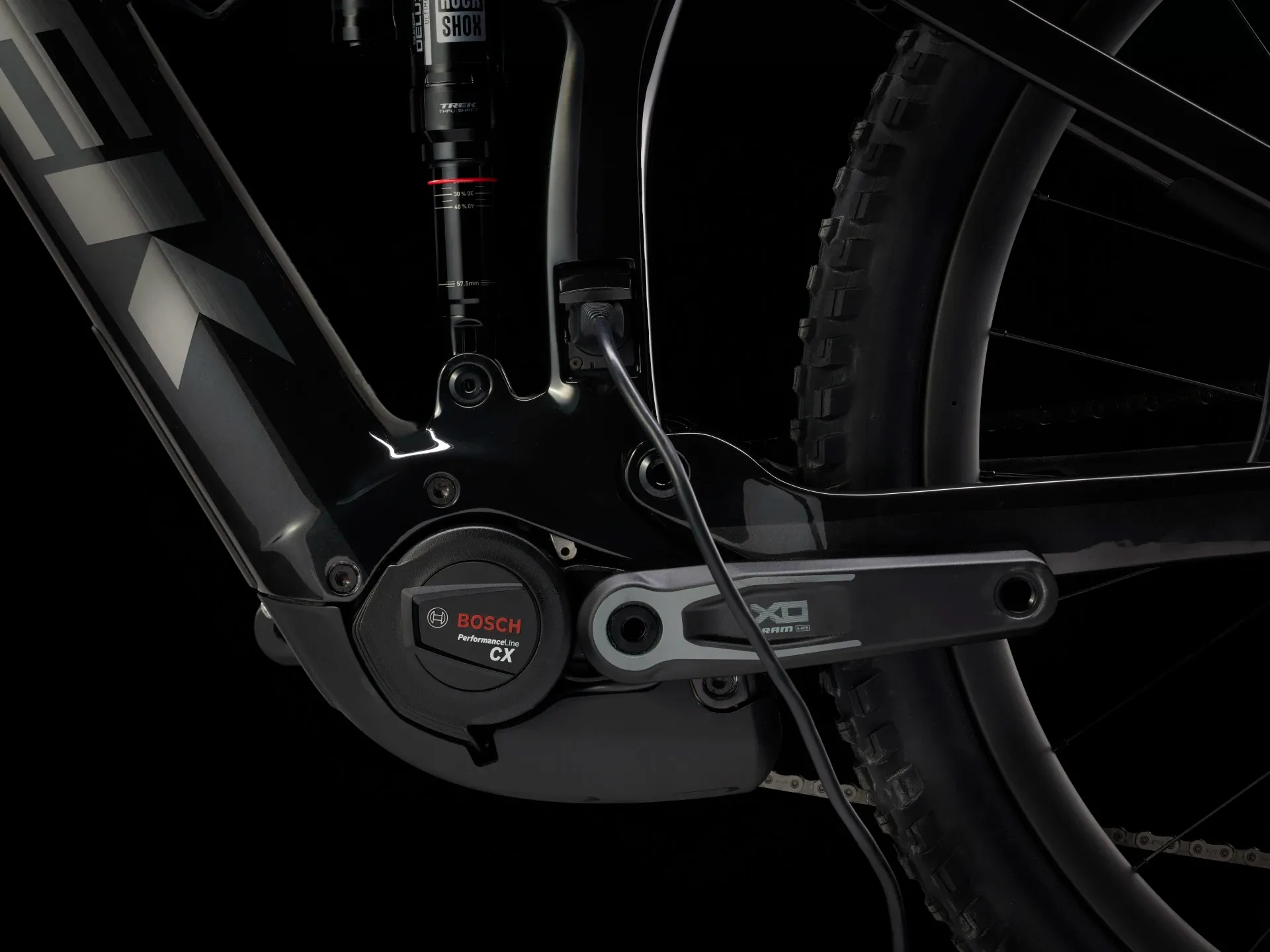

Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm
Weight
M - 23.75 kg / 52.36 lb (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
