Frame

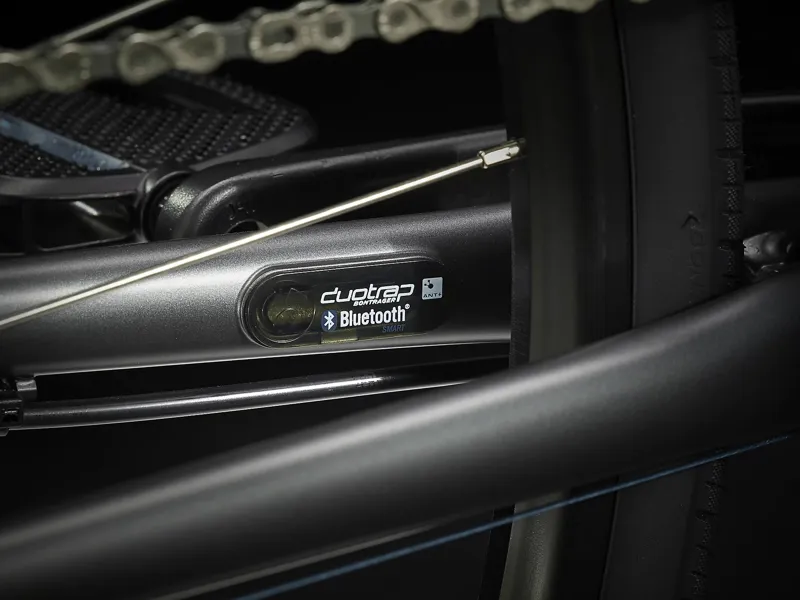

Alpha Gold Aluminium, DuoTrap S-compatible, internal cable routing, flat-mount disc, rack and mudguard mounts, 135x5 mm QR
Fork
FX Alloy, flat-mount disc, rack mounts, 405 mm axle-to-crown, ThruSkew 5 mm QR
Hub front
Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Skewer front
130x5mm QR, ThruSkew
Hub rear
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Skewer rear
152x5mm QR
Rim
Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
Tyre
Bontrager H2 Comp, wire bead, 30 tpi, 700x35c
Max tyre size
38c without mudguards, 35c with mudguards
Shifter
Shimano Altus M2010, 9-speed
Front derailleur
Shimano Acera T3000, 34.9 mm clamp, top swing, dual pull

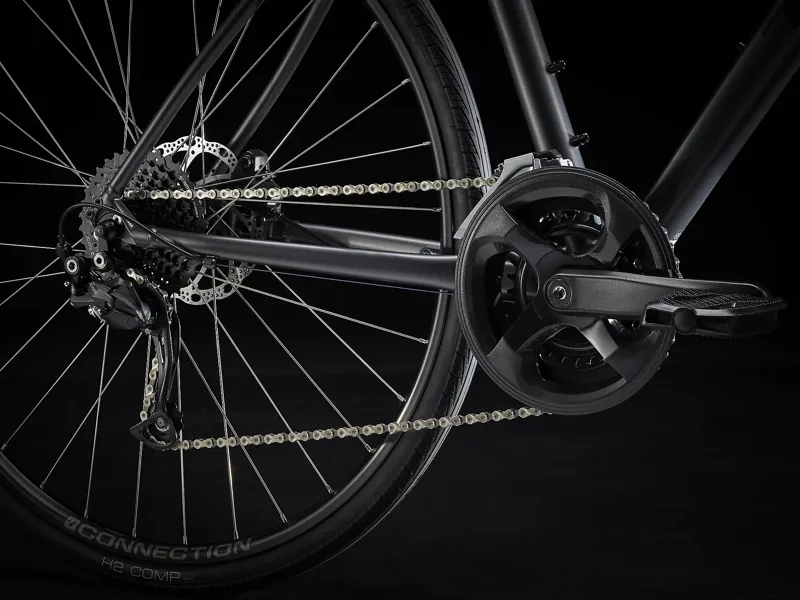

Rear derailleur
Shimano Altus M2000, long cage
Crank
Forged alloy, 46/30, chainguard, 170 mm length
Bottom bracket
Sealed cartridge, 68 mm
Cassette
Shimano HG200, 11-36, 9 speed
Chain
KMC X9
Pedal
Bontrager City pedals
Max. chainring size
1x: 42T, 2x/3x: 48T
Saddle
Bontrager Sport
Seatpost
Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
Handlebar
Size: XS, S, M
Bontrager alloy, 31.8 mm, 15 mm rise, 600 mm width
Size:L, XL, XXL
Bontrager alloy, 31.8 mm, 15 mm rise, 660 mm width
Grips
Bontrager Satellite
Stem
Size: XS, S, M
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length
Size:L, XL, XXL
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 100 mm length
Head set
1 1/8" steel threadless
Brake
Tektro HD-R280 hydraulic disc, flat-mount, 160 mm rotor
Rotor size
Max brake rotor size: 160 mm
Weight
M - 25.86 lb / 11.73 kg
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
