Frame

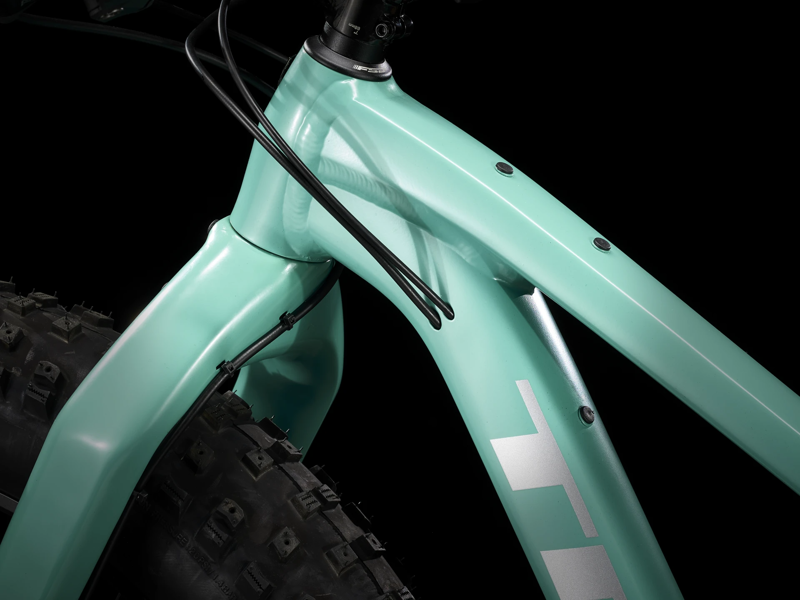

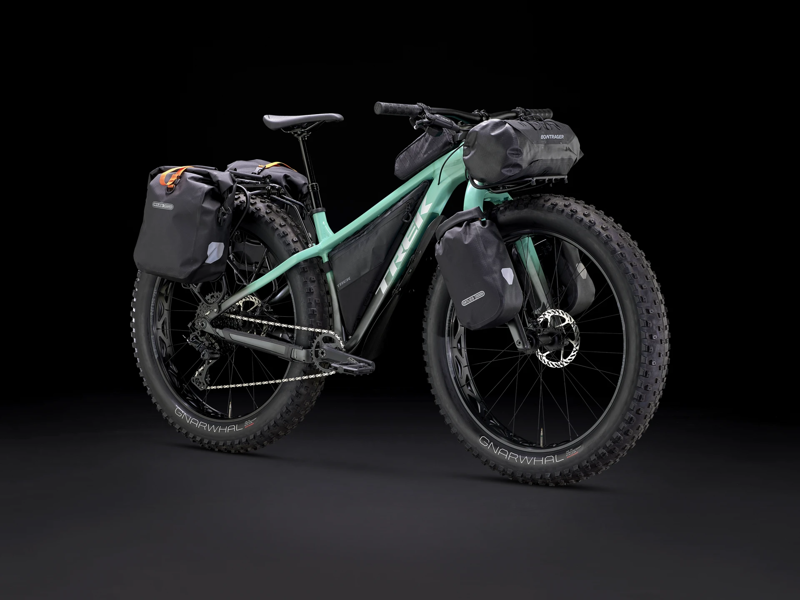

Alpha Platinum Aluminium, tapered head tube, top tube bag mounts, strapless full frame bag mounts, downtube mudguard mount, lower downtube accessory mount, seat stay rear rack mounts, internal rear derailleur and dropper post routing, threaded BB, UDH, 197x12 mm
Fork
Farley carbon, tapered alloy steerer, crown rack mounts, lower leg cage mounts, 150x15 mm thru axle
Max compatible fork travel
80mm (492mm axle-to-crown)
Hub front
Bontrager alloy, sealed bearing, 6-bolt disc, 150x15 mm thru axle
Skewer front
Bontrager Switch thru-axle, removable lever
Hub rear
Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano 10 freehub, 197x12mm thru axle
Skewer rear
Bontrager Switch thru-axle, removable lever
Rim
SUNRingle Mulefut 80 SL, 32-hole cutout

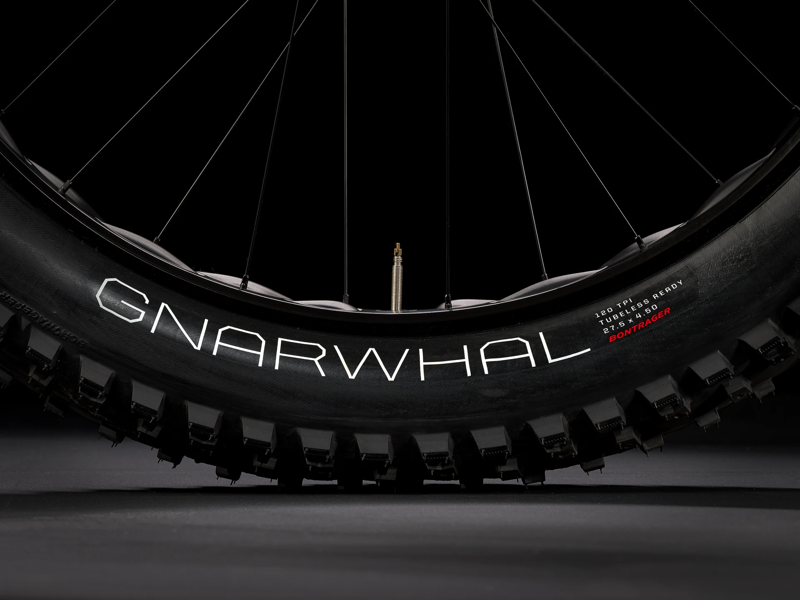

Tyre
Bontrager Gnarwhal Team Issue, Tubeless Ready, Inner Strength sidewalls, studdable, aramid bead, 120 tpi, 27.5x4.50'"'
Max tyre size
27.5x4.50"
Shifter
microSHIFT Advent X SL-M9605, 10-speed

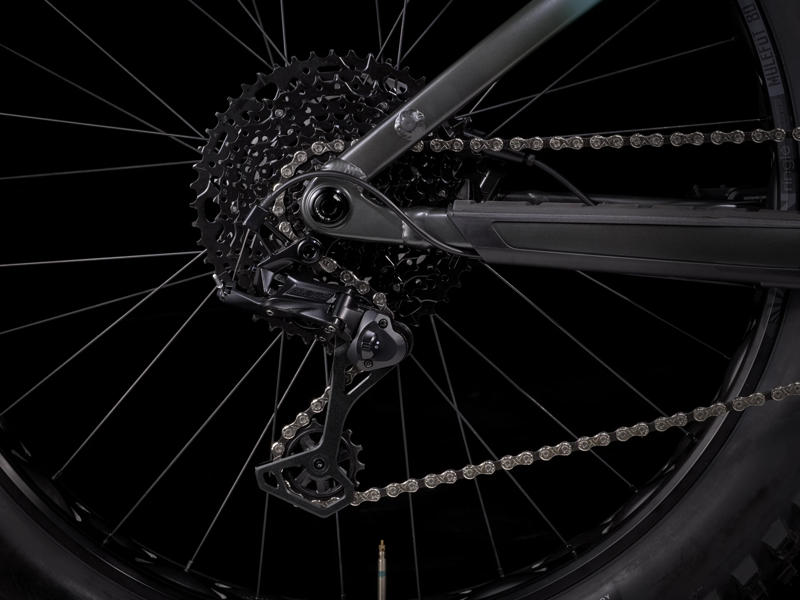

Rear derailleur
microSHIFT Advent X RD-M6205AM, 48T max cog
Crank
Size:S, M, L
FSA Comet, 30T, 170mm length
Size:XL
FSA Comet, 30T, 175mm length
Bottom bracket
FSA BB-7100, 100mm, BSA threaded
Cassette
microSHIFT Advent X, 11-48, 10-speed
Chain
KMC X10, 10-speed
Pedal
VP-536 nylon platform
Max. chainring size
1x: 32T
Saddle
Bontrager Verse P3, steel rails
Seatpost
Size:S
TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
Size:M
TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length
Size:L, XL
TranzX JD-YSP18, 150mm travel, internal routing, 31.6 mm, 470mm length
Handlebar
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips
Bontrager XR Trail Comp, nylon lock-on
Stem
Size:S
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length
Size:M
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
Size:L, XL
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length
Head set
FSA IS-2, 1-1/8" top, 1.5" bottom
Brake
SRAM Level hydraulic disc

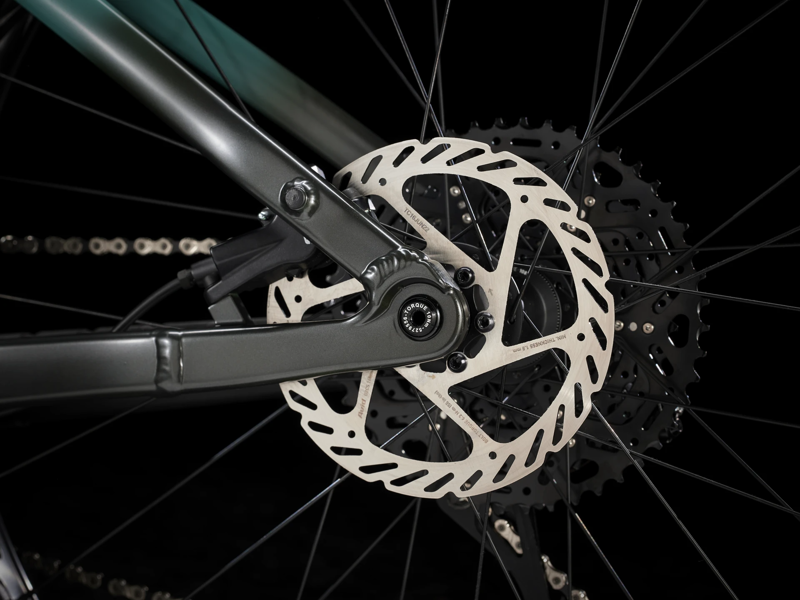

Brake rotor
Avid G2 CleanSweep, 6-bolt, 160 mm
Brake Set
SRAM Level hydraulic disc
Rotor size
Max brake rotor sizes: 180mm front & rear
Weight
M - 16.20 kg / 35.72 lbs (with tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
