Frame

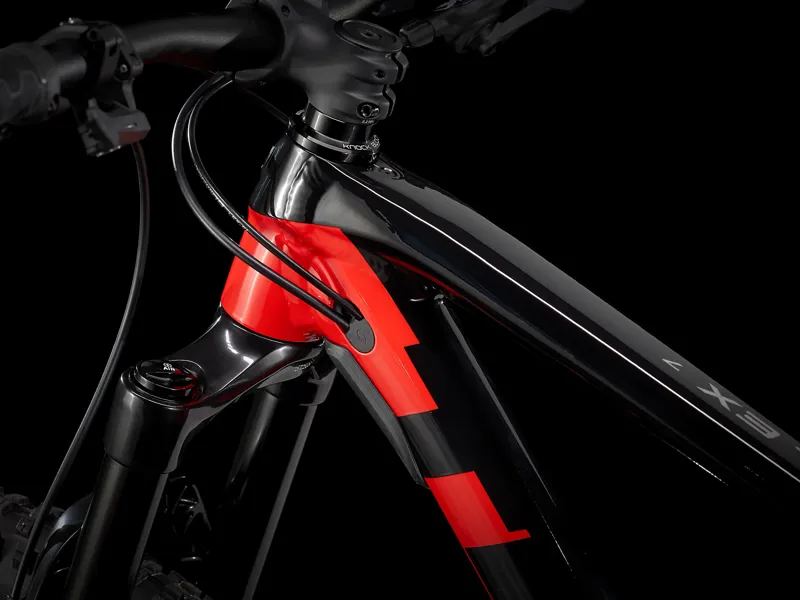

Alpha Platinum Aluminium, tapered head tube, Knock Block, Control Freak internal routing, downtube guard, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130 mm travel
Fork
RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 140 mm travel
Shock
Size: XS , S
Fox Performance Float EVOL, 3-position DPS damper, tuned by Trek Suspension Lab, 210 mm x 52.5 mm
Size:S , M , ML , L , XL , XXL
Fox Performance Float EVOL, 3-position DPS damper, tuned by Trek Suspension Lab, 210 mm x 55 mm
Max compatible fork travel
150mm (561mm axle-to-crown)
Wheel front
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
Wheel rear
Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 54, 6-bolt, Shimano 8/9/10 freehub, Boost148, 12mm thru axle
Hub front
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Skewer rear
Bontrager Switch thru-axle, removable lever
Rim
Bontrager Line Comp 30, Tubeless-Ready
Spokes
Size: XS , S
DT Swiss Champion, J-Bend, Black
Size:S , M , ML , L , XL , XXL
14g stainless
Tyre
Size: XS , S , M , ML , L , XL , XXL
Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29.x2.40"
Size:XS , S
Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5x2.60"
Size:S , M , ML , L , XL , XXL
Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29x2.60"
Tyre part
Bontrager TLR sealant, 180 ml/6 oz
Max tyre size
Frame: 29x2.60" Fork: See manufacturer
Shifter
SRAM NX Eagle, 12-speed
Rear derailleur
SRAM NX Eagle
Crank
Size: XS , S , M , ML , L
SRAM NX Eagle, DUB, 30T steel ring, Boost (52mm chainline), 170mm length
Size:M , ML , L , XL , XXL
SRAM NX Eagle, DUB, 30T steel ring, Boost, 175 mm length
Bottom bracket
SRAM DUB, 92 mm, PressFit
Cassette
SRAM PG-1230 Eagle, 11-50, 12 speed
Max. chainring size
34T
Saddle
Bontrager Arvada, steel rails, 138 mm width
Seatpost
Size: XS , S
TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
Size:XS , S
Bontrager Line Dropper, 100 mm travel, internal routing, 31.6 mm, 345 mm length
Size:M , ML , L , XL , XXL
TranzX JD-YSP18, 150mm travel, internal routing, 31.6 mm, 470mm length
Size:M , ML , L , XL , XXL
Bontrager Line Dropper, 150mm travel, internal routing, 31.6 mm, 440mm length
Handlebar
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips
Bontrager XR Trail Comp, nylon lock-on
Stem
Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length
Brake
Size: XS , S , M , ML , L , XL , XXL
Shimano hydraulic disc, MT4100 lever, MT410 calliper
Size:XS , S , M , ML , L , XL , XXL
TRP Slate EVO hydraulic disc
Brake rotor
Size: XS , S , M , ML , L , XL , XXL
Shimano RT56, 6-bolt, 180 mm
Size:XS , S , M , ML , L , XL , XXL
TRP, 6-bolt, 180 mm
Weight
M - 14.48 kg/31.93 lb (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
