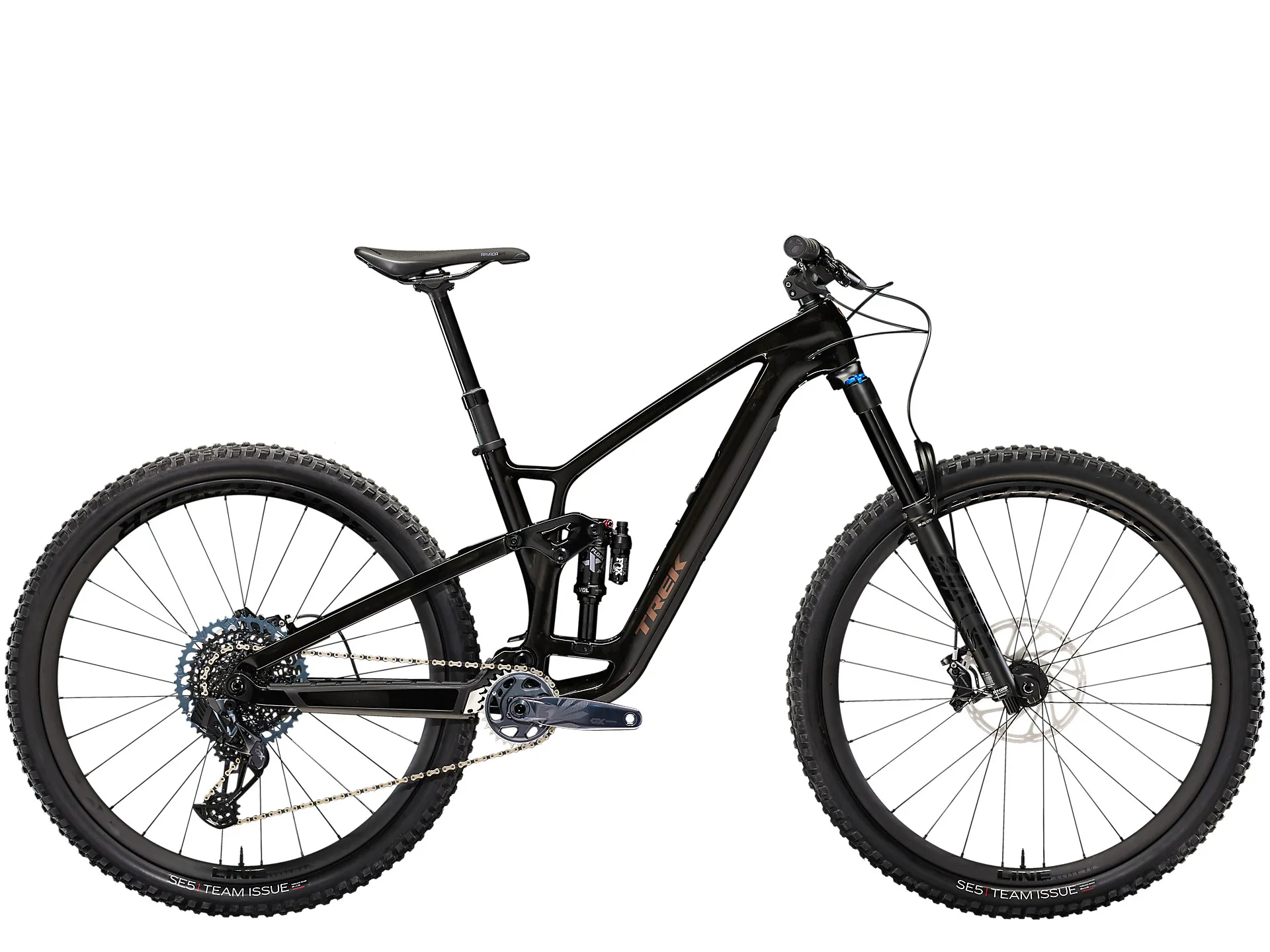

Frame

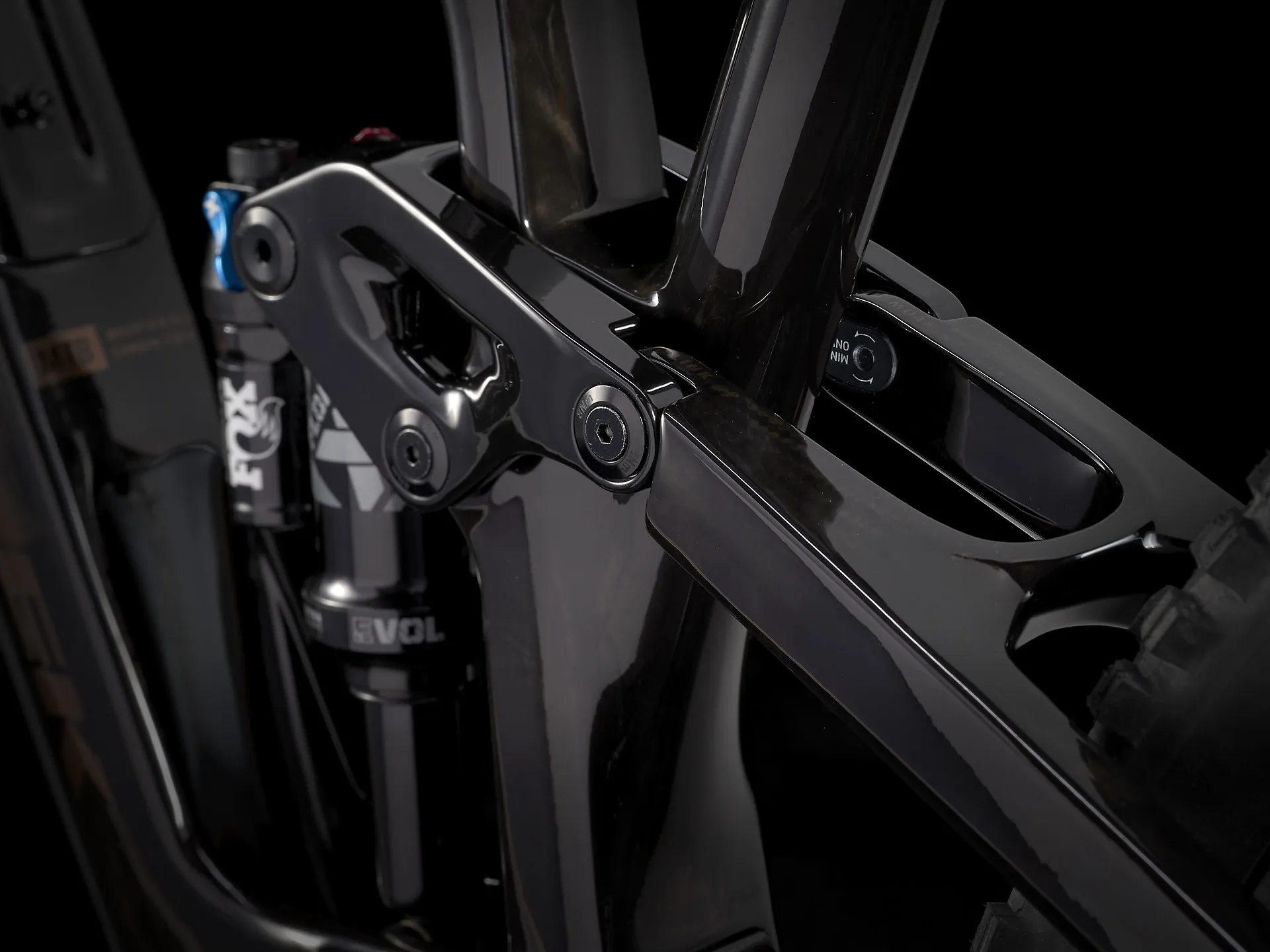

OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9 mm seat tube, ISCG 05, 55 mm chain line, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140 mm travel
Fork
Fox Performance 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 150 mm travel

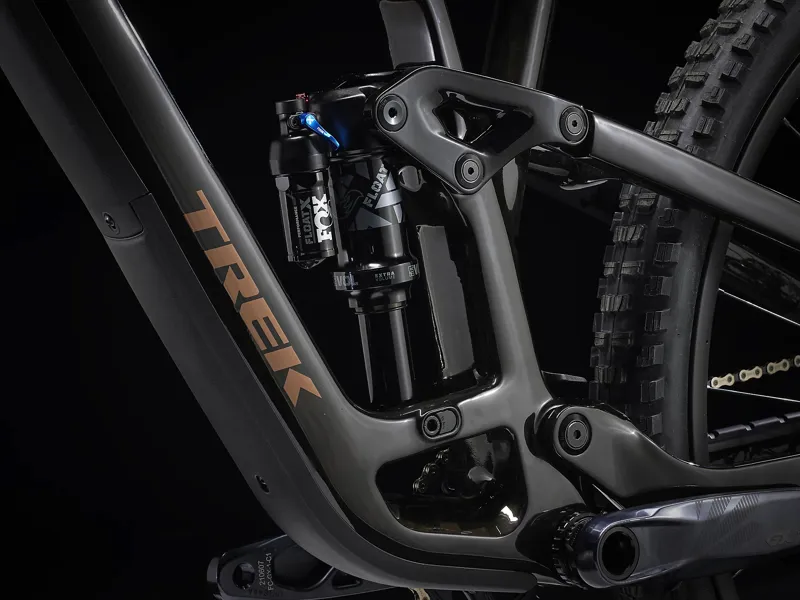

Shock
Fox Performance Float X, 2-position damper, 185mm x 55mm
Wheel front
Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
Wheel rear
Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost 148, 12mm thru axle
Hub front
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Hub rear
Bontrager alloy, sealed bearing, 6-bolt, 108T Rapid Drive, SRAM XD driver, Boost148, 12 mm thru axle
Skewer rear
Bontrager Switch thru-axle, removable lever
Rim
Bontrager Line Elite 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
Tyre
Size:XS , S

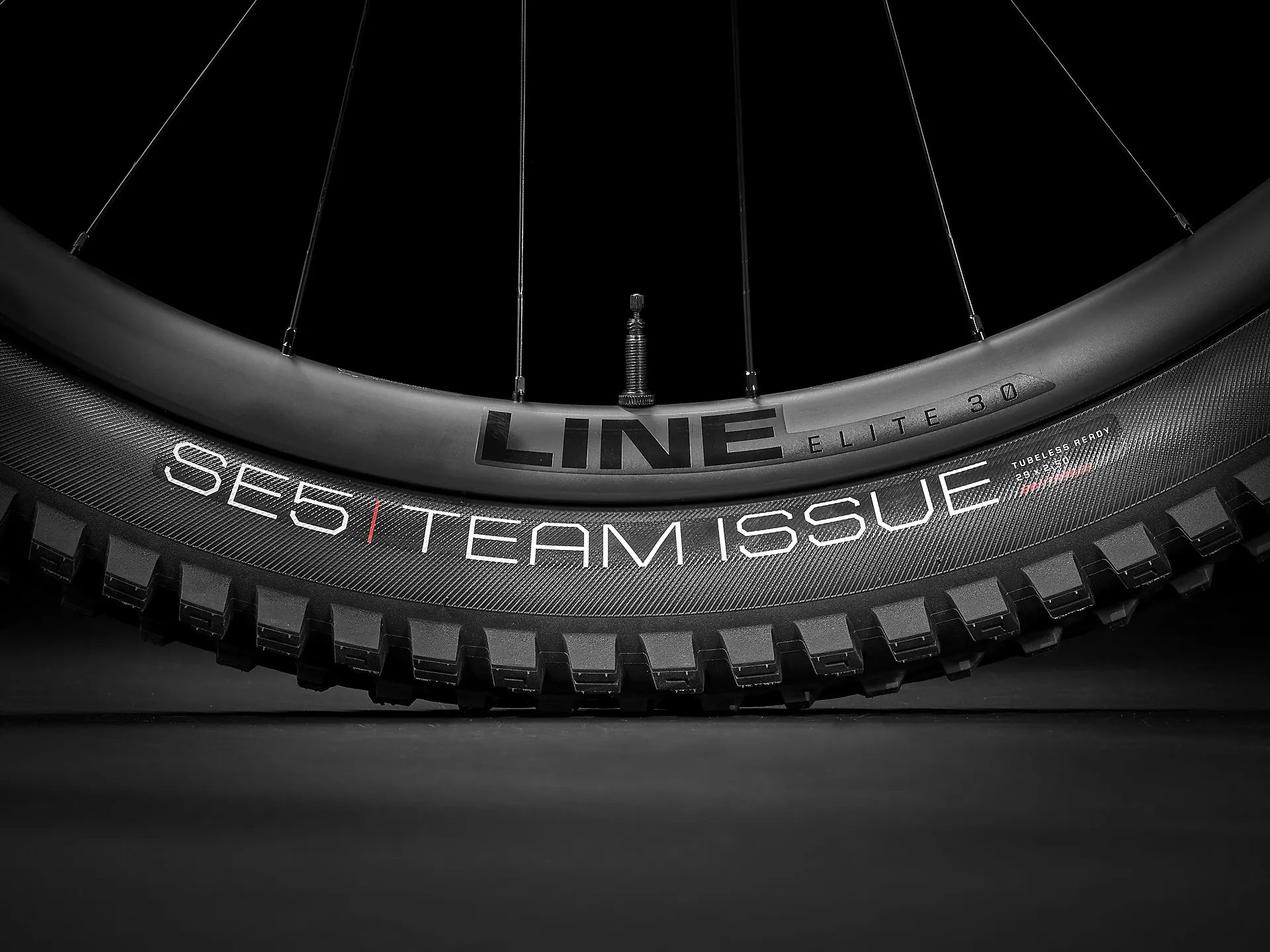

Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 27.5x2.50"
Size:S , M , ML , L , XL
Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"
Tyre part
Bontrager TLR sealant, 180 ml/6 oz
Rim strip
Bontrager TLR
Shifter
SRAM GX Eagle AXS, 12-speed

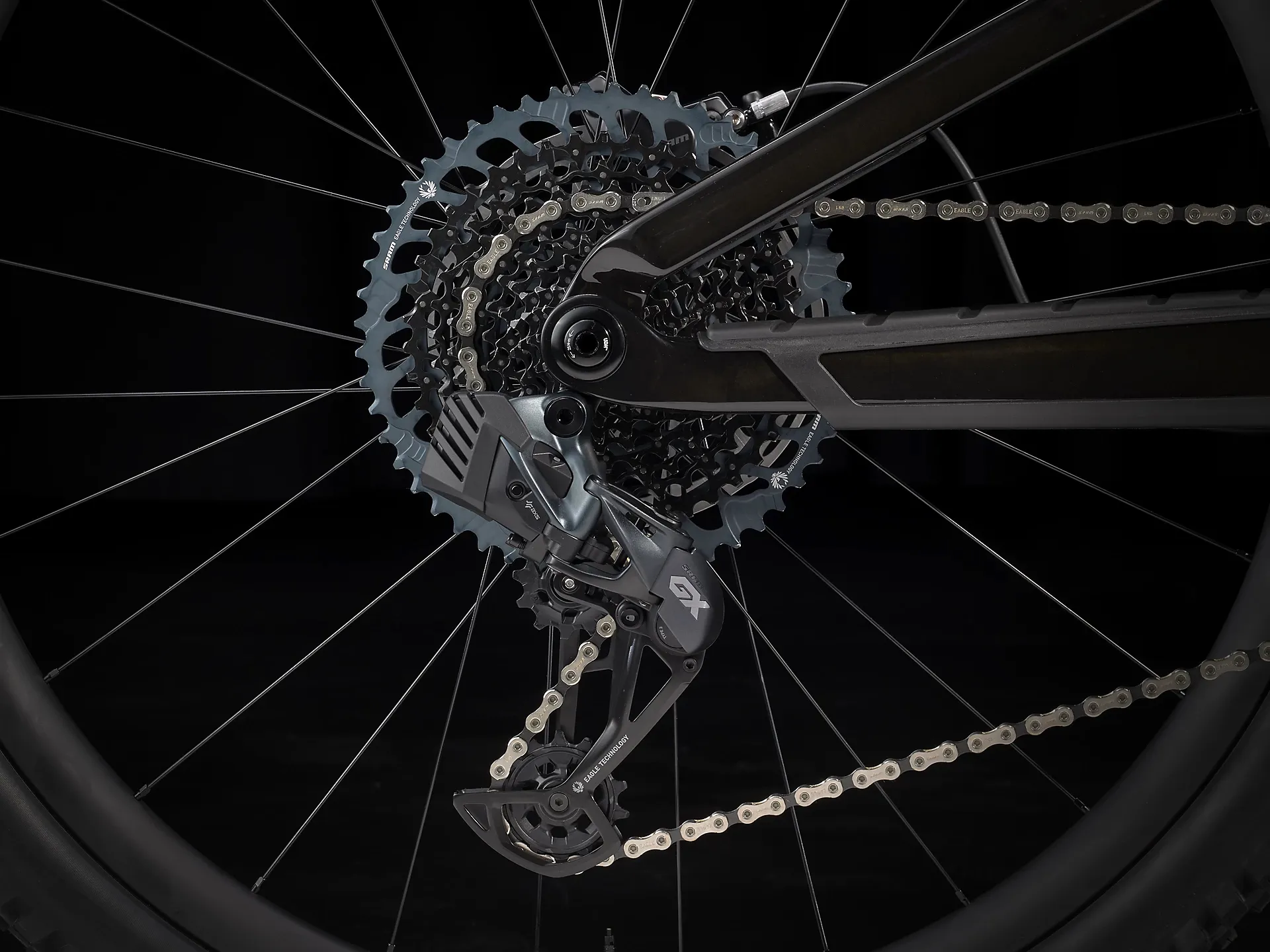

Rear derailleur
SRAM GX Eagle AXS
Crank
SRAM GX Eagle, DUB MTB Wide, 30T, 55mm chainline, 170 length
Bottom bracket
SRAM DUB MTB Wide, 73 m, BSA threaded
Cassette
SRAM Eagle XG-1275, 10-52, 12-speed
Chain
SRAM GX Eagle, 12-speed
Saddle
Bontrager Arvada, austenite rails, 138 mm width
Seatpost
Size:XS , S
Bontrager Line Elite Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 345mm length
Size:M , ML
Bontrager Line Elite Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 440mm length
Size:L
Bontrager Line Elite Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 485mm length
Size:XL
Bontrager Line Elite Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 550mm length
Integrated Bar Stem
Size:XS , S
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 35mm stem length
Size:M , ML , L , XL
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 45mm stem length
Grips
Bontrager XR Trail Elite, nylon lock-on
Head set
Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible
Brake
SRAM Code R 4-piston hydraulic disc

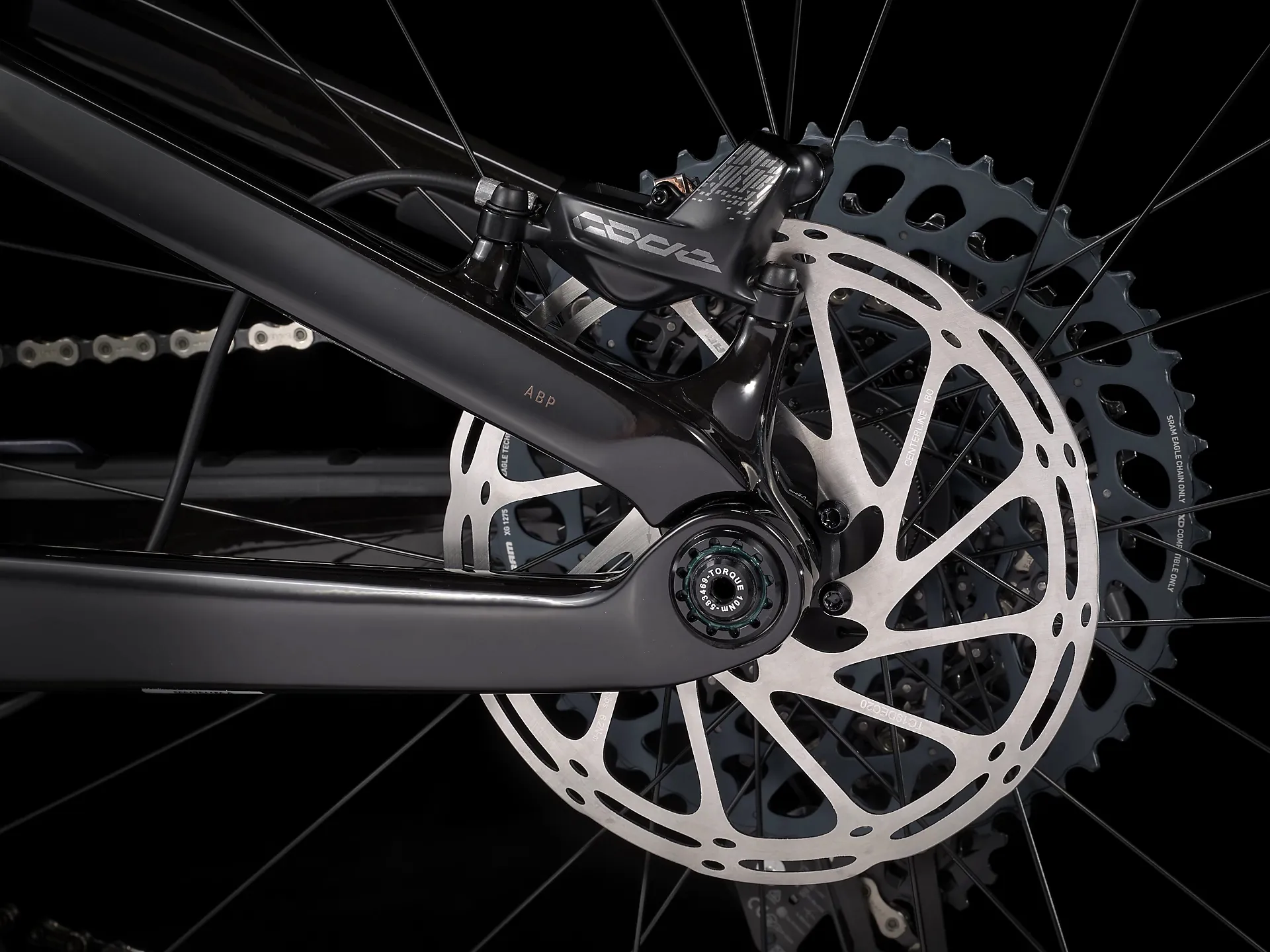

Brake rotor
Size:XS , S , M , ML , L , XL
SRAM CenterLine, 6-bolt, round edge, 180 mm
Size:M , ML , L , XL
SRAM CenterLine, 6-bolt, round edge, 200 mm
Size:M , ML , L , XL
SRAM 6-bolt, 200mm
Brake Set
SRAM Code R 4-piston hydraulic disc

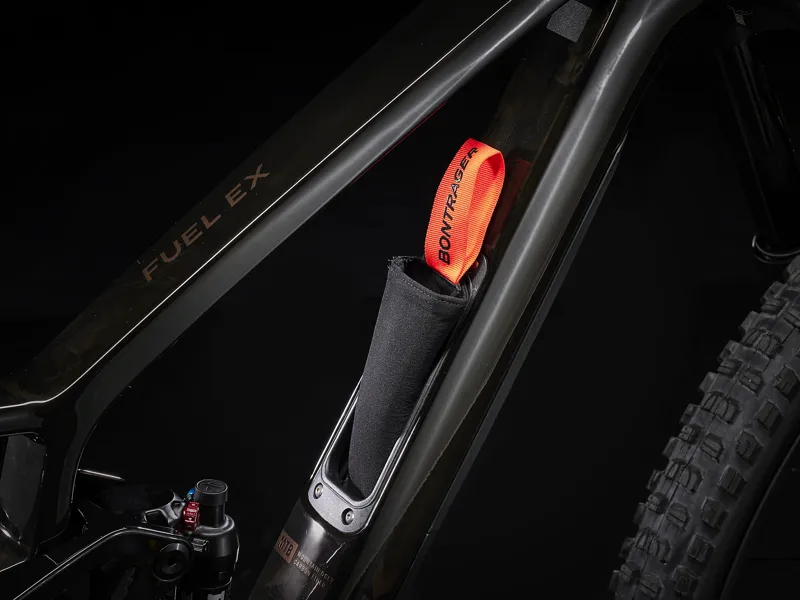

Bag
Bontrager BITS Internal Frame Storage Bag
Weight
M – 14.15 kg/31.21 lb (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
