Saddle | Verse Short, chromoly rails, 145 mm width |
---|
*Seatpost | Size:S , M Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6 mm, 310 mm length |
---|
Size:ML , L Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 31.6 mm, 410 mm length |
Size:XL Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 31.6 mm, 450 mm length |

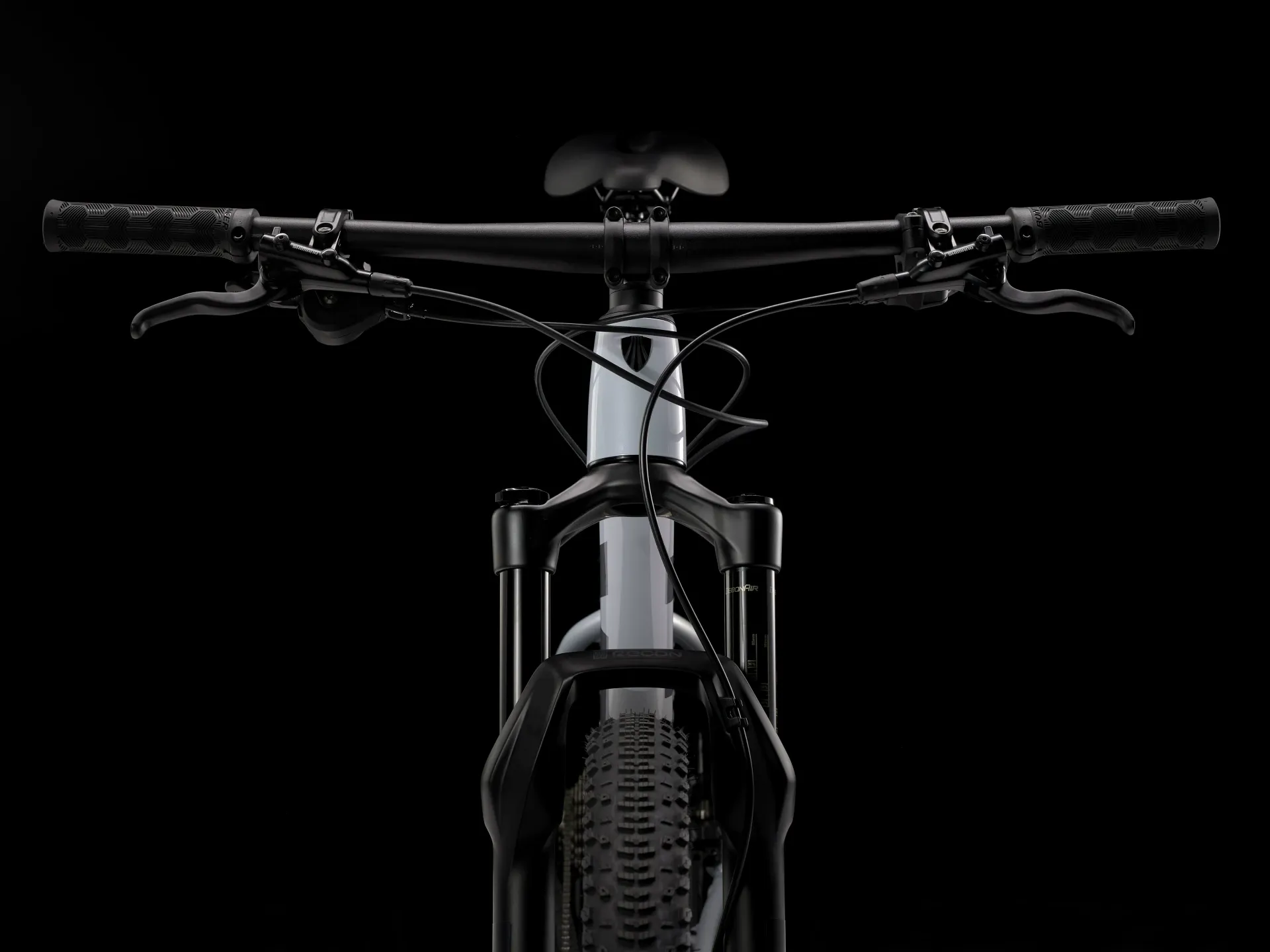

*Handlebar | Size:S , M Bontrager Comp, alloy, 31.8 mm, 5 mm rise, 720 mm width |
---|
Size:ML , L , XL Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750mm width |

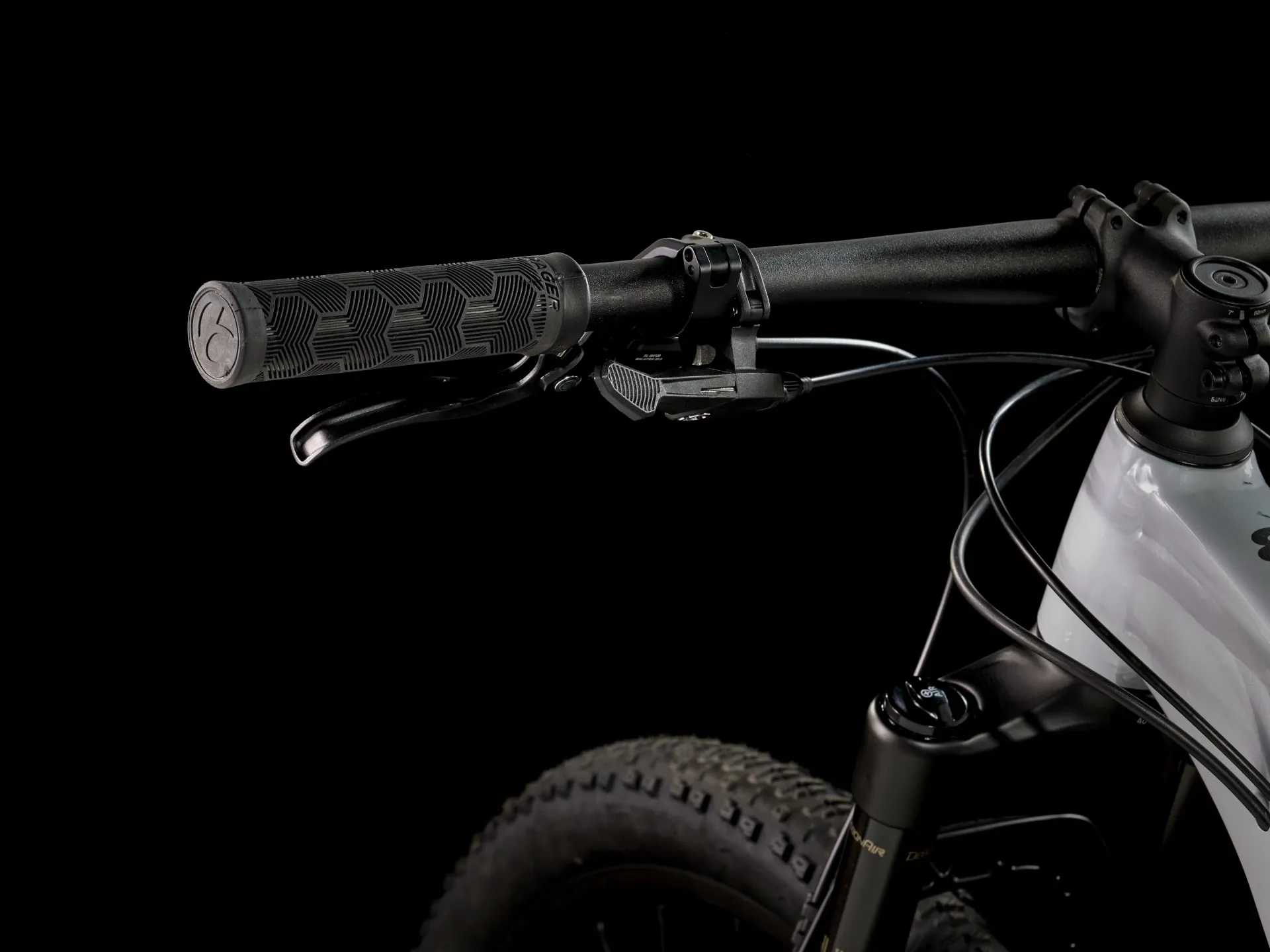

Grips | Bontrager XR Trail Comp, nylon lock-on |
---|
*Stem | Size:S Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length |
---|
Size:M , ML Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length |
Size:L Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length |
Size:XL Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length |

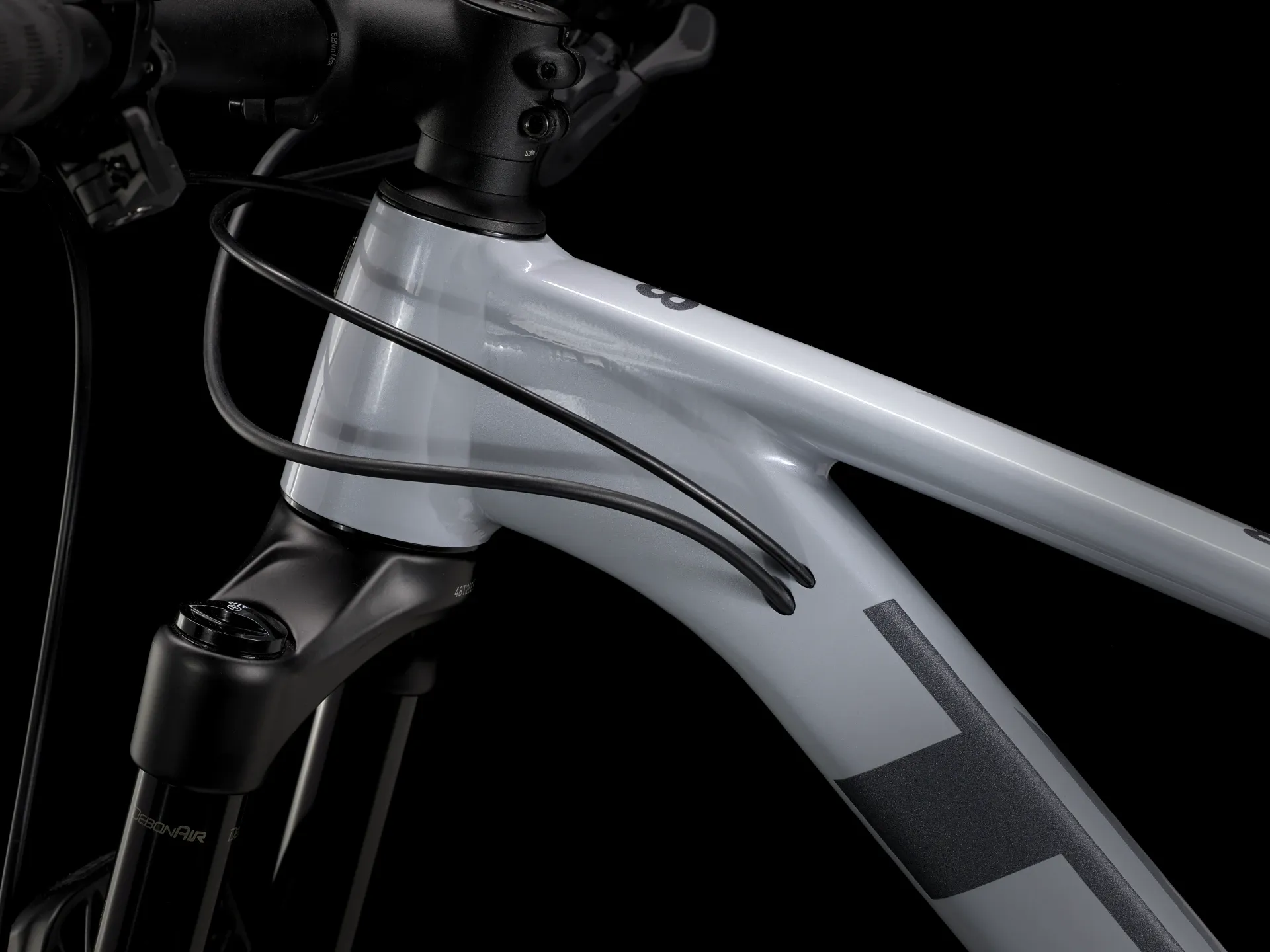

Head set | Semi-integrated, sealed cartridge bearing, alloy cups, 1-1/8" top, 1.5" bottom |
---|

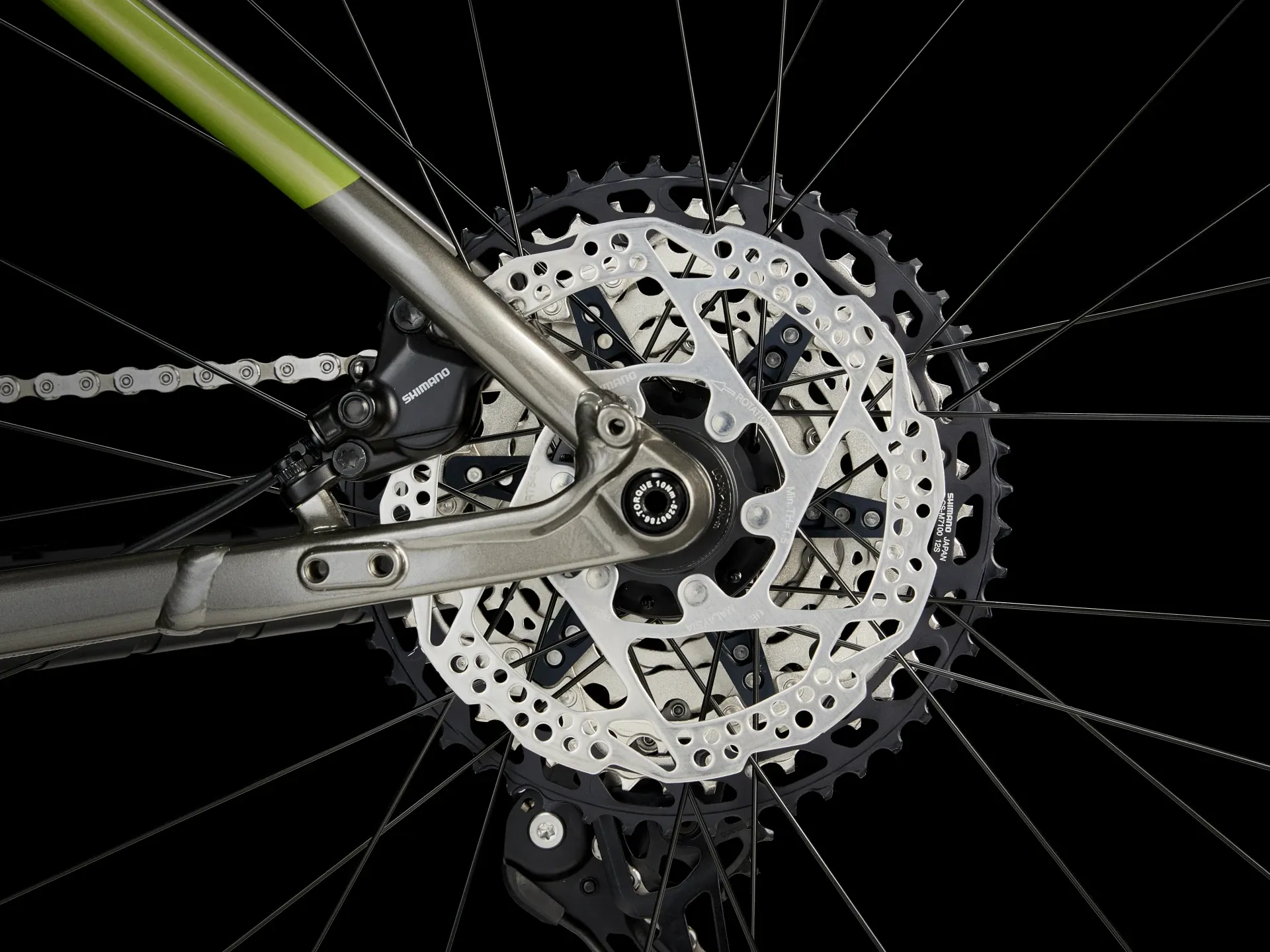

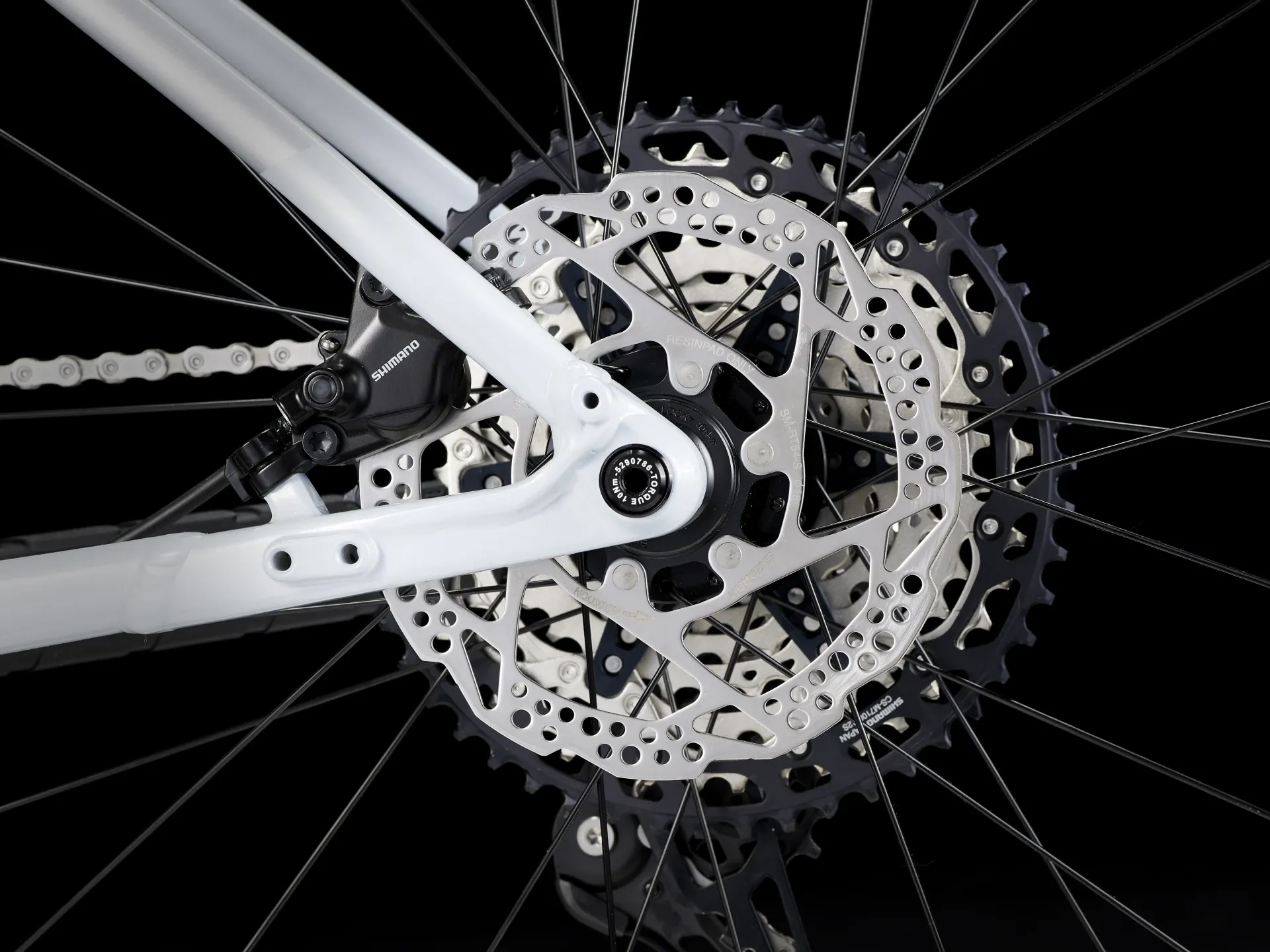

Brake | Shimano hydraulic disc, MT4100 lever, MT410 calliper |
---|
*Brake rotor | Size:S , M , ML , L , XL Shimano RT54, CentreLock, 160mm |
---|
Size:S , M , ML , L , XL Shimano RT54, CentreLock,180 mm |
Rotor size | Max brake rotor sizes – Frame: 180 mm, Fork: see fork manufacturer |
---|
