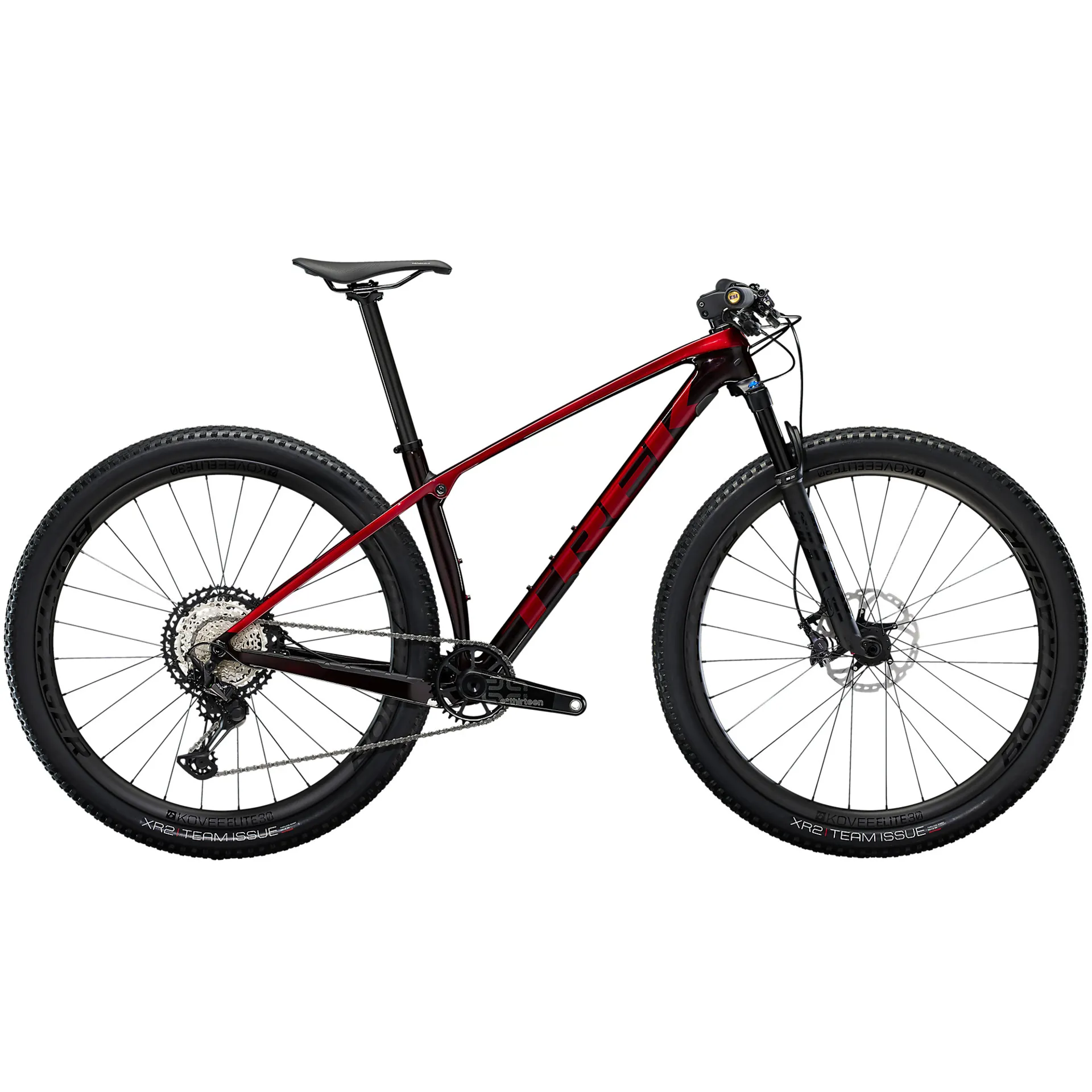

Frame
OCLV Mountain Carbon, IsoSpeed, tapered head tube, Knock Block, internal control routing, balanced post-mount brake, Boost148

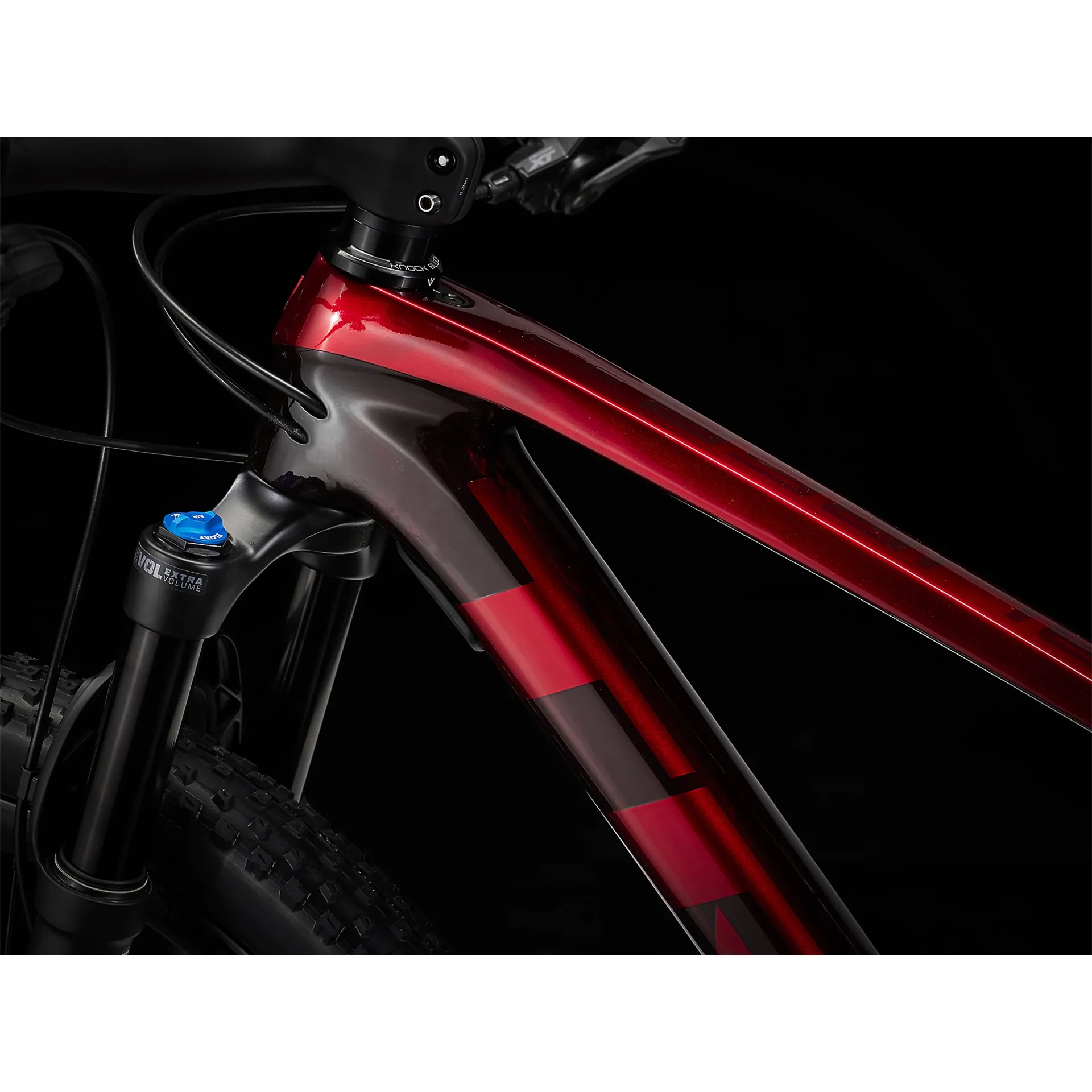

Fork
Fox Performance 32 Step-Cast, Float EVOL air spring, GRIP 2-position damper, remote lockout, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 100 mm travel
Suspension lever
Fox 2-position lockout lever
Max compatible fork travel
120mm (533 axle-to-crown)
Wheel front
Bontrager Kovee Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost 110, 15mm thru axle
Wheel rear
Bontrager Kovee Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 54, Microspline, 6-bolt, Boost148, 12mm thru axle
Hub front
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Hub rear
Size: S , M , ML , L , XL , XXL
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
Size:S , M , ML , L , XL , XXL
Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano MicroSpline freehub, Boost148, 12mm thru axle
Skewer rear
Bontrager Switch thru-axle, removable lever

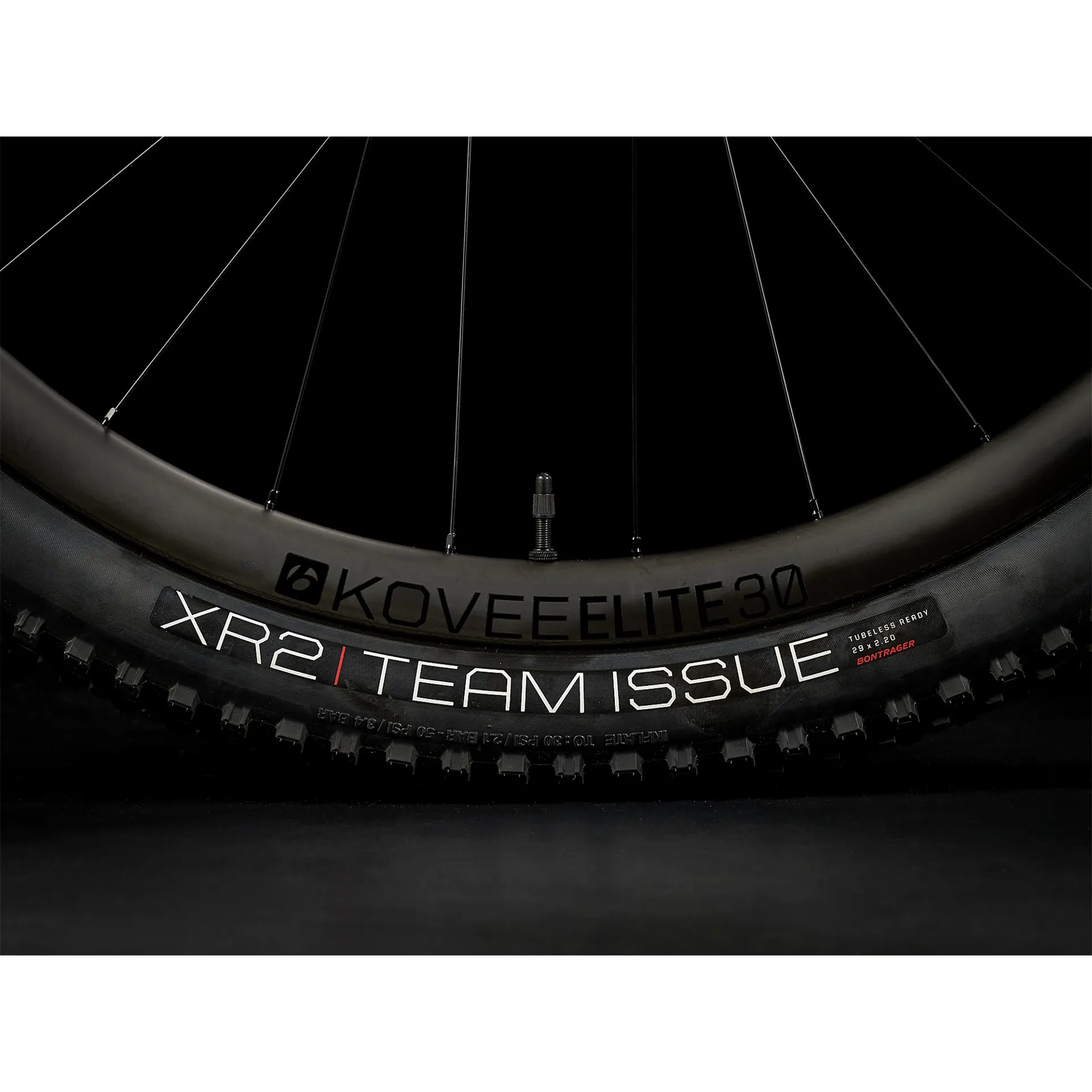

Rim
Bontrager Kovee Elite 30, OCLV Mountain Carbon, Tubeless-Ready
Tyre
Bontrager XR2 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.20"
Rim strip
Bontrager TLR
Max tyre size
Frame: 29x2.40" Fork: See manufacturer
Shifter
Shimano XT M8100, 12-speed

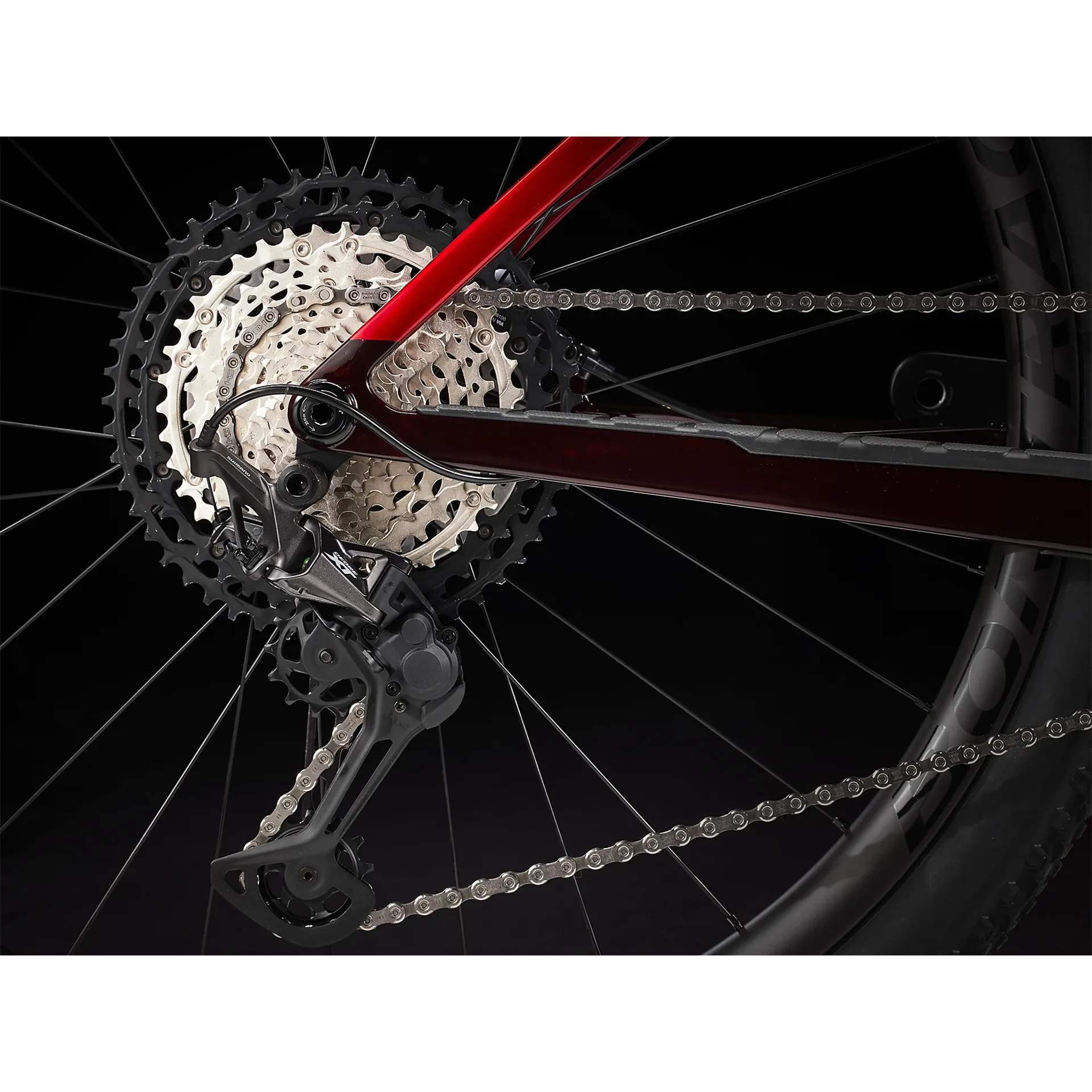

Rear derailleur
Shimano XT M8100, long cage

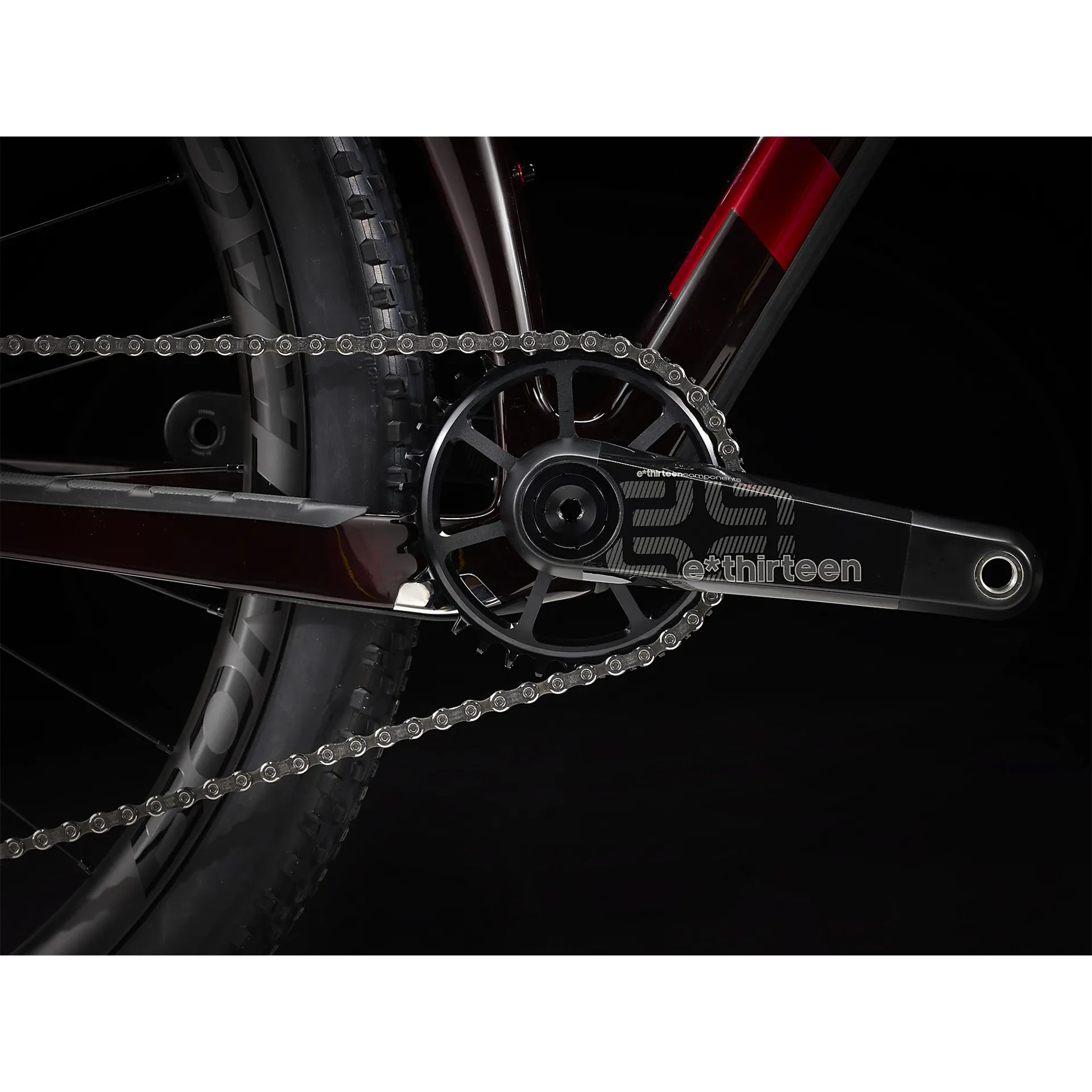

Crank
Size: S
e*thirteen TRS Race Carbon, 30mm spindle, 34T alloy ring, 52mm chainline, 170mm length
Size:M , ML , L , XL , XXL
e*thirteen TRS Race Carbon, 30mm spindle, 34T alloy ring, 52mm chainline, 175mm length
Bottom bracket
e*thirteen BB20-92
Cassette
Shimano XT M8100, 10-51, 12 speed
Chain
Shimano XT M8100, 12-speed
Max. chainring size
36T, Min 30T
Saddle
Bontrager Verse Elite, austenite rails, 145 mm width

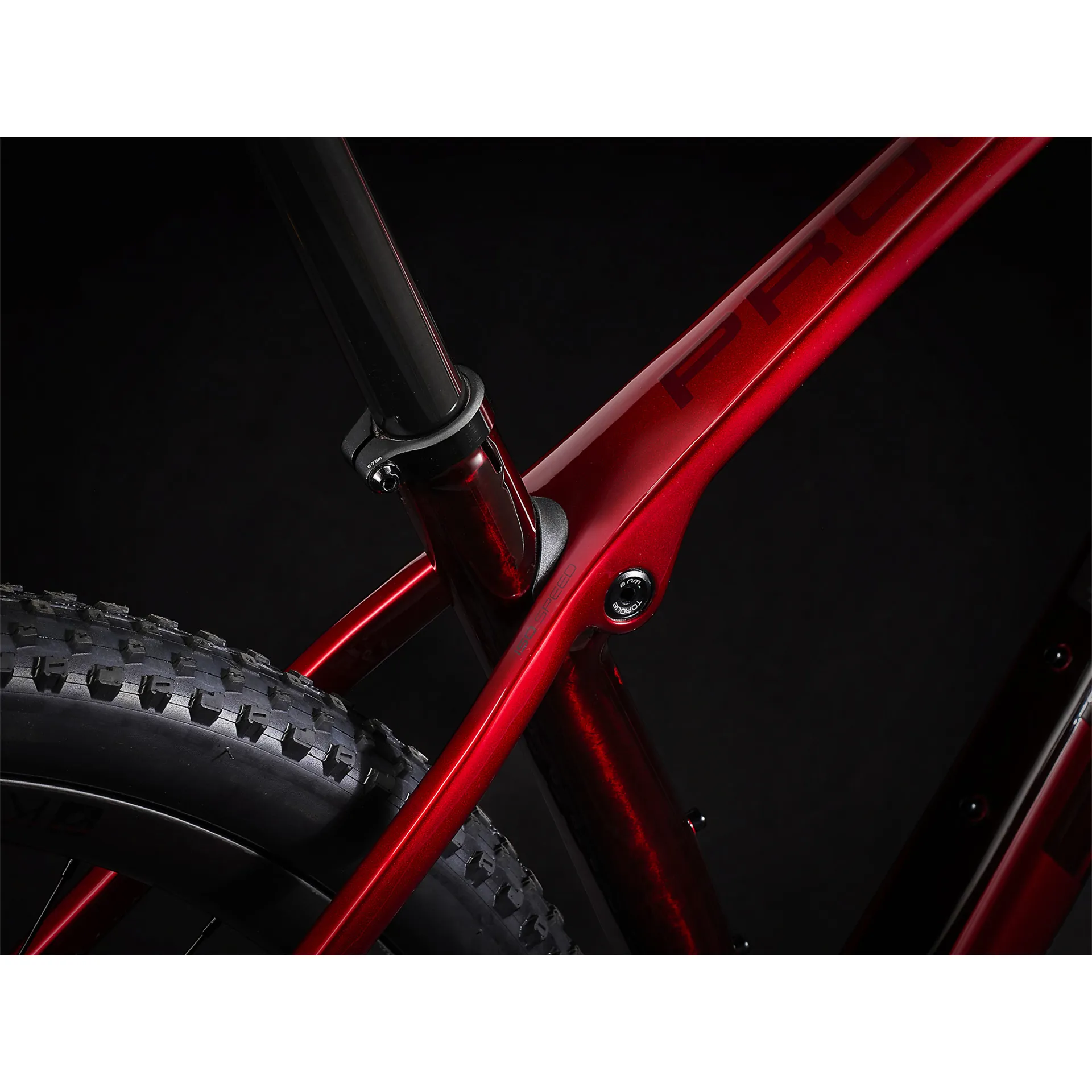

Seatpost
Size:S
Bontrager Pro, OCLV Carbon, 31.6 mm, 0 mm offset, 330 mm length
Size:M , ML , L , XL , XXL
Bontrager Pro, OCLV Carbon, 31.6 mm, 0 mm offset, 400 mm length

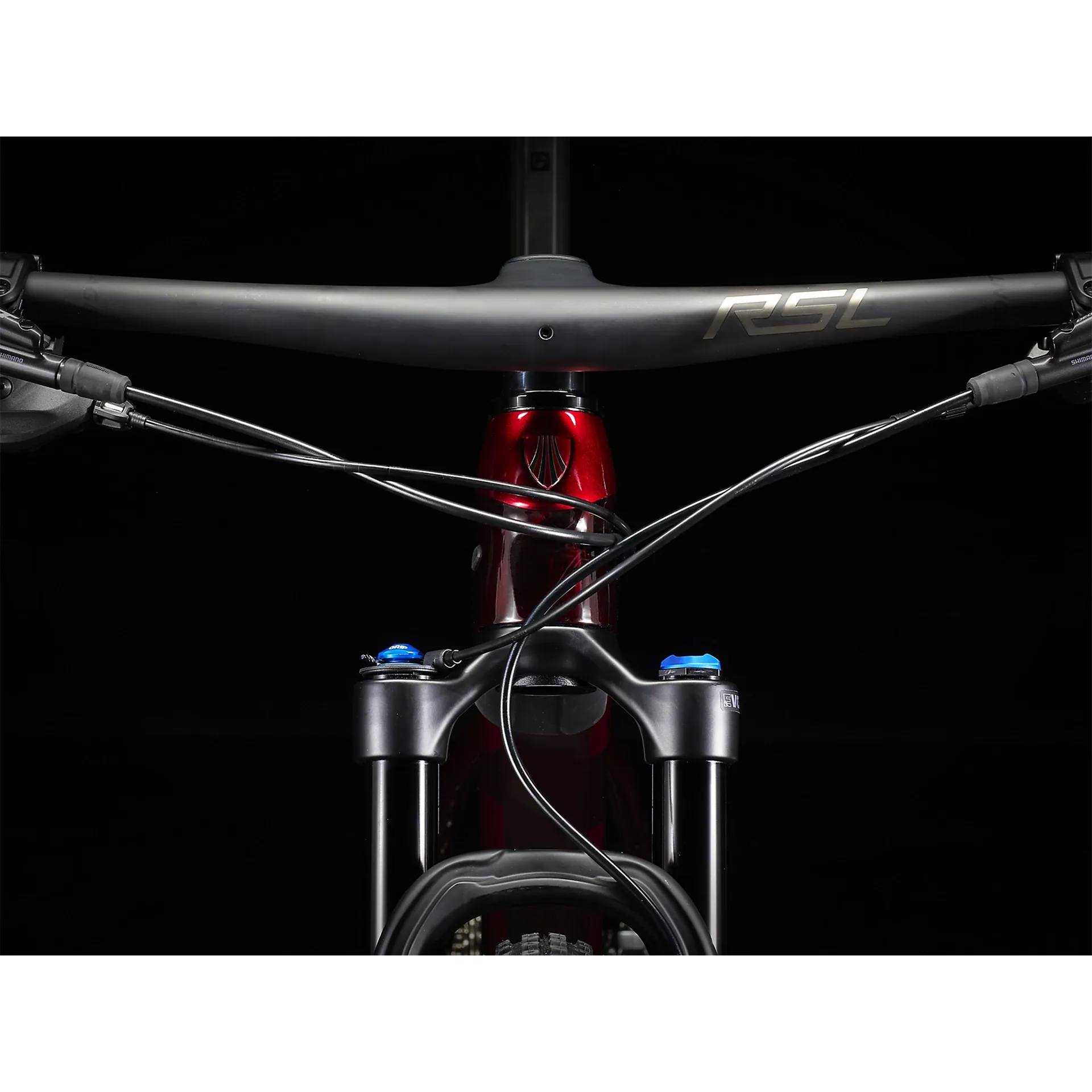

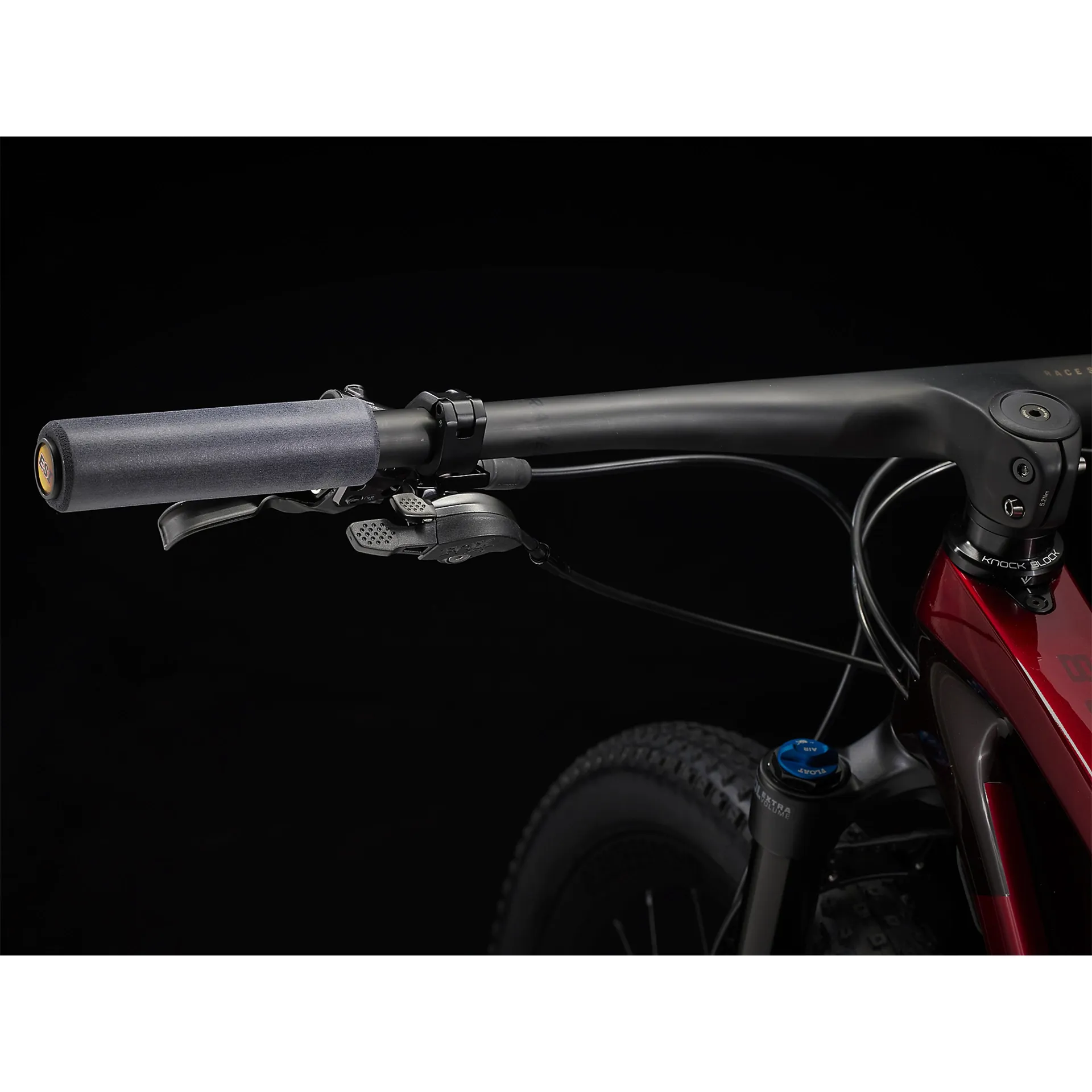

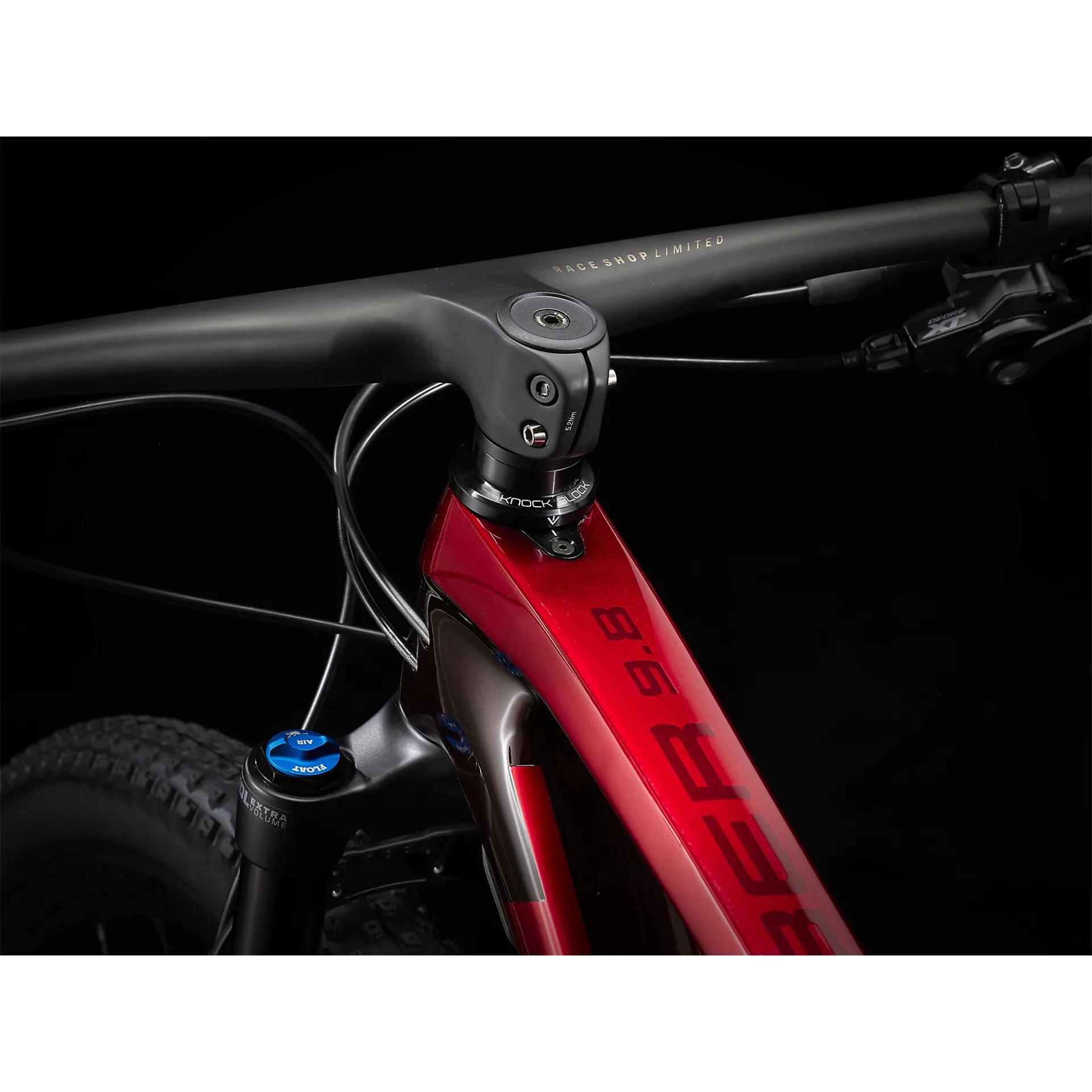

Handlebar/stem (integrated)
Size: S , M
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 70mm length
Size:ML , L
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 80mm length
Size:XL , XXL
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 90 mm length
Grips
ESI Chunky

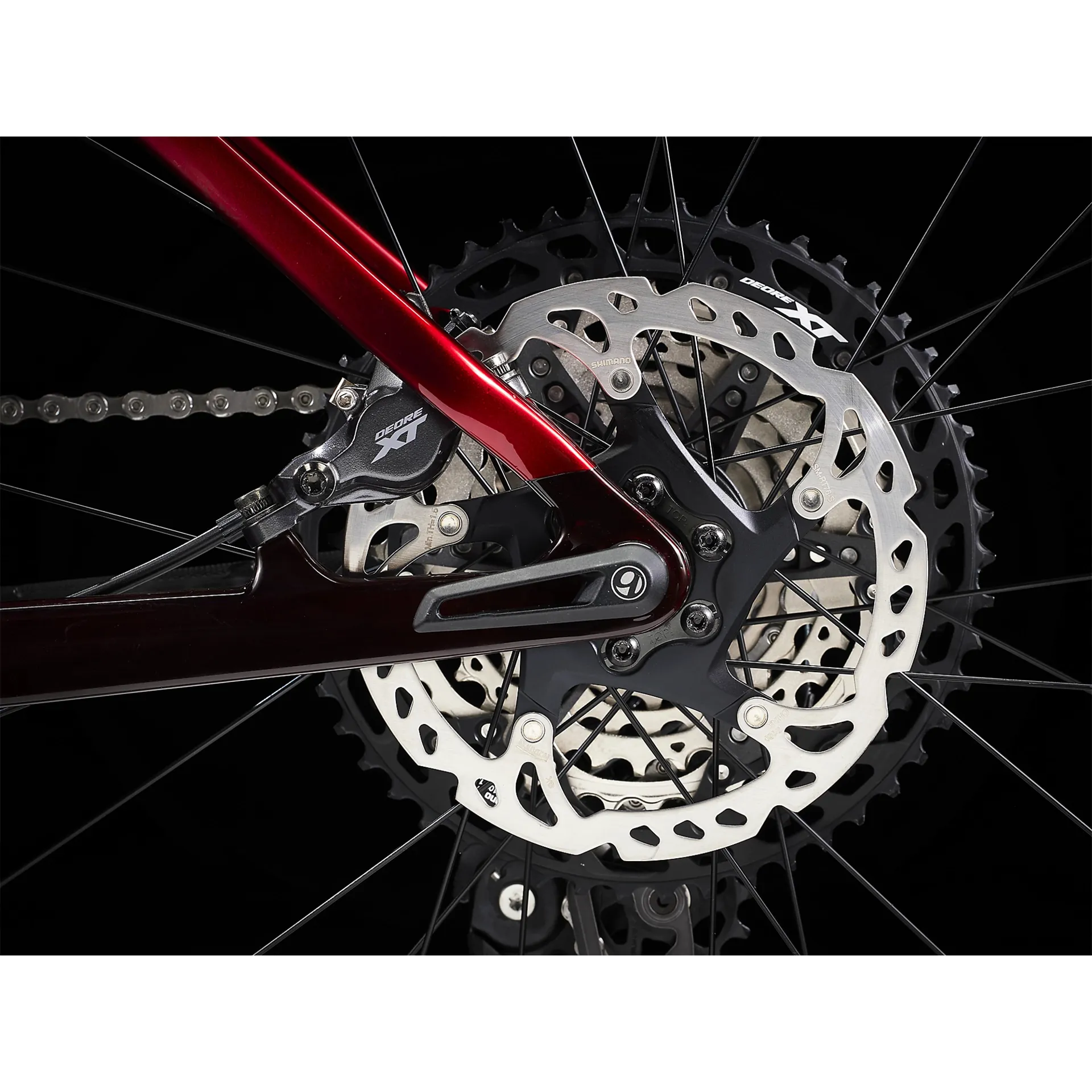

Brake
Shimano Deore XT M8100 hydraulic disc
Brake rotor
Size: S , M , ML , L , XL , XXL
Shimano RT76, 6-bolt, 160 mm
Size:S , M , ML , L , XL , XXL
Shimano RT76, 6-bolt, 180 mm
Weight
M - 10.26 kg / 22.62 lbs
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
