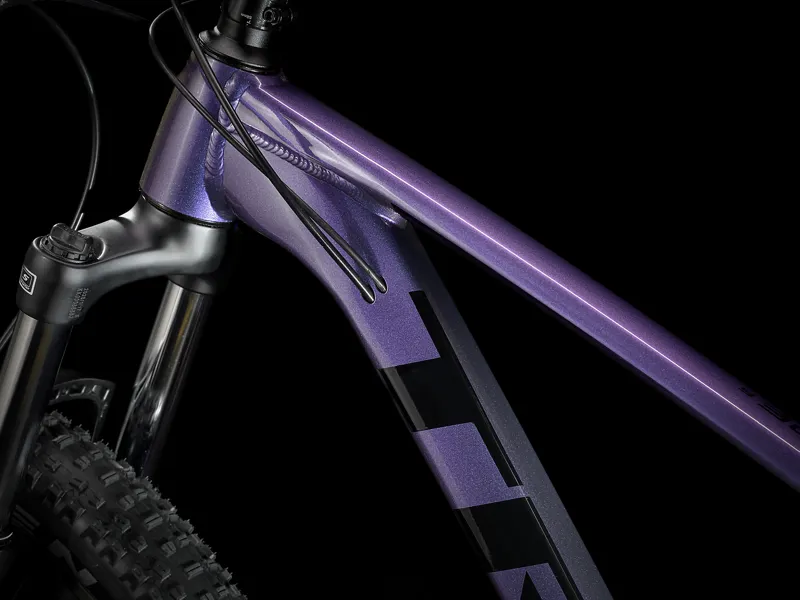

Frame
Alpha Gold Aluminium, tapered head tube, internal derailleur and dropper post routing, rack and kickstand mount, Boost141, 5 mm QR
Fork
Size: XS
SR Suntour XCM 32, coil spring, preload, lockout, 47 mm offset, Boost110, 15 mm thru axle, 100 mm travel
Size:S, M, M/L, L, XL, XXL
SR Suntour XCM 32, coil spring, preload, lockout, 47 mm offset, Boost110, 15 mm thru axle, 120 mm travel
Max compatible fork travel
120mm (XS: 100mm)
Hub front
Formula DC-511, 6-bolt, Boost110, 15 mm thru axle
Hub rear
Formula DC-2241, alloy, 6-bolt, Shimano 8/9/10 freehub, Boost141, 5 mm QR
Rim
Alex MD35, tubeless compatible, 32-hole, 35 mm width, Presta valve
Spokes
14 g stainless steel

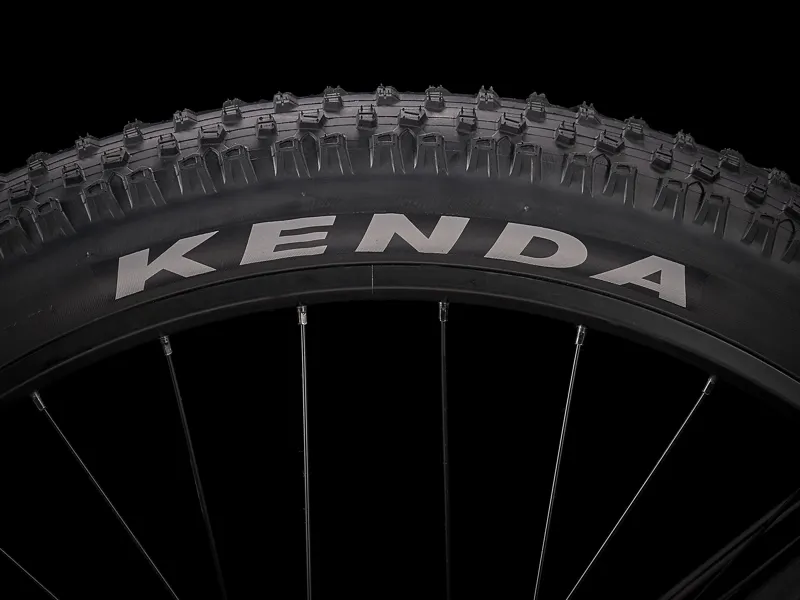

Tyre
Kenda Havok, wire bead, 30 tpi, 27.5x2.80"
Rim strip
Bontrager TLR
Max tyre size
Frame: 27.5x2.80" or 29x2.40" Fork: See manufacturer
Shifter
Shimano Deore M4100, 10 speed

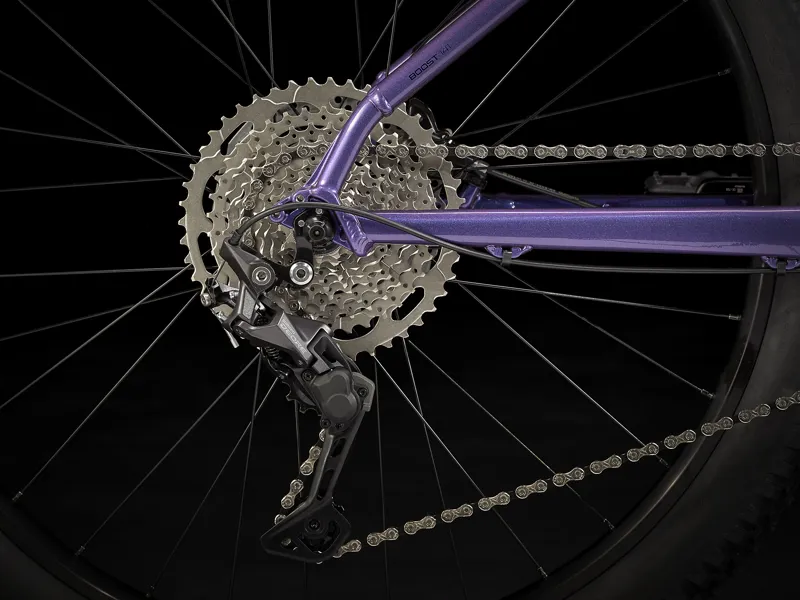

Rear derailleur
Shimano Deore M5120, long cage
Crank
Size: XS, S
FSA Alpha Drive, 28T steel ring, Boost, 170 mm length
Size:M, M/L, L, XL, XXL
FSA Alpha Drive, 28T steel ring, Boost, 175 mm length
Bottom bracket
Shimano 7420ST, 73 mm, threaded cartridge, 124.5 mm spindle
Cassette
Shimano Deore M4100, 11-46, 10-speed
Chain
KMC X10, 10-speed
Pedal
VP-536 nylon platform
Max. chainring size
32T

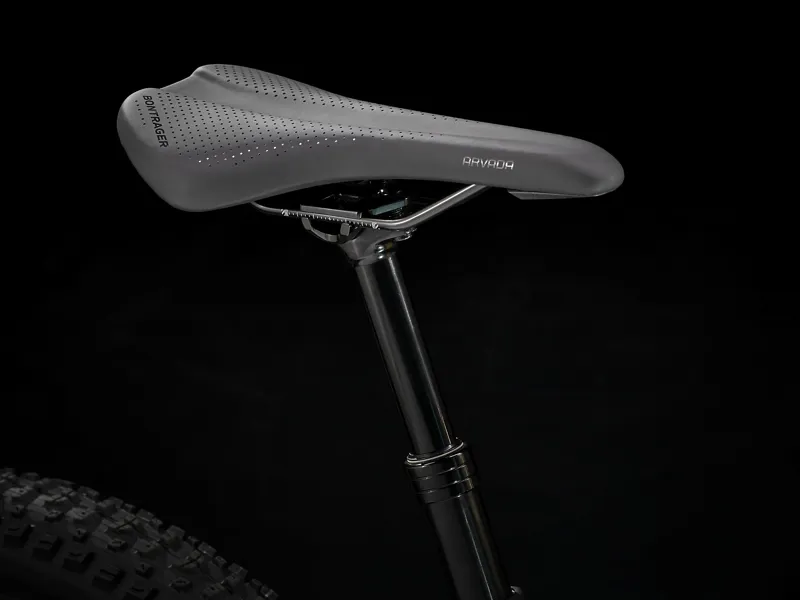

Saddle
Bontrager Arvada, steel rails, 138 mm width
Seatpost
Size:XS, S, M
TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
Size:M/L, L, XL, XXL
TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length

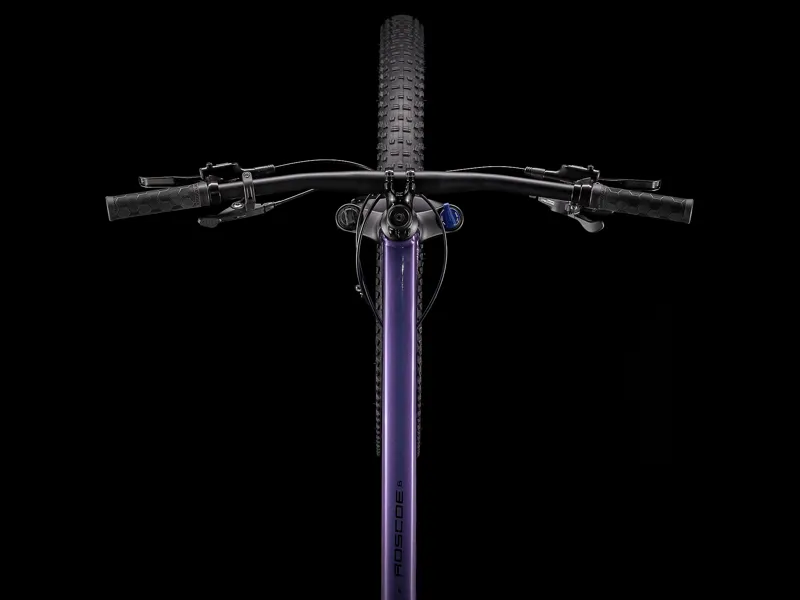

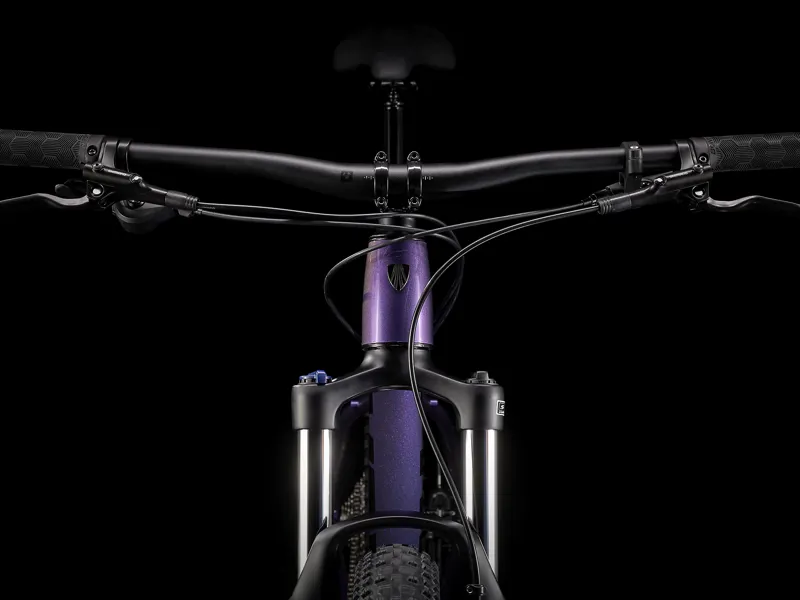

Handlebar
Size: XS
Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
Size:S, M, M/L, L, XL, XXL
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips
Bontrager XR Trail Comp, nylon lock-on
Stem
Size: XS, S, M
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
Size:M/L, L, XL, XXL
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length
Head set
Semi-integrated, cartridge, 1-1/8" top, 1.5" bottom
Brake
Shimano MT200 hydraulic disc
Brake rotor
Size: XS, S, M, M/L, L, XL, XXL
Shimano RT26, 6-bolt,160 mm
Size:M, M/L, L, XL, XXL
Shimano RT26, 6-bolt,180 mm
Brake Set
Shimano MT200 hydraulic disc
Weight
M - 15.88 kg / 35.01 lbs
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
