Frame

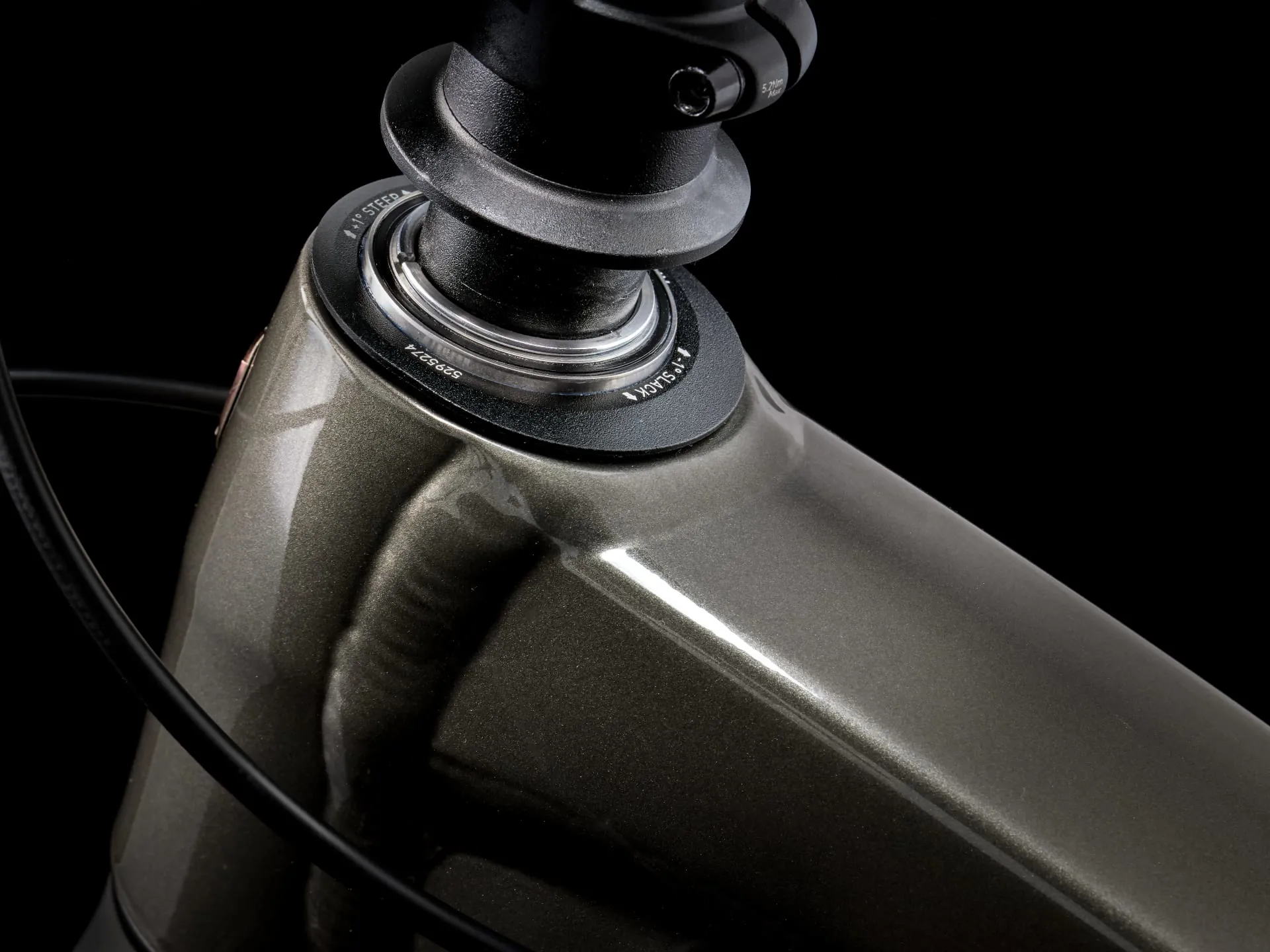

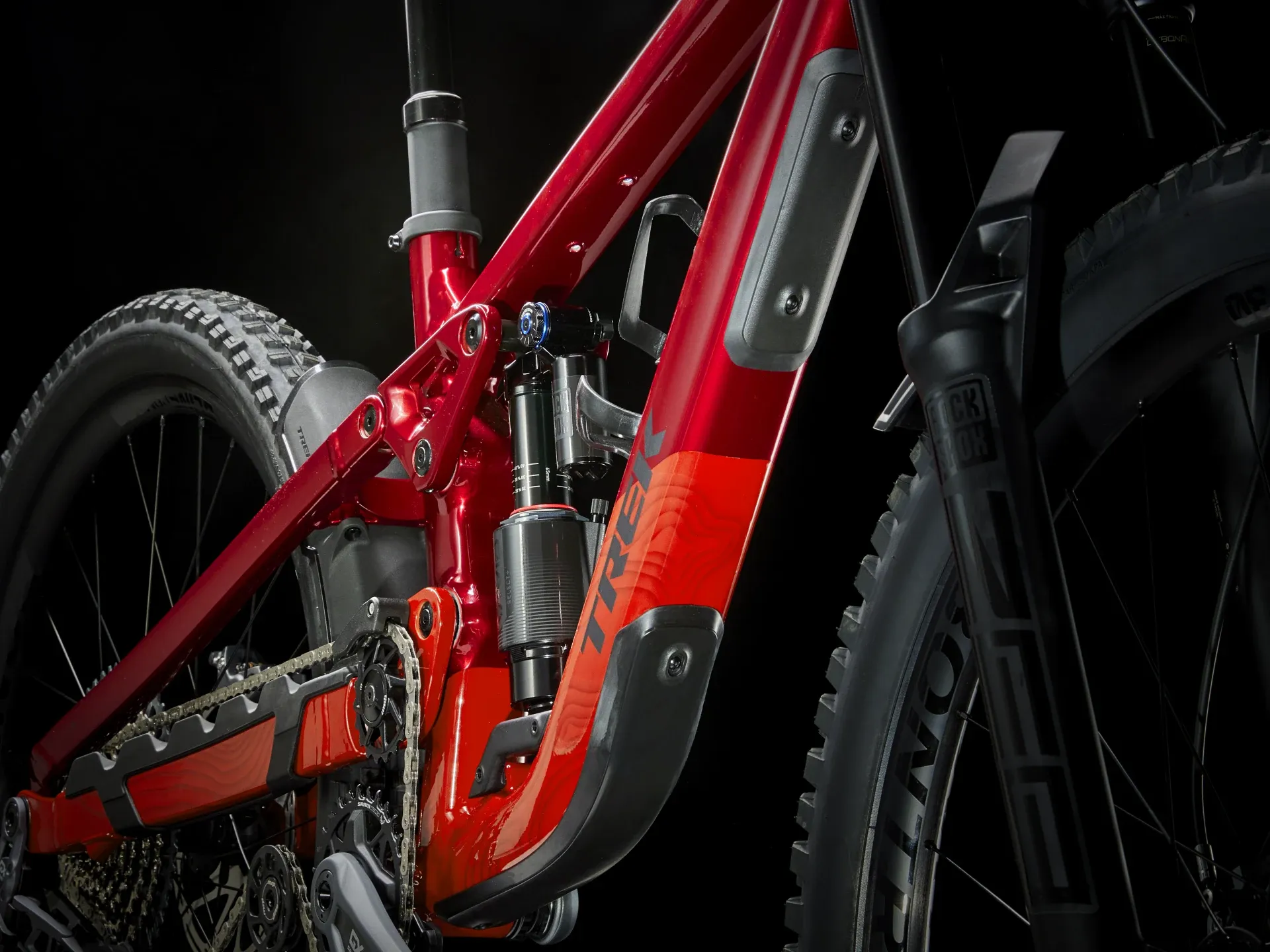

Alpha Platinum Aluminium, high main pivot, idler pulley, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, integrated frame protection, internal routing, magnesium rocker link, ISCG 05, Active Braking Pivot, UDH, 148x12 mm thru axle, 170 mm travel
Fork
Size:S
RockShox ZEB Select+, DebonAir spring, Charger 3 RC2 damper, tapered steerer, 44mm offset, Boost110, Maxle Stealth, 170mm travel
Size:M, M/L, L, XL
RockShox ZEB Select, DebonAir spring, Charger RC damper, tapered steerer, 44mm offset, Boost110, Maxle Stealth, 170mm travel

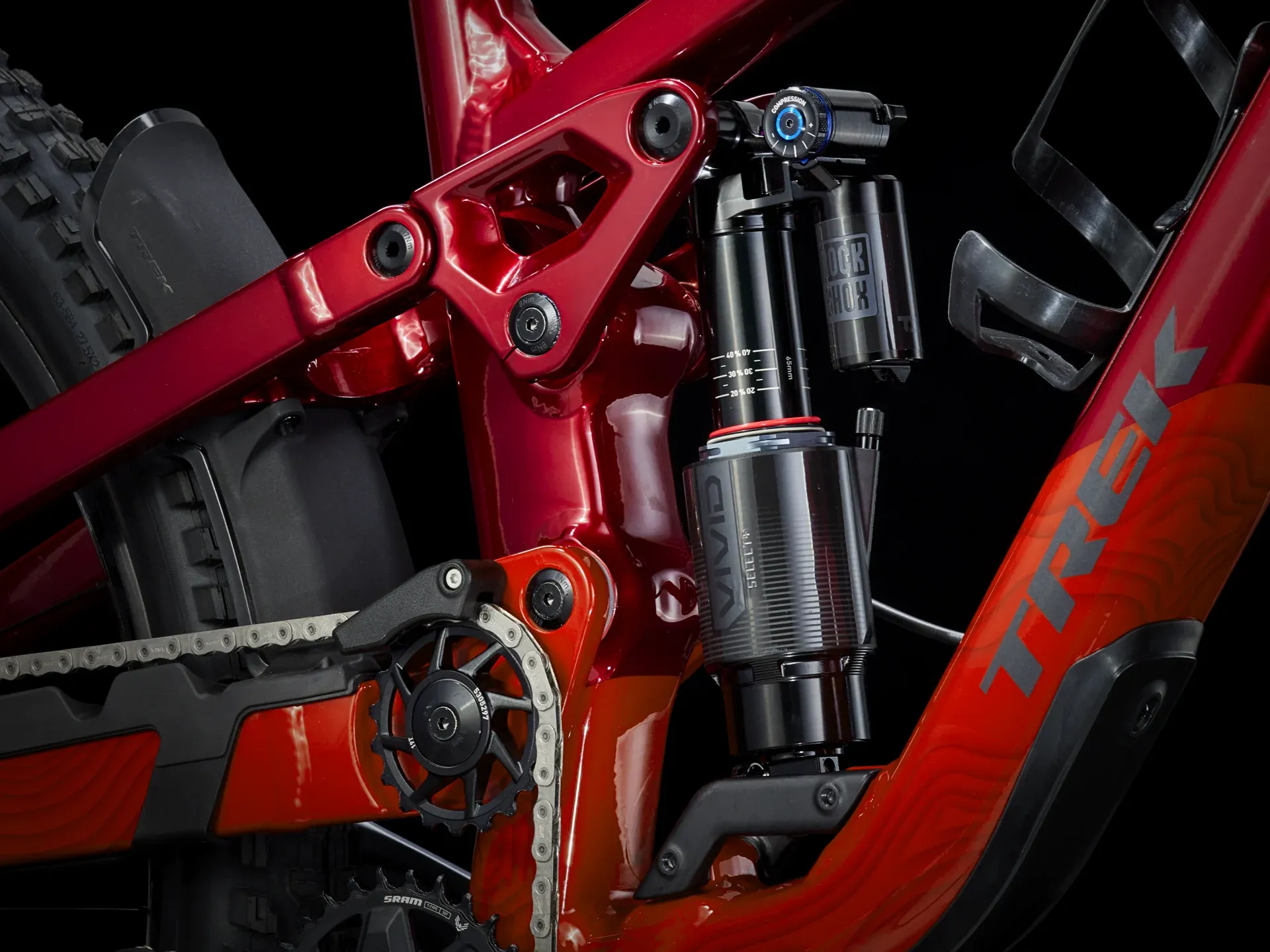

Shock
RockShox Vivid Select+, 230 mm x 65 mm
Max compatible fork travel
190 mm (606 mm axle-to-crown), S: 190 mm (587 mm axle-to-crown)
Wheel front
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
Wheel rear
Bontrager Line Comp 30, Tubeless-Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle
Skewer rear
Bontrager Switch thru-axle, removable lever
Tyre
Size:S
Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 27.5 x 2.50"
Size:M, M/L, L, XL

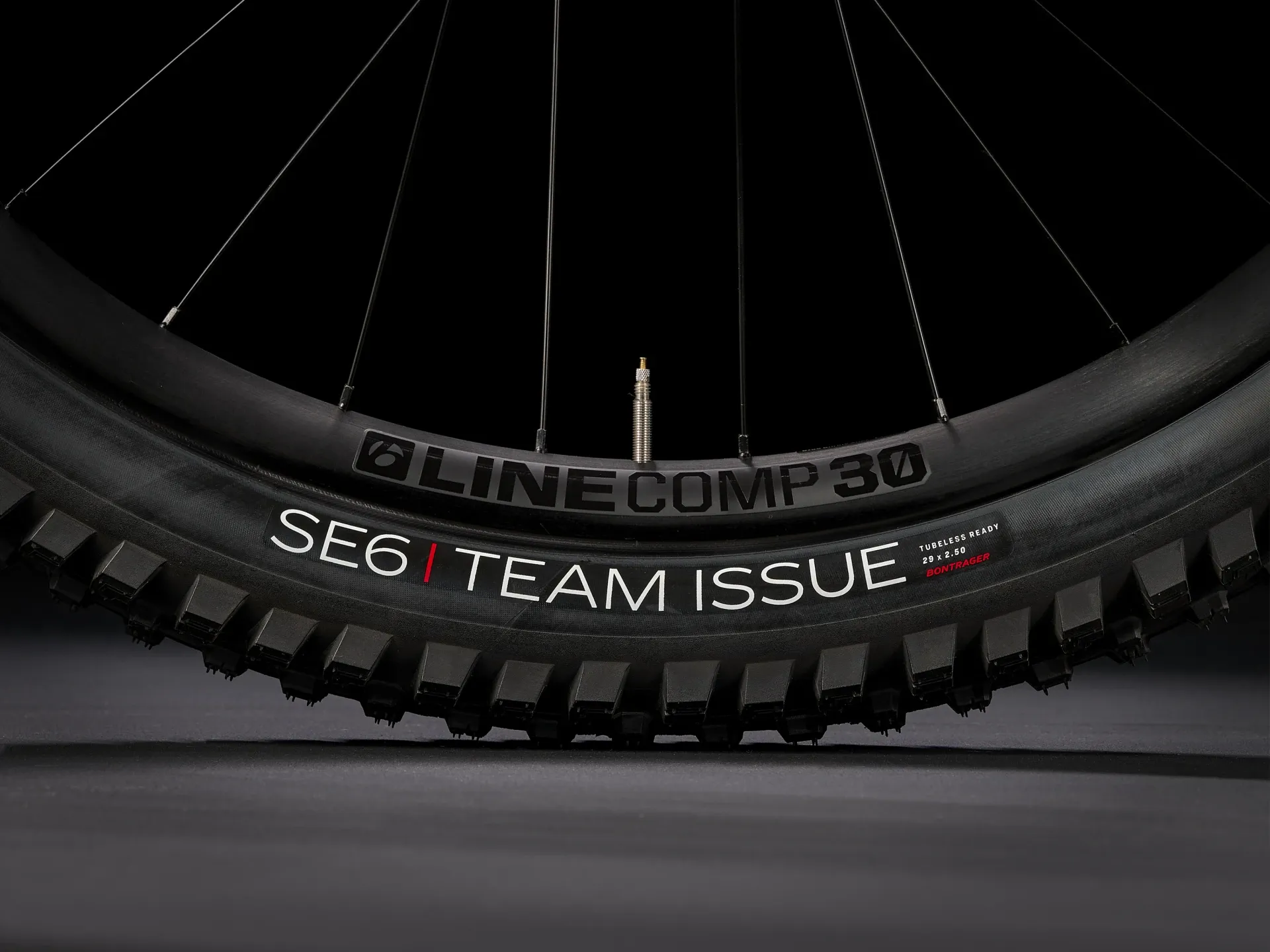

Bontrager SE6 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"
Tyre part
Bontrager TLR sealant, 180 ml/6 oz
Sealant
Bontrager TLR sealant, 180 ml/6 oz
Rim strip
Bontrager TLR
Max tyre size
Frame: 2.50", Fork: See manufacturer

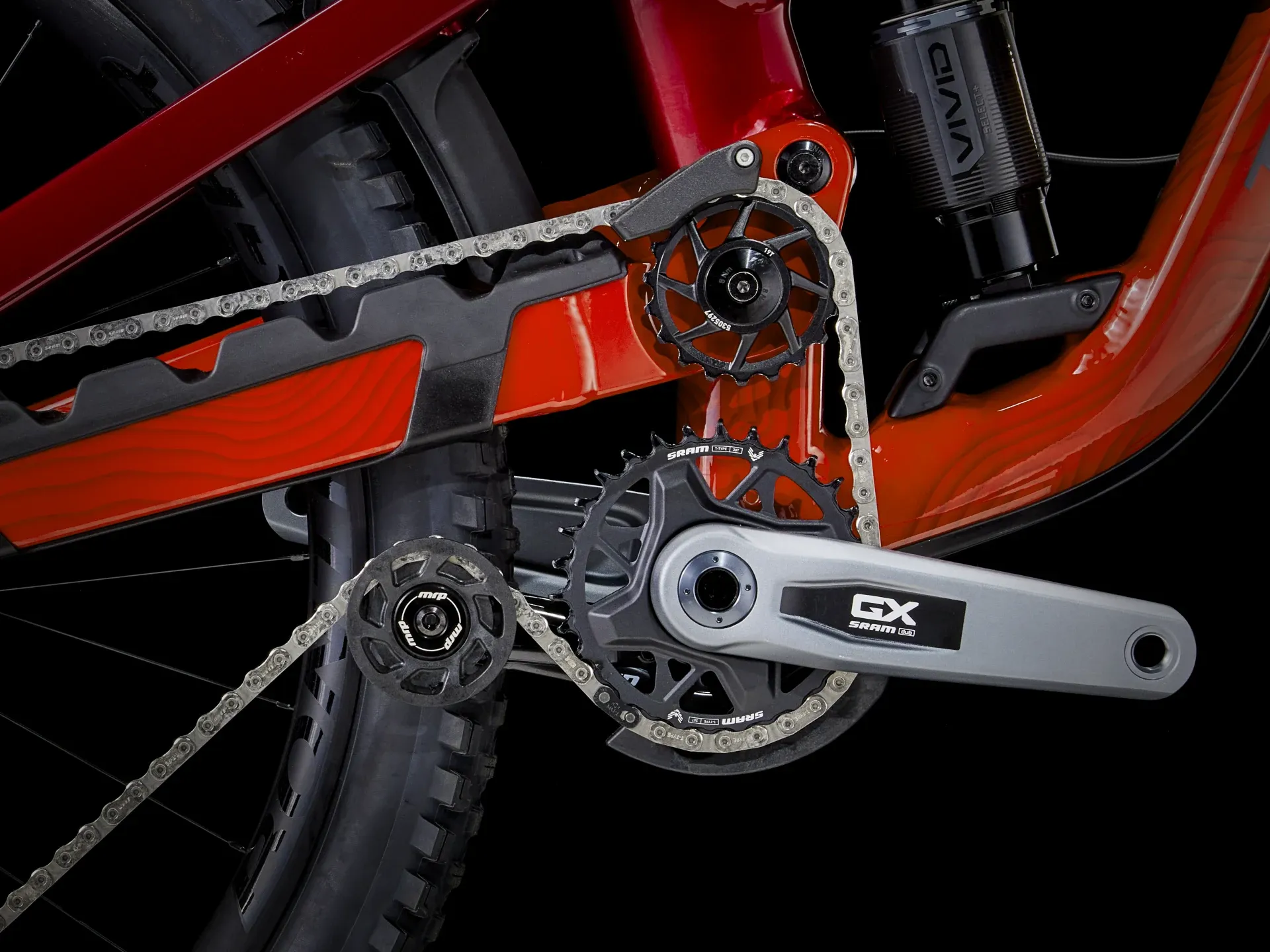

Crank

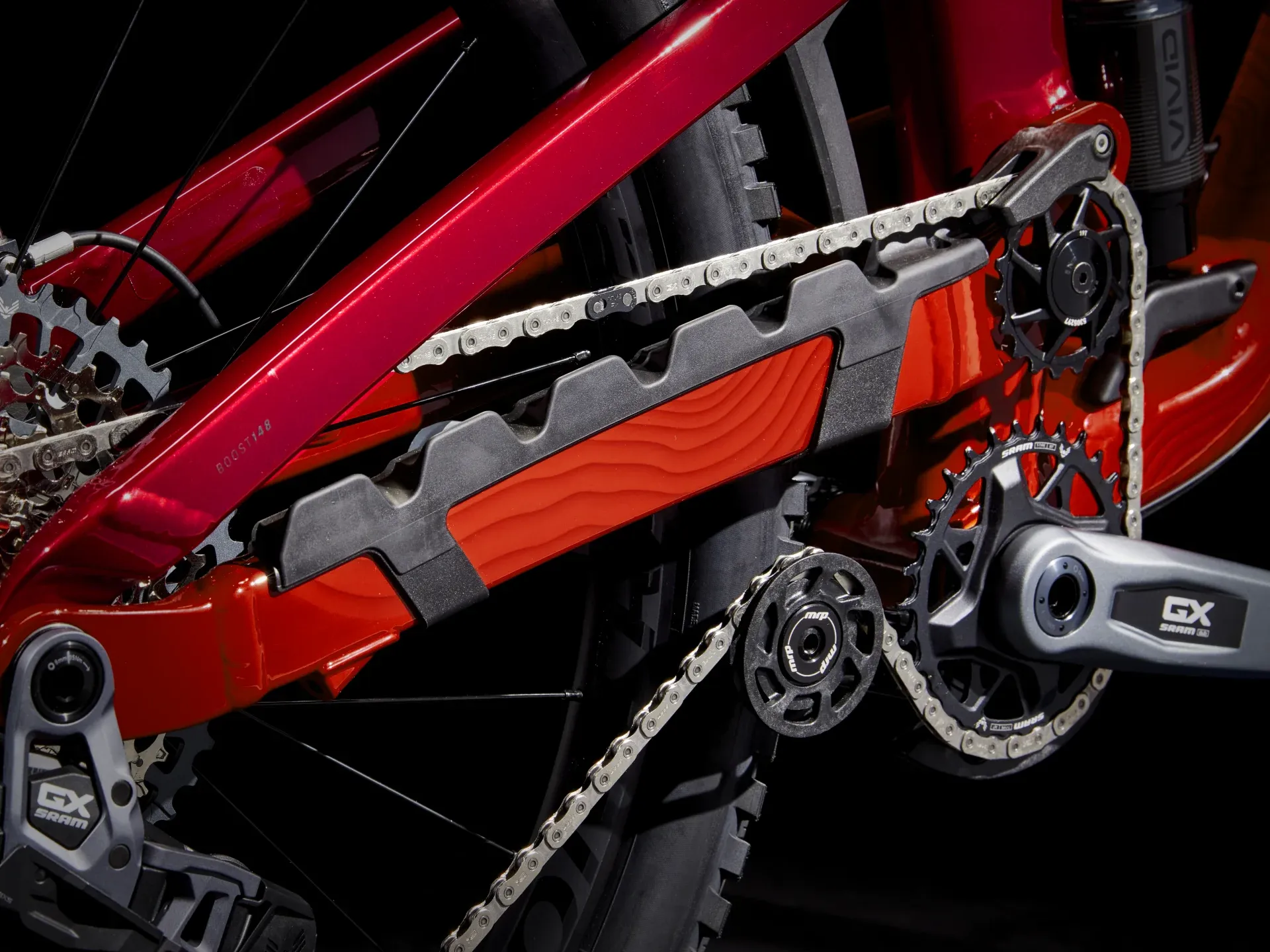

SRAM GX Eagle, DUB MTB Wide, T-Type, 30T, 55 mm chain line, 165 mm length
Bottom bracket
SRAM DUB MTB Wide, 73 m, BSA threaded
Max. chainring size
1x: 34T round, 32T oval, min 28T

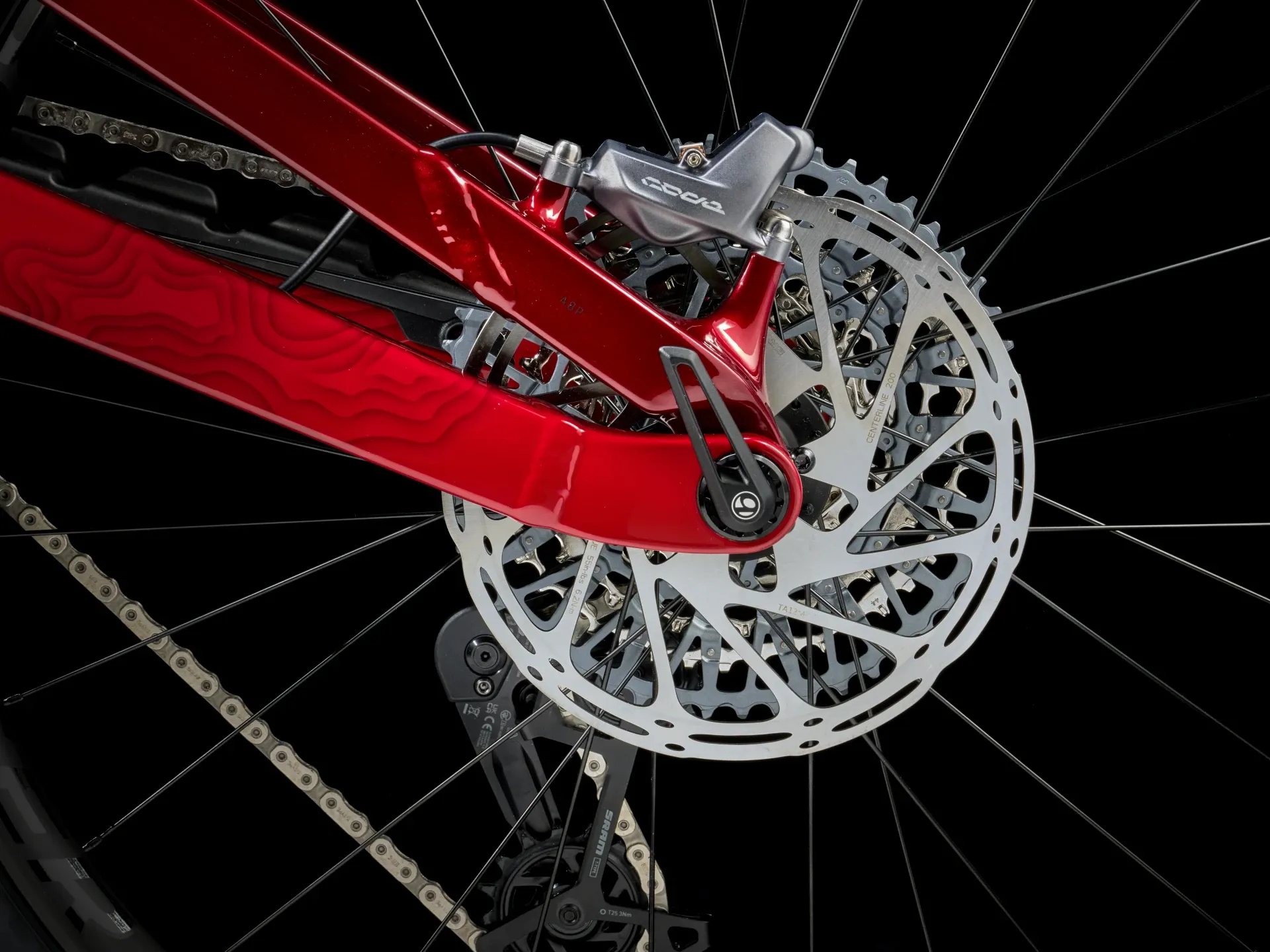

Brakes
SRAM CODE Bronze 4-piston hydraulic disc
Brake rotor
SRAM CentreLine, 6-bolt, round edge, 200 mm
Rotor size
Max brake rotor sizes – Frame: 220 mm, Fork: see fork manufacturer
Bag

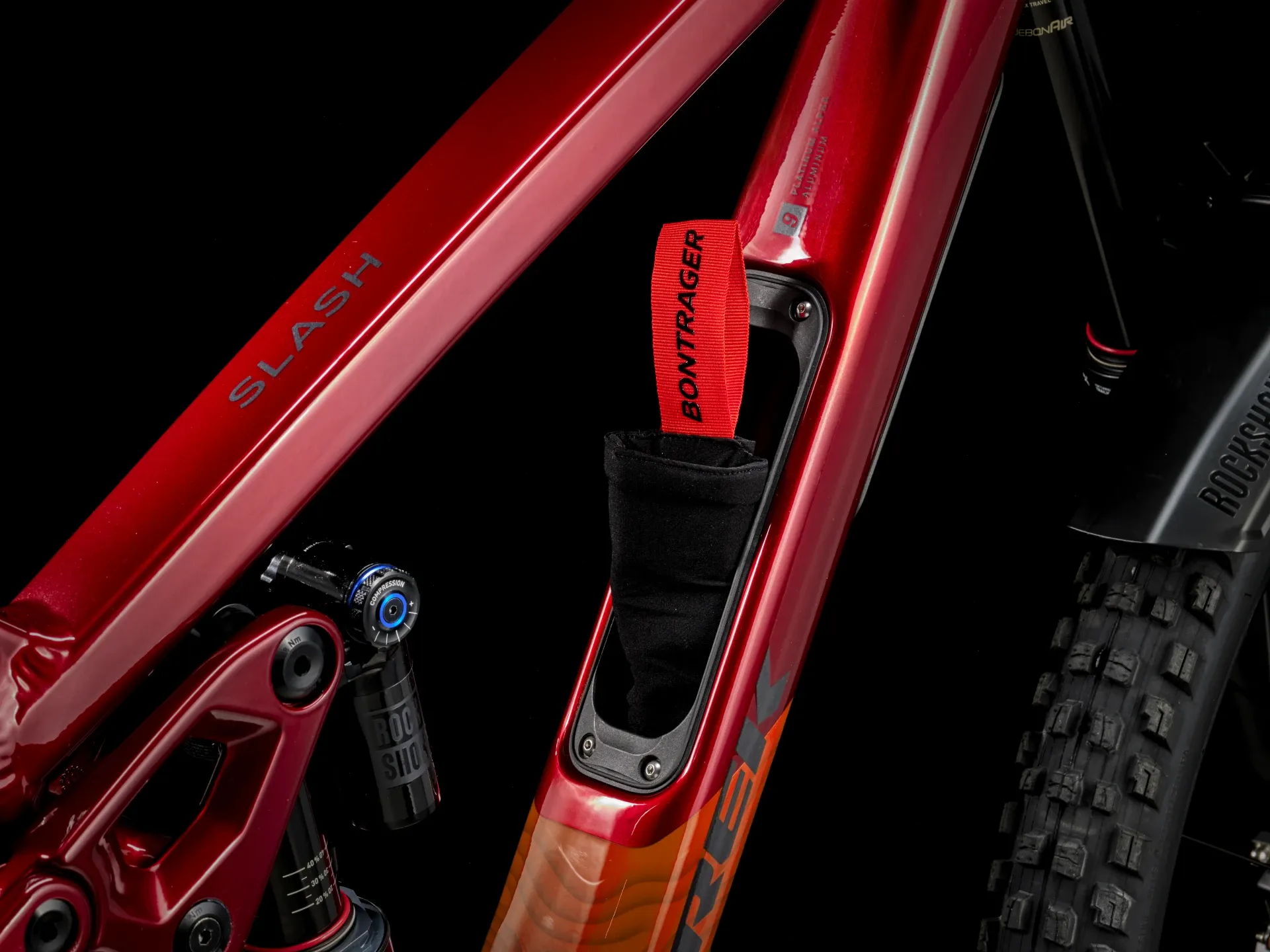

Bontrager BITS Internal Frame Storage Bag
Weight
M - 16.90 kg / 37.26 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
