Frame

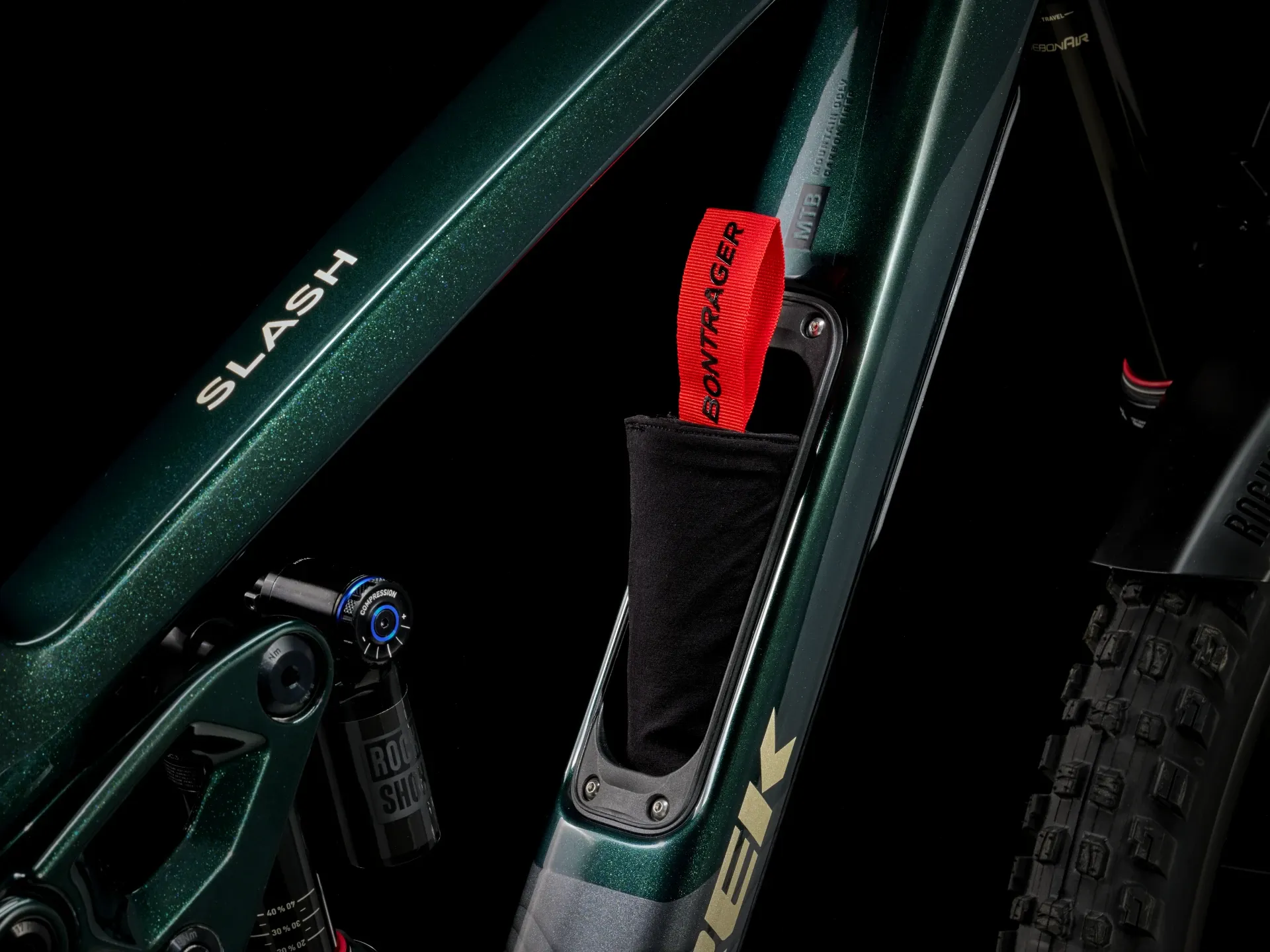

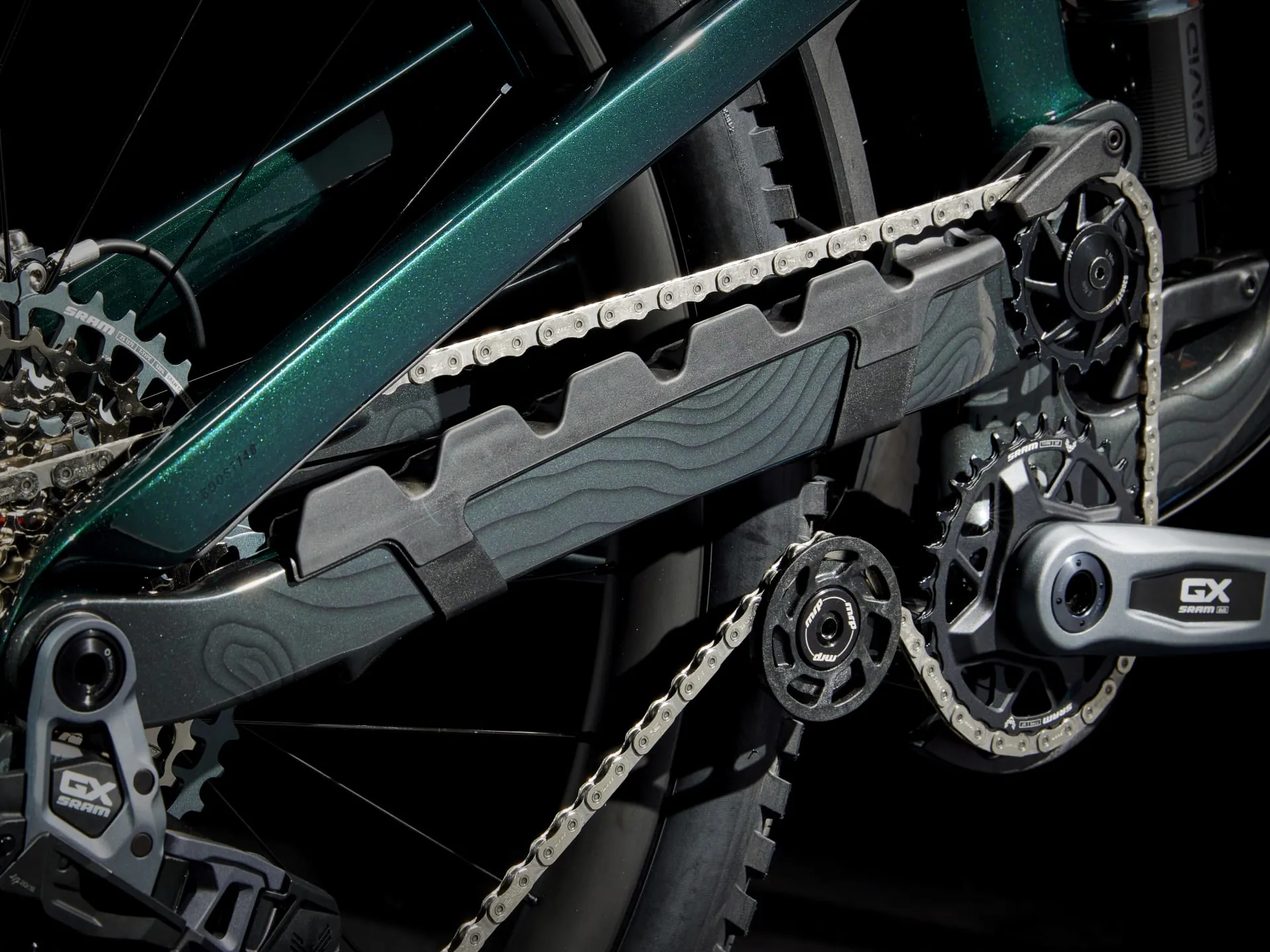

OCLV Mountain Carbon, high main pivot, idler pulley, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, integrated frame protection, internal routing, magnesium rocker link, ISCG 05, Active Braking Pivot, UDH, 148x12 mm thru axle, 170 mm travel
Fork
RockShox ZEB Select+, DebonAir spring, Charger 3 RC2 damper, tapered steerer, 44mm offset, Boost110, Maxle Stealth, 170mm travel
Shock

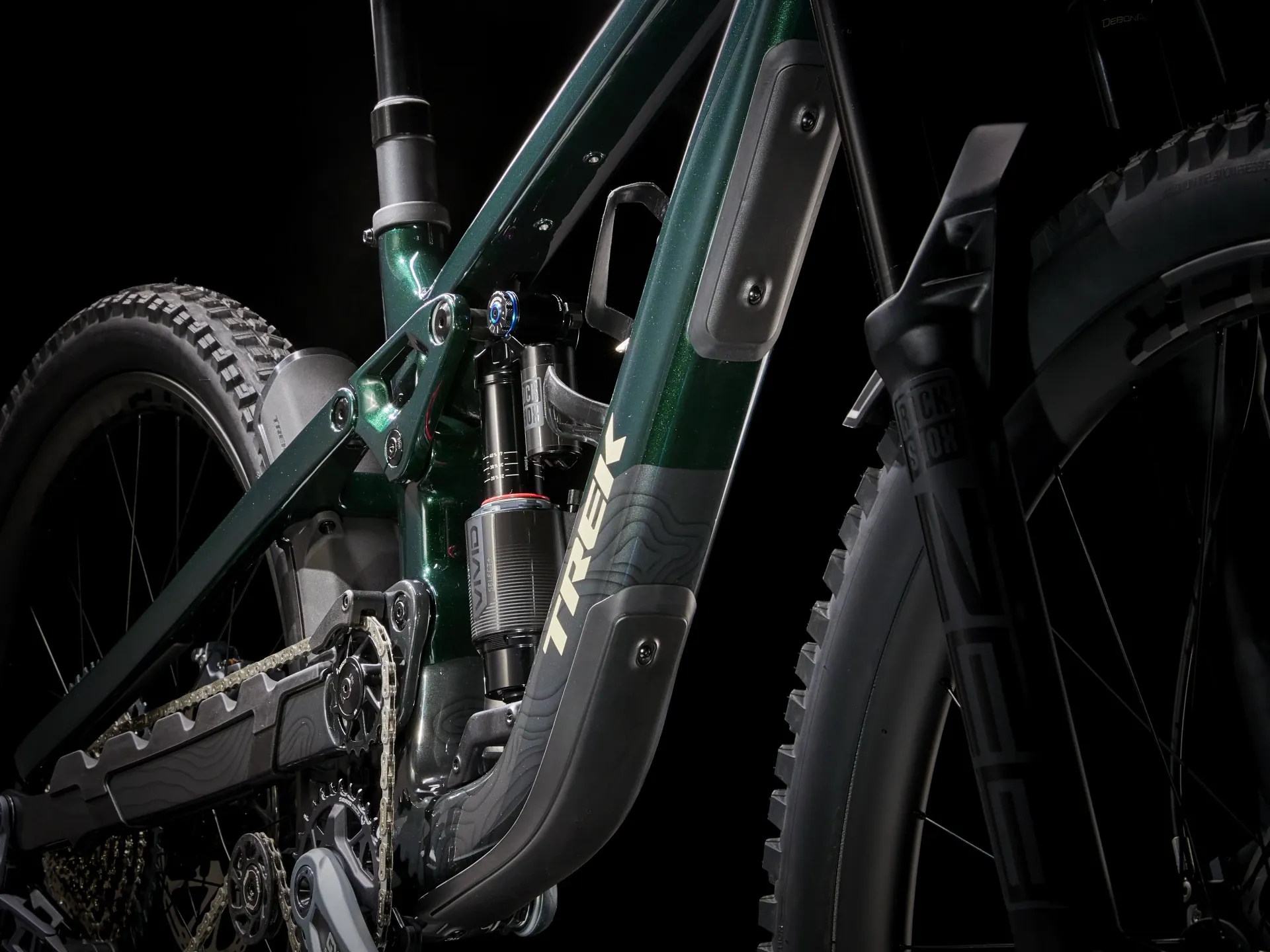

RockShox Vivid Select+, 230 mm x 65 mm
Max compatible fork travel
190 mm (606 mm axle-to-crown), S: 190 mm (587 mm axle-to-crown)
Wheel front
Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
Wheel rear
Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12 mm thru axle
Tyre
Size: S , M, M/L, L, XL
Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 27.5 x 2.50"
Size:M, M/L, L, XL

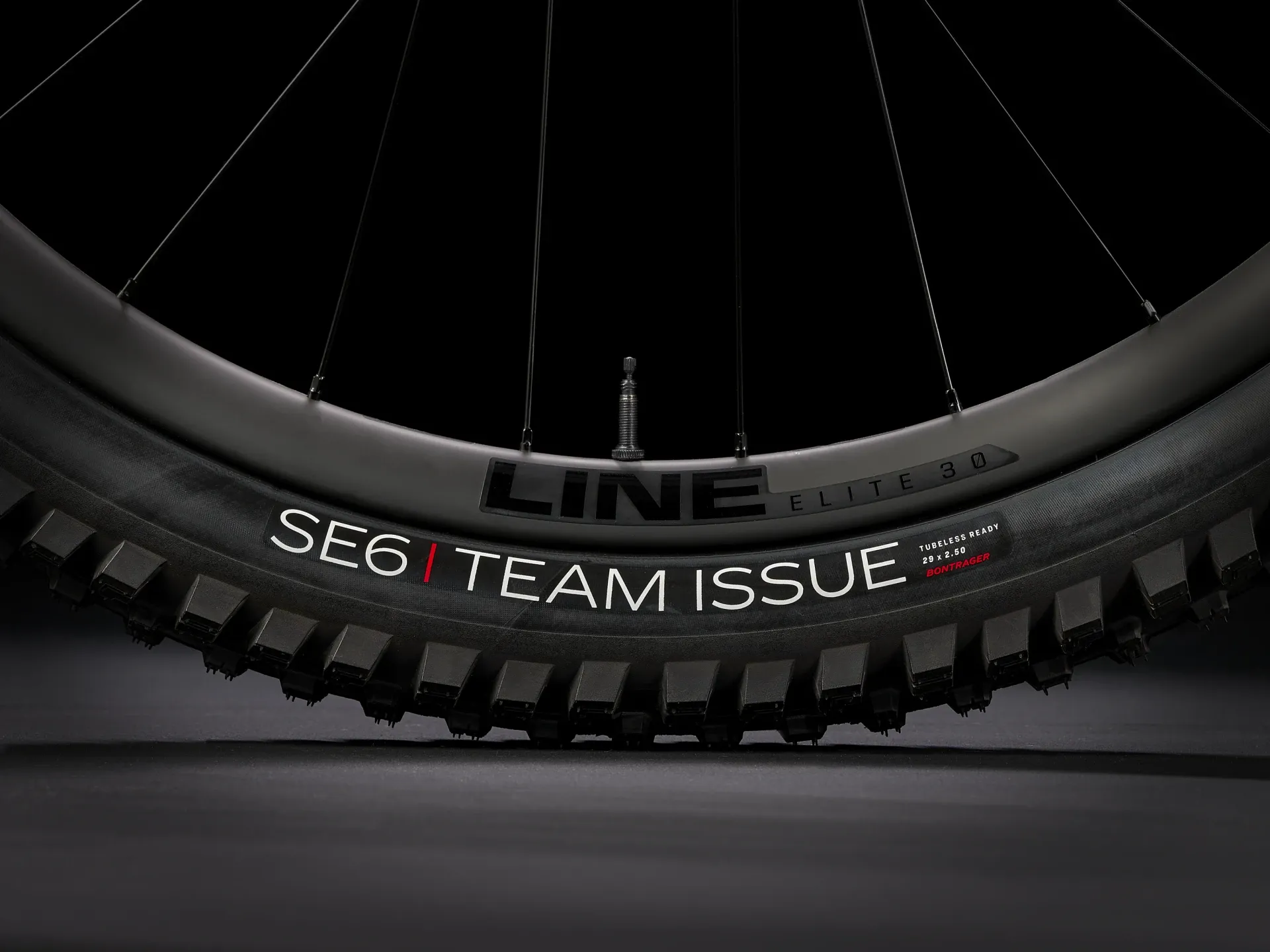

Bontrager SE6 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"
Tyre part
Bontrager TLR sealant, 180 ml/6 oz
Sealant
Bontrager TLR sealant, 180 ml/6 oz
Rim strip
Bontrager TLR
Max tyre size
Frame: 2.50", Fork: See manufacturer
Shifter
SRAM Eagle AXS POD
Rear derailleur

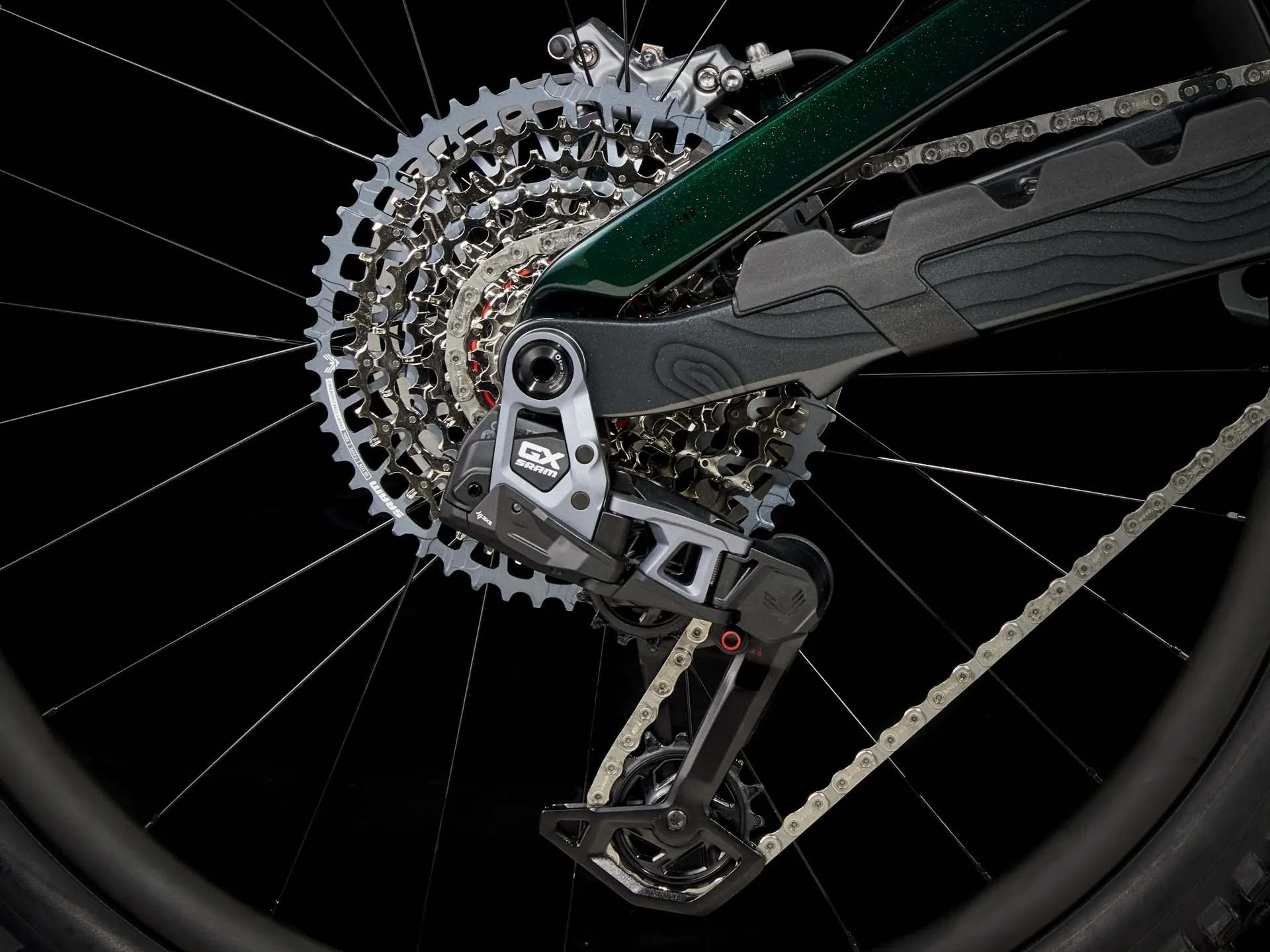

SRAM GX Eagle AXS, T-Type
Crank

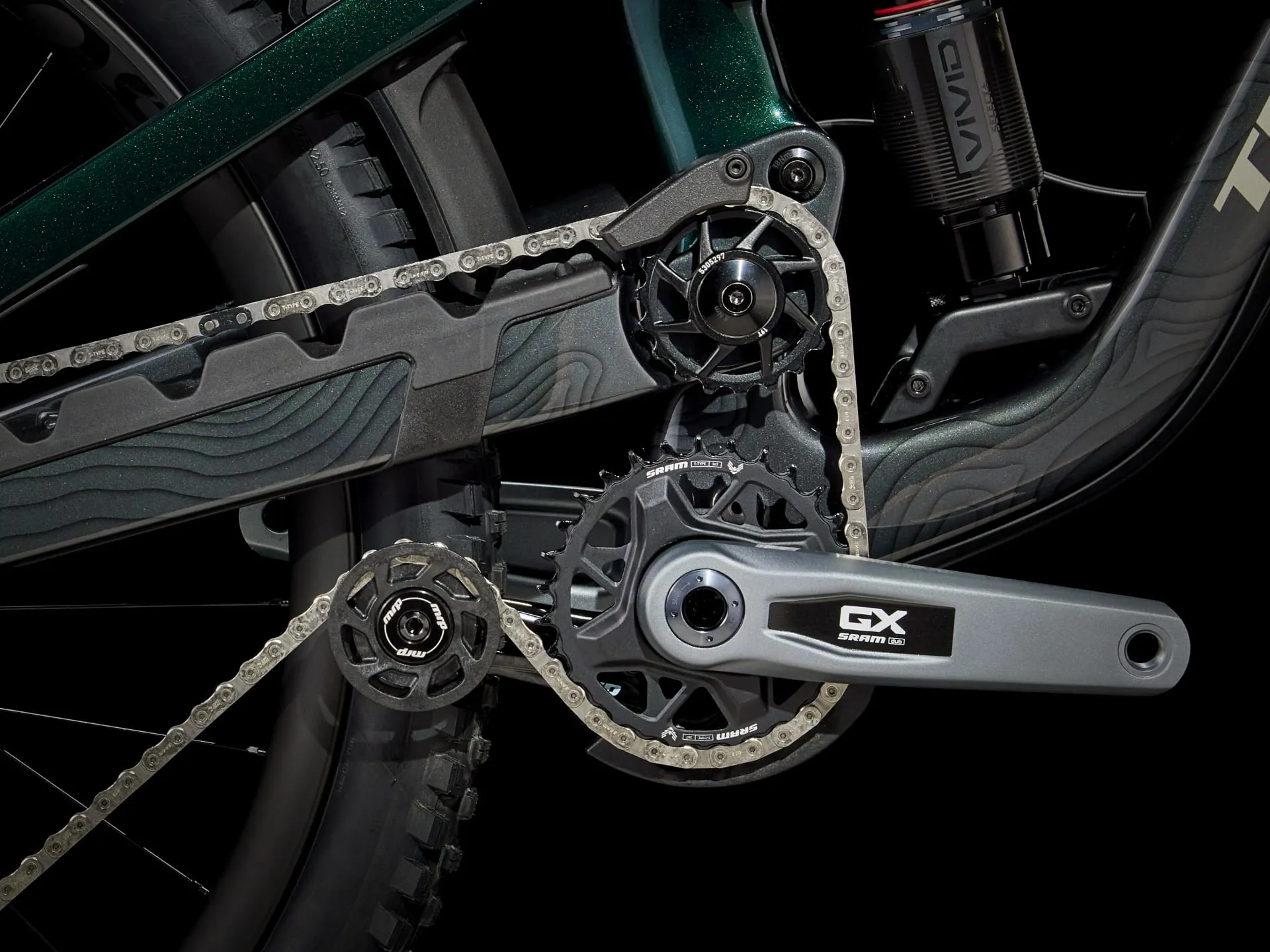

SRAM GX Eagle, DUB MTB Wide, T-Type, 30T, 55 mm chain line, 165 mm length
Bottom bracket
SRAM DUB MTB Wide, 73 m, BSA threaded
Cassette
SRAM Eagle XS-1275, T-Type,10-52, 12-speed
Chain
SRAM GX Eagle, T-Type, 12 speed
Max. chainring size
1x: 34T round, 32T oval, min 28T
Saddle
Bontrager Arvada, austenite rails, 138 mm width
Seatpost
Size: S
Bontrager Line Elite Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 345mm length
Size:M, M/L
Bontrager Line Elite Dropper, 170 mm travel, MaxFlow, internal routing, 34.9mm, 485 mm length
Size:L, XL
Bontrager Line Elite Dropper, 200 mm travel, MaxFlow, internal routing, 34.9mm, 550 mm length
Handlebar
Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 820 mm width
Grips
Bontrager XR Trail Pro, alloy lock-on
Stem
Bontrager Line Pro, 35 mm, Knock Block, Blendr-compatible, 0-degree, 35 mm length
Brake

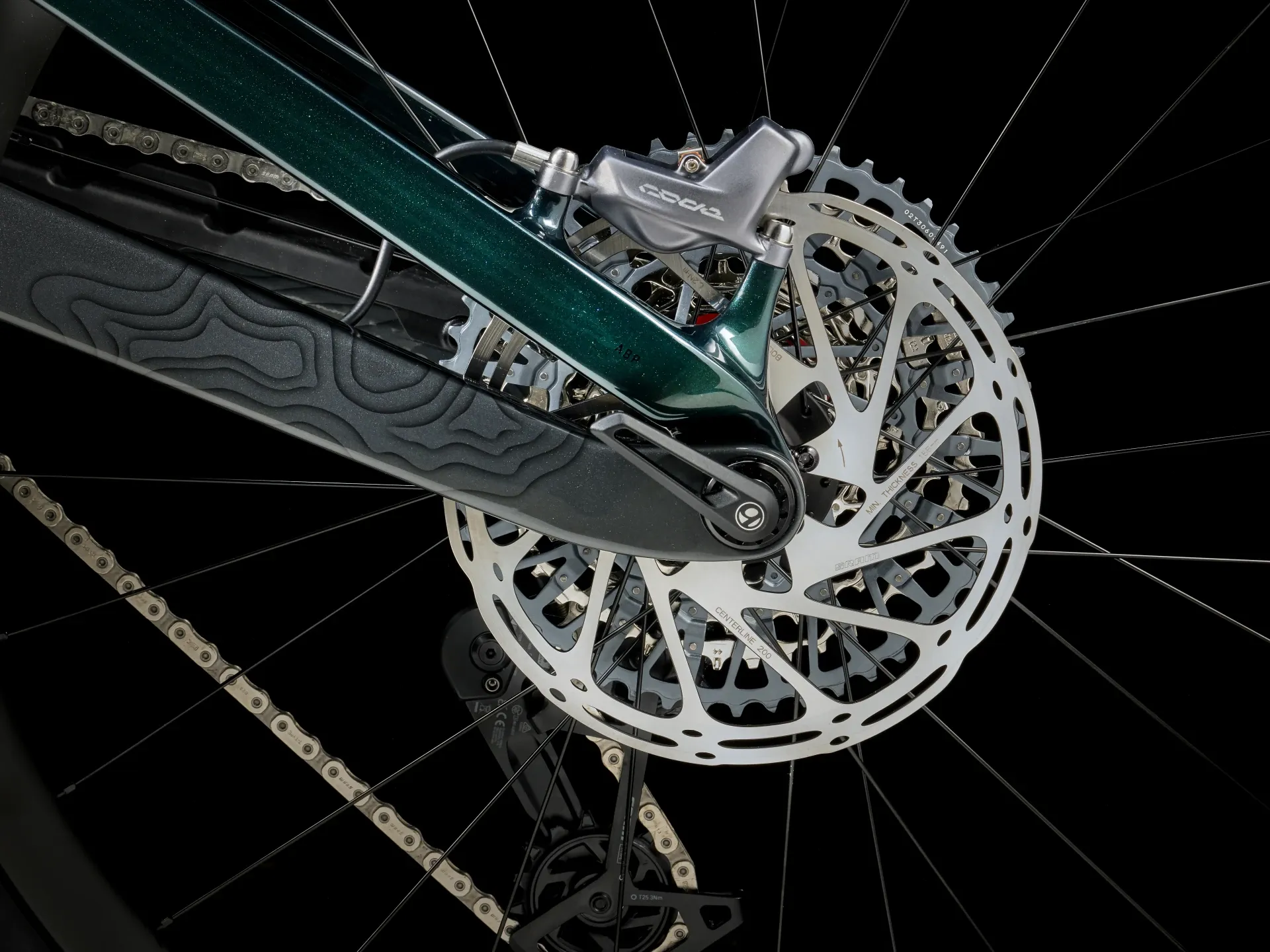

SRAM CODE Bronze 4-piston hydraulic disc
Brake rotor
SRAM CentreLine, 6-bolt, round edge, 200 mm
Rotor size
Max brake rotor sizes – Frame: 220 mm, Fork: see fork manufacturer
Battery
SRAM eTap battery pack (with charger)
Weight
M - 15.65 kg / 34.51 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
