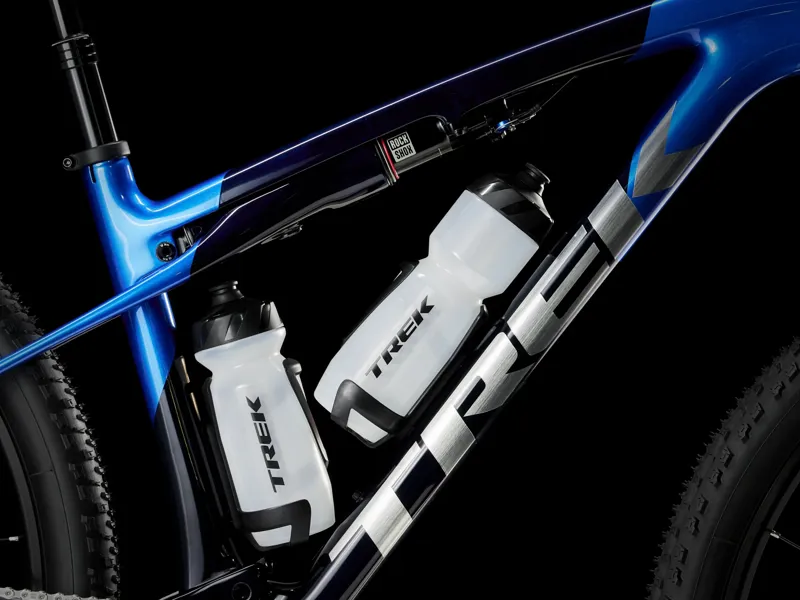

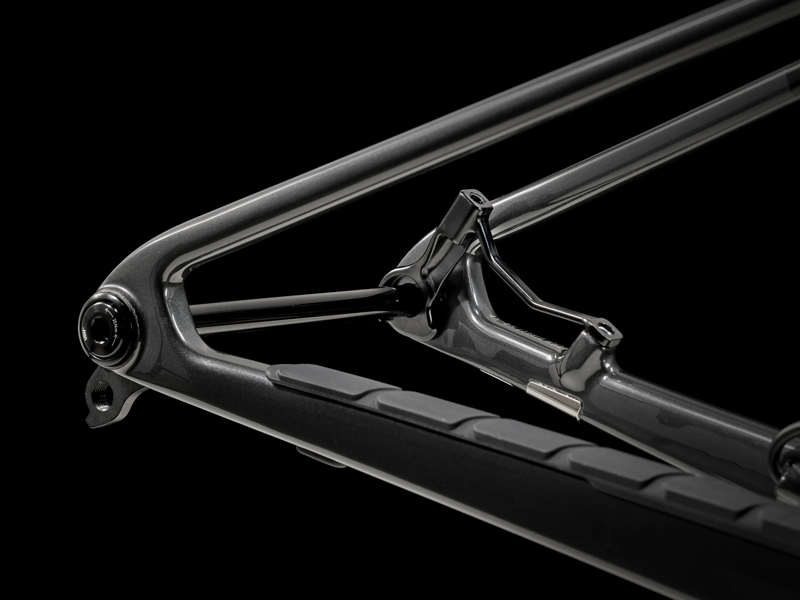

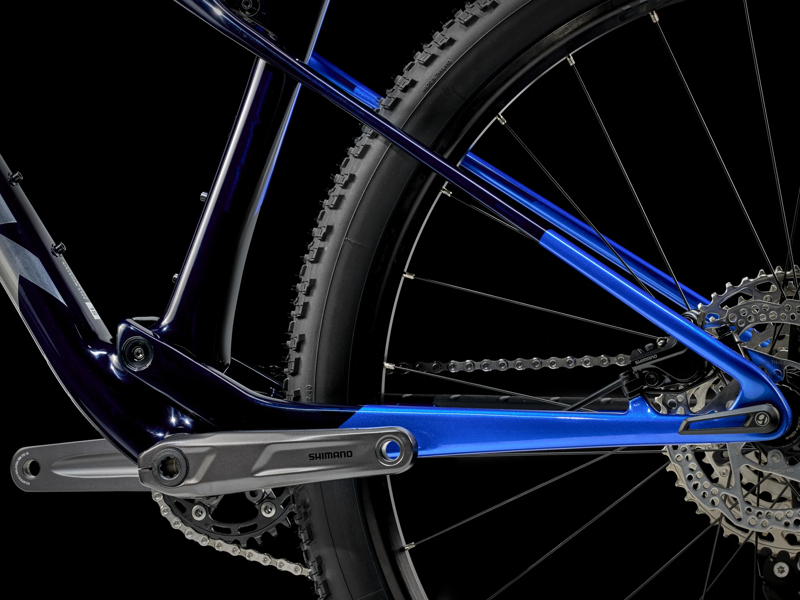

Frame
SL OCLV Mountain Carbon, IsoStrut, UDH, 80 mm travel
Fork
RockShox Recon Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, 15 mm Maxle Stealth, 100 mm travel

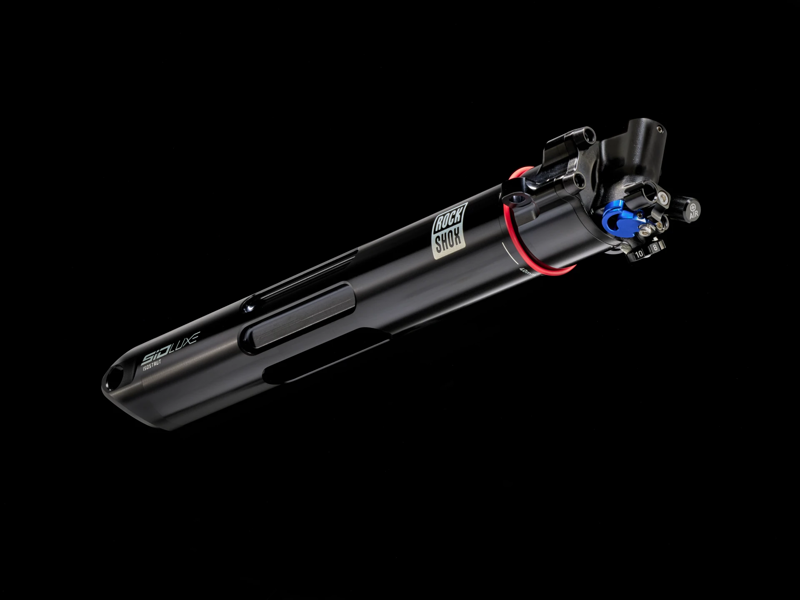

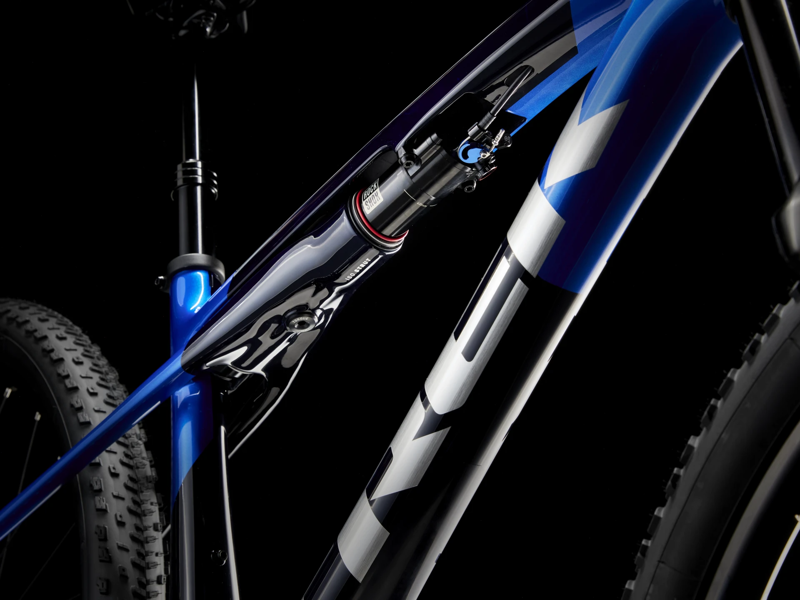

Shock
Trek IsoStrut, RockShox SIDLuxe, 2-position remote damper
Max compatible fork travel
120 mm (533 mm axle-to-crown)
Hub front
Shimano MT400, CenterLock, Boost110, 15 mm thru-axle
Hub rear
Shimano MT410B, CenterLock, Boost148, 12 mm thru-axle

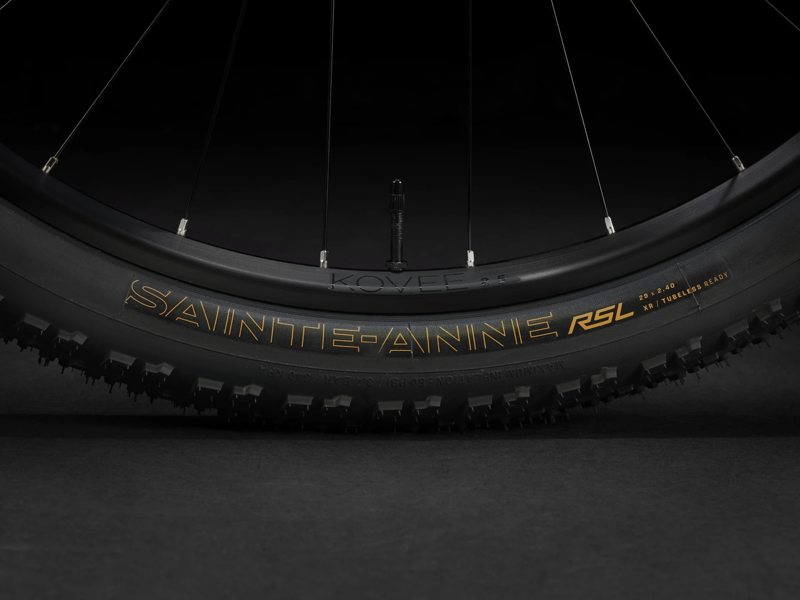

Rim
Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve
Max tyre size
Frame: 29x2.40", Fork: See manufacturer
Shifter
Shimano Deore M6100, 12-speed

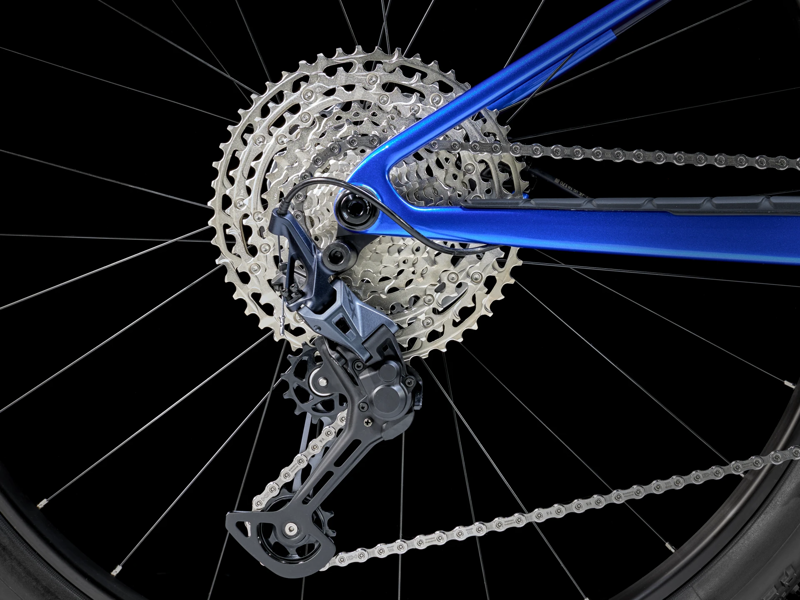

Rear derailleur
Shimano SLX M7100, long cage

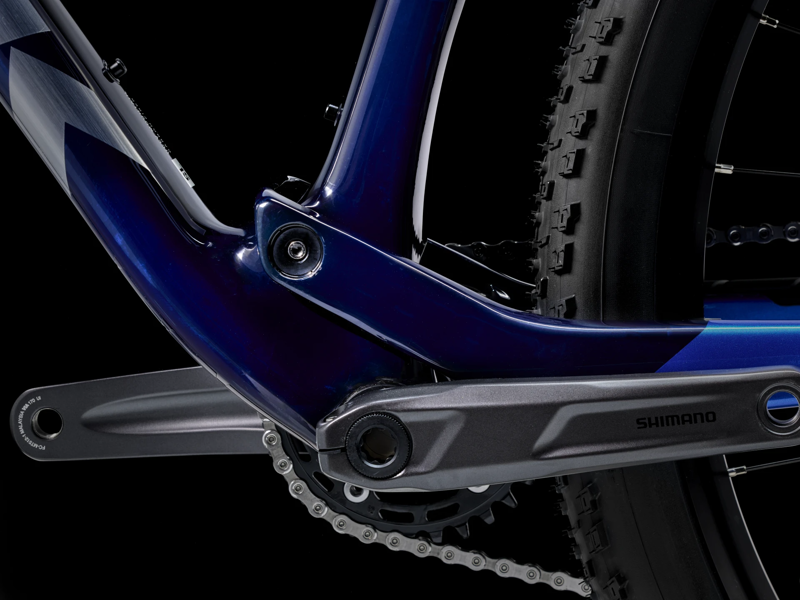

Bottom bracket
Shimano MT500, 92 mm, PressFit
Cassette
Shimano Deore M6100, 10-51, 12-speed
Chain
Shimano Deore M6100, 12-speed

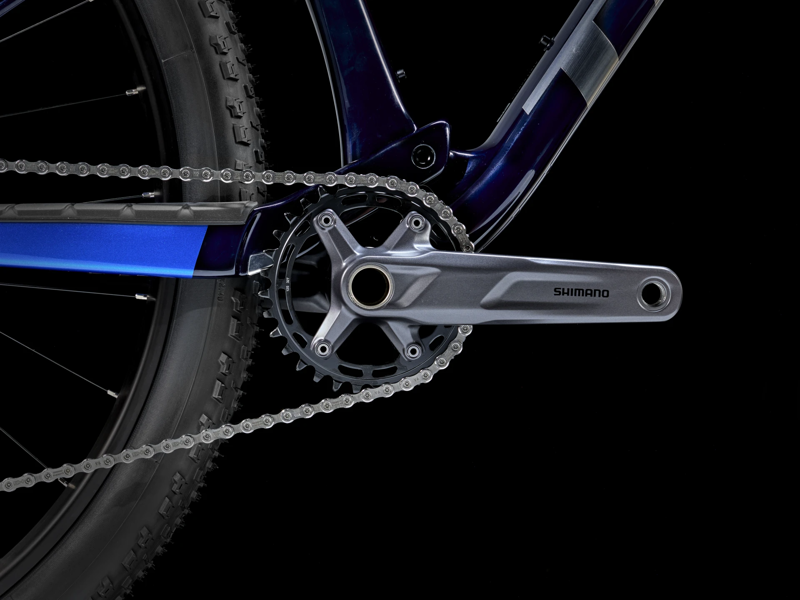

Max. chainring size
1x: 38T, min 30T
Saddle
Bontrager Verse Comp, steel rails, 145 mm width
Seatpost
Size: S
TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
Size:M, M/L
TranzX JD-YSP18, 120 mm travel, internal routing, 31.6 mm, 403 mm length
Size:L, XL
TranzX JD-YSP18, 150 mm travel, internal routing, 31.6 mm, 470 mm length
Handlebar
Size: S
Bontrager Comp, alloy, 31.8 mm, 5 mm rise, 720 mm width
Size:M, M/L, L, XL
Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750mm width
Grips
Bontrager XR Trail Comp, nylon lock-on

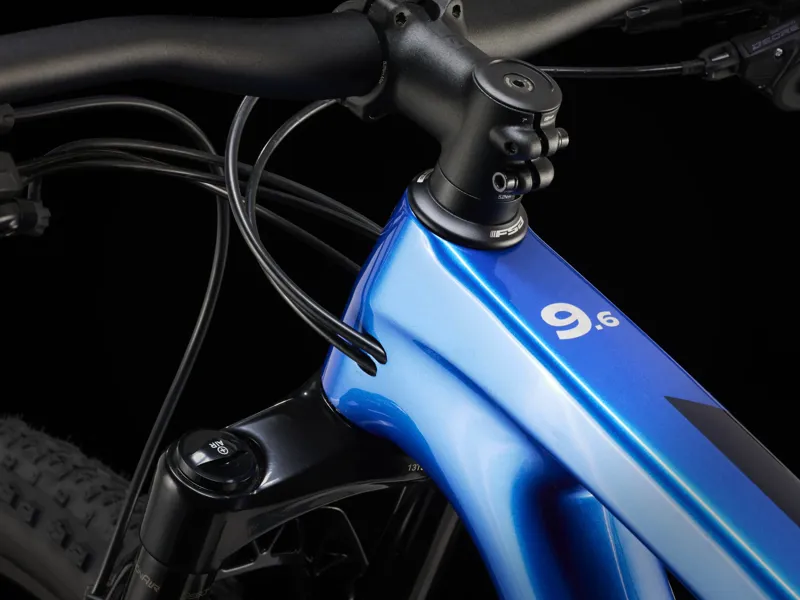

Stem
Size: S
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length
Size:M, M/L
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
Size:L
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size:XL
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Head set
FSA IS-2, 1-1/8" top, 1.5" bottom
Brake
Shimano hydraulic disc, MT501 lever, MT500 caliper
Rotor size
Max brake rotor sizes: 160mm front & rear
Weight
M - 13.10 kg / 28.89 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
