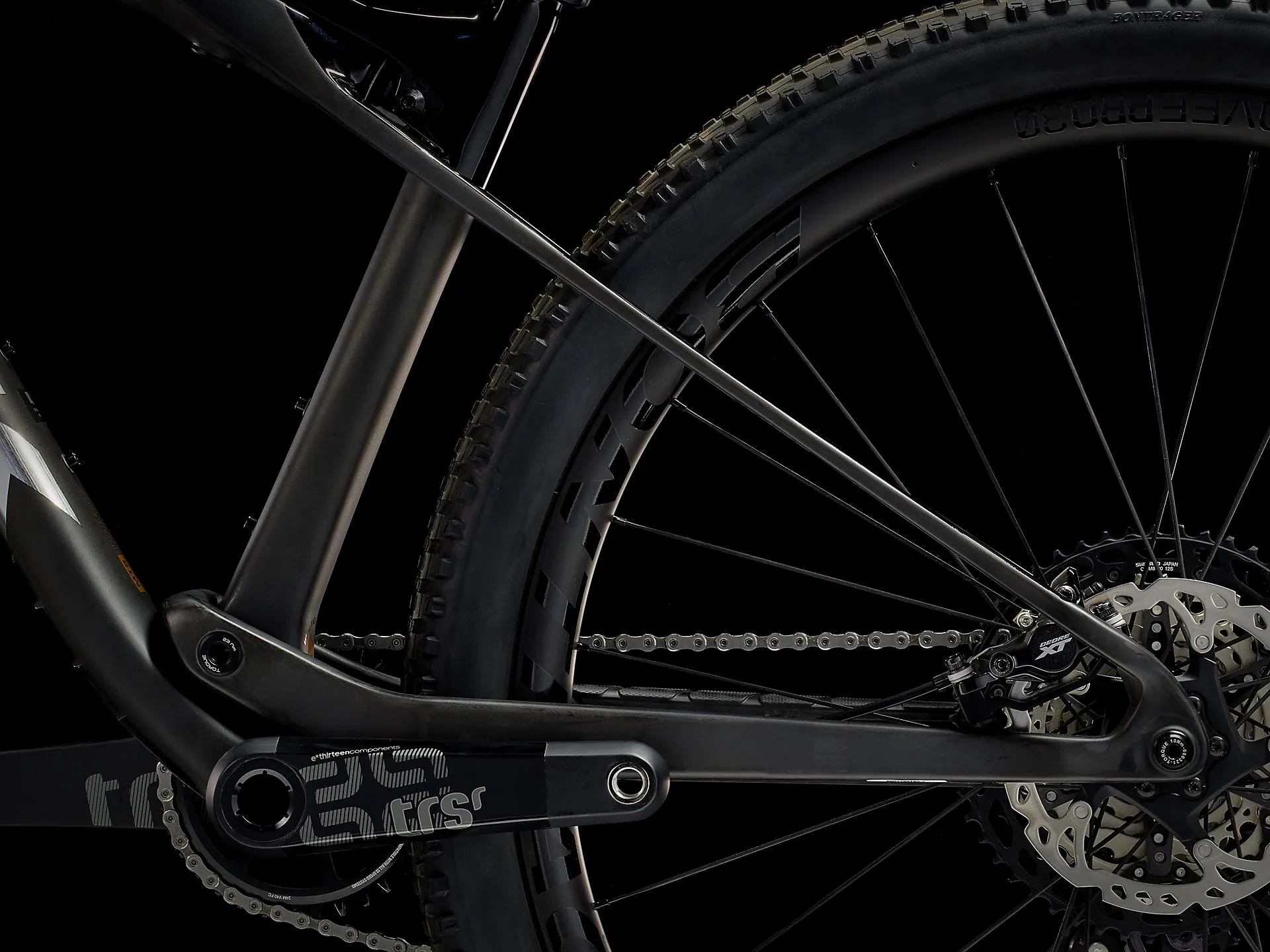

Frame
OCLV Mountain Carbon main frame and stays, IsoStrut, tapered head tube, Knock Block, Control Freak internal routing, Boost148, 60 mm travel
Fork
Fox Performance 32 Step-Cast, Float EVOL air spring, GRIP 2-position damper, remote lockout, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 100 mm travel

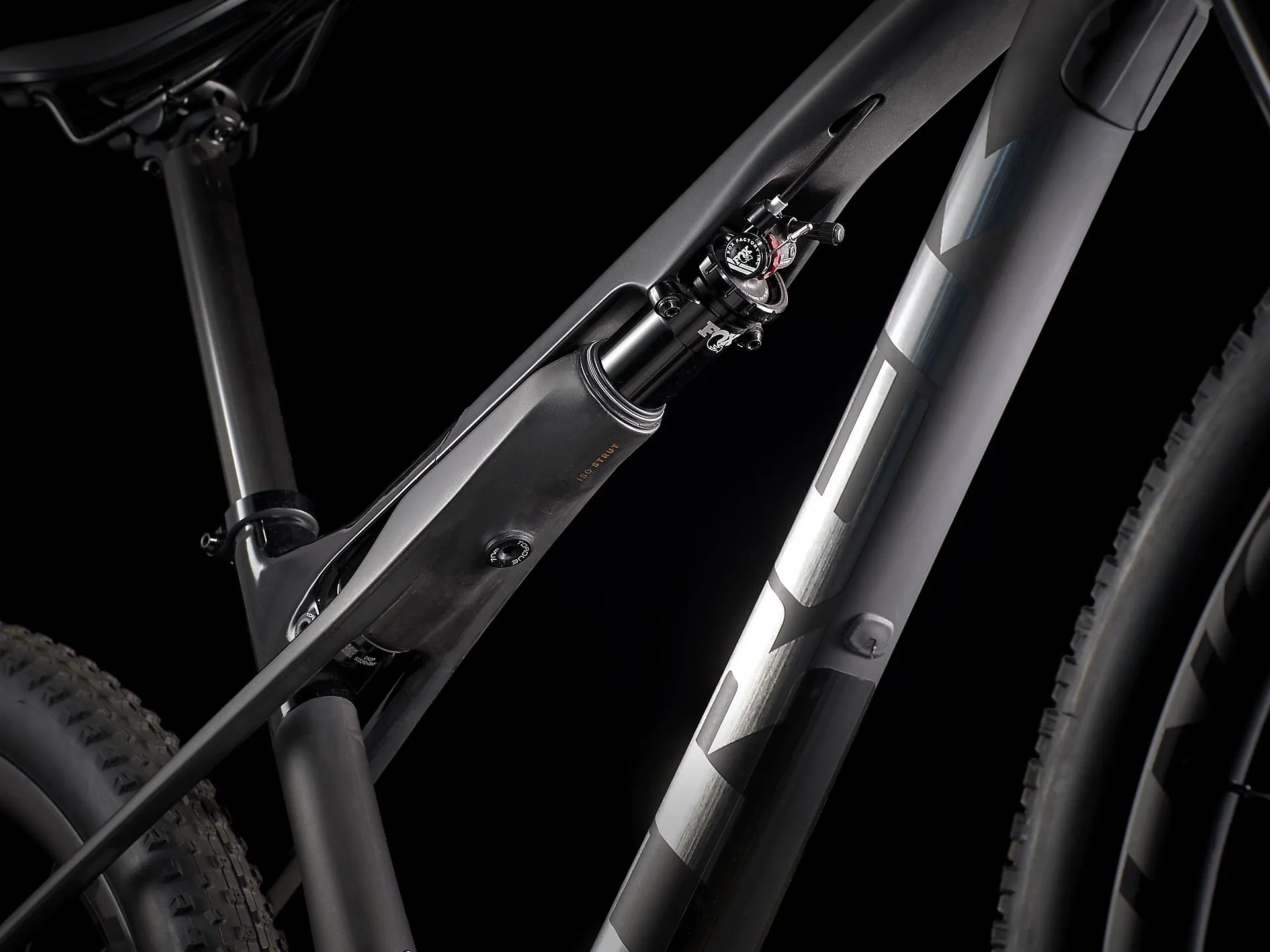

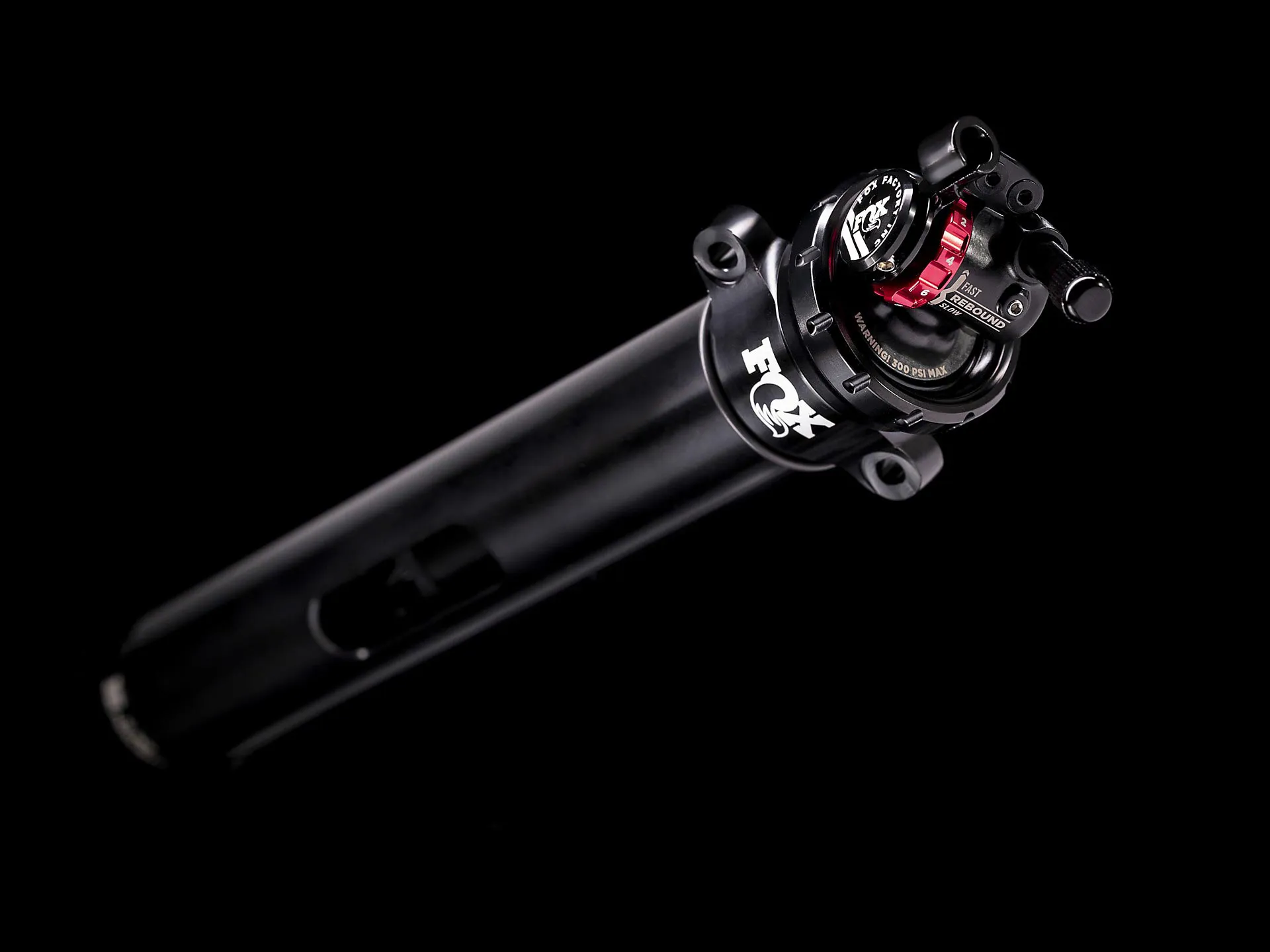

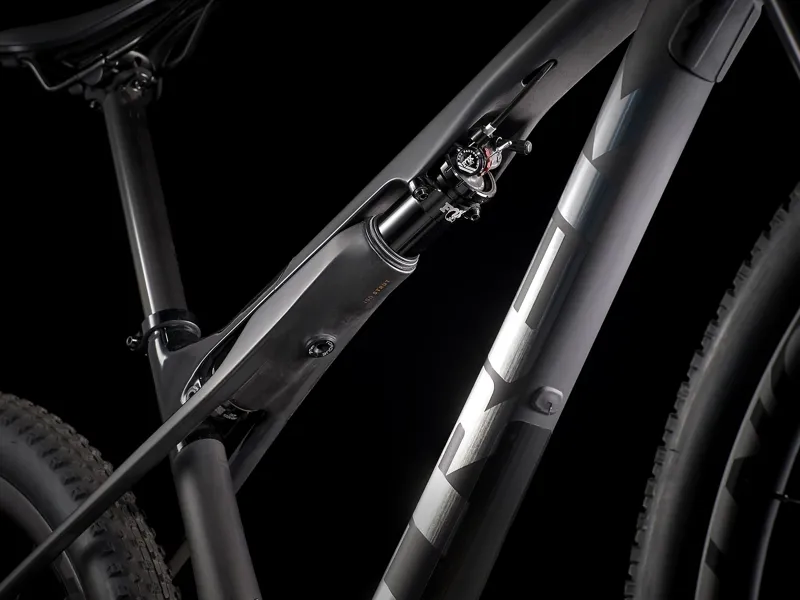

Shock
Trek IsoStrut, Fox Performance shock, air spring, DPS 2-position remote damper, 235 mm x 32.5 mm
Max compatible fork travel
120 mm (531 mm axle-to-crown)
Wheel front
Bontrager Kovee Pro 30 Carbon, Tubeless-Ready, 6-bolt, Boost110, 15 mm thru axle
Wheel rear
Bontrager Kovee Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, Shimano MicoSpline, 6-bolt, Boost 148, 12 mm thru axle
Skewer rear
Bontrager Switch thru-axle, removable lever

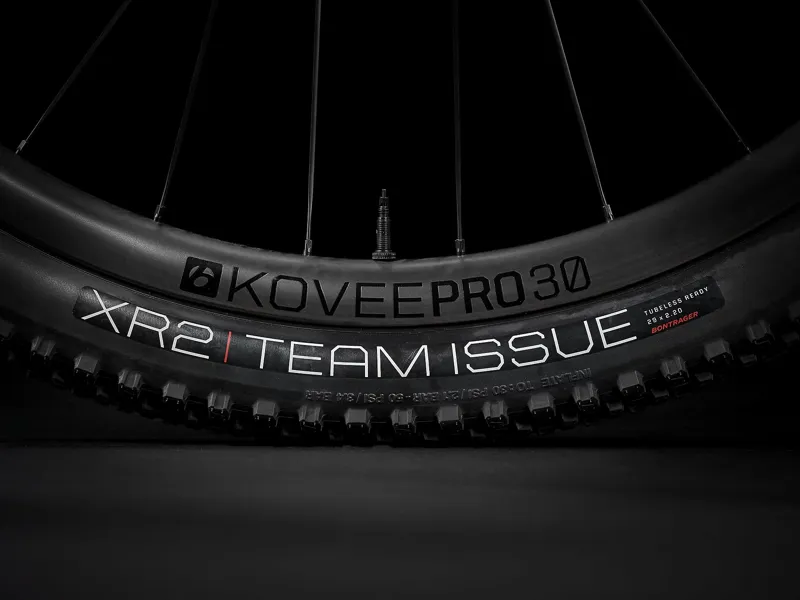

Rim
Bontrager Kovee Pro 30, OCLV Mountain Carbon, Tubeless-Ready

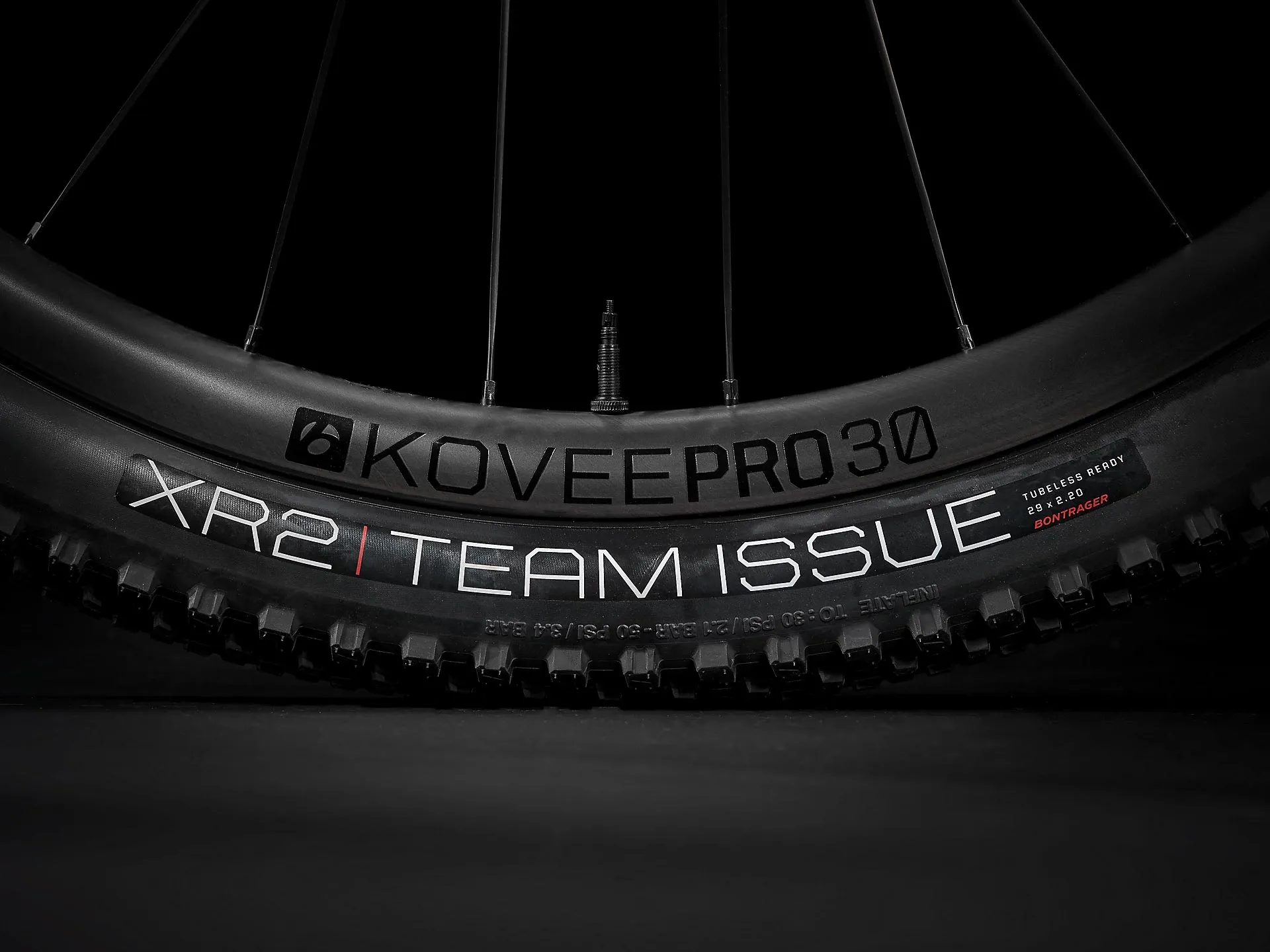

Tyre
Bontrager XR2 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.20"
Tyre part
Bontrager TLR sealant, 180 ml/6 oz
Rim strip
Bontrager TLR
Max tyre size
Frame: 29x2.20" Fork: See manufacturer

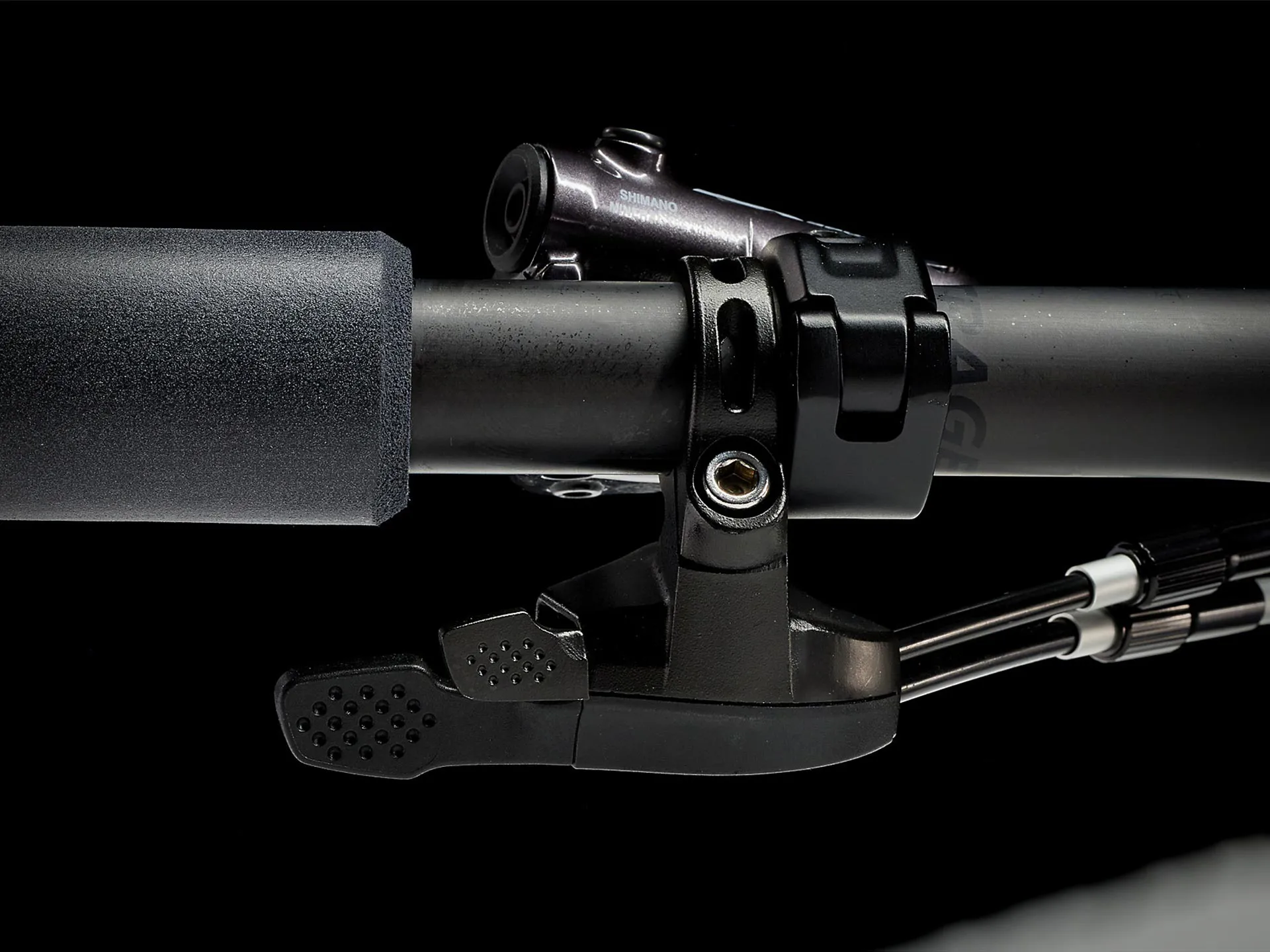

Shifter
Shimano XT M8100, 12-speed

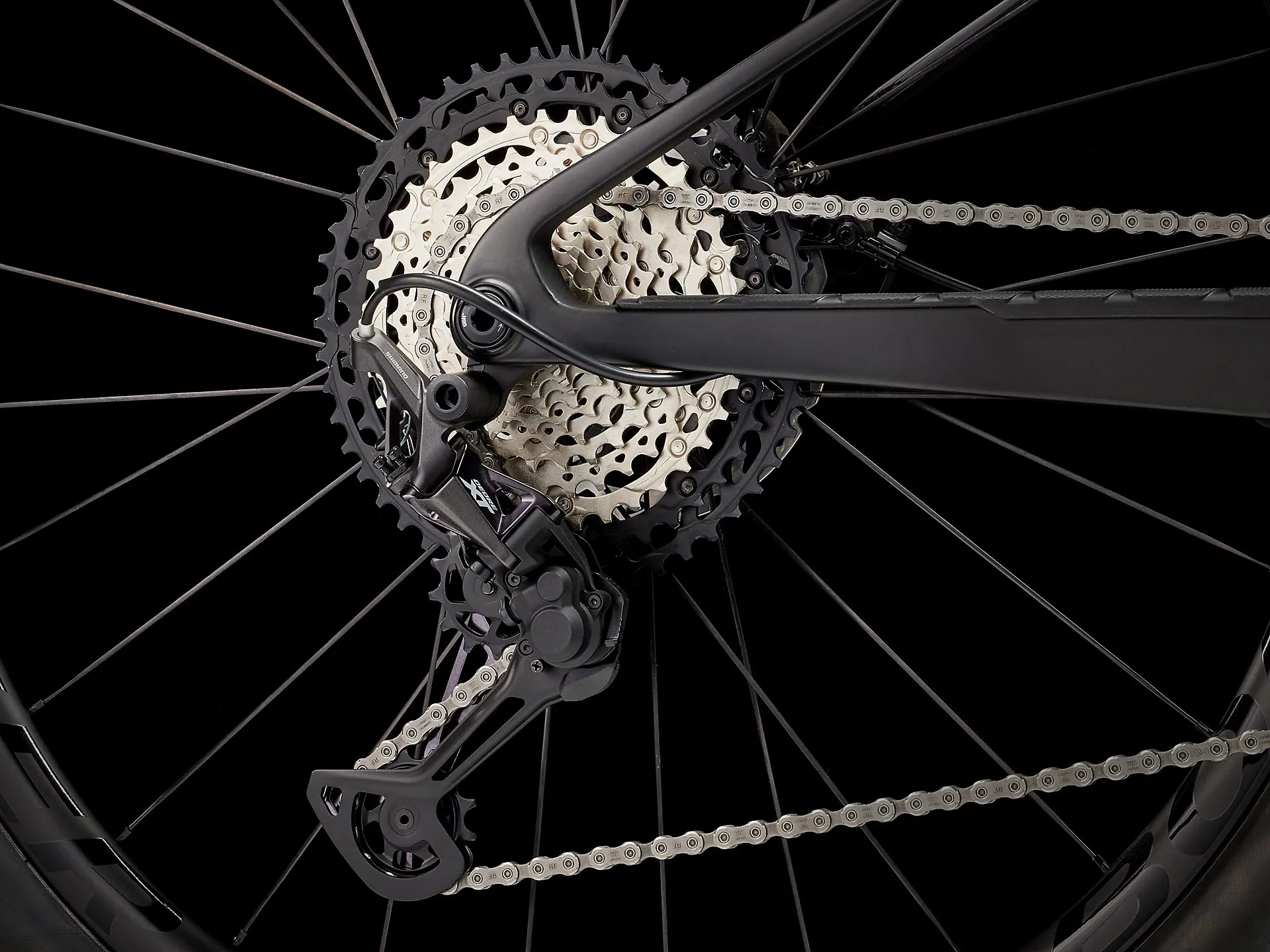

Rear derailleur
Shimano XT M8100, long cage

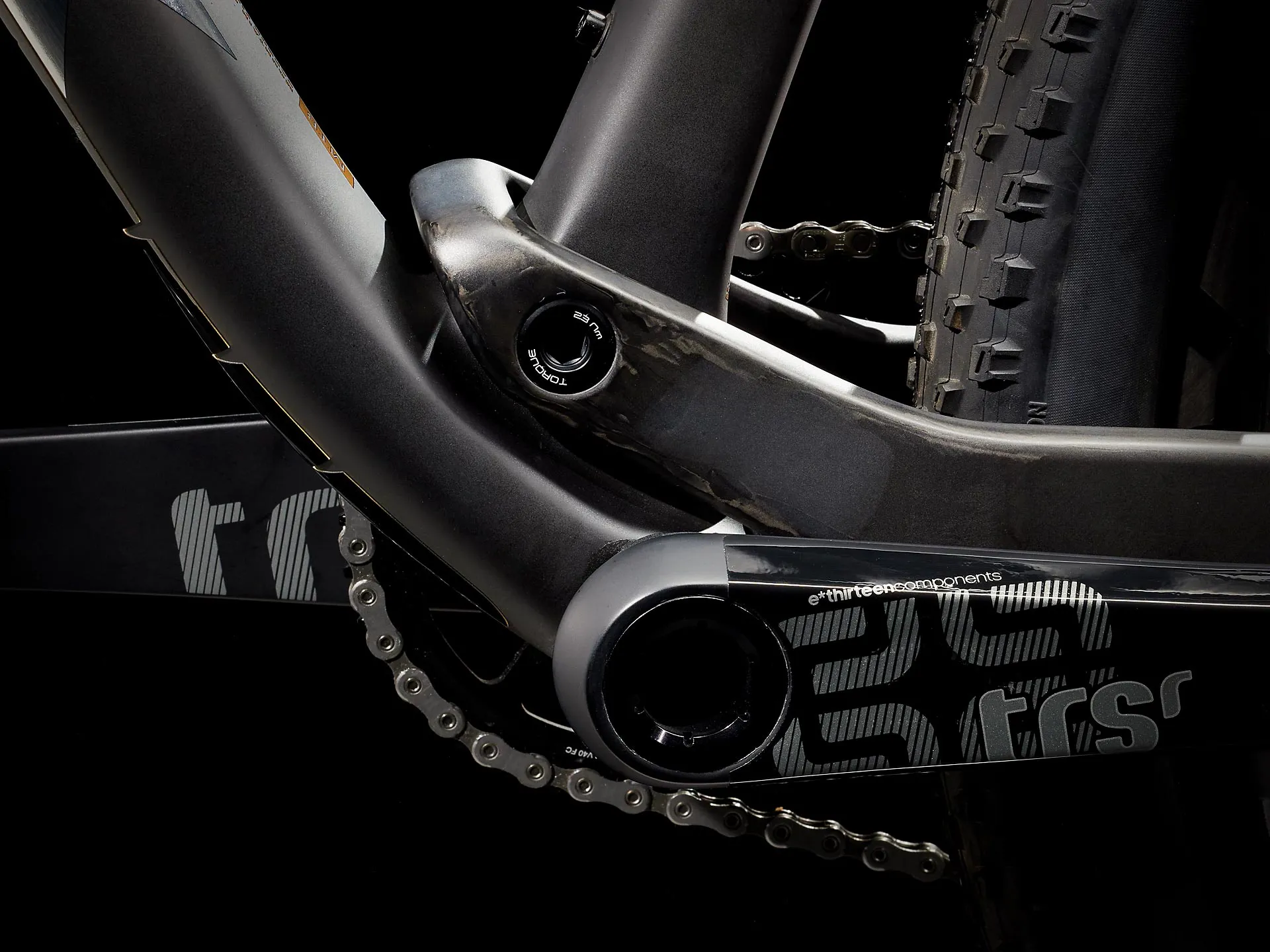

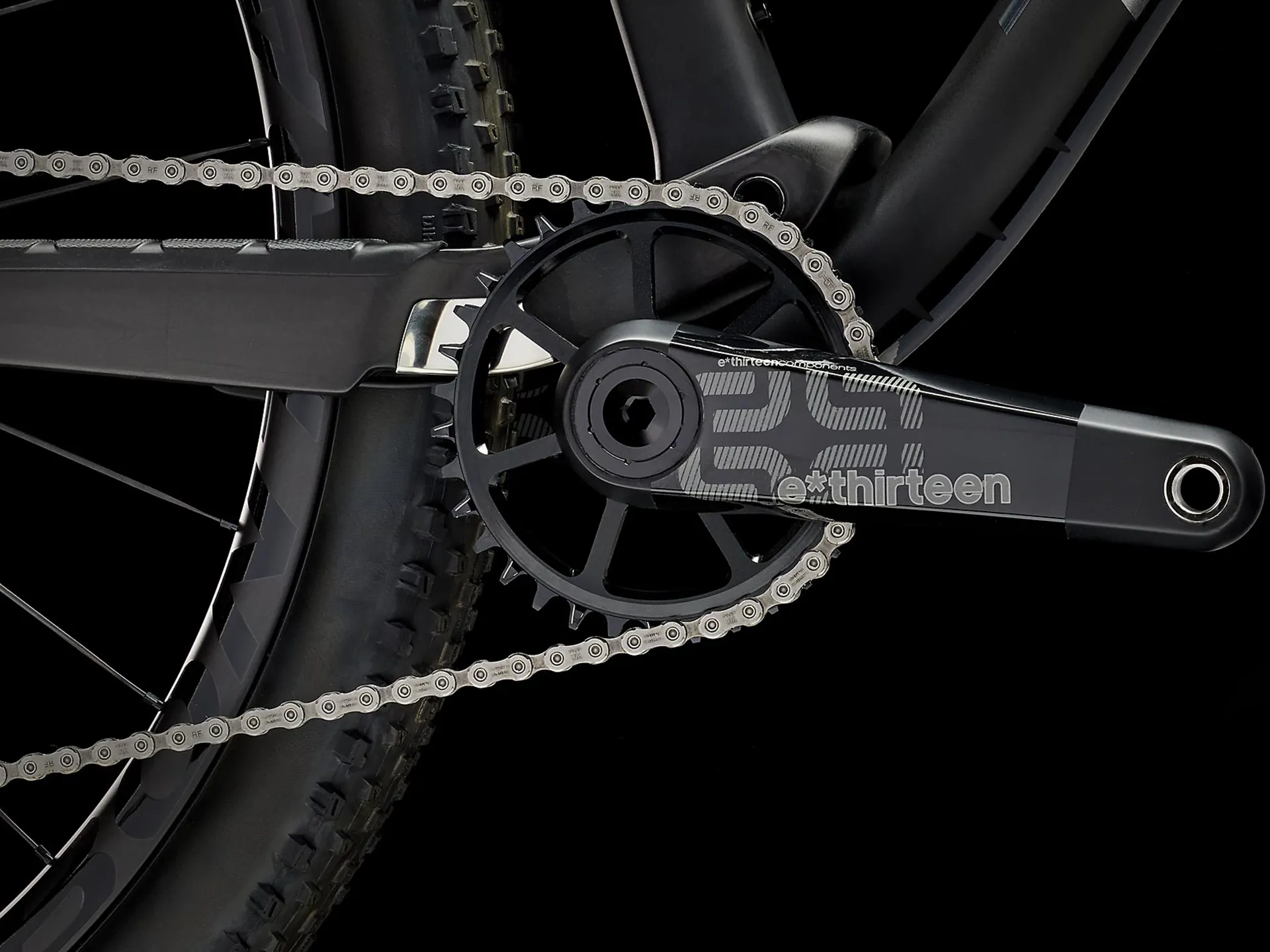

Crank
Size: S
e*thirteen TRS Race Carbon, 30mm spindle, 34T alloy ring, 52mm chainline, 170mm length
Size:M, M/L, L, XL
e*thirteen TRS Race Carbon, 30mm spindle, 34T alloy ring, 52mm chainline, 175mm length
Bottom bracket
e*thirteen BB20-92
Cassette
Shimano XT M8100, 10-51, 12 speed
Chain
Shimano Ultegra/XT M8100, 12 speed
Max. chainring size
36T
Saddle
Bontrager Verse Elite, austenite rails, 145 mm width
Seatpost
Size:S
Bontrager Pro, OCLV Carbon, 31.6 mm, 0 mm offset, 330 mm length
Size:M, M/L, L, XL
Bontrager Pro, OCLV Carbon, 31.6 mm, 0 mm offset, 400 mm length

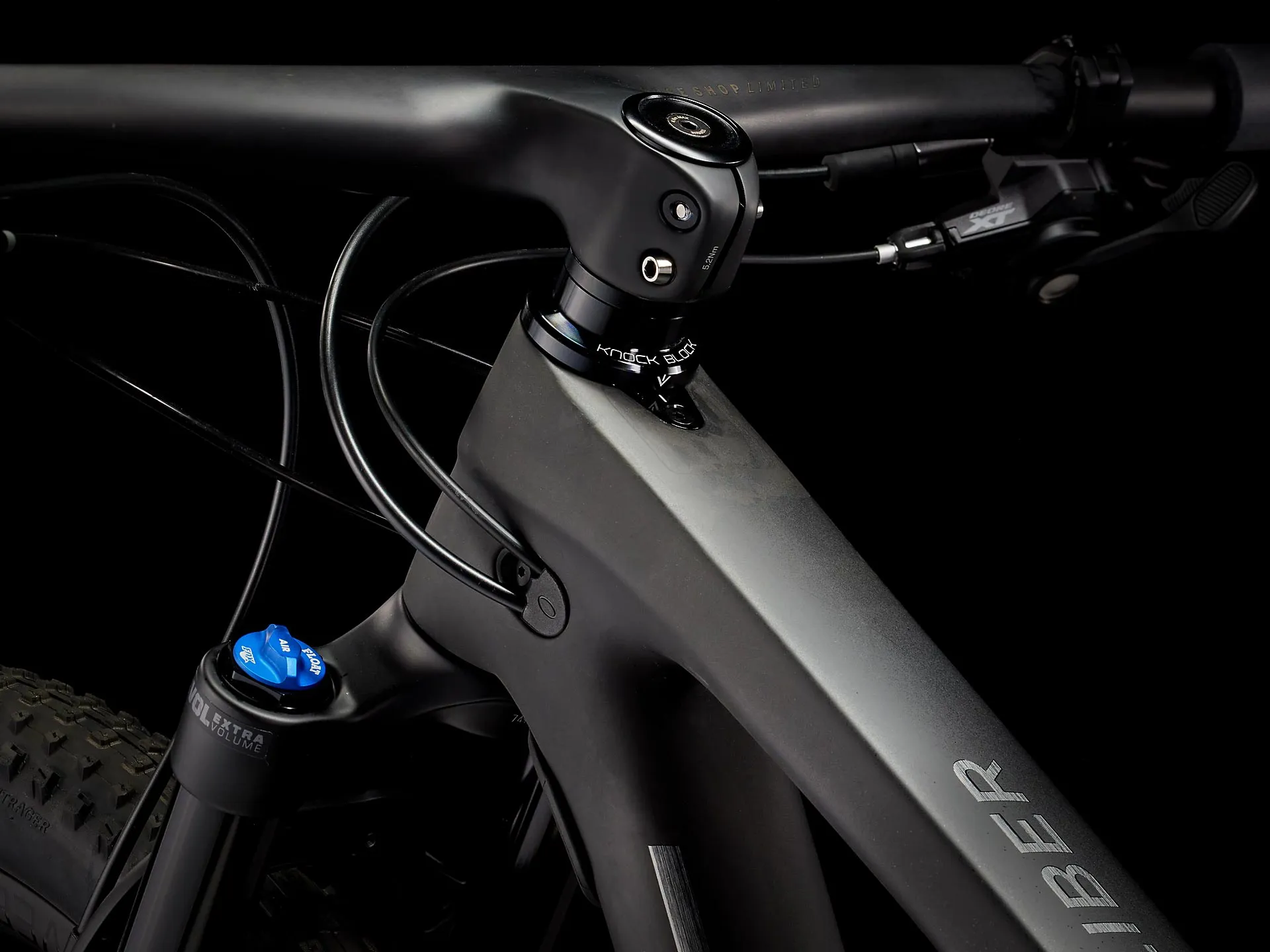

Handlebar/stem (integrated)
Size: S, M
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 70mm length
Size:M/L, L
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 80mm length
Size:XL
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 90 mm length
Grips
ESI Chunky
Head set
Knock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
Brake
Shimano Deore XT M8100 hydraulic disc
Brake rotor
Size: S, M, M/L, L, XL
Shimano RT76, 6-bolt, 160 mm
Size:S, M, M/L, L, XL
Shimano RT76, 6-bolt, 180 mm
Rotor size
Max brake rotor sizes: 180 mm front, 160 mm rear
Weight
M - 10.55 kg / 23.26 lbs
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
