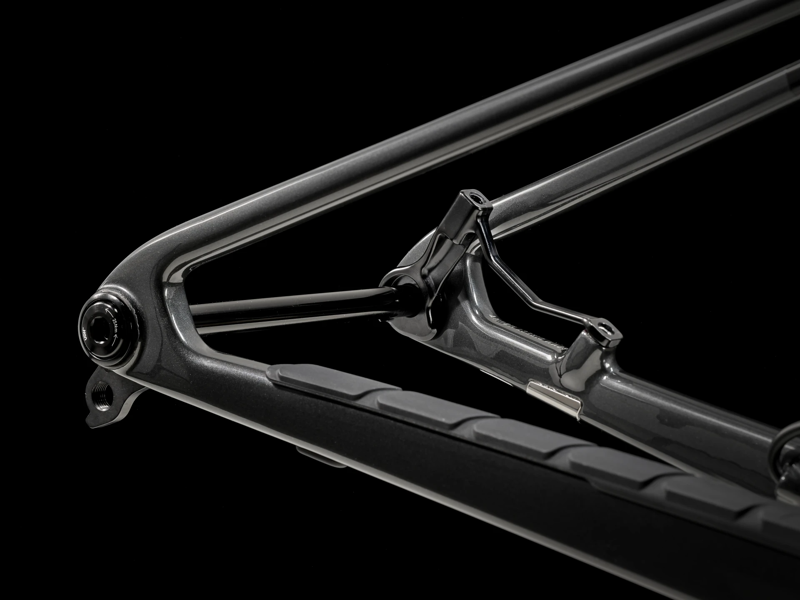

Frame set
SLR OCLV Mountain Carbon, IsoStrut, UDH, 80 mm travel
Fork
RockShox SID, DebonAir spring, Rush RL damper, remote lockout, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 110 mm travel

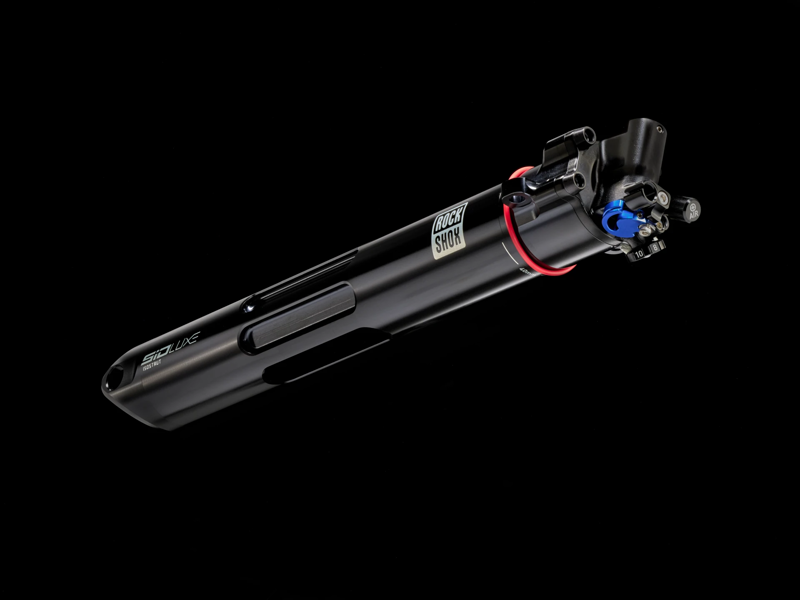

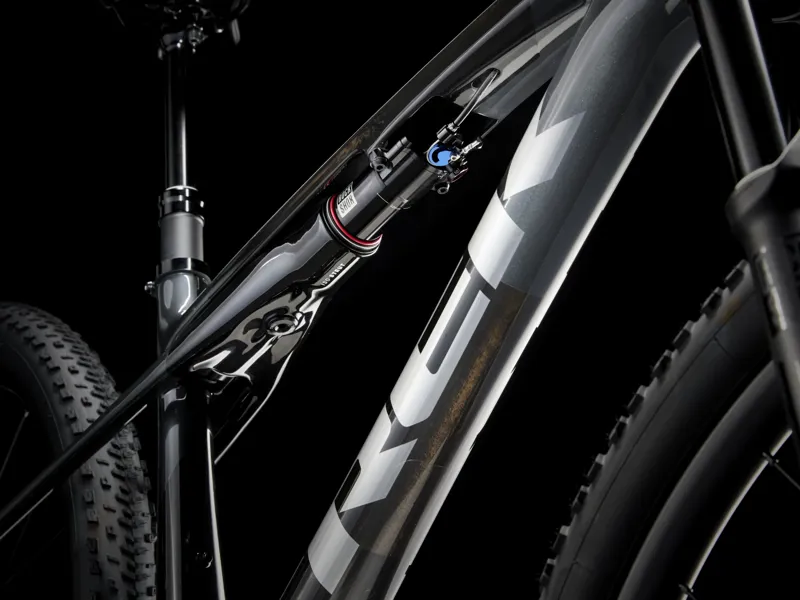

Shock
Trek IsoStrut, RockShox SIDLuxe, 2-position remote damper
Suspension lever
RockShox TwistLoc Ultimate
Max compatible fork travel
120 mm (533 mm axle-to-crown)

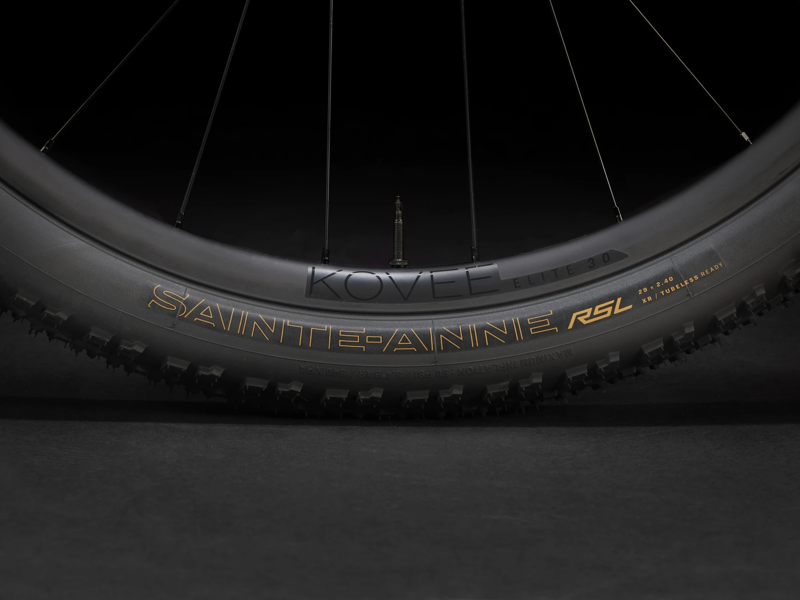

Wheel front
Bontrager Kovee Elite 30, OCLV Mountain Carbon, Tubeless-Ready, 6-bolt, Boost110, 15 mm thru axle
Wheel rear
Bontrager Kovee Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, Boost148, 12 mm thru axle
Rim strip
Bontrager TLR
Max tyre size
Frame: 29x2.40", Fork: See manufacturer
Shifter
SRAM Eagle AXS POD

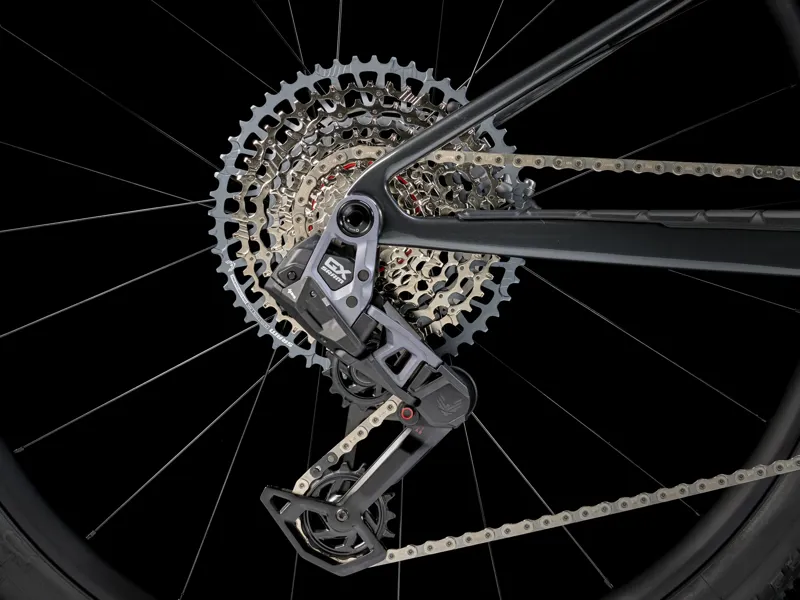

Rear derailleur
SRAM GX Eagle AXS, T-Type
Cassette
SRAM Eagle XS-1275, T-Type,10-52, 12-speed

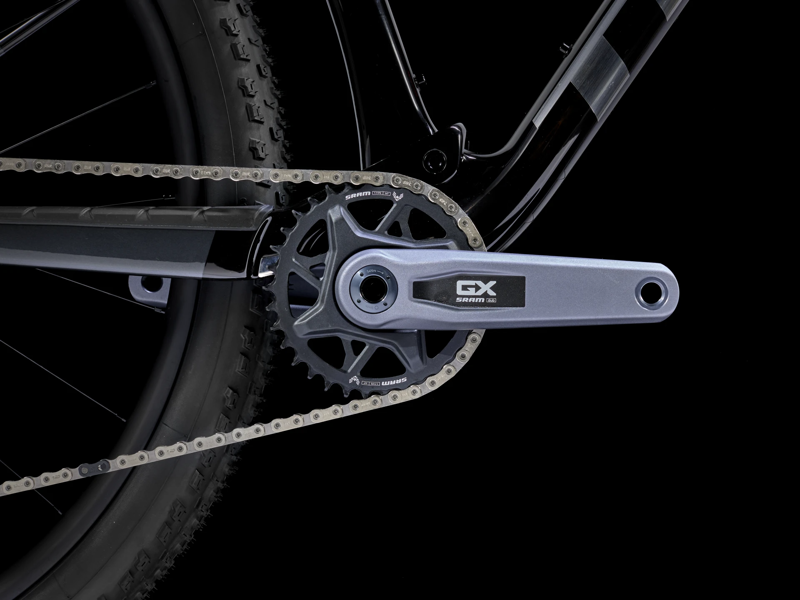

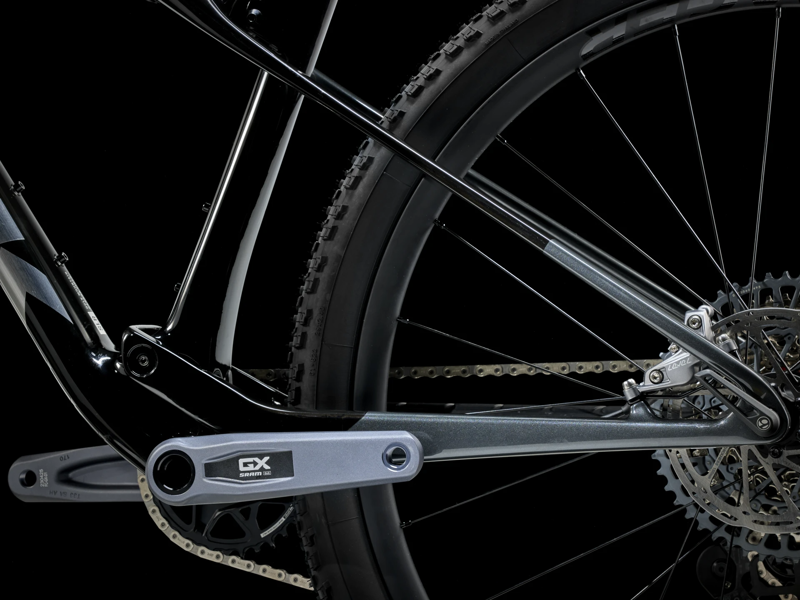

Max. chainring size
1x: 38T, min 30T
Saddle
Bontrager Verse Elite, austenite rails, 145 mm width
Seatpost
Size:S
Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6 mm, 310 mm length
Size:M, M/L, L
Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 31.6 mm, 410 mm length
Size:XL
Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 31.6 mm, 450 mm length

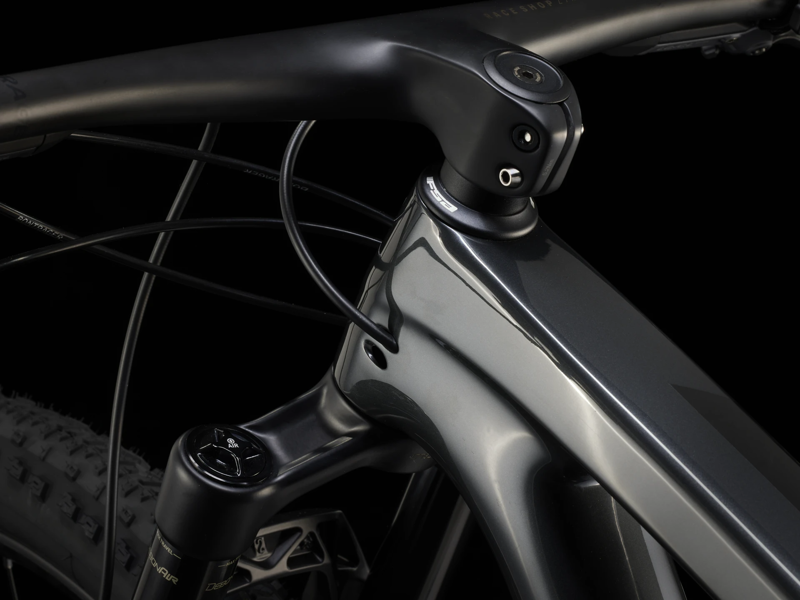

Handlebar/stem (integrated)
Size:S, M, M/L
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 70 mm length
Size:L
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 80 mm length
Size:XL
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 90 mm length
Head set
FSA IS-2, 1-1/8" top, 1.5" bottom
Brake
SRAM Level Bronze 4-piston hydraulic disc
Brake rotor
Size:S, M, M/L, L, XL
SRAM CenterLine, 6-bolt, round-edge, 160 mm
Size:S, M, M/L, L, XL
SRAM CentreLine, 6-bolt, round edge, 180 mm
Rotor size
Max brake rotor sizes: 160mm front & rear
Battery
SRAM eTap battery pack (with charger)
Weight
M - 11.28 kg / 24.87 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
