Frame

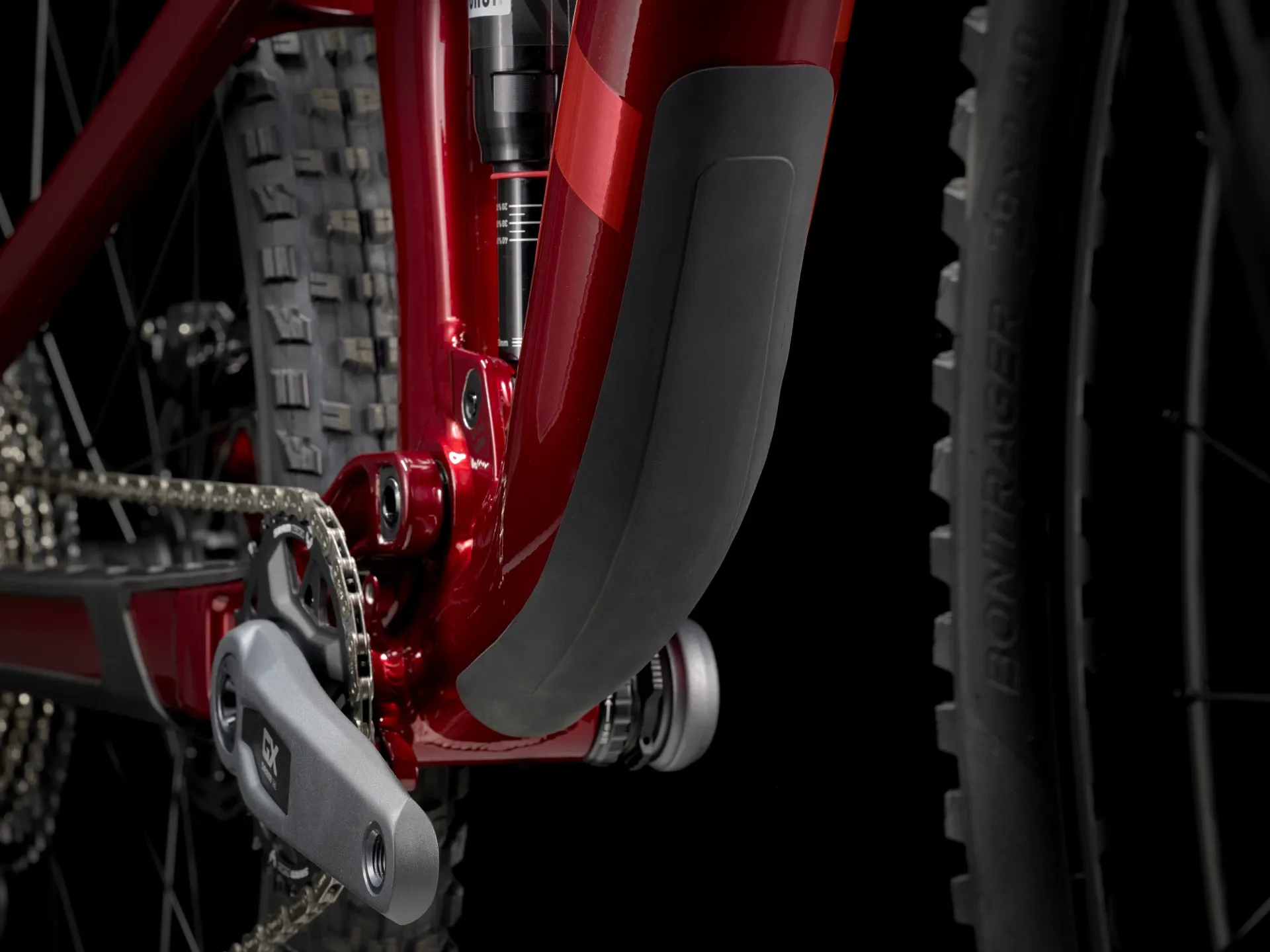

Alpha Platinum Aluminium, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120 mm travel
Fork
RockShox Pike, DebonAir spring, Rush RC damper, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 130mm travel

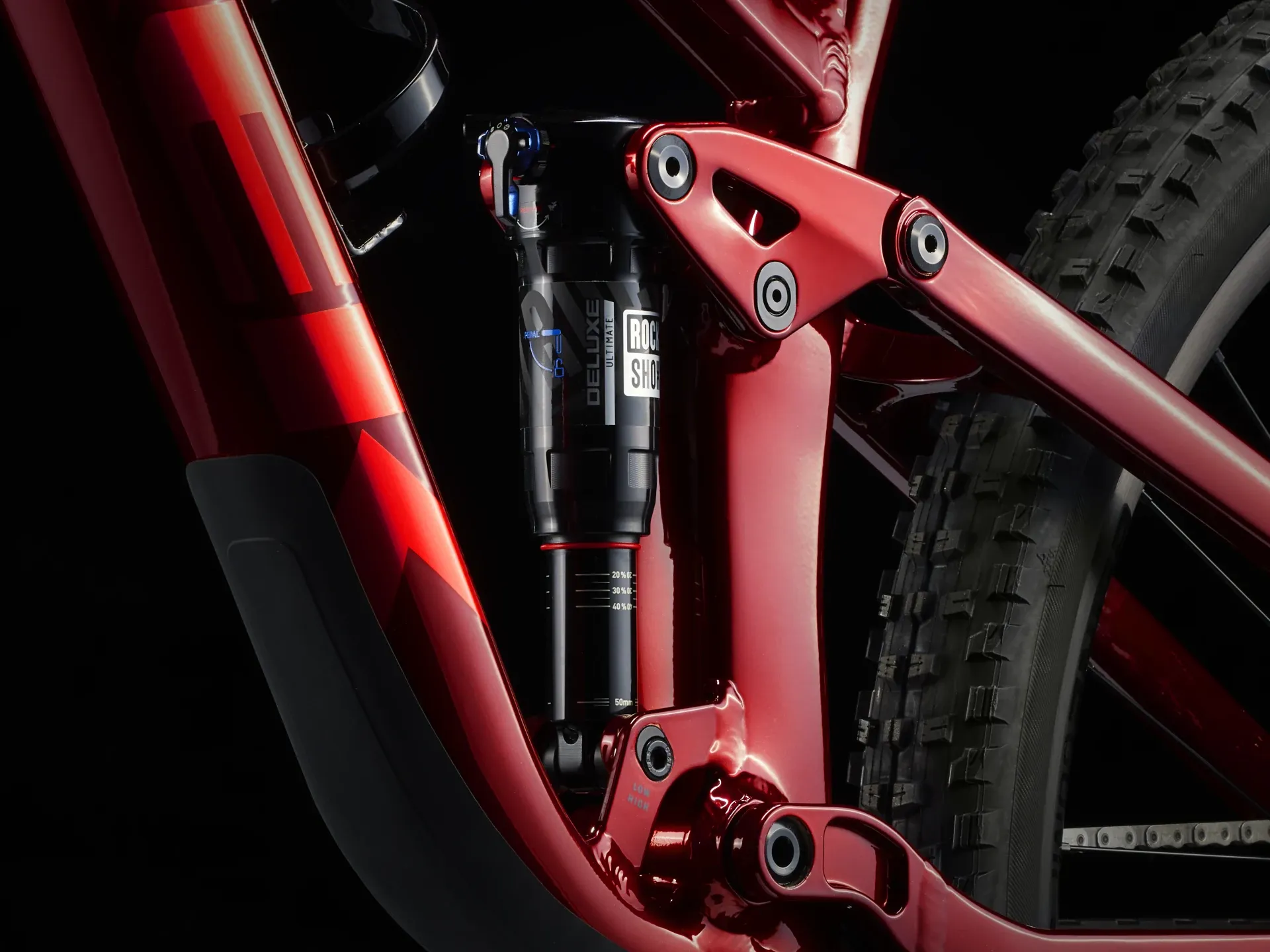

Shock
RockShox Deluxe Ultimate RCT, 185 mm x 50 mm
Max compatible fork travel
130mm (541mm axle-to-crown)

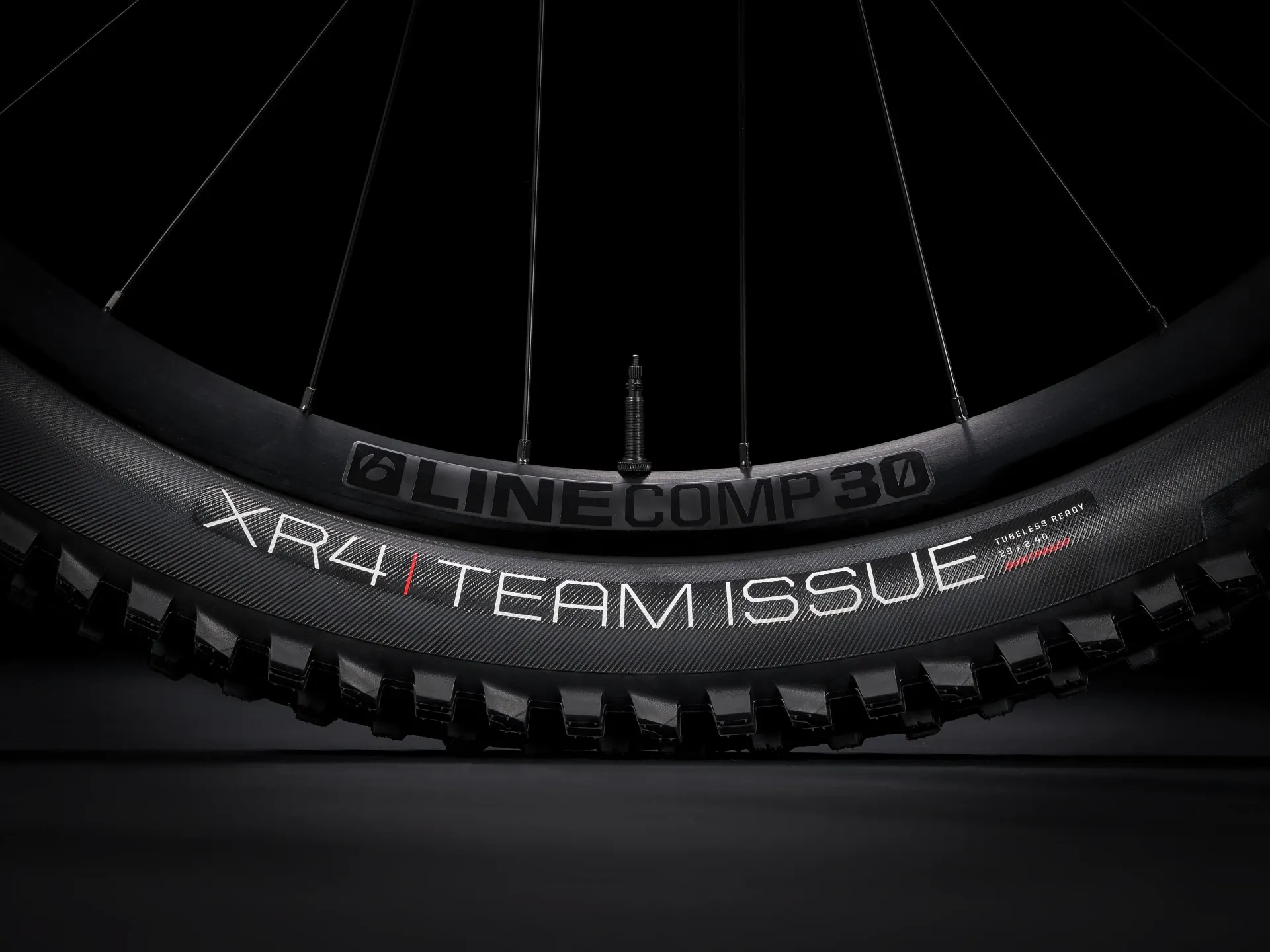

Wheel front,
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
Skewer rear
Bontrager Switch thru-axle, removable lever
Rim strip
Bontrager TLR
Max tyre size
Frame: 29x2.50", Fork: See manufacturer
Shifter
SRAM Eagle AXS POD

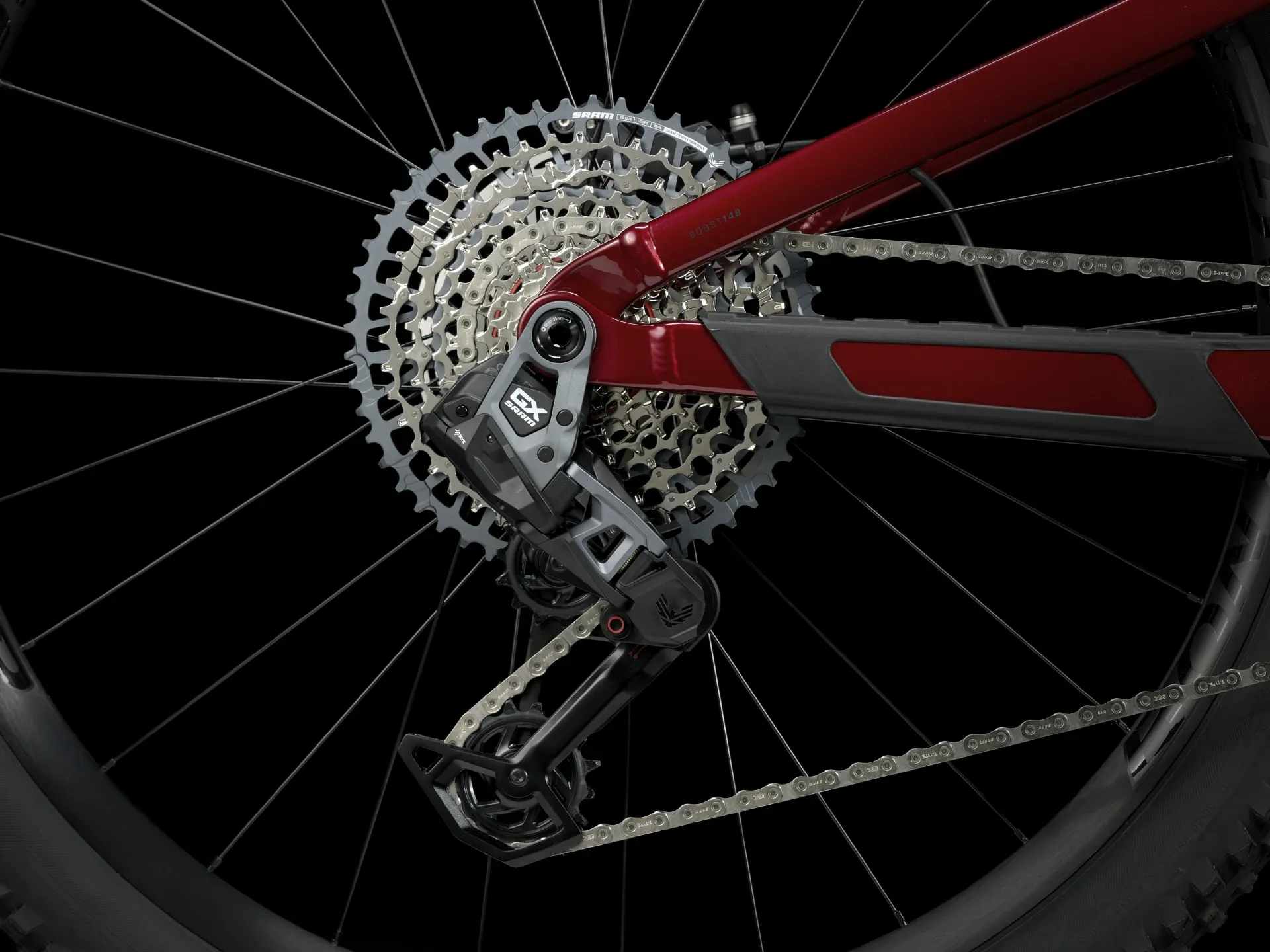

Rear derailleur
SRAM GX Eagle AXS, T-Type

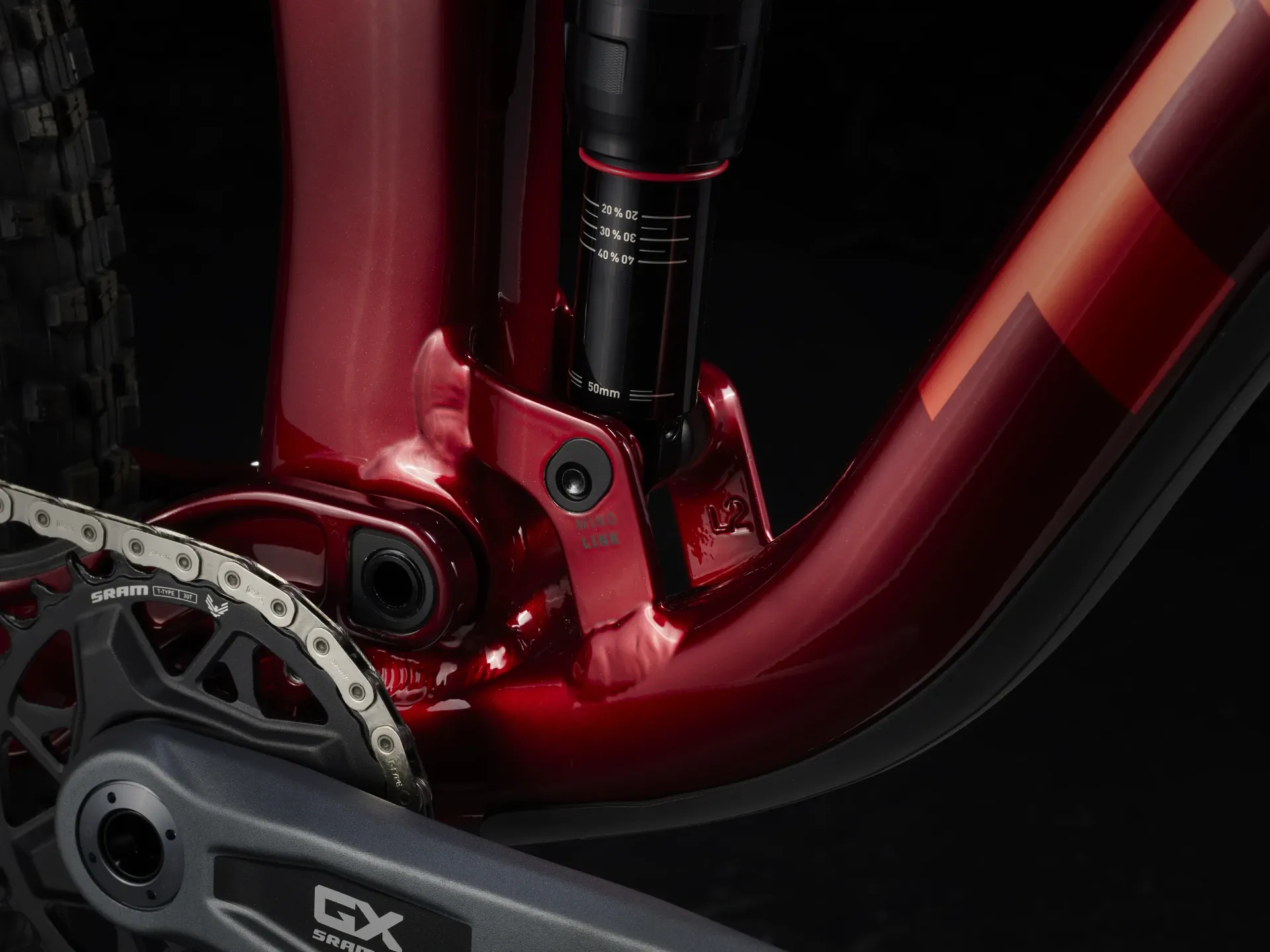

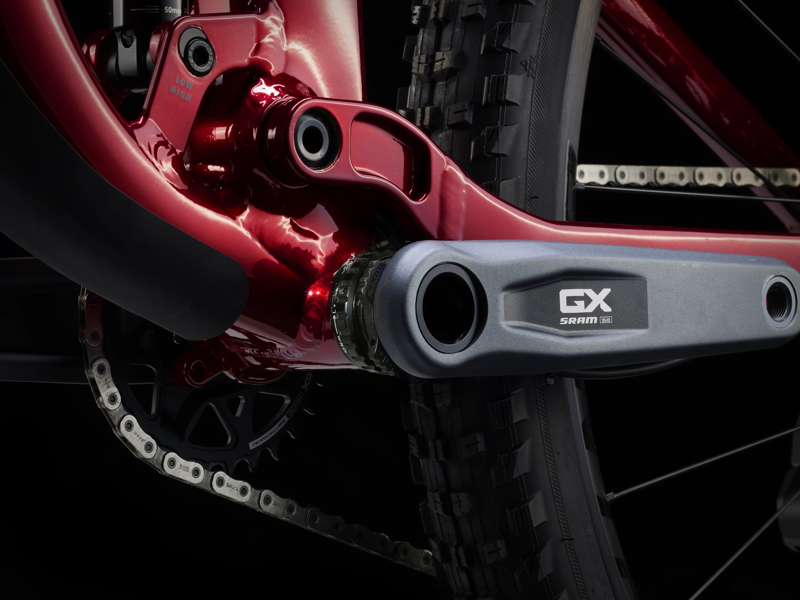

Crank
SRAM GX Eagle, T-Type, DUB, 30T, 55 mm chain line, 170 mm length
Bottom bracket
SRAM DUB MTB Wide, 73 m, BSA threaded
Cassette
SRAM Eagle XS-1275, T-Type,10-52, 12-speed
Chain
Size: S, M, M/L, L, XL, XXL
SRAM GX Eagle, T-Type, 12-speed
Size:S, M, M/L, L, XL, XXL
SRAM GX Eagle, T-Type, 12 speed
Max. chainring size,
1x: 36T round, 34T oval, min 28T
Saddle
Bontrager Arvada, hollow chromoly rails, 138 mm width
Seatpost
Size: S
TranzX JD-YSP39, 100 mm travel, internal routing, 34.9 mm
Size:M, M/L
TranzX JD-YSP39, 150 mm travel, internal routing, 34.9 mm
Size:L, XL, XXL
TranzX JD-YSP39, 170 mm travel, internal routing, 34.9 mm

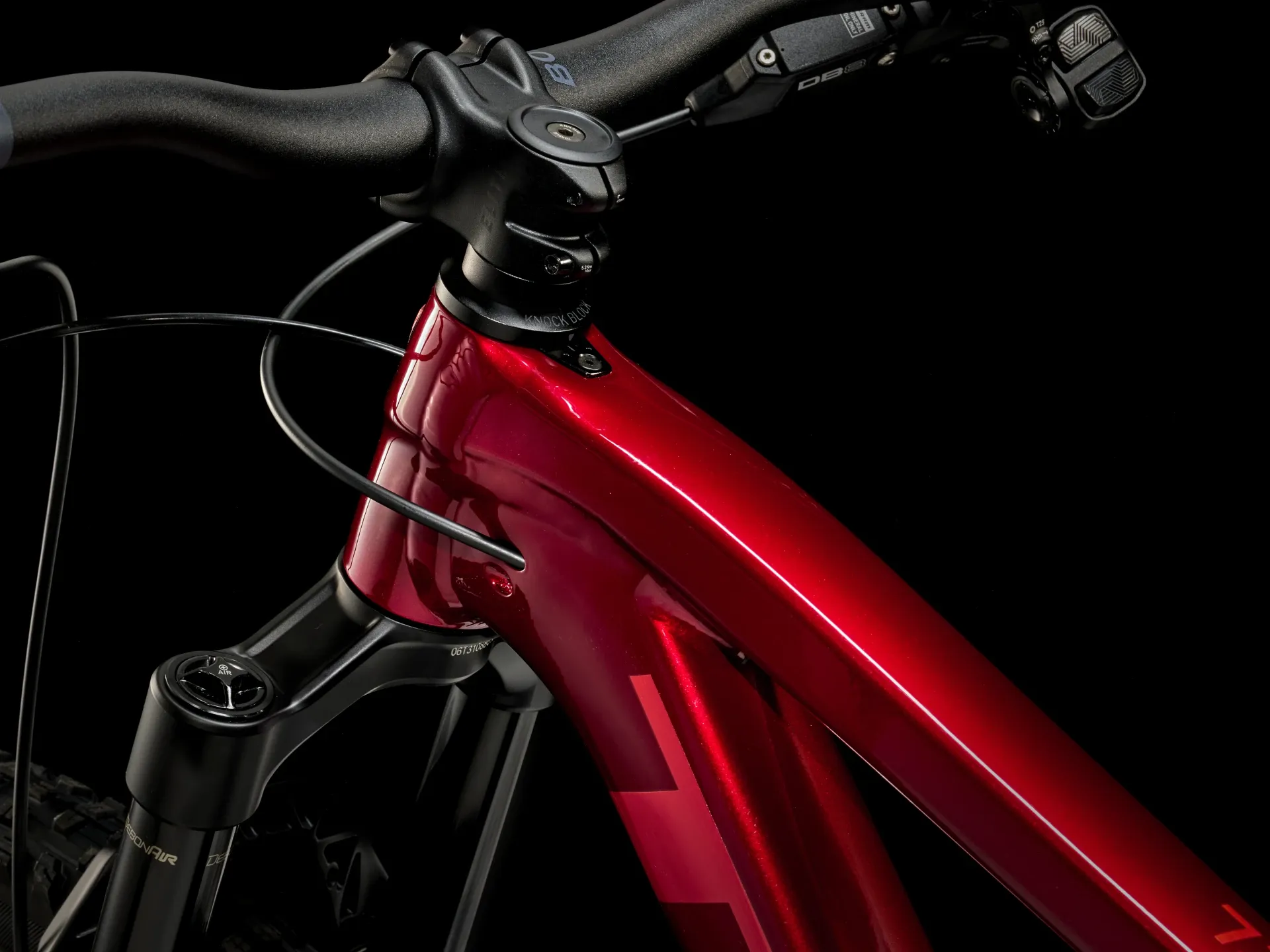

Handlebar
Size: S
Bontrager Line, alloy, 35 mm, 27.5 mm rise, 750 mm width
Size:M, M/L, L, XL, XXL
Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width
Grips
Bontrager XR Trail Comp, nylon lock-on
Stem
Bontrager Elite, 35 mm, 0-degree, 45 mm length
Brake
SRAM DB 8 4-piston hydraulic disc

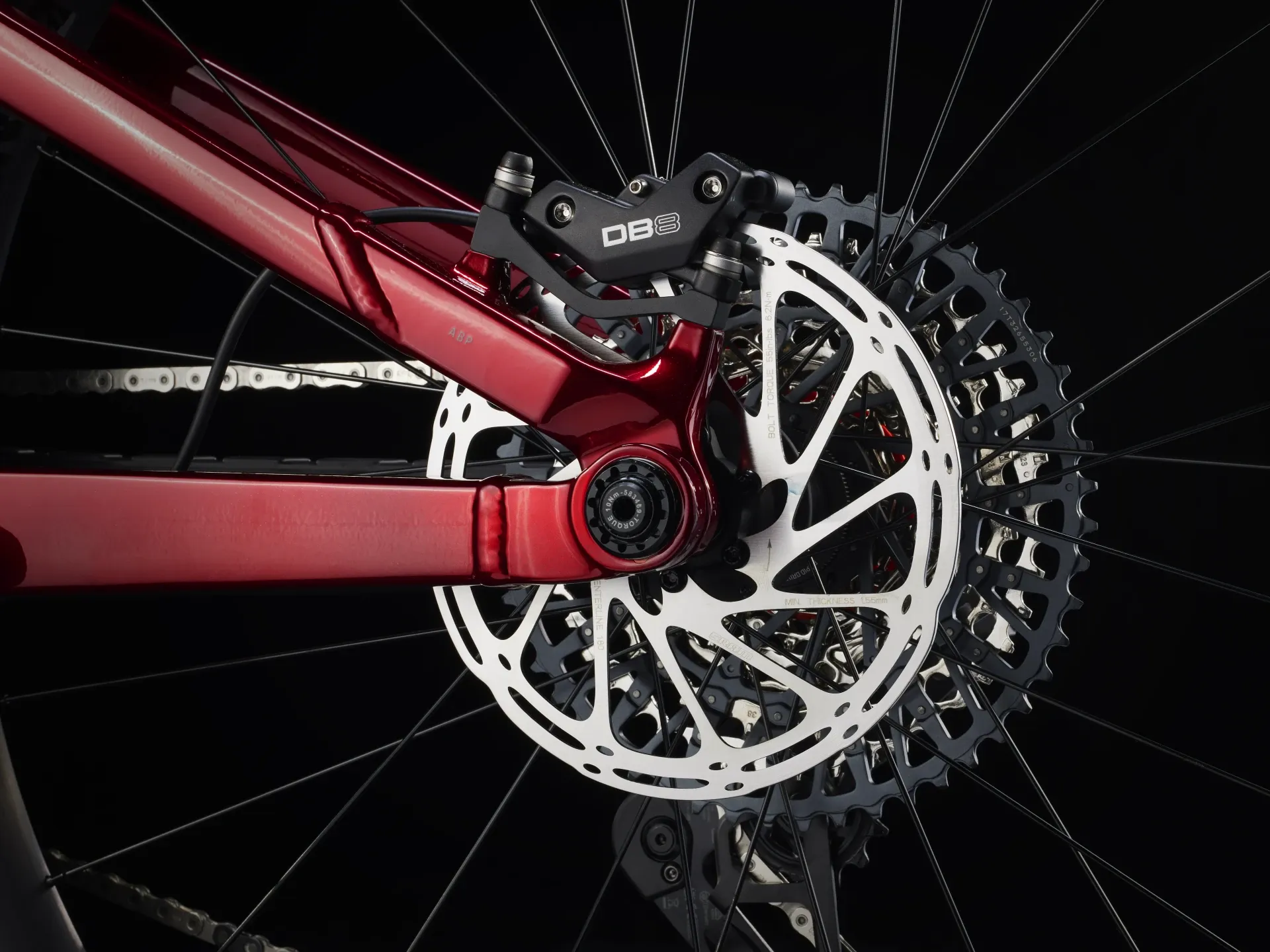

Brake rotor
SRAM CentreLine, 6-bolt, round edge, 180 mm
Rotor size
Max brake rotor sizes – Frame: 180 mm, Fork: see fork manufacturer
Battery
SRAM eTap battery pack (with charger)

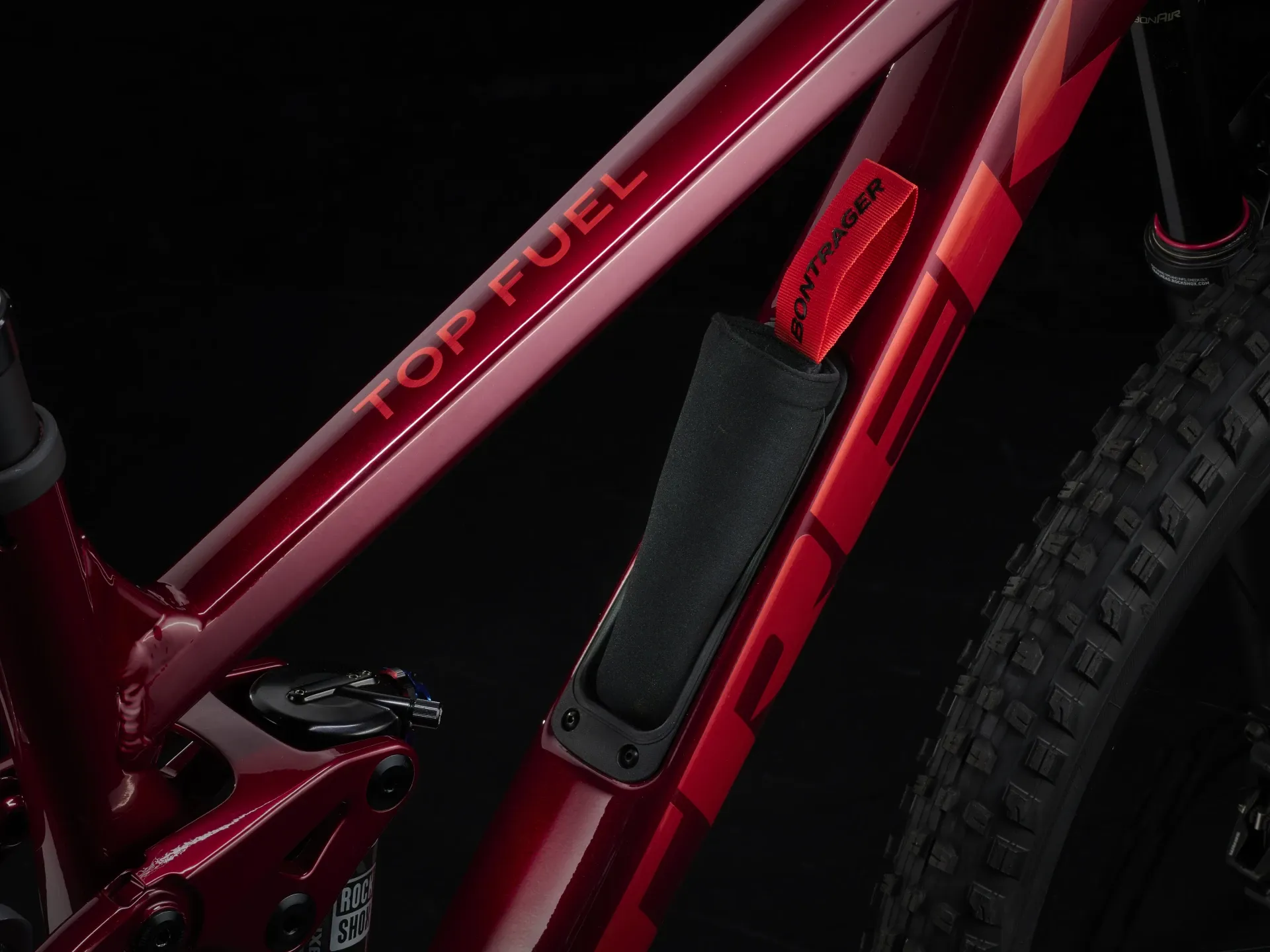

Bag
Bontrager BITS Internal Frame Storage Bag
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
