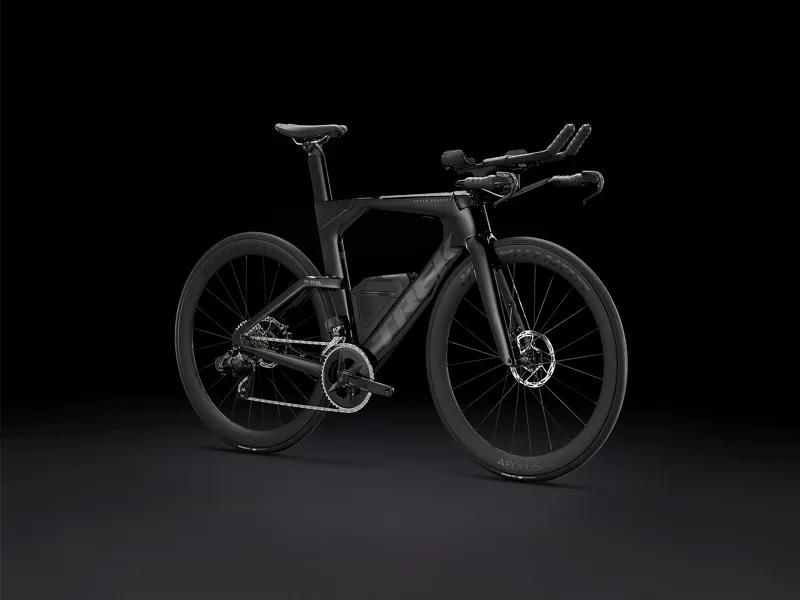

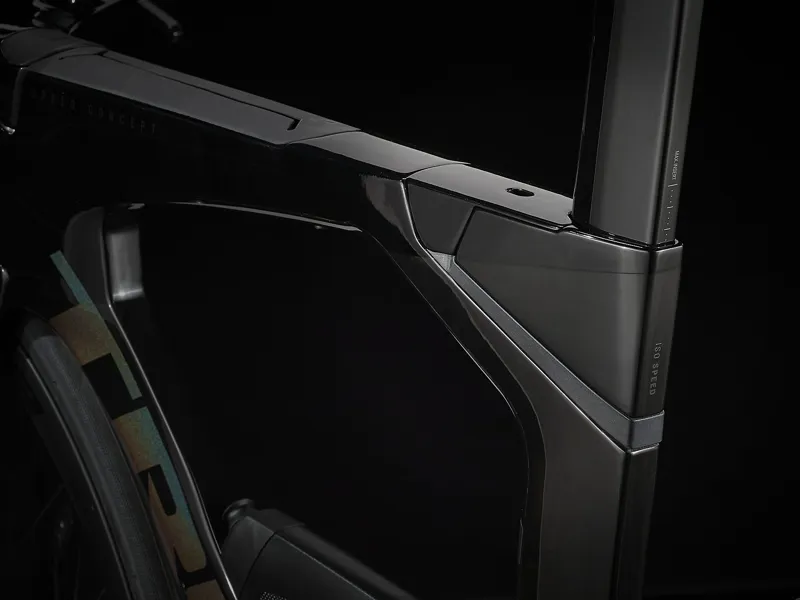

Frame
800 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, T47 BB, integrated Bento box, integrated downtube storage
Fork
SC full foil carbon, integrated brake & stem
Frame fit
Triathlon
Wheel front
Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12mm thru axle
Wheel rear
Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, SRAM XD-R driver, 142x12mm thru-axle
Skewer front
Bontrager Switch thru-axle, removable lever
Skewer rear
Bontrager Switch thru-axle, removable lever
Rim
Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12mm thru axle
Tyre
Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25 c
Max tyre size
28c rear, 25c front
Shifter
SRAM eTap Clics, 12-speed
Front derailleur
SRAM Rival eTap AXS, braze-on
Rear derailleur
SRAM Rival eTap AXS
Crank
Size:S
SRAM Rival AXS Power Meter, 48/35, DUB, 170mm length
Size:M, L
SRAM Rival AXS Power Meter, 48/35, DUB, 172.5mm length
Size:XL
SRAM Rival AXS Power Meter, 48/35, DUB, 175mm length
Bottom bracket
SRAM DUB, T47 threaded, internal bearing
Cassette
SRAM XG-1250, 10-36, 12-speed
Chain
SRAM Rival, 12-speed
Max. chainring size
2x: 55/42
Saddle
Bontrager Hilo Comp, hollow chromoly rails
Seatpost
Size:S
Speed Concept SLR, 11.5mm or -20mm offset, short length
Size:M, L, XL
Speed Concept SLR, 11.5mm or -20mm offset, tall length

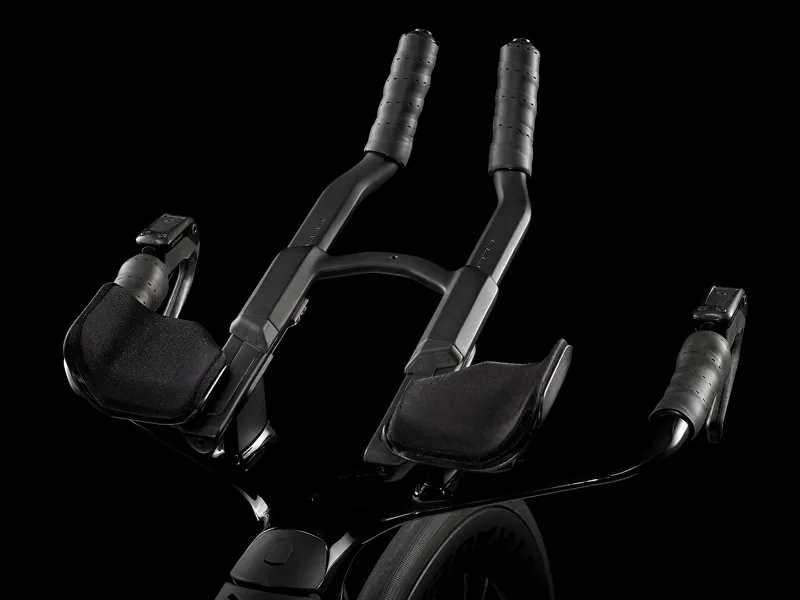

Handlebar part
Size:S, M
Speed Concept 30 mm Base Tower
Size:S, M, L, XL
Speed Concept 45 mm Base Tower
Size:S
Speed Concept Cockpit Tower Topper Near
Size:M, L, XL
Speed Concept Cockpit Tower Topper Mid
Size:L, XL
Speed Concept 60 mm Base Tower

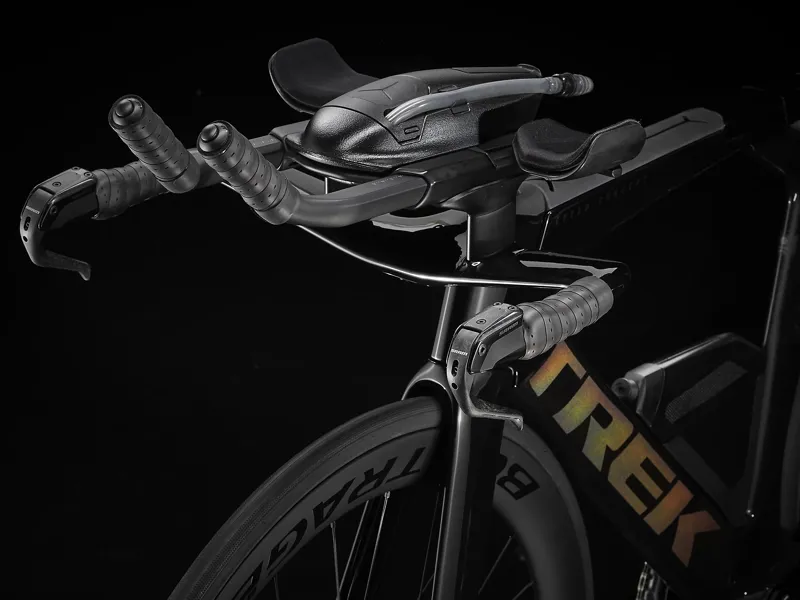

Integrated Bar Stem
Speed Concept mid-rise bar/stem
Handlebar tape
Bontrager Supertack Perf tape

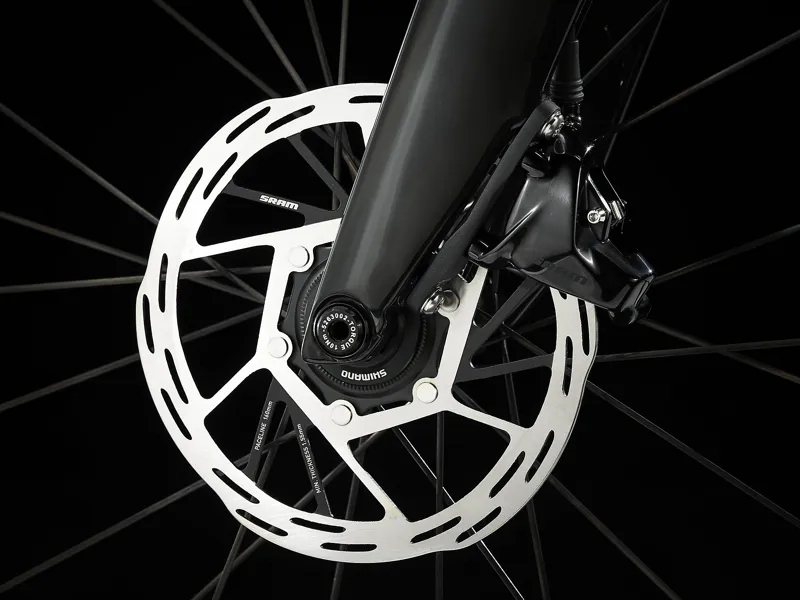

Brake rotor
SRAM Paceline, rounded, CenterLock, 160 mm
Rotor size
Max brake rotor sizes: 160 mm front and rear
Battery
SRAM eTap battery pack (with charger)
Cage
Speed Concept Downtube Bottle Cage
Bottle
Speed Concept Downtube Bottle
Weight
M - 9.55 kg / 21.06 lbs
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
