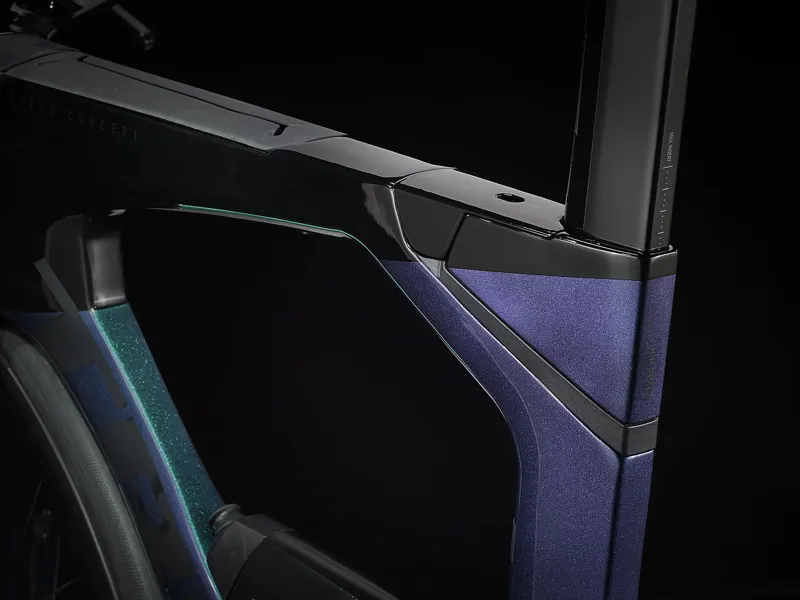

Frame

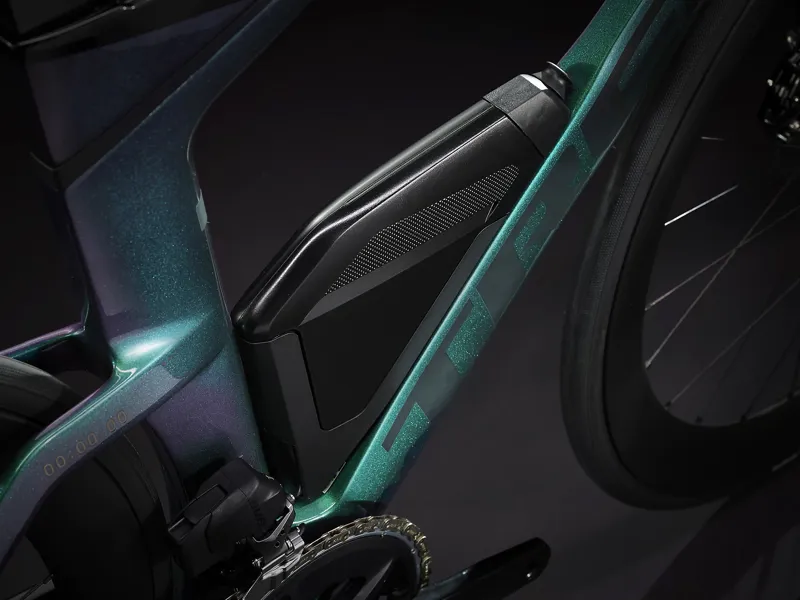

800 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, T47 BB, integrated Bento box, integrated downtube storage
Fork
SC full foil carbon, integrated brake & stem
Frame fit
Triathlon
Wheel front
Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12mm thru axle
Wheel rear
Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, SRAM XD-R driver, 142x12mm thru-axle
Skewer front
Bontrager Switch thru-axle, removable lever
Skewer rear
Bontrager Switch thru-axle, removable lever
Rim
Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless-Ready
Tyre
Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25 c
Max tyre size
28c rear, 25c front
Shifter
Size: S, M, L, XL
SRAM eTap Clics, 12-speed
Size:S, M, L, XL
SRAM eTap AXS Wireless Blips
Front derailleur
SRAM Rival eTap AXS, braze-on
Rear derailleur
SRAM Rival eTap AXS

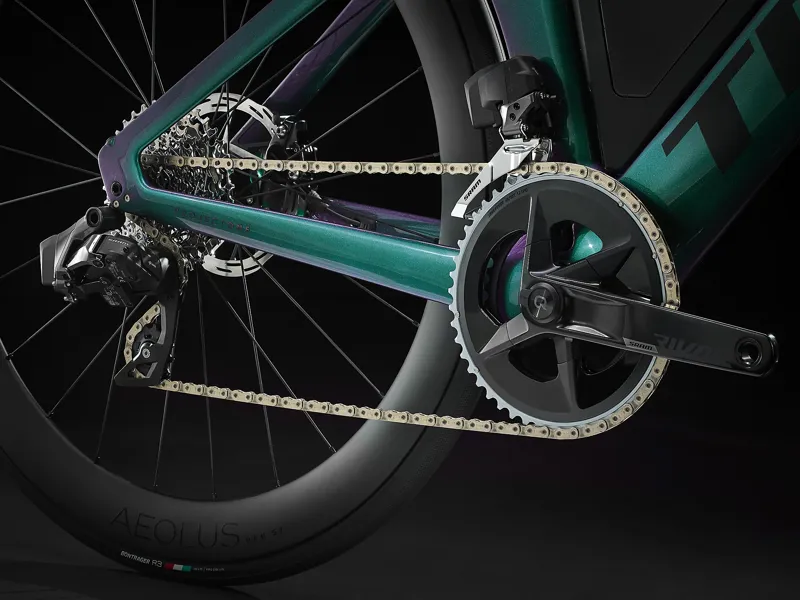

Crank
Size: S
SRAM Rival AXS w/ power meter, 48/35, DUB, 170 mm length
Size:M, L
SRAM Rival AXS w/ power meter, 48/35, DUB, 172.5 mm length
Size:XL
SRAM Rival AXS w/ power meter, 48/35, DUB, 175 mm length
Bottom bracket
SRAM DUB, T47 threaded, internal bearing
Cassette
SRAM XG-1250, 10-36, 12 speed
Chain
SRAM Rival, 12 speed
Max. chainring size
2x: 55/42
Saddle
Bontrager Hilo Comp, hollow chromoly rails
Seatpost
Size:S
Speed Concept SLR, 11.5mm or -20mm offset, short length
Size:M, L, XL
Speed Concept SLR, 11.5mm or -20mm offset, tall length

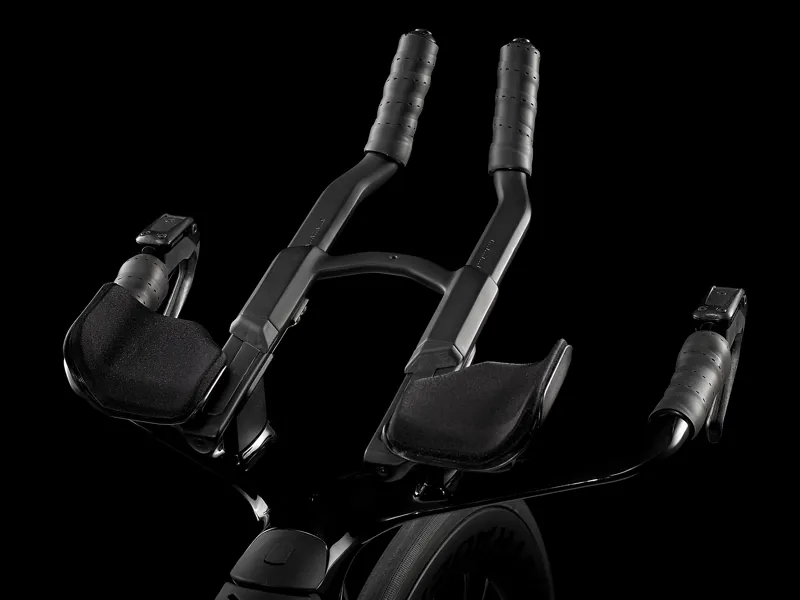

Handlebar part
Size: S, M
Speed Concept 30 mm Base Tower
Size:S, M, L, XL
Speed Concept 45 mm Base Tower
Size:S
Speed Concept Cockpit Tower Topper Near
Size:M, L, XL
Speed Concept Cockpit Tower Topper Mid
Size:L, XL
Speed Concept 60 mm Base Tower

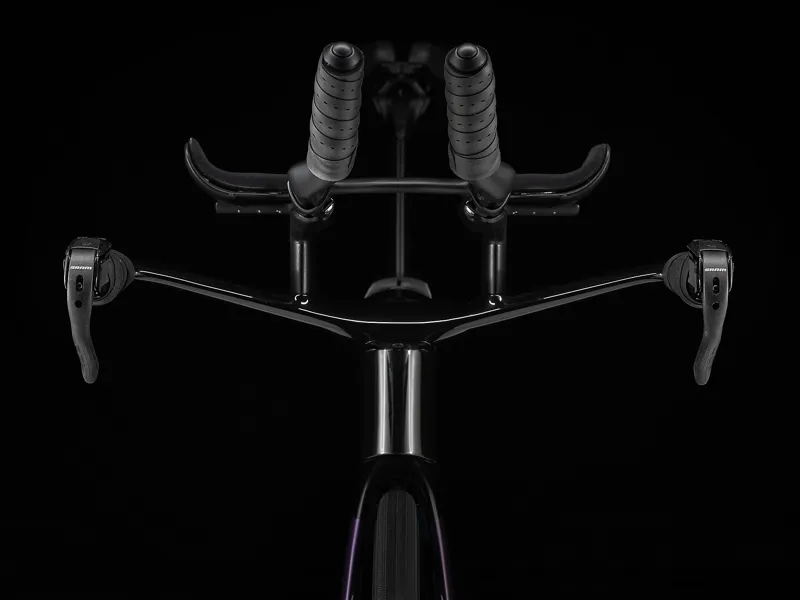

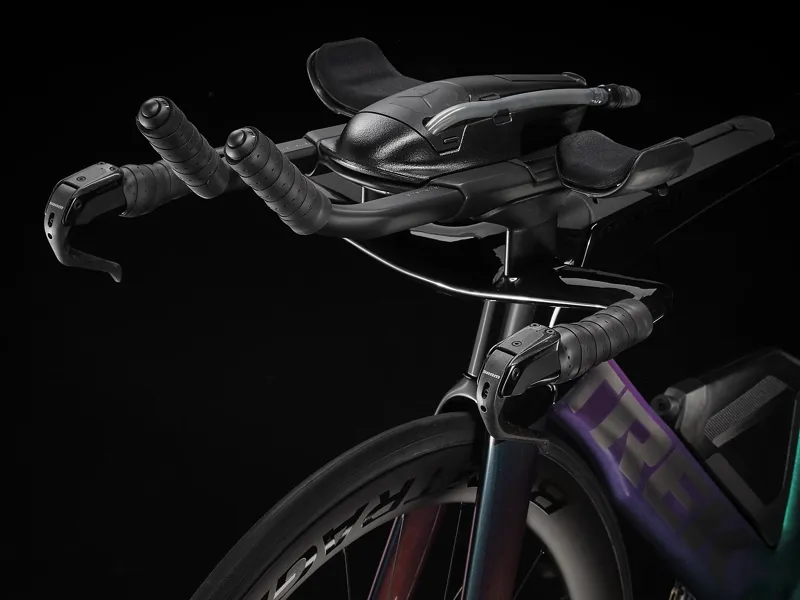

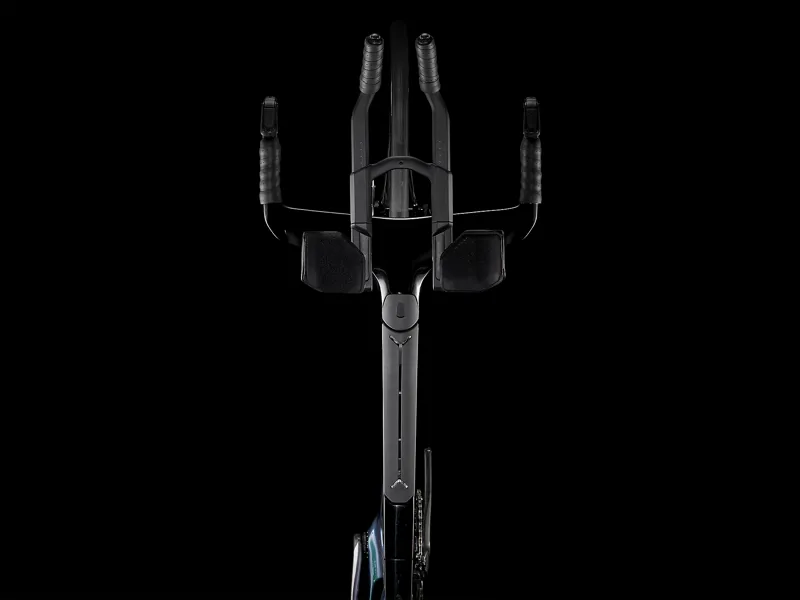

Handlebar/stem (integrated)
Speed Concept mid-rise bar/stem
Handlebar tape
Bontrager Supertack Perf tape

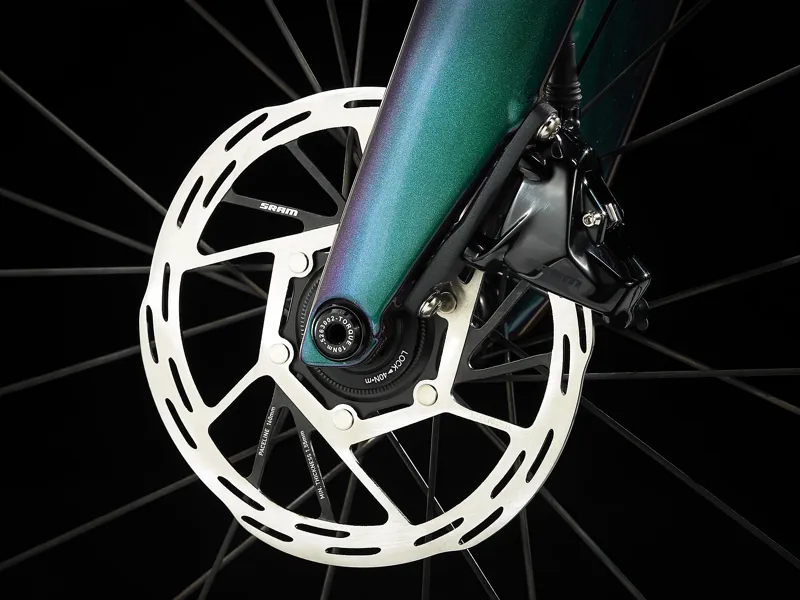

Brake rotor
SRAM Paceline, rounded, CenterLock, 160 mm
Brake lever
SRAM S-900 Aero
Rotor size
Max brake rotor sizes: 160 mm front and rear
Battery
SRAM eTap battery pack (with charger)
Cage
Speed Concept Downtube Bottle Cage
Bottle
Speed Concept Downtube Bottle
Weight
M – 9.55 kg/21.06 lb
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
